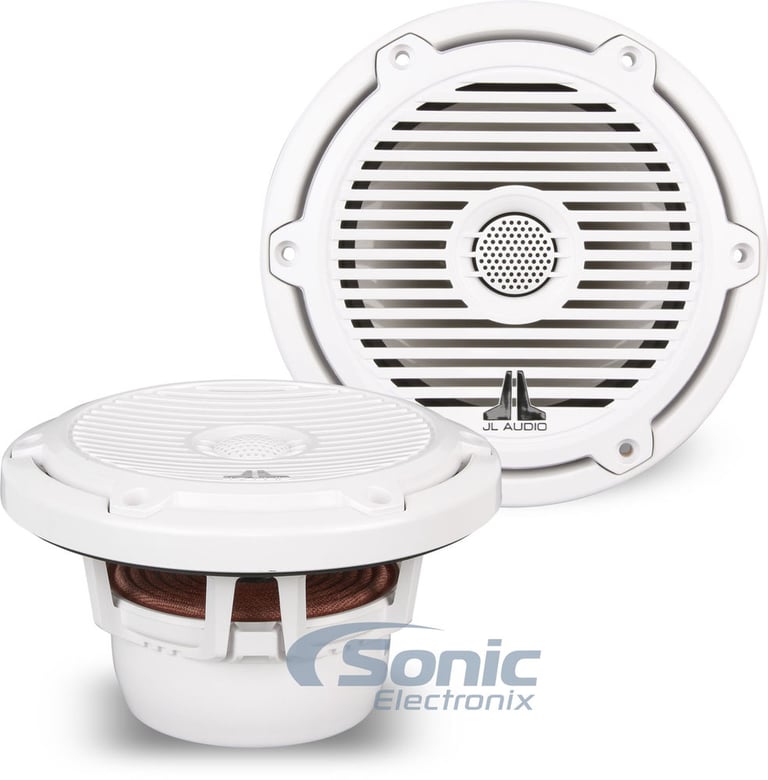

JL Audio M650-CCX-CG-WH - White with Classic Grilles

150W 6-1/2" (165 mm) 2-Way M-Series Marine Cockpit Coaxial System

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

• 75 Watts RMS Each
• 1.00" pure silk dome tweeter
• Injection-molded, mica-filled polypropylene cone with UV inhibitors w/ Synthetic rubber surround
• 4 Ohm Impedance
• Sensitivity: 89.5 dB
• Mounting Depth: 2.95 "

Learn more about the m650ccxcgwh

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Product Highlights


• 75 Watts RMS Each
• 1.00" pure silk dome tweeter
• Injection-molded, mica-filled polypropylene cone with UV inhibitors w/ Synthetic rubber surround
• 4 Ohm Impedance
• Sensitivity: 89.5 dB
• Mounting Depth: 2.95 "

Description


JL Audio brand icon

Authorized dealer

JL Audio M650-CCX

JL Audio 6½" M-Series Marine Cockpit Coaxial System

CCX (aka Cockpit Coaxial) models have woofers specifically designed for infinite-baffle applications. In plain english, this means that they are designed to operate without an enclosure. More specifically, the woofer design is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 57 l). The bass response of the speaker will suffer significantly if placed in a small enclosure, so make sure your system is planned accordingly. The M-Series is purpose-engineered and built for real marine duty and has been specifically designed to deliver maximum audio performance in any open-air boating environment. Although M650-CCX Coaxial Systems can be used with as little as 25 W per channel, for best audio performance JL Audio recommends amplifiers capable of between 75-150 Watts of continuous power per channel, like the JL Audio M400/4 or JL Audio MHD600/4.

1-inch pure silk dome tweeter

High Performance Highs

A 1-inch pure silk dome tweeter handles the high-frequency duties. Silk has been chosen for its lightness, excellent damping properties and smooth response characteristics that ultimately result in extremely transparent crisp audio. You will appreciate the clean, articulate high-frequency response of the M-Series dome tweeter, especially at higher volume levels. The tweeter is specially treated to withstand the harsh marine environment, and is optimized to provide sound that will cut through even the most demanding of those marine environments.


True Marine Tested Design

True Marine Tested Design

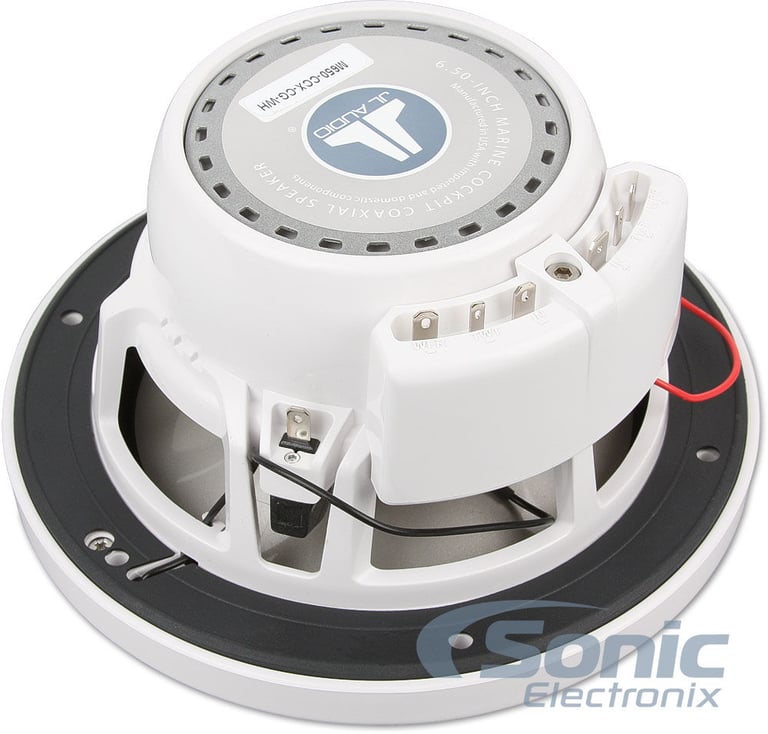

Specifically engineered polymer baskets are corrosion and UV-resistant and encapsulate the woofer's motor system to prevent corrosion. The system's true 2-way passive crossover network is sealed within the protective capsule and mounted to the woofer's frame so that it does not require additional mounting provisions and is protected from the harmful elements. JL Audio utilizes Ultraviolet testing chambers (to simulate years of sun exposure) and Salt Fog chambers (to simulate years of exposure to salt-water environments to ensure that the M-Series not only sound great in your boat, but will also sound great for many, many years.




General Features:





  • 6-1/2" 2-Way M-Series Marine Cockpit Coaxial System
  • Power Handling:
    • RMS: 150 watts per pair / 75 watts each
    • Recommended Power Range: 25 - 150 watts RMS each
  • Color: White Frame w/ White Classic Grille
  • Injection-molded, mica-filled polypropylene cone with UV inhibitors
  • Synthetic rubber surround
  • 1.00" pure silk dome tweeter
  • 1.00" (25 mm) voice coil
  • Low-profile/ progressive-roll spider
  • DMA-optimized, long excursion design
  • Centrex® UVresistant polymer baskets and grilles
  • Polyswitch solid-state tweeter protection
  • True 2-way networks with 1st order low-pass and 2nd order high-pass circuits

  •
  • Top-mount Depth: 2.95" (F)
  • Cutout Dimensions: 5.00" - 5.25" (E)
  • 4 ohm impedance
  • Frequency Response: 55 - 25,000 Hz
  • Sensitivity: 89.5 dB
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
  • Priced Per Pair

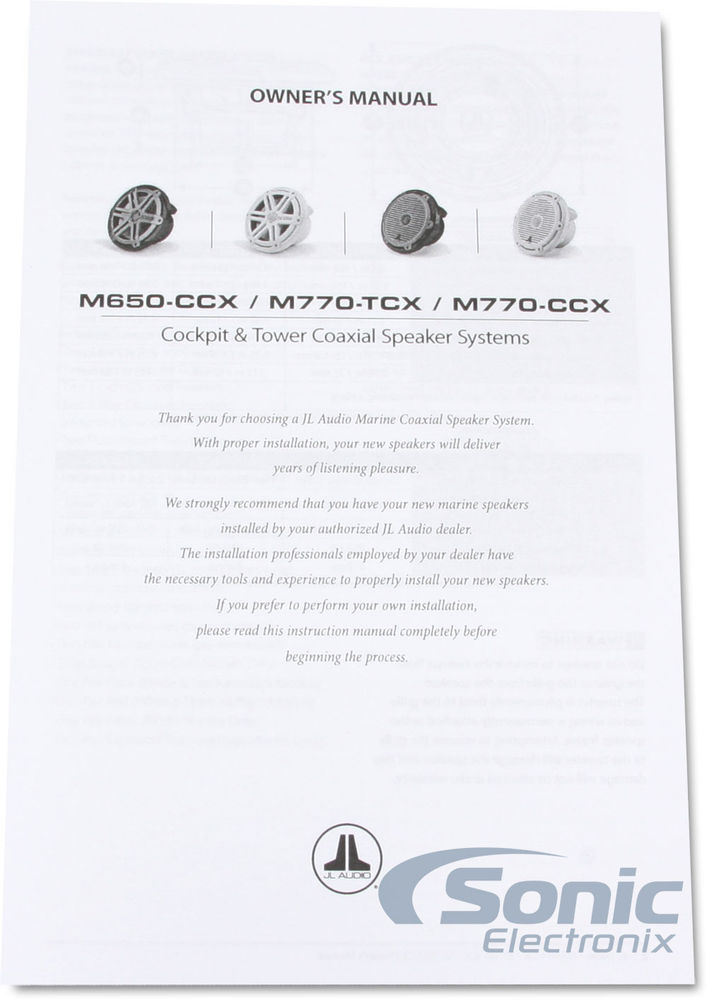

Check out the JL Audio M650-CCX Owner's Manual

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Best selling similar products

DB652 small

Polk Audio DB652 (DB 652)

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(12)

$109.00

List price $119.99

DB402 small

Polk Audio DB402 (DB 402)

• 135 watts Peak Each, 45 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(4)

$90.00

List price $99.99

DB5252 small

Polk Audio DB5252 (DB 5252)

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" dual Silk Dome tweeters
• UV-Resistant Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

(4)

$200.00

List price $209.99

DB462 small

Polk Audio DB462 (DB 462)

• 150 watts Peak Each, 50 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(7)

$90.00

List price $99.99

DB522 small

Polk Audio DB522 (DB 522)

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" Silk Dome tweeters
• UV-tolerant Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

(13)

$100.00

List price $109.99

DB6502 small

Polk Audio DB6502 (DB 6502)

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(8)

$200.00

List price $209.99

51PSC654 small

Kicker PSC65 (51PSC654)

• 120 watts Peak Each, 60 watts RMS Each
• 3/4" Titanium Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 92.5 dB

$159.96

List price $219.99

MM652 small

Polk Audio MM652 (MM 652)

• 300 watts Peak Each, 100 watts RMS Each
• IP56 marine certified, with weep holes for proper drainage
• 1" Terylene Dome pivoting tweeters
• Titanium Coated Composite cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

(9)

$179.00

List price $249.00

MP694 small

Diamond Audio MP694

• 300 watts Peak Each, 150 watts RMS Each
• 1" Horn tweeters
• Impedance: 4 ohm
• Sensitivity: 101 dB

$549.99

List price $539.99

PS65C small

MTX PS65C

• 170 watts Peak Each, 85 watts RMS Each
• Dual Teteron Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB
• Mounting Depth: 2-1/2"

$199.96

List price $219.95

Specifications & Details


Speaker Specifications
Priced Per
Pair
Number of Speakers
2
Speaker Size
6-1/2"
Design
2-way Coaxial
Tweeter Design
Dome
Tweeter Composition
Silk
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Synthetic Rubber
Peak Power Handling
150 watts
RMS Power Handling
75 watts
Sensitivity
89.5 dB
Frequency Response
55 - 25,000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
3"
Cutout Dimensions
5-1/8" x 5-1/8"
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M650-CCX-CG-WH

Weight:

8.00lbs

Internal SKU:

m650ccxcgwh

Internal Product ID:

17484
