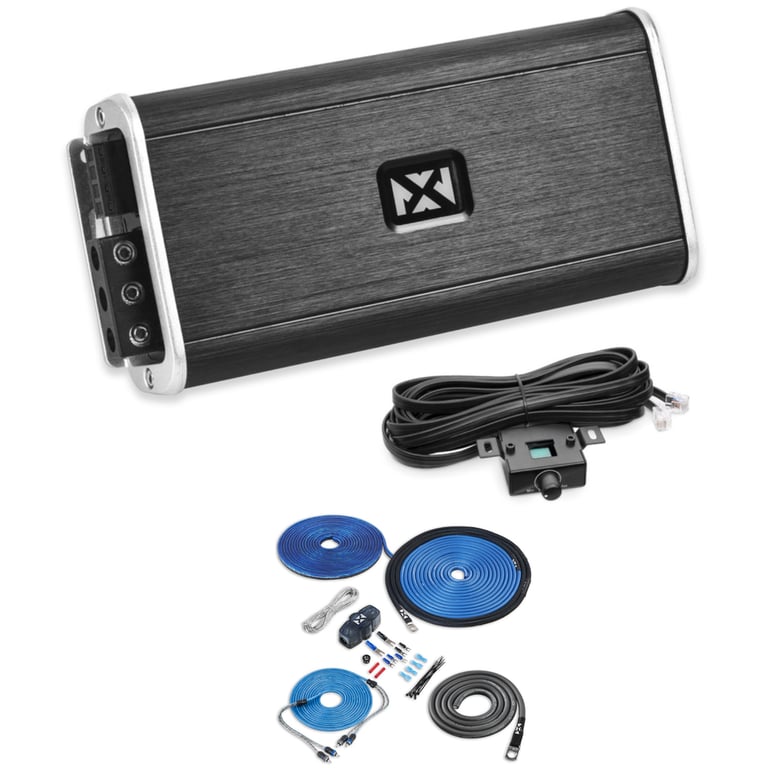

NVX VADM1 with Amplifier Wiring Kit

500W RMS Class D Monoblock Amplifier with Bass Remote

NVX
Shop all NVX
highlight-star-icon

• 500 Watt True RMS Output
• Marine Certified Monoblock Micro Class D Amplifier
• 180W x 1-Chan. @ 4 ohms
• 320W x 1-Chan. @ 2 ohms
• 500W x 1-Chan. @ 1 ohms
• Extremely Small Footprint
• Includes Amplifier Wiring Kit

Learn more about the vadm1_xkit82
Was $379.98 Details
Thanks , You Pay:

$204.98

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one vadm1_xkit82.

Set your vehicle or Return to product page
shipping truck icon
FREE 2-day shipping to VA. Get it Wed, Oct. 4
Quantity
In Stock
Brand new

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7

For over 23 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

AwardWinning
Award-Winning Service
Shipping
FREE Shipping Orders $49+
60Days
60-Day Easy Returns
lowestPrice
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Description


NVX

Authorized dealer

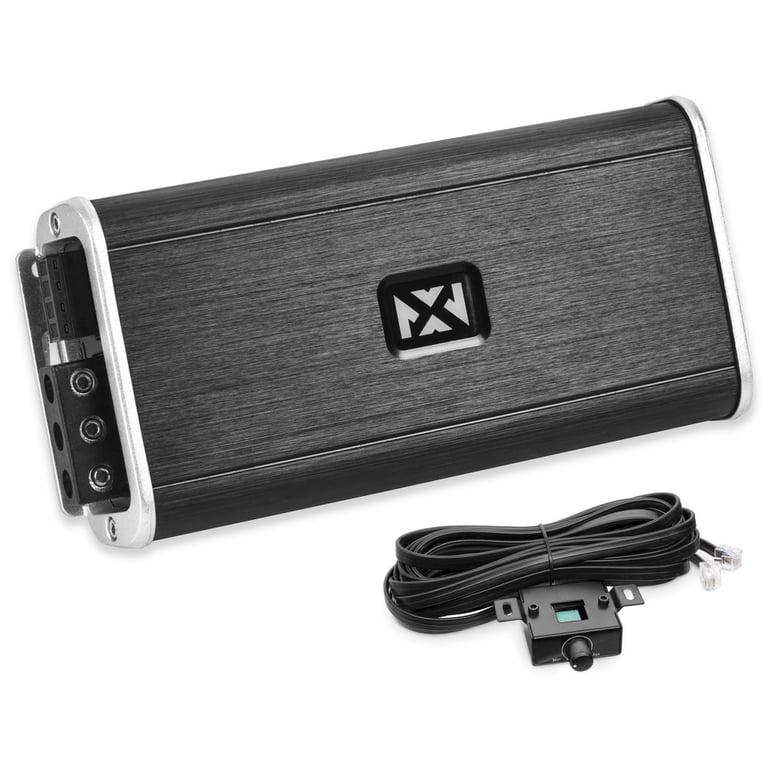

NVX VADM1

500W RMS Class D Monoblock Car/Marine/Powersports Amplifier with Bass Remote
Quantity: 1

Product Details:

  • Marine Certified 1-Channel Class D Car Amplifier
  • Peak Power Rating: 1000 Watts
  • RMS Power Rating:
    • 4 ohms: 180 watts x 1 channel
    • 2 ohms: 320 watts x 1 channel
    • 1 ohm: 500 watts x 1 channel

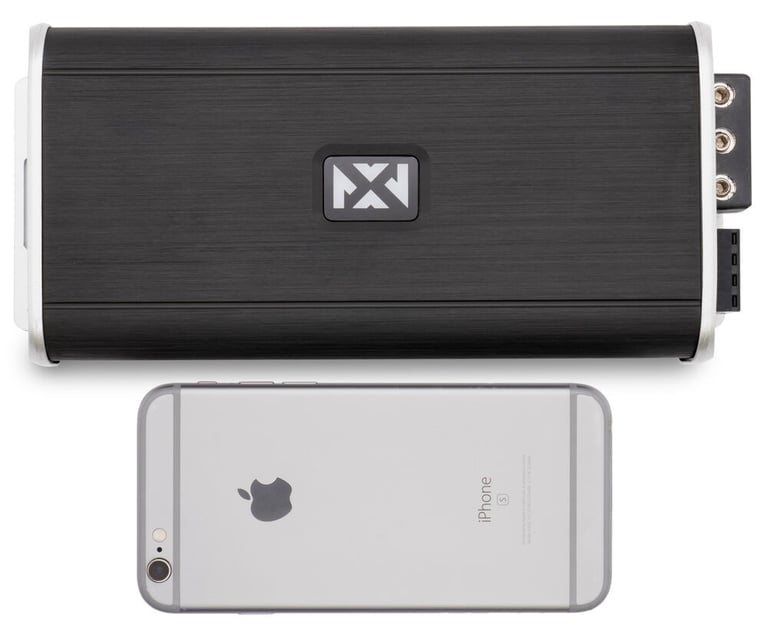

  • Cutting edge Micro Class D technology allows amplifier to be extremely compact

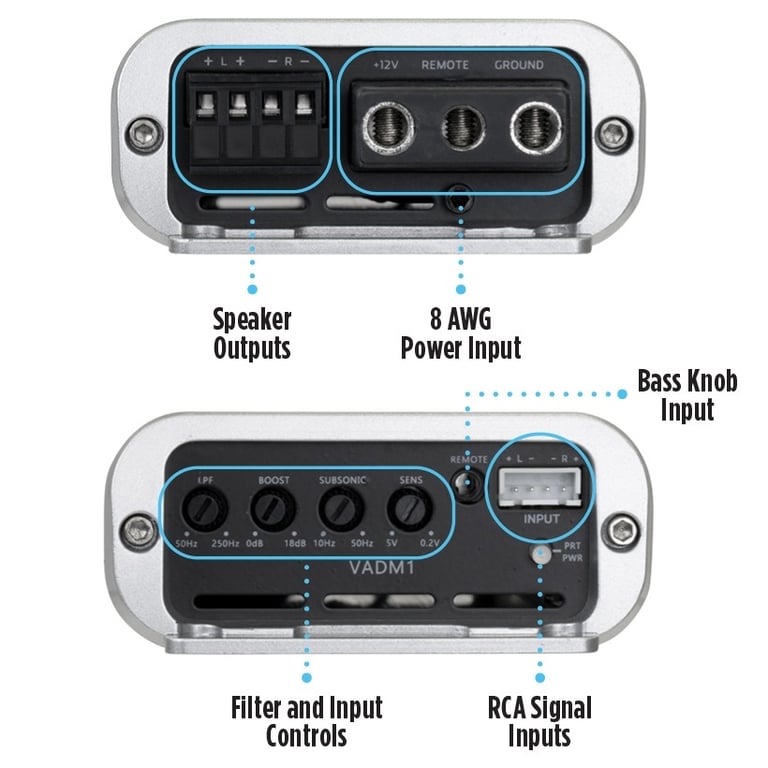

  • LED power (blue) and protect (red) indicators
  • Conformal Coated Marine grade circuit board
  • Balanced Differential Inputs, to eliminate noise picked up by signal cables

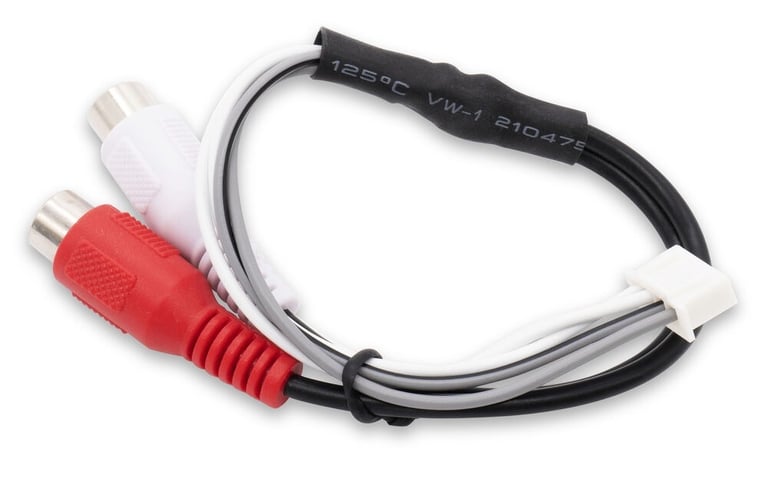

  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity: 0.2V-5V

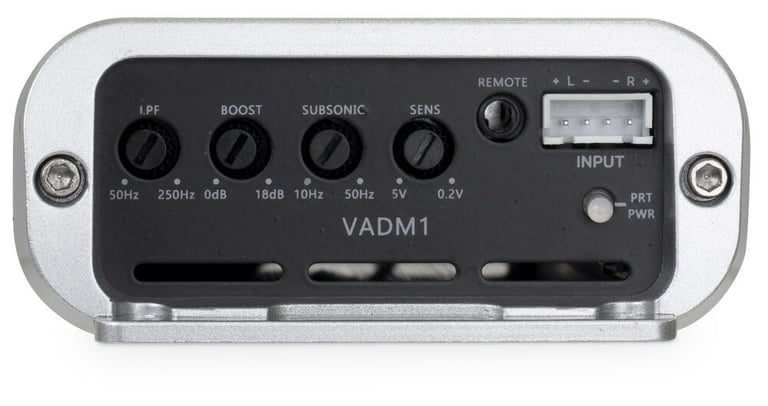

  • Variable low-pass filter (50-250 Hz)
  • Bass Boost: 0 - +18dB boost @ 45Hz
  • Frequency Range : 20 - 20KHz
  • Total Harmonic Distortion: <0.3%
  • CEA-2006 compliant amplifier
  • Dimensions: 6.8"L x 3.3"W x 1.5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
NVX VADM1 owner’s manual

NVX XKIT82

Full Spec 8 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 800 Watts
Quantity: 1

Product Details:

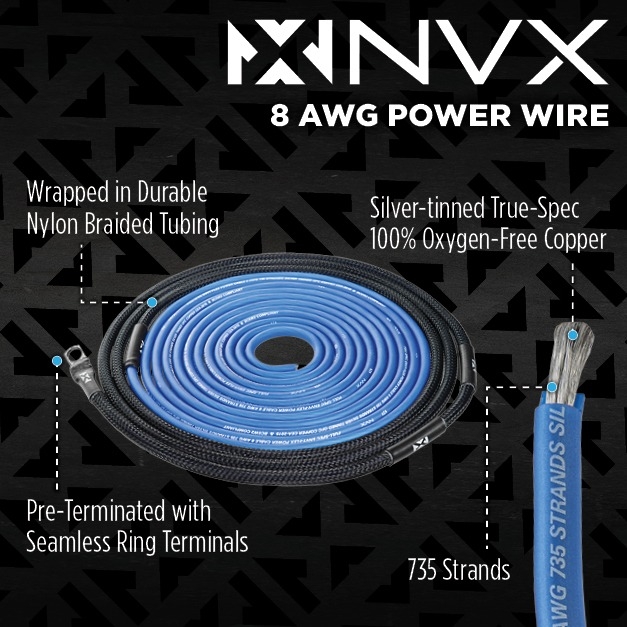

  • 8 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 800 watts RMS
  • Made from 100% (OFC) Oxygen-Free Copper for pure uninterrupted power and current transfer
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects power wire from being damaged
  • Solid Brass and Satin Chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full Spec cables meet or exceed the American Wire Gauge standards
  • Strand Count: 735
  • CEA-2015 and BC5W2 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

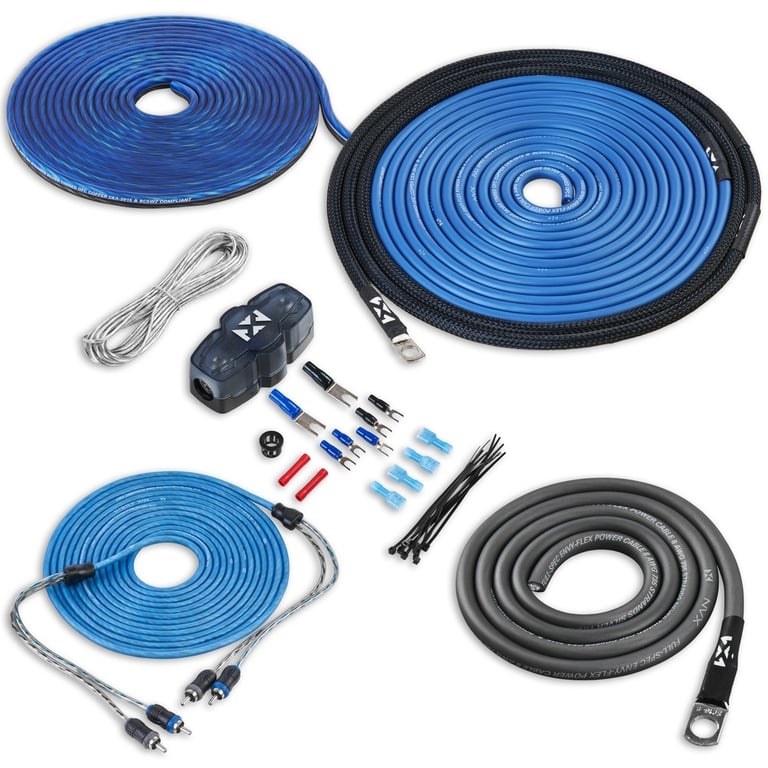

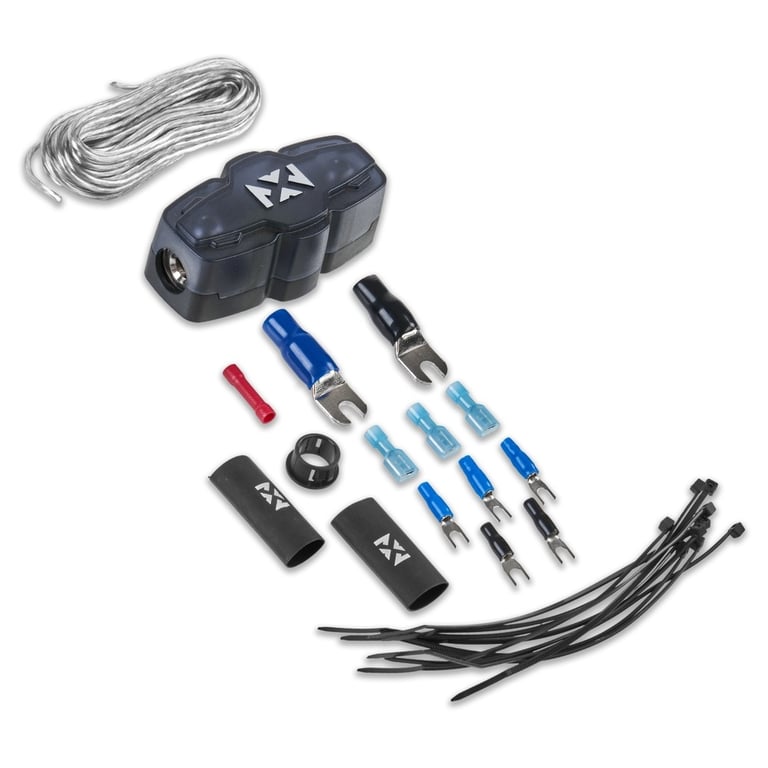

Kit includes:

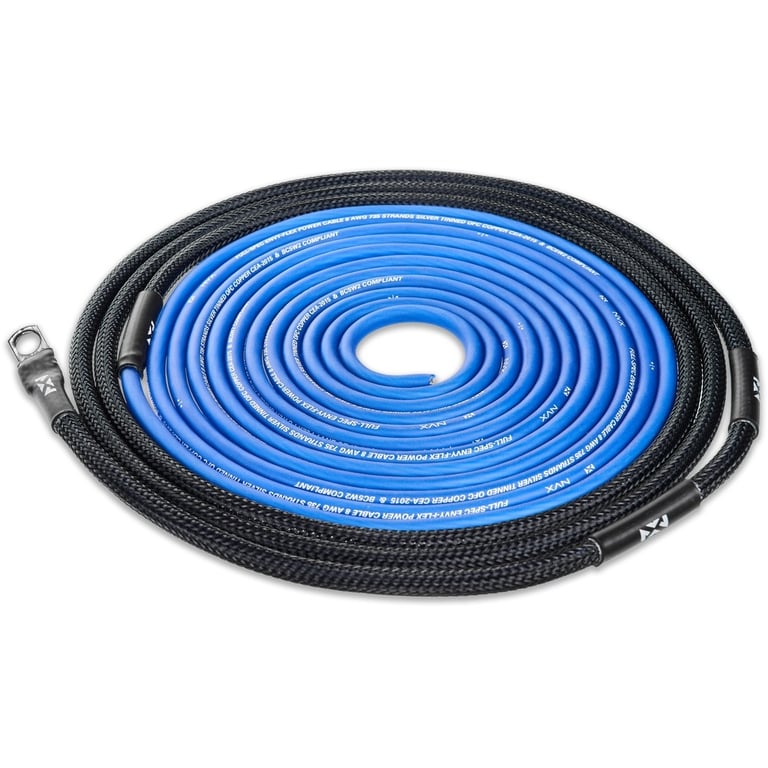

  1. 20 ft. (6.1 meters) Frosted Blue 8 gauge power wire with seamless crimp ring terminal
  2. 3 ft. (.91 meters) Frosted Black 8 gauge ground wire with seamless crimp ring terminal
  3. 20 ft. (6.1 meters) Clear 18 gauge remote lead wire
  4. 40 ft. (12.2 meters) Frosted Black/Blue 16 gauge speaker wire
  5. One 16 ft. (5 meters) 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

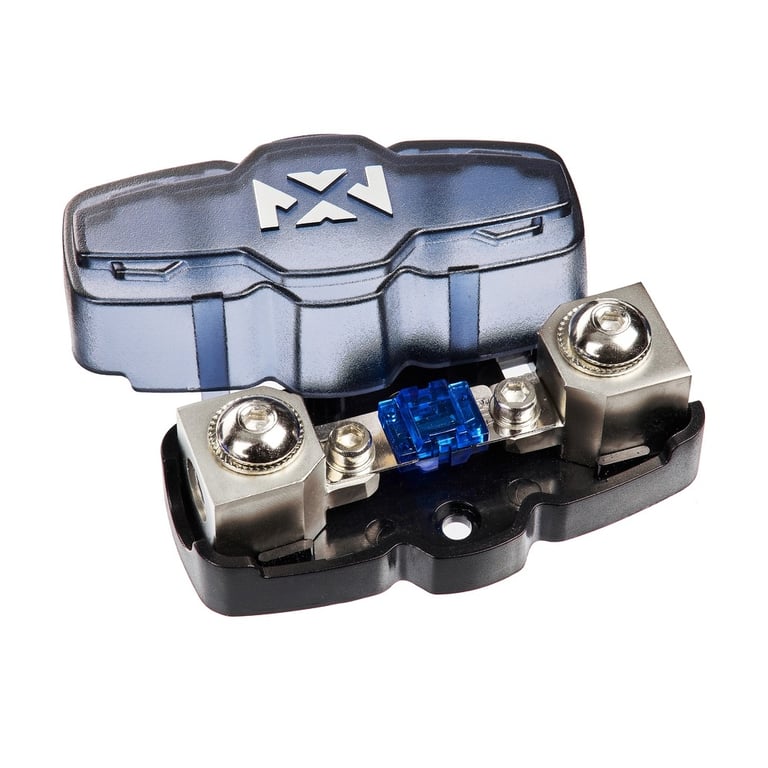

  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Nickel Plated spade terminals
  9. Four 18 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Four 16 Gauge quick disconnect
  12. Five 16 Gauge Nickel Plated spade terminals
  13. Ten 6" Black zip ties

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
180 watts x 1 channel
RMS Power @ 2 ohms
320 watts x 1 channel
RMS Power @ 1 ohm
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1000 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
1 ohms
THD at Rated RMS Power
0.3%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
10 - 20 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 18 dB

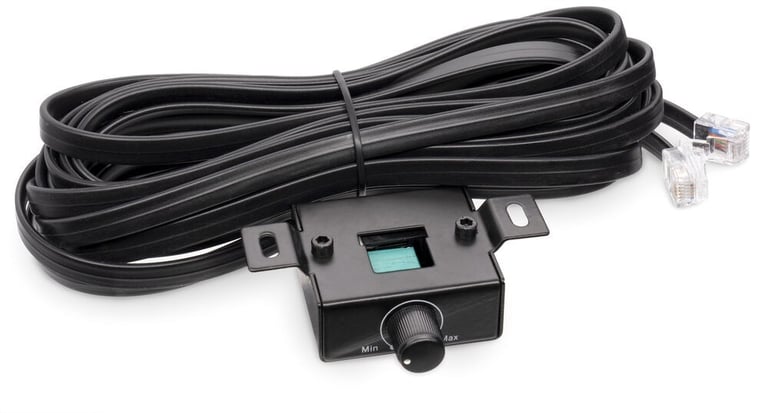

Remote bass/level controller
Yes
Fan Cooled
No
CEA-2031 Compliant
Yes
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
8 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
40 feet
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
AFS
Fuse Size
60A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

XKIT82,VADM1

Weight:

5.88lbs

Internal SKU:

vadm1_xkit82

Internal Product ID:

175017
