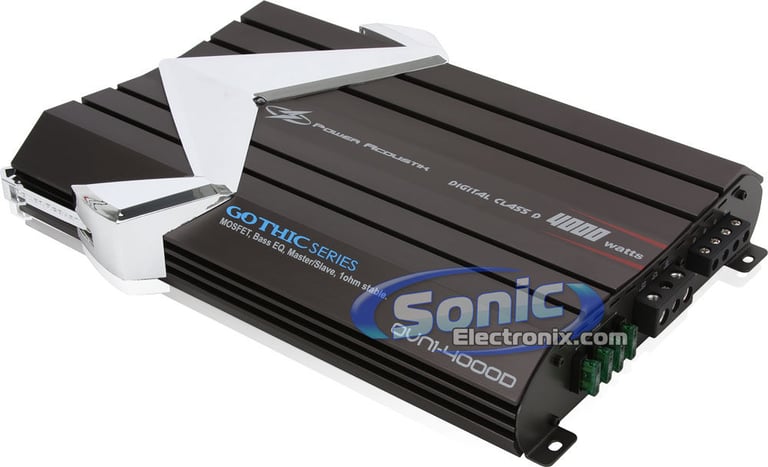

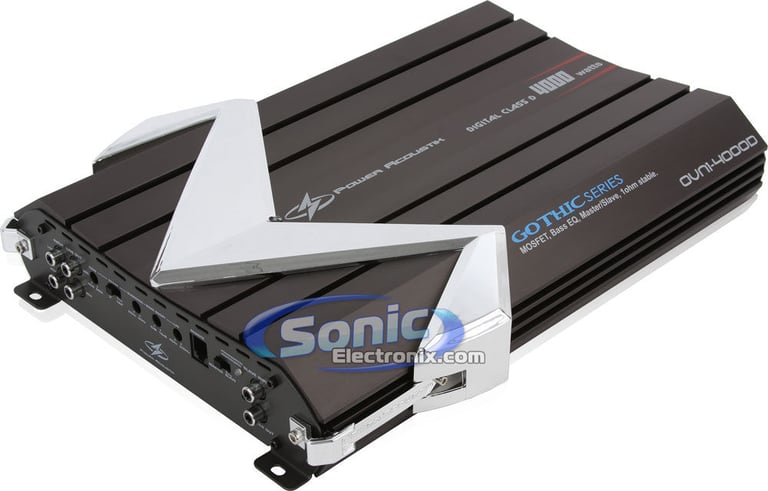

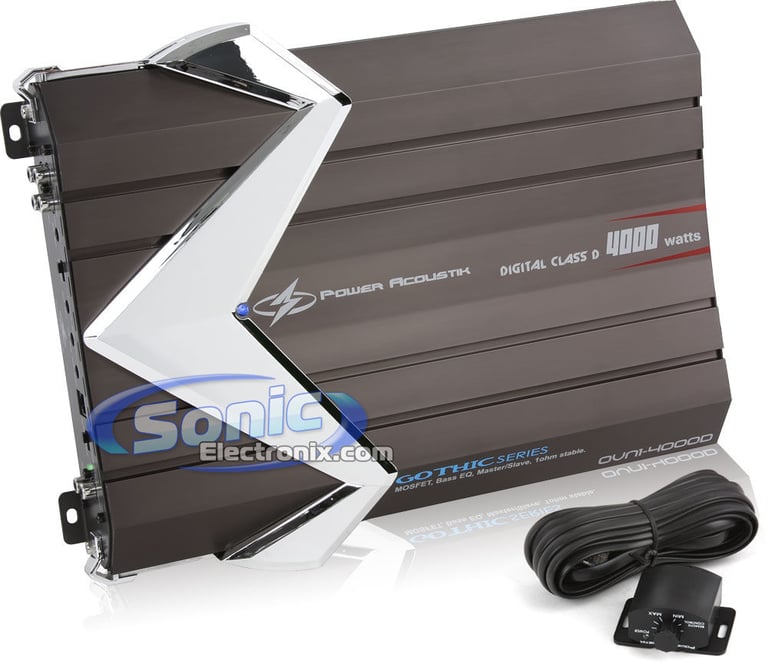

Power Acoustik OVN1-4000D

4000W Max, Class D Monoblock Gothic Series Amplifier

Product videos
highlight-star-icon

Gothic Series Class D Monoblock Car Amplifier • 1200W x 1 Chan. @ 4 Ohm • 1700W x 1 Chan. @ 2 Ohm • 2200W x 1 Chan. @ 1 Ohm • Pulse Width Modulation Circuitry • MOSFET Power Supply • Bridged Synchronization •

Learn more about the ovn14000d

We apologize

This item has been discontinued


Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

72-5600 main

Metra 72-5600

Install New Speakers in select 1993-2017 vehicles from Ford, Mazda, Mercury

107
-33.36%

$9.99

List price $14.99

70-5520 main

Metra 70-5520 Wiring Harness

Install a new car stereo in select 2003-2016 vehicles from Ford, Mercury, Lincoln

56
FMK540 main

American International FMK540

Single DIN or Double DIN Stereo Dash Kit for select 2004-2016 vehicles from Ford, Lincoln, Mercury

14
-71.82%

$10.99

List price $39.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-15.39%

$109.99

List price $129.99

NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

Limited time!
XAV-AX3200 main

Sony XAV-AX3200

6.95" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay, and Android Auto (SiriusXM Ready)

14
-25.50%

$298.00

List price $399.99

VSP69 main

NVX VSP69

900W Peak (300W RMS) 6x9" V-Series 2 Way Coaxial Car Speakers

54
-16.67%

$109.99

List price $131.99

Limited time!
46CSC684 main

Kicker CSC68 (46CSC684)

450W Peak (150W RMS) 6x8” CS Series 2 Way Coaxial 4-ohm Speakers

11
-33.36%

$79.96

List price $119.99

Product Highlights


Gothic Series Class D Monoblock Car Amplifier • 1200W x 1 Chan. @ 4 Ohm • 1700W x 1 Chan. @ 2 Ohm • 2200W x 1 Chan. @ 1 Ohm • Pulse Width Modulation Circuitry • MOSFET Power Supply • Bridged Synchronization •

Description


Power Acoustik brand icon

Authorized dealer

  • Gothic Series Class D Monoblock Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 1200 watts x 1 chan.
    • 2 ohm: 1700 watts x 1 chan.
    • 1 ohm: 2200 watts x 1 chan.
  • Max power output: 4000 watts
  • MOSFET power supply

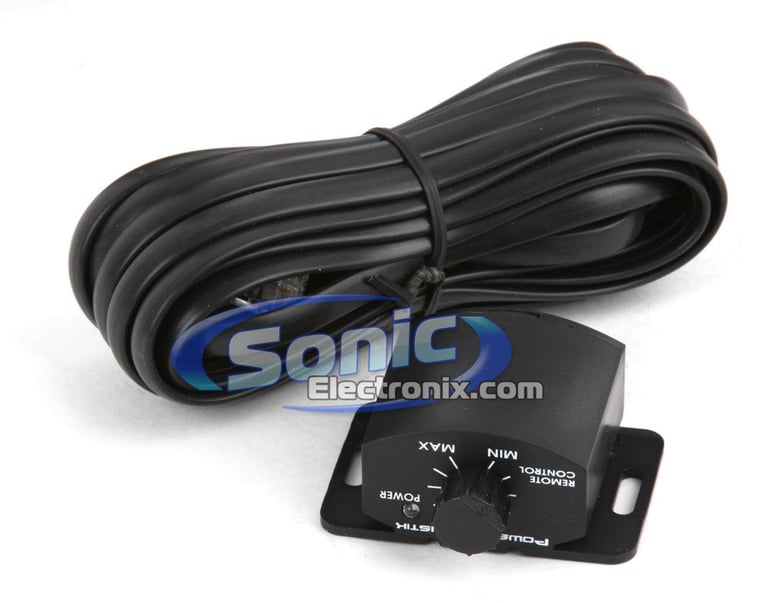

  • Wired remote bass level control included
  • LED power indicators
  • Bass Boost (0-18 dB bass boost at 45 Hz)
  • 180 Degree phase shift
  • Pulse width modulation circuitry
  • Mono channel operation
  • Bridged Synchronization (strap amps together to double power)
  • Preamp RCA outputs
  • 3-Way system protection circuitry (short, thermal and overload)
  • Gunmetal gray anodized finish with chrome accents
  • Heavy duty aluminum alloy heatsink

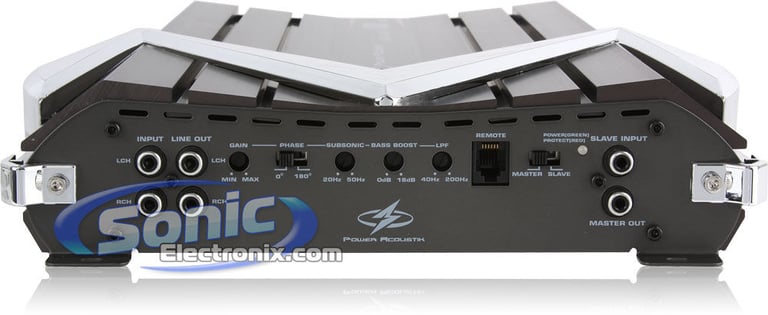

  • RCA level inputs

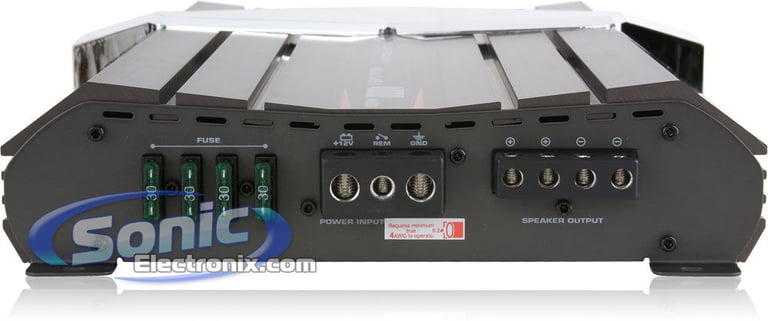

  • Screw terminals
  • Low level inputs (200mV-8V)
  • Variable low-pass filter (40-200 Hz, 12 dB/octave)
  • Subsonic Filter (12 dB at 20-50 Hz)
  • Frequency response: 15-150 Hz
  • Dimensions: 14-7/8"L x 10-5/8"W x 3"H
  • 1/0-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product history:

Power Acoustik OVN1-4000D thumbnail
(newest, current model)
Power Acoustik OV1-4000D thumbnail
(previous model, replaced by Power Acoustik OVN1-4000D)

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1200 watts x 1 channel
RMS Power @ 2 ohms
1700 watts x 1 channel
RMS Power @ 1 ohm
2200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
4000 watts
Total RMS Power Output
2200 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
THD at Rated RMS Power
.5%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 200 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

OVN1-4000D

Weight:

15.00lbs

Internal SKU:

ovn14000d

Internal Product ID:

17528

Product and How-to Videos


Customer Ratings & Reviews


Power Acoustik OVN1-4000D thumbnail image

5 star
56%
4 star
17%
3 star
0%
2 star
6%
1 star
22%



Durability
3.9
Value
4.2
Features
4.1
Design
4.4
Usability
4.3

Customer Reviews

Sort by:

Loading...

Huge Bang for the Buck!

For my system, I used 4 PA FUBR 12s and ran them with a US amps 400x (rated at 1500 watts x1) anyone who knows US amps knows they are underrated and extremely good amps. But the US amps is a class A/B and the problem was it drew so much power for how little sound I got out. I could never push my 12s the way I wanted to. So I decided to get 4 of these amps from Power Acoustik. Let me just tell you this, so far I've only hooked up 2 and I really should've saved my money because 2 would've been plenty!!! My system is SO much louder now and draws WAY less power. These amps are crazy efficient! put it this way, before, a 30hz test tone at 120 db was drawing 55 amps with the US amps amplifier. Now that same 120 db at 30hz draws under 10 amps! HUGE difference!
Only thing I'd warn you about with this amp is DO NOT use the "master/slave" option. the output levels are not the same from one amp to another (2 whole DB!) and the phase is over 20 degrees off!! if you dont know what that means its a very bad thing when running multiple subs and amps trust me! just use Y adapters and set the gains yourself.
Other than that, GREAT AMP!!!

By Selfproclaimdpro on December 30, 2009

11 found this helpful


not good!!!!!!!!!!!!!!!!

I would not recommend this amp because, it burnt out 2 months after installation. I sent it back & it was replaced & it went out 2 weeks after installation.

By rekesia on August 16, 2011

9 found this helpful


Great Amp

I had this amp with an Planet audio 10 farad Cap running two 12" alpine type R's in a big ported box at half gain. They were pounding but turned the gain to about 3/4 and sounded super crisp and clean hard hitting highs mids and lows. But the best part is that this amp blew both of my woofers. I always underrated the amp but now I'm a true believer.

By corey on January 13, 2011

8 found this helpful


junk

I wouldn't recommend this amp because its over rated. I used this to power my two 12 inch kicker L7s i could smell this thing cooking then it over heated so i tried one sub and it pounded pretty good. Then it just burns out didnt even blow the fuses i guess if your gonna get top of the line subs might as well get a good amp too.

By kicker for life on January 12, 2012

7 found this helpful


High Quality Amplifier...

Very powerful amplifier at a very reasonable price. Even at high volume levels, this amplifier only gets slightly warm to the touch. Obviously, it is quite a good looking amplifier as well. I am very satisfied with this amplifier and in all the Power Acoustik products I have purchased thus far. As always, kudos to Sonic for being the king of the car audio online world.

By Indio on June 9, 2010

7 found this helpful


great amp

This amp pushes out the full power I have it running a 12 solo L5 and 2 kicker comp 15's this thing pushes them hard i haven't had any problem with it getting too hot or overheated its mounted on the backside of my trunk ive ran it for 2 hours straight and its gotten a little warm

if your buying this amp you might also wanna invest in a new or extra battery if you want to get the full watts out of it i have a SHURiKEN 2600 amp battery powering it

By K17 on April 24, 2010

7 found this helpful


clean power

i loved this amp produced some nice power and totally reliable. i am running three ten inch subs 500 rms each and did it with power to spare. sonic is a great place to do business.

By bobst on January 13, 2010

7 found this helpful


Power acoustic 4000d

Great product, fast shipping great to do business with

By Tony on June 7, 2011

6 found this helpful


Great amp!

I have this amp pushing two 12's 1100rms to each sub. Slams very very hard. Never gets hot, and comes with bass remote. And it looks cool! Overall great amp and i am very pleased with Power Acoustik

By Connor on March 27, 2011

6 found this helpful


Power Acoustik OVN1-4000D

My name is Nigel i will let people know this amp is a really good deal. It plays awesome I have this amp since 2009 in my SUV and it's still going. I have it hook up with 4 power acoustik 12" subs and i love it. Thank you Sonic, you have the best deals out there! I will sure keep shoping with you all.
Nigel S.

By A.K.A pimping on December 4, 2011

5 found this helpful




KFC-XW800F small

Kenwood eXcelon KFC-XW800F

600W Peak (150W RMS) 8" eXcelon Series Single 4-ohm Shallow Car Subwoofer

(5)

$199.99

List price $200.00

SK-MBT-55 small

Shuriken SK-MBT-55

AGM 12V Marine Grade Battery

$269.99

List price $329.99

TS-W257D4 small

Pioneer TS-W257D4

1000W Max, 10" Dual 4 ohm Champion Series Subwoofer

(6)

$69.99

List price $134.99

V8-MANL125 small

T-Spec V8-MANL125

V8 Series 125A Nickel Plated MANL Fuses (2)

(2)

$4.99

List price $5.99

GM-6400F small

Pioneer GM-6400F

600W Max, 4-Channel Amplifier

(17)

$124.99

List price $219.99

09PK8 small

Kicker PK8 (09PK8)

8 Gauge Power Amplifier Installation Kit

(10)

$26.95

List price $79.95

HFi1000.1D small

Hifonics HFi1000.1D

1000 Watt RMS Class D Monoblock HFi Series 1-Ohm Stable Subwoofer Amplifier

(153)

$139.99

List price $499.99

HDJ-500-K small

Pioneer HDJ-500 - Black

Over-Ear Professional DJ Headphones with Swiveling Ear Cup (Silver and Black)

(6)

$89.99

List price $125.00

CPT1-2200D small

Power Acoustik CPT1-2200D-OPEN BOX

2200W Max, CRYPT Series Class D Monoblock Amplifier

$79.99

List price $349.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1985 Chevrolet Astro

2008 Ford Fusion

2002 Dodge Ram 2500

1971 Chevrolet Caprice

2000 Volkswagen Golf

2002 Saab 9-3

2001 Suzuki XL-7

2015 Lincoln Navigator

2007 Lexus RX400h

2011 Audi A6

Vehicle
Store
Delete

2018 Can-Am Defender DPS HD5

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
