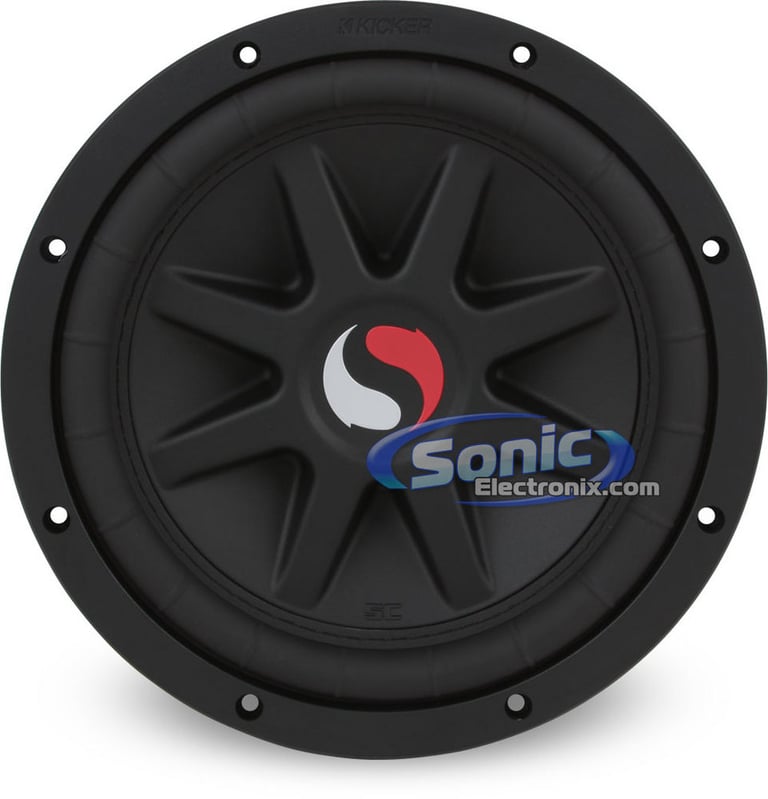

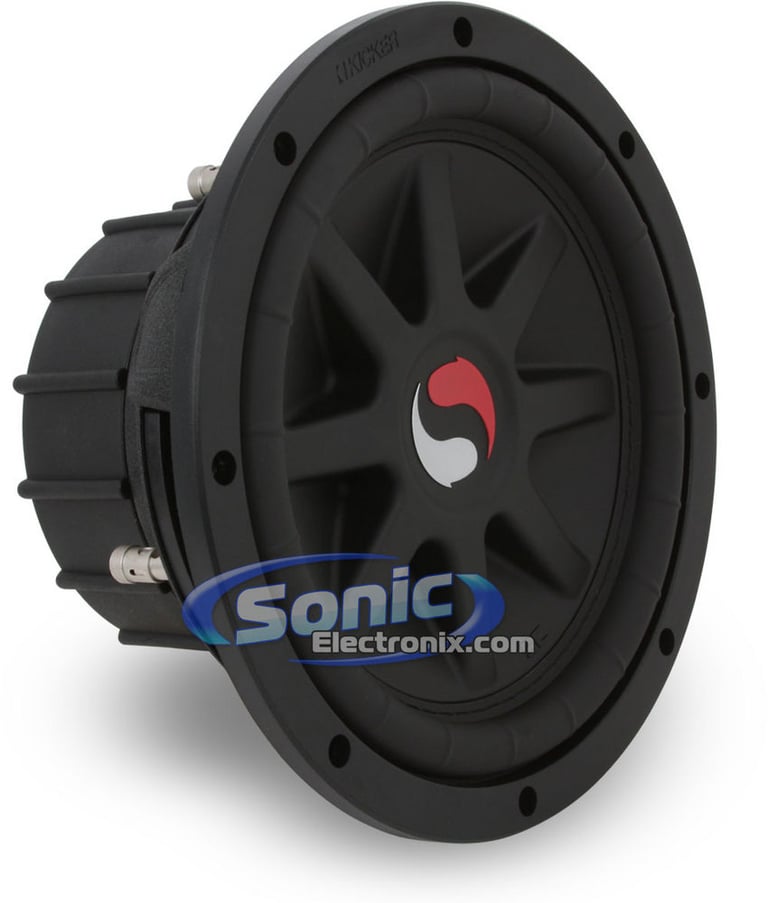

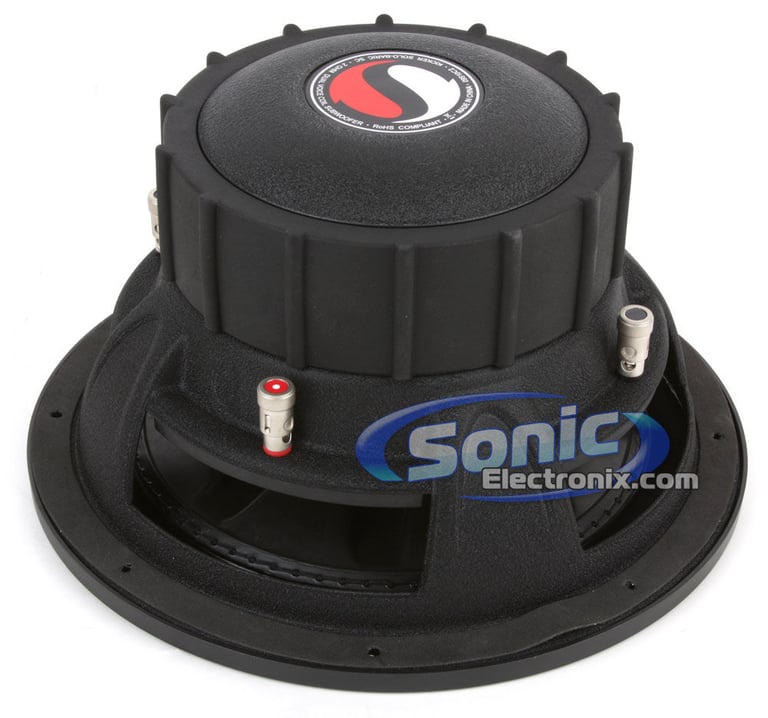

Kicker S10C4 (09S10C4)

10" Dual 4 ohm Solo Classic Series Car Subwoofer

Kicker
Shop all Kicker
Product videos
highlight-star-icon

10" Solo Classic Subwoofer • 900 Watts Max • 450 Watts RMS • Dual 4 Ohm • Polyimide Voice Coil • Single Piece SoloKon • Stitched and Glued Tinsel Leads • Recommended Sealed Box Volume: 0.66 Cubic Feet

Learn more about the 09s10c4

We apologize

This item has been discontinued


Loading...
70-1817 main

Metra 70-1817 Wiring Harness

Install a new car stereo in select 1984-2006 vehicles from Dodge, Chrysler, Plymouth

29
-14.31%

$5.99

List price $6.99

Product Highlights


10" Solo Classic Subwoofer • 900 Watts Max • 450 Watts RMS • Dual 4 Ohm • Polyimide Voice Coil • Single Piece SoloKon • Stitched and Glued Tinsel Leads • Recommended Sealed Box Volume: 0.66 Cubic Feet

Description


Kicker brand icon

Authorized dealer

All the Bass. Half the Space.

New to the 2009 KICKER line up is the Solo Classic subwoofer. Taking a page out of the original KICKER legend that made the subwoofers famous, these woofers are able to produce deep, low, musical bass from a small area. These woofers are designed to be used in smaller sealed enclosures that will accommodate any car or vehicle out there. The Solo Classic subwoofers will produce a smooth response with some of the lowest frequencies that you will have heard. This woofer is the perfect combination of the KICKER legend with cutting edge technology to give you the best bass possible!

Subwoofer Features:
  • 10" Dual 4 Ohm Solo Classic Subwoofer
  • Power Handling:
    • Peak: 900 watts
    • RMS: 450 watts
  • Impedance: Dual 4 Ohm
  • Single piece SoloKon to withstand extreme air pressure in small boxes
  • Stitched and glued tinsel leads for high excursion and reliability
  • Spiralead tinsel leads for extreme flexibility and supreme reliability
  • Polyimide voice coil former with Nomex reinforcement for high thermal capability
  • T cut top plate for high magnetic field strength and cooling capability
  • Stamped steel basket
  • Accurate, detailed bass
  • Very small box performance
  • Recommended sealed box volume: 0.66 cubic feet
  • Frequency response: 24-100 Hz
  • Sensitivity: 86.8 dB
  • Item is a part of Kicker ProFit Group
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
2011 Kicker Authorized Online Dealer and eBay Seller

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kicker S10C4 (09S10C4) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kicker S10C4 (09S10C4) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kicker S10C4 (09S10C4) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Kicker S10C4 (09S10C4) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Series
Solo Classic Series
Subwoofer Size
10"
Peak Power Handling
900 watts
RMS Power Handling
450 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
24 - 100 Hz
Sensitivity
86.8 dB
Xmax (millimeters)
16 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
SoloKon Polypropylene
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
0.88 cubic feet
Maximum Sealed Box Volume
0.88 cubic feet
Top-Mount Depth (Mounting Depth)
5-3/4"
Cutout Diameter
9-1/4"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

09S10C4

Weight:

19.00lbs

Internal SKU:

09s10c4

Internal Product ID:

17587

Product and How-to Videos


Customer Ratings & Reviews


Kicker S10C4 (09S10C4) thumbnail image

5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4
Features
5
Design
4
Usability
5

Customer Reviews

Sort by:

Loading...

new solo delivers

Installed two of these in a custom sealed enclosure powered with a Diamond Audio D5 600.1 which actually does an admirable job despite falling a bit short on outright peak power. That said outright boom was not my intended goal and i would not recommend these subs for spl applications "sealed enclosure only". These subs definitely take time to break in and realize their full potential.
It took nearly a month of regular use to where I felt they showed the musicality I hoped for. And they are a good sound Q sub providing decent output with a wide range of frequency. I highly recommend this product, excellent fit and finish, sound quality/musicality is good and they have been rock solid for 6 months of regular use.

By podsmack on June 3, 2010
