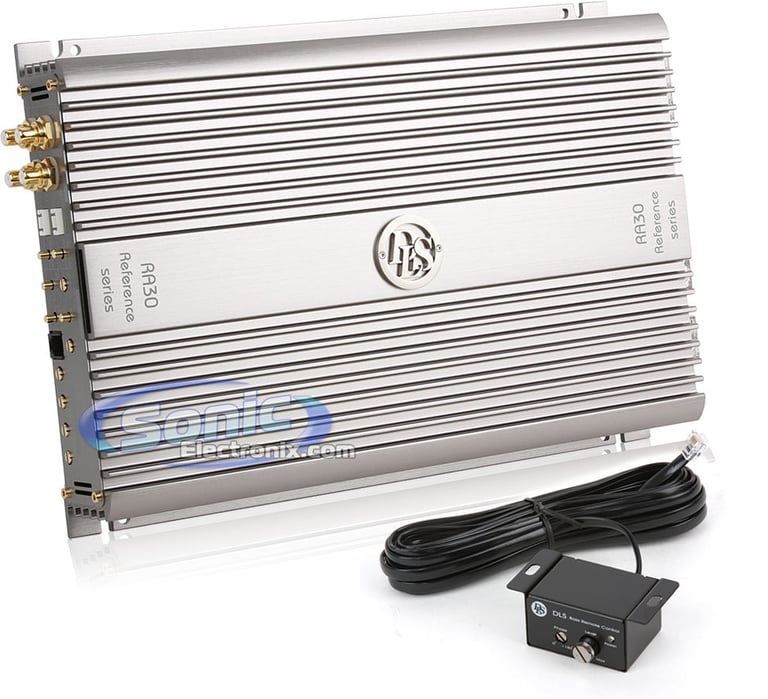

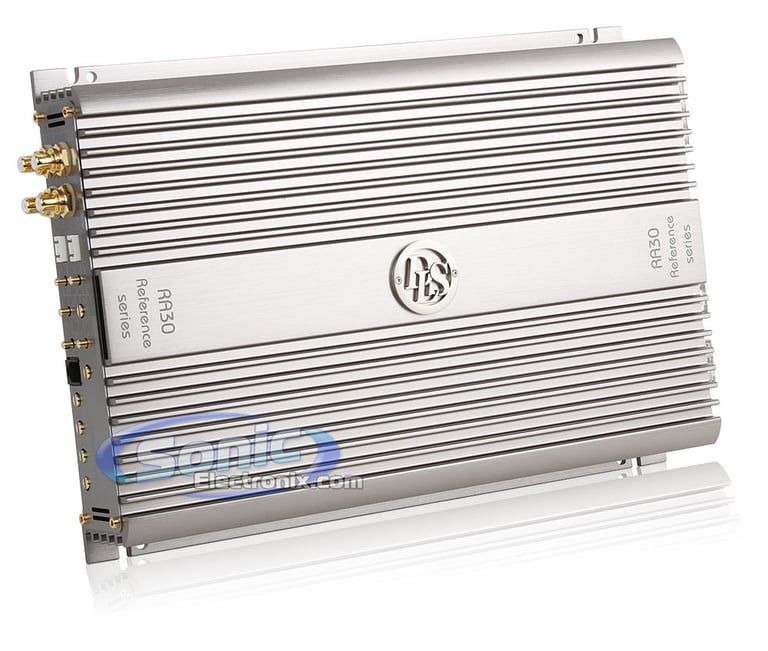

DLS Reference RA30

565W, Reference Series 3-Channel Amplifier

DLS
Shop all DLS
Product videos
highlight-star-icon

Reference Series 3-Channel Class A/B Amplifier • Bass Level And Phase Shift Control • Speaker-Level Inputs • Phase Shift • Gold-Glated RCA Level Inputs • Gold-Plated Screw Terminals • Variable LP/HP Filter

Learn more about the dlsra30

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Product Highlights


Reference Series 3-Channel Class A/B Amplifier • Bass Level And Phase Shift Control • Speaker-Level Inputs • Phase Shift • Gold-Glated RCA Level Inputs • Gold-Plated Screw Terminals • Variable LP/HP Filter

Description


DLS brand icon

Authorized dealer

  • Reference Series 3-Channel Class A/B Amplifier
  • RMS Power Rating:
    • 4 ohm: 70 watts x 2 chan. + 265 watts x 1 chan.
    • 2 ohm: 100 watts x 2 chan. + 365 watts x 1 chan.
  • Max power output: 565 watts

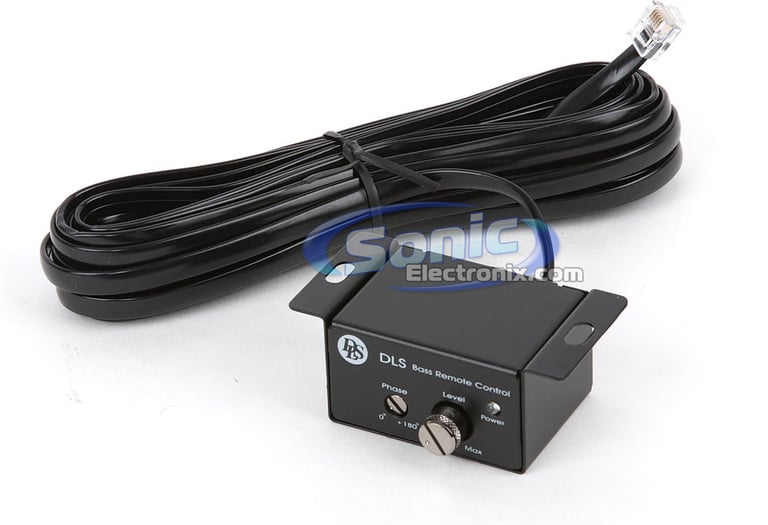

  • Bass Remote (Wired remote bass level and phase shift control included)
  • LED power indicators
  • Current and thermal protection
  • Bass Boost (0-18 dB bass boost at 40 Hz)
  • Phase Shift (0-180 degrees continuously)
  • 3/2 channel operation
  • Speaker-level inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs
  • Heavy duty aluminum alloy heatsink

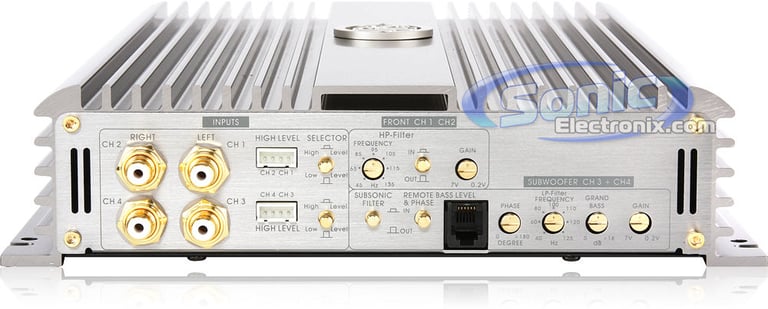

  • Gold-plated RCA level inputs

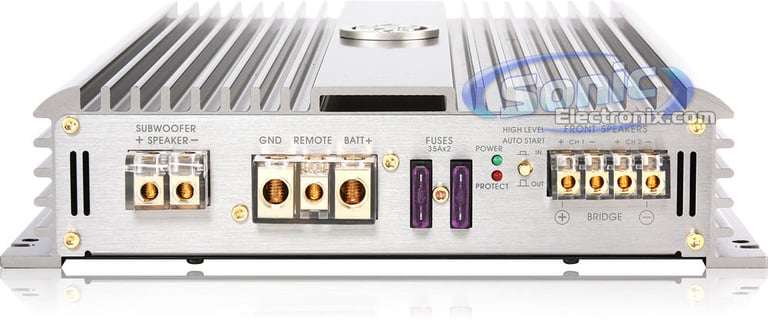

  • Gold-plated screw terminals
  • Variable high-pass filter (45-125 Hz, 12dB/octave)
  • Variable low-pass filter (40-125 Hz, 12dB/octave)
  • Subsonic Filter (fixed 25 Hz)
  • Damping Factor (200)
  • Frequency response: 10-50,000 Hz
  • Dimensions: 9-3/4L x 15-1/8W x 2-1/3H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Best selling similar products

MX600/3 small

JL Audio MX600/3

• 75 watts x 2 channel + 250 watts x 1 channel @ 4 ohm
• 100 watts x 2 channel + 400 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm + 400 watts x 1 channel @ 2 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 3-Channel Amplifier

(4)

$579.99

List price $579.99

XDM500/3 small

JL Audio XDM500/3

• 75 watts x 2 channel + 180 watts x 1 channel @ 4 ohm
• 100 watts x 2 channel + 300 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 1 channel @ 4 ohm + 300 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 3-Channel Amplifier

$679.99

List price $679.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
70 watts x 2 channel
RMS Power @ 2 ohms
100 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
265 watts x 1 channel
RMS Power @ 2 ohms
365 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
3-Channel
Total Peak Power Output
565 watts
Total RMS Power Output
565 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
THD at Rated RMS Power
.1%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
45 - 125 Hz
Low-Pass Crossover Frequency
40 - 125 Hz
Subsonic Filter
25 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
35A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

DLS

Model Number:

RA30

Weight:

13.50lbs

Internal SKU:

dlsra30

Internal Product ID:

17673
