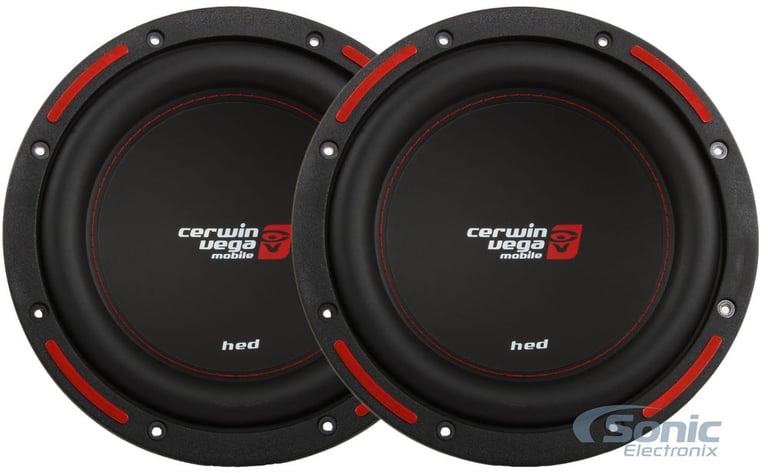

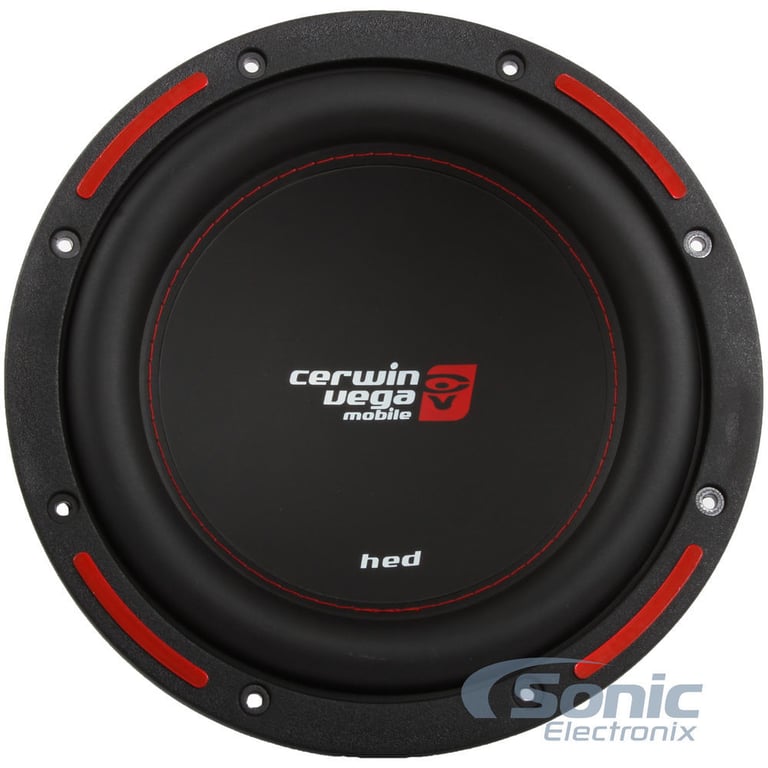

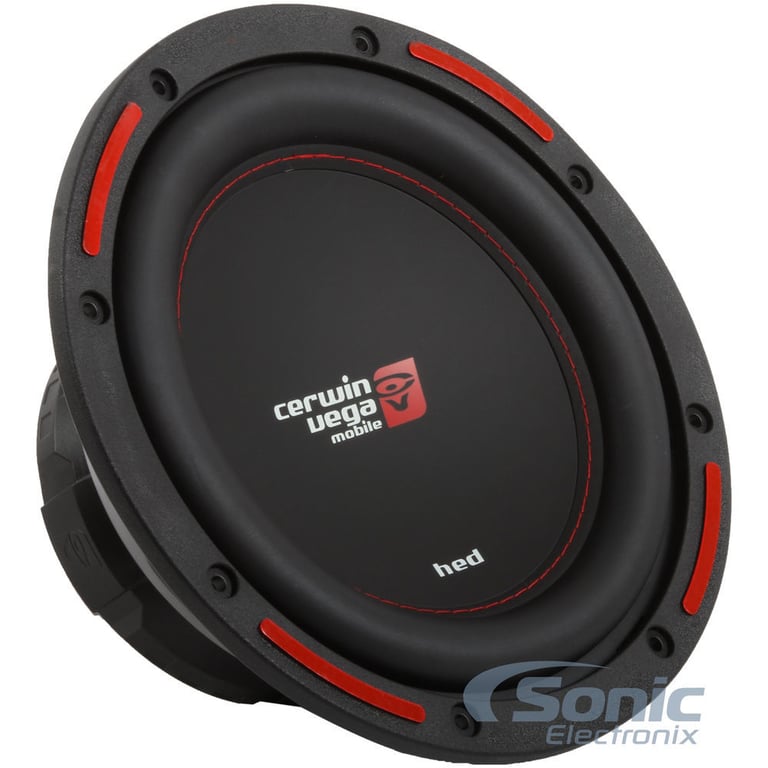

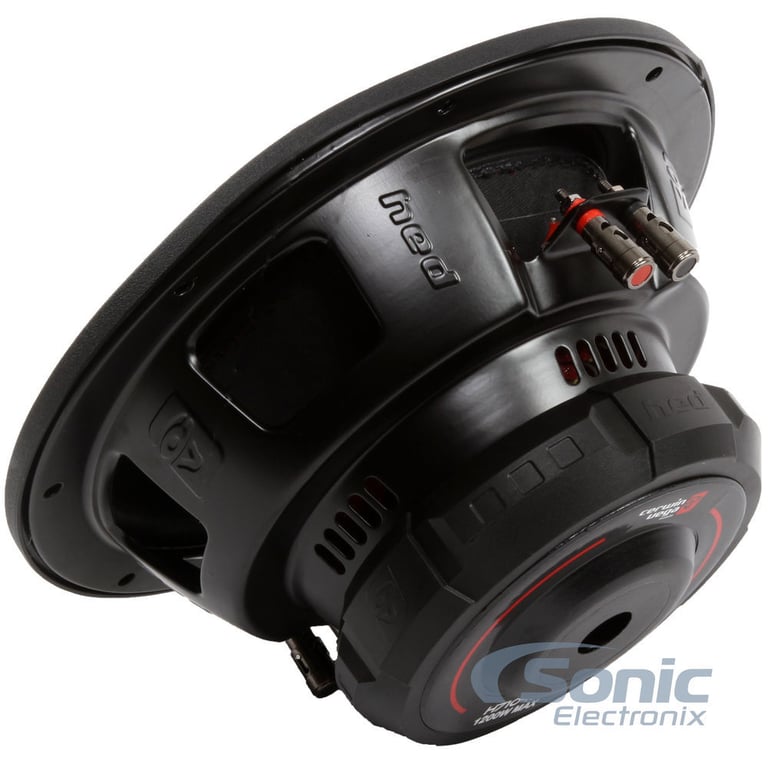

(2) Cerwin Vega HS104D Subwoofers

(2) 800W Max (200W RMS) 10" HED Series Dual 4 Ohm Shallow-Mount Car Subwoofer

highlight-star-icon

• 800W Max
• 200W RMS
• Poly-Coated Paper Cone
• Foamed Rubber Surround
• Stamped Steel Shallow Mount Basket
• Vented Motor Structure
• Dual 2" 4-Layer Voice Coils

Learn more about the hs104d_2

We apologize

This item has been discontinued


Loading...
ADS-MRR2 main

iDataLink Maestro RR2 Interface Module

Universal Stereo Replacement Interface Module for iDataLink Maestro Compatible Stereos

5
-18.75%

$259.99

List price $319.99

Description


Cerwin-Vega brand icon

Authorized dealer

Cerwin Vega HS104D

800W Peak (200W RMS) 10" HED Series Dual 4-ohm Shallow Subwoofer
Quantity: 1

Product Details:

  • 10" Dual 4 ohm HED Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 200 watts
  • Carbon Fiber Polypropylene Cone
  • Treated Foam Surround
  • Poly-cotton spider with spaced woven in tinsel wires
  • Optimal thermal heat dissipation
  • Stamped steel slim-mount frame with encapsulated motor
  • Oversized parabolic dustcap
  • Unimount gasket surround
  • 2" High Temperature Voice coil
  • 7.4 mm Xmax
  • Single Stacked magnet motor structure
  • Resonance Frequency (Fs): 35.2 Hz
  • Sensitivity: 82.7 dB
  • Recommended sealed box volume: 0.65 cubic feet
  • Top-mount depth: 3.54"
  • Cutout diameter: 9.23"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Cerwin Vega HS104D

800W Peak (200W RMS) 10" HED Series Dual 4-ohm Shallow Subwoofer
Quantity: 1

Product Details:

  • 10" Dual 4 ohm HED Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 200 watts
  • Carbon Fiber Polypropylene Cone
  • Treated Foam Surround
  • Poly-cotton spider with spaced woven in tinsel wires
  • Optimal thermal heat dissipation
  • Stamped steel slim-mount frame with encapsulated motor
  • Oversized parabolic dustcap
  • Unimount gasket surround
  • 2" High Temperature Voice coil
  • 7.4 mm Xmax
  • Single Stacked magnet motor structure
  • Resonance Frequency (Fs): 35.2 Hz
  • Sensitivity: 82.7 dB
  • Recommended sealed box volume: 0.65 cubic feet
  • Top-mount depth: 3.54"
  • Cutout diameter: 9.23"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 (2) Cerwin Vega HS104D Subwoofers Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 (2) Cerwin Vega HS104D Subwoofers Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 (2) Cerwin Vega HS104D Subwoofers Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 (2) Cerwin Vega HS104D Subwoofers Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

Specifications & Details


Subwoofer Specifications
Series
HED Series
Subwoofer Size
10"
Peak Power Handling
800 watts
RMS Power Handling
200 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Sensitivity
82.7 dB
Xmax (millimeters)
7.4 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Poly-Coated Paper
Woofer Surround
Foamed Rubber
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Optimum Sealed Box Volume
.65 cubic feet
Top-Mount Depth (Mounting Depth)
3.54"
Cutout Diameter
9.23"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
35.2 Hz
Equivalent Compliance (Vas)
23 liters
Total Speaker Q Value (Qts)
.92
Electrical Q Value (Qes)
1.10
Electrical Resistance of Voice Coil (Re)
3 ohm
Mechanical Q Value (Qms)
5.5
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Subwoofers
See below for additional accessories
Other Accessory #1
8 mounting screws
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HS104D,HS104D

Weight:

19.40lbs

Internal SKU:

hs104d_2

Internal Product ID:

176733
