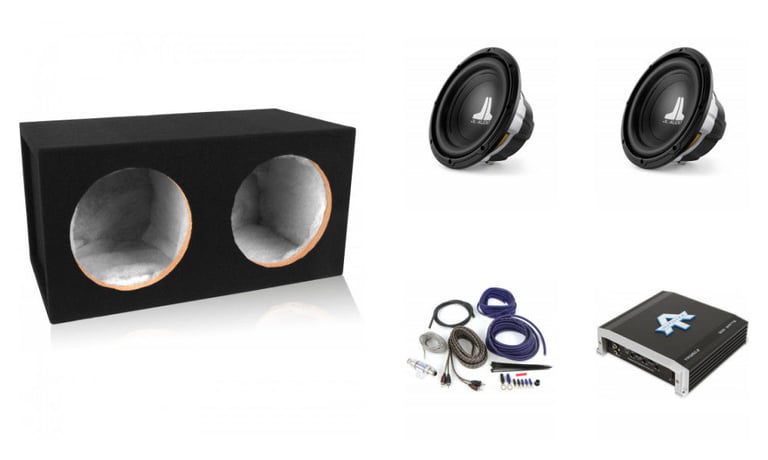

(2) 10" JL Audio Subs + Autotek Amplifier + Dual 10" Sealed Enclosure + Amp Kit

(2) 10" JL 10W0v3 Single 4-Ohm Subwoofers + Autotek 1200W Amplifier + Belva MDFD10 Sealed Enclosure + Belva Bak82

JL Audio
Shop all JL Audio
highlight-star-icon

• Sensitivity: 84.07 dB
• Mounting depth: 4.90 "
• Mineral-Filled Polypropylene Cone
• Large Roll Surround
• Elevated Frame Cooling
• DMA Optimized Motor System
• Metallic Silver Frame Finish

Learn more about the 10w0v34_ta12502_mdfd10_bak

We apologize

This item has been discontinued


Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

CR02B main

Scosche CR02B Wiring Harness

Install a new car stereo in select 2002-2007 vehicles from Dodge, Chrysler, Jeep

109
-10.73%

$7.99

List price $8.95

Description


JL Audio brand icon

Authorized dealer

JL Audio W0v3 Series Subwoofer Driver
JL Audio W0v3 Series Subwoofer Driver

The W0v3 offers superb excursion capability, linearity and an overall performance output that puts it right at the top of its price class. The driver features a very beefy 2.0-inch diameter voice coil, a DMA-optimized motor system and JL Audio's patented Elevated Frame Cooling design - all purpose-engineered for enhanced power handling and reliability. What this also means, is your system will be immediately injected with the increase in output and better sound fidelity that one expects from a JL Audio product. In addition, excellent excursion capability and linearity allow it to reproduce sub-bass with striking extension and quality. When matched up with the proper power source, signal and setup the W0v3 is capable of a well rounded sound that is unparalleled by any other driver in its price range.

Dynamic JL Audio Performance

Flexible JL Audio Power

The 10W0v3 Subwoofer can be driven with as little as 75 Watts. However, for best audio performance it is recommended to run an amplifier capable of between 200 - 300 Watts of continuous power per driver, like the JL Audio XD300/1v2 or JL Audio JX500/1D. In addition, these subwoofers are optimized to operate in either a ported or sealed enclosure, needing only 0.65 cubic feet of air space in a sealed box and 1.125 cubic feet in a ported/vented enclosure. (Specific dimensions and figures can be found in the user manual, linked further below.)


Striking Linearity and Control

Striking Linearity and Control

DMA is JL Audio’s proprietary Dynamic Motor Analysis system and is aimed at delivering superior dynamic stability and low distortion. As a result of DMA optimization, W0v3 motors remain linear in motor force over an extreme range of excursion and also maintain a highly stable fixed magnetic field in the gap over a wide power range. This leads to tight, clean, articulate bass that also allows for extreme linear excursion, phenomenal power handling and control, control, control.



JL Audio 10W0v3 Recommended Power Range

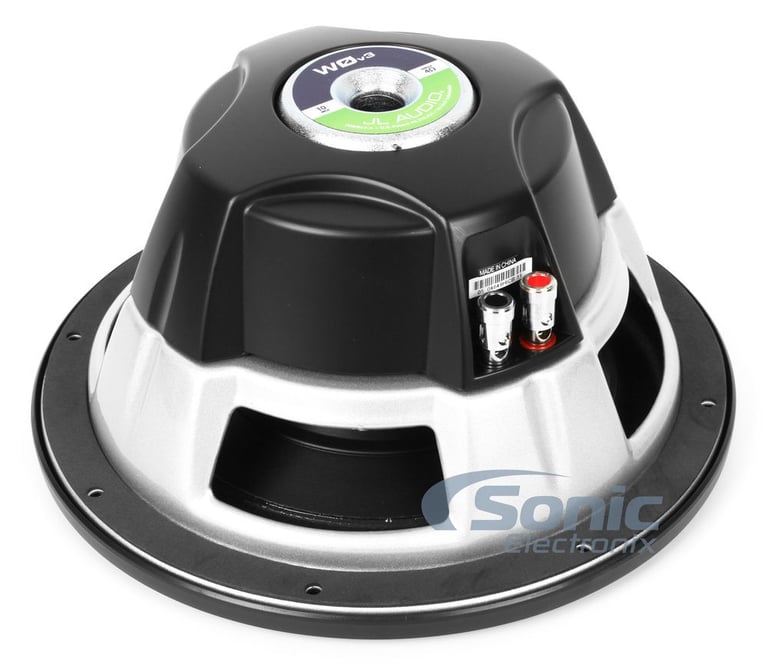

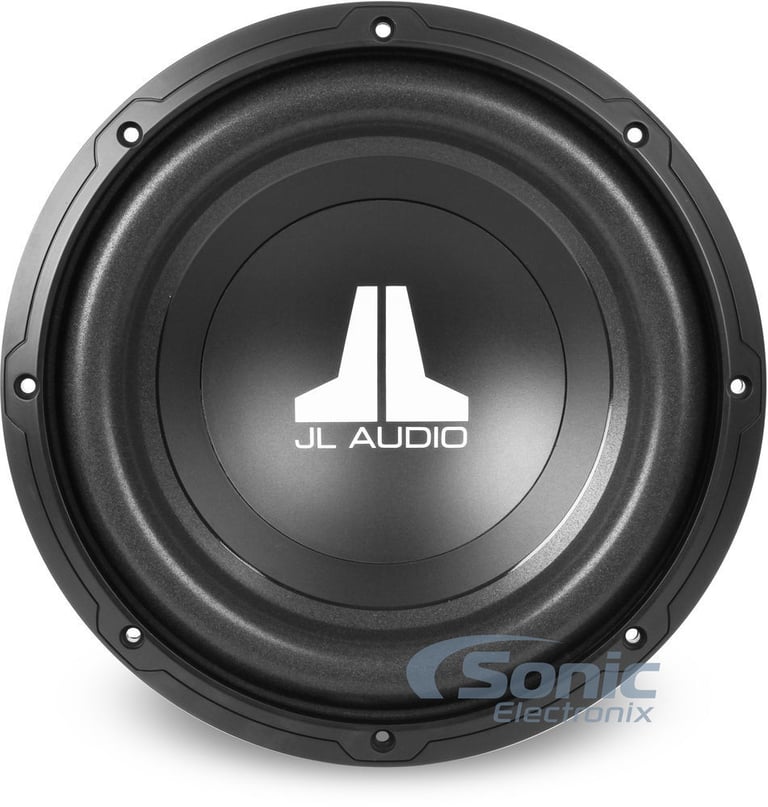

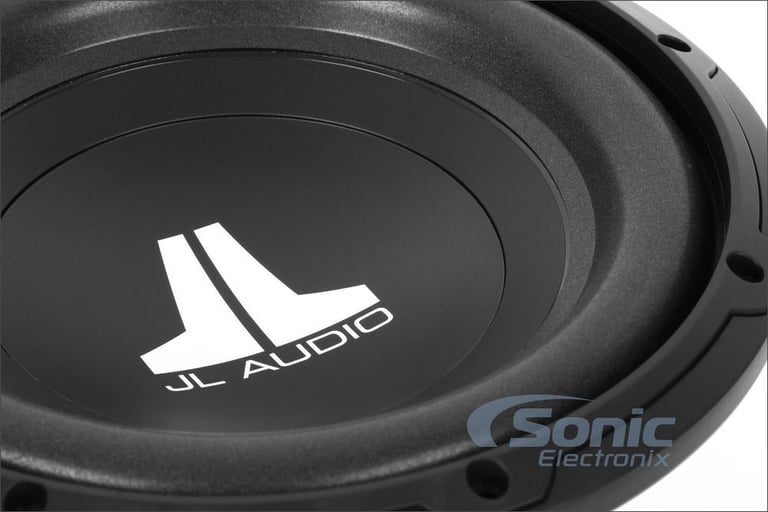

JL Audio 10W0v3-4

300W RMS 10" W0v3 Series Single 4-ohm Car Subwoofer
Quantity: 2

Product Details:

  • 10" Single 4 ohm W0 v3 Series Subwoofer
  • Power Handling:
    • RMS: 300 watts
  • 2" Voice coil
  • 11.4 mm Xmax
  • Single Stacked magnet motor structure
  • Resonance Frequency (Fs): 32.09 Hz
  • Sensitivity: 84.07 dB
  • Recommended sealed box volume: 0.65 cubic feet
  • Recommended ported box volume: 1.125 cubic feet
  • Top-mount depth: 4.90"
  • Cutout diameter: 9.0625"
  • Authorized Internet Dealer
  • JL Audio SGRU-10 optional protective subwoofer grille (sold separately)
  • 1-year Manufacturer's Warranty

  • Priced Individually

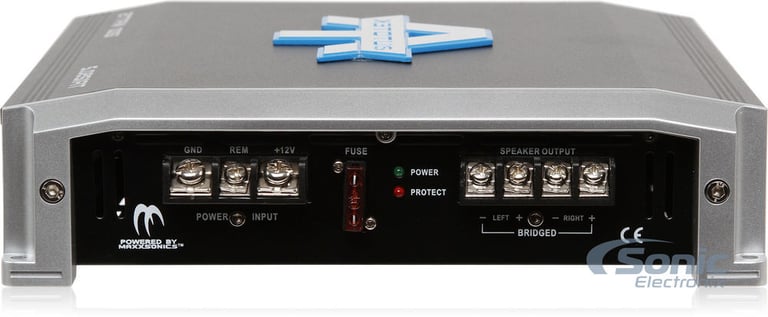

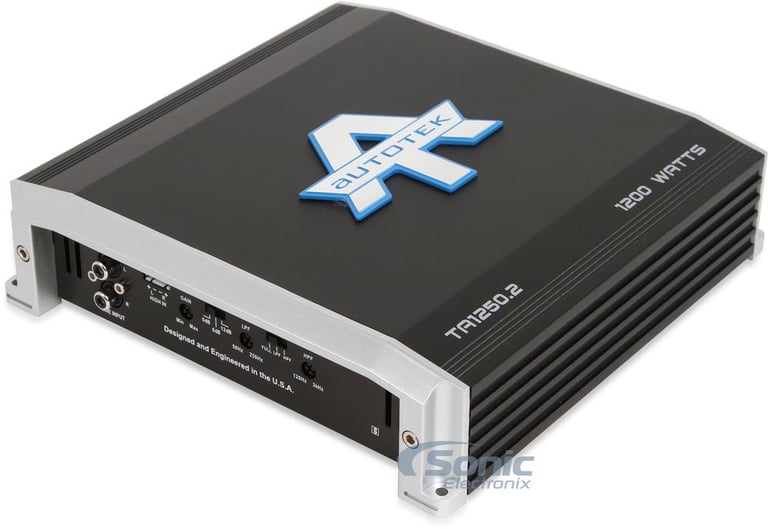

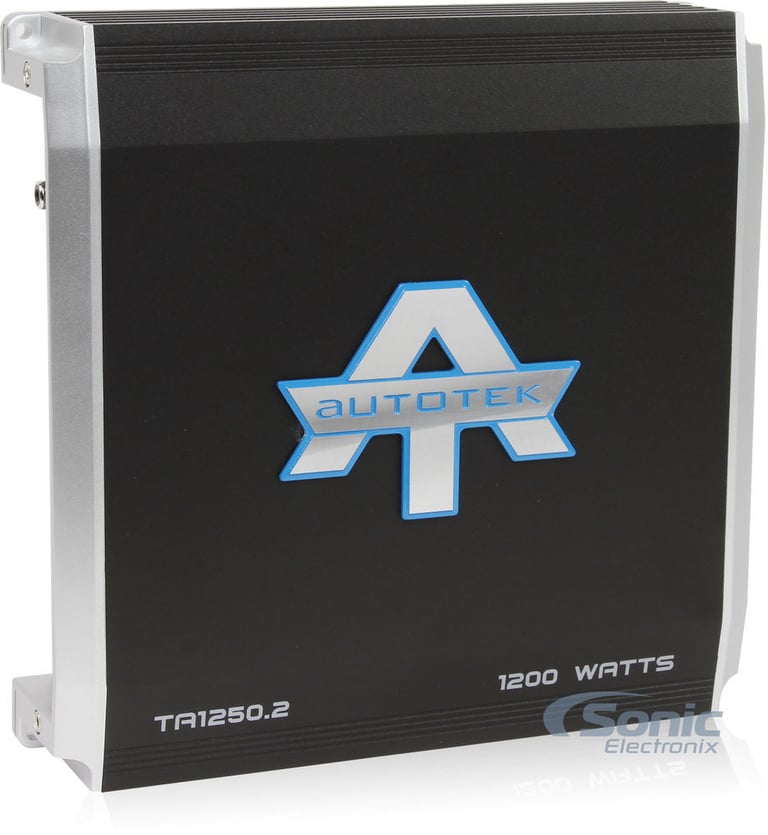

Autotek TA1250.2 TA Series 2-Channel Amplifier

1200W Bridgeable TA Series 2-Ohm Stable 2-Channel Amplifier
Quantity: 1

General Features:

  • Autotek TA Series TA1250.2
  • Class-A/B 2-Ohm Stable 2-Channel Amplifier
  • Max Power Rating:
    • 4 ohm: 300 watts x 2 chan.
    • 2 ohm: 600 watts x 2 chan.
    • Bridged, 4 ohm: 1200 watts x 1 chan.
  • Total power output: 1200 watts
  • Pro- Fi High Speed MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 2 or Mono channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Variable high-pass filter: 120 - 3000 Hz, 12 dB/octave
  • Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
  • Fuse Rating: 30 A x 1
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 11.4"W x 12.7"L x 4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

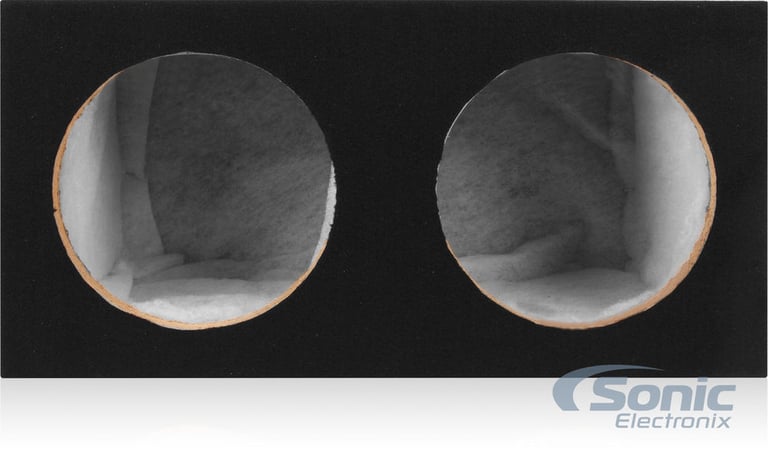

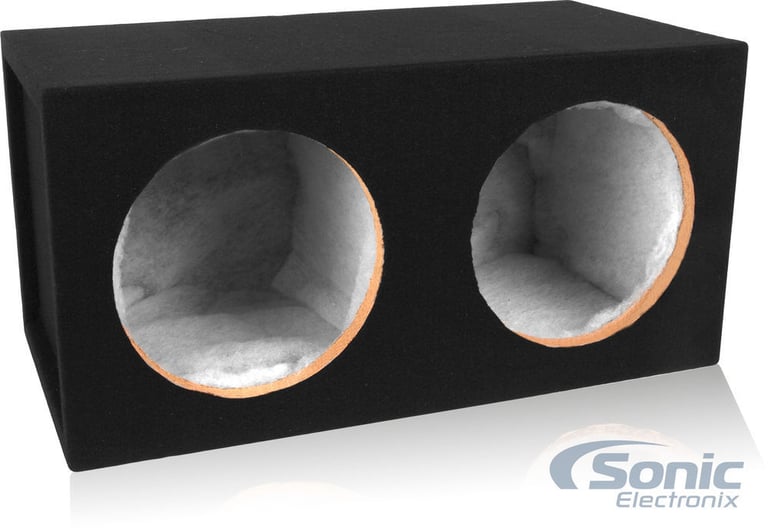

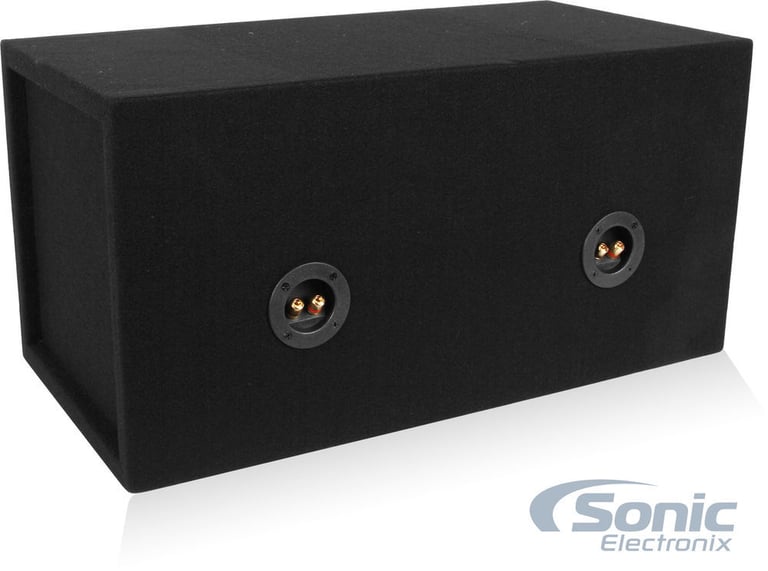

Dual 10" 3/4 MDF Sealed Subwoofer Enclosure (Belva MDFD10)

Dual 10-inch Sealed Car Sub Box Made with 3/4" MDF and lined w/ Polyfil (1.6 cu ft Airspace - 10SQB)
Quantity: 1

General Features:

  • Dual Sealed 10" Enclosure
  • Internal box volume: 1.6 cubic ft. total air space - 0.8 cubic ft. per chamber
  • High Quality 3/4" MDF Construction
  • Durable black carpeting
  • Pre-lined with Poly-Fil
  • Seams are fully caulked for better efficiency
  • 2 Separate chambers allowing each subwoofer its own air space
  • Gold post terminals for clean and easy wiring access
  • Box Dimensions: 25"L x 12-1/2"D x 12-1/2"H
  • 30 Day return policy

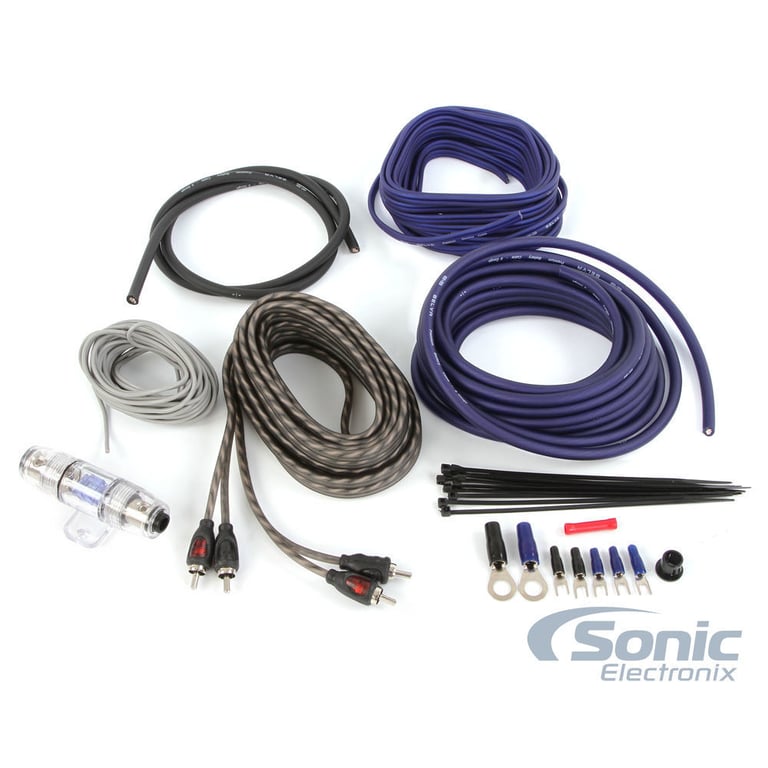

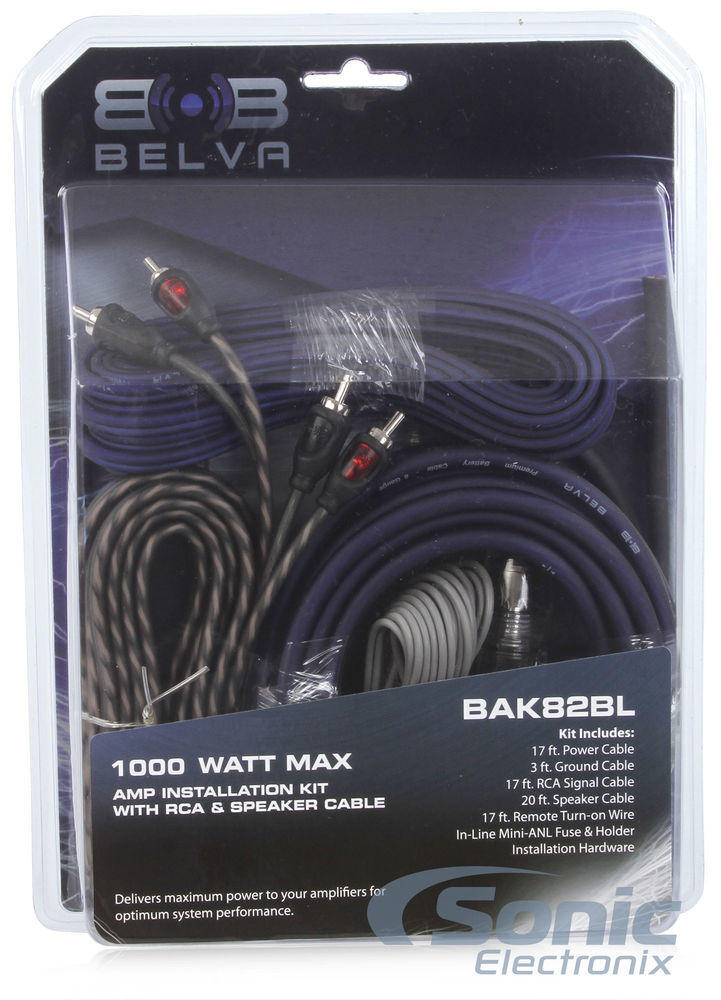

Belva BAK82

8 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 600 Watts - RED
Quantity: 1

Product Details:

  • 8 Gauge 2-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 600 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)

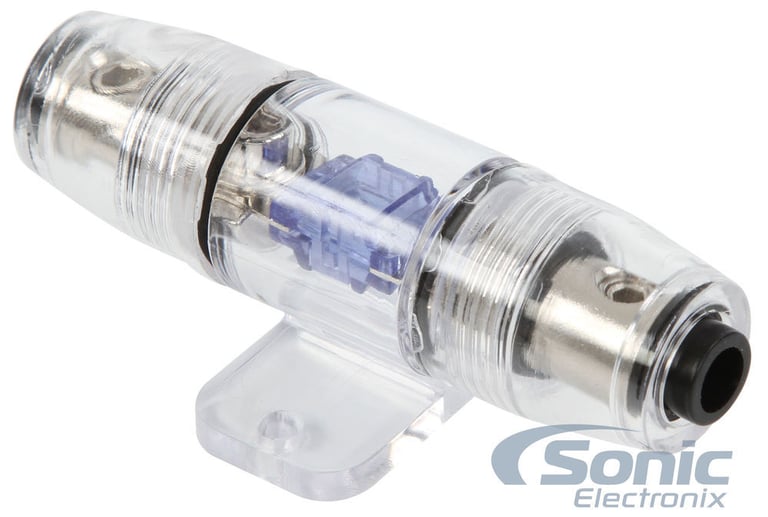

  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards

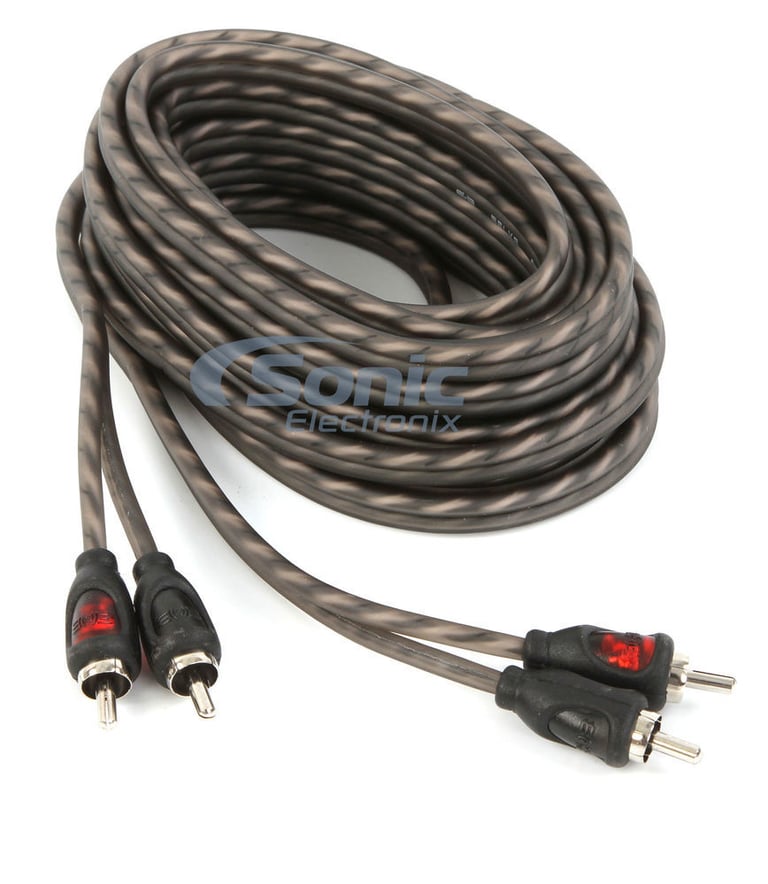

  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition

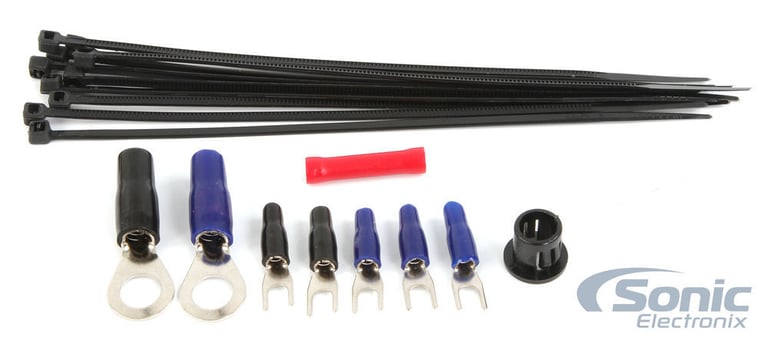

  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

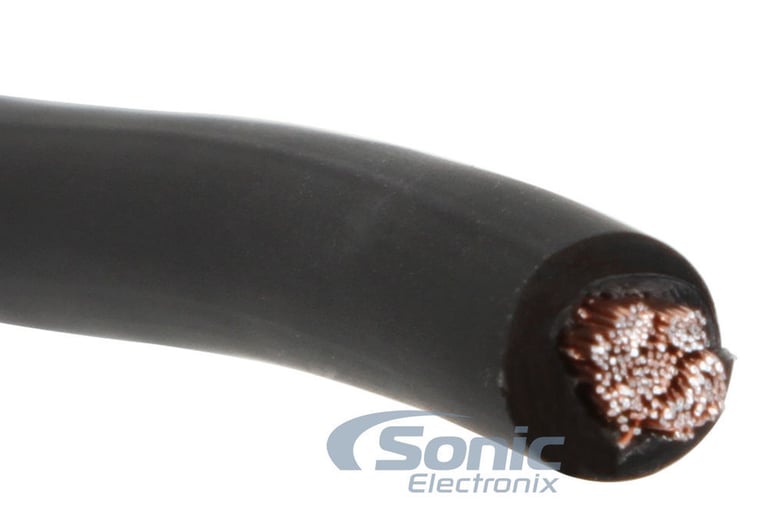

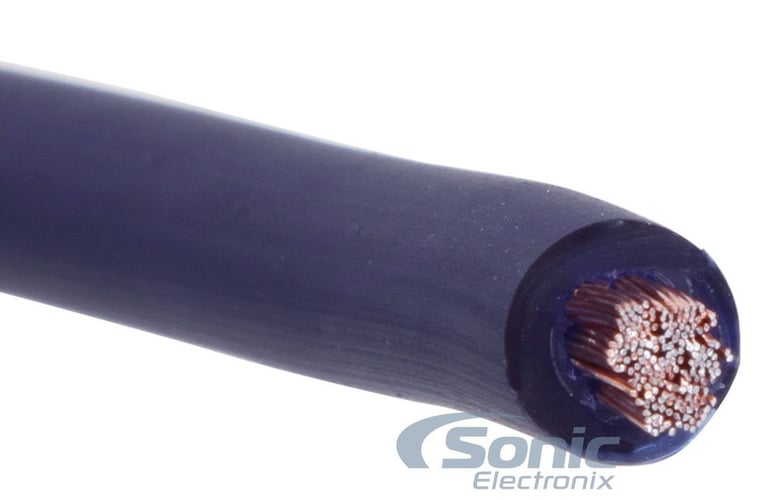

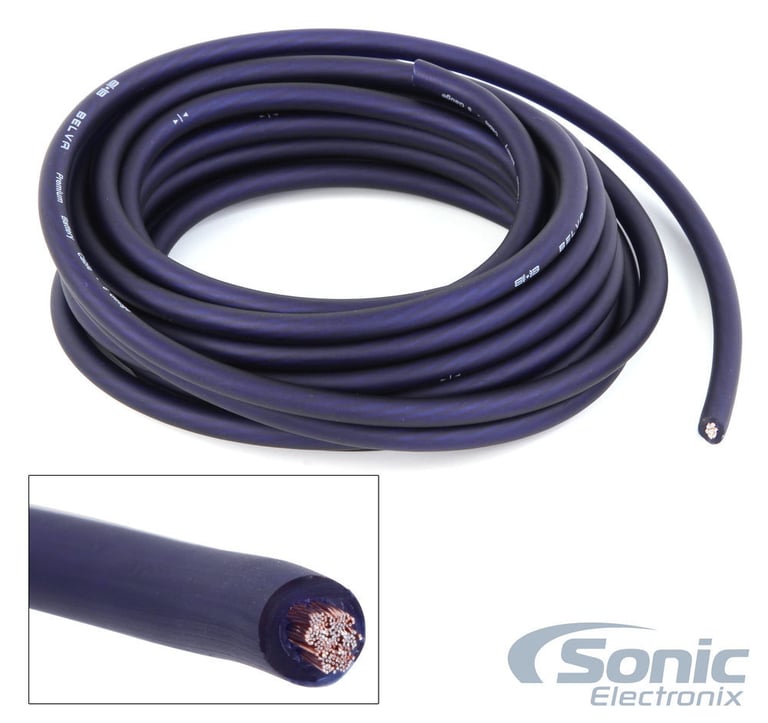

  1. 17 ft. Red 8 gauge power wire

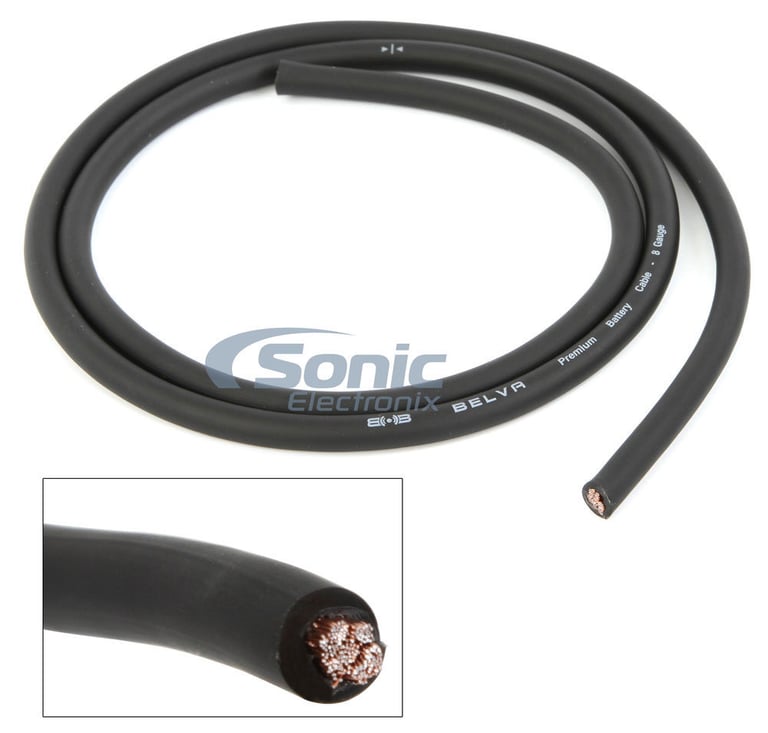

  2. 3 ft. Black 8 gauge ground wire

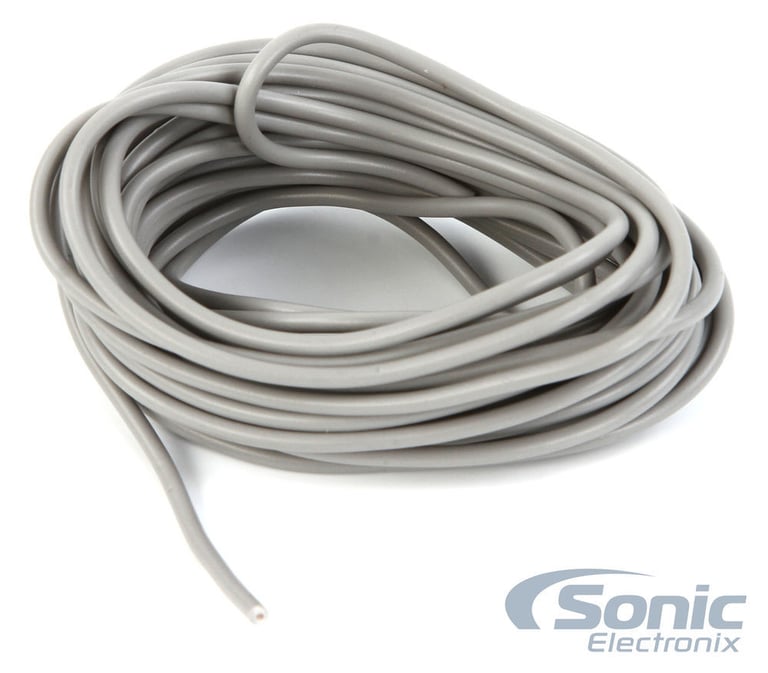

  3. 17 ft. Gray 18 gauge remote lead wire

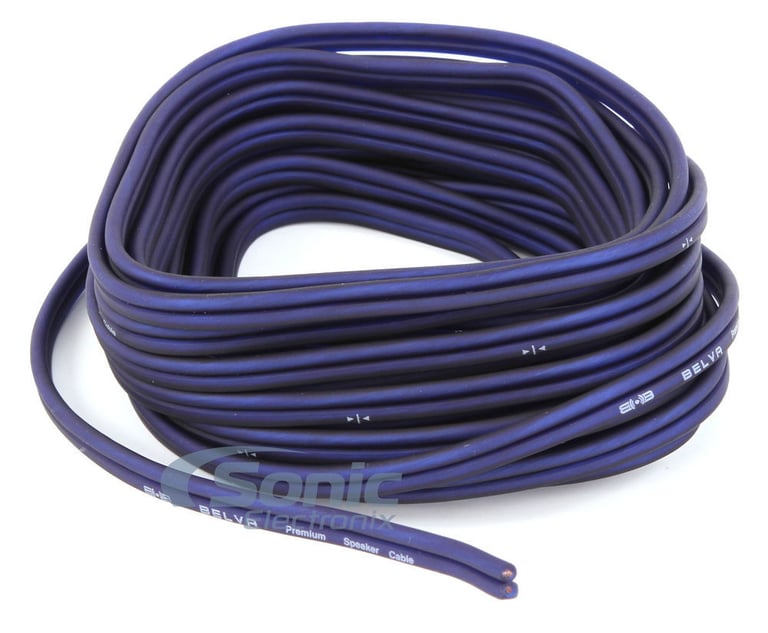

  4. 20 ft. 16 gauge speaker wire
  5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable
  6. One Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 8 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties
