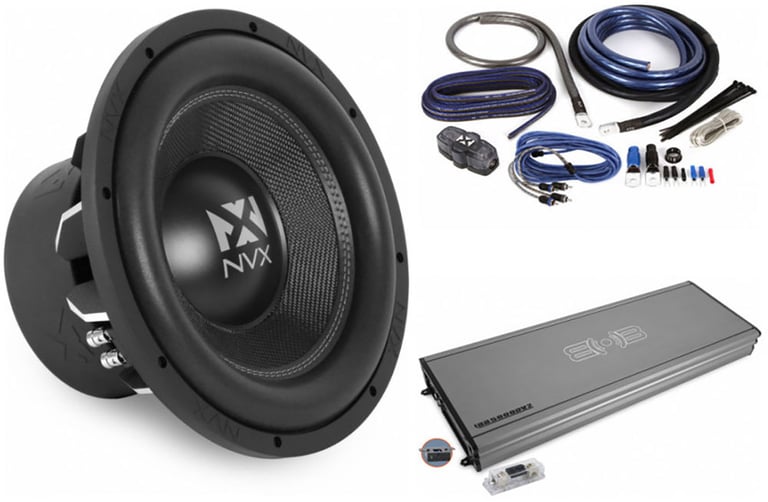

Belva BB5000Dv2 + NVX VCW124 Subwoofer and Amp Kit

Belva 5000W Monoblock Amplifier + NVX 2400W 12" Subwoofer + NVX XKIT02

Belva
Shop all Belva
Product videos
highlight-star-icon

• Amplifier RMS: 1200W x 1 @ 4 ohm, 1800W x 1 @ 2 ohm, 3000W x 1 @ 1 ohm
• Total Peak Power: 5000W
• 1 Pair of Preamp Outputs
• Bass Boost 0-12 dB from 30-80 Hz
• Subsonic Filter from 20-50 Hz
• Subwoofer RMS: 1200 Watts
• 3” 4-Layer High-Temperature Black Aluminum Voice coil
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll foam surround with black nylon stitching
• 202 oz. Triple-stacked High Energy ferrite magnet
• Die Cast aluminum vented basket

Learn more about the bb5000dv2_vcw124_xkit02

We apologize

This item has been discontinued


Loading...
82-7806 main

Metra 82-7806

Speaker Adapter Plate fits select Volkswagen and 1998-2007 Honda Accord (Pair)

1
-21.06%

$14.99

List price $18.99

72-9001 main

Metra 72-9001

Install New Speakers in select 1998-2023 vehicles from Volkswagen, Porsche, Mercedes-Benz

4
VW2317AB main

Scosche VW2317AB / VW2317 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2006-2018 vehicles from Volkswagen (Black)]]

8
-33.24%

$15.99

List price $23.95

LVW10 main

Scosche LVW10 Wiring Interface

Install new car stereo and retain steering wheel audio controls and safety warning chimes in select 2016-2019 vehicles from Volkswagen

1
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

116
-37.15%

$21.99

List price $34.99

Product Highlights


• Amplifier RMS: 1200W x 1 @ 4 ohm, 1800W x 1 @ 2 ohm, 3000W x 1 @ 1 ohm
• Total Peak Power: 5000W
• 1 Pair of Preamp Outputs
• Bass Boost 0-12 dB from 30-80 Hz
• Subsonic Filter from 20-50 Hz
• Subwoofer RMS: 1200 Watts
• 3” 4-Layer High-Temperature Black Aluminum Voice coil
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll foam surround with black nylon stitching
• 202 oz. Triple-stacked High Energy ferrite magnet
• Die Cast aluminum vented basket

Description


Belva brand icon

Authorized dealer

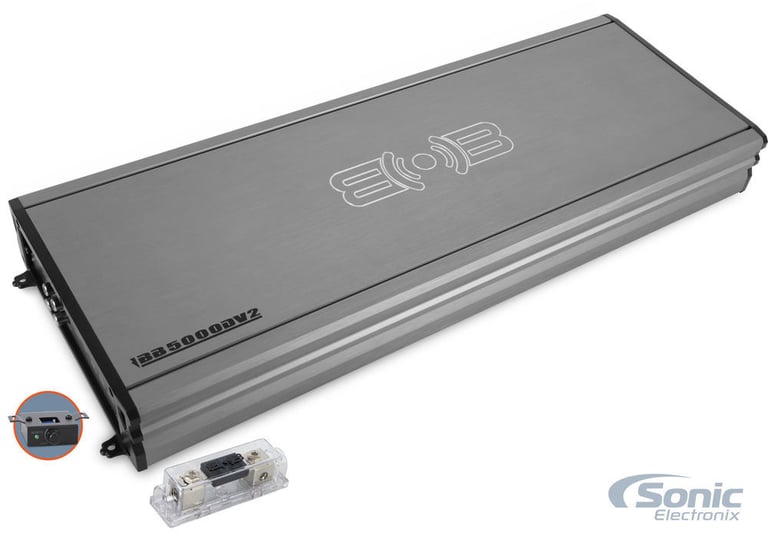

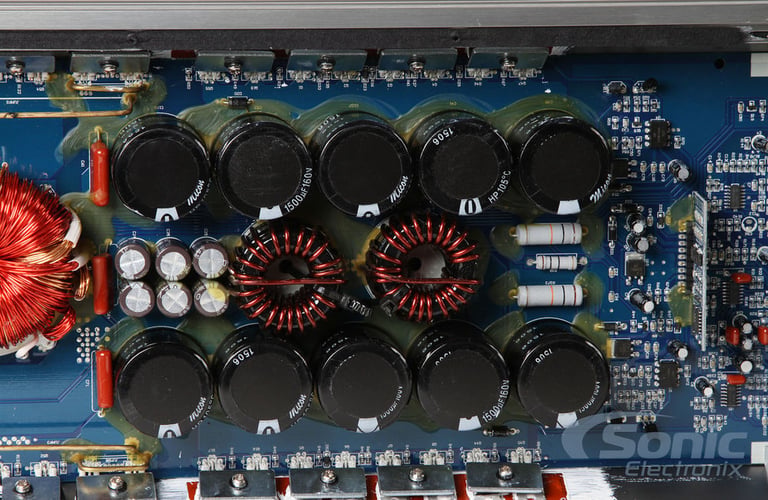

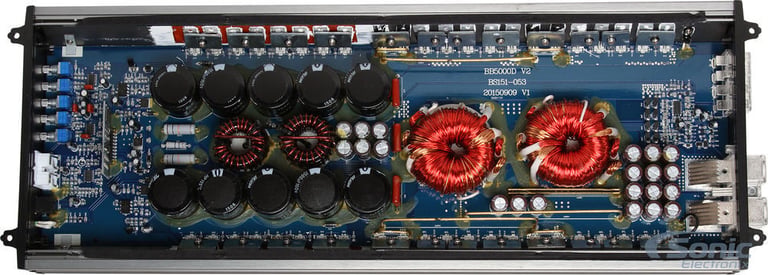

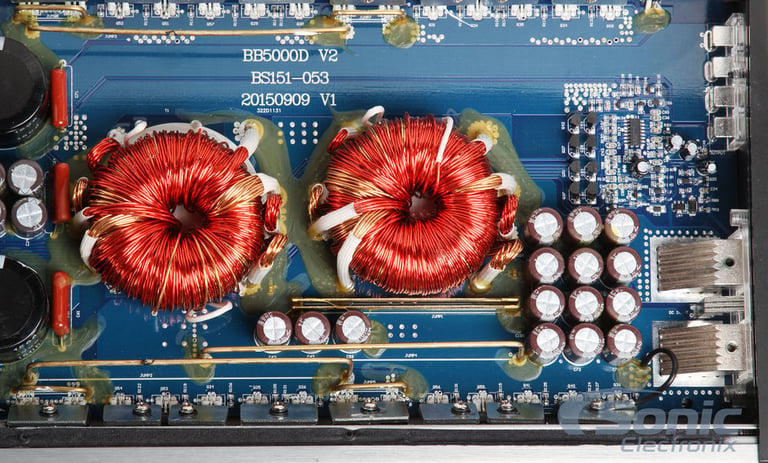

Belva BB5000Dv2 (BB5000D v2)

5000W Max (3000W RMS) Class-D Monoblock BB Series Car Amplifier
Quantity: 1

General Features:

  • BB Series Monoblock Class D Car Amplifier
  • 300 Amp ANL Fuse and Holder included
  • RMS Power Rating:
    • 4 ohm: 1200 watts x 1 chan.
    • 2 ohm: 1800 watts x 1 chan.
    • 1 ohm: 3000 watts x 1 chan.
  • Max power output: 5000 watts

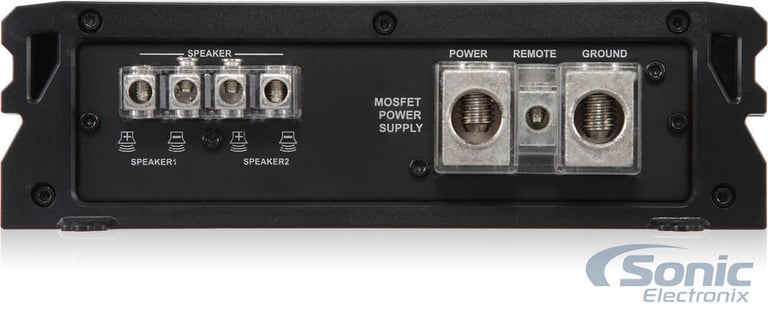

  • Pulse Width Modulated MOSFET power supply

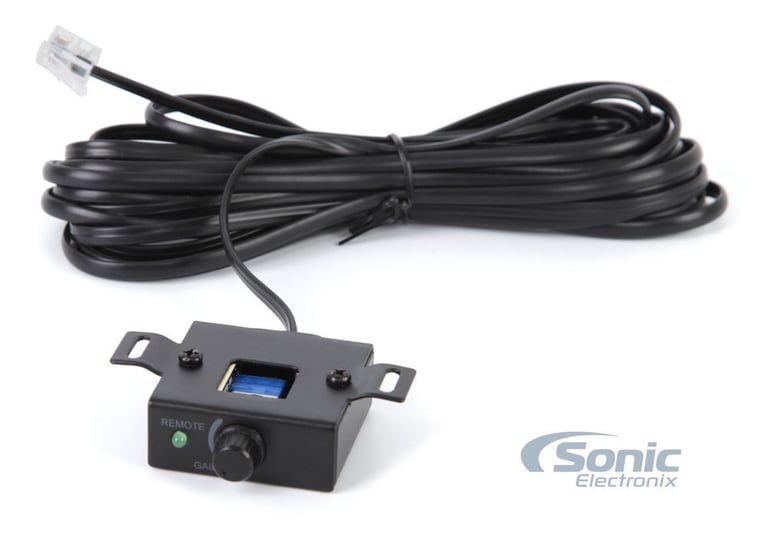

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost adjustable between 30-80 Hz)
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Low level: 100mV-6V
  • Variable low-pass filter (40-180 Hz, 12 dB/octave)
  • Subsonic filter (12 dB variable from 20Hz - 50 Hz)
  • Frequency response: 20-30,000 Hz
  • 1/0 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 20-3/8"W x 8-1/4"D x 2-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

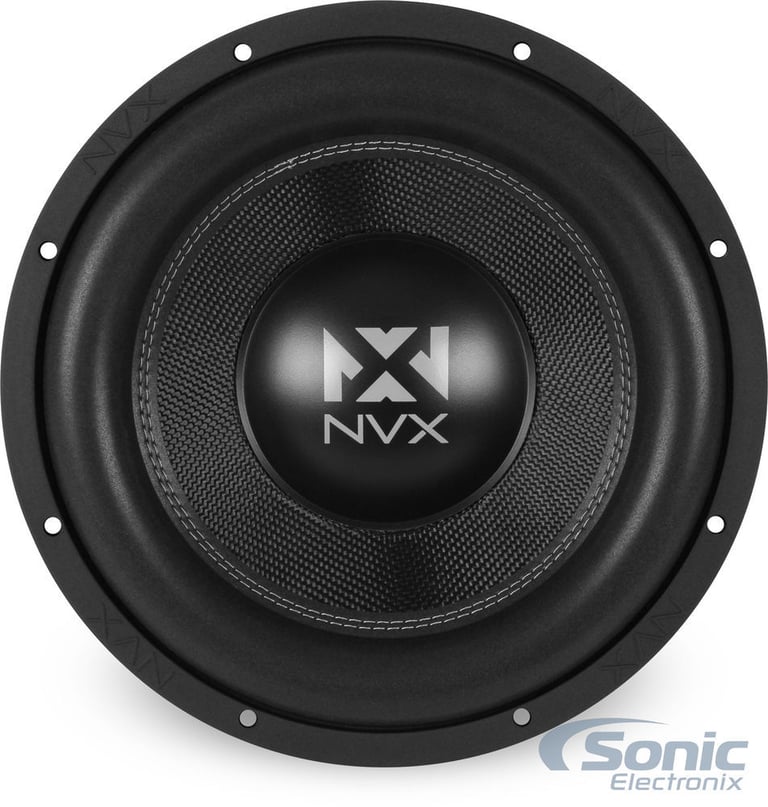

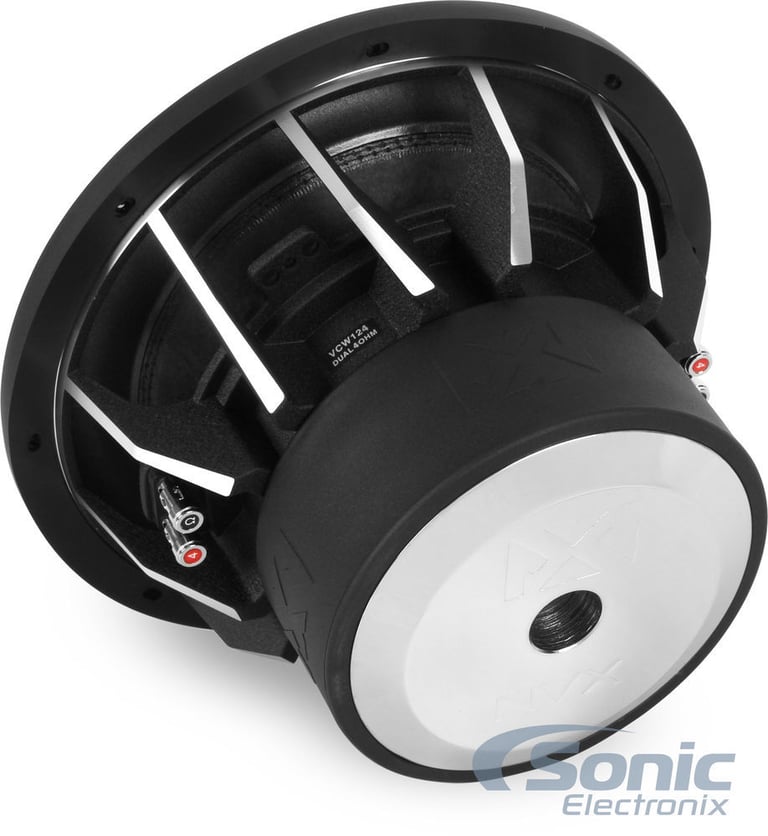

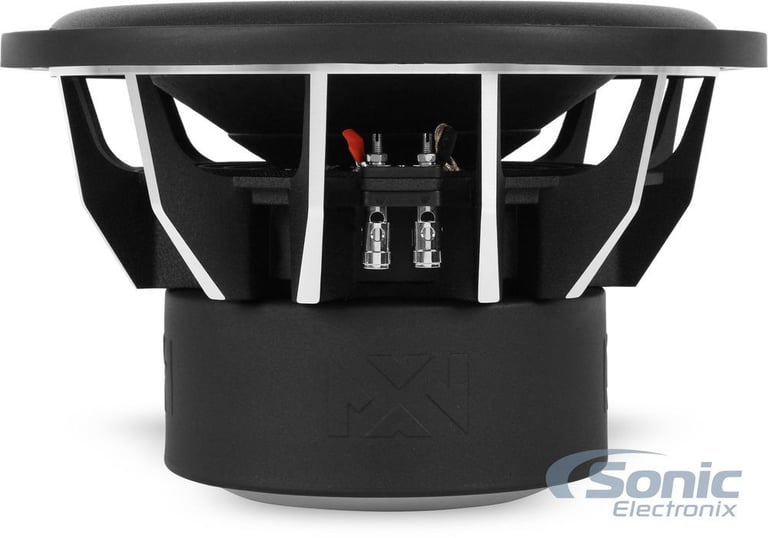

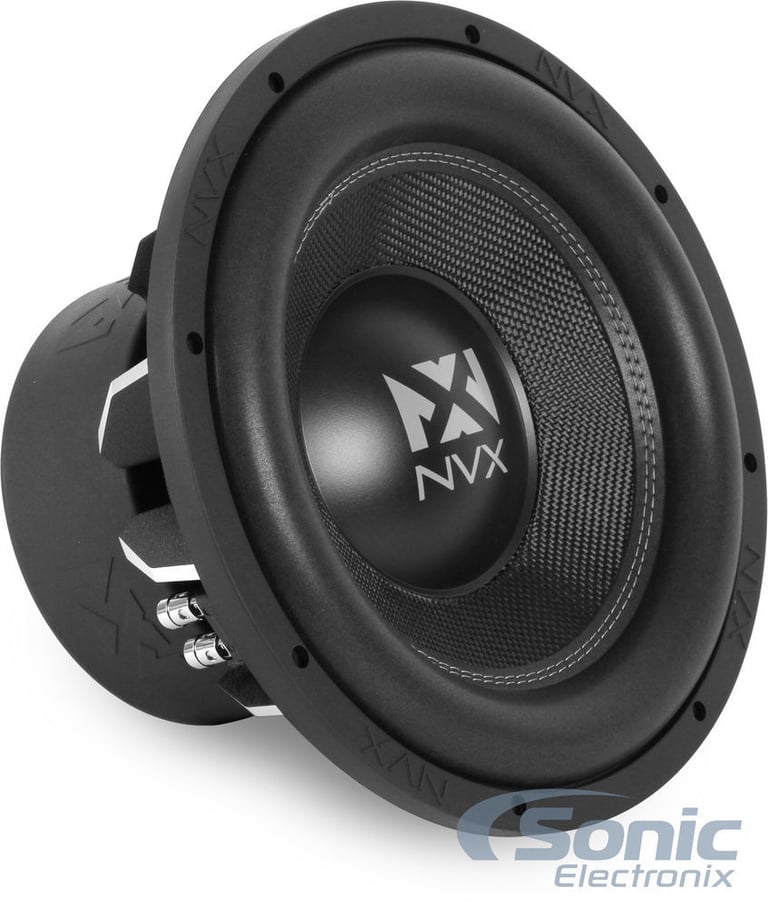

NVX VCW124 Version 3 (VCW124v3)

2400W Peak (1200W RMS) 12" VC-Series v3 Dual 4-ohm Car Subwoofer
Quantity: 1

Product Details:

  • 12" Dual 4 ohm VC Series Subwoofer
  • Power Handling:
    • Peak: 2400 watts
    • RMS: 1200 watts
  • Carbon Fiber Enhanced Non-Pressed Paper Cone
  • Custom High Roll Foam Surround with black nylon stitching
  • Die cast aluminum vented basket
  • Dual progressive-roll spiders with integrated flat-braided leads
  • 3" 4-Layer High Temperature Black Aluminum Voice coil
  • Optimized high-velocity pole vent
  • One-piece T-Yoke with integrated gap venting
  • 202 oz. Triple Stacked High Energy Y35 Ferrite with protective rubber boot
  • 23 mm Xmax (one-way) for massive air movement
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 25 Hz
  • Sensitivity: 85 dB (1W/1m)
  • Optimal sealed box volume: 0.85 cubic feet
  • Optimal ported box volume: 1.85 cubic feet
  • Top-mount depth: 7.02"
  • Cutout diameter: 11.26"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

NVX XKIT02

Full Spec 1/0 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 4000 Watts
Quantity: 1

Product Details:

  • 1/0 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 3000 watts RMS

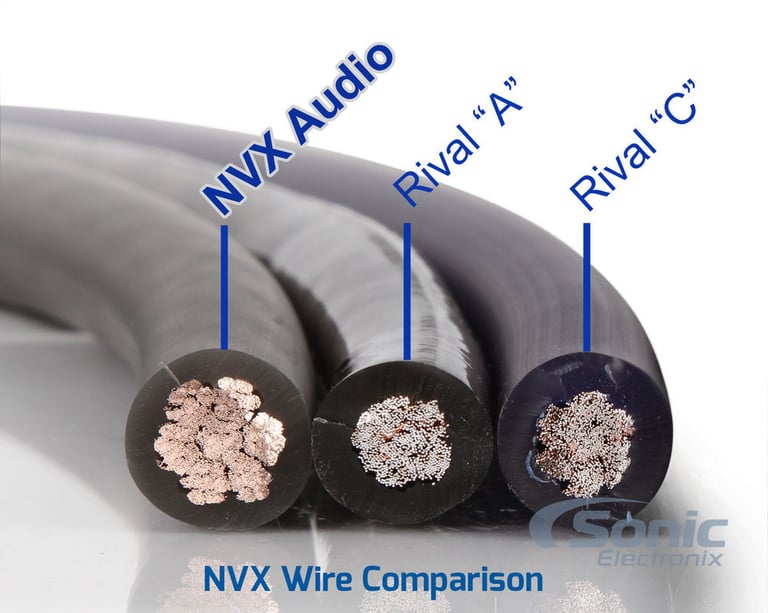

  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant
  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel

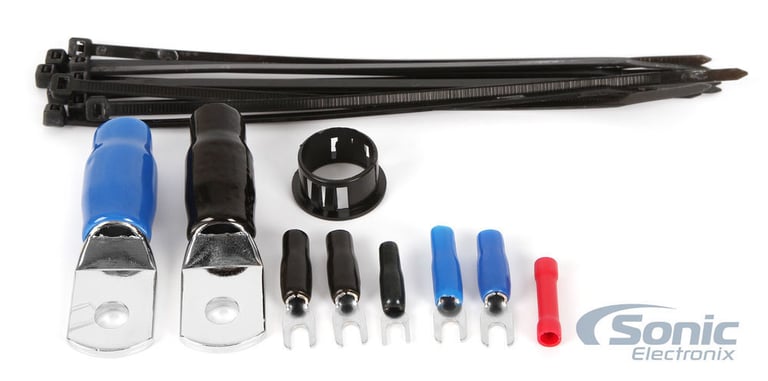

  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

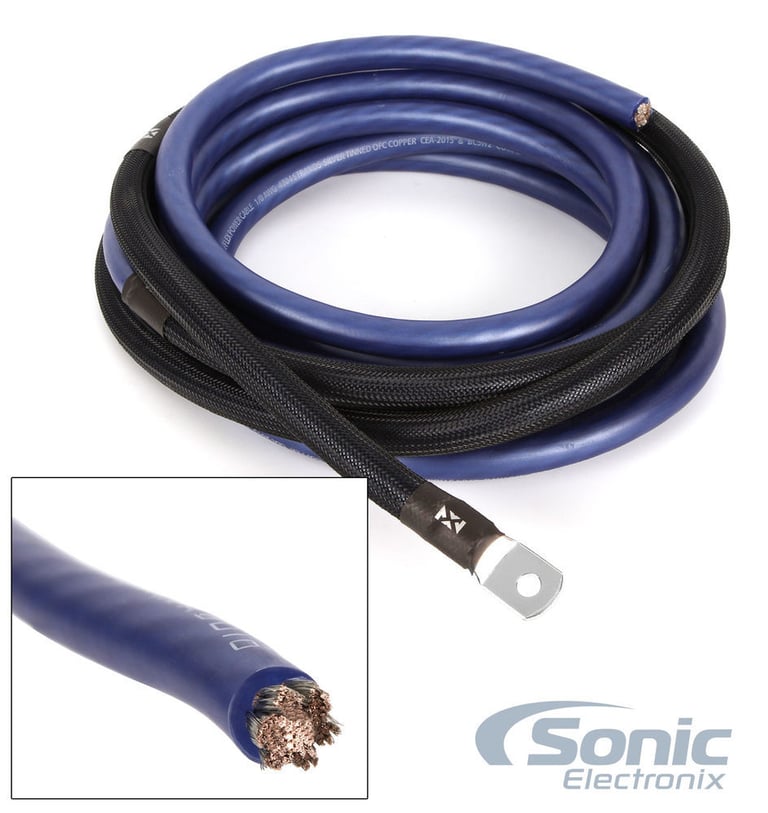

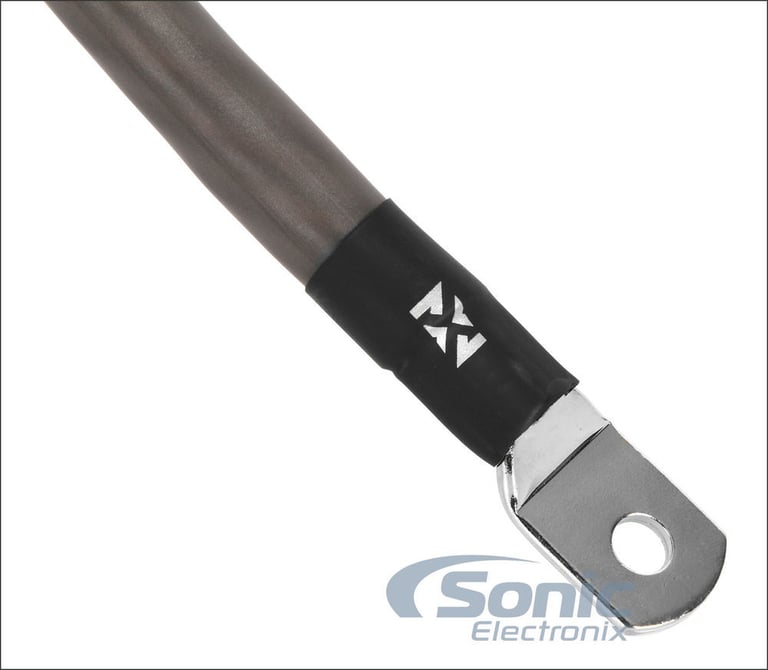

  1. 17 ft. Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal
  2. 3 ft. Frosted Black 1/0 gauge ground wire with seamless crimp ring terminal

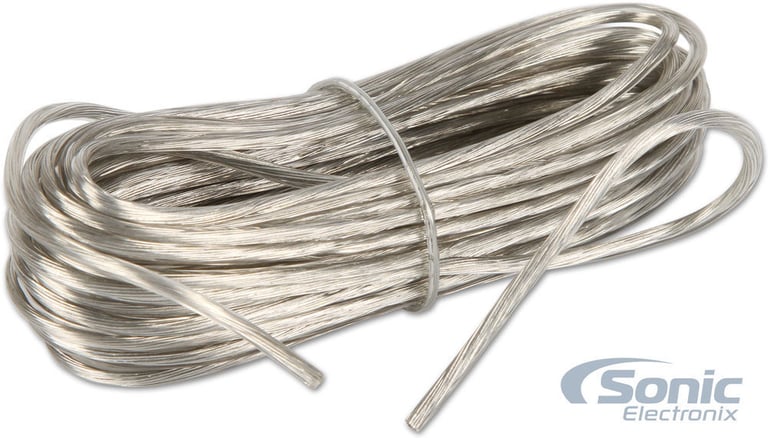

  3. 17 ft. Clear 18 gauge remote lead wire

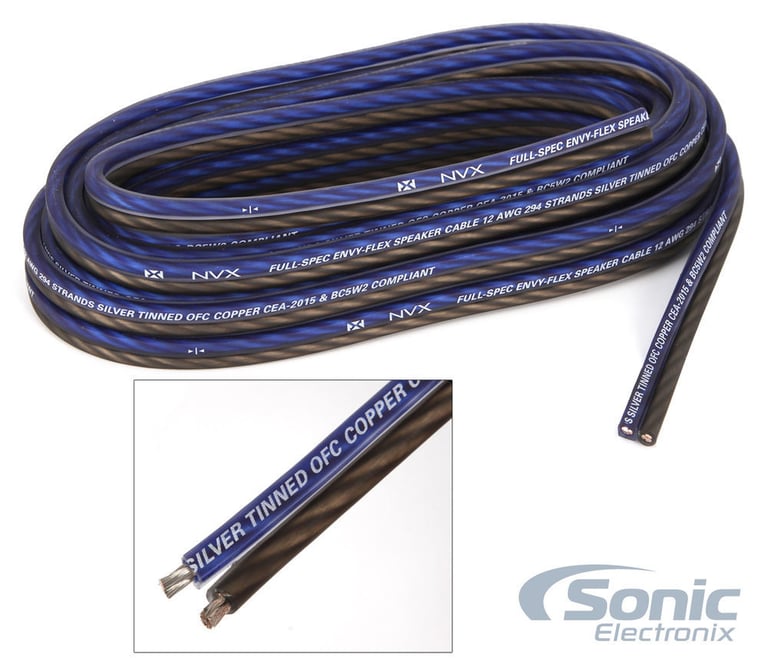

  4. 20 ft. Frosted Black/Blue 12 gauge speaker wire
  5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

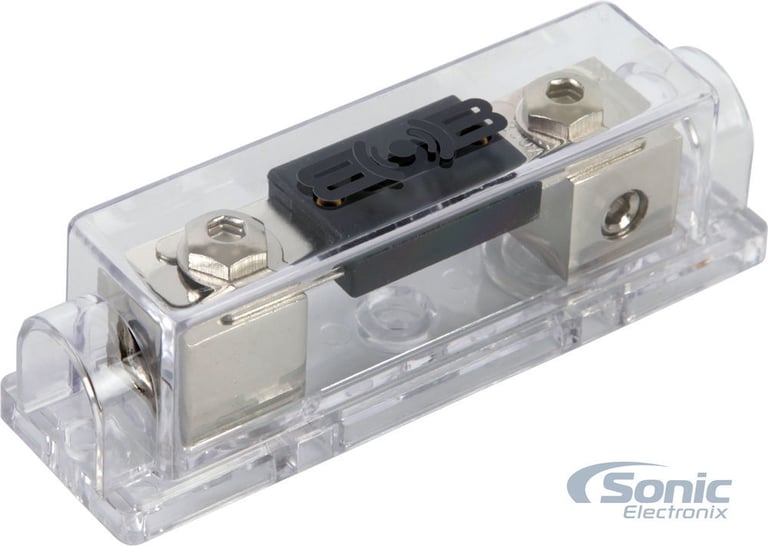

  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 300 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 1/0 Gauge Nickel Plated ring terminals
  9. Four 12 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Two Heat Shrink tubes with the NVX logo
  12. Ten 6" Black zip ties

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
1200 watts x 1 channel
RMS Power @ 2 ohms
1800 watts x 1 channel
RMS Power @ 1 ohm
3000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
5000 watts
Total RMS Power Output
3000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 180 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
300A x 1
CEA-2031 Compliant
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XKIT02,VCW124,BB5000Dv2

Weight:

62.38lbs

Internal SKU:

bb5000dv2_vcw124_xkit02

Internal Product ID:

177087

Product and How-to Videos


  • Belva BB5000d Amplifier Clamp tested for wattage

Customer Ratings & Reviews


Belva BB5000Dv2  + NVX VCW124 Subwoofer and Amp Kit thumbnail image

5 star
93%
4 star
7%
3 star
0%
2 star
0%
1 star
1%



Durability
4.9
Value
4.9
Features
4.9
Design
4.9
Usability
5

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Extremely Accurate

The following review is for VCW124v3, which is a part of the bundle you are viewing.

For a $200 subwoofer driver, this piece is one of the most accurate in it's price bracket.

What does it do for you? It creates a listening pleasure like no other, whether you listen to classical, rock, pipe organ, or any other genre of music, this speaker delivers.

It's quick response is well appreciated. I would or could go on and on about the different setups and what yielded the most listening pleasure, but that would be highly selective to my ears.

Bottom line is I would recommend this speaker on any given day of the week.

By samuel on May 19, 2014

145 found this helpful


well structured subs

The following review is for VCW124v3, which is a part of the bundle you are viewing.

Great subs, sounds awesome. Just can't get the subwoofers displacement anywhere and I'm having difficulty contacting technical support

By fredy on December 21, 2013

151 found this helpful


POUND POUND POUND!!!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

That's all these do is POUND! They sound amazing. I have them ran 1 ohm to my Hifonics X2200.1, giving them 1000 watts RMS easily, and they are begging for more. Can't wait to get them in a custom box (going to do 1.9 cubic ft per chamber tuned to 30-34 hz), and have them really perform. NVX is great quality, and sound amazing. Heads turn when you have these in your trunk!!!!

By Matt on August 20, 2014

140 found this helpful


Best subs yet!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

I bought the NVX VCW124s (2) to use in my vehicle with a Hifonics Brutus 2200 RMS Monoblock amp. The subs Voice coils are hooked in parallel giving me roughly a 2 Ohm load per speaker. So these babies are capable of getting 1100 amps RMS each but I don't push them that hard because I really don't need too and I want them to last. They hit harder than any sub I have ever bought and I am a solid NVX believer now. I also just bought the entry level NSW122s at a great deal, 2 for $99! If you are thinking about these, DO IT! You will not be disappointed one bit, and then you will likely not even consider anything else but NVX when it comes to serious performance and value.

By Ja_surplus on June 3, 2014

138 found this helpful


NVX for the win NVX>ALPINE FOR SURE!!!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

Took long to get home but worth the wait out of the box it was just an impressive subwoofer triple stack good looking and made Super tuff loaded them to a ported box and theyre louder than my broken in alpine type R subs i just love them definitely hi def sound thumbs up to nvx thanks sonicelectronix

By ARTILLERY CAR CLUB on January 16, 2014

124 found this helpful


great bass

The following review is for VCW124v3, which is a part of the bundle you are viewing.

The weight of the NVX Sub is nice and the bass is dumping.

By fresh on October 13, 2014

124 found this helpful


awsom powding bass beastly subwoofer

The following review is for VCW124v3, which is a part of the bundle you are viewing.

i recommend this subwoofer to any one who is looking to get big bass for the right money i have three of these in a q power three hole m.d.f box and running them off of a 3000 watt s.p.l amp and all i have to say is holey chees and bees knees i can hear the bass six block's away and feel the bass running on to my chest from three and people have told me when i am washing my car and i have every thing playing start's to knock their china and glass cups out from their place. i plan to un pug one until i get another battery as well as a battery isolator do to my head light's diming and having to jump start my car every now and then i already got a strike Capacitor that is 10 farad so as soon as that all comes in BOOM im back is business ... other than that al i got left to say is that give it a try and i know you will love it... i was a kicker hater i always hated those subwoofer's and when i heard them in my friend's car on a boss amp i was wowd so when i was told that n.v.x was just as good as m.t.x i said to my self i will try one for my self and i loved them so much i bought three as well as a q power 3 hole box

By shaun on August 25, 2014

124 found this helpful


NVX is a great company

The following review is for VCW124v3, which is a part of the bundle you are viewing.

Ok first off let me say my last system was 2 american bass xfl 12 (old style baskets) on a crescendo 2000d at .5ohm..could burp a mid 147db at 35hz.. had that setup for over a year..
anyhow i sold everything and went almost a entire year with NO bass at all..not even a cd player..
so i decided to get back into audio again..I 1st heard of nvx from mazda2284 on youtube.. and after talking to him i decided to order some nvx products..
i have 2 of these vcw 12s on a BELVA 5000d.. wired to 1ohm and gains set and O SCOPED for a CLEAN 2000w.. i have a 180a alternator and 150amp hr of battery bank and 0g wires..
i have these subs in a 3.8 cubic foot NET (meaning each sub really sees 1.9 cubes each) using 14" of port per cubic foot and tuned to 30hz..
i 1st tried the recommended 1.2 cube ported box but the ouput was absolutely HORRIBLE.. the 1.9 cubes REALLY made them come to life
they are JUST as loud as my xfls were and play a good bit lower also (xfls struggled below 25hz these nvx's play 20hz EASILY)
and they take the power all day long.. with my voltage dropping to around 13.2s full tilt i can play for a constant 1hr and the subs are still COOL and so is the amp

By jake on May 9, 2013

119 found this helpful


Buy it NOW before it's doubled in price!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

These subs are the BEST I have ever owned or heard anywhere and the price is way bellow what their competitors are asking for similar subs at NVX specs. I own 3 of these babies and am planning on buyin nothing but these subs for my subwoofer needs. Buy these subs NOW at these prices while you still can because the are definitely going to get more expensive and soon too. My next purchase will be for the VCW15 for another home subwoofer custome build. I only wish they made an 18" subwoofer for my current 18" subwoofer satellite custome built box that is good but could be so much better with an NVX subwoofer at its core. Amazing sound, quality, and value!

By Jlircs on September 30, 2014

120 found this helpful


fuccin aye

The following review is for XKIT02, which is a part of the bundle you are viewing.

Well worth the money, go hard or go home!!! Only mess with the best

By Michael on March 31, 2014

108 found this helpful




No picture

MTX Audio TA5601 Thunder 5601 Factory R/B

Factory Refurbished, Class D Monoblock Amplifier Thunder5601

$269.99

List price $549.99

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2025 Ram 1500 RHO

2017 Volkswagen CC

1972 Datsun 240Z

2009 Porsche Cayman

2003 Mazda B3000

2023 Ford Explorer

2019 Volkswagen e-Golf

2022 Audi S7

2015 Audi A5

2015 Dodge Ram ProMaster 2500

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
