See all parts that fit your 2018 Spark

JL Audio 6.5" C5-653 + Free $200 Gift Card

450W 6.5" Evolution C5 Series 3-Way Component Speaker System

JL Audio
Shop all JL Audio
highlight-star-icon

• Peak Power: 225W per channel
• RMS Power: 75W per channel
• Mineral Filled Polypropylene Cone
• Butyl Rubber Surround
• Silk Dome Tweeter
• Cast Alloy Frame
• Elevated Frame Cooling
• 4 ohm

Learn more about the c5653_200egift

We apologize

This item has been discontinued


Loading...
MPK 165.3 main

Hertz MPK165.3

440W Peak (220W RMS) 6.5" Mille PRO Series 2-Way 4 Ohm Component Speaker System

2
-14.90%

$599.99

List price $705.00

Description


JL Audio brand icon

Authorized dealer

JL Audio Evolution C3 Series Convertible Speaker System
JL Audio Evolution C5 Series 3-Way Component Speaker System

Evolution™ C5 is serious product, engineered by JL Audio to meet the demands of the toughest acoustic and environmental conditions in the high-fidelity world. It is not about cute buzzwords or the exotic material of the month... it's all about making your music come alive with realism and excitement. C5 woofers and tweeters are precision-built in Germany alongside JL's flagship ZR components, incorporating their exclusive DMA-optimized motor and patented Elevated Frame Cooling technologies. Particular emphasis has been placed on off-axis response and dynamic stability which might not be that important during a five minute evaluation on a demo board, but makes all the difference when installed in your car. The system is comprised of high-end silk dome tweeters, die-cast alloy baskets, and renowned Kurt Müller designed cones and suspensions. In addition, C5 crossover networks are compact and built with premium component parts, including Mylar capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations! The combination of these components provide smooth and transparent audio for the true Audiophile!


Silk Dome Tweeter

Silk Dome Tweeter

JL Audio C5 tweeters incorporate silk dome diaphragms to deliver smooth high-frequency transitions, on and off axis. Silk is a natural material with inherently good characteristics as a tweeter diaphragm. In addition to being very light in weight, silk exhibits excellent damping properties, which reduces ringing and resonances in the tweeter's passband, leading to a smooth, pleasing high frequency character free from unnatural sibilance or exaggerated brightness. This is why a Silk Dome Tweeter is preferred by many audiophiles for its overall balance. The small size of the tweeter minimizes tweeter protrusion, allowing it to easily fit behind most factory speaker grilles.

JL Audio Linearity and Control

Unparalleled Build and Precision

DMA is JL Audio's proprietary Dynamic Motor Analysis system and is aimed at improving dynamic motor behavior. As a result of DMA optimization, Evolution C5 motors remain linear in motor force over an extreme range of excursion and also maintain a highly stable fixed magnetic field in the gap over a wide power range. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate low end. In addition, JL Audio turns to their partners at Germany's Dr. Kurt Müller & Co. for critical cone and suspension elements that provide unparalleled woofer performance.


JL Audio C5-653

(450W Max) 6.5" Evolution C5 Series 3-Way Component Speaker System
Quantity: 1

Product Details:









  • 6.5" Evolution C5 Series 3-way Component Car Speakers
  • Power Handling:
    • Peak: 450 watts per set / 225 watts per channel
    • RMS: 150 watts per set / 75 watts per channel
  • Recommended Power Range: 25 - 150 watts per channel

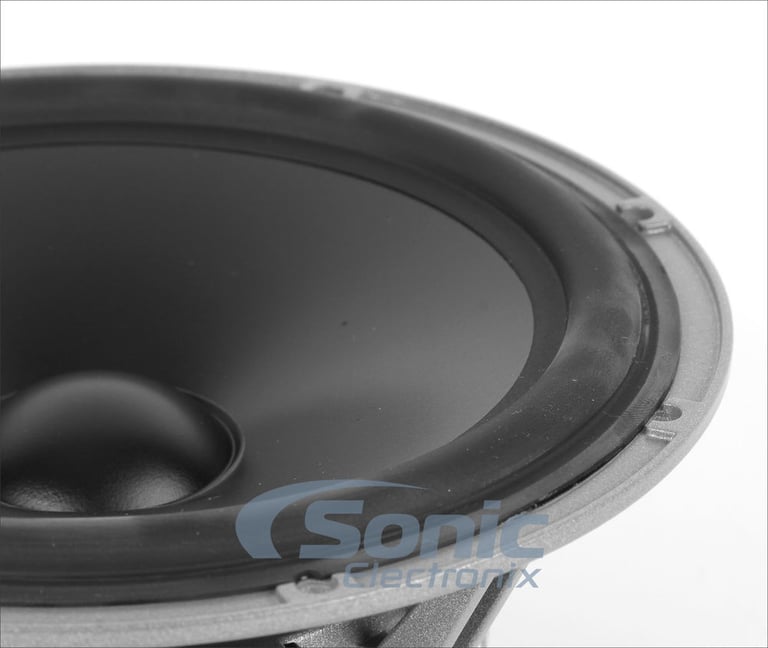

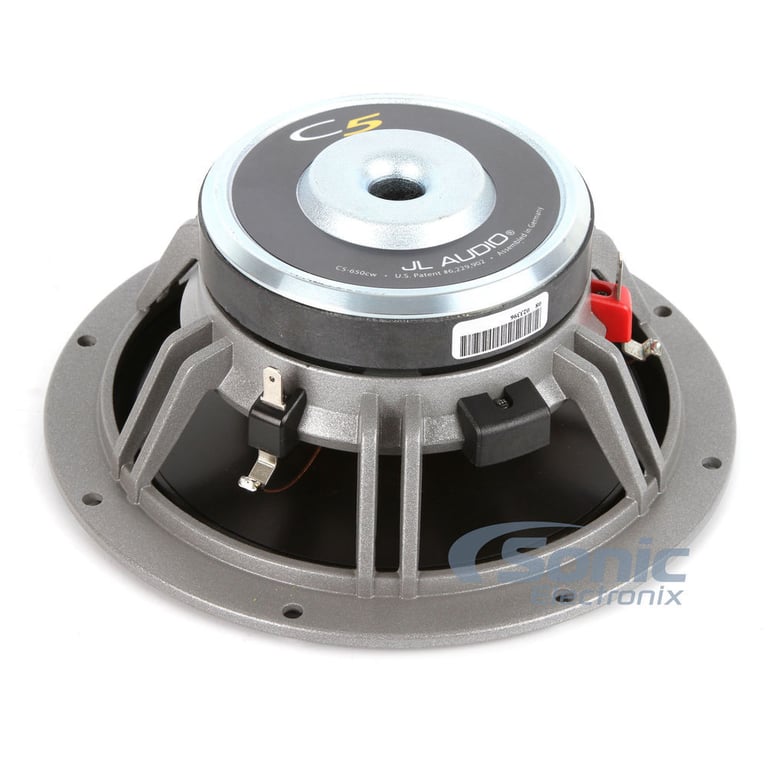

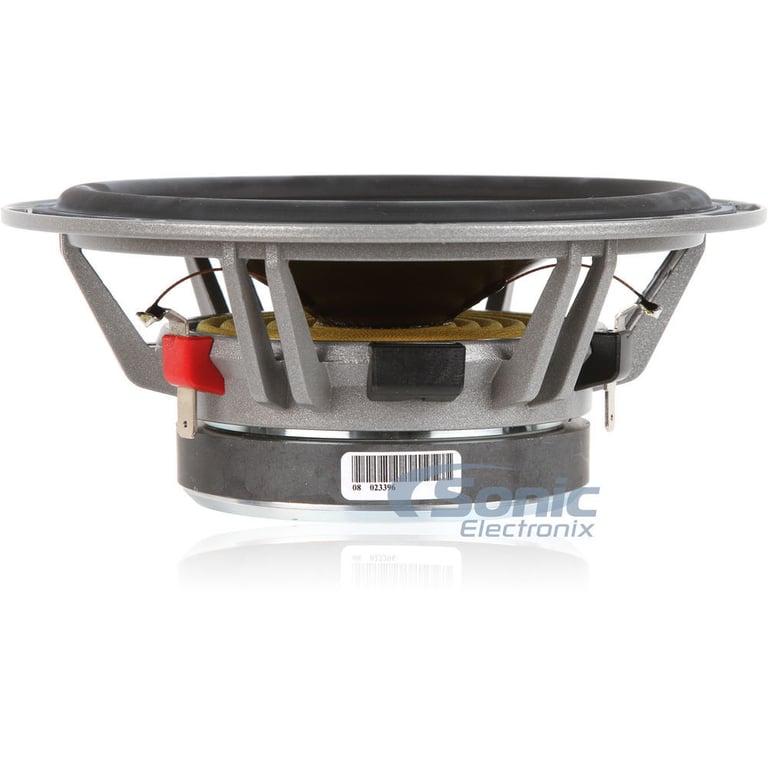

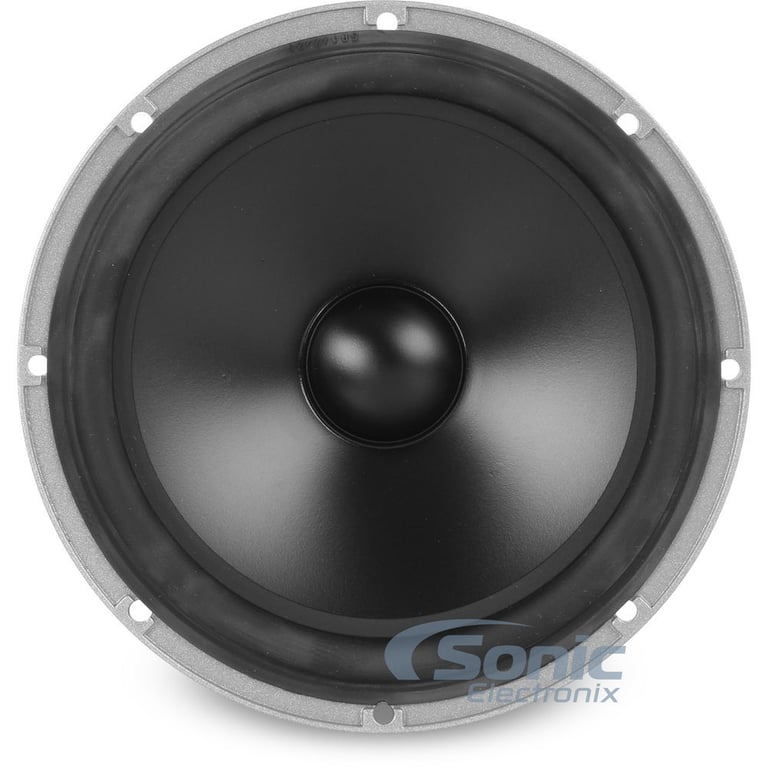

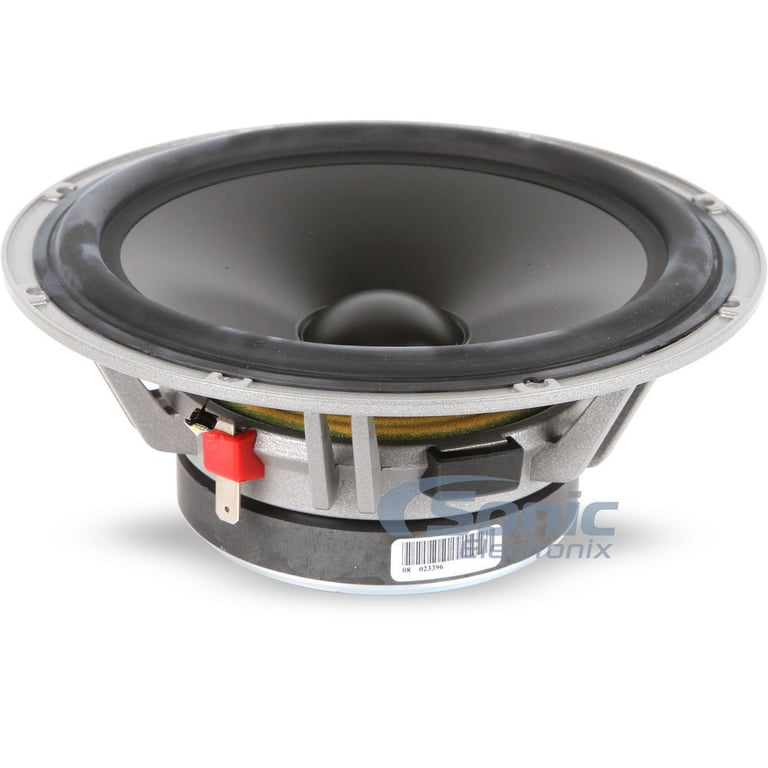

  • 6.5" Woofer Specifications:
    • Mineral-Filled Polypropylene Cone
    • Butyl Rubber Surround
    • Cast Alloy Frame/Basket
    • Elevated Frame Cooling
    • Ferrite Woofer Magnet
    • 1.00" Voice Coil on Kapton Former
    • Low-Profile, Symmetrical Roll Spider
    • Dynamic Motor Analysis (DMA) Optimized Motor

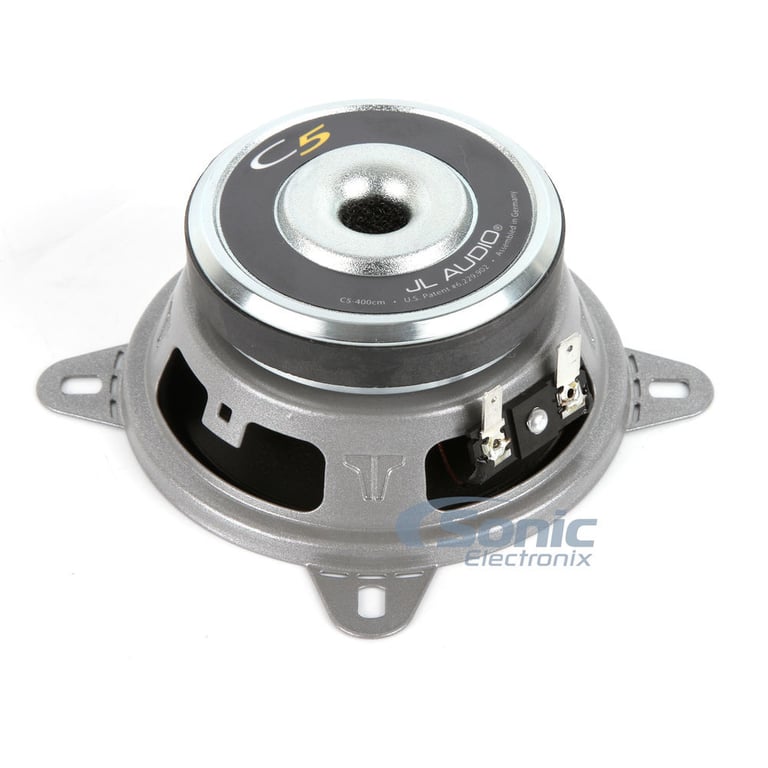

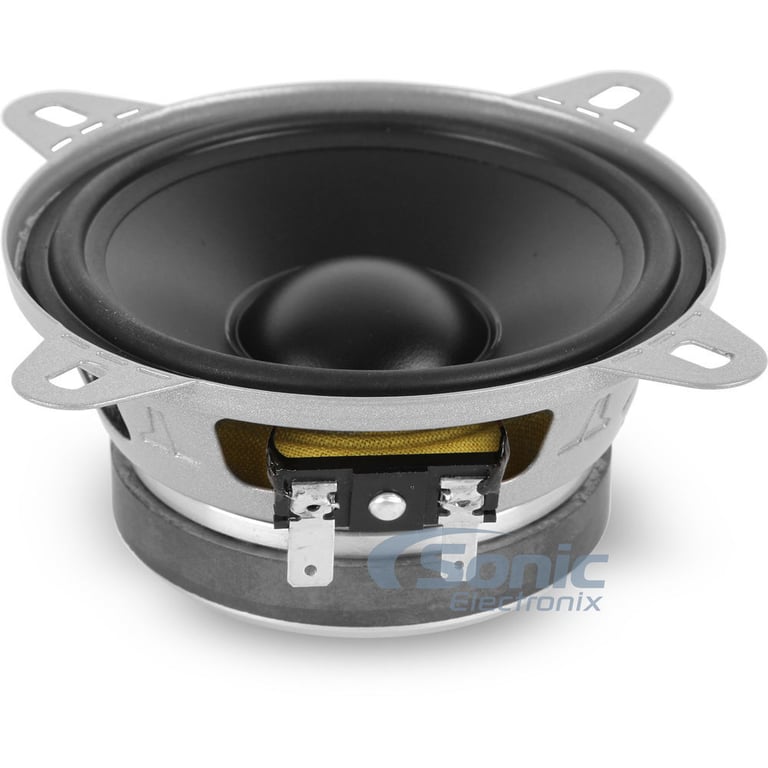

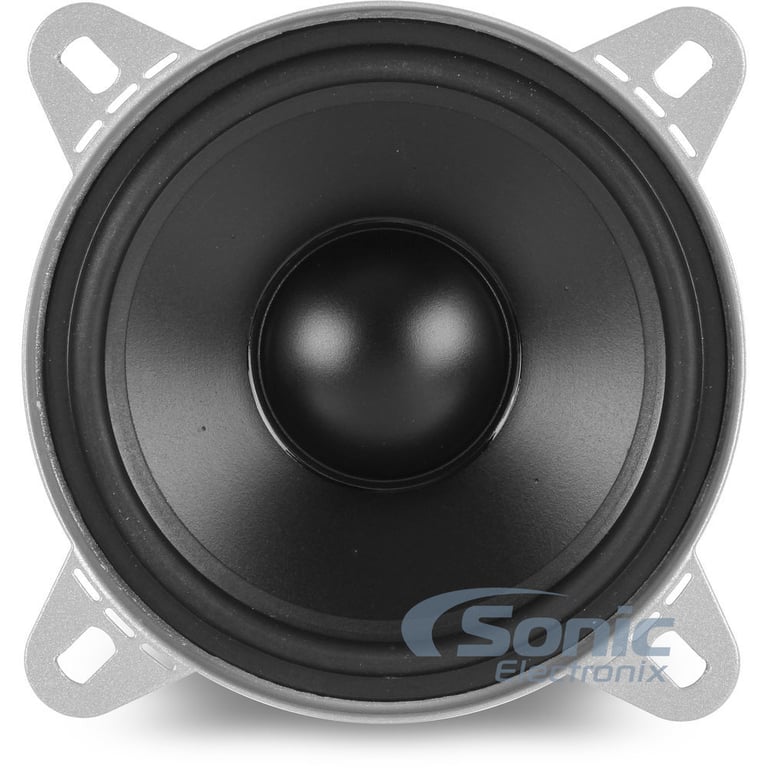

  • 4" Mid-Range Specifications:
    • Mineral-Filled Polypropylene Cone
    • Butyl Rubber Surround
    • Ferrite Woofer Magnet
    • 1.00" Voice Coil on Kapton Former
    • Low-Profile, Symmetrical Roll Spider
    • Dynamic Motor Analysis (DMA) Optimized Motor

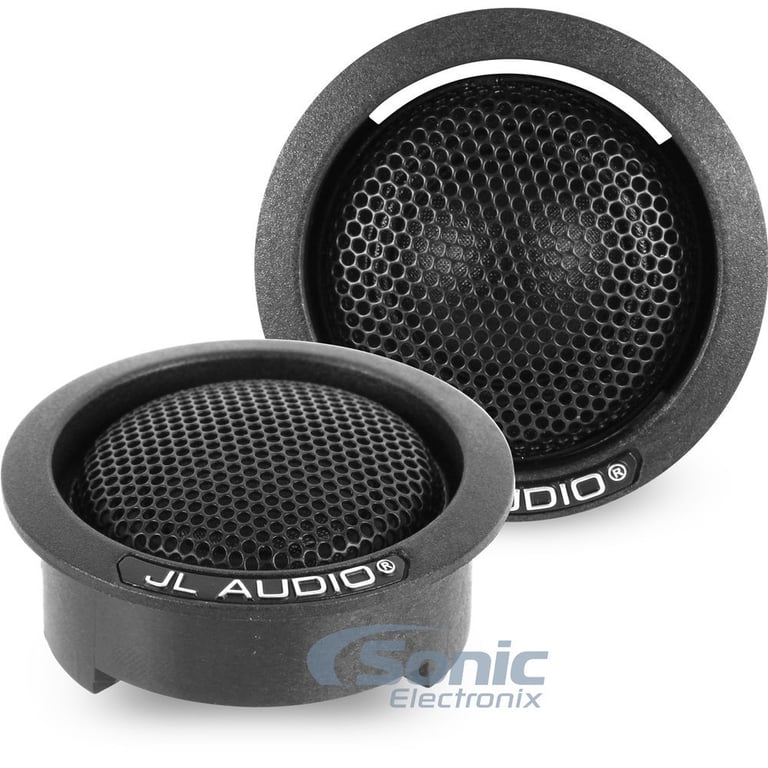

  • 0.75" Tweeter Specifications:
    • Silk Soft Dome Tweeter
    • Ferrofluid Cooling and Damping
    • Neodymium Magnet

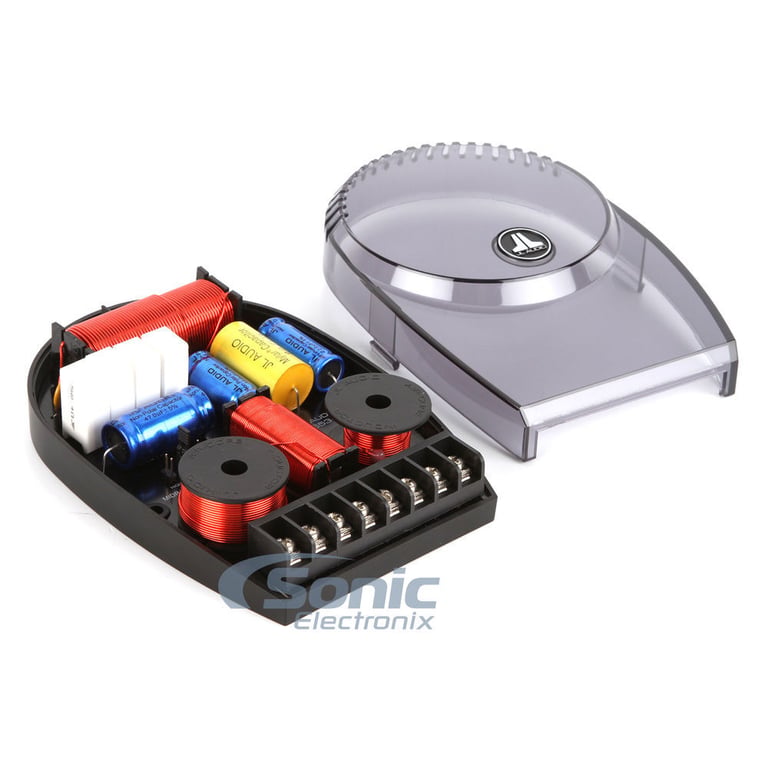

  • 2-way Crossover Network w/ 2nd Order Low-Pass and 2nd Order High-Pass Circuit
  • Premium Mylar Capacitors w/ Air-Core Inductors
  • 4-Position Adjustable Tweeter Output Level
  • 3-position Mid-range Presence Control
  • Polyswitch Tweeter Protection

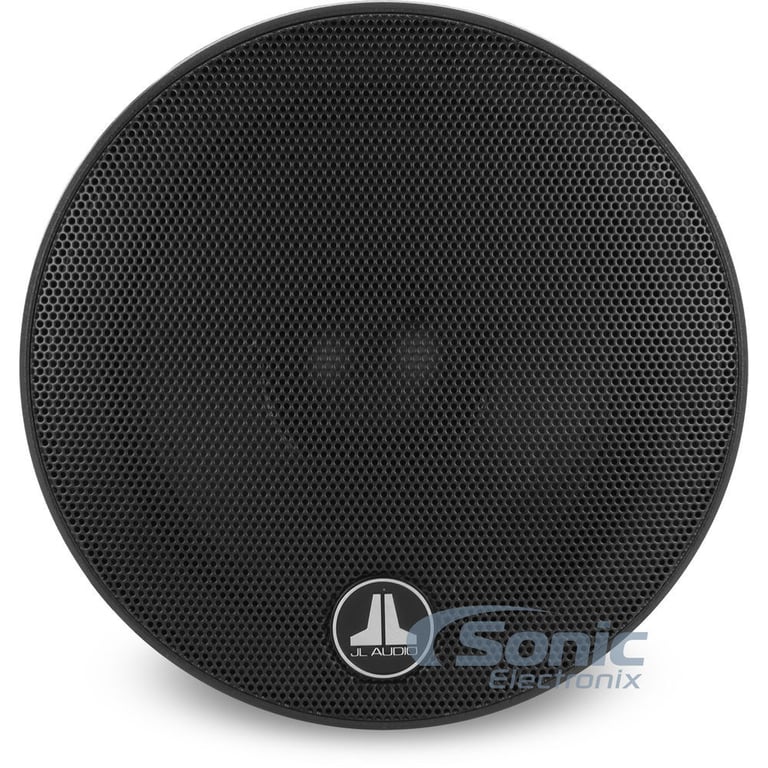

  • Black Steel Mesh Grille with An Electroformed JL Audio Logo Included
  • Woofer Dimensions:
    • Top-mount depth: 2.54"
    • Cutout Dimensions: 5.56"
  • Mid-Range Dimensions:
    • Top-mount depth: 1.62"
    • Cutout Dimensions: 3.625"
  • Tweeter Dimensions: (Flush Mount)
    • Top-mount depth: 0.56"
    • Cutout Dimensions: 1.50"

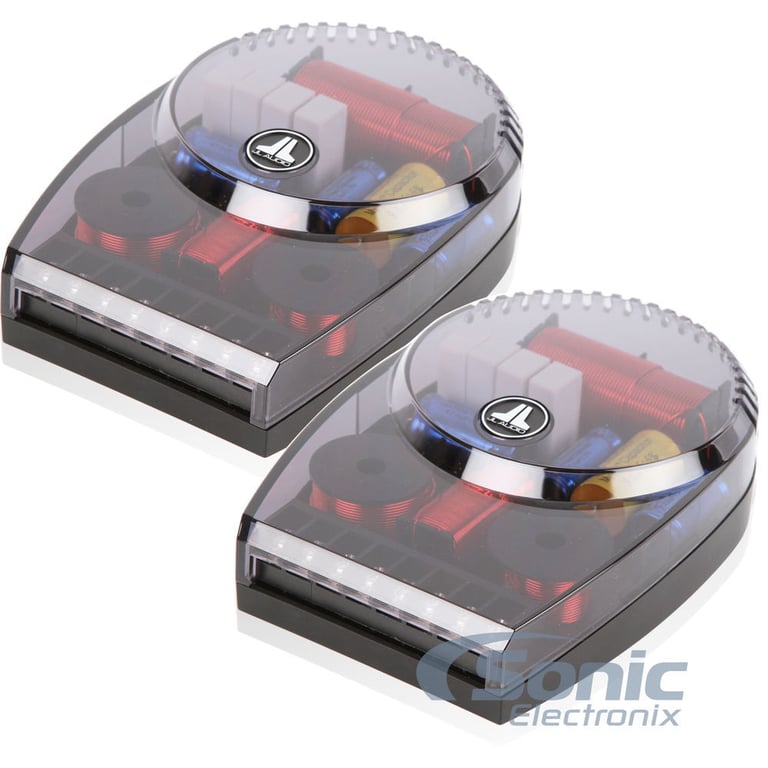

  • Crossover Dimensions:
    • Width: 4.17"
    • Height: 1.68"
    • Depth: 5.86"
  • Nominal Impedance: 4 ohm
  • Efficiency: 89.5 dB @ 1 watt / 1 meter
  • Frequency Response: 48 Hz - 25 KHz 3 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

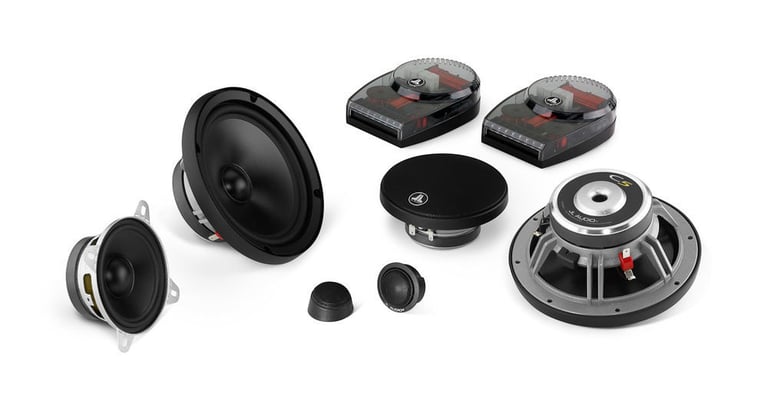

  • Priced Per Complete 3-Way Component System:
    2 midwoofers, 2 mid-range, 2 tweeters and 2 crossover networks.

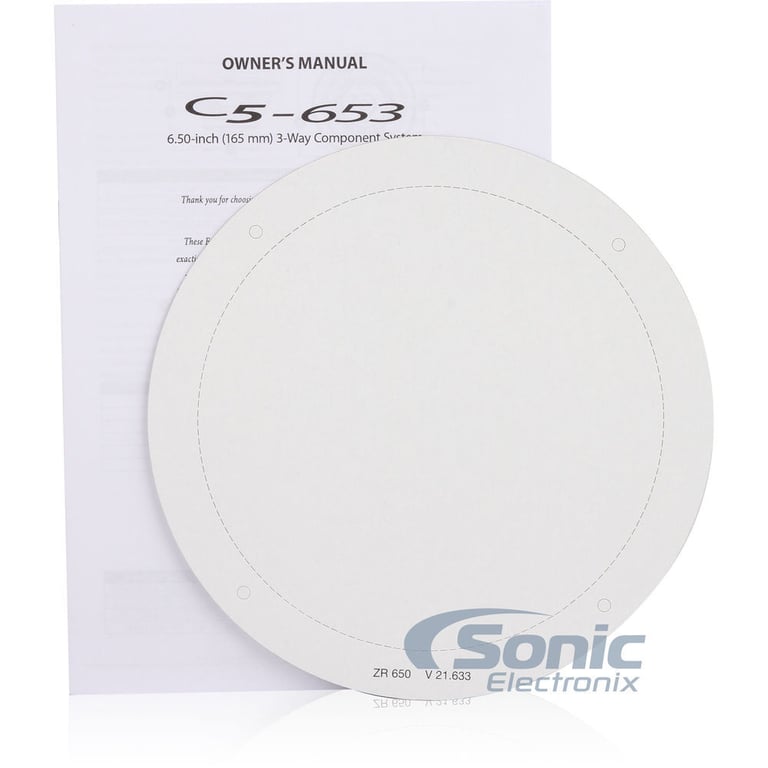

Check out the JL Audio C5-653 Owner's Manual

$200 e-Gift Card at Sonic Electronix

Digital e-Gift Card for value of $200 applies electronically to account
Quantity: 1

Sonic Electronix Gift Card Features:

  • No minimums or restrictions
  • No expiration date
  • Tied to your account so you'll never lose the value or card
  • Easily see the value by simply logging into your account
  • Easy to apply at checkout (see instructions below)

Redemption Instructions:

  1. Add items to your shopping cart
  2. Begin Checkout
  3. Login to your account
  4. On the Second step of checkout you will have the option to apply the gift card (store credit) value.

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00


Best selling similar products

MPK 163.3 small

Hertz MPK163.3

• 300 watts Peak Each, 150 watts RMS Each
• Tetolon Soft Dome tweeters
• Pressed Pulp Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(2)

$999.99

List price $1175.00

PNW-65CS2 small

AudioControl PNW-65CS2

• 125 watts Peak Each, 100 watts RMS Each
• 3/4" rear-dampened Hybrid Silk Dome tweeters
• Rigid Poly Mica cone material
• Impedance: 3 ohm
• Sensitivity: 88.8 dB

(4)

$319.00

List price $339.00

T2652-S small

Rockford Fosgate Power T2 T2652-S

• 200 watts Peak Each, 100 watts RMS Each
• 1" Aluminum Dome tweeters with integral suspension
• Carbon Fiber Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB

(42)

$449.99

List price $449.99

Specifications & Details


Speaker Specifications
Series
C5 Series
Priced Per
Pair
Number of Speakers
2 Woofers + 2 Mids + 2 Tweeters
Speaker Size
6-1/2"
Design
3-way Component Speakers
Tweeter Design
Dome
Tweeter Size
3/4"
Tweeter Composition
Silk
Woofer Composition
Mineral-Filled Polypropylene
Woofer Surround
Butyl Rubber
Peak Power Handling
225 watts
RMS Power Handling
75 watts
Sensitivity
89.5 dB
Frequency Response
48 - 25,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
General specifications
Marine Certified
No
Color
Black
Speaker Grilles
Yes
What is in the box?
Paperwork
User manual
WITB: Speakers
Speakers (2)
Grilles (2, attached)
Tweeters (2)
Crossover networks (2)

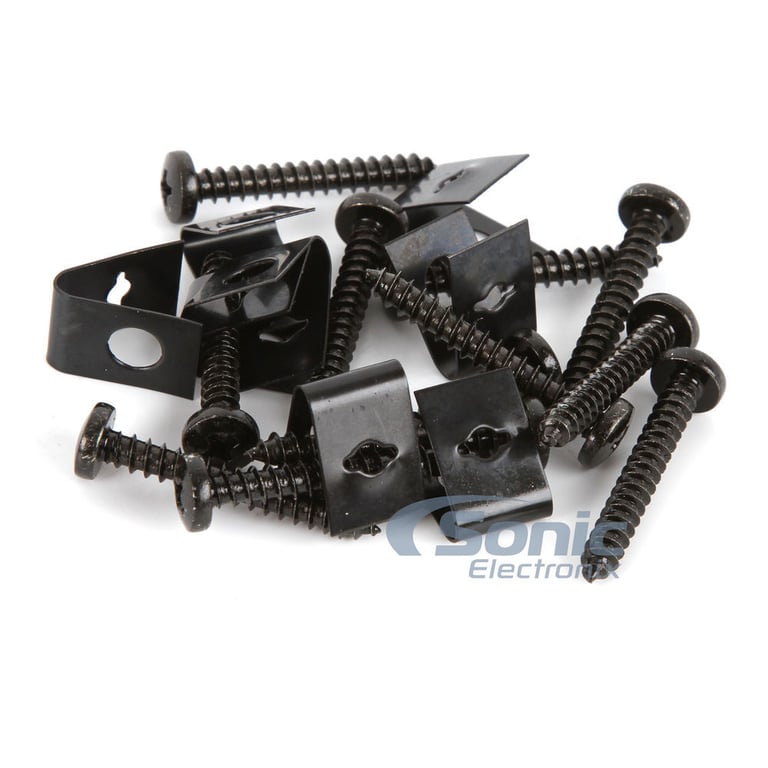

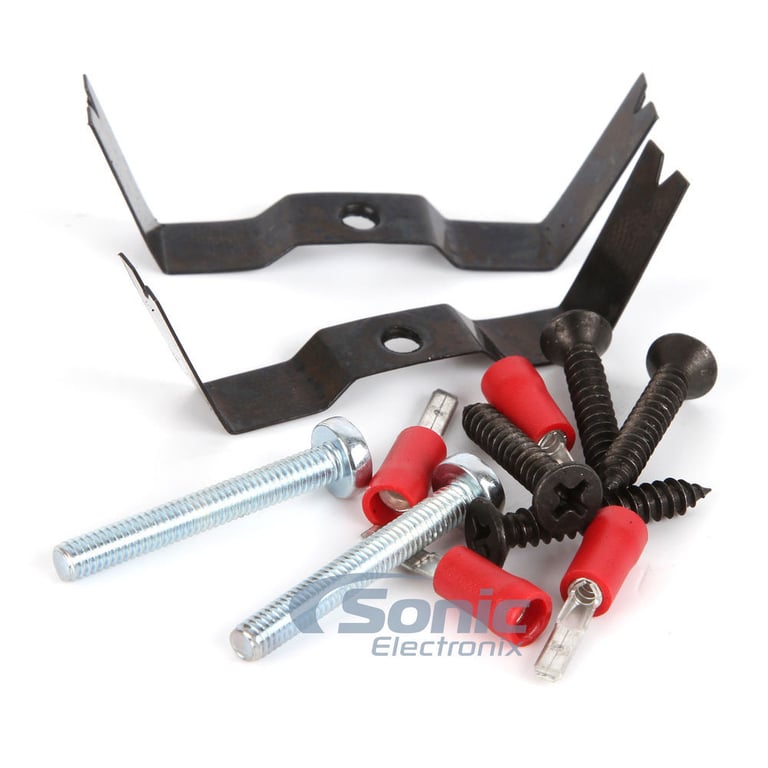

Mounting screws (4)
Mounting clips (8)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SonicElectronix-200-Gift-Card,C5-653

Weight:

11.71lbs

Internal SKU:

c5653_200egift

Internal Product ID:

177511
