Name: MB Quart NAU 460 Open Box
Brand: MB Quart
SKU: LS-nau460-OB
Price: 89.99 USD
Availability: Discontinued

by MB Quart

About
Specs & Details
Reviews
Add-ons
Recently Viewed
Related Searches

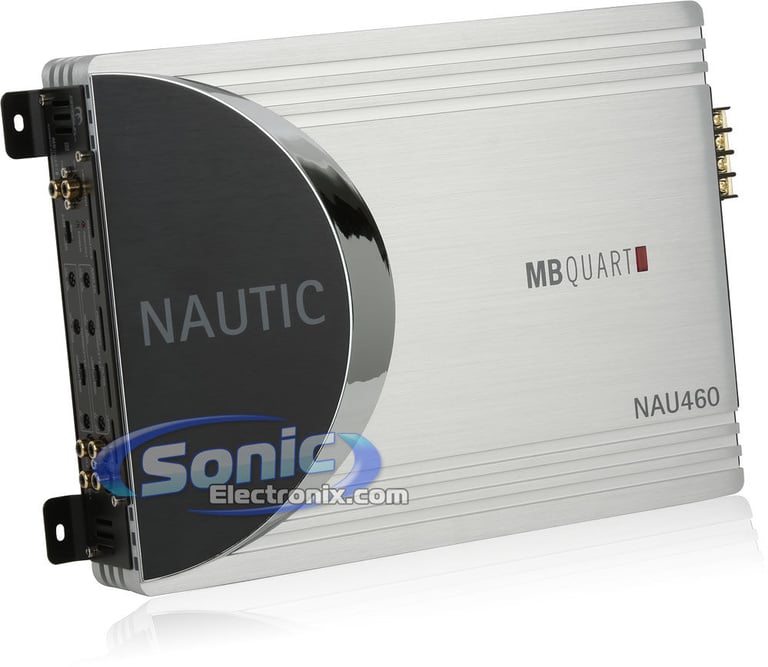

MB Quart NAU 460 Open Box Image 1 — MB Quart NAU 460 Open Box

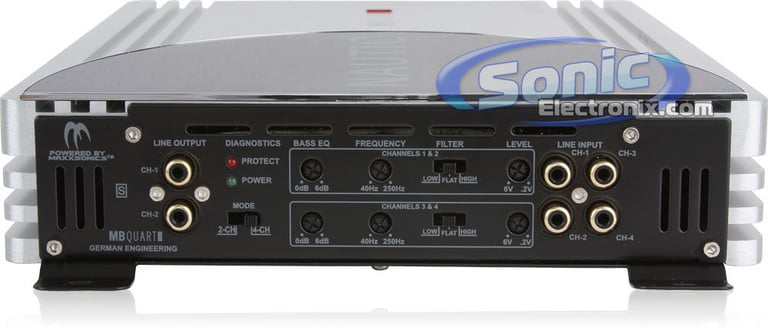

MB Quart NAU 460 Open Box Image 2 — MB Quart NAU 460 Open Box

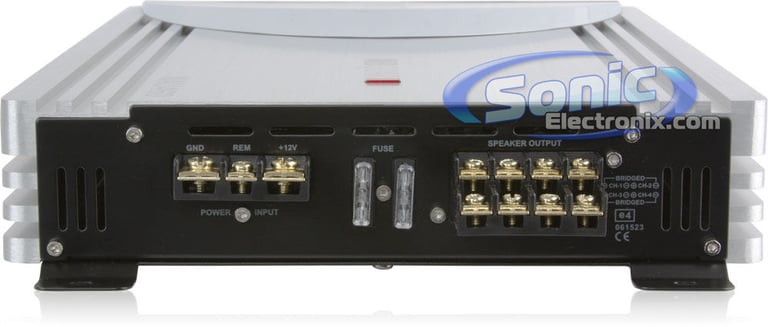

MB Quart NAU 460 Open Box Image 3 — MB Quart NAU 460 Open Box

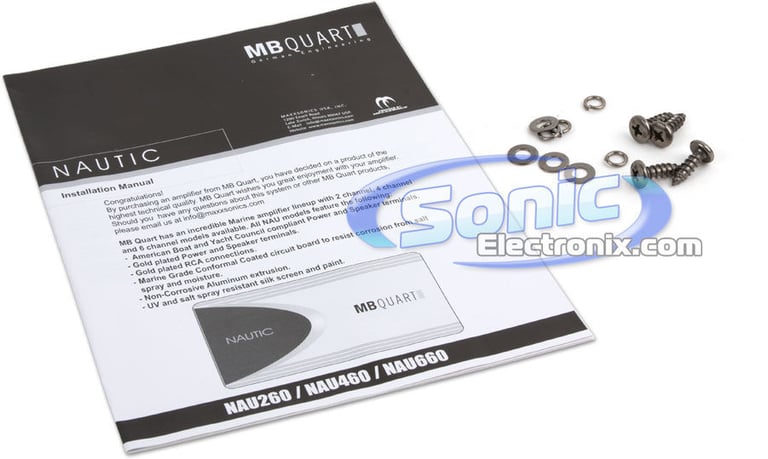

MB Quart NAU 460 Open Box Image 4 — MB Quart NAU 460 Open Box

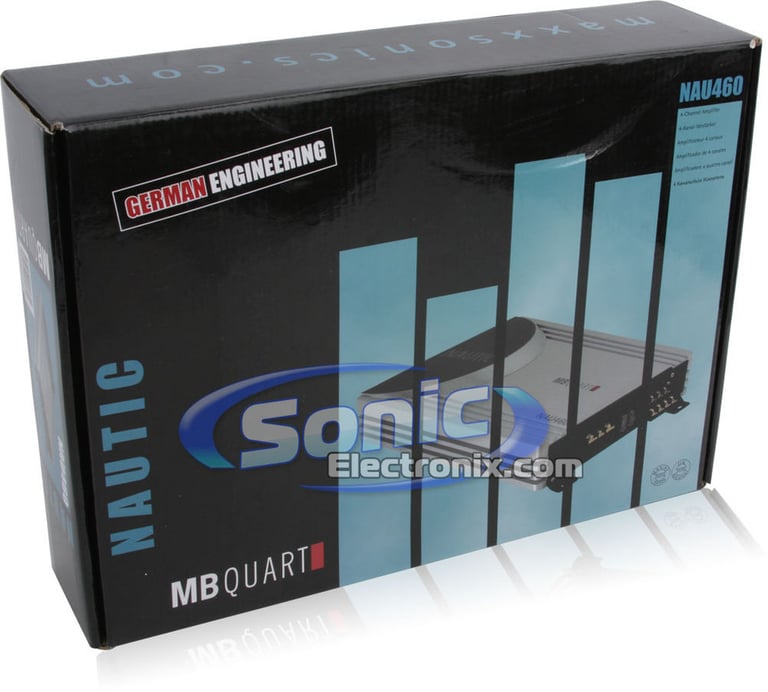

MB Quart NAU 460 Open Box Image 5 — MB Quart NAU 460 Open Box

Product highlights

Nautic Series 4-Channel Class A/B Marine Amplifier • UV And Salt Water Resistant • 60W x 4 Chan. @ 4 Ohm • 90W x 4 Chan. @ 2 Ohm • Full Range Line Outputs • 4-Way System Protection • Gold-Plated RCA Level Inputs

Learn more about the LS-nau460-OB

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Nautic Series 4-Channel Class A/B Marine Amplifier
RMS Power Rating:

4 ohm: 60 watts x 4 chan.
2 ohm: 90 watts x 4 chan.
Bridged, 4 ohm: 180 watts x 2 chan.

Max power output: 360 watts
MOSFET PWM power supply
UV and salt water resistant paint, silk screen and heat sink enclosure
Marine-grade conformal coated circuit boards resist corrosion from salt spray and moisture
Non-corrosive brushed aluminum casing
Conforms to the American Boat and Yacht Council (ABYC) marine electronic standards
LED power and protect indicators
Bass Boost (0-6 dB bass boost at 45 Hz)
2/1 channel operation
Full range line outputs
4-Way system protection circuitry (DC, short, thermal, overload)
Heavy duty aluminum alloy heatsink
Gold-plated RCA level inputs
Gold-plated screw terminals
Variable high-pass filter (40-250 Hz)
Variable low-pass filter (40-250 Hz)
Variable frequency: 40-250 Hz
Variable input level control (0.2V-6V)
Damping Factor: 180
Dimensions: 12-5/8"L x 9-1/2"W x 2-1/8"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
90-Day Repair only warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

60 watts x 4 channel

RMS Power @ 2 ohms

90 watts x 4 channel

Bridged RMS Power

180 watts x 2 channel

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

4-Channel

Total RMS Power Output

360 watts

Maximum Input Gauge Size

8 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

4 ohms

THD at Rated RMS Power

.05%

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)
Full (AP)

High-Pass Crossover Frequency

40 - 250 Hz

Low-Pass Crossover Frequency

40 - 250 Hz

Signal-to-Noise Ratio

93 dB

Channel Separation

80 dB

Bass Boost

0 - 6 dB

Remote bass/level controller

Fuse Rating

25A x 2

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
