Name: Eclipse ZA1200 R/B
Brand: Eclipse
SKU: LS-za1200-RB
Price: 209.99 USD
Availability: Discontinued

by Eclipse

About
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

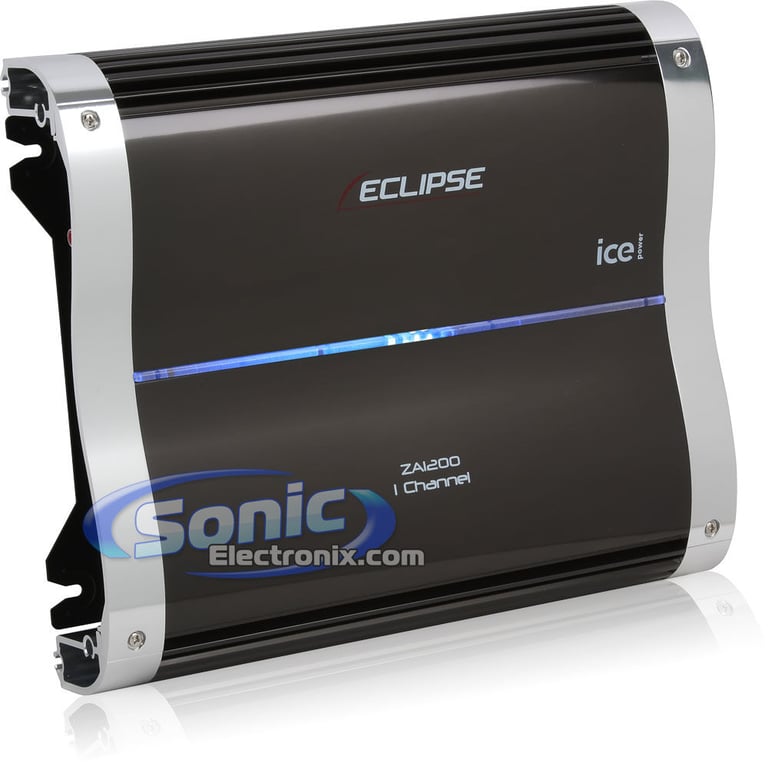

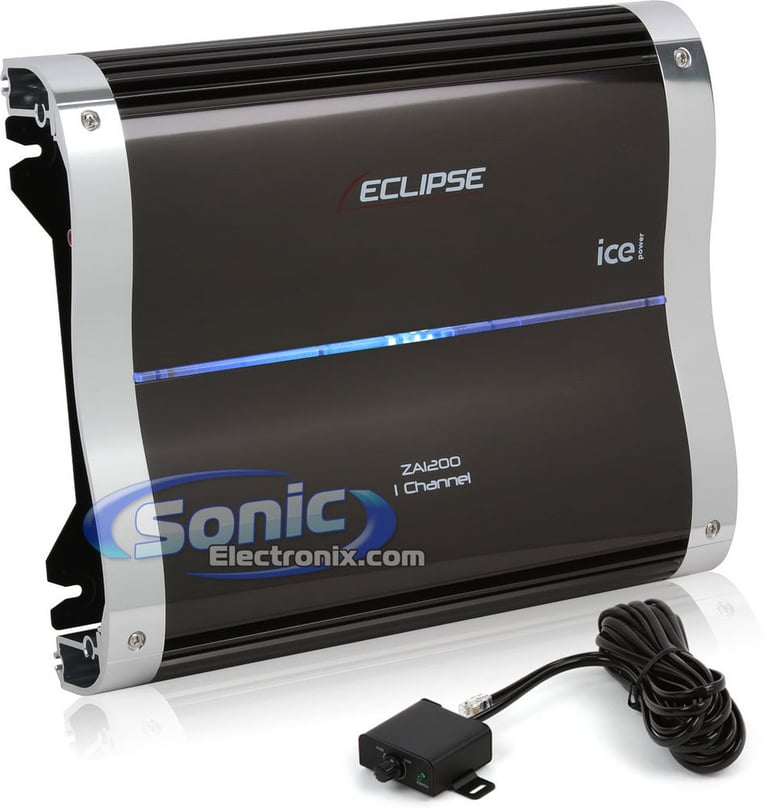

Eclipse ZA1200 R/B Image 1 — Eclipse ZA1200 R/B

Eclipse ZA1200 R/B Image 2 — Eclipse ZA1200 R/B

Eclipse ZA1200 R/B Image 3 — Eclipse ZA1200 R/B

Eclipse ZA1200 R/B Image 4 — Eclipse ZA1200 R/B

Eclipse ZA1200 R/B Image 5 — Eclipse ZA1200 R/B

Eclipse ZA1200 R/B Image 6 — Eclipse ZA1200 R/B

Eclipse ZA1200 R/B Image 7 — Eclipse ZA1200 R/B

Product videos

Product highlights

ZA Series Class D Monoblock Car Amplifier • 1000 Watts x 1 Chan. @ 4 Ohm • 1200 Watts x 1 Chan. @ 2 Ohm • 1500 Watts • Variable Low-Pass Filter • ICEpower Design • CEA-2006 Compliant • LED Power Indicators

Learn more about the LS-za1200-RB

Product Highlights

Description

Item Condition - Refurbished:

A manufacturer refurbished product will function like new with all parts inspected or replaced as necessary. There may be slight cosmetic issues such as scratches or similar. See the description for additional details.

Eclipse ICEpower

Experience the incredible electrical engineering of Eclipse amplifiers featuring their ICEpower technology. The Eclipse ZA1200 monoblock amplifier is an extremely efficient amplifier made specifically for subwoofers. Using Eclipses latest technology, the ZA1200 features ICEpower. This means that the amplifier produces superior audio quality, is housed in a compact case, reduced energy demand, and amplifier reliability. Heat is kept low with the digital processors inside the amplifier, resulting in an increased power output. This single channel amp is designed and engineered specifically with the intent to push a subwoofer clearly, efficiently, and without the distortion that other amplifiers produce. The amp is quite small when compared to how much wattage that it is able to produce. At 4 ohm, the Eclipse ZA1200 produces 1000 watts and 1200 watts at 2 ohm. That is more than enough wattage for any mid-level to high-end system. The package includes a bass level remote that allows the user to adjust the bass level from the front seat. This is especially convenient since you do not have to adjust any settings on the amplifier itself. If you are in the market for a high powered amplifier that is efficient and clean, the Eclipse ZA1200 is the perfect amplifier for your car!

ZA Series Class D Monoblock Car Amplifier
RMS Power Rating:

4 ohm: 1000 watts x 1 chan.
2 ohm: 1200 watts x 1 chan.

Max power output: 1500 watts
MOSFET power supply

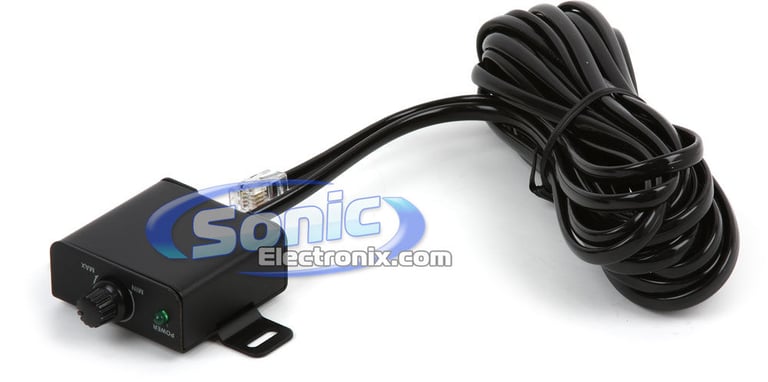

Bass Remote Details (Wired remote bass level control included)
LED power indicators
Bass Boost (0-8 dB at 50 Hz)
Bass boost frequency selection (32-64 Hz)
Mono channel operation
Protection temperature (90 C)
Heavy duty aluminum alloy heatsink

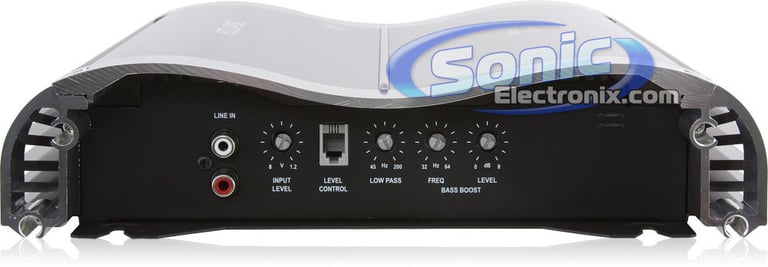

RCA level inputs
Screw terminals
Variable low-pass filter (40-500 Hz, Linkwitz Riley 18 dB/octave)
Subsonic Filter (18 dB at 20 Hz)
CEA-2006 compliant amplifier
Frequency response: 20-20,000 Hz
Input sensitivity: 1.2V-8V
Damping Factor: 100
Dimensions: 12-1/4"L x 10-1/8"W x 2-3/8"H
4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
90 Day SonicElectronix.com warranty

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

1000 watts x 1 channel

RMS Power @ 2 ohms

1200 watts x 1 channel

Amplifier Specifications

Amplifier Class

Number of Channels

1 - Mono

Total Peak Power Output

1500 watts

Total RMS Power Output

1200 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

THD at Rated RMS Power

Speaker Level Inputs

Preamp Outputs

Built-in Crossover

Low-Pass (LP)

Low-Pass Crossover Frequency

40 - 500 Hz

Subsonic Filter

20 Hz

Signal-to-Noise Ratio

80 dB

Bass Boost

0 - 8 dB

Remote bass/level controller

Yes

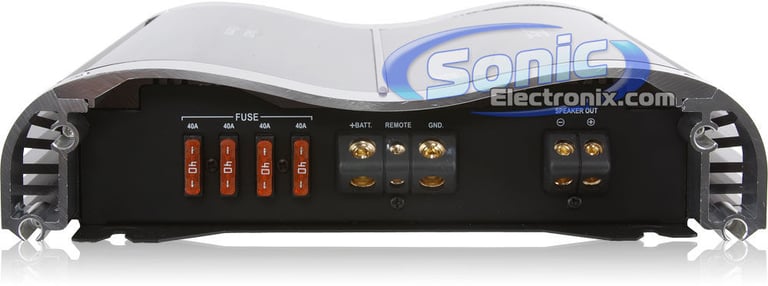

Fuse Rating

40A x 4

Warranty and Return Policy

Parts Warranty Duration

90 days

Labor Warranty Duration

90 days

Warranty Provider

Manufacturer
