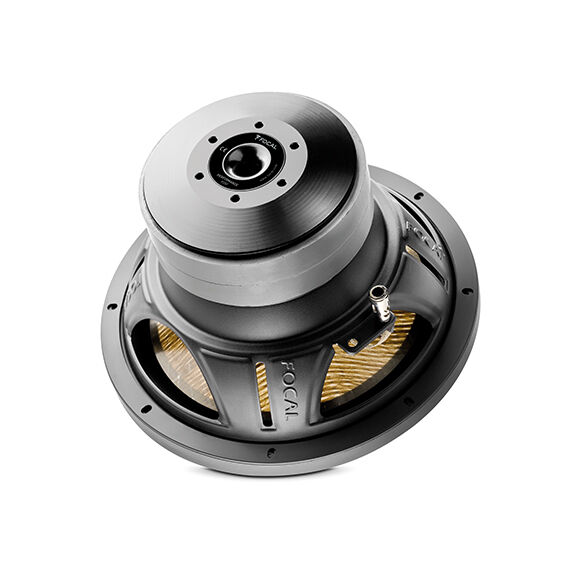

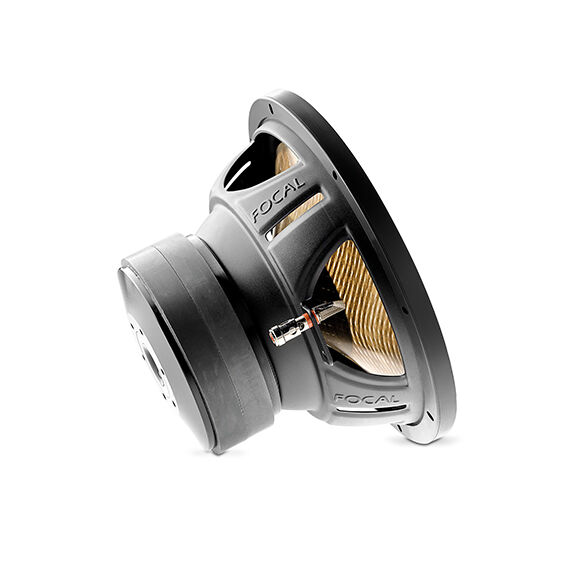

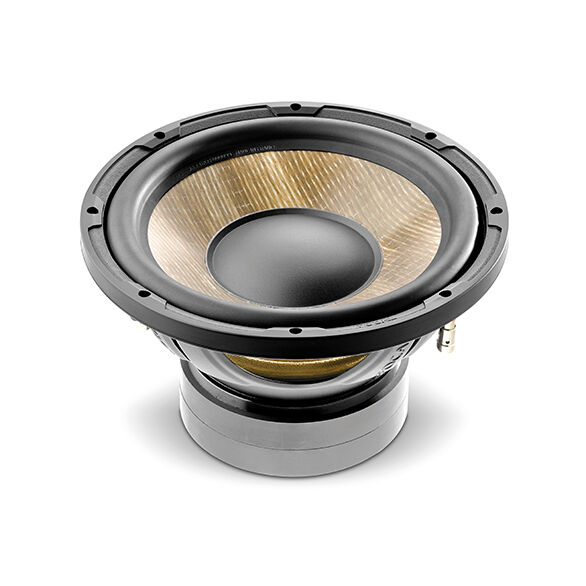

Focal SUB P25FE

10" 4-ohm SVC component subwoofer

Focal
Shop all Focal
highlight-star-icon

• Unique Flax Cone
• Maximum Power: 600 Watts
• Made in France

Learn more about the subp25fe

We apologize

This item has been discontinued

Description


Focal

Authorized dealer

The Flax Cone, Expressive And Natural

Focal has long been a leader in car audio due to their unique design and persistence towards perfection. Well, Focal has been producing this revolutionary Flax cone since 2013. The Flax Cone is built of a premium flax fiber core placed between two thin sheets of glass fiber. Flax is a fiber with the unique ability to reproduce a very natural sound without colouration, with a rich reproduction in the midrange and clear bass strokes. Its lightness offers great dynamics, due to Flax fiber being twice as light as glass fiber, as it is hollow. Its' rigidity sustains the bass and provides damping to deliver a premier listening experience. Its very low elasticity makes it ideal for increasing the flexural rigidity module of a sandwich structure.

General Features:

  • Nominal Power: 600 Watts
  • Maximum Power: 600 Watts
  • Sensitivity (2.83V/1m): 85dB
  • Nominal Impedence: 4 Ohms
  • DC resistance: 3.7Ohms
  • VC diameter: 2"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Ported Enclosure

Volume F-3 (Hz) Ø port Port length
25L (0.88 cu.ft.) 33 Hz 8 cm - 35/32" 35 cm - 1325/32"
30L (1.05 cu.ft.) 30 Hz 8 cm - 35/32" 45 cm - 1723/32"
35L (1.23 cu.ft.) 27 Hz 8 cm - 35/32"  45 cm - 1723/32"

Sealed Enclosure

Volume F-3 (Hz)
10L (0.35 cu.ft.) 52 Hz
15L (0.52 cu.ft.) 50 Hz
20L (0.70 cu.ft.) 48 Hz
25L (0.88 cu.ft.)  47 Hz

View the Full Specs Here

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Focal SUB P25FE Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Focal SUB P25FE Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Focal SUB P25FE Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Focal SUB P25FE Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohms
Voice Coil Diameter
2"
Sensitivity
85 dB
Xmax (millimeters)
14 mm
Subwoofer Design
Round / Circle
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
.33 cubic feet
Optimum Sealed Box Volume
.50 cubic feet
Maximum Sealed Box Volume
.88 cubic feet
Minimum Ported Box Volume
.88 cubic feet
Optimum Ported Box Volume
1.00 cubic feet
Maximum Ported Box Volume
1.20 cubic feet
Electromechanical Parameters
Free-Air Resonance (Fs)
38.5 Hz
Equivalent Compliance (Vas)
12 liters
Total Speaker Q Value (Qts)
0.56
Electrical Q Value (Qes)
0.61
Electrical Resistance of Voice Coil (Re)
3.4 ohms
What is in the box?
Paperwork
User manual
Brand sticker/decal
WITB: Subwoofers
Subwoofer
Mounting screws (4)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SUB P 25FE

Weight:

12.00lbs

Internal SKU:

subp25fe

Internal Product ID:

178351
