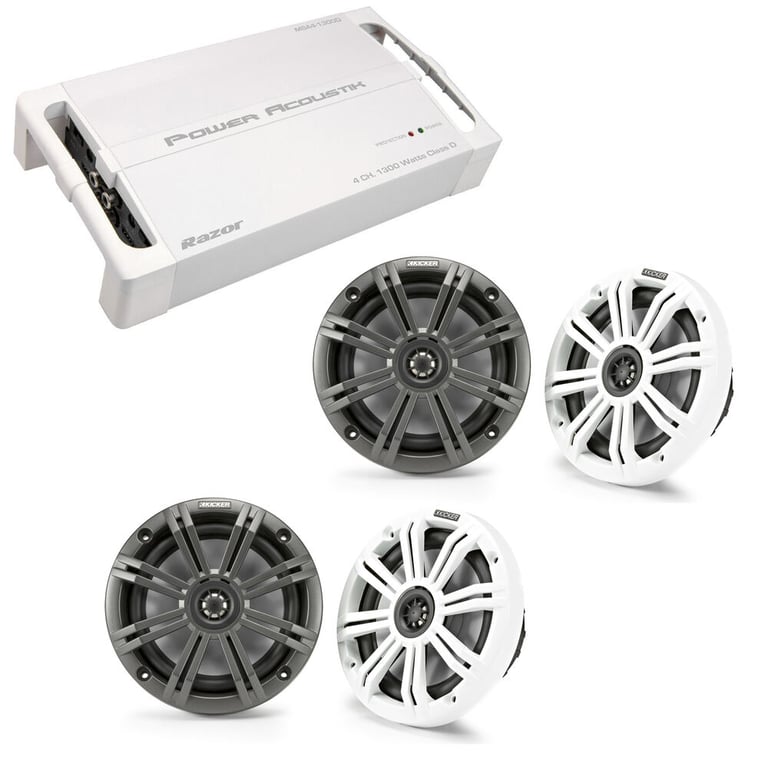

Power Acoustik MSA4‐1300D with (4) Kicker 45KM654

Marine Grade 4-Channel Amplifier + (4) Marine 6.5" Speakers

highlight-star-icon

• Compact 4.75" Chassis
• Splash Resistant Circuit Boards
• High Level Input w/ Signal Sense Auto Turn-on
• Class D Amplifier

Learn more about the msa41300d_45km654x2

We apologize

This item has been discontinued

Description


Power Acoustik brand icon

Authorized dealer

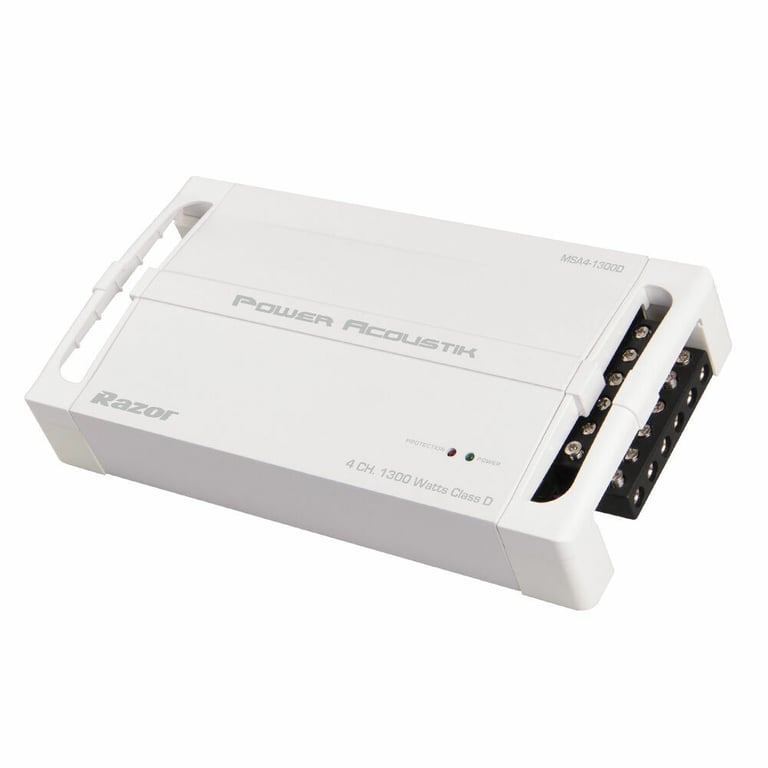

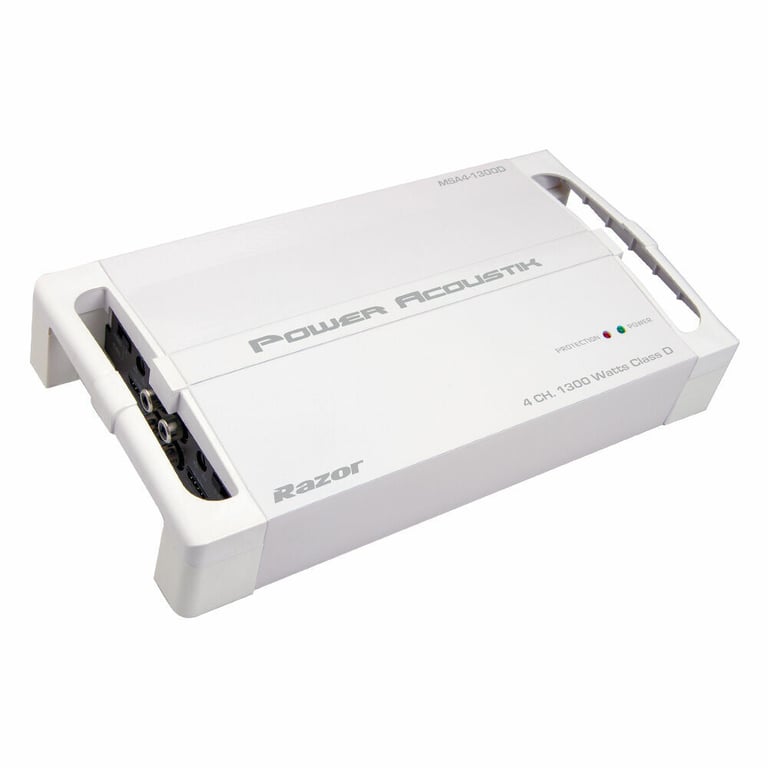

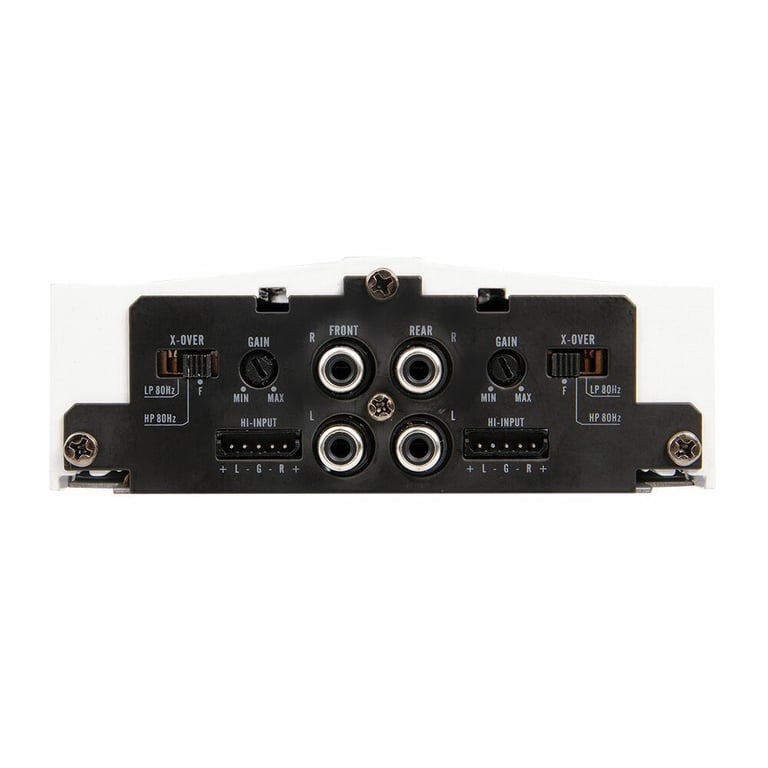

Power Acoustik MSA4‐1300D

Marine Grade 4-Channel Amplifier
Quantity: 1

General Features:

  • Compact 4.75” Chassis Design for Installation Versatility
  • Splash Resistant Conformal Coated Circuit Boards
  • MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
  • Military Grade SMT PCB Maintains Dynamic Performance
  • 2-ohm Stereo & 4-ohm Bridged Full Range Operation
  • Direct Short, Thermal, & Overload Circuits Protect Amplifier
  • 200mv-6V Low Level RCA Inputs
  • Total Harmonic Distortion: 0.5%
  • Frequency Response: 10-20Hz
  • Signal to Noise Ratio: 80dB
  • Damping Factor: >100
  • High Level Input w/ Signal Sense Auto Turn-on
  • Variable 12dB High Pass & Low Pass Crossovers
  • 10-50Hz Variable 12dB Subsonic Crossover Protects Subwoofers
  • 9.25”H x 4.75"W x 1.625"W
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Power Ratings

  • 4 Ohms @ 14.4V: 75 Watts x 4
  • 2 Ohms @ 14.4V: 125 Watts x 4
  • Bridged 4 Ohms @ 14.4V: 250Watts x 2
  • MAX Power: 1300 Watts

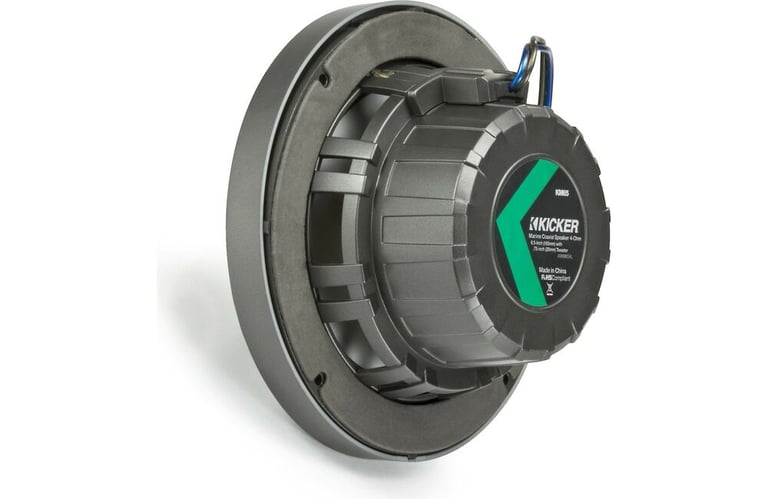

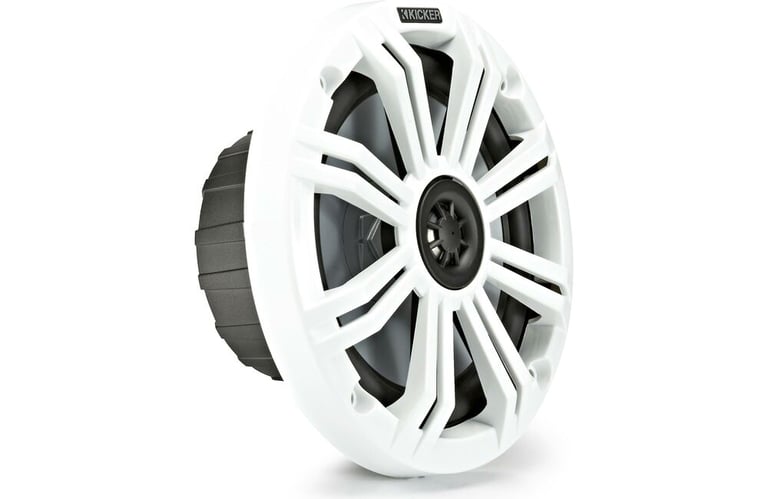

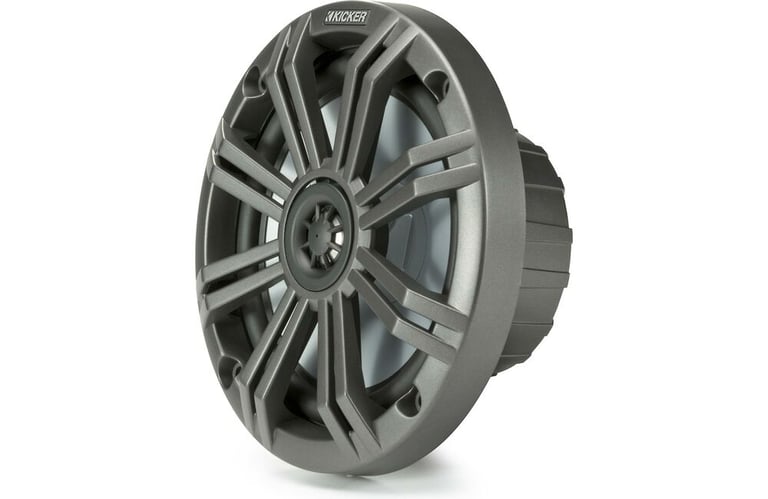

Kicker KM65 (45KM654)

195W Max (65W RMS) 6.5" KM Series 2-Way Coaxial Marine Speakers
Quantity: 2

General Features:

  • 6.5" KMA Series 2-Way Marine Speakers
  • Power Handling:
    • Peak: 390 watts per pair / 195 watts each
    • RMS: 130 watts per pair / 65 watts each
  • Injection-molded, UV-treated polypropylene cone
  • Santoprene surround
  • .75" titanium tweeter
  • UV resistant polymer basket
  • ASTM B117 Salt fog rated
  • ASTM G154 UV exposure rated
  • 4 ohm voice coil
  • Sealed magnet motor structure
  • Top-mount Depth: 2-7/8"
  • Cutout Dimensions: 5-1/8"
  • 4 ohms impedance
  • Frequency Response: 35 - 21000 Hz
  • Sensitivity: 90dB

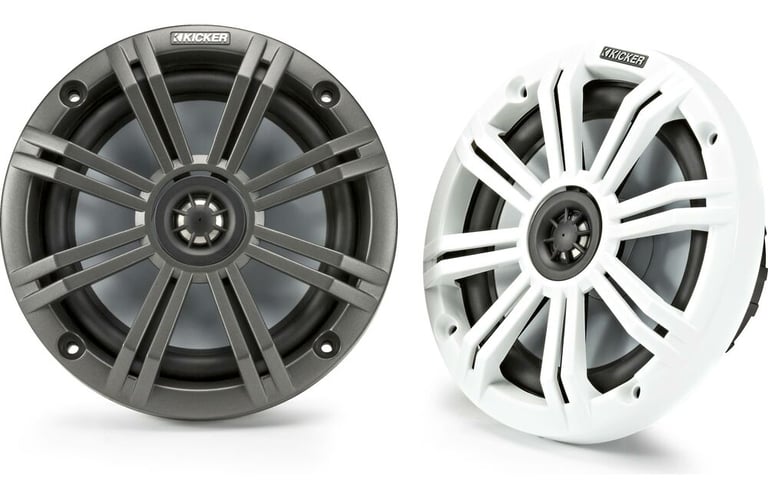

  • Grilles included: Charcoal and White
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
  • Priced Per Pair

Check out the KM65 (45KM654) Owner's Manual

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
125 watts x 4 channel
Bridged RMS Power
250 watts x 2 channel
Amplifier Specifications
Series
Razor Series
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
1300 watts
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
>1%
Speaker Level Inputs
Yes
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Signal-to-Noise Ratio
80 dB
Remote bass/level controller
No

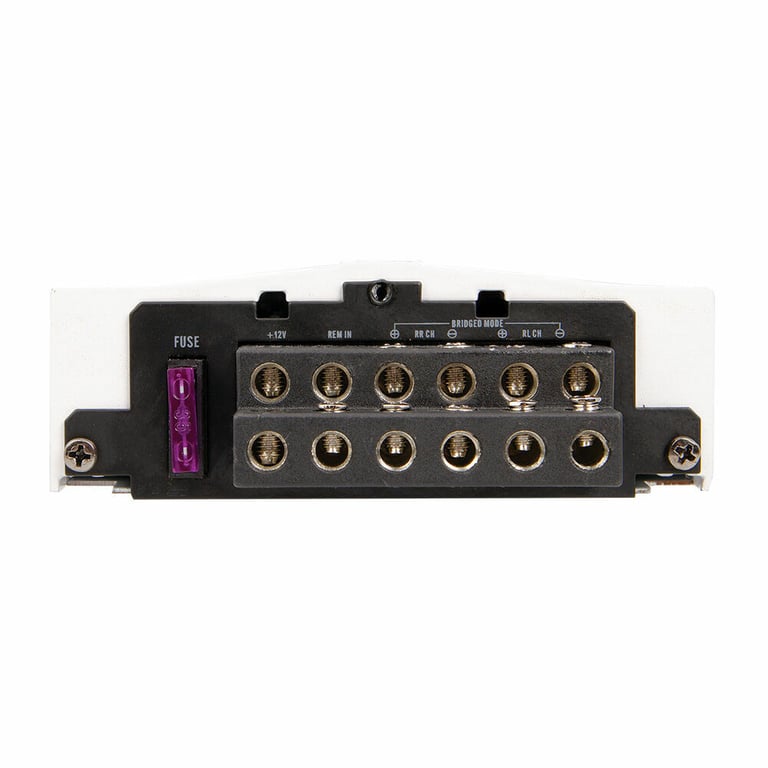

Fuse Rating
35A x 1
Total Fuse Rating
35
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Mounting screws (4)
Washers (4)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MSA4‐1300D, 45KM654x2

Weight:

18.00lbs

Internal SKU:

msa41300d_45km654x2

Internal Product ID:

180381
