Crux ACPAD-01

Smart-Play Smartphone Connectivity Interface for Audi Vehicles with Concert / Symphony Non MMI Radios

Crux
Shop all Crux
highlight-star-icon

• For select Audi Vehicles
• Control Apps using the smartphone’s voice control
• Adds front and rear aftermarket camera inputs
• Made for Android Auto and CarPlay.

See compatible vehicles Learn more about the acpad01

We apologize

This item has been discontinued

Description



Description:

The Crux ACPAD-01 is a Multi View Integration Interface with multi video inputs. The system seamlessly integrates with the factory installed system for select Audi vehicles with the internal MMi media system (MMi controls on vertical radio face, not console). This module will add a front and rear camera while also being made for Carplay/ Android Auto integration into the factory system. The piece uses a touchscreen overlay to toggle between the different apps.

General Features:

  • Smart-Play Integration system allows connection of Android and other smartphones to the Audi non-MMI system.
  • Made for Android Auto and CarPlay.
  • Control Apps using the smartphone’s voice control feature or touch panel provided.
  • Adds front and rear aftermarket camera inputs.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Authorized Usage/Limitations: This product should only be used while a vehicle is stationary or when displaying fixed menus or for viewing rear-vision camera video when the vehicle is moving.

Product Liability Disclaimer: This unit must not be used for watching moving pictures while driving which is also prohibited by law in many States and localities. CRUX Interfacing Solutions and its distributors/dealers shall not be held liable for any consequential, incidental and contingent damages arising from misuse, but not limited to material damage or personal injury resulting, directly or indirectly due to any unauthorized usage of this product.

End User Agreement : End user agrees to utilize this product in accordance with the above mentioned stipulations and in compliance with all Local, State and Federal laws. If user does not agree with any of the above safety warnings, end-user shall be legally bound to immediately discontinue use and return this product to place of purchase.

Parts Includes

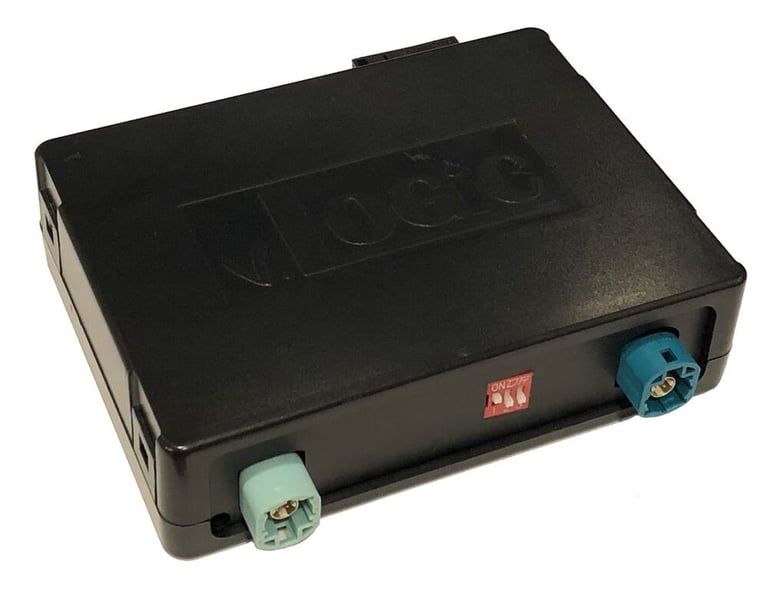

  1. ACPAD-01 Module

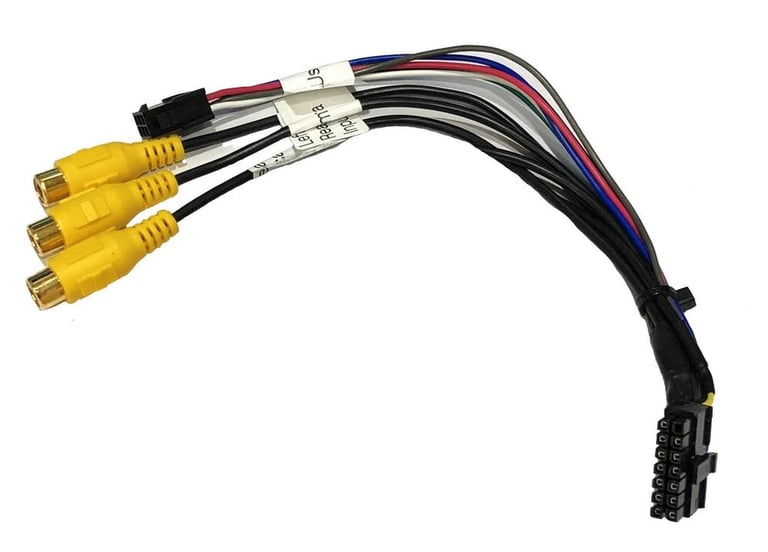

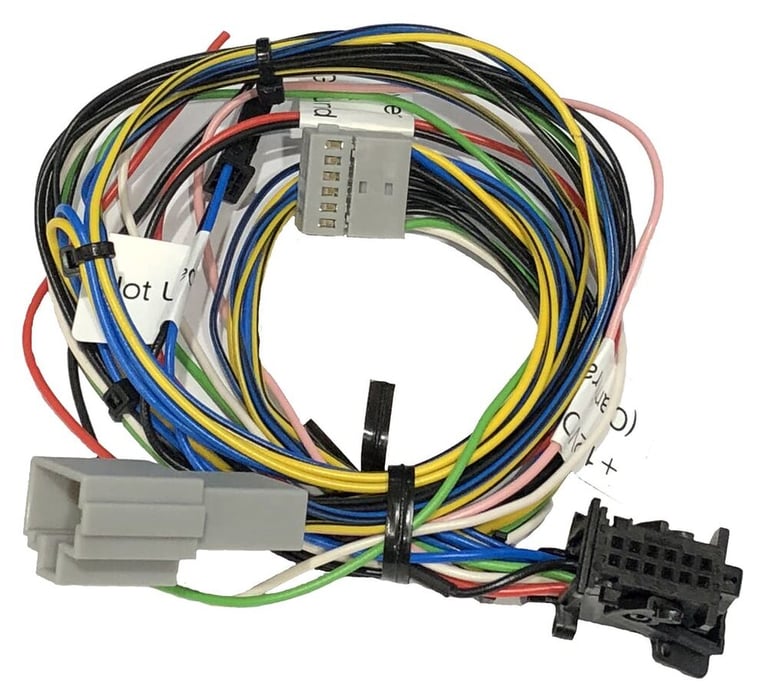

  2. Power/Video Harness

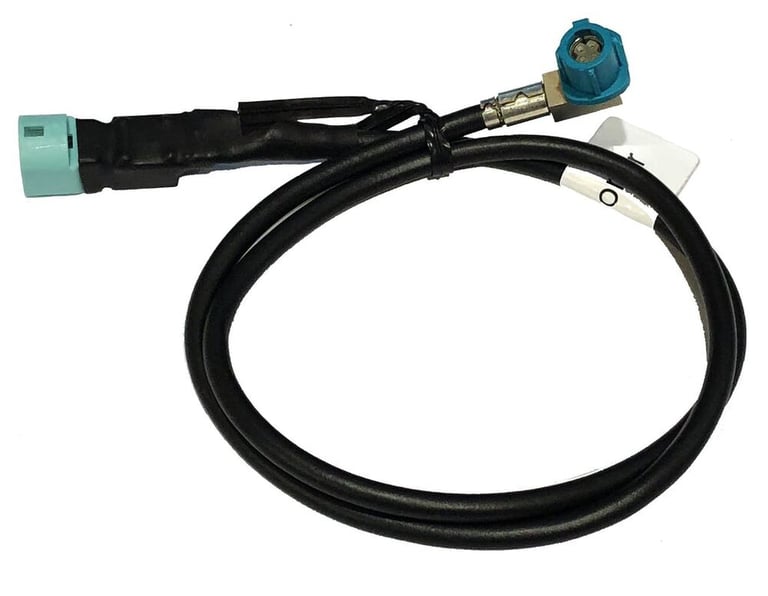

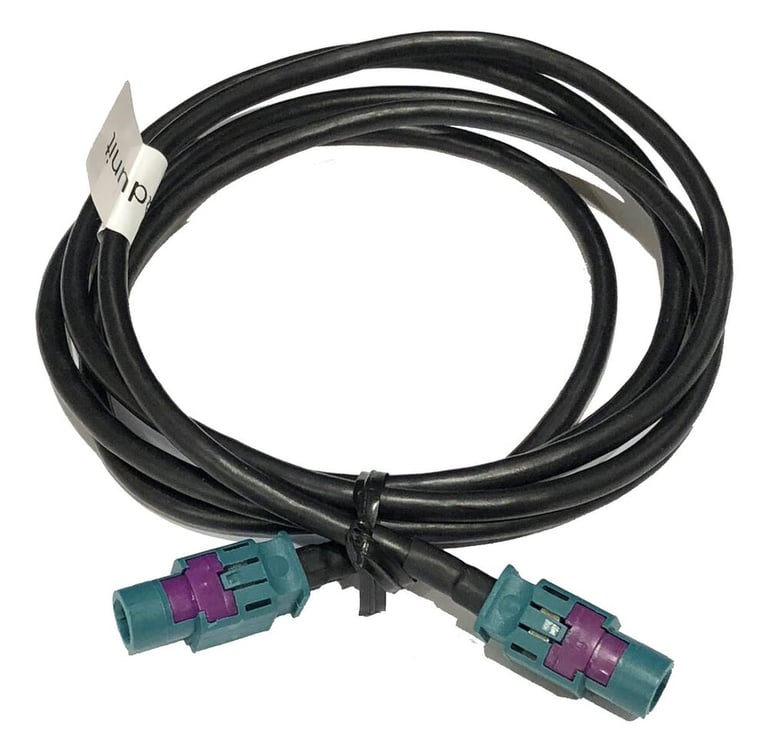

  3. LVDS In/Out Cable
  4. Touch Panel

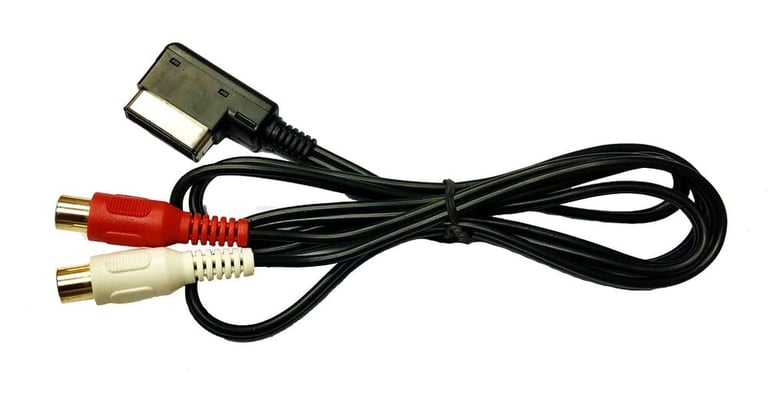

  5. AMI to 3.5mm Aux Adapter Cable
  6. Smart-Play Interface Module
  7. Microphone
  8. OSD Controller
  9. 3.5mm Aux Cable
  10. 4K HDMI Cable

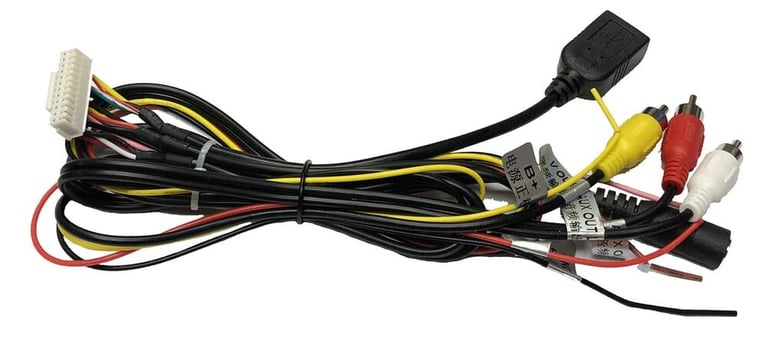

  11. Smart-Play Module Power Harness

Vehicle Compatibility:

  • Audi
    • 2009-2016 A4
    • 2009-2016 S4
    • 2009-2016 A5
    • 2009-2016 S5
    • 2009-2016 Q5
    Note:

    * (MMi controls on vertical radio face, not console). Please check comparability page. If you have MMI knob near the gear please go to the appropriate product ACPAD-81Y

    Crux ACPAD-01 owner’s manual

Compatible Vehicles


Please use our Fitment Guide to determine specific compatibility for the submodel and audio features

  • 2009 Audi A4
  • 2009 Audi A4 Quattro
  • 2009 Audi A5 Quattro
  • 2009 Audi Q5
  • 2009 Audi S4
  • 2009 Audi S5
  • 2010 Audi A4
  • 2010 Audi A4 Quattro
  • 2010 Audi A5
  • 2010 Audi A5 Quattro
  • 2010 Audi Q5
  • 2010 Audi S4
  • 2010 Audi S5
  • 2011 Audi A4
  • 2011 Audi A4 Quattro
  • 2011 Audi A5
  • 2011 Audi A5 Quattro
  • 2011 Audi Q5
  • 2011 Audi S4
  • 2011 Audi S5
  • 2012 Audi A4
  • 2012 Audi A4 Quattro
  • 2012 Audi A5
  • 2012 Audi A5 Quattro
  • 2012 Audi Q5
  • 2012 Audi S4
  • 2012 Audi S5
  • 2013 Audi A4
  • 2013 Audi A4 Quattro
  • 2013 Audi A5
  • 2013 Audi A5 Quattro
  • 2013 Audi Q5
  • 2013 Audi S4
  • 2013 Audi S5
  • 2014 Audi A4
  • 2014 Audi A4 Quattro
  • 2014 Audi A5
  • 2014 Audi A5 Quattro
  • 2014 Audi Q5
  • 2014 Audi S4
  • 2014 Audi S5
  • 2015 Audi A4
  • 2015 Audi A4 Quattro
  • 2015 Audi A5
  • 2015 Audi A5 Quattro
  • 2015 Audi Q5
  • 2015 Audi S4
  • 2015 Audi S5
  • 2016 Audi A4
  • 2016 Audi A4 Quattro
  • 2016 Audi A5 Quattro
  • 2016 Audi Q5
  • 2016 Audi S4
  • 2016 Audi S5
  • 2017 Audi A5 Quattro
  • 2017 Audi Q5

Item Details


Manufacturer:

Model Number:

ACPAD-01

Weight:

3.00lbs

Internal SKU:

acpad01

Internal Product ID:

180749
