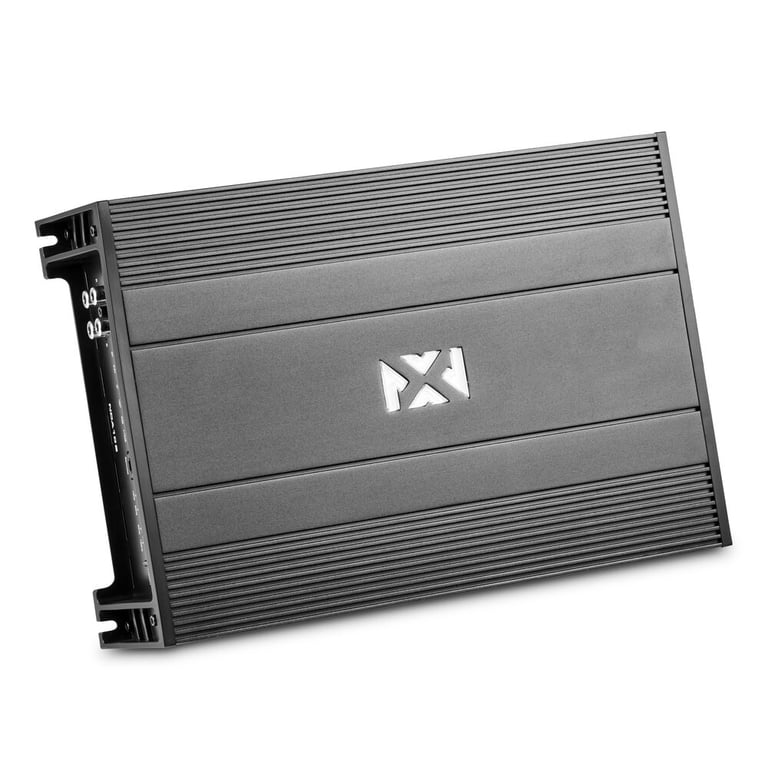

NVX NDA102

1500W Peak (750W) RMS N-Series Class-D 1-Ohm Stable Monoblock Amplifier

NVX
Shop all NVX
Product videos
highlight-star-icon

• 310 watts x 1 channel @ 4 ohms
• 500 watts x 1 channel @ 2 ohms
• 750 watts x 1 channel @ 1 ohm
• Total RMS Power: 750 watts
• CEA-2006 Compliant
• 0 to +12 dB bass boost

Learn more about the nda102
Was $229.99 Details
Thanks , You Pay:

$119.99

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one nda102.

Set your vehicle or Return to product page
shipping truck icon
FREE 2-day shipping to VA. Get it Tue, Oct. 3
Dollar Icon
VIP Product Get $12.00 in rewards to spend later
Quantity
In Stock
Brand new

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7

For over 23 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

AwardWinning
Award-Winning Service
Shipping
FREE Shipping Orders $49+
60Days
60-Day Easy Returns
lowestPrice
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Expert built bundles that save you more (1)


Choose from any of our many bundles that include this product for even more savings!

NVX NDA102 with Amplifier Wiring Kit

1500W Peak (750W) RMS N-Series Class-D 1-Ohm Stable Monoblock Amplifier

(37)

$149.99

Product Highlights


• 310 watts x 1 channel @ 4 ohms
• 500 watts x 1 channel @ 2 ohms
• 750 watts x 1 channel @ 1 ohm
• Total RMS Power: 750 watts
• CEA-2006 Compliant
• 0 to +12 dB bass boost

Description


NVX

Authorized dealer

Product Highlights:

Extreme Efficiency

The NVX NDA102 is a Class D amplifier utilizing a small but efficient MOSFET transistor. MOSFET amplifiers are designed to process digital signals with a lower power consumption. By using less power, MOSFET amplifiers lose less energy to heat dissipation. As a result, Class D amplifiers such as the NDA102, have a higher efficiency rate of 90% compared to their AB class counterparts that feature an efficiency rate of 50 to 70%.

User Control

The NVX NDA102 is equipped with a wired remote bass level control. This feature allows the user to conveniently make adjustments to the bass levels on a song-by-song basis without having to adjust the gain setting directly on the amplifier itself. The knob also allows the user to tune the bass level precisely to help ensure the highest sound quality possible is achieved.

Assured Quality

The NVX NDA102 is constructed to meet the highest quality standards. While other amplifiers on the market often inflate their specifications, the NDA102 is tested using the Consumer Electronics Association’s ratings test. This means that all specifications listed for the NDA102 are accurate for peace-of-mind. The NDA102 also uses threeway protection circuitry, protecting not only the amplifier, but the entire sound system from thermal, overload, and speaker shortages. This helps increase the longevity of the sound system as a whole.

Product Details:

  • NVX N Series Series NDA102
  • Class D 1 ohms Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 310 watts x 1 channel
    • 2 ohms: 500 watts x 1 channel
    • 1 ohm: 750 watts x 1 channel
  • Total RMS power output: 750 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply

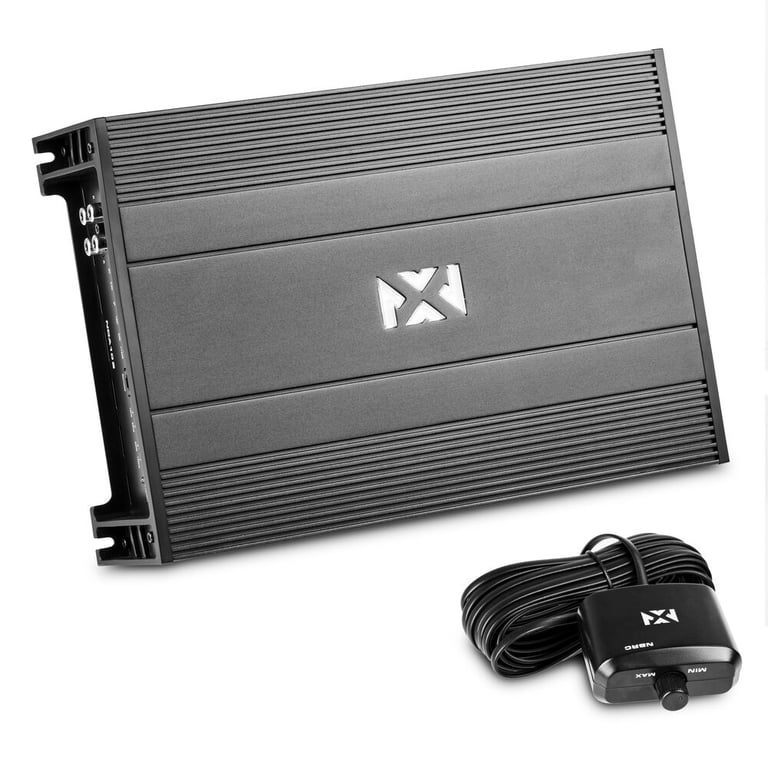

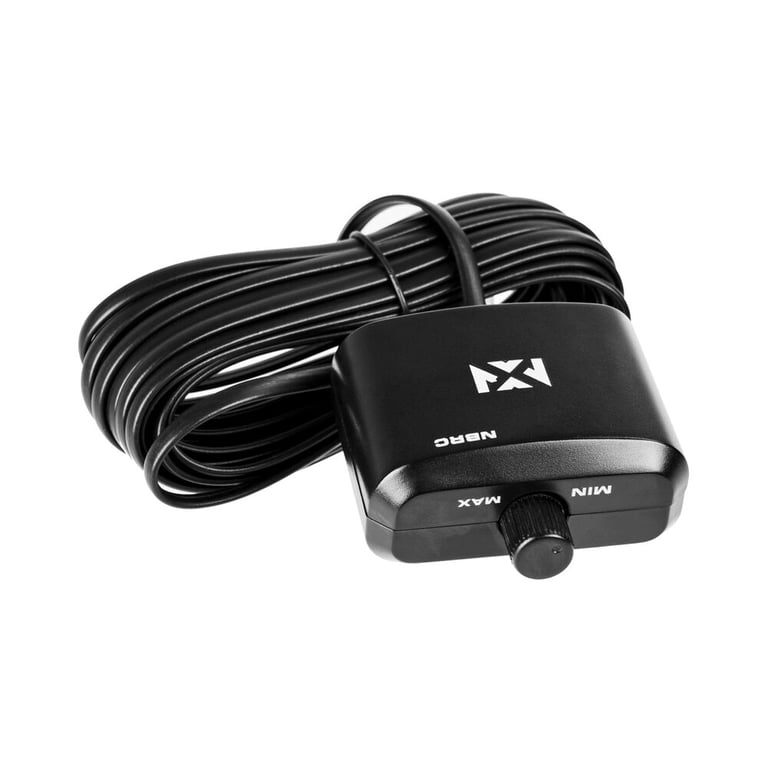

  • Wired remote bass level control included
  • Soft start turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 0.2V-6V
  • Frequency Response: 10 - 150 Hz
  • Total Harmonic Distortion (THD): 0.5%
  • Signal to Noise Ratio: 90 dB
  • Variable low-pass filter: 35 - 150 Hz, 24 dB/octave
  • Subsonic filter: 10 - 50 Hz
  • Variable Bass Boost: 0 to +12 dB bass boost
  • Fuse Rating: 80A x 1
  • Dimensions: 12.2"W x 7.8"L x 2.4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
310 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
RMS Power @ 1 ohm
750 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
620 watts x 1 channel
Peak Power @ 2 ohms
1000 watts x 1 channel
Peak Power @ 1 ohm
1500 watts x 1 channel
Amplifier Specifications
Series
N Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1500 watts
Total RMS Power Output
750 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
1 ohms
THD at Rated RMS Power
0.5%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
35 - 150 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
80A x 1
Total Fuse Rating
80
Strappable
No
Amp Bluetooth Connectivity
No
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Wired gain knob (wire separate)
Gain knob wire
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

NDA102

Weight:

10.00lbs

Internal SKU:

nda102

Internal Product ID:

181081
