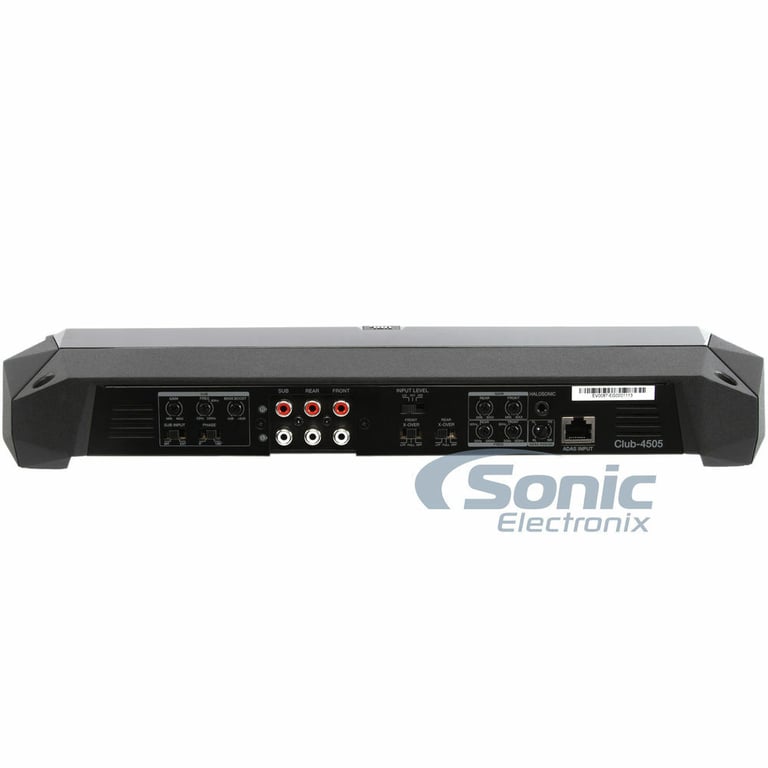

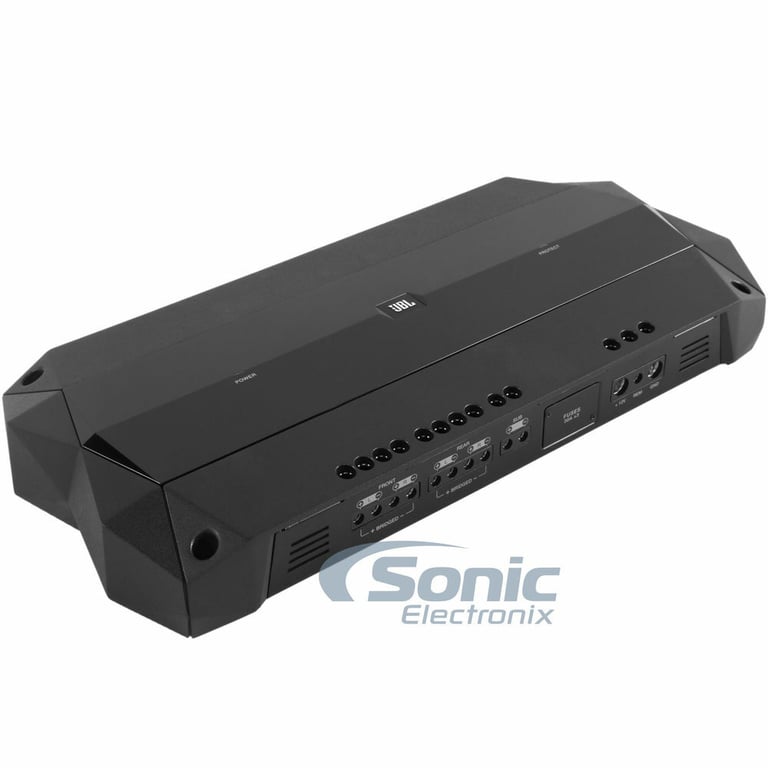

CLUB-4505 | 1800W Club Series 5-Channel Amplifier | JBL

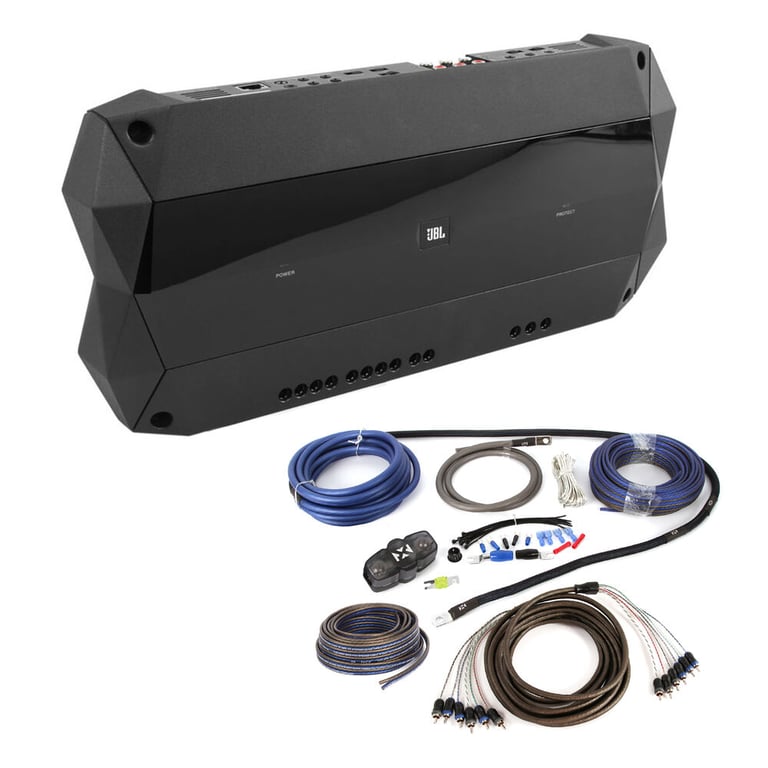

JBL CLUB-4505 + Free Premium NVX Amp Kit

1800W Peak (760W RMS) Club Series 5-Channel Amplifier + NVX XKIT

1800W Peak (760W RMS) Club Series 5-Channel Amplifier + NVX XKIT

• 45 Watts RMS x 4 + 320 watts x 1 @ 4 ohms
• 65 Watts RMS x 4 @ 2 ohms + 500 watts x 1
• 130 Watts RMS Bridged x 2 @ 4 ohm
• Total Peak Power: 1800 Watts
• Slim chassis provides more flexible mounting options
• Split-dome convection heat-sink for extreme heat dissipation

5.0

(37)
List price $593.98
Save: $233.54

$360.44

Out of Stock - Backorder with warranty
Thanks , You Pay:

Item Condition: Brand new

The item is brand new and not used.


protection

Add a protection plan

squarespace
3 years for

Shipping
Fast, Free Shipping

Within the US 48

60Days
60-Day Money-Back

Hassle Free Returns

365days
365-Day Coverage

Warranty assistance for a year

DESCRIPTION
JBL

Authorized dealer

General Features:

  • JBL Club Series Class-D Club-4505
  • Full Range 2-Ohm Stable 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 45 watts x 4 chan. + 320 watts x 1 chan.
    • 2 ohms: 65 watts x 4 chan. + 500 watts x 1 chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohms: 130 watts x 2 chan.
  • Total power output: 1800 watts
  • Pulse Width Modulated MOSFET power supply

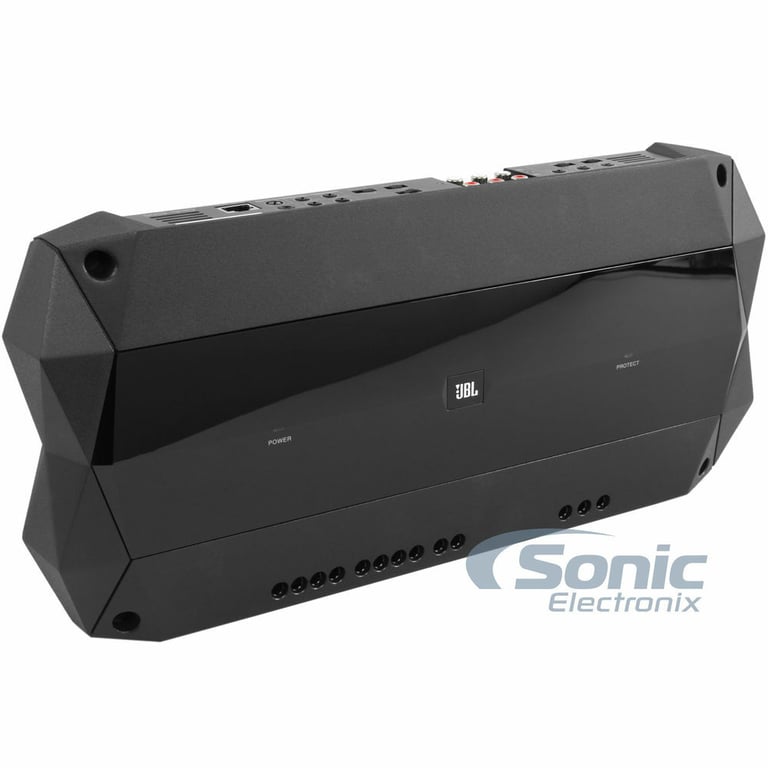

  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 5/4/3/2 or Mono channel operation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Variable crossovers and bass boost

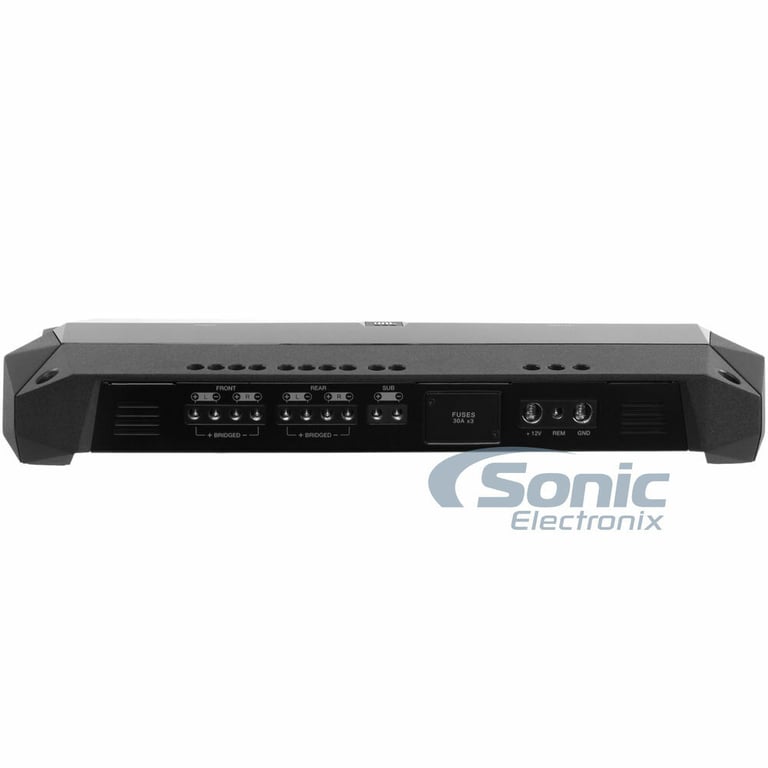

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Split-dome convection heat-sink for extreme heat dissipation
  • Slim chassis provides more flexible mounting options
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V
  • Total Harmonic Distortion (THD): <0.1%
  • Signal to Noise Ration: 85 dB
  • Signal to Noise Ration Subwoofer Channel: 80 dB
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

What's Included

  • 1 Club-4505 5-Channel amplifier
  • 4 High-level input wiring harnesses
  • 2 spare fuses
  • 2 2-color brand stickers
  • Quick-connect Guide


PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov



Check out the CLUB-4505 Owner's Manual


FEATURES & SPECS
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
45 watts x 4 channels
RMS Power @ 2 ohms
65 watts x 4 channels
Bridged RMS Power
130 watts x 2 channels
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
320 watts x 1 channels
RMS Power @ 2 ohms
500 watts x 1 channels
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
90 watts x 4 channels
Peak Power @ 2 ohms
130 watts x 4 channels
Bridged Peak/Max Power
260 watts x 2 channels
Amplifier Specifications
Amplifier Series
Club (JBL)
Marine Certified
No
Amplifier Class
D
Number of Channels
5
Total Peak Power Output
1800 watts
Total RMS Power Output
760 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
32 - 320 Hz
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
85 dB
Bass Boost
0 - 9 dB
Bass/Gain Remote
No
Fan Cooled
No
Fuse Rating
40A x 2
Total Fuse Rating
80
Strappable
No
CEA-2006 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Authorized Dealer
Authorized Dealer
Authorized Dealer

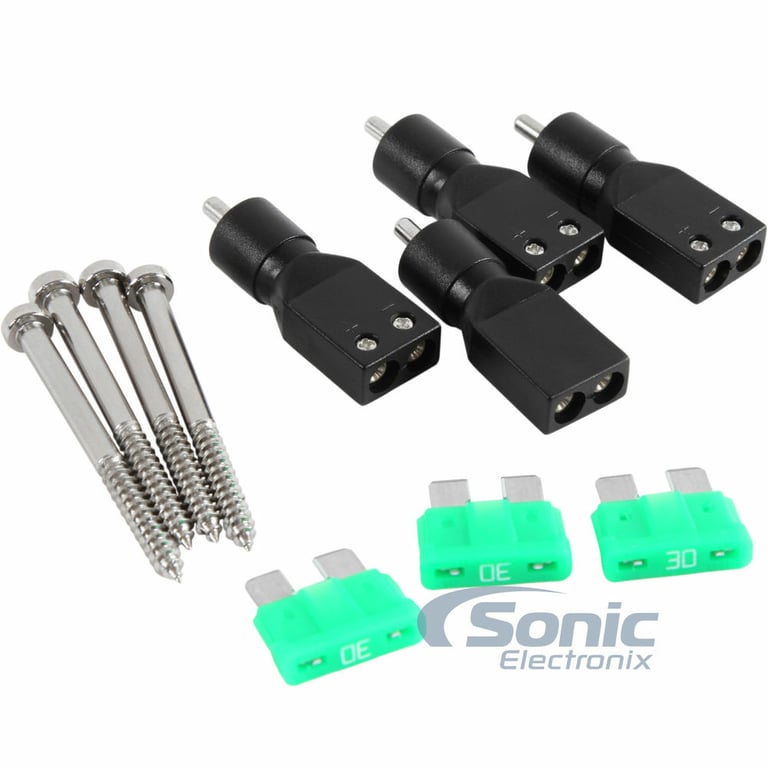

What is in the box?
WITB: Amplifiers
Amplifier
Mounting screws (4)
Three spare fuses
High-level input wiring harness w/ molex connectors (2)
Paperwork
User manual
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
REVIEWS
JBL CLUB-4505 + Free Premium NVX Amp Kit

JBL CLUB-4505 + Free Premium NVX Amp Kit

5.0

(37)

Write a review

Overall rating distribution

5 star
97%
4 star
3%
3 star
0%
2 star
0%
1 star
0%

By feature average rating

Durability
5
Value
5
Features
4.9
Design
5
Usability
4.9

Cory

March 10, 2015

Great buy

The following review is for XKIT46, which is a part of the bundle you are viewing.

The kit would work great in a car but in a boat the kit needs to have alot more speaker wire and a longer ground wire

52

found this helpful.

Kenneth

August 13, 2015

Great kit

The following review is for XKIT46, which is a part of the bundle you are viewing.

I was impressed with this kit. Their claim of a "true gauge" wire seems to be true because wires are thicker compared to other wires I have used claiming to be the same gauge. Overall the wires seem to be of great quality. Patch cables are good. They aren't super high end, but they do the job well. I'd recommend it to anyone looking for an amp kit.

15

found this helpful.

Anonymous

April 1, 2019

Great Amp Kit

The following review is for XKIT46, which is a part of the bundle you are viewing.

This is a great amp kit. The actual wire is much thicker than other 4 gauge amp kits. It's also a very affordable price. I'm happy with the kit.

6

found this helpful.

Anonymous

November 26, 2019

Great Value

The following review is for XKIT46, which is a part of the bundle you are viewing.

Product exceeded all of my expectations. The size of it is great which makes for ans easy installation. The sound quality far exceeds any other 5 channel amp that I have installed.

5

found this helpful.

david

April 30, 2018

Quality Kit

The following review is for XKIT46, which is a part of the bundle you are viewing.

Seems to have had everything I needed but did come up short on speaker wire although the installation was in a large motorhome.

5

found this helpful.

Bigs

March 28, 2017

great quality. so far so good.

The following review is for XKIT46, which is a part of the bundle you are viewing.

very high quality 4 gauge wire. I used this kit as an integral part of and upgrade in my 2016 jeep jku...I could not be happier with the way my upgraded premium marine grade kicker speakers sound with my marine grade 5 channel amp. I'm only running 800 watts total, 400 to the kicker 10" sub..also a top of the line sub from /kicker. but the clarity of the highs and added non-distorted punch of bass is phenomenal! plus I your guys' Q&A videos are awesome! keep it coming and hopefully you will get more Jeep Wranglers!!

7

found this helpful.

Christopher

December 27, 2016

Great product

The following review is for XKIT46, which is a part of the bundle you are viewing.

As advertised. Power wires very flexible. Clean sound delivery. Couldn't be happier.

5

found this helpful.

Brandon

December 8, 2015

Nice Install Kit

The following review is for XKIT46, which is a part of the bundle you are viewing.

NVX install kits are some of the nicer ones I have used. This on in-particular works great with their 5 channel amp. I especially like the extra layer of protection for the cable running in the engine bay, give everything a nice touch once installed. NVX wire is exactly like they say and true to size. I keep some on hand for other projects (big 3 upgrades etc) and it has held up really well in everything I have used it in, including an Off-road truck where other brands have failed.

6

found this helpful.

Anonymous

June 11, 2018

NVX XKIT46 (5- or 6-Channel Amp Kit)

The following review is for XKIT46, which is a part of the bundle you are viewing.

This package contained everything and more than i needed to add an install an amp to my stereo system.

4

found this helpful.

Anonymous

May 31, 2018

NVX XKIT46 (5- or 6-Channel Amp Kit)

The following review is for XKIT46, which is a part of the bundle you are viewing.

The wiring kit contained exactly what I needed and even a few spare parts/connectors. The power wire had an abrasion resistant sheathing over the section that is under the hood and the ground and power wires included precrimped ring connectors that work and look great. You can't beat the quality and convenience for the price.

4

found this helpful.

Mike

May 2, 2018

Great Kit for the Price

The following review is for XKIT46, which is a part of the bundle you are viewing.

You will not go wrong with this kit! It comes with everything i needed. I especially like the amp power wire that is braided for the engine compartment!

4

found this helpful.

Hump

April 25, 2018

Absolute Best Quality

The following review is for XKIT46, which is a part of the bundle you are viewing.

This NVX kit comes with everything and just because it comes with everything doesn't mean that quality has to be sacrificed. The quality of this kit is absolutely amazing and the fuse holder is so perfect that I ordered another one for my big 7 uograde. I got this for free with my amp purchase and I didn't even bother looking at another kit just in case because of what I read in the reviews. I'm halfway through installing my system now and I can tell you they give you more wire than you need. Will buy NVX products whenever I can.

4

found this helpful.

Kev

March 8, 2018

Everything you need

The following review is for XKIT46, which is a part of the bundle you are viewing.

I live by these and FREE with an infinity amp. You can't complain.

4

found this helpful.

aaron

September 11, 2016

Great value

The following review is for XKIT46, which is a part of the bundle you are viewing.

Kit has everything you need to do amp install. Quality of materials is surprising for the price.

6

found this helpful.

Anonymous

December 11, 2019

Great value

The following review is for XKIT46, which is a part of the bundle you are viewing.

Good quality wires and comes with the basics for a clean looking installation

3

found this helpful.
ACCESSORIES
TRENDING SIMILAR 5-CHANNEL, 6-CHANNEL & 8-CHANNEL AMPLIFIERS

This product is temporarily out of stock. May we recommend...

NVX VAD11005

• 4 ohms: 80 watts x 4 chan. + 350 x 1 chan.
• 2 ohms: 125 watts x 4 chan. + 600 x 1 chan.
• Bridged, 4 ohms: 250 watts x 2 chan. + 600 x 1 chan.
• 5/4/2 Channel Operation

(27)

$329.95

Kicker CXA660.5 (46CXA6605)

• 65 Watts RMS x 4 @ 4 ohms
• 90 Watts RMS x 4 @ 2 ohms
• 180 Watts RMS x 2 @ 4 ohms (bridged)
• 150 Watts RMS x 1 @ 4 ohms (sub channel)
• 300 Watts RMS x 1 @ 4 ohms (sub channel)
• Class A/B Full-Range Channel Amplifier w/Class-D Bass Channel
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio

$399.95

Planet Audio AC1800.5

• RMS: 210 watts x 4 channels @ 4 ohms + 420 watts x 1 channel @ 2 ohms
• 1800W Max.
• Switchable Phase Shift
• Input Sensitivity Selector
• Remote Subwoofer Control
• Heavy-Duty Screw Terminals
• Chrome-Plated Connections
• Illuminated Logo

(16)

$179.99

NVX MVPA6

• 100 Watts RMS x 6 @ 4 ohms
• 150 Watts RMS x 6 @ 2 ohms
• CEA-2006 Compliant/Preamp Outputs/LPF
Weatherproof Amplifier
• Micro Amp
• 12.9"W x 4.4"L x 1.7"H

(1)

$399.95

Power Acoustik OD53500

• Class D Full Range Amplifier
• Small Size, Big Power
• Military Grade Smt PCB Maintains Dynamic Performance
• Direct Short, Thermal, & Overload Circuits Protect Amplifier

(1)

$199.99

Searches Related to the JBL CLUB-4505AM, XKIT46
ITEM DETAILS

Manufacturer:

JBL

Model Number:

CLUB-4505AM, XKIT46

Weight:

17.88lbs

Internal SKU:

club4505am_xkit46

Internal Product ID:

181193

Item Added to Cart

1800W Peak (760W RMS) Club Series 5-Channel Amplifier + NVX XKIT

$360.44

Keep Shopping

Why SquareTrade?

  • The #1-Rated Protection Plan
  • 5-Day Service Guarantee & Free Shipping
  • Protection from Normal, Everyday Use
You have added a warranty
$44.99
Add Warranty
3 years of protection

FREE NVX XMountPro Cell Phone Mount with Select Orders

Spend $200 and use code XMOUNTPRO to get this free!.

$14.99

Add
NVX Universal Remote Level Bass Control

Controls bass level and frequency via RCA/Interconnect connectors on any amp.

$9.99

Add

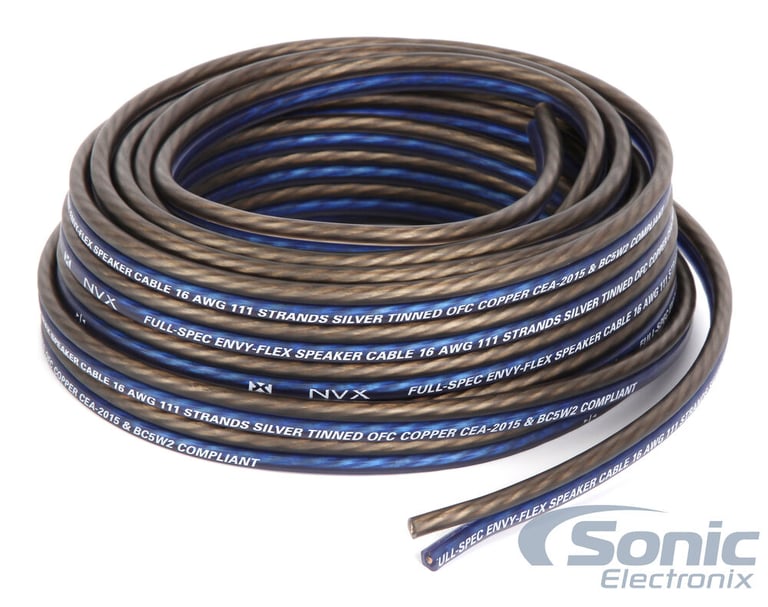

NVX XWS1625 16 AWG Speaker Wire
