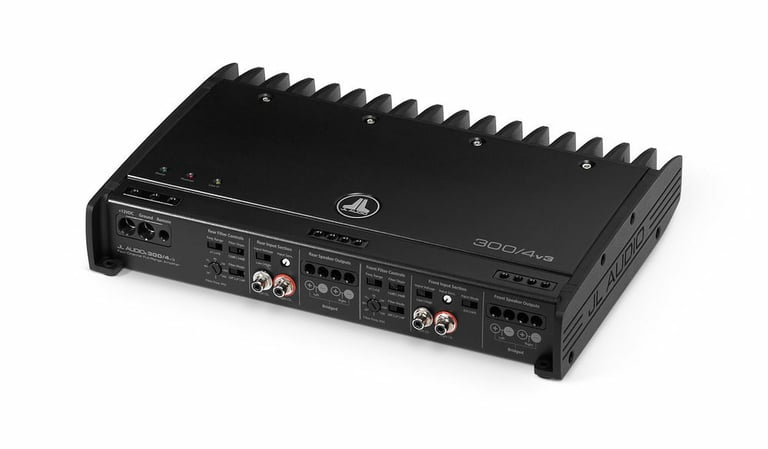

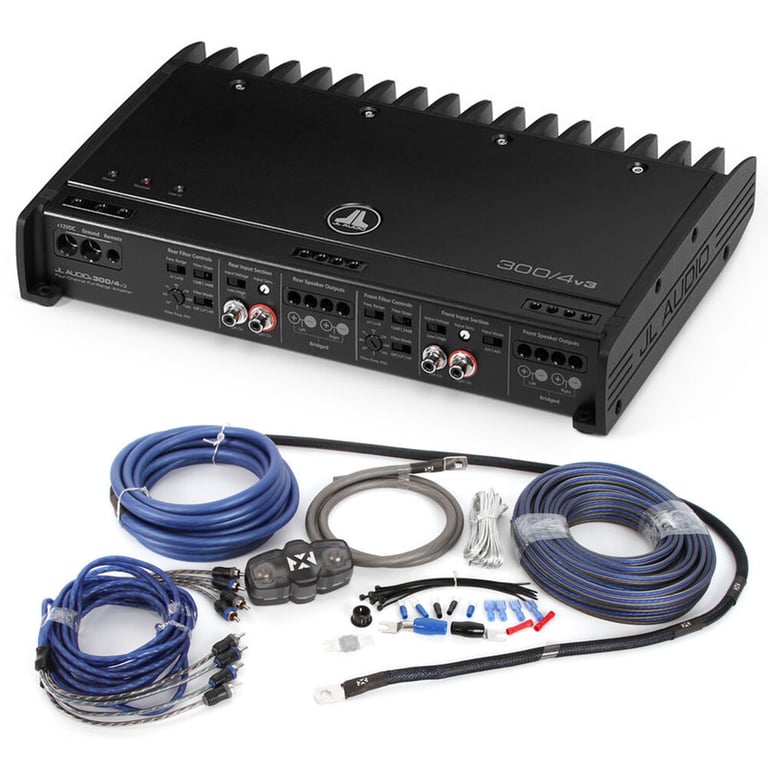

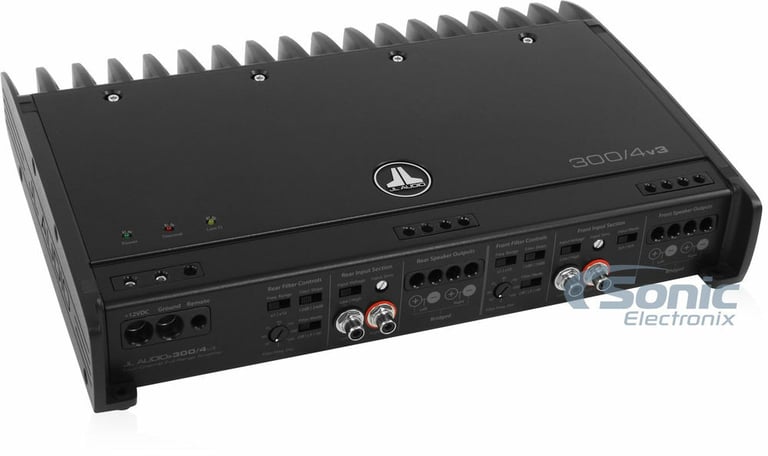

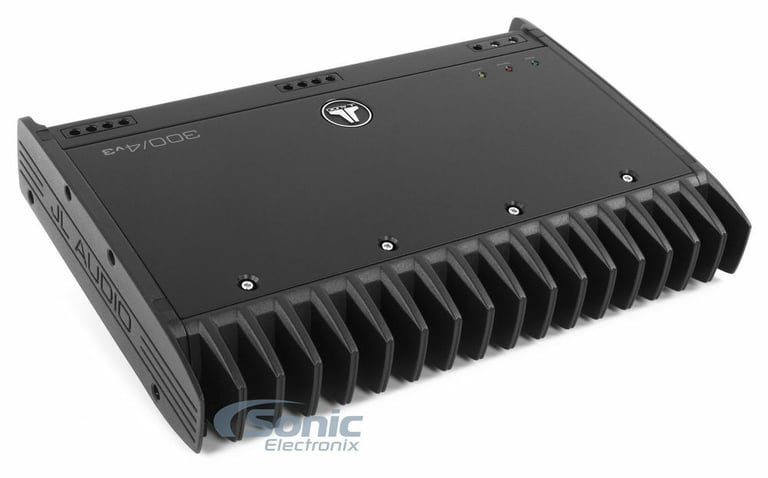

JL Audio Slash 300/4v3 Amplifier + Free High Quality NVX Amp Kit

300/4v3 Specifications:

• Slash v3 Series 4-Channel A/B Full-Range Amplifier
• RMS Power Ratings Channel (11V-14.5V):
• 4 ohm: 75 watts x 4 chan.
• 3 ohm: 75 watts x 4 chan.
• 2 ohm: 75 watts x 4 chan.
• 1.5 ohm: 75 watts x 4 chan.
• Bridged RMS Power Rating (11V-14.5V):
• Bridged, 3 ohm: 150 watts x 2 chan.
• Bridged, 4 ohm: 150 watts x 2 chan.
• Bridged, 6 ohm: 150 watts x 2 chan.
• Bridged, 8 ohm: 150 watts x 2 chan.
• Absolute Symmetry Class A/B Circuit
• R.I.P.S. - Regulated, Intelligent Power Supply
• Pulse width modulation-regulated switching power supply
• Dual N-Channel MOSFET power supply
• H-Bridge amplifier topology
• Powder-coated cast alloy heat sinks
• LED power/thermal/low-impedance indicators
• Differential-balanced input type with RCA jack inputs
• Advanced Rollback Protection monitors the amp's thermal condition
• 4/3/2 Channel Operation
• Selectable 2Ch/4Ch Input Mode
• Speaker level inputs via RCA, JL Audio XD-CLRAIC2-SW required
• Input sensitivity:
• Low level: 200mV-2V
• High level: 800mV-8V

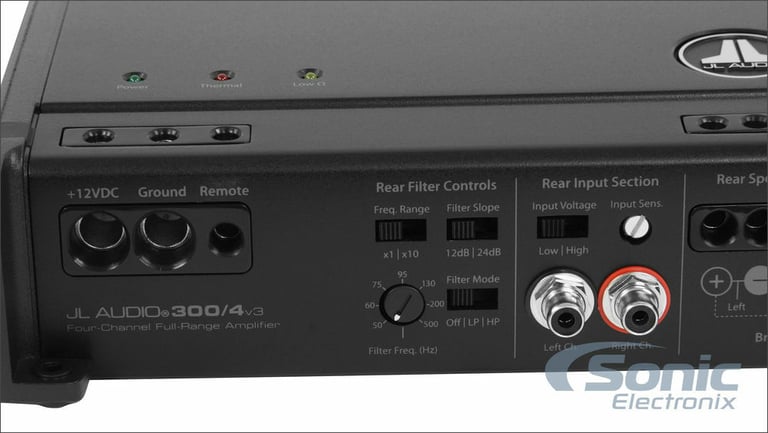

• State-variable, 12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley LPF or HPF
• Selectable frequency multiplier: x1/x10
• Variable crossover filter (x1): 50 - 500 Hz
• Variable crossover filter (x10): 500 - 5000 Hz
• Slew Rate: ± 25V/μs
• Signal to Noise Ration: >108.5 dB
• Frequency response: 5 - 30,000 Hz (+0, -1 dB)
• Total Harmonic Distortion: <0.03% @ 4Ω , 20 - 20 kHz
• Damping Factor: >200 @ 4Ω/50 Hz, >100 @ 2Ω/50 Hz
• Inline 40A x 1 ANL or MaxiFuse Recommended
• Dimensions: 13.4"L x 9.25"W x 2.36"H
• 4-8 AWG +/- & 8-18 AWG 12V Rem terminals
• 4 gauge OFC power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
• 2 Year Manufacturer's Warranty

Product Details:

• 4 Gauge 4-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 1500 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant

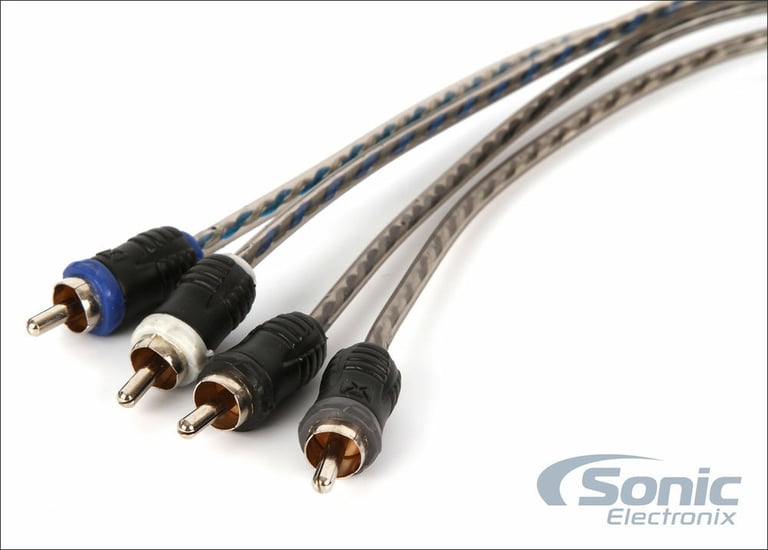

• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

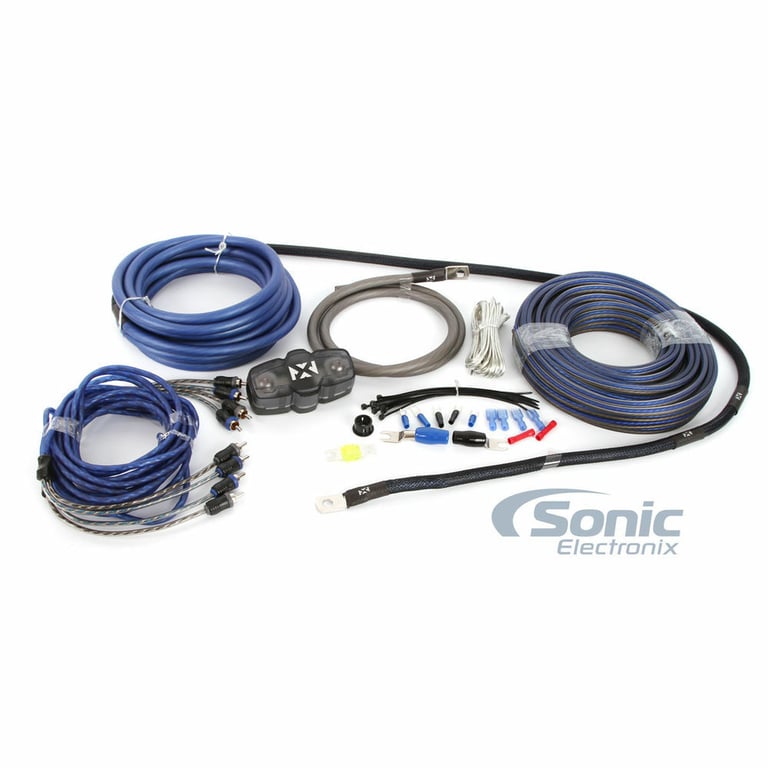

Kit includes:

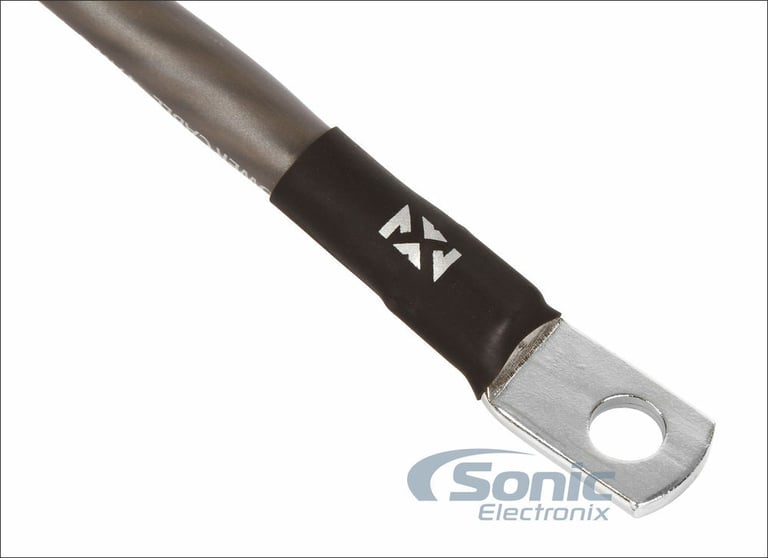

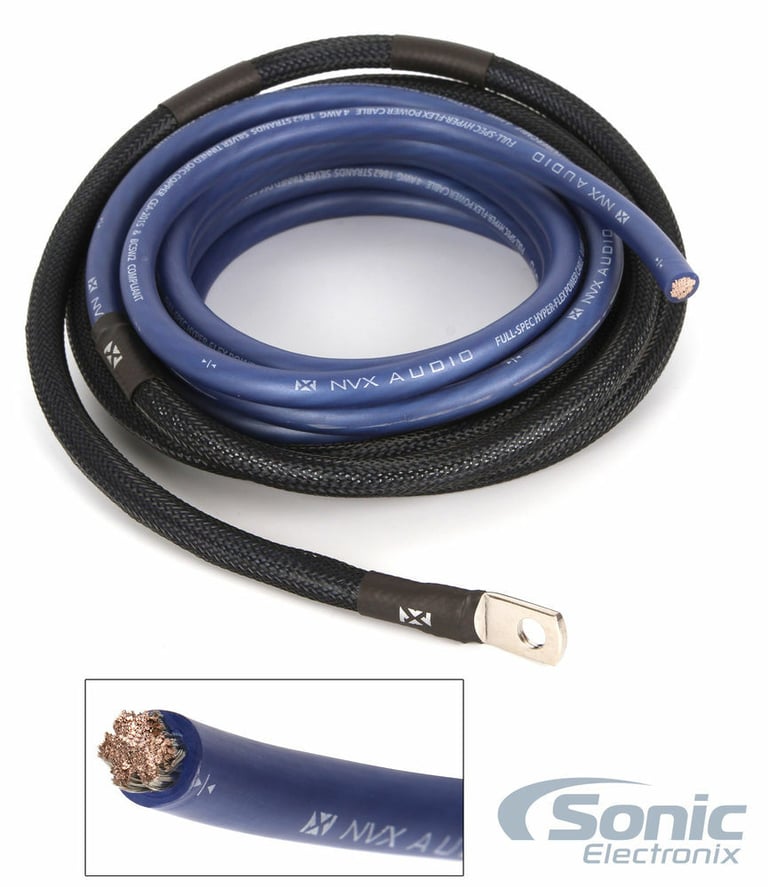

1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal

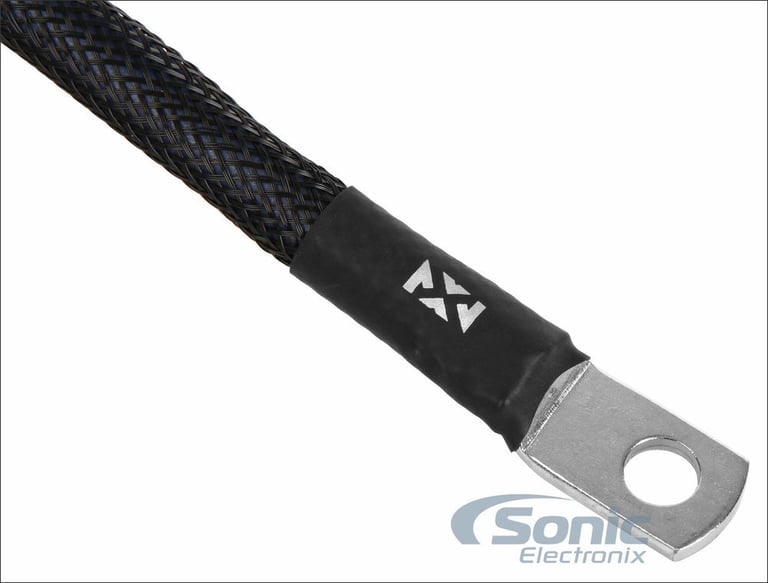

2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal

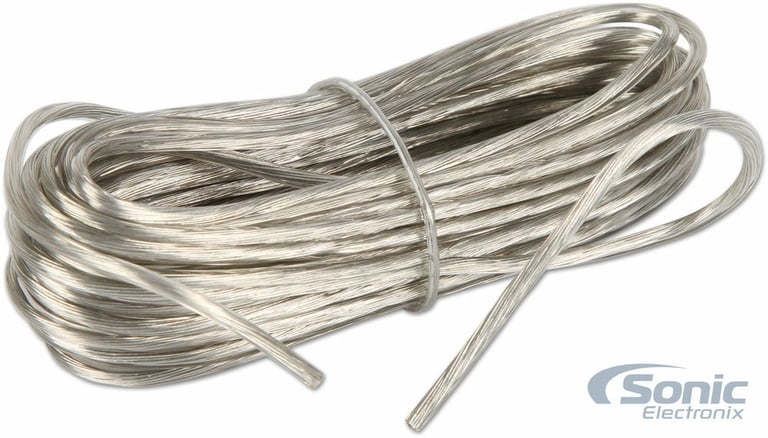

3. 17 ft. Clear 18 gauge remote lead wire

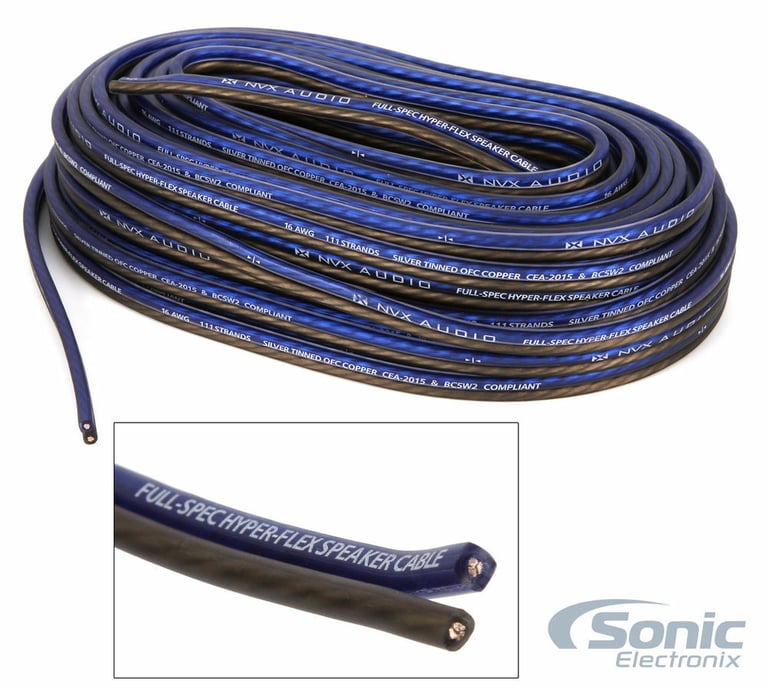

4. 20 ft. Frosted Black/Blue 16 gauge speaker wire

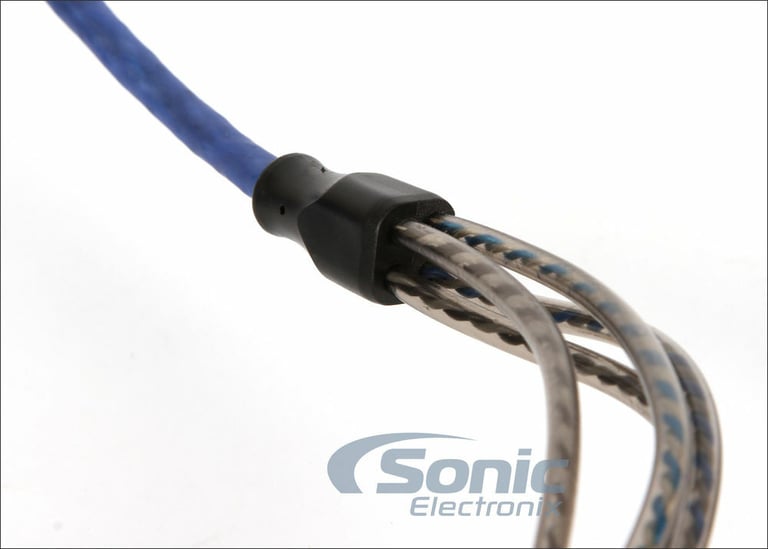

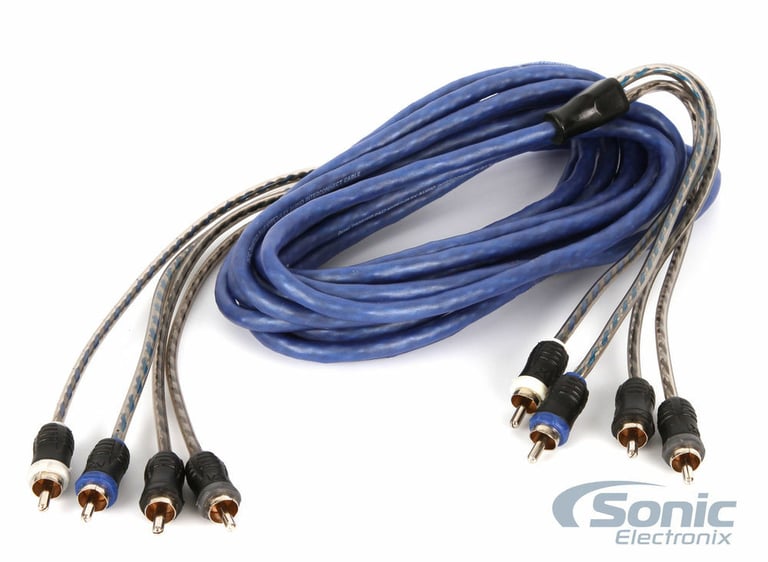

5. One 16.4 ft. 4-channel dual twisted construction RCA interconnect Cable (NVX XIV45)

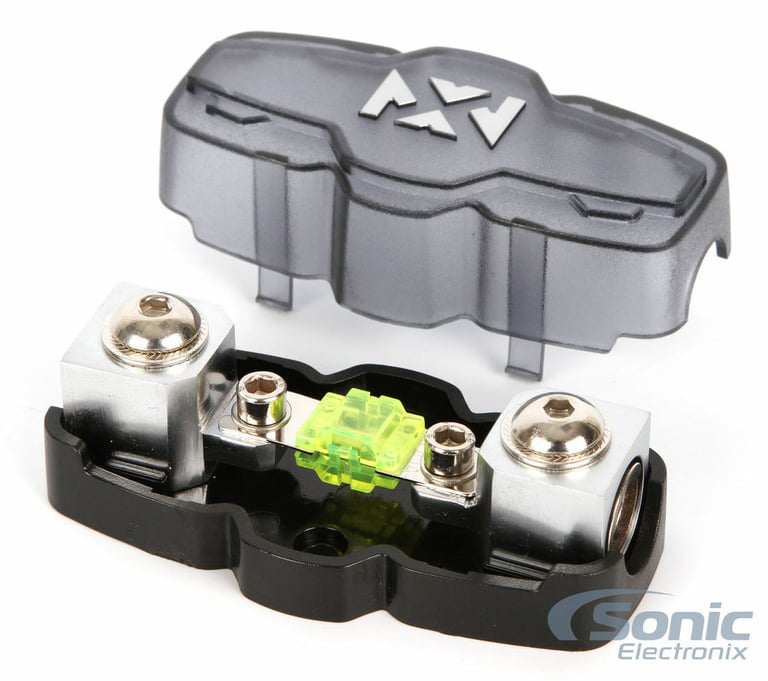

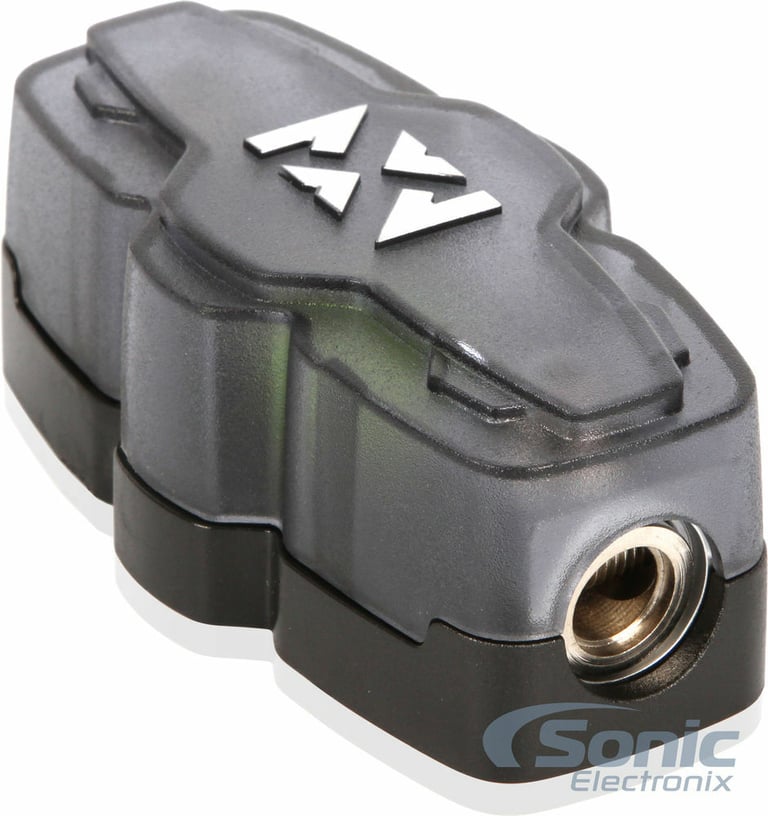

6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse

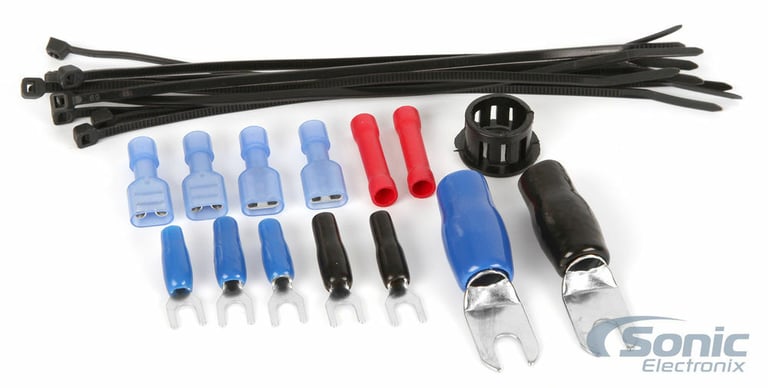

7. One Black rubber firewall grommet
8. Two 4 Gauge Nickel Plated spade terminals
9. Four 18 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Four 16 Gauge quick disconnect
12. Five 16 Gauge Nickel Plated spade terminals
13. Two Heat Shrink tubes with the NVX logo
14. Ten 6" Black zip ties
