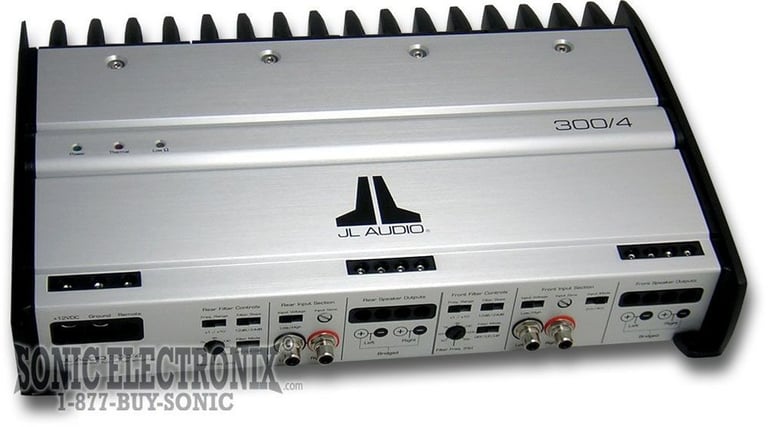

JL Audio 300/4

300 watts, 4-Channel Amplifier

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

4-Channel Power Amplifier • 75 watts RMS x 4 chan. • Bridged: 150 watts RMS x 2 chan. • 108.5 dB S/N Ratio • 1.5 ohm - 8 ohm stable (1.5 - 4 ohm unbridged, 3 - 8 ohm when bridged)

Learn more about the jl3004

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

3004v3 thumbnail

JL Audio Slash 300/4v3

OUR PRICE: $719.99

View item

Loading...
KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

CDX3119 main

Jensen CDX3119

Single DIN CD Multimedia Receiver with Bluetooth

3

Product Highlights


4-Channel Power Amplifier • 75 watts RMS x 4 chan. • Bridged: 150 watts RMS x 2 chan. • 108.5 dB S/N Ratio • 1.5 ohm - 8 ohm stable (1.5 - 4 ohm unbridged, 3 - 8 ohm when bridged)

Description


JL Audio brand icon

Authorized dealer

Specifications:
  • Rated Power (stereo): 75W RMS x 4 @ 1.5 ohm-4 ohm (11V-14.5V)
  • Rated Power (bridged): 150W RMS x 2 @ 3 ohm-8 ohm (11V-14.5V)
  • THD at Rated Power: <0.03% @ 4 ohm
  • S/N Ratio*: >108.5 dB below rated power
  • Frequency Response: 5 Hz-30 KHz (+0, -1dB)
  • Damping Factor: >200 @ 4 ohm per ch./50 Hz
  • Input Range: switchable from 200mV-2V RMS to 800mV-8V RMS
  • Dimensions: 13.4"L x 9.25"W x 2.36"H

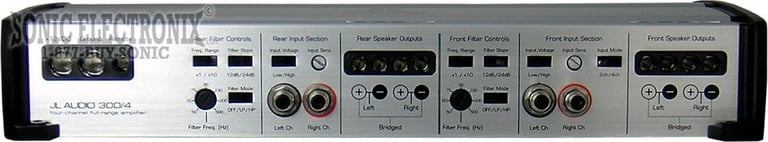

Features:
  • Differential-Balanced Input Topology: (2 pairs of inputs)
  • Front Crossover: fully-variable (50 Hz-5 KHz), selectable-slope LP or HP (12 or 24 dB per octave)
  • Rear Crossover: fully-variable (50 Hz-5 KHz), selectable-slope LP or HP (12 or 24 dB per octave)
  • Speaker output connections: accept up to 8ga. wire
  • +12V and Ground connections: accept up to 4ga. Wire


Due to the complexities of installation, previous customer abuse, and improper installation, the JL Audio 300/4 is now a repair only item whether defective on day 1 or day 365 of ownership.

Product history:

JL Audio 300/4v3 thumbnail
(newest, current model)
JL Audio 300/4v2 thumbnail
(previous model, replaced by JL Audio Slash 300/4v3)
JL Audio 300/4 thumbnail
(previous model, replaced by JL Audio Slash v2 300/4v2)

Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

5
KDC-BT782HD main

Kenwood KDC-BT782HD

Single DIN CD Receiver with Bluetooth, Built-in Alexa, and HD Radio Tuner (SiriusXM Ready)

5
-18.89%

$219.00

List price $270.00

DMH-WT8000NEX main

Pioneer DMH-WT8000NEX

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, Alexa and Dolby Atmos Feature (SiriusXM and iDataLink Maestro Ready)

-18.75%

$1,299.99

List price $1600.00

MEX-N5300BT main

Sony MEX-N5300BT

Single DIN CD Receiver with Bluetooth and Built-in NFC

4

$158.00

List price $159.99


Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

KTA-450 small

Alpine KTA-450 Power Pack

• 50 watts x 4 channel @ 4 ohm
• 45 watts x 4 channel @ 2 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(20)

$299.95

List price $360.00

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
75 watts x 4 channel
RMS Power @ 1 ohm
(at 1.5 ohms) 75 watts x 4 channels
Bridged RMS Power
150 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
300 watts
Minimum Impedance Unbridged
1.5 ohm
Minimum Impedance Bridged
1.5 ohms
THD at Rated RMS Power
0.03%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
108.5 dB
Bass Boost
Bass EQ (on/off)
Remote bass/level controller
No
Fuse Rating
40A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

300/4

Weight:

15.00lbs

Internal SKU:

jl3004

Internal Product ID:

1172

Product and How-to Videos


Customer Ratings & Reviews


JL Audio 300/4 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
4.9
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

I am running a pair of Clif Designs 6.5" components up front. A pair of Clif Designs 5x7" in the rear. These get great, clean, and clear power from the JL 300. All the flexibility with the amp makes the crossovers almost unnecessary. I have 2 12w6 running off a JL 1000 and the overall sound is amazing. That is a true head rattling, breath taking 1300 watts.JL is every bit worth the money.

By Charles on March 3, 2007

12 found this helpful


Perfect Power

I have this amp running two sets of JL Audio C5 component speakers. I don't have the amp turned up that high and I can not believe how good this set up sounds. Even with the amp not turned up very high, when I turn up the volume it goes so loud it is almost ridiculous and still sounds perfect and crisp every time. I highly recommend this amp and all JL products.

By Steven on July 11, 2008

12 found this helpful


The best for it's size

I own this amp and it is the best. It sounds great, never over heated on me and gets very loud. The only down side is the cost.

By Andrew on August 30, 2005

11 found this helpful


Amazing sound quality

I just purchased one of these amps from my local audio store along with jl audio xr components. This amp is amazing. I was running all alpine type s with and alpine mrp-220. I put this amp on my alpines before I pulled them to see the sound difference and it was amazing. Cleaned up the bass a lot. This is definitely the sq amp for speakers. I would suggest it for anyone.

By James on September 28, 2007

10 found this helpful


Precise

As far as interior amps goes, this is one of the better ones out there. This was the first JL Audio amp I purchased, and it is still alive today.

I can attest to the durability from the above statement. The value is you get what you paid for. Mid-range to higher end audio equipment will always cost more than the lower end stuff.

I had this amp power my interior components hifonics zeus 6.5" comps in a jetta. They were clearer hit harder than I had imagined.

By samuel on June 13, 2013

10 found this helpful


Awesome Amp

I recently installed this amp in my car to power a pair of Polk MOMO MMC6500 components. I went from an Alpine V12 with the same power rating to the JL 300/4. The improvement in sound quality was amazing. The music was so much brighter and clearer. The improvement in detail was so great that I could hear sounds that I couldn't with the Alpine. The amp is a bit pricey, but worth every penny. Highly recommended for the true car audio enthuasist.

By James on September 10, 2005

9 found this helpful


Amazing

I have been running of the deck for my speakers for a while ever since my old school v12 amp died. And this is just amazing. It blows the v12 out of the water. So clear and defined it's just crazy. Got to love JL and their great products. Never dissapointed.

By george on April 30, 2008

8 found this helpful


This Amp Is Friggin Good

I just bought this amp from Sonicelectronix, I can't stress out enough how much of a difference in sound there is now compared to having my speakers straight from the deck. Sound is so much clearer, crisp, and every little detail is heard. It also pounds pretty good and keeps up well to my JL500.1 amp which powers an Alpine type R 12" sub. I am very happy with this purchase and I would recomend this amp to anyone! Worth every penny.

By Jose on September 28, 2007

7 found this helpful


Jl Doesn't disappoint

This is one of the thump'nist amp's I've been turned onto.
I've bought two more since for my other vehicles.

By D.j. on January 29, 2021

3 found this helpful


Jl Doesn't disappoint

This is one of the thump'nist amp's I've been turned onto.
I've bought two more since for my other vehicles.

By D.j. on January 29, 2021

2 found this helpful




95-7951 small

Metra 95-7951 Dash Kit

Install a new Double-DIN car stereo in select 2004-2008 vehicles from Suzuki, Chevrolet (Black)

(2)

$11.99

List price $23.99

99-7951 small

Metra 99-7951 Dash Kit

Install a new Single-DIN car stereo in select 2004-2008 vehicles from Suzuki, Chevrolet (Black)

(4)

$13.99

List price $27.99

G4500 small

JL Audio G4500

1000W Max, 4-Channel G-Series Amplifier

(2)

$249.99

List price $399.99

450/4v2 small

JL Audio Slash v2 450/4v2

450W RMS, Slash Version 2 Series 4-Channel Amplifier

(1)

$449.99

List price $799.99

300/4v2 small

JL Audio Slash v2 300/4v2

300W RMS, Slash Version 2 Series 4-Channel Amplifier

(8)

$559.99

List price $599.99

TN250/1 small

MTX Audio Terminator TN250/1 (Factory Refurbished)

400W Max, Class D Monoblock Terminator Series Amplifier

(1)

$59.99

List price $219.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2004 Dodge Sprinter 2500

2017 Subaru Outback

2005 Buick Rainier

2002 GMC Envoy

2005 Buick Rendezvous

2014 Ford Explorer

2002 Ford Escape

2016 Kia Forte5

2014 Audi A6

2012 Lexus LFA

Vehicle
Store
Delete

2007 Harley Davidson FXDC Super Glide Custom

Vehicle
Store
Delete

2019 Can-Am Defender DPS HD5

2022 Can-Am Defender DPS HD7

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
