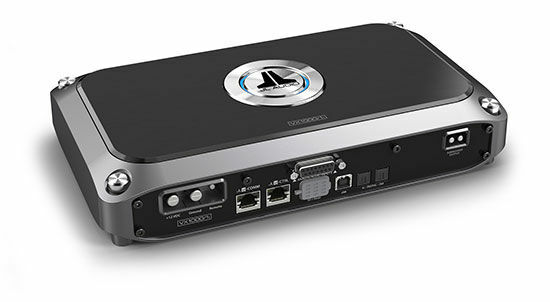

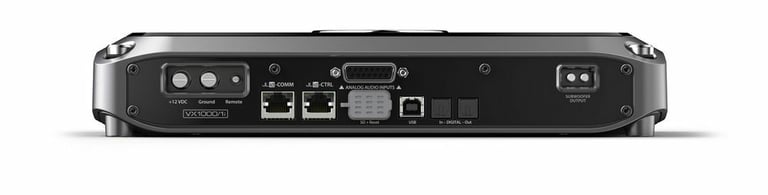

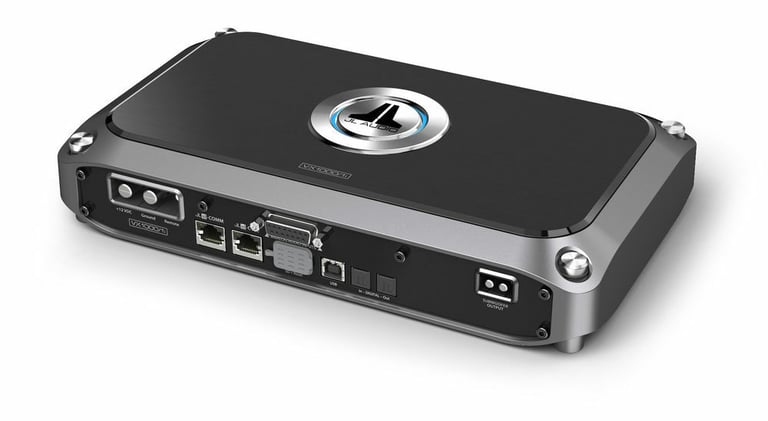

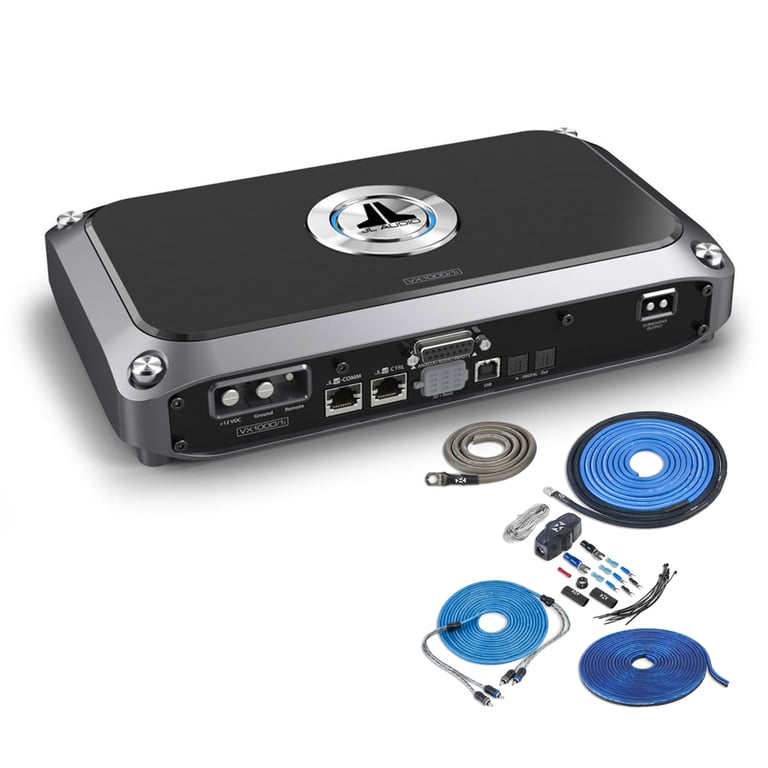

JL Audio VX1000/1i with Amplifier Wiring Kit

Product Details:

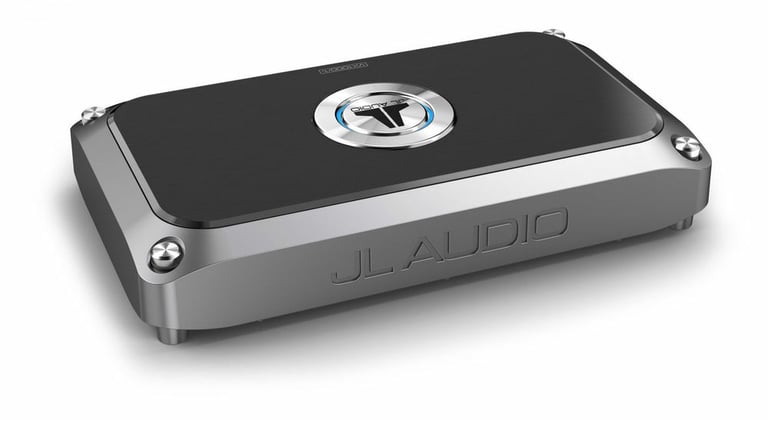

• VXi Series Class D 2 ohms Stable 1 - Mono Amplifier
• RMS Power Rating:
• 4 ohms: 600 watts x 1 channel
• 3 ohms: 800 watts x 1 channel
• 2 ohms: 1000 watts x 1 channel
• Total power output: 1000 watts
• Preamp/Speaker-level (high-level) inputs (Speaker-level requires adapter JL Audio XD-CLRAIC2-SW)
• 2-channel digital input and output (S/PDIF: up to 24-bit 192 kHz in, 24-bit 96 kHz out)
• 2-channel analog RCA preamp outputs (4V RMS)
• Signal sensing remote turn-on
• Protection Circuitry with Status LED
• NextD™ switching amp technology
• Differential-balanced inputs help eliminate noise
• Digital Signal Processing:
• 24-bit 96 kHz digital processing
• DSP adjustments and settings made with JL Audio's TüN app (PC and Mac) via USB, via Bluetooth (tablets and phones) with BTC Bluetooth option
• 3 Project Levels of tuning: Basic, Advanced, Expert
• Input routing and mixing
• Adjustable gain controls with clip indication
• Fully adjustable high-pass, low-pass, and bandpass filters
• Selectable filter slopes (6, 12, 18, 24, 30, 36, 42, 48 dB/octave)
• 10-band EQ (graphic in Basic, parametric in Advanced and Expert modes)
• Phase and polarity control
• Time alignment in 0.01 ms (1/8") increments
• Input sensitivity: 200mV - 16 volts
• Frequency Response: 12 - 500 Hz
• Total Harmonic Distortion (THD): <1%
• Signal to Noise Ratio: 87 dB
• Variable low-pass filter: Via TüN™ Software
• USB connection for device running TüN app (6-foot cable included)
• Lid™ connections for optional Network Hub, Bluetooth Communicator, and Digital Remote Control
• Fuse Rating: 80A
• 2 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 11-5/16" L x 6-3/4" W x 2-1/8" H
• Authorized Internet Dealer
• 2 Year Manufacturer's Warranty
• MFR #: VX1000/1i

Product Details:

• 1/0 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 4000 watts RMS
• Made from 100% (OFC) Oxygen-Free Copper for pure uninterrupted power and current transfer
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects power wire from being damaged
• Solid Brass and Satin Chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full Spec cables meet or exceed the American Wire Gauge standards
• Strand Count: 4704
• CEA-2015 and BC5W2 Compliant
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

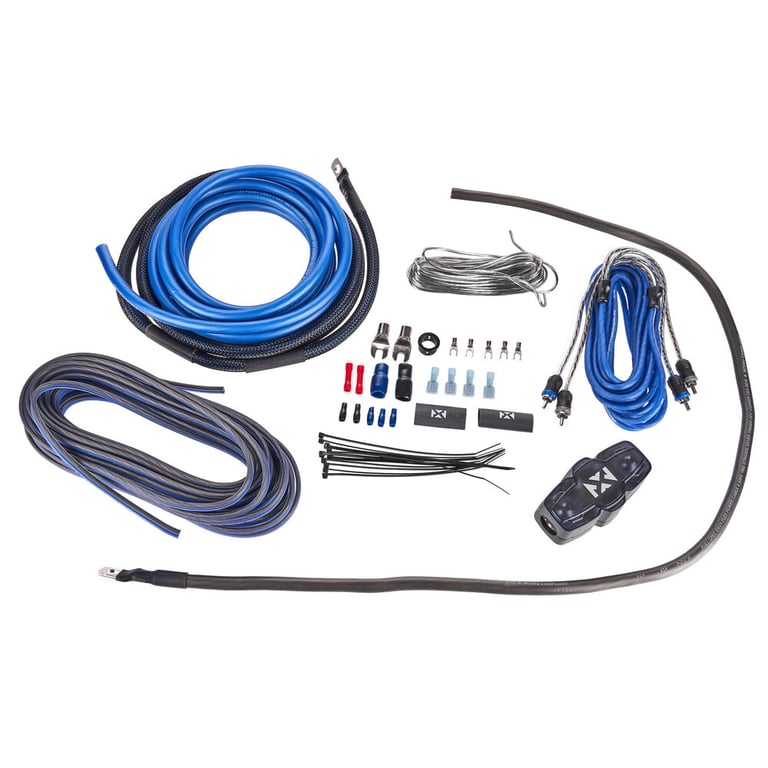

Kit includes:

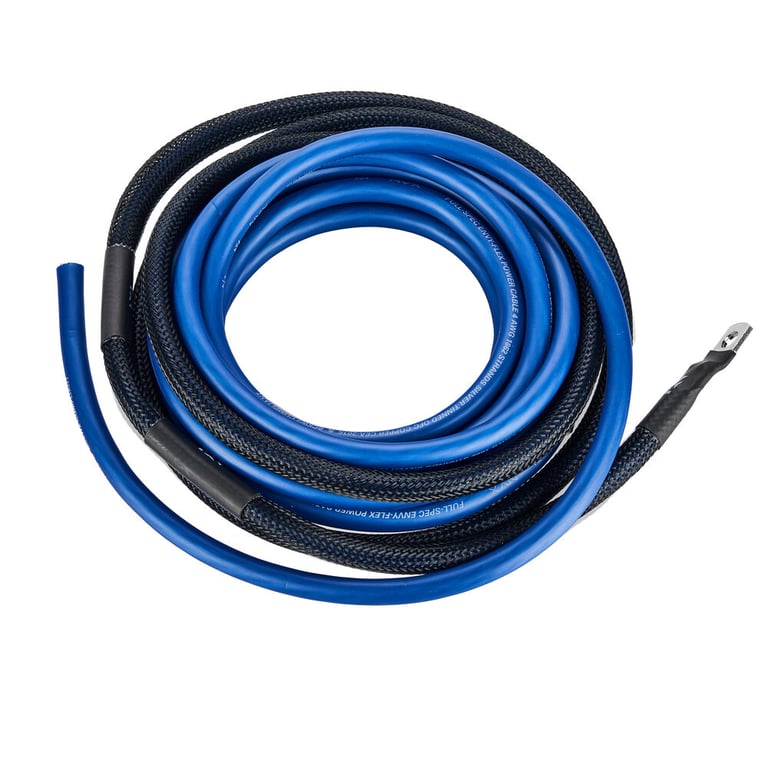

1. 20 ft. (6.1 meters) Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal

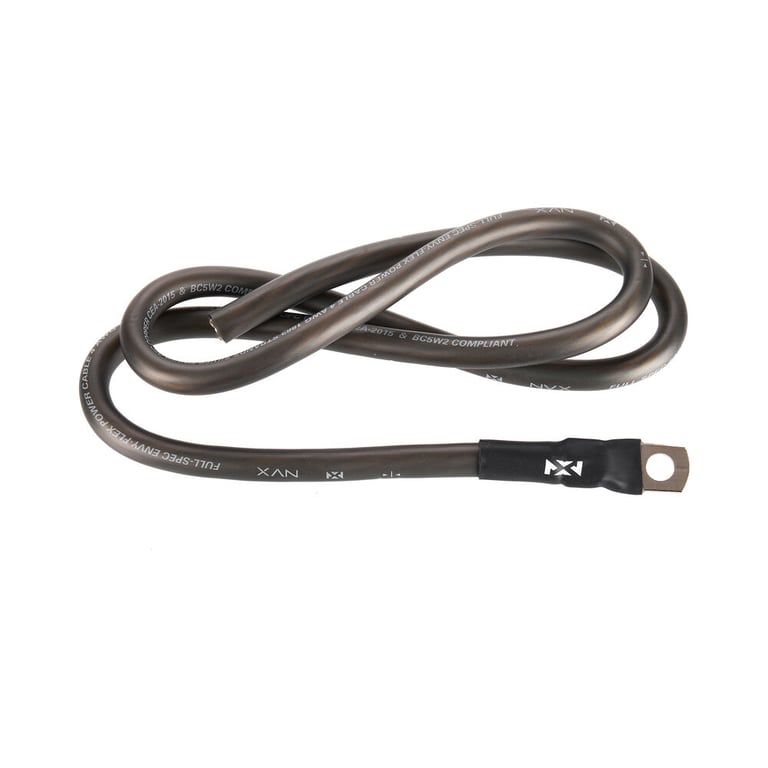

2. 3 ft. (.91 meters) Frosted Black 1/0 gauge ground wire with seamless crimp ring terminal
3. 20 ft. (6.1 meters) Clear 18 gauge remote lead wire

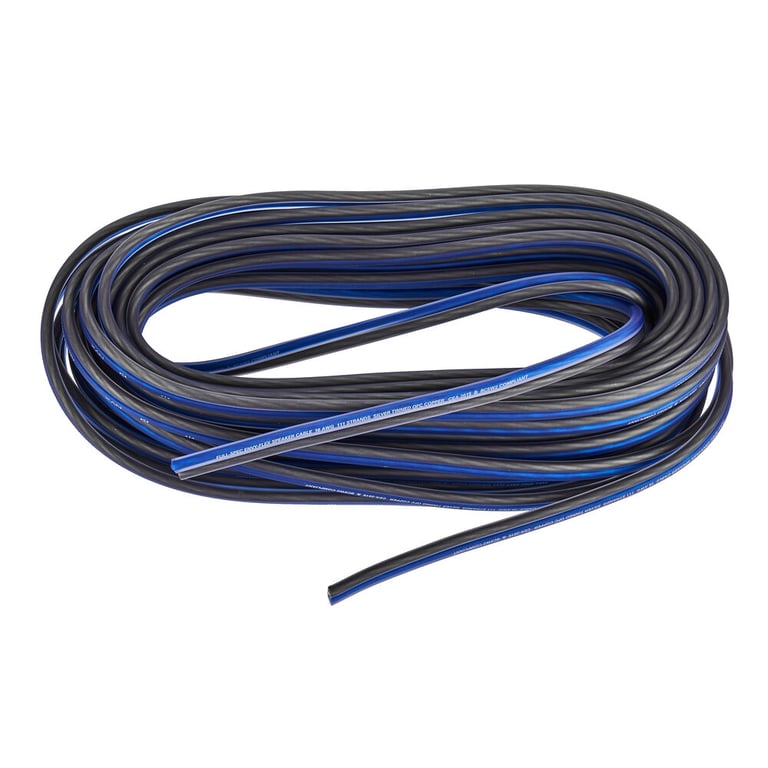

4. 20 ft. (6.1 meters) Frosted Black/Blue 12 gauge speaker wire

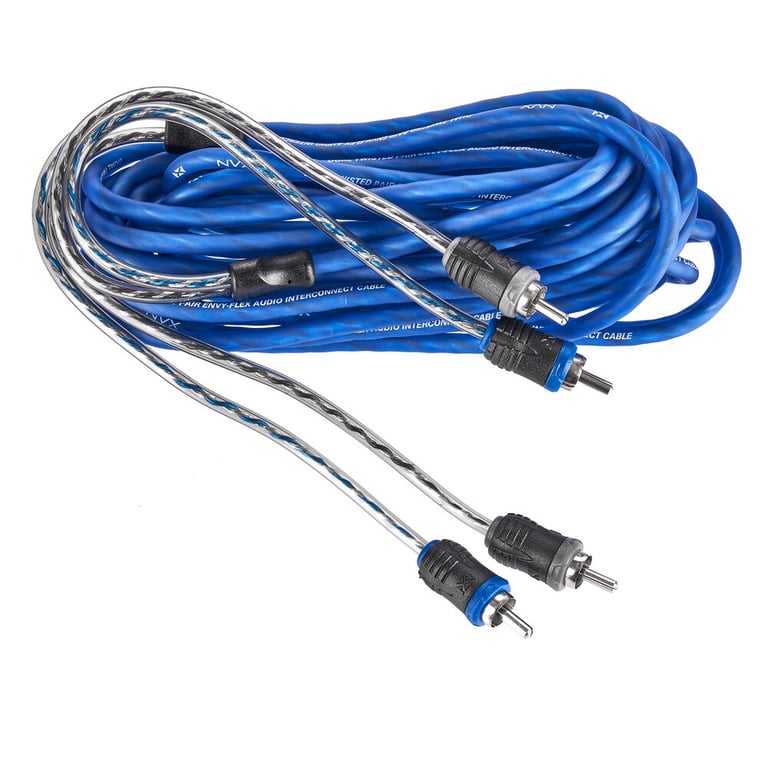

5. One 16 ft. (5 meters) 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

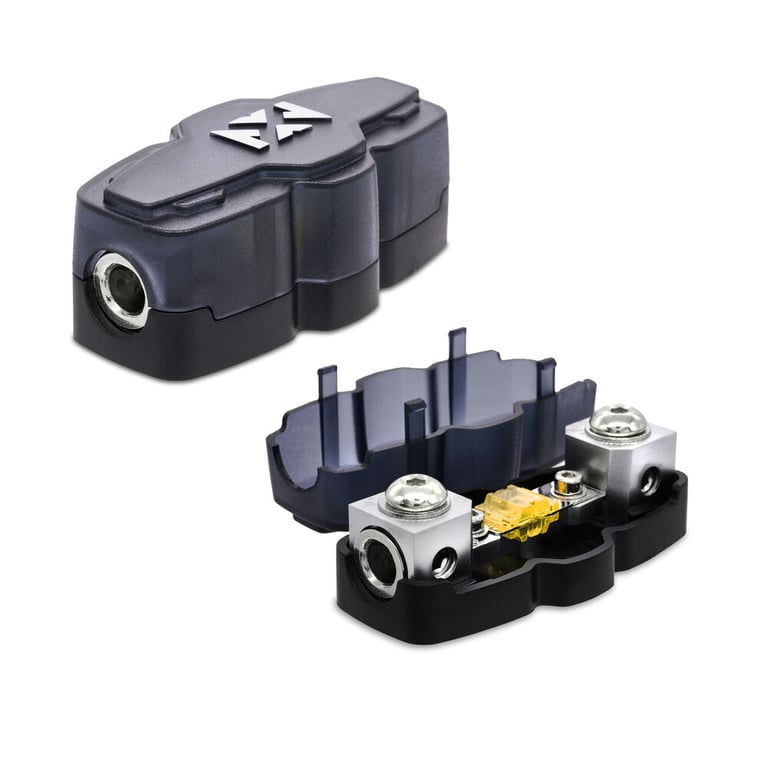

6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 300 amp Mini-ANL fuse

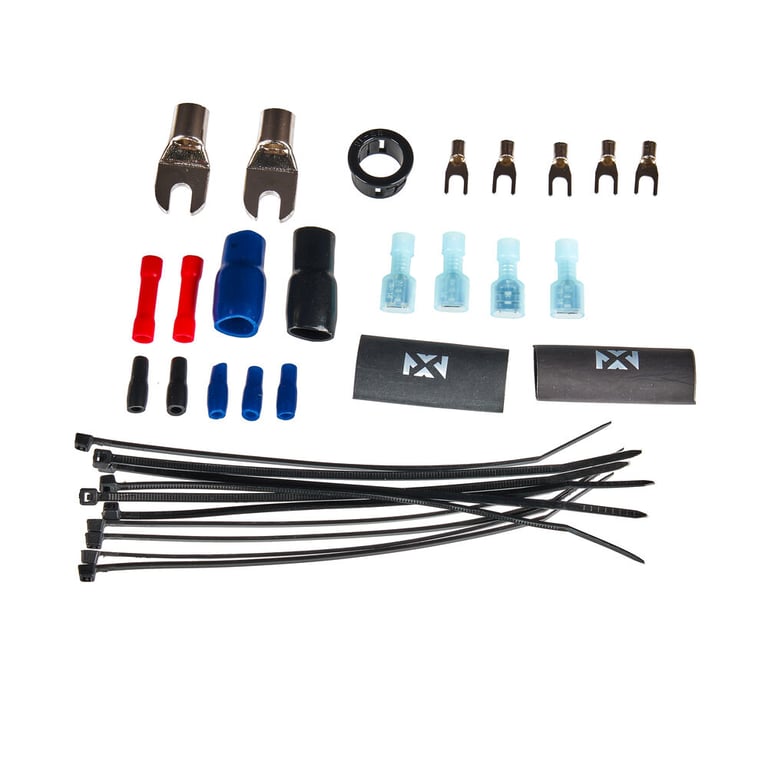

7. One Black rubber firewall grommet
8. Two 1/0 Gauge Nickel Plated ring terminals
9. Four 12 Gauge Spade terminal
10. Two 12 Gauge Red butt connectors
11. Two Heat Shrink tube with NVX logo
12. Ten 6" Black zip ties
