P2D4-10 | 600 Watt 10" Punch Subwoofer

Description

Authorized dealer

2 Punches and You're Out!!

When it comes to car subwoofers, Rockford Fosgate raised the bar in terms of high quality affordable subwoofers. These Punch Stage 2 subwoofers are the perfect combination of price and deep bass. The new Punch Stage 2 series will crank out 400 watts of RMS power handling, giving you that nice deep bass without over powering your audio system. The face of the woofer has been upgraded with a kevlar reinforced paper cone that will provide durability and great sound quality. For those long sessions of hard hitting bass, the rubber surround has been manufactured to handle high excursion movements through out the day. With their patented technology the Rockford Fosgate P2D4-10 are the perfect match for those looking for quality bass without breaking the bank.

While built on a long standing history of performance, the punch series woofers can deliver not only output to satisfy you when you want it loud but maintain a level of sound quality for when you really want to "listen" to your music. Taking many design cues from the Power Series, Rockford Fosgate engineers continue to improve the Punch Series year after year making it one of the most sought after woofer lines for music and bass enthusiasts alike. With features like Dual tear & fatigue resistant poly-cotton spider for high strength and anodized aluminum voice coil formers to handle heat buildup in the motor structure under full power situations, these drivers are designed to perform.

Anodized Aluminum Voice Coil Former

By using an anodized aluminum voice coil former on their subwoofers, Rockford Fosgate is able to dissipate heat from the voice coil more efficiently. A hot voice coil can melt the adhesive bonds, which will lead to eventual subwoofer failure. The aluminum voice coil former acts as a heat-sink to dissipate thermal build-up on the voice coil cool during high SPL conditions.

Conforms to CEA-2031

Rockford Fosgate has built this subwoofer to conform to the CEA-2031 loudspeaker power handling industry standards. This means that you can trust the subwoofer to have the capacity to safely handle the continuous (RMS) power rating. Having a CEA-2031 power handling is important when matching a subwoofer to an amplifier because the power ratings are accurate.

Stitched Tinsel Leads

To improve the reliability and performance by reducing fatigue and possible shorting, Rockford Fosgate has stitched the tinsel leads to the spider. The multipoint periodic stitching lead wires reduce the mass of the tinsel leads to spread the stress over a greater area. This improves the reliability and performance of the subwoofer.

VAST: Vertical Attach Surround Technique

In order to increase the surface area of the cone without causing any installation issues, Rockford Fosgate designed the Vertical Attach Surround Technique (VAST). By redesigning the manner in which the surround adheres to the basket, these speakers gain up to 25% more effective radiating cone area. This improves the nominal efficiency and maximum output.

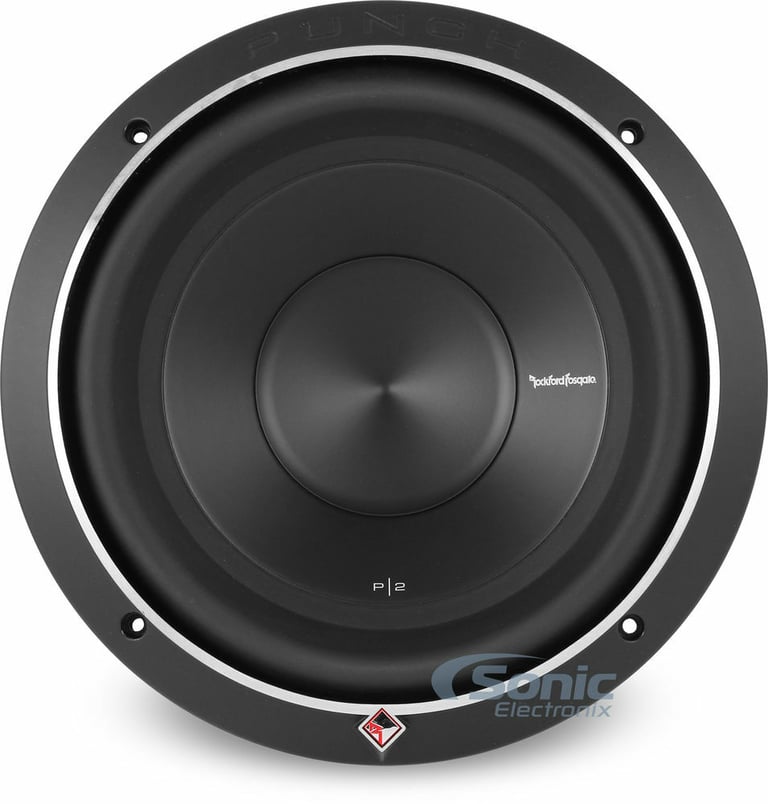

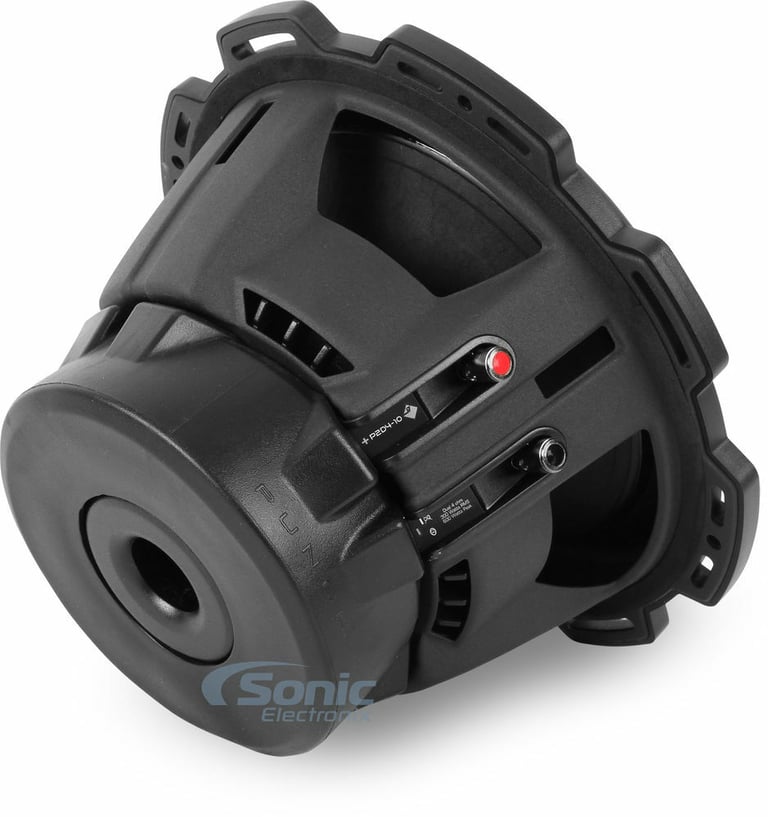

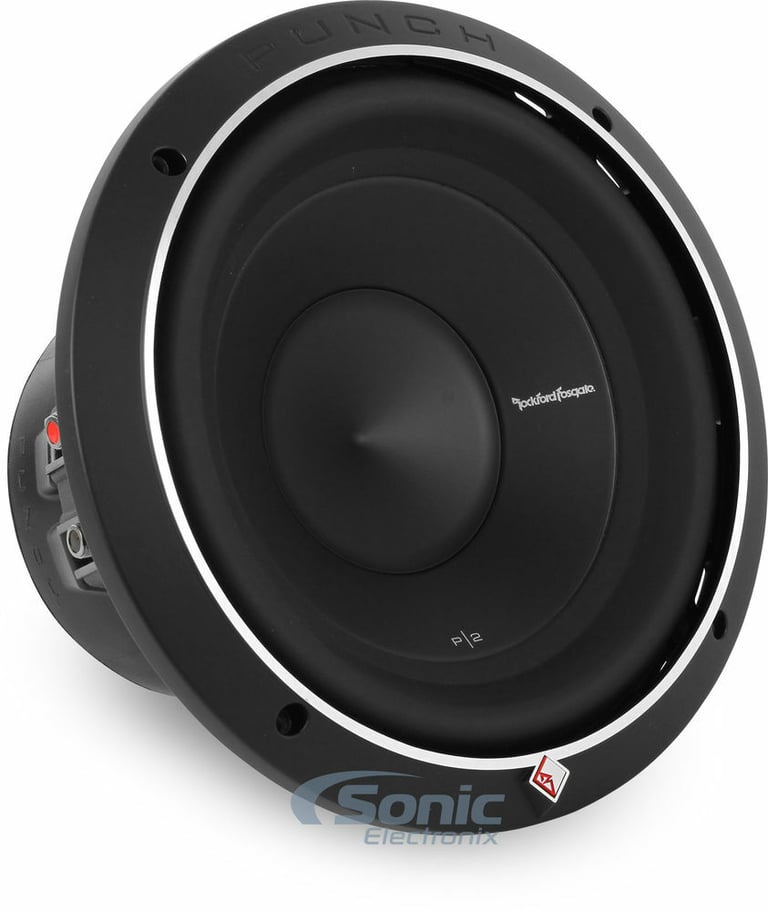

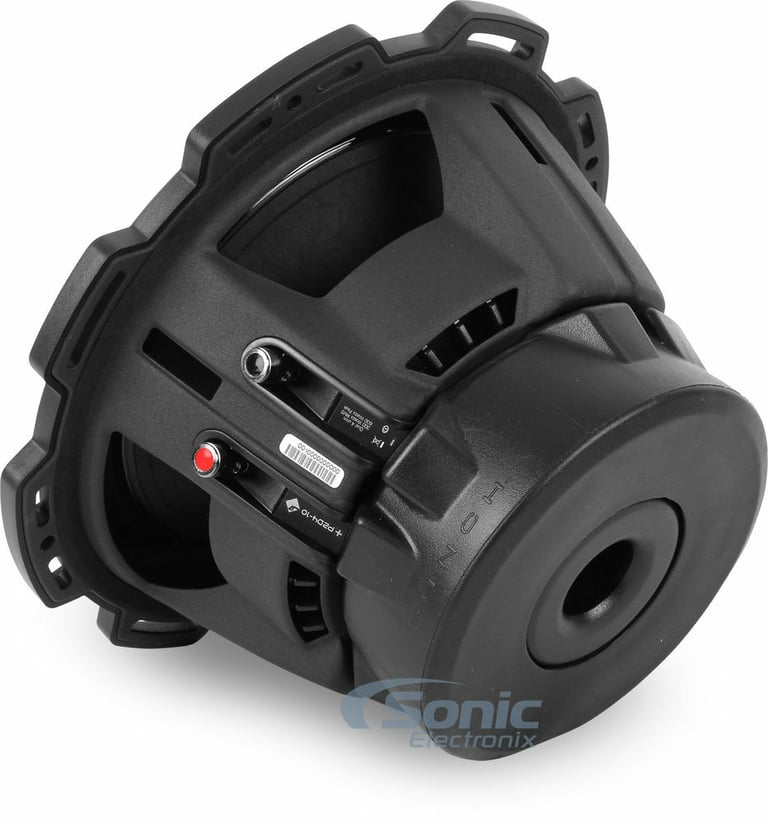

Rockford Fosgate Punch P2 P2D4-10

600W Peak (300W RMS) 10" Punch Series Dual 4-ohm Car Subwoofer
Quantity: 1

Product Details:

10" Dual 4 ohm Punch Series Subwoofer
Power Handling:

Peak: 600 watts
RMS: 300 watts

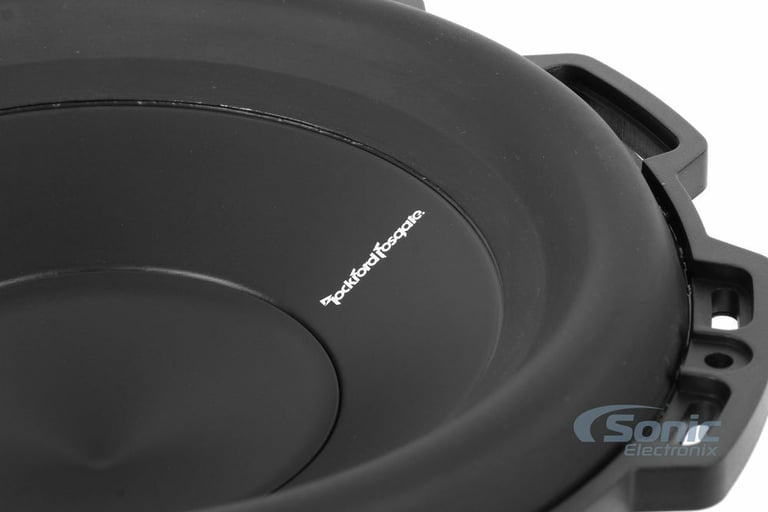

Kevlar Reinforced Pulp Paper Cone
Rubber Surround
High-temp voice coil with spun-laced Nomex re-enforcement collar
Extended pole piece and bumped vented backplate

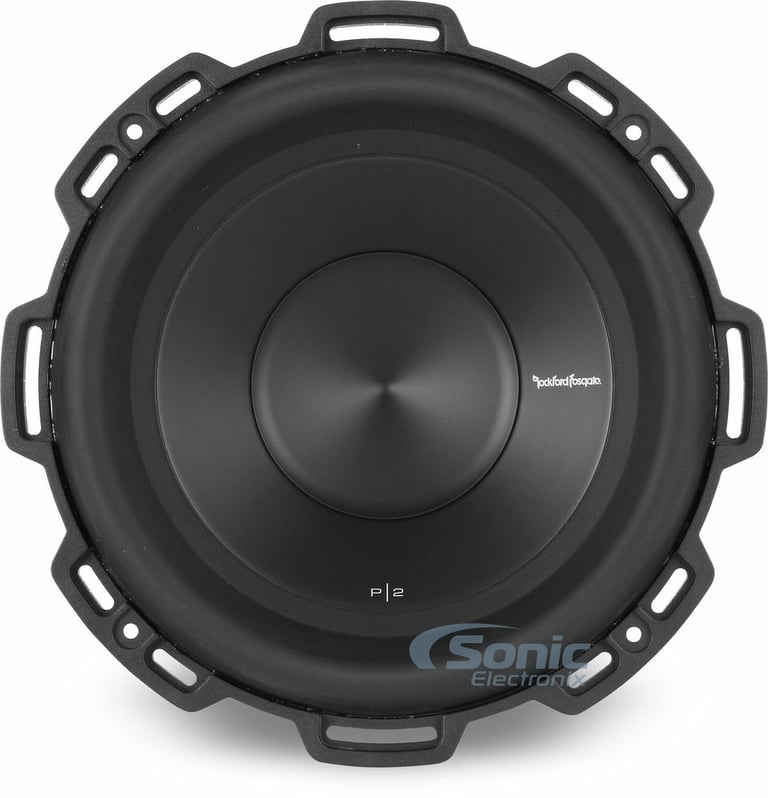

Stamp cast basket with integrated spider venting

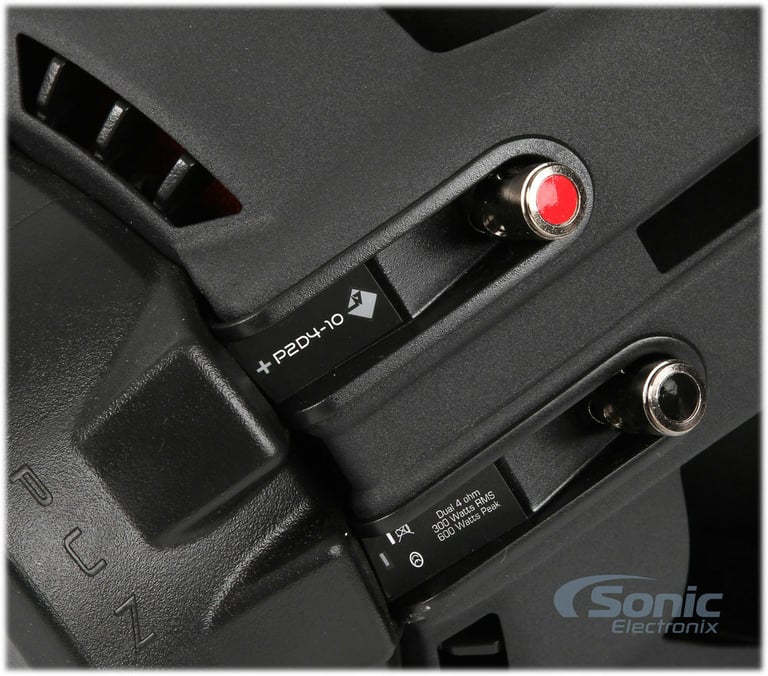

Custom 10-AWG nickel plated push terminals
Dual linear spider with embedded 16 AWG tinsel leads
Protective PVC textured magnet cover
2.25" High Temperature Voice coil
11 mm Xmax
66.4 oz. Single Stacked magnet motor structure
Resonance Frequency (Fs): 30.8 Hz
Sensitivity: 84 dB
Recommended sealed box volume: 0.59 cubic feet - 0.85 cubic feet
Recommended ported box volume: 1.4 cubic feet
Top-mount depth: 5.92"
Cutout diameter: 9.13"
Diamond cut cast aluminum trim ring
CTA-2031 Compliant
Authorized Internet Dealer
Optional protective Rockford Fosgate P2P3G-10 subwoofer grille (sold separately)
1-year Manufacturer's Warranty

Priced Individually

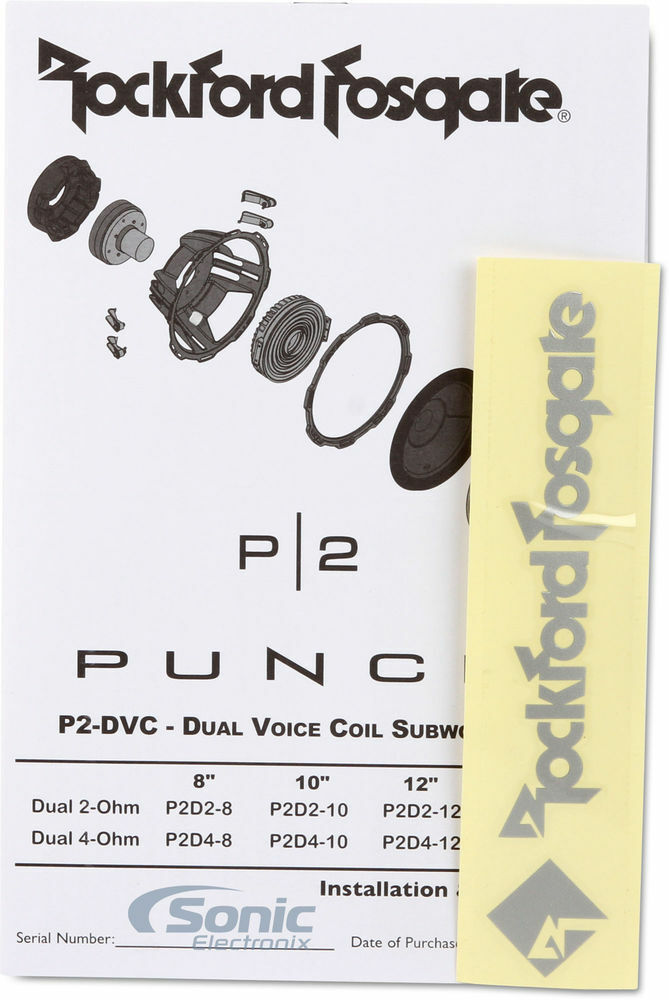

Rockford Fosgate P2D410 owner’s manual

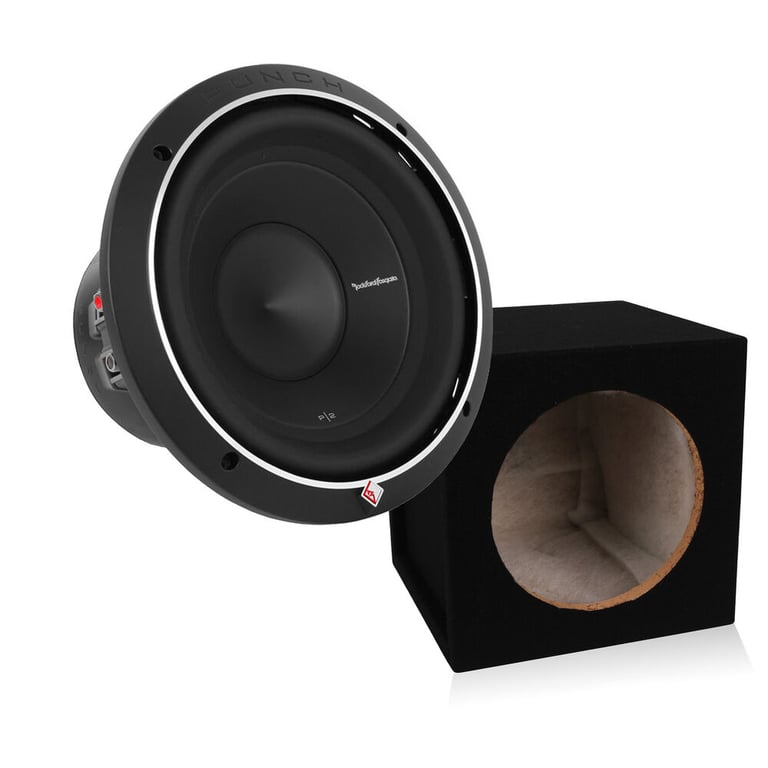

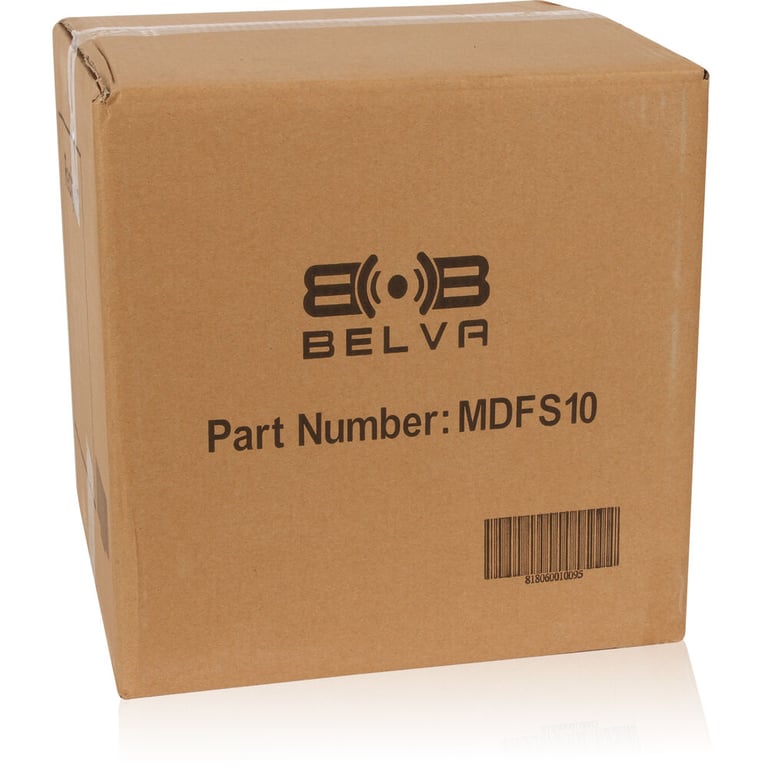

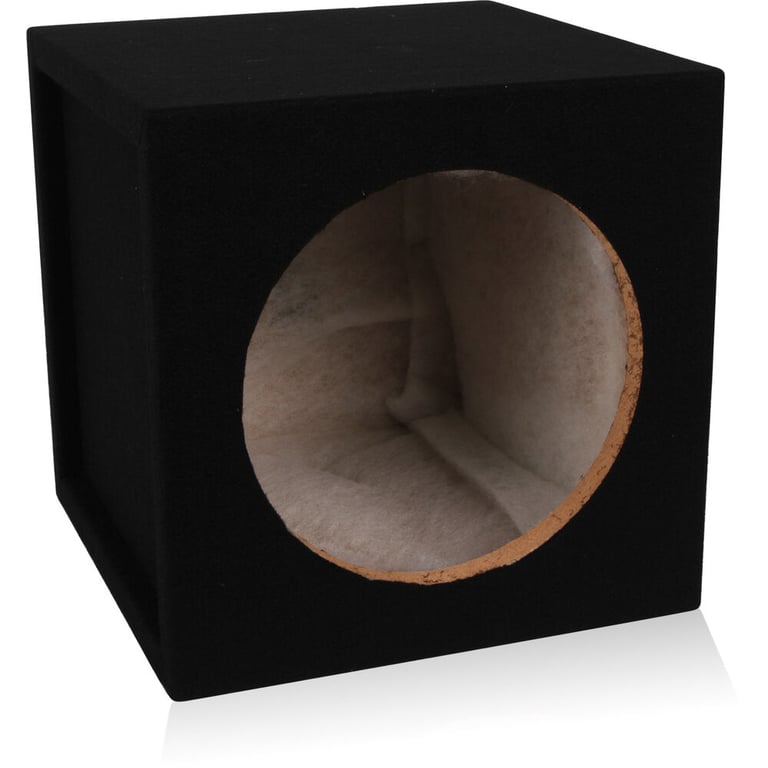

Single 10" Sealed MDF Subwoofer Enclosure (Belva MDFS10)

10-inch Sealed Car Sub Box Made with 3/4" MDF and lined w/ Polyfil (0.77 cu ft airspace 10SQTC)
Quantity: 1

General Features:

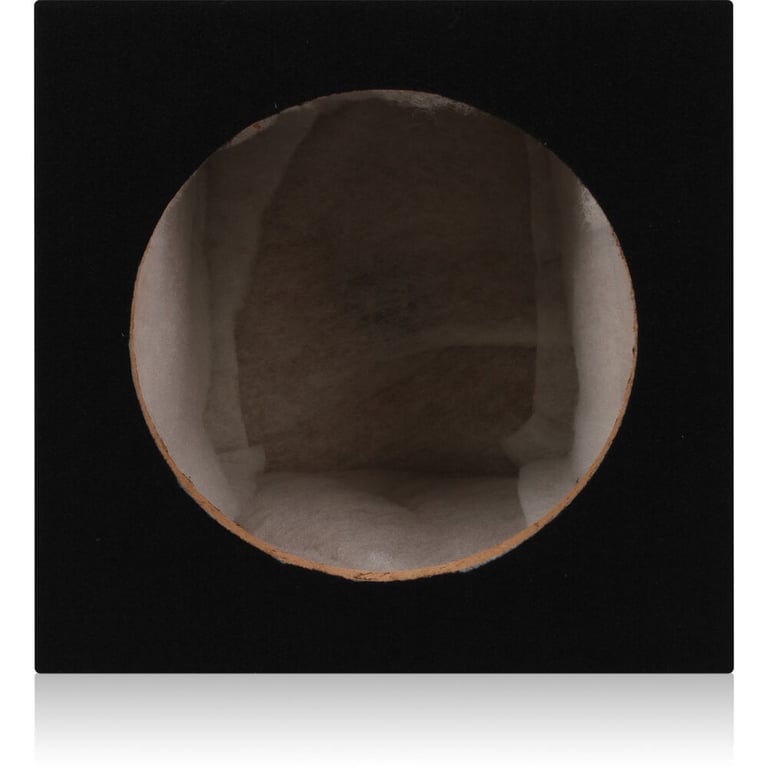

Single Sealed 10" Enclosure
Internal box volume: 0.77 cubic ft
High Quality 3/4" MDF Construction
Durable black carpeting
Pre-lined with Poly-Fil
Seams are fully caulked for better efficiency

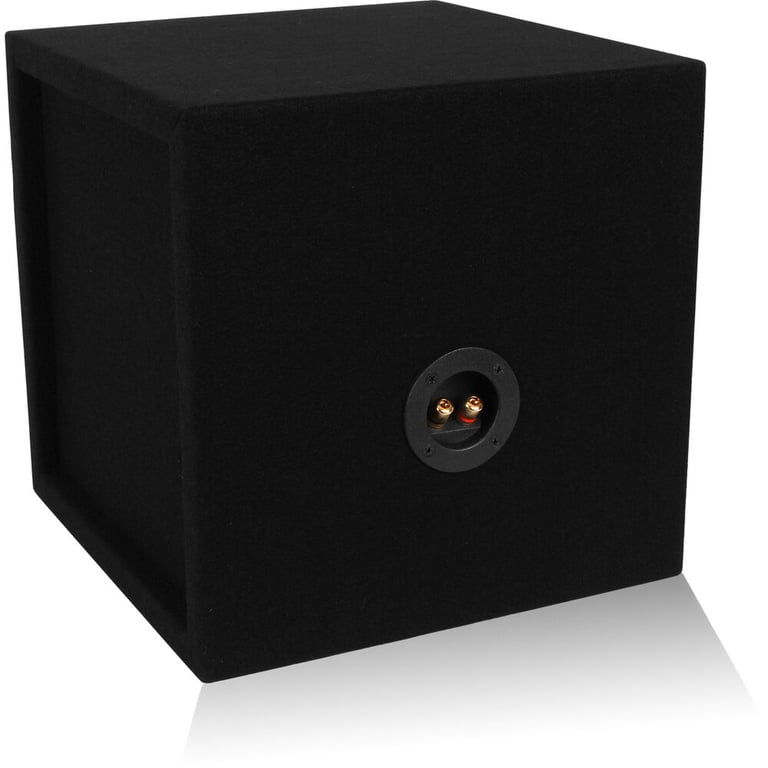

Gold post terminals for clean and easy wiring access
Box Dimensions: 12-1/2"L x 12-1/2"D x 12-1/2"H
30 Day return policy

Belva BBSW127

12 Gauge 7 Meter (23 Ft) Speaker Wire (CCA)
Quantity: 1

General Features:

12 Gauge Speaker Wire
High strand count for maximum flexibility
Ultra-flexible PVC blended jacket for easy installation
Packed in resealable bag
Length: 7m (23 Ft)
Also available in 16 Gauge
Authorized Internet Dealer
1-year Manufacturer's Warranty

Product history:

	Rockford Fosgate Punch P2D4-10 + Free Sealed Enclosure (newest, current model)
	Rockford Fosgate Punch P2D410 (09P2D410) (previous model, replaced by Rockford Fosgate Punch P2D4-10 + Free Sealed Enclosure)
	Rockford Fosgate Punch P210D4 (previous model, replaced by Rockford Fosgate Punch P2D410 (09P2D410))

Specifications & Details

Subwoofer Specifications

Series

Punch P2 Series

Subwoofer Size

10"

RMS Power Handling

300 watts

Peak Power Handling

600 watts

Woofer Composition

Kevlar Reinforced Pulp Paper

Woofer Surround

Rubber

Sensitivity

84 dB

Frequency Response

30.8 - 250 Hz

Subwoofer Design

Round / Circle

Enclosure Specifications

Box Type

Sealed

Number of Subwoofers

Box Style/Shape

Square/Rectangle

Wood Thickness

3/4"

Number of Terminals

Terminal Type

Binding posts (banana clip ready)

Box Exterior Color

Black

Box Finish

Carpet

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
