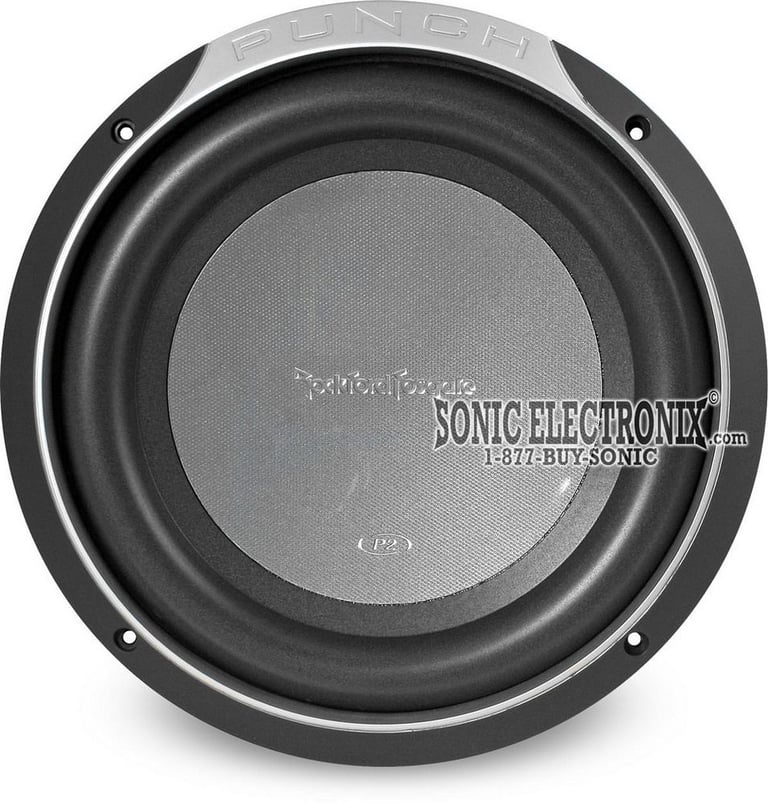

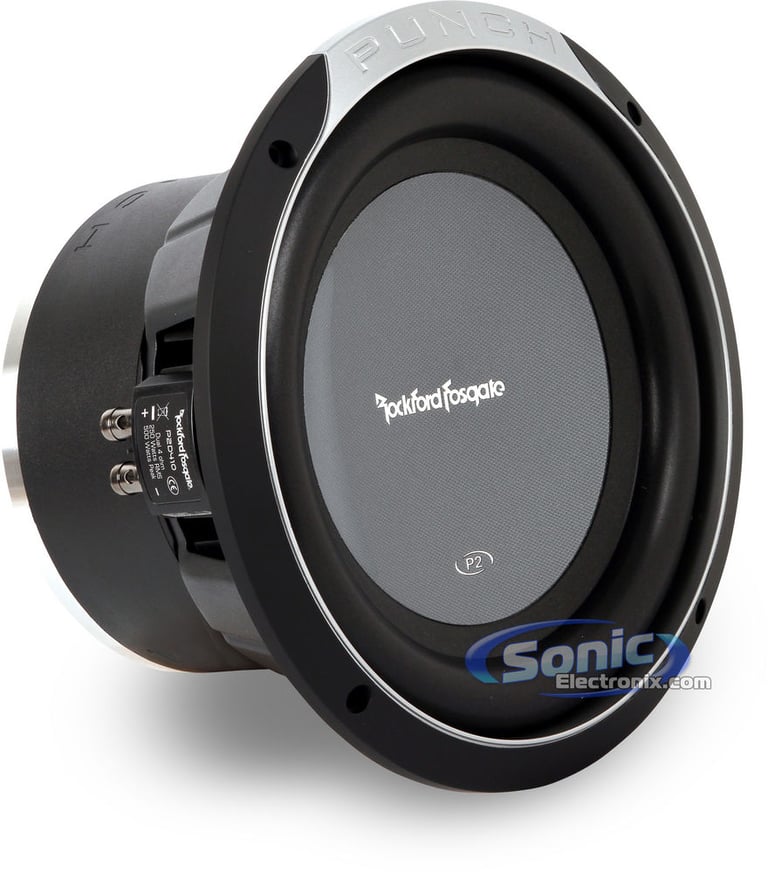

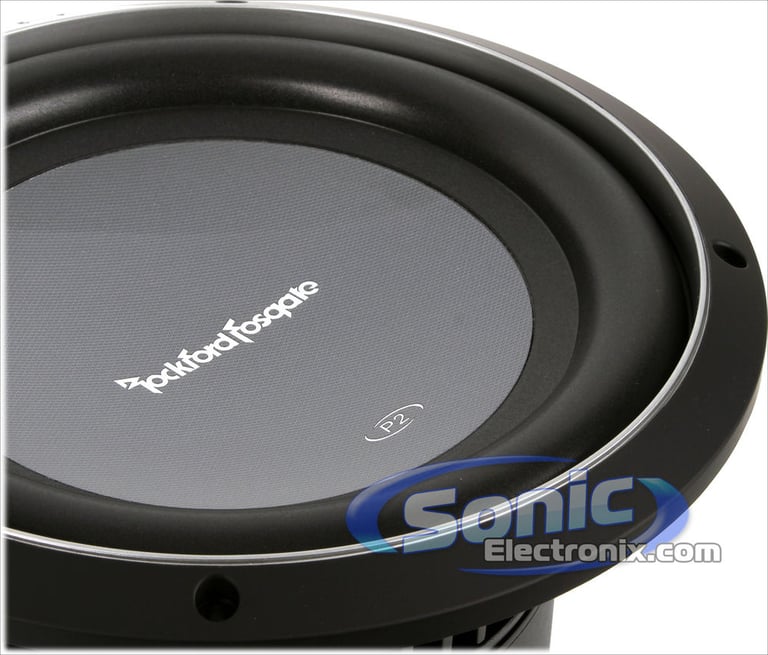

Rockford Fosgate Punch P2D410 (09P2D410)

10" Dual 4 ohm Punch Stage 2 Subwoofer

Product videos
highlight-star-icon

Power Handling: Peak: 500 watts / RMS: 250 watts • Compliant linear spider • Parabolic Triangular Geometry cone support system • Reversible concealing ring hides mounting screws • Frequency Response: 30-250 Hz

Learn more about the 09p2d410

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

p2d410 thumbnail

Rockford Fosgate Punch P2 P2D4-10

OUR PRICE: $159.99

View item

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

28
-28.13%

$22.99

List price $31.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

C2-690tx main

JL Audio C2-690tx

140W RMS 6x9" C2 Series 3-Way Coaxial 4-ohm Car Speakers

21
TS-T110 main

Pioneer TS-T110

240W Peak (80W RMS) 7/8-Inch Hard-Dome Tweeters (Pair)

43
-9.09%

$50.00

List price $55.00

Product Highlights


Power Handling: Peak: 500 watts / RMS: 250 watts • Compliant linear spider • Parabolic Triangular Geometry cone support system • Reversible concealing ring hides mounting screws • Frequency Response: 30-250 Hz

Description


Rockford Fosgate brand icon

Authorized dealer

When it comes to car subwoofers, Rockford Fosgate raised the bar in terms of high quality affordable subwoofers. These Punch Stage 2 subwoofers are the perfect combination of price and deep bass. With a RMS power rating of only 250 watts, these subwoofers are designed for lower wattage amplifiers. However, don’t be fooled by the lower power rating. These efficient woofers are fully capable of producing crisp, clean bass that will shake you to the core. As with all of the other Rockford subwoofers, they have packed patented technology into this sub to enhance the performance of the subwoofer. The Venturi-effect cooling system helps to keep the voice coil cool, while the double stacked ferrite magnet help maintain the power. On the face of the woofer is a polypropylene cone and ABS/Acrylic dustcap. A little further out is the half-roll sealed poly-foam surround that assists with the high excursion of the motor assembly. For those that need a low wattage and high output subwoofer, the Rockford Fosgate Punch P2D410 is the choice subwoofer.

  • 10" Dual 4 ohm Punch Stage 2 Subwoofer
  • Power Handling:
    • Peak: 500 watts
    • RMS: 250 watts
  • Impedance: Dual 4 ohm
  • Parabolic Triangular Geometry cone support system for reduced piston flex

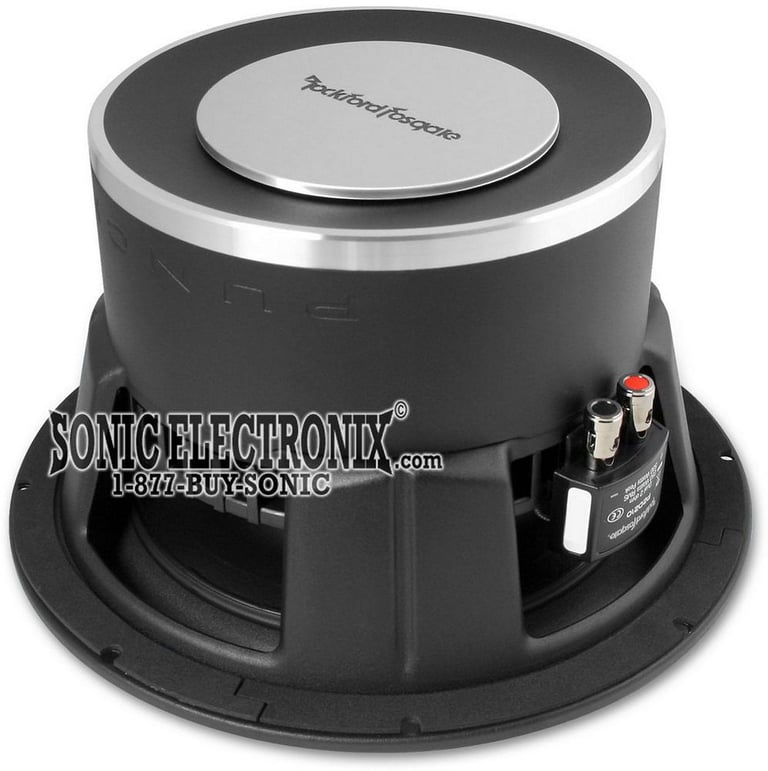

  • 30oz. double-stacked magnet assembly increases excursion capability
  • Compliant linear spider eliminates need for break-in period
  • 2" anodized aluminum voice coil former stays up to 100° cooler

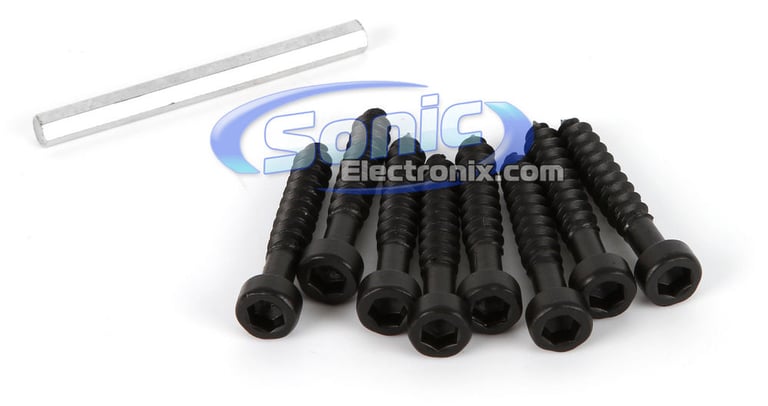

  • Reversible concealing ring hides mounting screws
  • Large roll surround allows for 20% greater linear excursion than standard surrounds
  • Stitched-in tinsel leads handle tons of power

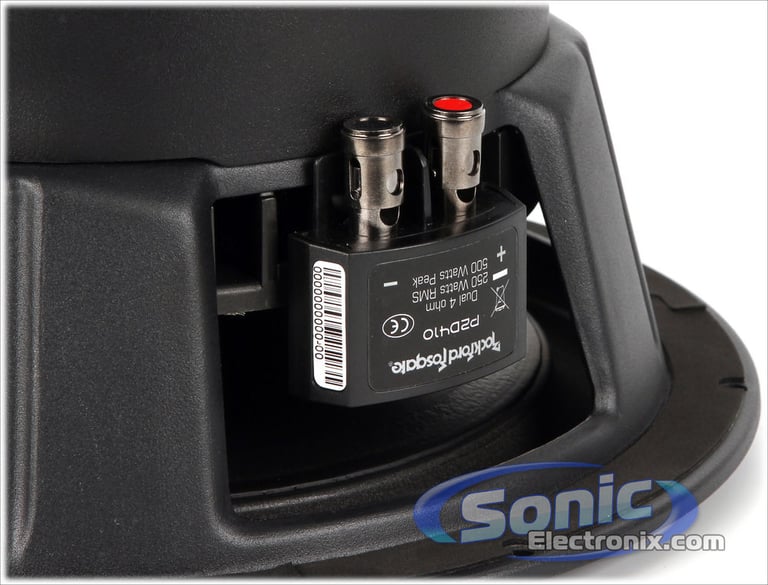

  • Custom 10-AWG nickel plated push terminals
  • Venturi-effect cooling design
  • Frequency Response: 30-250 Hz
  • Sensitivity: 84 dB
  • 1-year SonicElectronix.com warranty

Product history:

Rockford Fosgate P2D4-10 thumbnail
(newest, current model)
Rockford Fosgate 09-P2D410 thumbnail
(previous model, replaced by Rockford Fosgate Punch P2 P2D4-10)
Rockford Fosgate P210D4 thumbnail
(previous model, replaced by Rockford Fosgate Punch P2D410 (09P2D410))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate Punch P2D410 (09P2D410) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate Punch P2D410 (09P2D410) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate Punch P2D410 (09P2D410) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate Punch P2D410 (09P2D410) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
500 watts
RMS Power Handling
250 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
30 - 250 Hz
Sensitivity
84 dB
Xmax (millimeters)
13-3/16 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Poly-Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.5 cubic feet
Maximum Sealed Box Volume
0.85 cubic feet
Minimum Ported Box Volume
1.40 cubic feet
Maximum Ported Box Volume
1.40 cubic feet
Top-Mount Depth (Mounting Depth)
5-3/4"
Cutout Diameter
9-1/4"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

09-P2D410

Weight:

16.00lbs

Internal SKU:

09p2d410

Internal Product ID:

8755

Product and How-to Videos


  • 3Sixty3 Aftermarket Setup Wizard Tutorial
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Rockford Fosgate Punch P2D410 (09P2D410) thumbnail image

5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.5
Features
4.6
Design
4.8
Usability
5

Customer Reviews

Sort by:

Loading...

great subwoofer for the value

I purchased one 10 inch sub for my winter beast because the four 6.5 speakers in my Jeep Cherokee were a little weak in the bass department. Once this was hooked up it definitely completed the sound. I would recommend this sub for anyone not looking to spend a lot but don't want something cheap sounding.

By Dana on April 4, 2011

30 found this helpful


Two 10s that bump

These things are so clean sounding and good looking... No reason to buy any other brand!

By Casey on June 16, 2009

27 found this helpful


not bad

i had 2 of these pushed with a Rockford amp in a sealed box and i will say they surprised me. they were loud but clean at the same time and you don't get that allot with cheaper subs.

By chris on February 1, 2010

25 found this helpful


good price/power ratio

I've owned this sub for about 7 months now and sounds like its brand new.... I'm only running it at the rms of 250 watts but that's plenty of bang for me haha.... it's a great sub for the price.... i'm wanting to put a second one in the back of my explorer but it'll have to wait a little. overall awesome sub especially if you're just starting out and don't want to break the bank!!!!

By Ben on October 12, 2009

24 found this helpful


Great sub for the price!

I have owned one of these for 5 months now and it still hits hard. I was surprised with the quality of it for the price. I have it hooked up to a Rockford Fosgate Prime 250 amp in a sealed box. It was originally in a ported box but I think this sub sounds better in a sealed box. It blows some of my friends dual 10" or 12" subs out of the water. I highly recommend this sub if you want a cheap but extremely good quality sub.

By Maria on April 13, 2011

23 found this helpful


awesome

I have 2 of these subs wired to a Rockford Fosgate T500-1bd. I have these 2 subs in a single cab truck. When i tell you these hit, i mean they hit! The quality of the subs are unbelievable! I highly recommend these to anyone!

By $@CK on August 19, 2010

23 found this helpful


Ear Drum Busters

I own 2 of these subs installed in myown custom built ported box in my 2000 ford ranger Xcab, powered by a Power Acoustik LT1920/2. One sub per channel and hit 134.7DBs on the new meter... if u want a sub that can take way more than wat its supposed to and keep going... this is it... and for the price u cant get deeper bass and better clarity... HIGHLY RECOMMENDED!

By Junior on July 11, 2009

23 found this helpful


Rockford Fosgate Punch P2D410

great product, very good price, and great sound.

By dtru on September 8, 2010

23 found this helpful


Excellent Woofer

I am running one of these woofers in a vented box built to Fosgate's specifications. My amp is a Fosgate R250-1 and the woofer handles the power with ease. I feel confident that it could take a stronger amp with more power if need be. Bass response is excellent and I was able to save a ton of room in my extra cap S10 by going with this single woofer. For the money, this little woofer is an excellent value and I highly recommend it.

By LLOYD on August 1, 2010

23 found this helpful


good

Had two of these and they pounded. They pounded so hard that they cracked the cones so I would definitely recommend a ported box. Good sub for the money.

By Drew on May 24, 2011

21 found this helpful




MDR-X10/BLK small

Sony MDR-X10/BLK (Black/Silver)

Premium On-Ear X Series Headphones w/ Inline Mic/Remote Control for iPhone

$129.99

List price $299.99

PS-IPH4S-BK small

Trident PS-IPH4S-BK iPhone 4/4S Perseus Case (Black)

Light-duty Shock-absorbing Silicone Sleeve with Raised Grooves and Screen Protector

$12.99

List price $14.95

KD-X50BT small

JVC KD-X50BT (Factory Refurbished)

In-Dash Car Stereo Digital Media Receiver w/ Built-In Bluetooth, Front USB & Variable Color Control

(6)

$74.95

List price $199.95

HA1561BMB small

Scosche HA1561BMB / HA1561BM Dash Kit

Install a new Double-DIN car stereo in select 2006-2011 Civic and Civic Hybrid (Blue Metallic)

$38.99

List price $69.54

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2016 Lincoln MKZ

1969 Cadillac DeVille

2019 Dodge Ram ProMaster 2500

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
