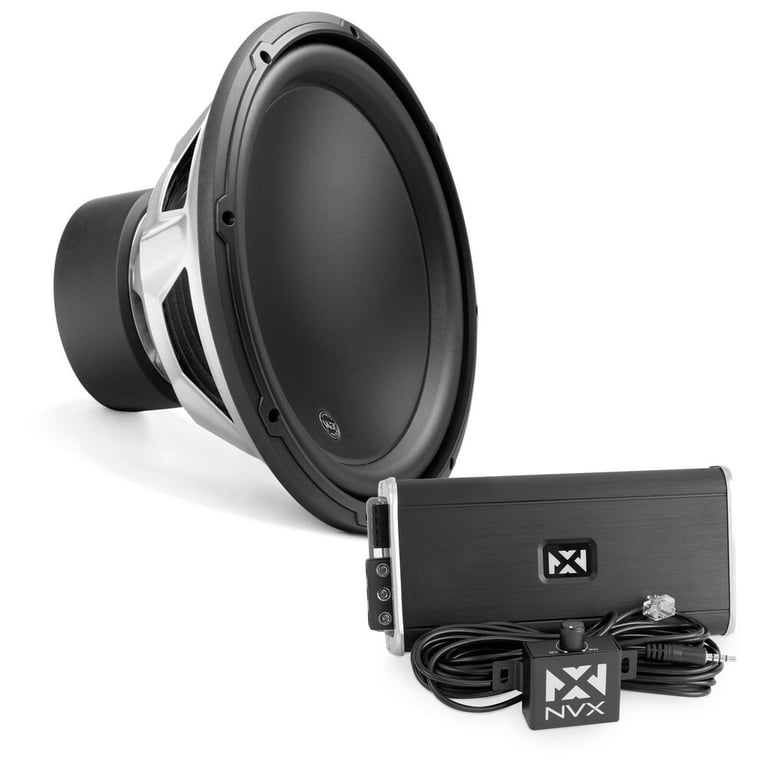

JL Audio 13W3v3-2 + FREE NVX Amplifier ($199.99 Value!)

600W RMS 13.5" W3v3 Series Single 2-Ohm Subwoofer

JL Audio
Shop all JL Audio
highlight-star-icon

• Sensitivity: 87.63 dB
• Mounting depth: 7.63"
• Injection-molded, mineral-filled polypropylene cone
• Nitrile butadiene rubber surround
•Customization trim ring
• Floating Cone Attach Method
• DMA Optimized Motor

Learn more about the 13w3v32_vadm1

We apologize

This item has been discontinued

Description


JL Audio brand icon

Authorized dealer

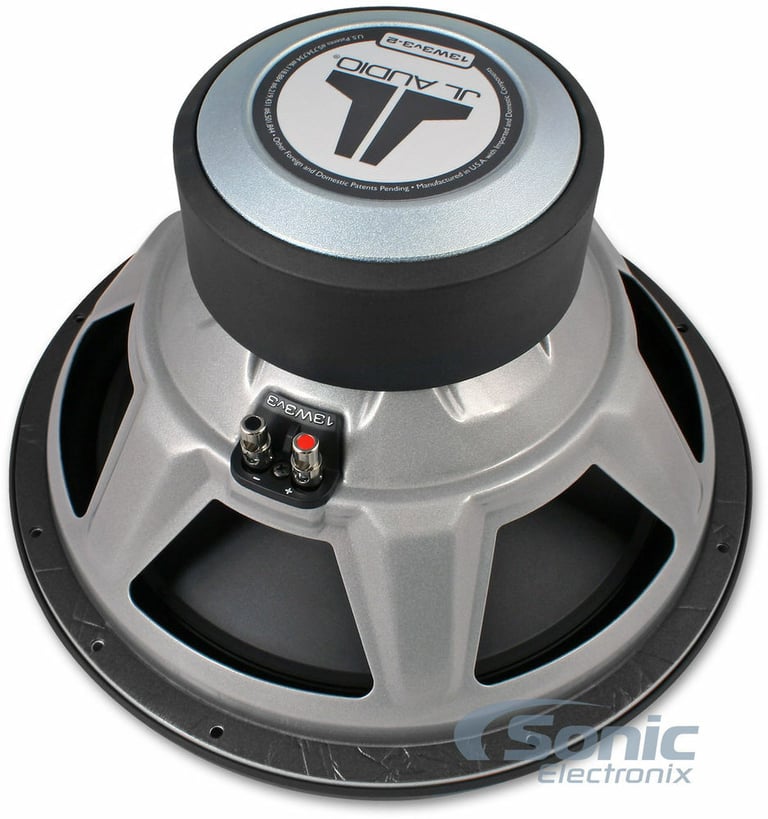

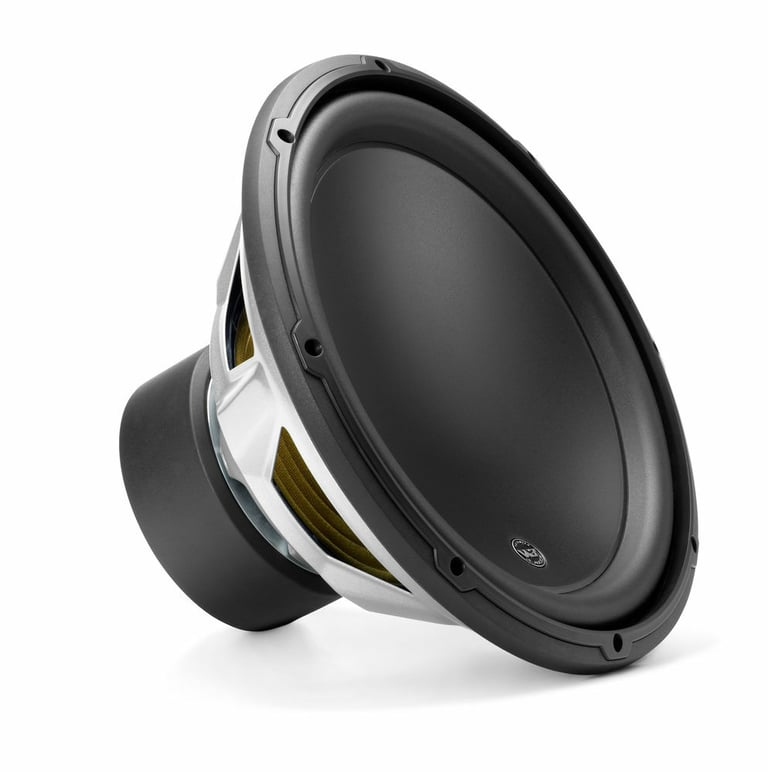

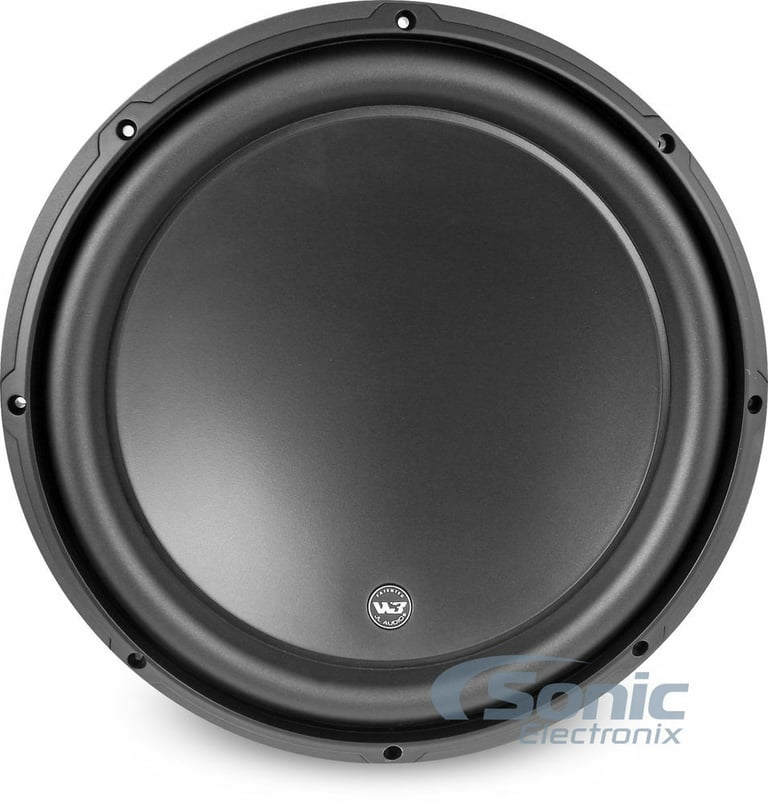

JL Audio W3v3 Series Subwoofer Driver
JL Audio W3v3 Series Subwoofer Driver

Easily the best selling subwoofer driver, next to the W6v3, the JL Audio W3v3 provides phenomenal performance at moderate power levels with superb sound quality. The W3 series is in its 3rd iteration, embodying the series' pursuit for providing outstanding output and world-class sound quality. This is accomplished by utilizing a whole suite of advanced technologies originally developed for JL Audio's flagship W7. An Elevated Frame Cooling design helps in delivering enhanced power handling and sound quality. The DMA-optimized, long linear excursion capability minimizes distortion and increases output, while multiple patented technologies enhance performance and reliability. Such advances make the v3's the best sounding, most reliable W3's yet.

Although the W3v3 Subwoofer can be driven with as little as 150 Watts, for best audio performance it is recommended to run an amplifier capable of between 400 - 600 Watts of continuous power per driver, like the JL Audio XD600/1v2 or JL Audio JX500/1D. In addition, these subwoofers are optimized to operate in either a ported or sealed enclosure, needing only 1.75 cubic feet of air space in a sealed box and 2.50 cubic feet in a ported/vented enclosure. (Specific dimensions and figures can be found in the user manual, linked further below.)

Like many other high quality JL Audio products, all W3v3 subwoofers are built in JL Audio's Miramar, Florida factory, with extreme precision and top-notch build quality. Its this attention to detail that delivers the JL Audio quality and performance we have all become accustomed to.

JL Audio Patented Cooling Technology

JL Audio Patented Cooling Technology

JL Audio's patented Elevated Frame Cooling design delivers cool air into the heart of the subwoofer in ways no other manufacture's driver can. Purpose-engineered slots located directly above the top-plate stream air to the voice coil. In addition, the upper surface of the top-plate is directly exposed to this air flow, whereas on a conventional design it is isolated from this flow by the lower flange of the frame. This technology not only increases thermal power handling, but also sound quality by minimizing dynamic parameter shifts and power compression. In plain English, this driver keeps itself cool so you can play your system longer, safer and without having to worry about frying the motor.

Extraordinary Linearity and Control

Tight, Clean, Articulate Bass

DMA is JL Audio's proprietary Dynamic Motor Analysis system and is aimed at improving dynamic motor behavior. As a result of DMA optimization, W3v3 motors remain linear in motor force over an extreme range of excursion and also maintain a highly stable fixed magnetic field in the gap over a wide power range. This leads to vastly reduced distortion and faithfully reproduced transients... or put simply: tight, clean, articulate bass. Its main catalyst is the driver's Ultra-long Voice Coil, that allows extreme linear excursion, phenomenal power handling and control, control, control.



JL Audio 13W3v3 Recommended Power Range

JL Audio 13W3v3-2

600W RMS 13.5" W3v3 Series Single 2-Ohm Car Subwoofer
Quantity: 1

Product Features:

















  • Not sure which model you're looking for?
    • Click here to compare!
  • 13.5" W3v3 Series Subwoofer Driver
  • Power Handling:
    • RMS: 600 watts
  • Recommended Power Range: 150 - 600 watts
  • Impedance: Single 2-Ohm
  • Injection-molded, mineral-filled polypropylene cone
  • Nitrile butadiene rubber surround
  • Stamped steel basket
  • Customization trim ring
  • Floating-cone attach method
  • Highly linear, DMA-Optimized motor system
  • Insert molded suspension, coil and terminal sub-assembly
  • Patented vented reinforcement collar (VRC®)
  • Elevated frame cooling design
  • Nickel plated brass spring terminals
  • Engineered lead-wire design and attachments
  • Black Steel-Mesh Grille Insert Available: JL Audio SGRU-13
  • Precision-built in USA at JL Audio Miramar, Florida factory
  • Mounting depth: 7.63 "
  • Cutout dimensions: 12.5625 "
  • Free Air Resonance (Fs): 24.70 Hz
  • Sensitivity: 87.63 dB
  • Xmax: 15.5 mm
  • Reference Efficiency (no): 0.3500%
  • Frequency response: ~20 ~ 200 Hz
  • Matching Amplifiers:
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Check out the JL Audio 13W3v3 Owner's Manual


JL Model Comparison
From entry level woofers to competition grade, JL has them all. Let us find which one works for you.

Model RMS Power Cone Material Surround Material Sensitivity (dB) Frequency Response Xmax (mm Terminals Made In America
W7 Series 500-1500 Watts Polypropylene Foam Overroll 82.7 - 86.3 15-250 Hz 19-32 Push Terminals
W6 Series 600 Watts Polypropylene Rubber 82.7 - 85.4 20-200 Hz 19 Push Terminals
W3 Series 150-600 Watts Polypropylene Rubber 80.5-87.90 20-250 Hz 8.89-15.5 Push Terminals
W1 Series 150-300 Watts Polypropylene Rubber 83.9-86.1 22-200 8-11 Push Terminals
W0 Series 300-500 Watts Polypropylene Foam 84-88.20 20-250 Hz 11.4-12.7 Push Terminals
WX Series 200 Watts Polypropylene Foam 86-87.17 22-250 Hz 10 Spade Terminals

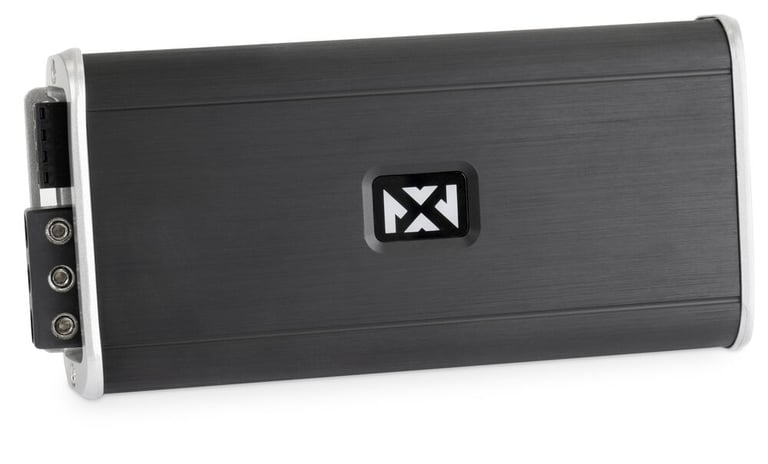

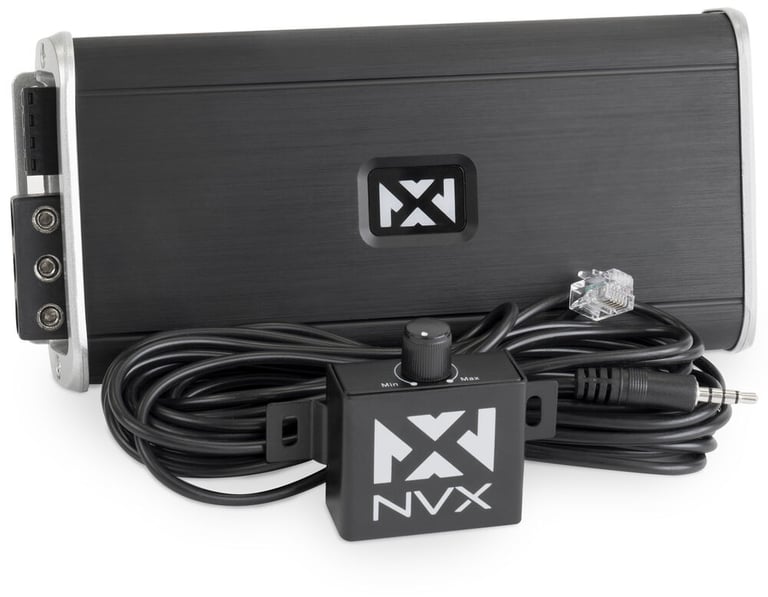

NVX VADM1

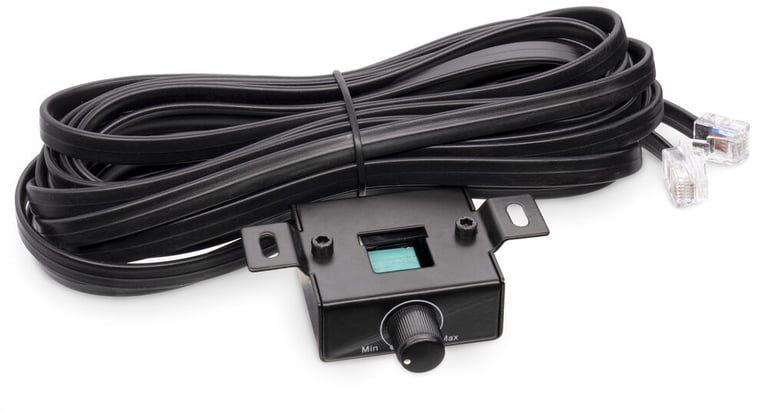

500W RMS Class D Monoblock Car/Marine/Powersports Amplifier with Bass Remote
Quantity: 1

Product Details:

  • Marine Certified 1-Channel Class D Car Amplifier
  • Peak Power Rating: 1000 Watts
  • RMS Power Rating:
    • 4 ohms: 180 watts x 1 channel
    • 2 ohms: 320 watts x 1 channel
    • 1 ohm: 500 watts x 1 channel

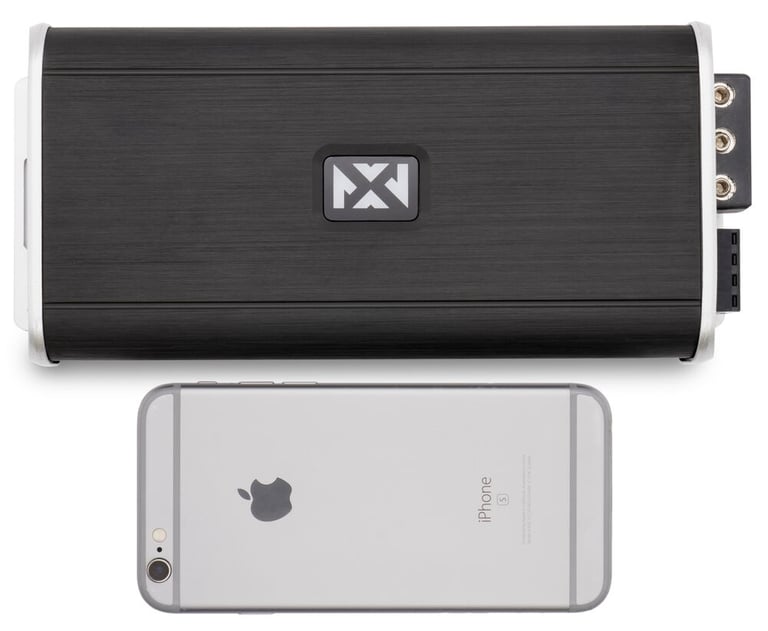

  • Cutting edge Micro Class D technology allows amplifier to be extremely compact
  • LED power (blue) and protect (red) indicators
  • Conformal Coated Marine grade circuit board
  • Balanced Differential Inputs, to eliminate noise picked up by signal cables

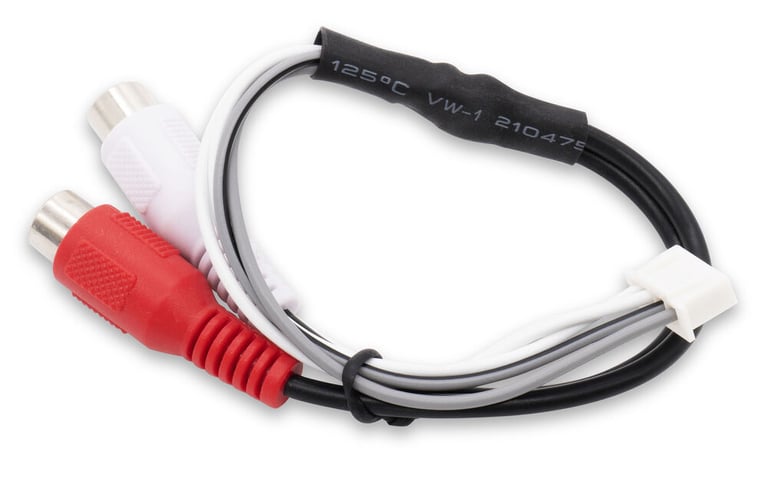

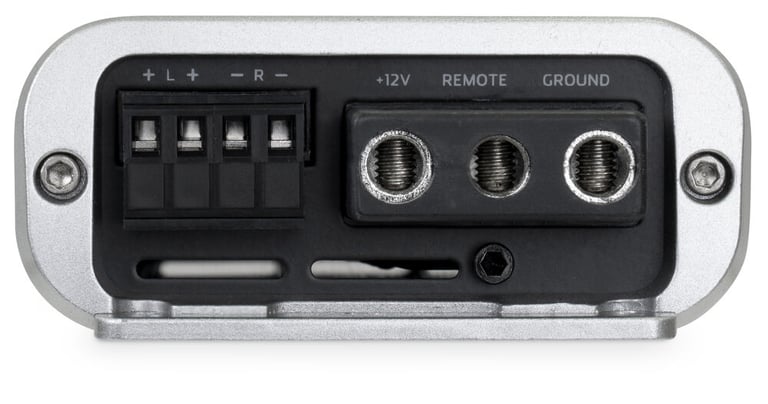

  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity: 0.2V-5V
  • Variable low-pass filter (50-250 Hz)
  • Bass Boost: 0 - +18dB boost @ 45Hz
  • Frequency Range : 20 - 20KHz
  • Total Harmonic Distortion: <0.3%
  • CEA-2006 compliant amplifier
  • Dimensions: 6.8"L x 3.3"W x 1.5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

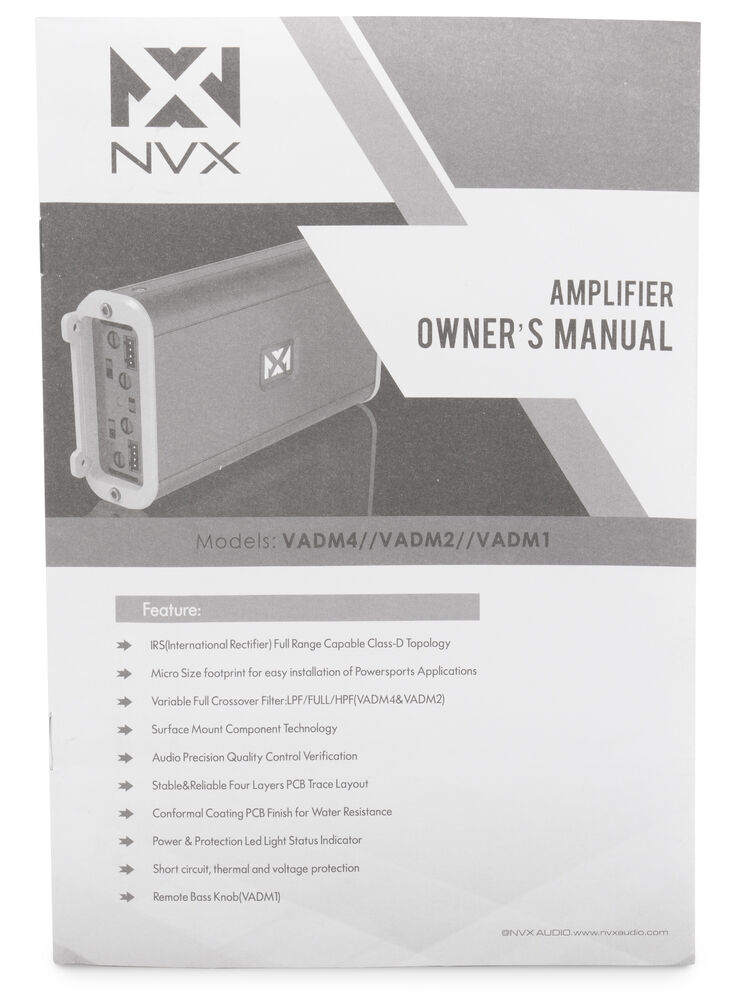

NVX VADM1 owner’s manual

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Specifications & Details


Subwoofer Specifications
Series
W3 v3 Series
Subwoofer Size
13.5"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 ohms
RMS Power Handling
600 watts
Woofer Surround
Nitrile Butadiene Rubber NBR
Woofer Composition
Mineral-Filled Polypropylene
Sensitivity
87.63 dB
Frequency Response
20 - 200 Hz
Xmax (millimeters)
15.5 mm
Top-Mount Depth (Mounting Depth)
7.63"
Cutout Diameter
12.5625"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

13W3v3-2, VADM1

Weight:

24.40lbs

Internal SKU:

13w3v32_vadm1

Internal Product ID:

181663
