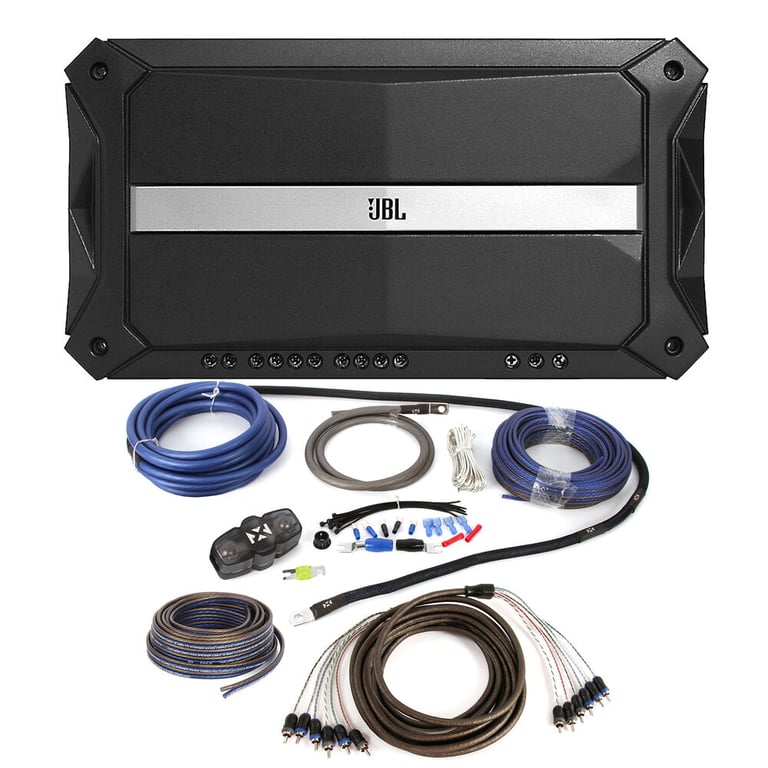

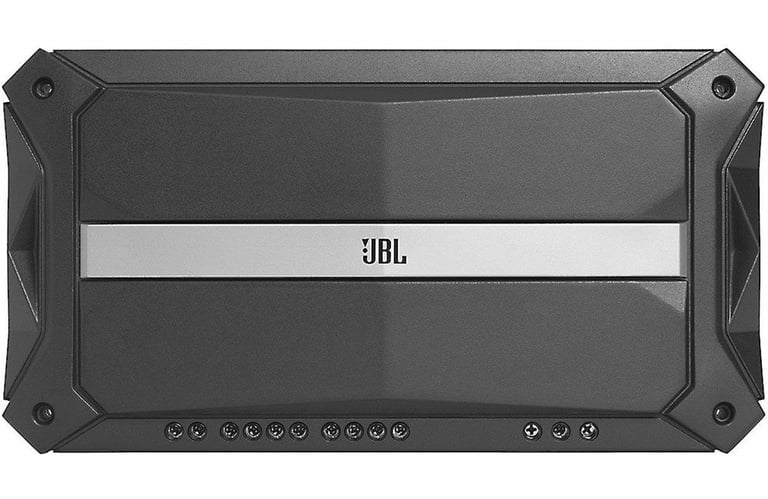

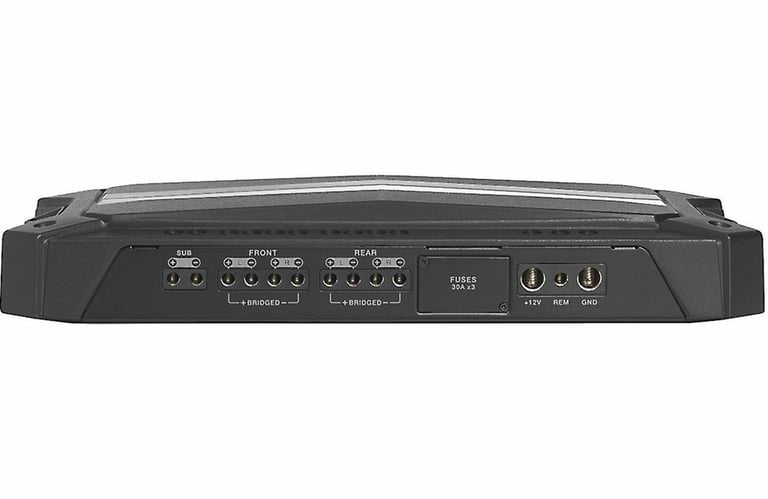

JBL Stadium 5

2300W Max (400W RMS) Stadium Series 4 ohm Stable 5-Channel Class-D Amplifier w/ Remote Bass Control
Quantity: 1

General Features:

  • JBL Stadium 5
  • Class-D Full Range 4-Ohm Stable 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 4 chan. (200 watts x 1 chan.)
    • 2 ohm: 100 watts x 4 chan. (350 watts x 1 chan.)
    • 1 ohm: _ watts x _ chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohm: 200 watts x 2 chan. (350 watts x 1)
  • Total power output: 2300 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • EARL Ground Terminal and Power Block
  • 5/4/3/2 channel operation
  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity: 0.2V - 2V
  • Frequency Response: 10 - 320 Hz
  • Total Harmonic Distortion (THD): 0.01%
  • Signal to Noise Ratio: 80dB
  • Variable high-pass filter: 32 - 320 Hz, 12 dB/octave
  • Variable low-pass filter: 32 - 320 Hz, 12 dB/octave
  • Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz
  • Fuse Rating: 30 A x 3
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: "W x "L x "H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the JBL Stadium 5 Owner's Manual

NVX XKIT46

Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 5/6-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1

Product Details:

  • 4 Gauge 5/6-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1500 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems

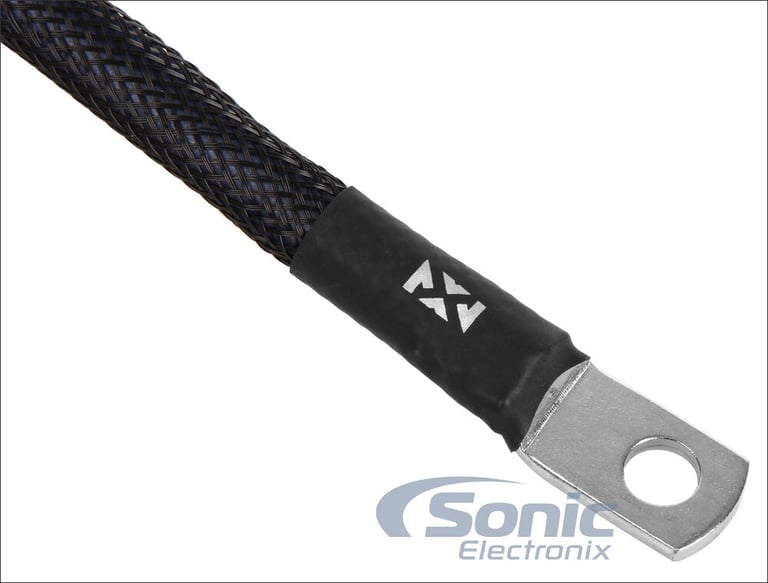

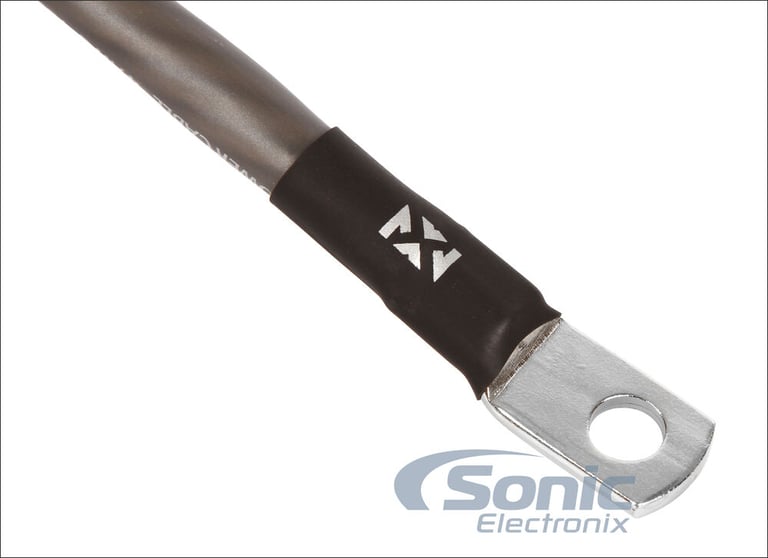

  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant

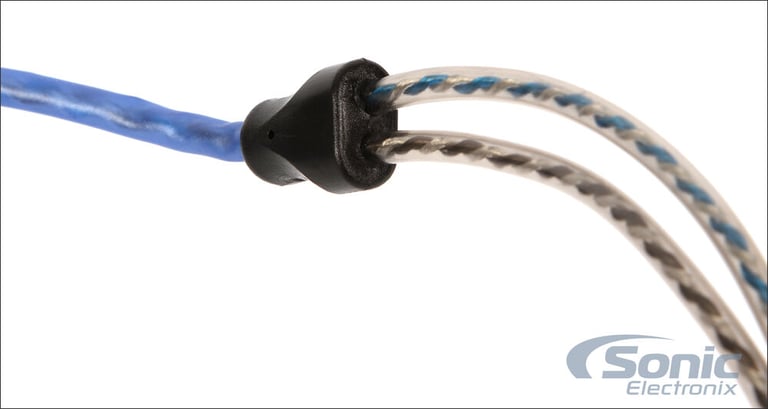

  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition

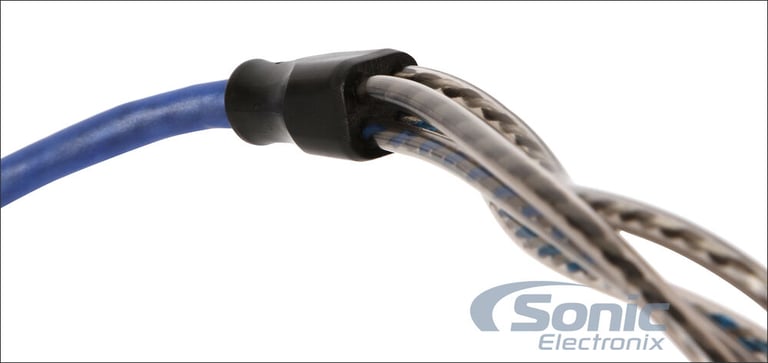

  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

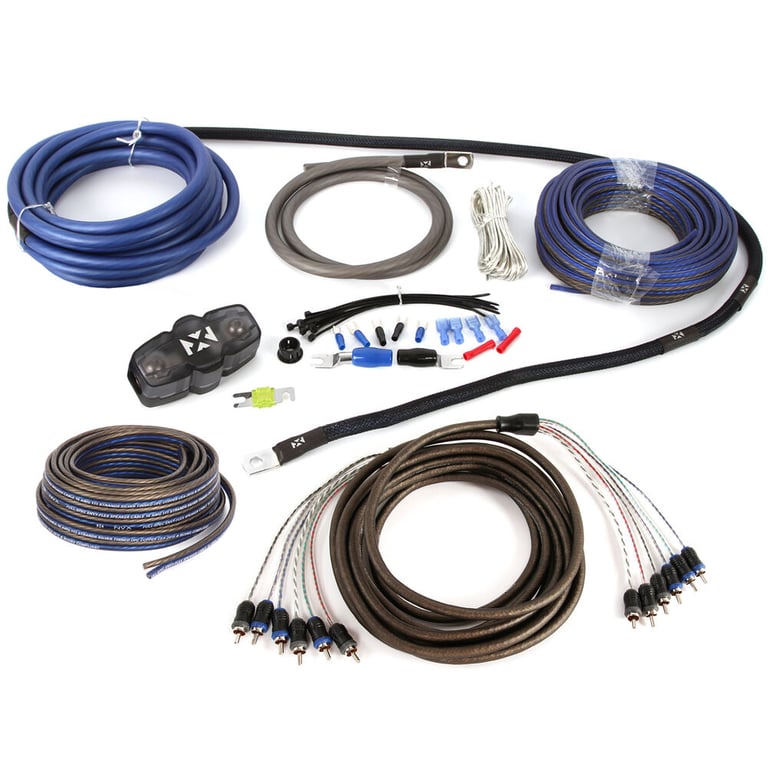

Kit includes:

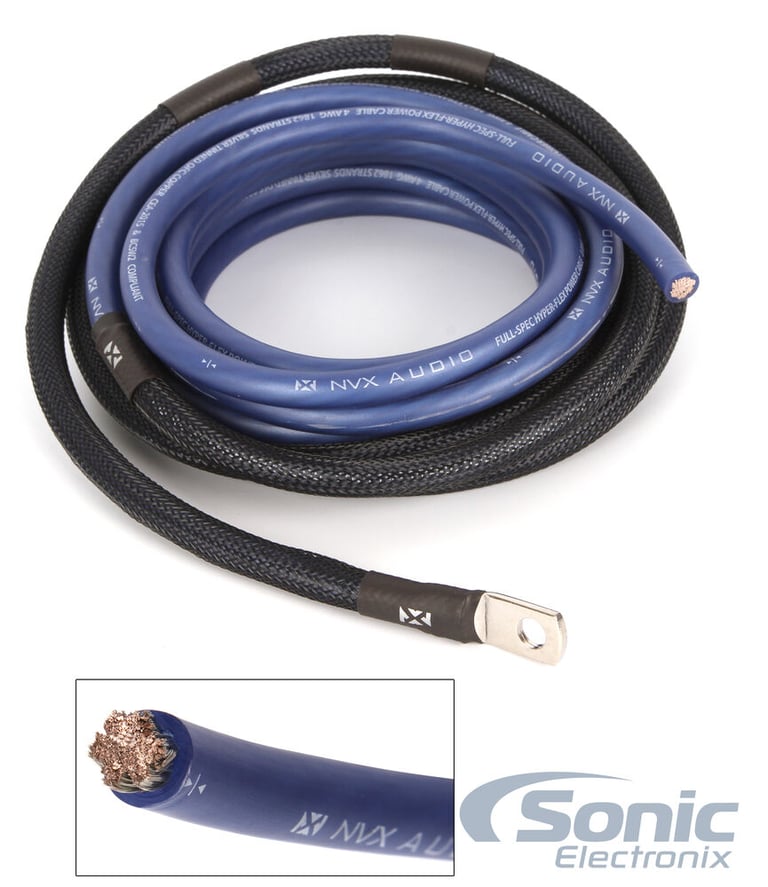

  1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal

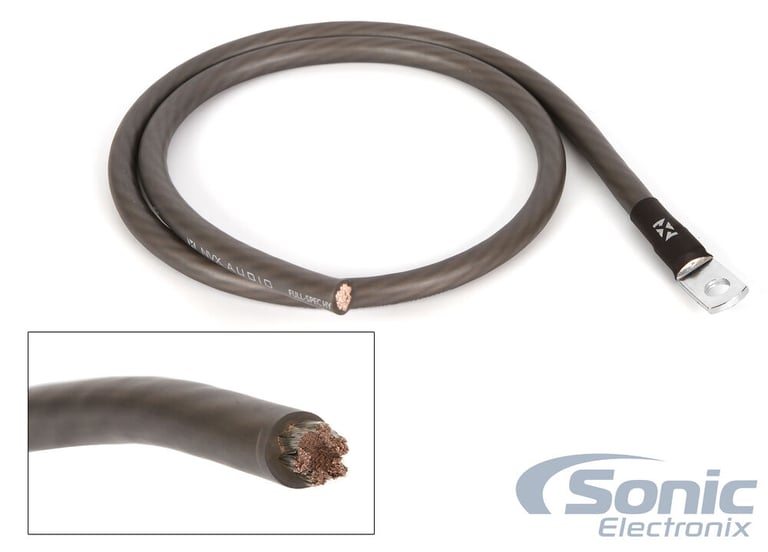

  2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal

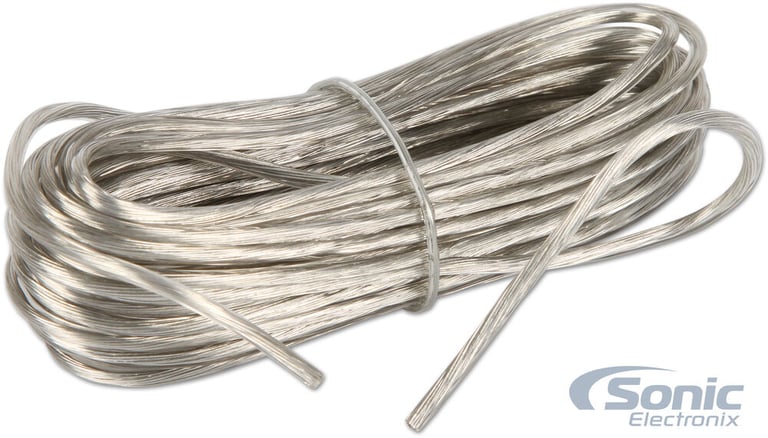

  3. 17 ft. Clear 18 gauge remote lead wire

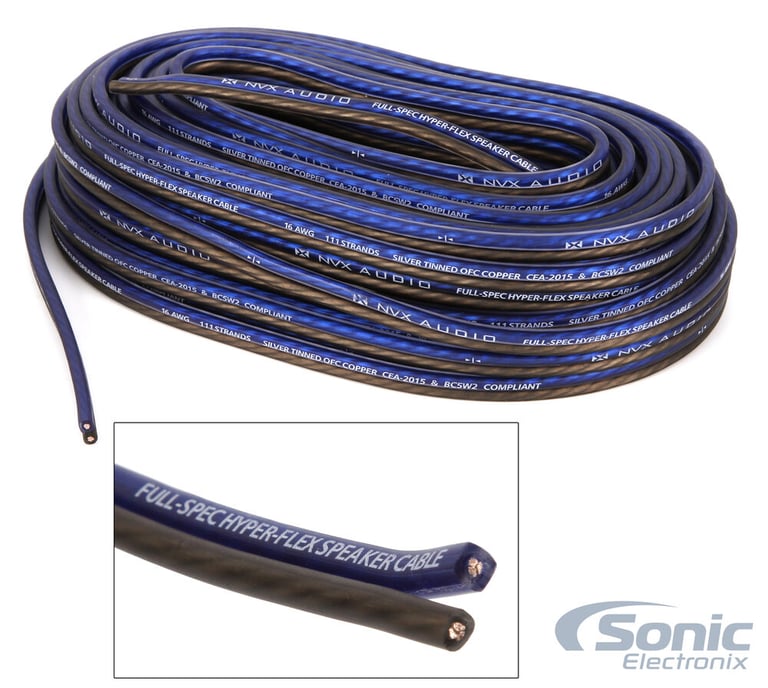

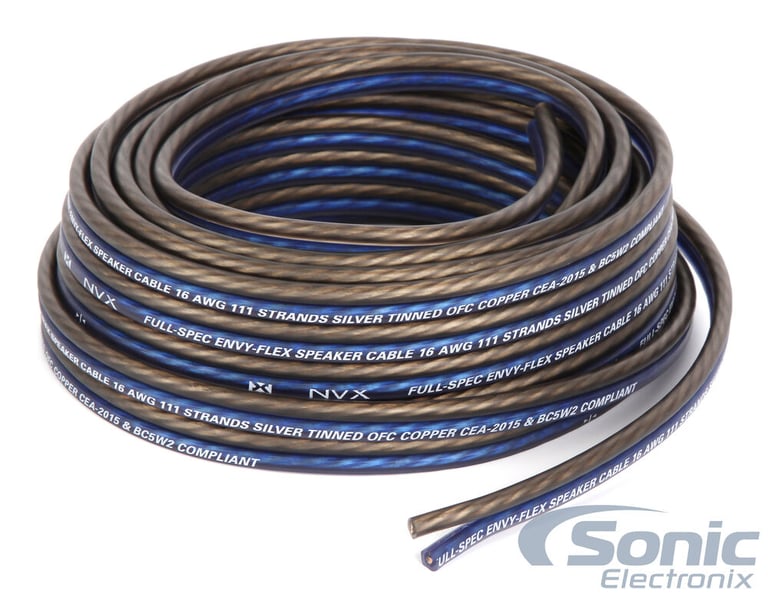

  4. 60 ft. Frosted Black/Blue 16 gauge speaker wire

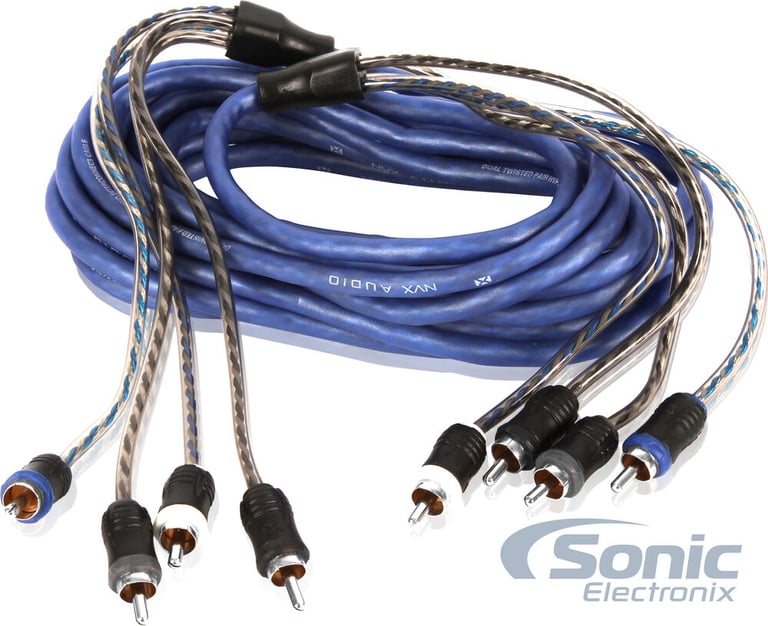

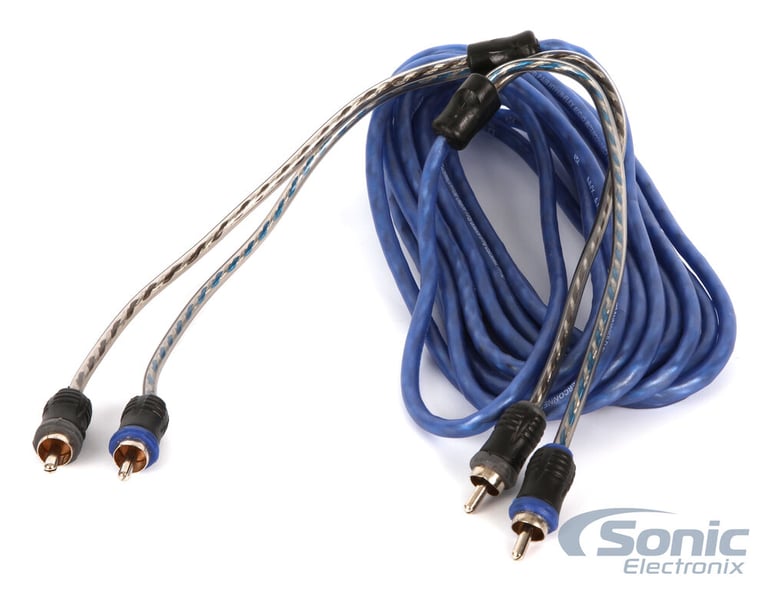

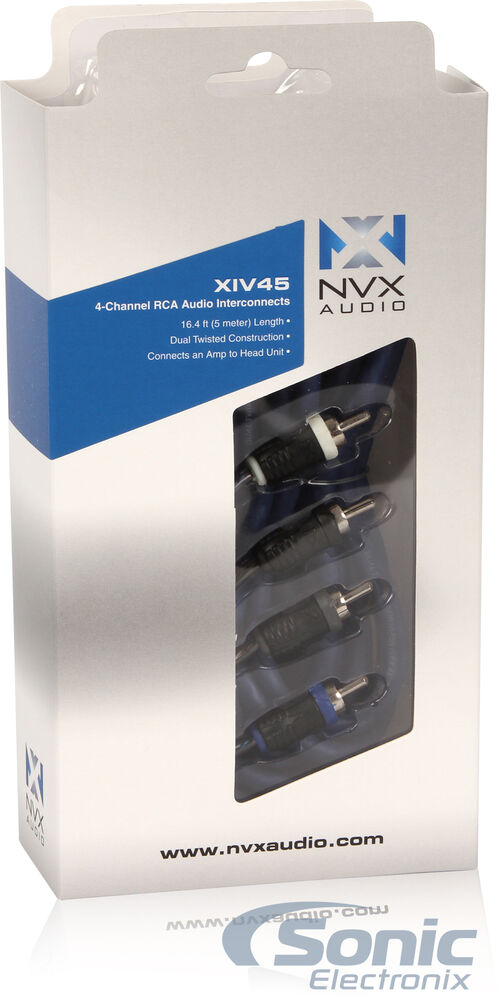

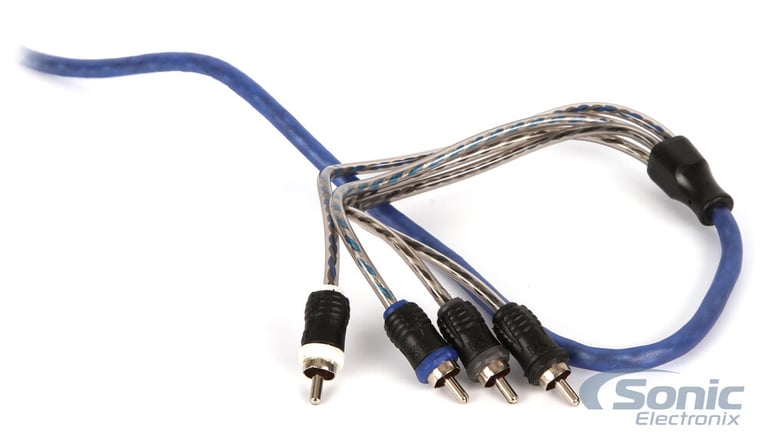

  5. One 16.4 ft. 4-channel dual twisted construction RCA interconnect Cable (NVX XIV45)
  6. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)

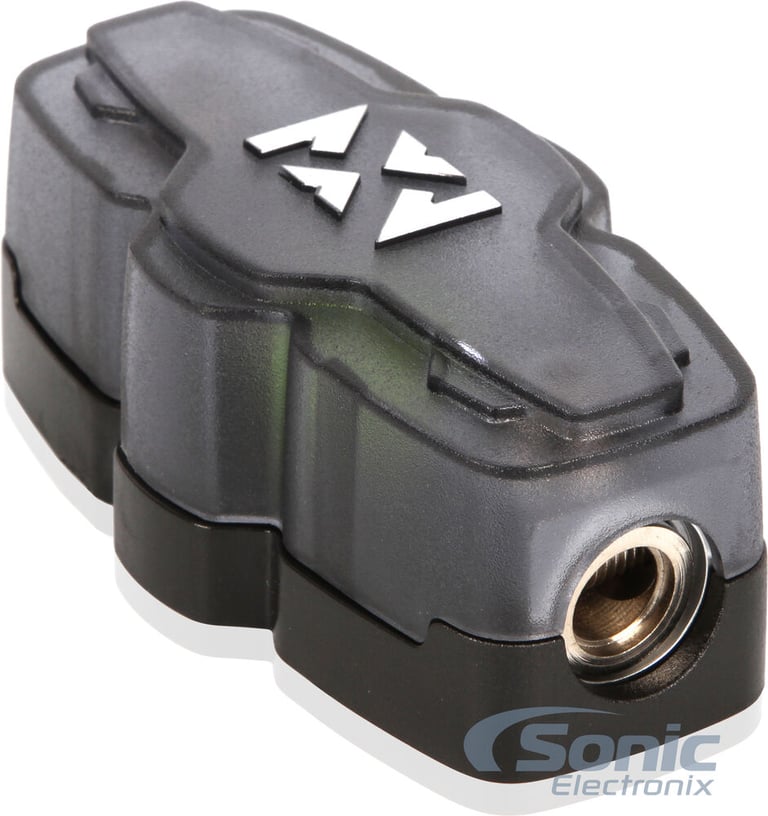

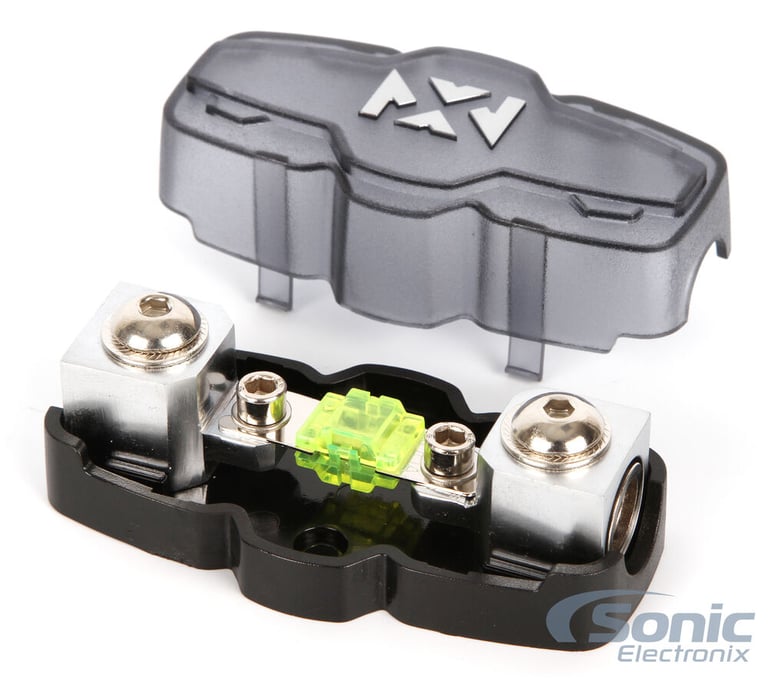

  7. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
  8. One Black rubber firewall grommet

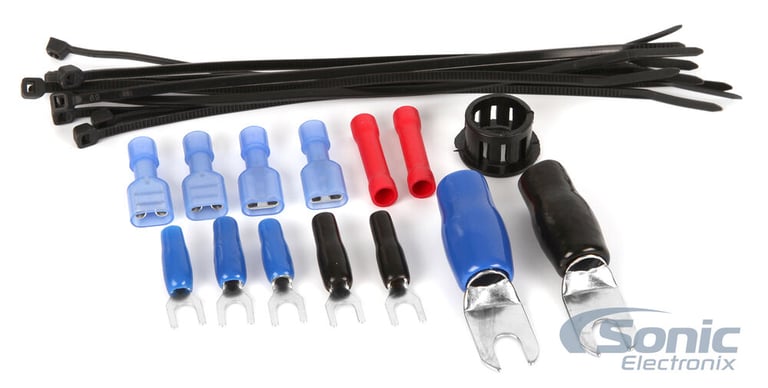

  9. Two 4 Gauge Nickel Plated spade terminals
  10. Four 18 Gauge Spade terminal
  11. Two 18 Gauge Red butt connectors
  12. Four 16 Gauge quick disconnect
  13. Five 16 Gauge Nickel Plated spade terminals
  14. Two Heat Shrink tubes with the NVX logo
  15. Ten 6" Black zip ties

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(149)

$530.20

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(261)

$486.93

List price $677.43

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(73)

$309.99

List price $369.98

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(250)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(267)

$495.93

List price $688.43

T500-1bdCP, BAK42 small

Rockford Fosgate Power T500-1bdCP & BAK42 4 AWG Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm, 500W x 1 @ 1 ohm
• Dynamic Power Output: 690W
• CEA-2006 Compliant
• Variable Bass Boost: 0 to +18 dB at 45 Hz
• Ultra Efficient Class bD Circuitry
• Dimensions: 11-7/16"L x 8-3/16"W x 2-3/16"H

(216)

$574.48

List price $609.98

VCW84_NDA12001_XKIT42 small

NVX VCW84v3 + NDA12001 + XKIT42

• Two 8" VCW84v3 VC-Series v3 1300W RMS Subwoofers
• 2400W Peak (1200W RMS) Class D NDA12001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(153)

$619.96

List price $791.96

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
350 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
5-Channel
Total Peak Power Output
2300 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
32 - 320 Hz
Low-Pass Crossover Frequency
32 - 320 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 3
Total Fuse Rating
90
CEA-2031 Compliant
Yes
Sonic Certified Amplifier
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

STADIUM5AM, XKIT46

Weight:

17.72lbs

Internal SKU:

stadium5am_xkit46

Internal Product ID:

182991

Customer Ratings & Reviews


JBL Stadium 5 + Free Premium NVX Amp Kit thumbnail image

5 star
98%
4 star
2%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
4.9
Design
4.9
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Great buy

The following review is for XKIT46, which is a part of the bundle you are viewing.

The kit would work great in a car but in a boat the kit needs to have alot more speaker wire and a longer ground wire

By Cory on March 10, 2015

101 found this helpful


Good stuff

The following review is for XKIT46, which is a part of the bundle you are viewing.

I got this kit for 50% off with my NVX amp. The power wires are very nice, the 6channel RCA cable is fantastic and the speaker wire is great quality too. The assortment of connectors they give you didn't really help. I ended up purchasing my own nicer ones.

By Nathanael on April 22, 2020 Checkmark Icon Verified purchase

62 found this helpful


Awesome Amp Kit

The following review is for XKIT46, which is a part of the bundle you are viewing.

This kit was free with an amp purchase. I definitely like it, but I used 9 conductor speedwire for remote wire and 4 speakers. Worked out very well overall, great quality.

By Justin on March 30, 2018

57 found this helpful


Very complete! High Quality

The following review is for XKIT46, which is a part of the bundle you are viewing.

What a great kit. Far exceeded expectations. Nice touches like, mesh loom for the engine compartment on the 4GA power cable, heat shrinked where the you cut to install the fuse. Speaker wire is heavy gauge. The power and ground are come with the end connectors installed. My only complaint is there are no instructions so I had to reconfigure the fuse to add the rubber connectors. At least I assume thats where they go as it didnt have waterproof bushings.

By Ron on March 16, 2018 Checkmark Icon Verified purchase

57 found this helpful


Great kit

The following review is for XKIT46, which is a part of the bundle you are viewing.

I was impressed with this kit. Their claim of a "true gauge" wire seems to be true because wires are thicker compared to other wires I have used claiming to be the same gauge. Overall the wires seem to be of great quality. Patch cables are good. They aren't super high end, but they do the job well. I'd recommend it to anyone looking for an amp kit.

By Kenneth on August 13, 2015 Checkmark Icon Verified purchase

61 found this helpful


Awesome kit!

The following review is for XKIT46, which is a part of the bundle you are viewing.

Nice flexible, durable, strong wires! Everything you need! Makes for easy connections/install! Thanks again NVX and Sonic!!!

By Anonymous on September 21, 2018

57 found this helpful


NVX XKIT46 (5- or 6-Channel Amp Kit)

The following review is for XKIT46, which is a part of the bundle you are viewing.

This Amp wiring kit was perfect for my 5-Channel amp. Wire is good quality and so far I have had no issues. Would not hesitate to recommend.

By Anonymous on June 13, 2018 Checkmark Icon Verified purchase

56 found this helpful


Great Amp Kit

The following review is for XKIT46, which is a part of the bundle you are viewing.

This is a great amp kit. The actual wire is much thicker than other 4 gauge amp kits. It's also a very affordable price. I'm happy with the kit.

By Anonymous on April 1, 2019 Checkmark Icon Verified purchase

53 found this helpful


Everything you need

The following review is for XKIT46, which is a part of the bundle you are viewing.

I live by these and FREE with an infinity amp. You can't complain.

By Kev on March 8, 2018

53 found this helpful


Awesome kit!

The following review is for XKIT46, which is a part of the bundle you are viewing.

Nice flexible, durable, strong wires! Everything you need! Makes for easy connections/install! Thanks again NVX and Sonic!!!

By Anonymous on September 21, 2018

53 found this helpful




MXA300.1, XKIT82 small

Memphis MXA300.1 with Amplifier Wiring Kit

300W RMS MXA Series Class D Monoblock Marine Amplifier

(61)

$355.94

List price $485.94

S-A55V, XDSP66BT small

Alpine S-A55V with 15 Band Parametric EQ Digital Signal Processor

S-Series 5-Channel Class D Amplifier (540W RMS)

(6)

$412.44

List price $809.99

REV 8 SE-B-SC V2 small

Wet Sounds REV 8 SE B-SC V2

800W Peak (400W RMS) 8" Revolution Series Special Edition 2-Way Coaxial 4-ohm Marine Tower Speakers with Stainless Steel Swivel Clamps (Matte Black)

$1779.99

List price $1779.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1991 Jeep Cherokee

2000 Toyota Solara

2006 Toyota Camry

2014 Kia Optima

1989 Mercury Topaz

2009 Volvo S80

1981 Oldsmobile Ninety Eight Regency

2017 Mazda 3

1973 Ford Custom 500

2000 Acura Integra

Vehicle
Store
Delete

2024 Can-Am Defender XT

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
