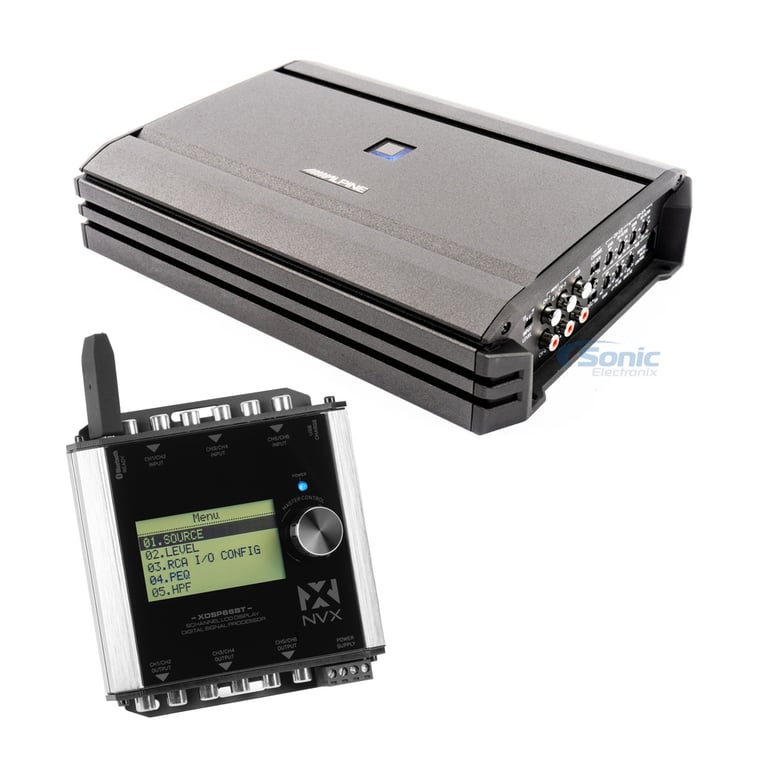

Alpine S-A55V with 15 Band Parametric EQ Digital Signal Processor

S-Series 5-Channel Class D Amplifier (540W RMS)

Alpine
Shop all Alpine
highlight-star-icon

• 5-channel Class D Amplifier
• 40 watts RMS x 4 + 200 watts RMS x 1 at 4 ohm
• 60 watts RMS x 4 + 300 watts RMS x 1 at 2 ohm
• 120 watts RMS x 2 bridged at 4 ohm + 300 watts RMS x 1 at 2 ohm
• CTA-2006 compliant
• High pass and Low pass filters with Bass Boost

Learn more about the sa55v_xdsp66bt

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

88-00-9000 main

Metra 88-00-9000

Pocket Radio Installation Kit For select 1990-2006 vehicles from Toyota, Infiniti, Mazda

7
-55.90%

$14.99

List price $33.99

Lowest price in 30 days
VSPTW main

NVX VSPTW

450W Peak (150W RMS) 1" V-Series Silk Dome Tweeters with External Crossovers

29
-16.67%

$49.99

List price $59.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

48
-42.51%

$22.99

List price $39.99

PNW1 main

AudioControl PNW1

125W RMS 1" PNW Series Component Car Tweeters

3
-13.42%

$129.00

List price $149.00

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-16.67%

$119.99

List price $143.99

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

VSP69 main

NVX VSP69

900W Peak (300W RMS) 6x9" V-Series 2 Way Coaxial Car Speakers

56
-16.67%

$109.99

List price $131.99

Description


Alpine brand icon

Authorized dealer


Alpine S-Series Amplifiers

S-Series amplifiers are your sound system’s workhorse. With unmatched reliability and budget-friendly prices, these amplifiers are the better choice in performance value.

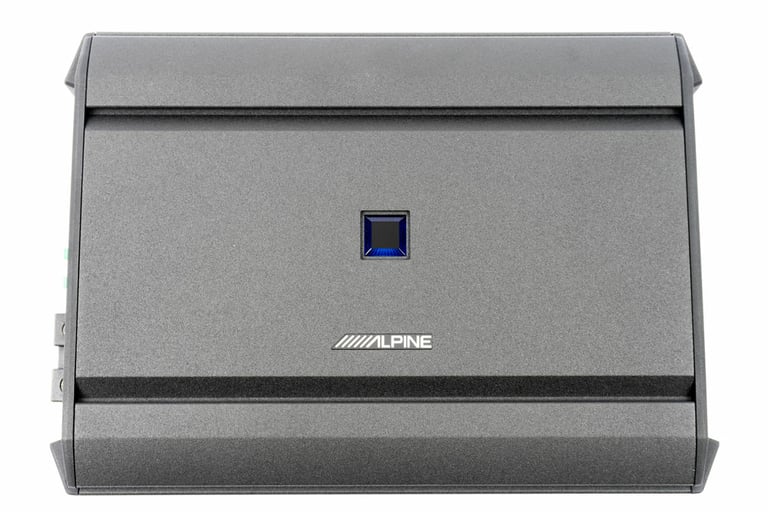

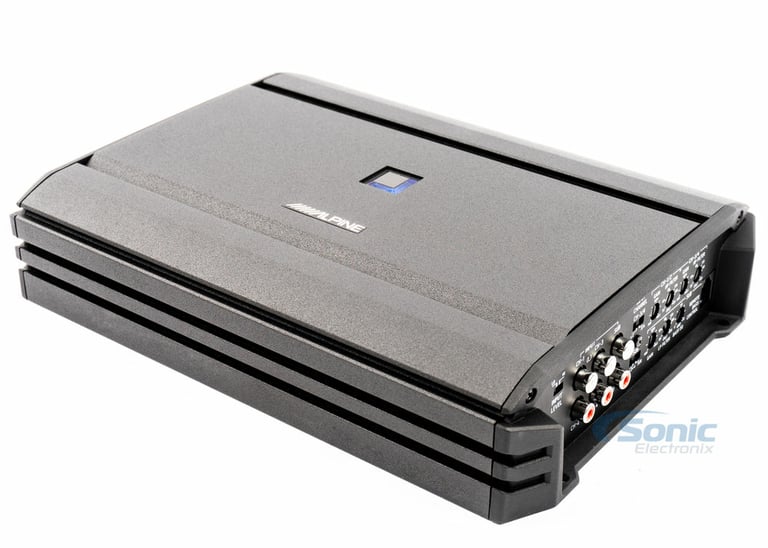

Alpine S-A55V

S-Series 5-Channel Class D Amplifier (540W RMS)
Quantity: 1

Product Details:

  • 5-channel Class D Amplifier
  • Power Output:
    • 40 watts RMS x 4 + 200 watts RMS x 1 at 4 ohm
    • 60 watts RMS x 4 + 300 watts RMS x 1 at 2 ohm
    • 120 watts RMS x 2 bridged at 4 ohm + 300 watts RMS x 1 at 2 ohm
  • CTA-2006 compliant
  • Variable high-pass filter (50-400 Hz, 12 dB/octave) on 4-channel section
  • Variable low-pass filter (50-400 Hz, 24 dB/octave) on sub channel
  • Variable bass boost (0-12 dB at 50 Hz) on sub channel
  • Optional RUX-KNOB.2 wired remote level control for sub channel
  • Preamp and speaker-level inputs
  • Wiring and hardware not included with amplifier

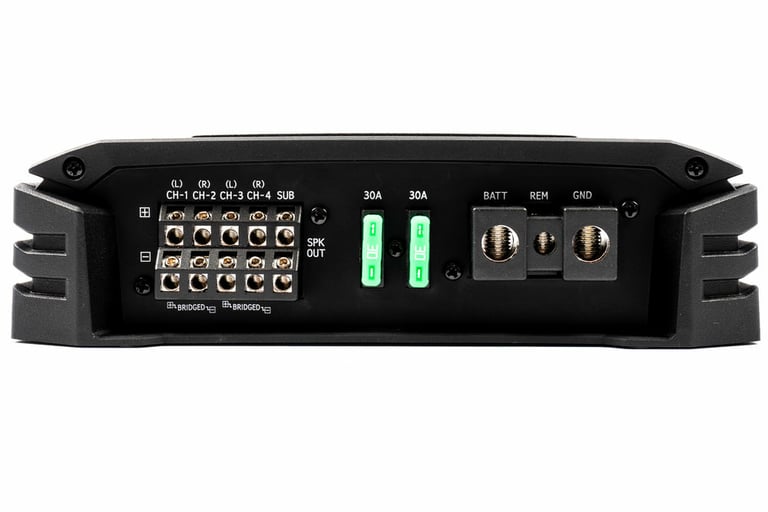

  • Fuse rating: 30A x 2
  • Dimensions: 11-1/4" W x 2-1/4" H x 8" D
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

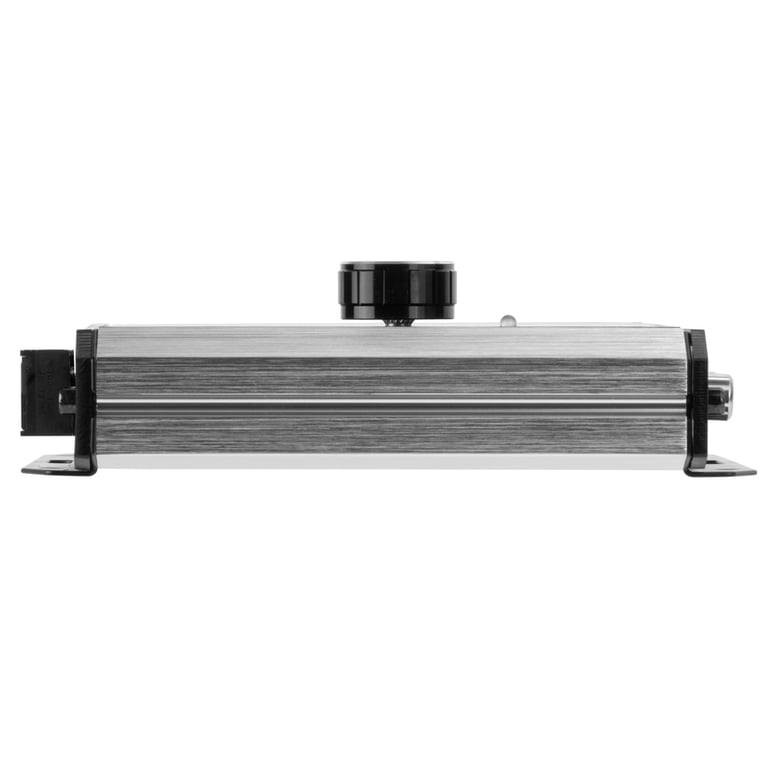

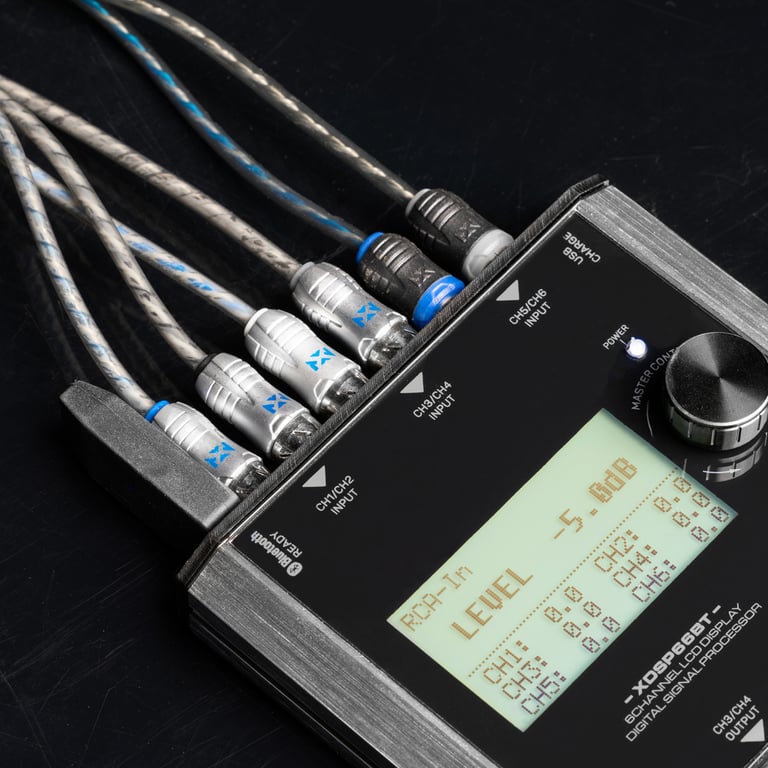

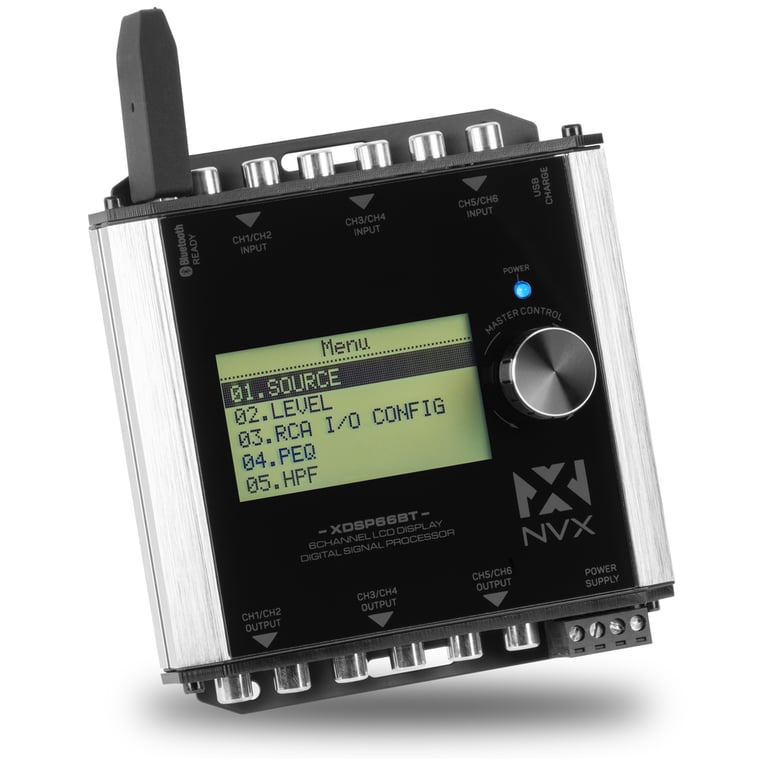

NVX XDSP66BT

6-Channel X-Series Digital Signal Processor with 2.75" LCD Display and Bluetooth Streaming Dongle
Quantity: 1

Product Features:

  • 6 channel digital signal processor

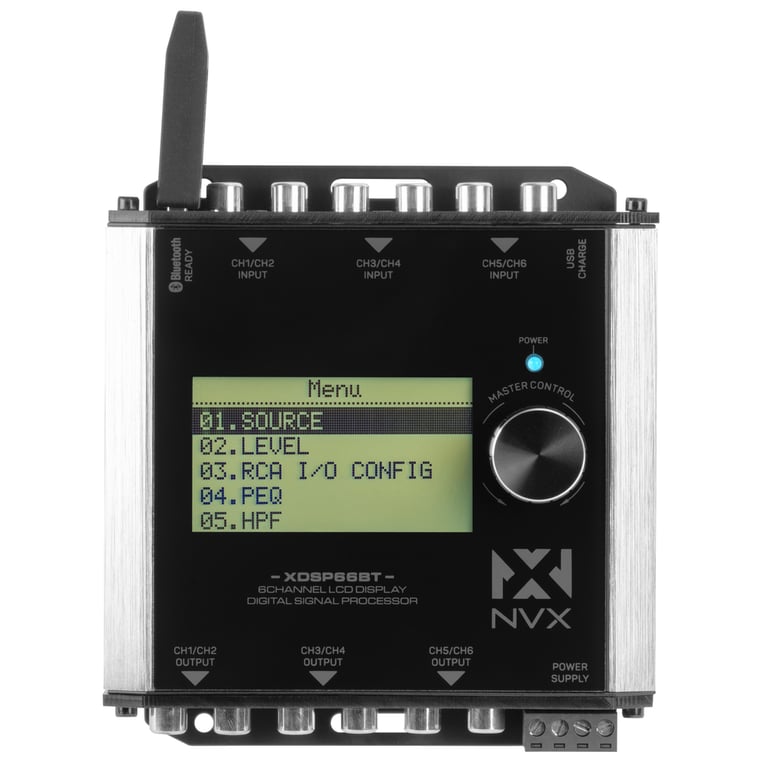

  • 2.75" LCD display for visually accessing menu and settings
  • Works with both speaker-level and low-level audio signals

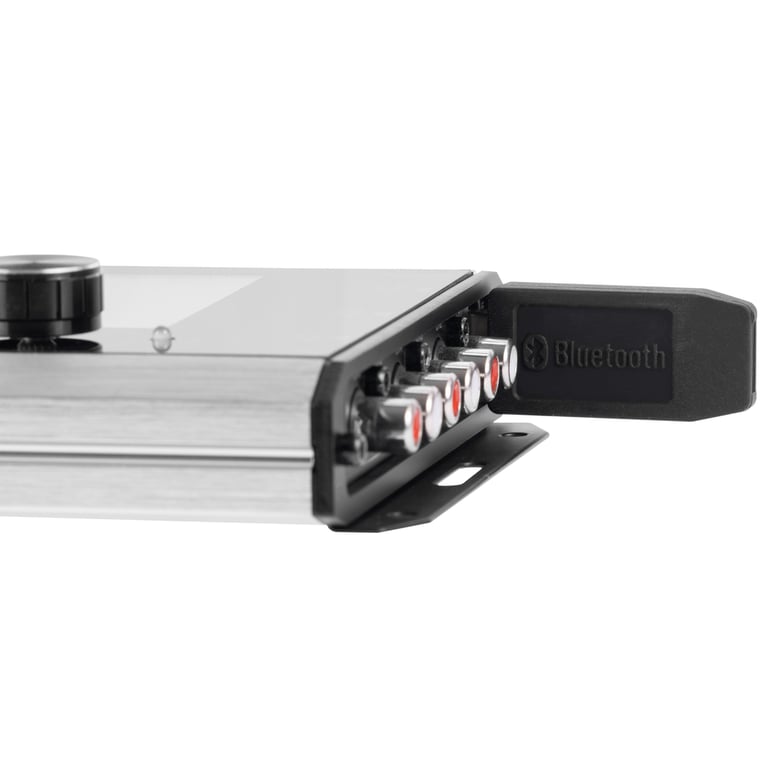

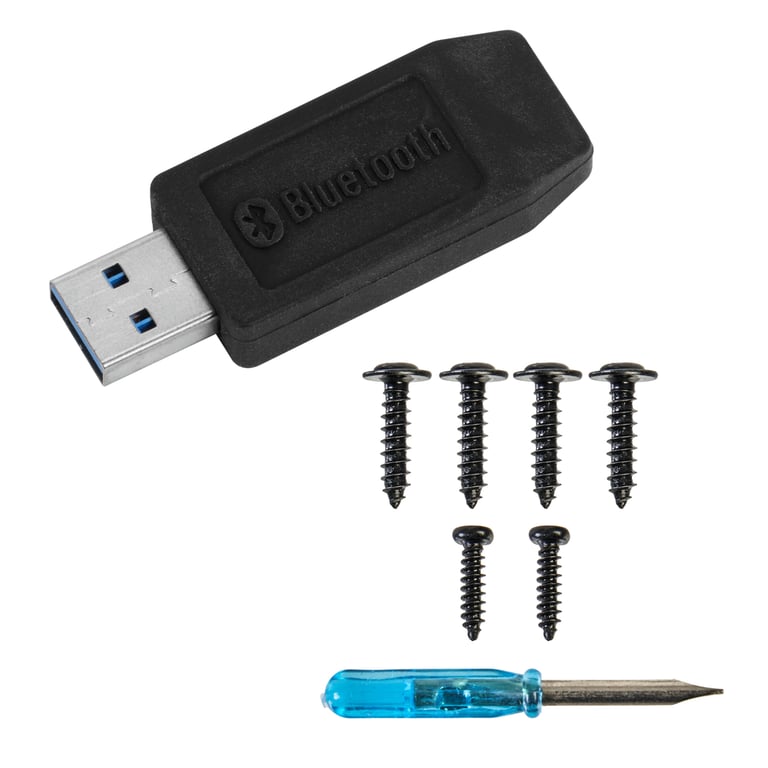

  • Includes Bluetooth dongle via USB port for wireless streaming
  • Rotating control knob for easy access to all menu functions
  • Chargeable via standard USB charge port (5V/1A)
  • Built-in status LED for power on signal
  • Ground, remote in/out power supply
  • Channel settings can be separate or linked together
  • Fully adjustable High and Low-pass filters
  • Anodized aluminum body for extra durability
  • High level input: 20 volts (maximum) via RCA
  • Input impedance: 20K ohm
  • Output signal voltage: 6.5 volts (maximum)
  • Signal-to-noise ratio: 95dB (A weighted)
  • Frequency response: 10 - 25000 Hz
  • Signal-to-noise ratio: 70dB
  • Gain level: -40 - 0dB
  • Phase adjustment level: 0 - 180 degrees
  • Equalizer Band: 15 Band Parametric Equalizer
  • Total harmonic distortion (THD): 1%
  • Dimensions: 4.77" W x 5.1" L x 1.4" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
NVX XDSP66BT owner’s manual

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(149)

$530.20

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(261)

$486.93

List price $677.43

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(73)

$309.99

List price $369.98

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(250)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(267)

$495.93

List price $688.43

T500-1bdCP, BAK42 small

Rockford Fosgate Power T500-1bdCP & BAK42 4 AWG Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm, 500W x 1 @ 1 ohm
• Dynamic Power Output: 690W
• CEA-2006 Compliant
• Variable Bass Boost: 0 to +18 dB at 45 Hz
• Ultra Efficient Class bD Circuitry
• Dimensions: 11-7/16"L x 8-3/16"W x 2-3/16"H

(216)

$574.48

List price $609.98

VCW84_NDA12001_XKIT42 small

NVX VCW84v3 + NDA12001 + XKIT42

• Two 8" VCW84v3 VC-Series v3 1300W RMS Subwoofers
• 2400W Peak (1200W RMS) Class D NDA12001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(153)

$619.96

List price $791.96

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
160 watts x 4 channel
RMS Power @ 2 ohms
240 watts x 4 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
300 watts x 1 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
320 watts x 4 channel
Peak Power @ 2 ohms
480 watts x 4 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
400 watts x 1 channel
Peak Power @ 2 ohms
600 watts x 1 channel
Amplifier Specifications
Series
S Series
Amplifier Class
D
Number of Channels
5-Channel
Total Peak Power Output
800 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1%%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Subsonic
High-Pass Crossover Frequency
50 - 400 Hz
Low-Pass Crossover Frequency
50 - 400 Hz
Subsonic Filter
50 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
30A x 2
Total Fuse Rating
60
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Mounting screws (4)
Allen wrench
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

S-A55V, XDSP66BT

Weight:

12.50lbs

Internal SKU:

sa55v_xdsp66bt

Internal Product ID:

200759

Customer Ratings & Reviews


Alpine S-A55V with 15 Band Parametric EQ Digital Signal Processor thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4.6
Design
5
Usability
4.6

Customer Reviews

Sort by:

Loading...

The following review is for XDSP66BT, which is a part of the bundle you are viewing.
By Vernon on January 6, 2024 Checkmark Icon Verified purchase

18 found this helpful


Save your gear!

The following review is for S-A55V, which is a part of the bundle you are viewing.

I have this with a full Alpine S system and it's crisp and clean!
My speakers are rated higher than what this little guy puts out, but let me tell you:
Everyone will notice a difference between your system and the louder ones.
My neighbors say that though mine isn't the loudest, it's obvious when I'm pulling up because of how clear it is, and as a bonus, I don't have to worry about blowing my speakers out. I do wish it could go lower on the sub setting, but it's definitely worth every penny and you will love it!

By Alfred on September 14, 2021

14 found this helpful


Great

The following review is for XDSP66BT, which is a part of the bundle you are viewing.

I like that you can adjust all the settings on small screen can be used to set both high and low pass at the same channels the only thing I wish it had high input hook ups but it can do high input with rca it's small also has bluetooth streaming to it over all im pleased with it

By ronald on April 22, 2024 Checkmark Icon Verified purchase

13 found this helpful


The following review is for S-A55V, which is a part of the bundle you are viewing.
By dale on September 27, 2023 Checkmark Icon Verified purchase

8 found this helpful


The following review is for XDSP66BT, which is a part of the bundle you are viewing.
By Kolandra on October 14, 2024 Checkmark Icon Verified purchase

3 found this helpful


Good dsp.

The following review is for XDSP66BT, which is a part of the bundle you are viewing.

Don’t know much about dsps, but I learned a bit with this. Much easier to setup than a dsp with a bluetooth app. Roll and click. I will say though, if you have no knowledge of how to use it you might have a hard time. I had to use ai to help me set it up. Thanks!

By Adam on June 17, 2026 Checkmark Icon Verified purchase




REV 8 SE-B-SC V2 small

Wet Sounds REV 8 SE B-SC V2

800W Peak (400W RMS) 8" Revolution Series Special Edition 2-Way Coaxial 4-ohm Marine Tower Speakers with Stainless Steel Swivel Clamps (Matte Black)

$1779.99

List price $1779.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1989 Mercury Topaz

2014 Kia Optima

2009 Volvo S80

1981 Oldsmobile Ninety Eight Regency

2000 Toyota Solara

2017 Mazda 3

1991 Jeep Cherokee

1973 Ford Custom 500

2000 Acura Integra

1968 Ford Thunderbird

Vehicle
Store
Delete

2024 Can-Am Defender XT

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
