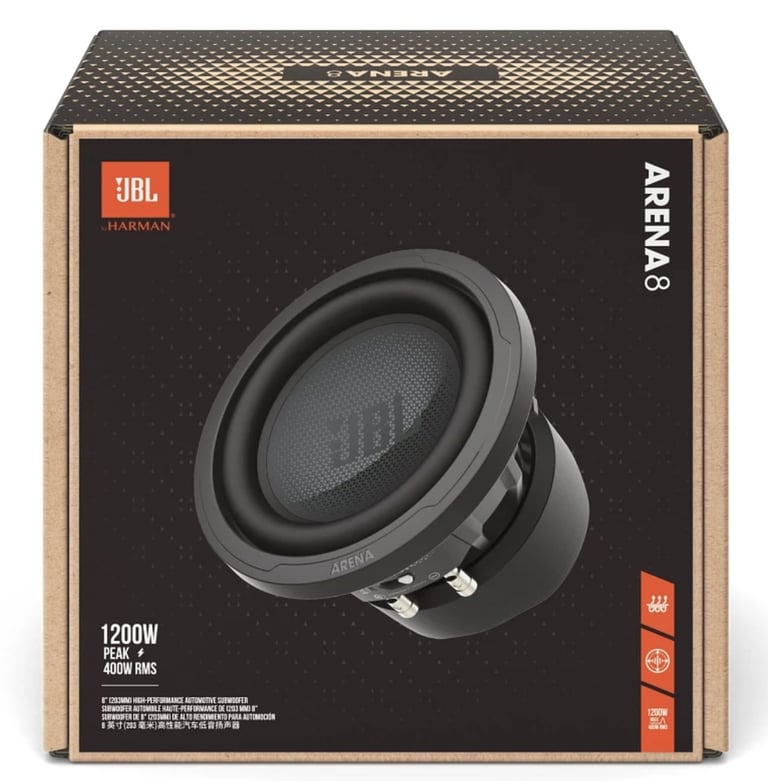

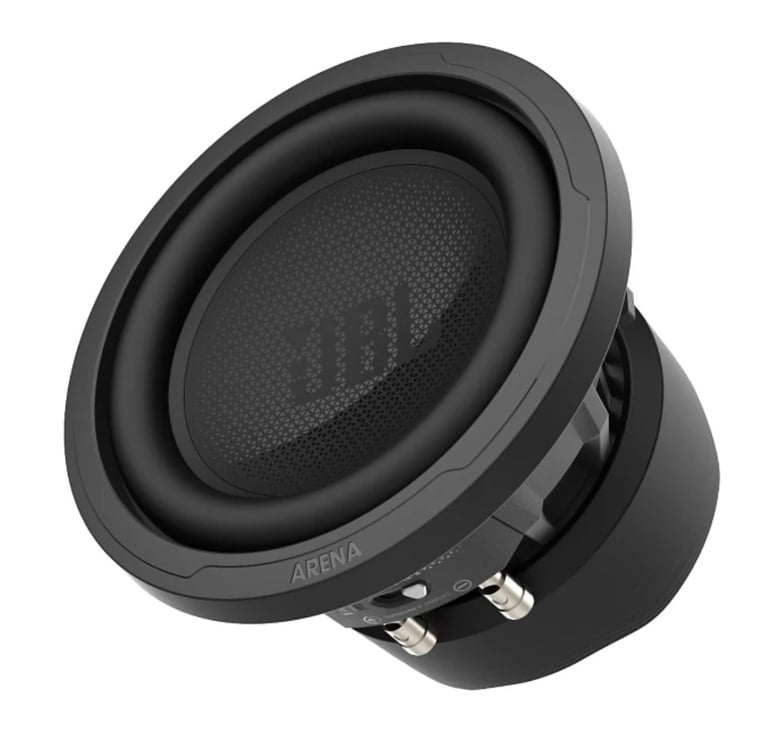

JBL ARENA 8 (JBLSUBAR8AM)

1200W Peak (400W RMS) 8” Arena Series Dual 2-or 4-ohm Car Subwoofer

JBL
Shop all JBL
highlight-star-icon

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Impedance: Dual 2 or 4 ohm
• Composite Paper Concave Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 5.18"
• Sensitivity: 83 dB

Learn more about the arena8

We apologize

This item has been discontinued


Loading...
SAC656 main

Scosche SAC656

Add 5-1/4" or 6-1/2" Speakers to Factory 7" Mounting Locations

50
-6.69%

$13.95

List price $14.95

DKGM-15 main

Crux DKGM-15

Stereo Replacement Interface with Steering Wheel Control Retention, Video Switcher, and Double DIN Dash Kit for select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

19
-35.71%

$162.00

List price $252.00

MDA1B main

Scosche MDA1B Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

366
-33.07%

$5.99

List price $8.95

SOCGM-17C main

Crux SOCGM-17C Wiring Interface

Install a new car stereo and retain safety chimes and other factory features in select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

5
-35.71%

$66.15

List price $102.90

AXDI-CL2 main

Axxess AXDI-CL2

Install a New Car Stereo and Retain Steering Wheel Controls, Factory Chimes, and Other Factory Features in select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

7
-10.75%

$82.99

List price $92.99

GMK421 main

American International GMK421

Single DIN or Double DIN Stereo Dash Kit for select 1992-2012 vehicles from Chevrolet, GMC, Buick

15
-66.69%

$12.99

List price $39.00

SOCGM-17 main

Crux SOCGM-17 Wiring Interface

Install a new car stereo and retains the safety warning chimes in select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

6
-35.71%

$58.05

List price $90.30

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Description


JBL brand icon

Authorized dealer


ARENA 8

Leveraging patented Selectable Smart Impedance (SSI) technology and features from JBL's Luxury Audio division where subwoofers have fill rooms far larger than a car, the 10" Arena takes a completely new approach to car audio which uses light and agile opposed 2.5-inch voice coils in magnetic gap to provide completely linear control of cone excursion all the way up to Xmax. Symmetrical Field Geometry design ensures linear cone travel and low distortion at virtually any output level.

Surrounding the proprietary motor design are other high-tech materials, including a cast-aluminum frame,concave cone, a nitrile butadiene rubber (NBR) one-piece surround, golden-plated speaker-terminal binding posts, progressive spider and vented pole piece. This subwoofer handles an amazing 1200 watts peak power (400 watts RMS), and all of its parts work in harmony to cool the voice coils for maximum output.


Product Details:

  • 8" Dual 2 or 4 ohm Arena Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 400 watts
  • Composite Paper Concave Cone
  • Nitrile Butadiene Rubber NBR Surround
  • Die cast, vented aluminum frame
  • Progressive spider and vented pole piece
  • Patented Selectable Smart Impedance (SSI) technology
  • Symmetrical Field Geometry design ensures linear cone travel
  • Golden-plated speaker-terminal binding posts
  • 2" High Temperature Aluminum Voice coil
  • 13 mm Xmax
  • Double Stacked Ferrite magnet motor structure
  • Frequency Response: 24 - 200 Hz
  • Resonance Frequency (Fs): 46.4 Hz
  • Sensitivity: 83 dB
  • Recommended sealed box volume: 0.58 cubic feet
  • Recommended ported box volume: 0.58 cubic feet
  • Top-mount depth: 5.18"
  • Cutout diameter: 7.28"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconJBL ARENA8 owner’s manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JBL ARENA 8 (JBLSUBAR8AM) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JBL ARENA 8 (JBLSUBAR8AM) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JBL ARENA 8 (JBLSUBAR8AM) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 JBL ARENA 8 (JBLSUBAR8AM) Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

P3D4-12 small

Rockford Fosgate Punch P3 P3D4-12

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Mount depth: 6.66"
• Sensitivity: 85 dB

(134)

$229.99

List price $259.99

Specifications & Details


Subwoofer Specifications
Series
Arena Series
Subwoofer Size
8"
Peak Power Handling
1200 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 or 4 ohm
Voice Coil Material
Aluminum
Voice Coil Diameter
2"
Frequency Response
24 - 200 Hz
Sensitivity
83 dB
Xmax (millimeters)
13 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Composite Paper Concave
Woofer Surround
Nitrile Butadiene Rubber NBR
Magnet Structure
Double Stacked
Magnet Type
Ferrite
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.58 cubic feet
Optimum Ported Box Volume
0.58 cubic feet
Top-Mount Depth (Mounting Depth)
5.18"
Cutout Diameter
7.28"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
46.4 Hz
Equivalent Compliance (Vas)
7.612 liters
Total Speaker Q Value (Qts)
0.601
Electrical Q Value (Qes)
0.635
Electrical Resistance of Voice Coil (Re)
1.81 ohm
Mechanical Q Value (Qms)
13.157
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

ARENA 8

Weight:

12.24lbs

Internal SKU:

arena8

Internal Product ID:

183227

Customer Ratings & Reviews


JBL ARENA 8 (JBLSUBAR8AM) thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


BassPro SL small

JBL BassPro SL (Open Box)

250 Watt Peak 8" Powered Under-Seat Compact Subwoofer Enclosure System

(5)

$199.96

List price $349.95

M-SWMCPv3-1.900 small

JL Audio M-SWMCPv3-1.900

Swivel Mount Clamps for ETXv3 Marine Speakers with 1.90" Pipe Diameter

$349.99

List price $349.99

CP110LG-TW1-2 small

JL Audio MicroSub CP110LG-TW1-2

300 Watt RMS Single 10" 10TW1-2 Subwoofer Loaded in a Slot-Ported MicroSub Enclosure (2 ohms Final Impedance)

(1)

$679.99

List price $679.99

No picture

MTX Thunder4250D

$239.99

List price $399.99

CBLOCKM4 small

EFX Core C BlockM4 by Scosche

MAXI Fuse Power Distributor with One 4 Gauge Input and Four 8 Gauge Outputs

(3)

$19.99

List price $29.95

11PXi50.2 small

Kicker 11PXi50.2 (PXi50.2)

2-Channel Amplifier w/ Controller For iPod/iPhone

(9)

$129.95

List price $249.95

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2004 GMC Yukon

2009 Ford Explorer

2005 Subaru Impreza

2014 Buick Regal

2003 BMW 330xi

2008 Smart Fortwo

2002 BMW 745Li

2014 Chevrolet Impala

2005 Chrysler Sebring

2011 Honda Insight

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
