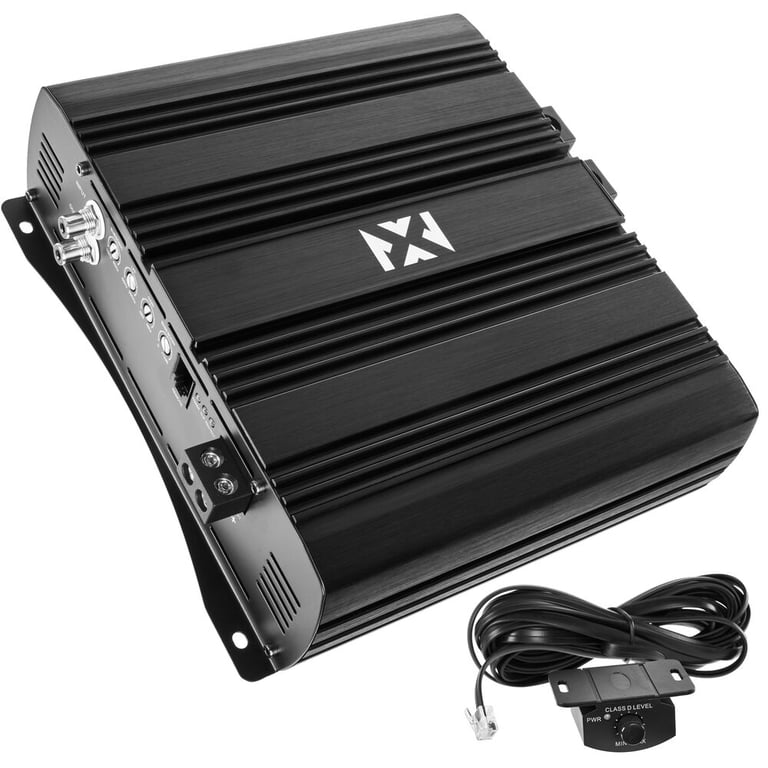

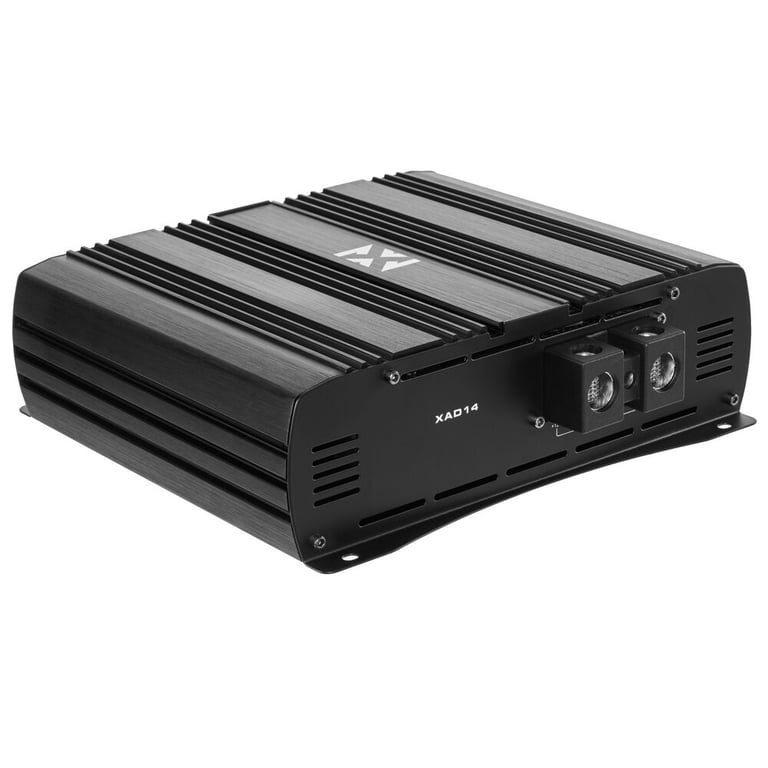

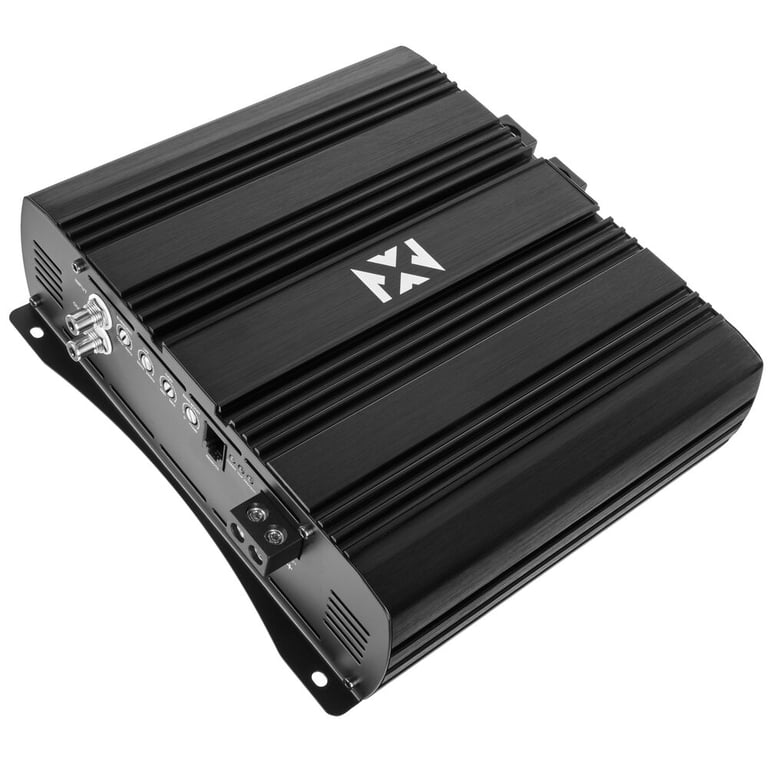

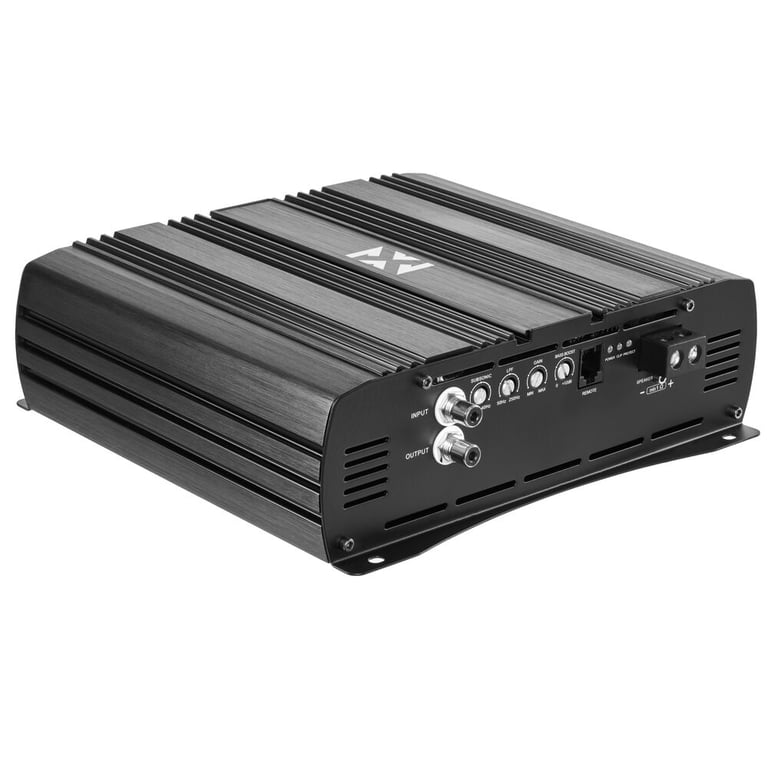

NVX XAD14

3000W RMS X-Series Full-Bridge Class D 1-Ohm Stable Monoblock Amplifier

NVX
Shop all NVX
highlight-star-icon

• 1100 watts x 1 channel @ 4 ohms
• 2000 watts x 1 channel @ 2 ohms
• 3000 watts x 1 channel @ 1 ohm
• Total RMS Power: 3000 watts
• Frequency Response: 10 - 300 Hz
• CEA-2006 Compliant Amplifier

Learn more about the xad14
Was $449.99 Details
Thanks , You Pay:

$269.99

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one xad14.

Set your vehicle or Return to product page
shipping truck icon
FREE 2-day shipping to VA. Get it Sat, Mar. 30
Dollar Icon
VIP Product Get $27.00 in rewards to spend later
Quantity
In Stock
Brand new

Buy it now


Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7
Swoosh Icon Icon of Swoosh

For over 23 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Current Promotions (1 offer)


Pre-installed black nylon mesh covering protects the power wire from being damaged, and pre-terminated seamless power and ground ring terminals provide reliable performance and cut out the hassle when installing. This offer cannot be combined with any other coupons or offers.

NVX XAD14

25% off


Priced separately $419 98

Promo Savings of $37 50

Total price:

$382 48

Description


NVX brand icon

Authorized dealer

3000 W Class D Amplifier

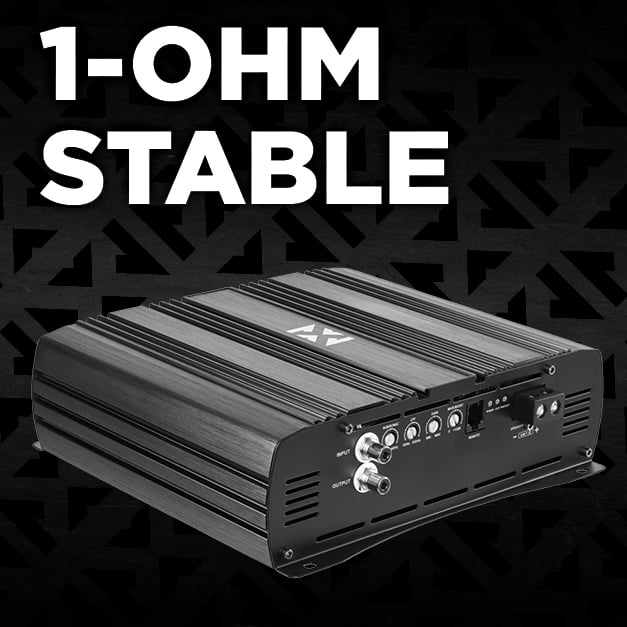

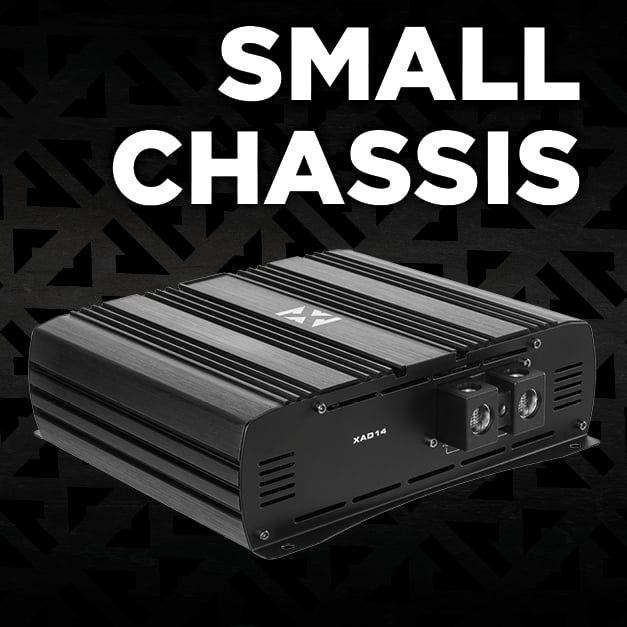

1 Ohm Stable Bass Level Control Included Small Chassis
Mosfet Power Supply

Product Details:

  • NVX X-Series XAD14
  • Class D 1 ohms Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 1100 watts x 1 channel
    • 2 ohms: 2000 watts x 1 channel
    • 1 ohm: 3000 watts x 1 channel
  • Total power output: 3000 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply

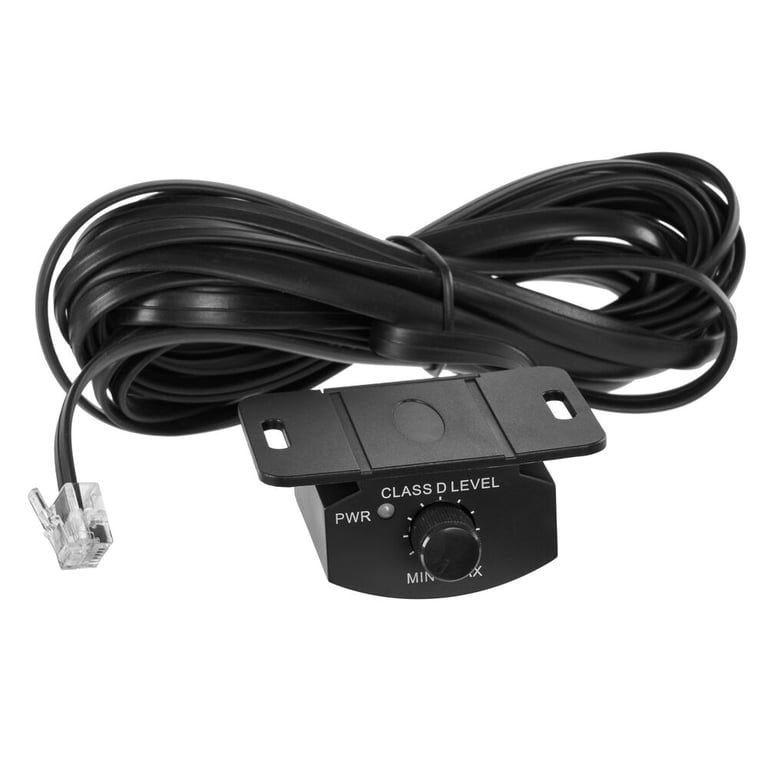

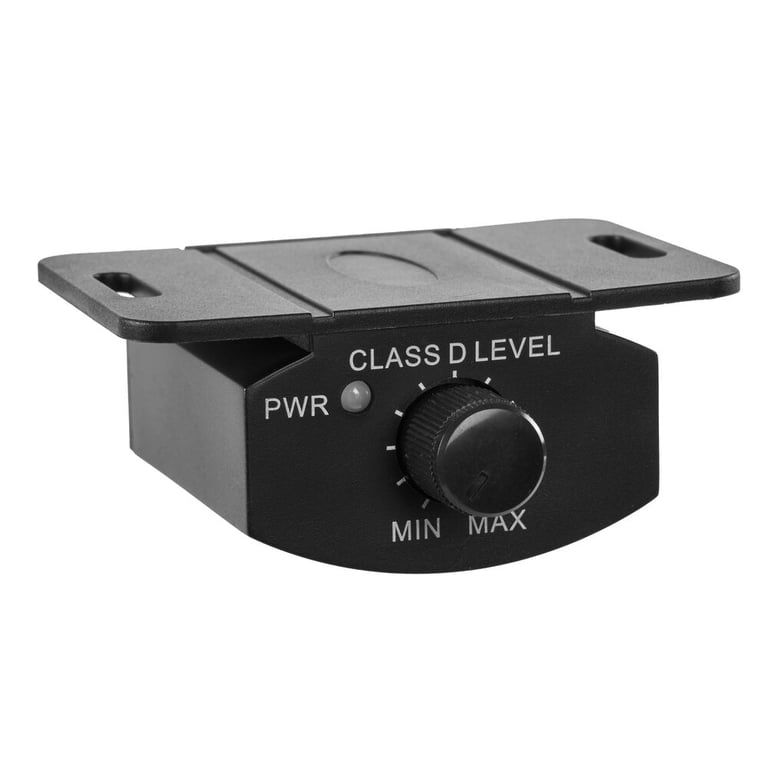

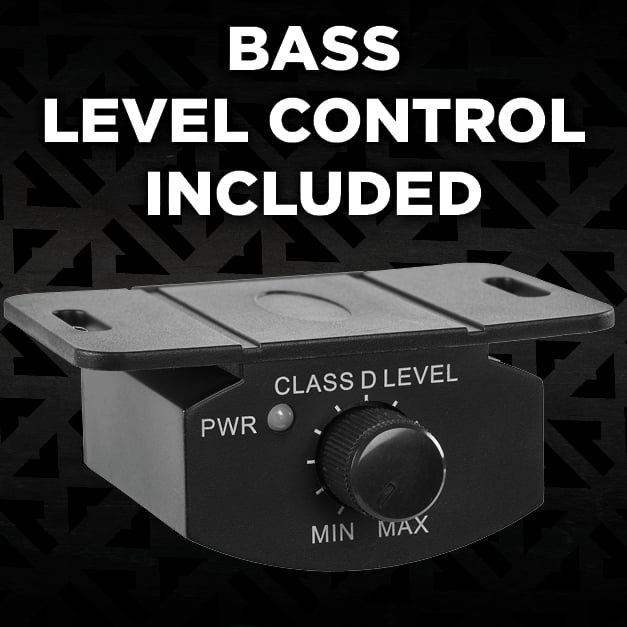

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity: 200mV
  • Frequency Response: 10 - 300 Hz
  • Total Harmonic Distortion (THD): 0.05%
  • Signal to Noise Ratio: 100 dB

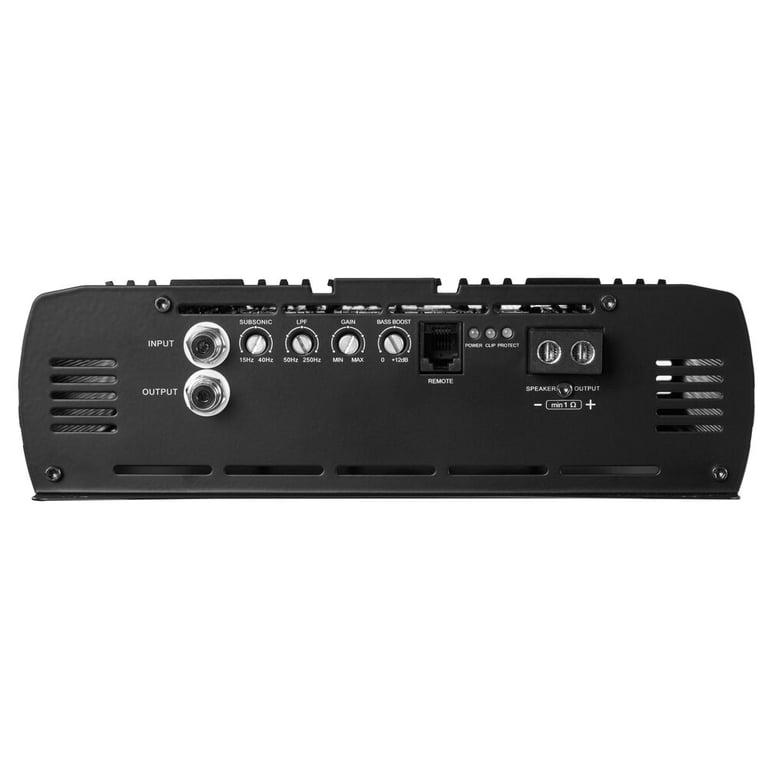

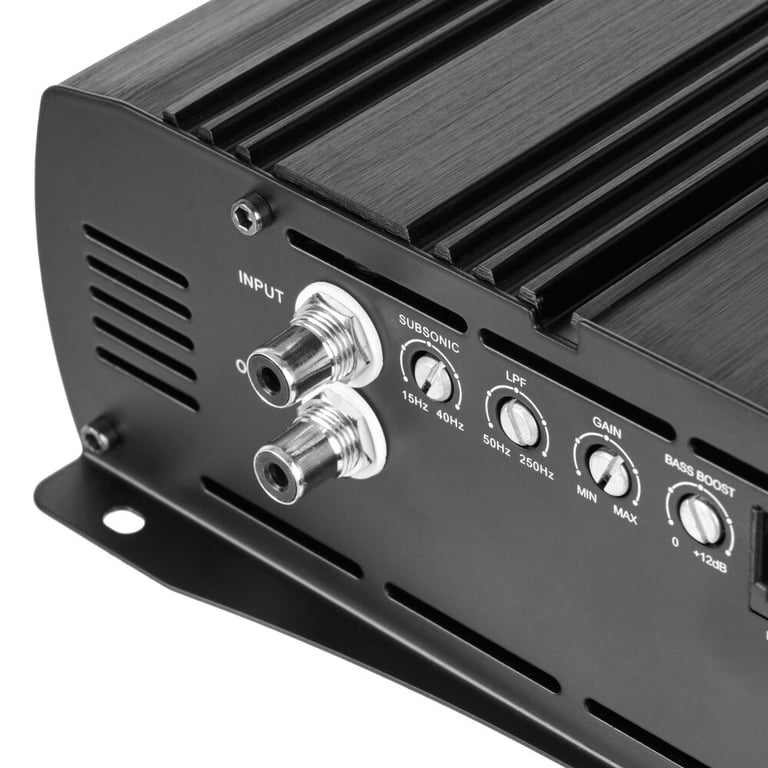

  • Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
  • Variable subsonic filter: 15 - 40 Hz, 24 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz

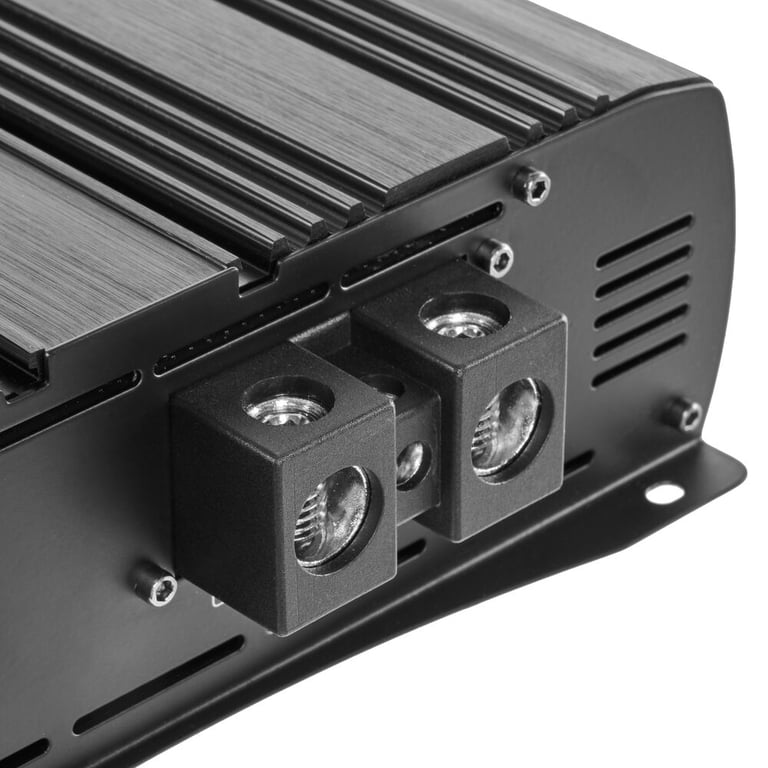

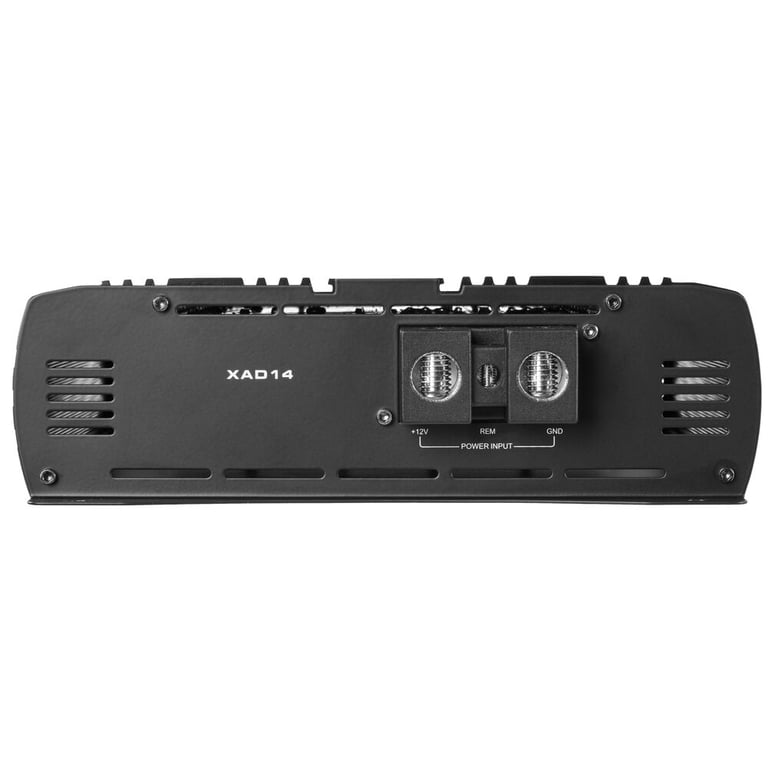

  • 1/0 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 7.375"W x 8.75"L x 2.5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the X-Series Amplifiers Owner's Manual

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Fan Cooled
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1100 watts x 1 channel
RMS Power @ 2 ohms
2000 watts x 1 channel
RMS Power @ 1 ohm
3000 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
2200 watts x 1 channel
Peak Power @ 2 ohms
4000 watts x 1 channel
Peak Power @ 1 ohm
6000 watts x 1 channel
Amplifier Specifications
Series
X Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
6000 watts
Total RMS Power Output
3000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohms
THD at Rated RMS Power
0.05%
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Wired gain knob (wire separate)
Gain knob wire
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

XAD14

Weight:

8.00lbs

Internal SKU:

xad14

Internal Product ID:

183707

Customer Ratings & Reviews



5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.8
Features
4.8
Design
4.8
Usability
4.8

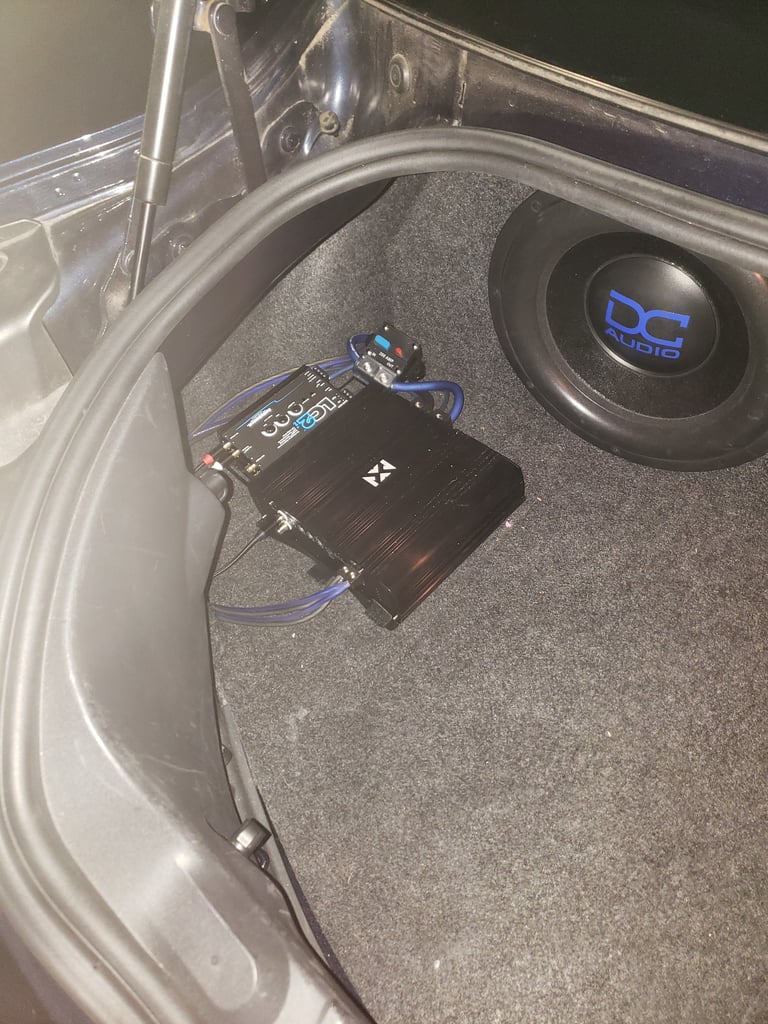

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Lots of clean power in a small foot print and a great price

The sound is cleaner on the same subs than my previous amp and im very happy with the amount of clean distortion free power. It's great that it has no fan so there isn't any noise with it running. A couple things to consider are that the RCA input is mono, so you will either need a Y adapter or a cable that goes from 2 to 1 male rca. Also there are no blade fuses on the amp so make sure to have the right size fuse or circuit breaker both near the battery connection and the amp power input. The manual doesn't specify a fuse size so I just used logic and divided the rms power for the ohm load I'm wired to by 10; so since I'm at 2000w at 2ohms i used 200A breakers. Other than those small accommodations the amp has great SQ and power. Variable subsonic filter is great as well, but I left it all the way down because my LOC already has one built in. The bass knob included is a big plus over competitors that sell it separately or don't have an option for it at all. I already have an audio control LOC with a bass knob so I don't need it for the amp as well, but its a nice option for the future if I ever go with an aftermarket deck and take the LOC out of the mix. The manual says the half way point for the low pass filter is 80hz but it seems to be that it's actually the first marking- must have been a misprint there, but once I figured it out and tuned it by ear to just below the first marking it was perfect. Probably about 70hz or so and the bass is clean and fairly linear from the low lows all the way up to the low pass point even with the peak of my 33hz tuned ported enclosures. I'm very happy with the price point and purchase and I hope this amp lasts a long time. It feels sturdy and nothing about it feels cheap, despite the great price.

By Brendan on April 14, 2023 Checkmark Icon Verified purchase

30

found this helpful.

All the power I needed

Upgraded my sub amp to this, and all I can say this has all the power that I need. I have one nvx 10" 900rms sub hooked up to it for now.

By Kyriakos on February 22, 2023 Checkmark Icon Verified purchase

30

found this helpful.

Fantastic

I have this installed pushing two 8” NVX VCW84v3 wired up to a 4ohm impedance so I’m pushing these subs below the 650watt RMS rating for sq purposes and at 4ohm for powerefficiency (stock alternator) and control (ported box) and this plays so so so clean, I was originally going to go with Skar amp but went with this for the better S/N. and have no regrets whatsoever. These x series amps if you compare have very high ratings and scale well from 4ohm to 1 ohm. something I would have had to go much higher on price to reach. And gives me the option to buy two more subs and put them in a sealed box @ 2ohms in the future.

By Frank R on July 7, 2023 Checkmark Icon Verified purchase

27

found this helpful.

By Melissa on November 20, 2023 Checkmark Icon Verified purchase

23

found this helpful.

Exceptional sound and value

These subs are priced substantially lower those of comparable competitors . Usually you lose quality when you save money . But not with these NVX subs. They are built of high quality, and the sound is amazing when powered properly in the suggested box. I will only buy NVX going forward.

By k simmons on February 27, 2024 Checkmark Icon Verified purchase

17

found this helpful.
