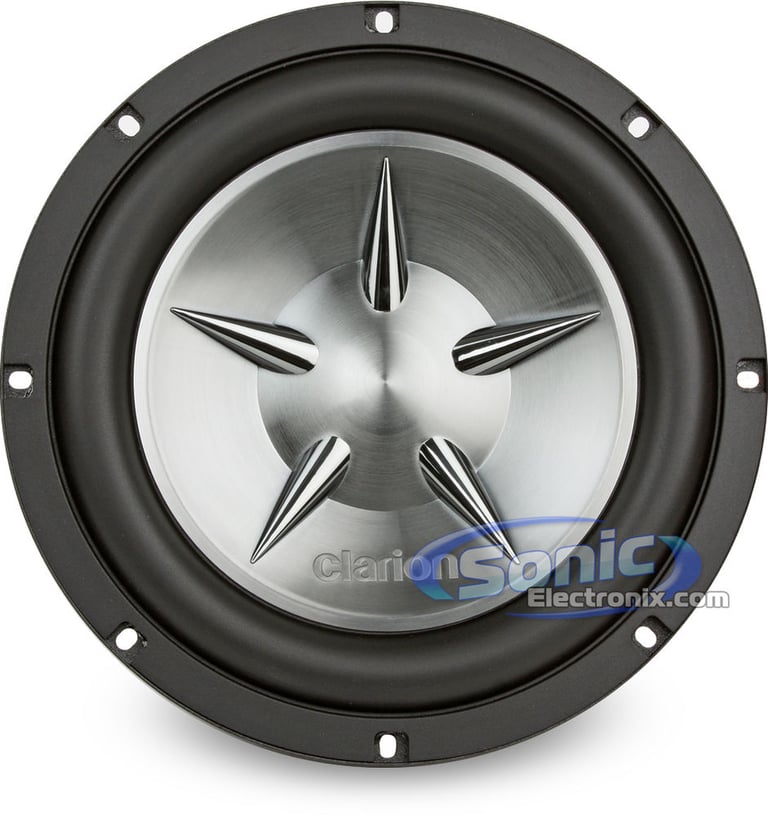

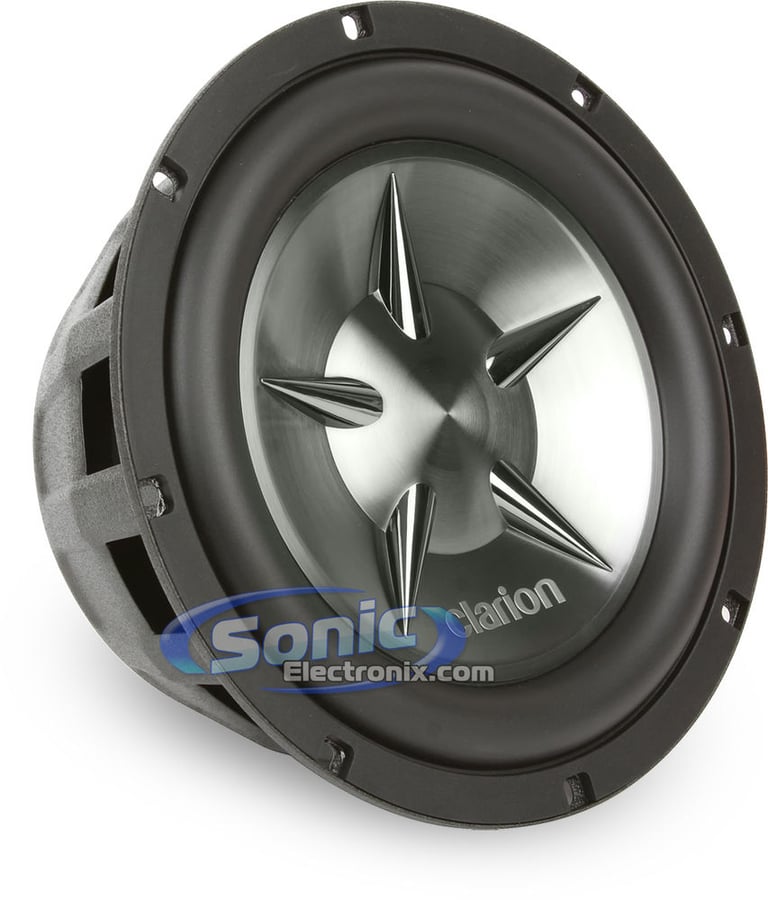

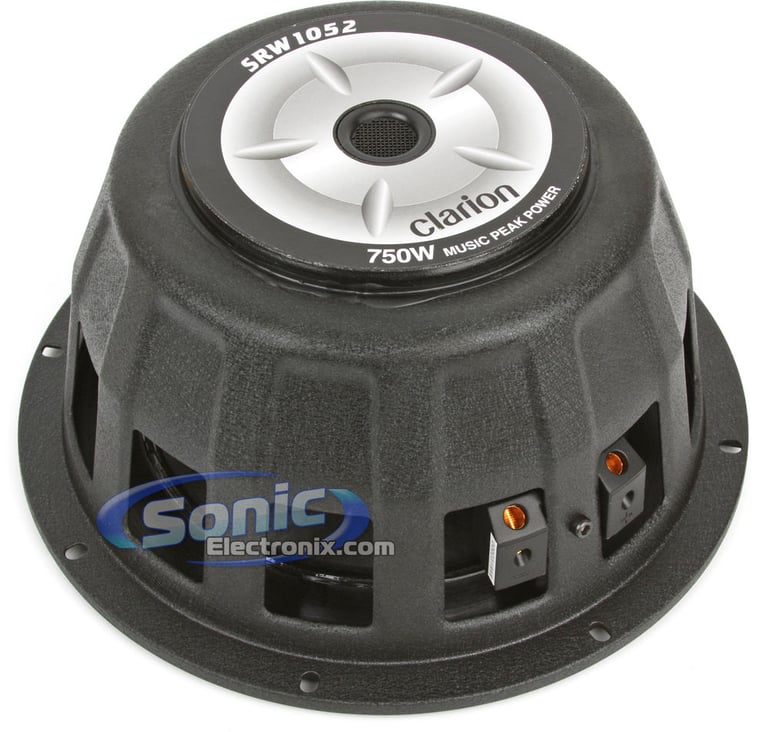

Clarion SRW1052

10" Dual 4 ohm Subwoofer (SRW-1052)

Clarion
Shop all Clarion
Product videos
highlight-star-icon

10" Subwoofer • 750 Watts Max • 375 Watts RMS • Kevlar and Paper Composite Cone • High Excursion Surround • Dual 4 ohm • Heat Resistant Voice Coils • Linear Poly-Cotton Spider • Dual Strontium Ferrite Magnet

Learn more about the srw1052

We apologize

This item has been discontinued


Loading...
460BRGB main

Boss Elite 460BRGB

Single DIN Digital Media Receiver with Bluetooth (Black)

8

Product Highlights


10" Subwoofer • 750 Watts Max • 375 Watts RMS • Kevlar and Paper Composite Cone • High Excursion Surround • Dual 4 ohm • Heat Resistant Voice Coils • Linear Poly-Cotton Spider • Dual Strontium Ferrite Magnet

Description


Clarion brand icon

Authorized dealer

  • 10" Dual 4 Ohm Subwoofer
  • Power Handling:
    • Peak: 750 watts
    • RMS: 375 watts
  • Impedance: Dual 4 Ohm
  • Polypropylene electrolytic spun aluminum coated dust cap design
  • Kevlar and paper composite cone design
  • Co-polymer composite high excursion surround
  • Hyper-extended vented pole piece
  • Dual 4 ohm heat resistant voice coils
  • Dual strontium ferrite magnet motor assembly
  • Linear poly-cotton spider with integrated tinsel leads
  • Spider Exhaust Technology (SET) cooling
  • Custom designed stamped steel frame
  • Sensitivity: 85 dB
  • 1-year SonicElectronix.com warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Clarion SRW1052 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Clarion SRW1052 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Clarion SRW1052 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Clarion SRW1052 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Lowest price in 30 days
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-21.44%

$109.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7

Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(89)

$139.99

List price $139.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
750 watts
RMS Power Handling
375 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
85 dB
Xmax (millimeters)
12 mm
Subwoofer Design
Round / Circle
Main Cone Color
Silver
Woofer Composition
Kevlar Reinforced Pulp Paper
Woofer Surround
Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.4 cubic feet
Maximum Sealed Box Volume
0.4 cubic feet
Minimum Ported Box Volume
1.0 cubic feet
Maximum Ported Box Volume
1.0 cubic feet
Top-Mount Depth (Mounting Depth)
4-7/8"
Cutout Diameter
9-1/2"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

SRW1052

Weight:

13.00lbs

Internal SKU:

srw1052

Internal Product ID:

18475
