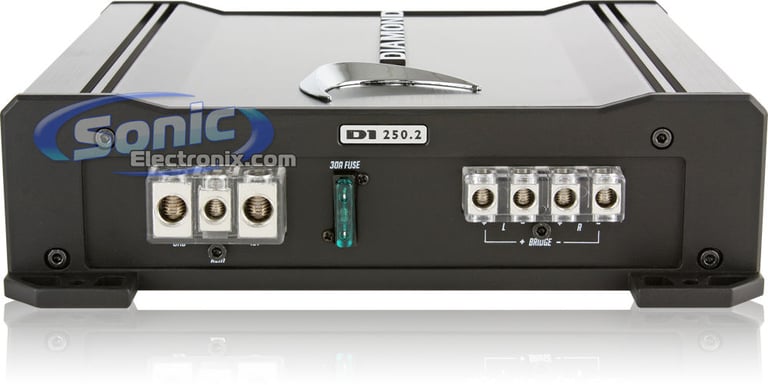

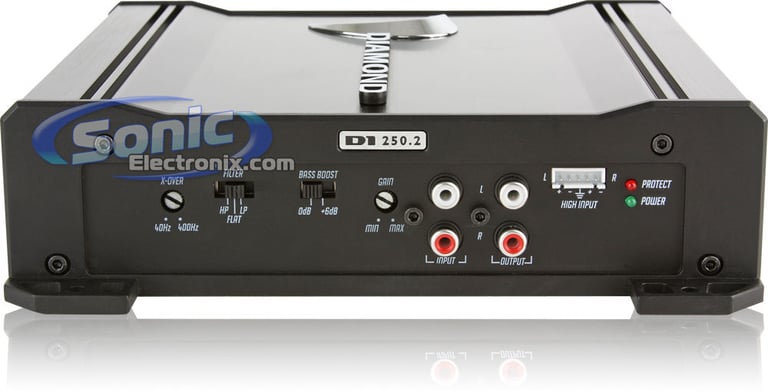

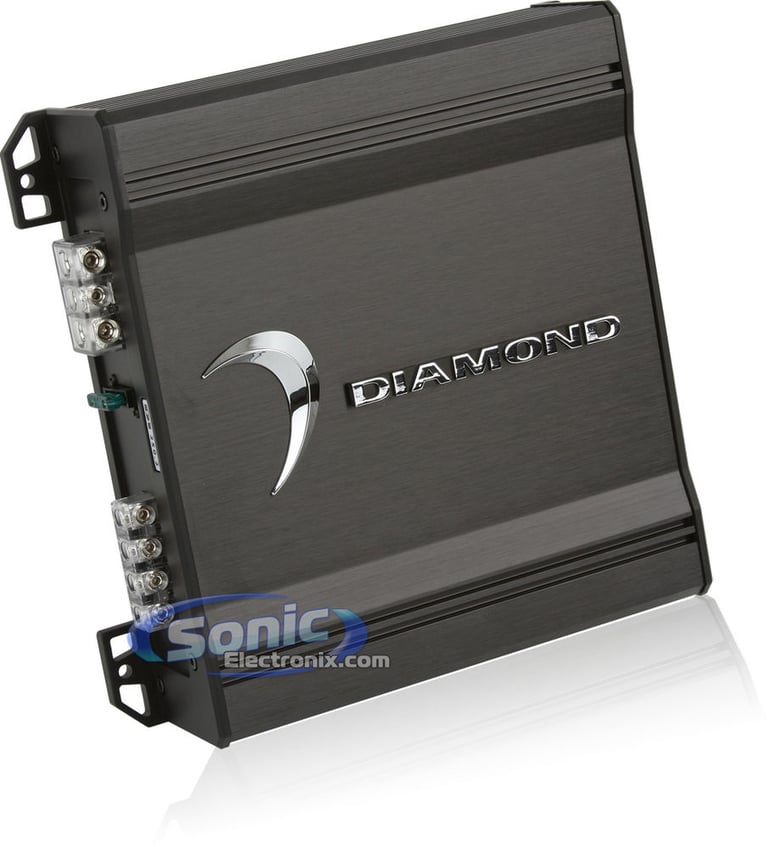

Diamond Audio D1 250.2 (D1250.2)

250W Max, D1 Series 2-Channel Amplifier

Product videos
highlight-star-icon

D1 Series 2-Channel Class A/B Car Amplifier • 75 Watts x 4 Chan. @ 4 Ohm • 125 Watts x 4 Chan @ 2 Ohm • Bass Remote Control • Speaker Level Inputs • 3-Way Protection Circuitry • Polycarbonate End Plates •

Learn more about the d12502

We apologize

This item has been discontinued


Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

70-6502 main

Metra 70-6502 Wiring Harness

Install a new car stereo in select 2002-2010 vehicles from Dodge, Chrysler, Jeep

17
99-6506 main

Metra 99-6506 Dash Kit

Install a new Single-DIN car stereo in select 2004-2008 Pacifica

1
-12.12%

$28.99

List price $32.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
ZS35CX main

Hifonics ZS35CX

250W Peak (50W RMS) 3.5” Zeus Series 2-way 4-ohm Coaxial Car Speakers

10
FKB113 main

MB Quart FKB113

180W Peak (90W RMS) 5.25" Formula Series 2-Way 4-ohm Coaxial Car Speakers

4
-57.15%

$29.99

List price $69.99

Product Highlights


D1 Series 2-Channel Class A/B Car Amplifier • 75 Watts x 4 Chan. @ 4 Ohm • 125 Watts x 4 Chan @ 2 Ohm • Bass Remote Control • Speaker Level Inputs • 3-Way Protection Circuitry • Polycarbonate End Plates •

Description


General Features:
  • D1 Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 2 chan.
    • 2 ohm: 125 watts x 2 chan.
    • Bridged, 4 ohm: 250 watts x 1 chan.
  • Max power output: 250 watts
  • MOSFET power supply
  • LED power and protect indicators
  • Bass Boost/EQ (0-6 dB bass boost at 50 Hz)
  • 2/1-Channel operation
  • RCA Pass through for connecting multiple amplifiers
  • Preamp output
  • Speaker-level inputs with signal sensing for automatic turn-on
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Polycarbonate end plates
  • Satin Black finish
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation (20% more aluminum than previous models)
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Variable low-pass filter (40-400 Hz, 12 dB/octave)
  • Variable low-pass filter (40-400 Hz, 12 dB/octave)
  • Frequency response: 20-20,000 Hz
  • Dimensions: 9-1/8"L x 8-1/2"W x 2-1/4"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00


Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 2 channel
RMS Power @ 2 ohms
125 watts x 2 channel
Bridged RMS Power
250 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
250 watts
Total RMS Power Output
250 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.2%
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 400 Hz
Low-Pass Crossover Frequency
40 - 400 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
50 dB
Bass Boost
0 - 6 dB
Remote bass/level controller
No
Fuse Rating
30A x 1
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

D1250.2

Weight:

8.00lbs

Internal SKU:

d12502

Internal Product ID:

18625

Product and How-to Videos


Customer Ratings & Reviews


Diamond Audio D1 250.2 (D1250.2) thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4
Value
5
Features
5
Design
5
Usability
4

Customer Reviews

Sort by:

Loading...

Awesome amp for the price

I've had this for about a year and the price to performance is tops. This won't blow the roof off of your car, and is better suited to run your mids and tweets than to run a sub bridged.

It has to be underrated from the factory in terms of power delivery (or everything else is overrated, you decide). I was using it at maybe 30% of max gain before it topped out my OEM speakers on my GTI.

Its gets plenty loud with very little distortion even at high volume. And it is incredibly feature rich with crossovers, RCA pass throughs, high level inputs, etc.

Best of all, I have virtually no space to mount it but this thing is so small it fits anywhere.

By jsk on August 15, 2010
