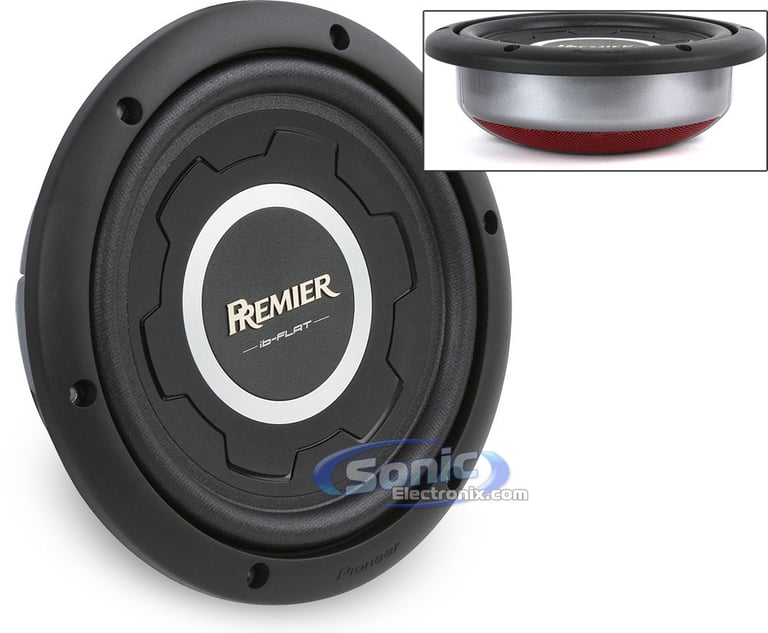

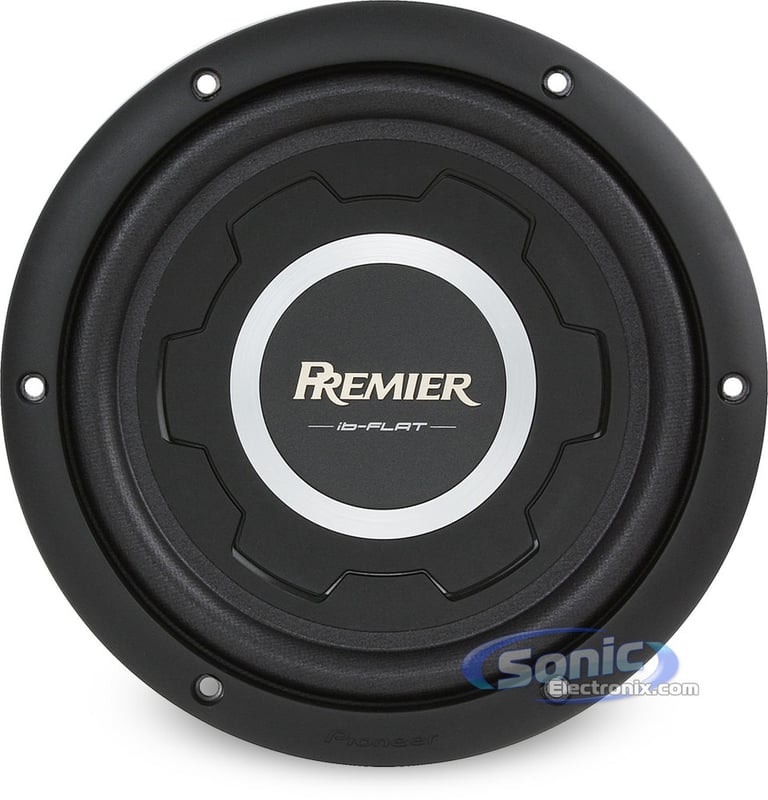

Pioneer Premier TS-SW1001S2

Shallow-mount 10" Single 2 ohm Subwoofer

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

Shallow-mount 10" Subwoofer • 1200 Watts Max • 300 Watts RMS • Single 2 ohm • Carbon Fiber Reinforced IMPP Cone • Fiber Woven Radial Surround • Cast Aluminum Basket • Copper Voice Coil • Strontium magnet

Learn more about the tssw1001s2

We apologize

This item has been discontinued


Loading...
BE-LEX-IS0613-VCW104 main

NVX Loaded BOOST Box - 2006-2013 Lexus IS250/IS350/ISF - BE-LEX-IS0613-VCW104

For select 2006-2013 vehicles from Lexus - Single 10" 1000W RMS Loaded BOOST Sealed Enclosure

4
-20.00%

$499.99

List price $624.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

Product Highlights


Shallow-mount 10" Subwoofer • 1200 Watts Max • 300 Watts RMS • Single 2 ohm • Carbon Fiber Reinforced IMPP Cone • Fiber Woven Radial Surround • Cast Aluminum Basket • Copper Voice Coil • Strontium magnet

Description


Pioneer brand icon

Authorized dealer

  • Shallow-mount 10" Single 2 ohm Subwoofer
  • Perfect for mounting underneath seats, behind seats, and in other locations that do not have a lot of space
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 300 watts
  • Impedance: Single 2 ohm
  • Double cone with air suspension control system
  • Interlaced basalt/carbon fiber reinforced IMPP cone
  • Basalt interlacing in the cone produces natural bass, while being lightweight and rigid
  • 3-Layer fiber woven radial surround with M-shape cross-section

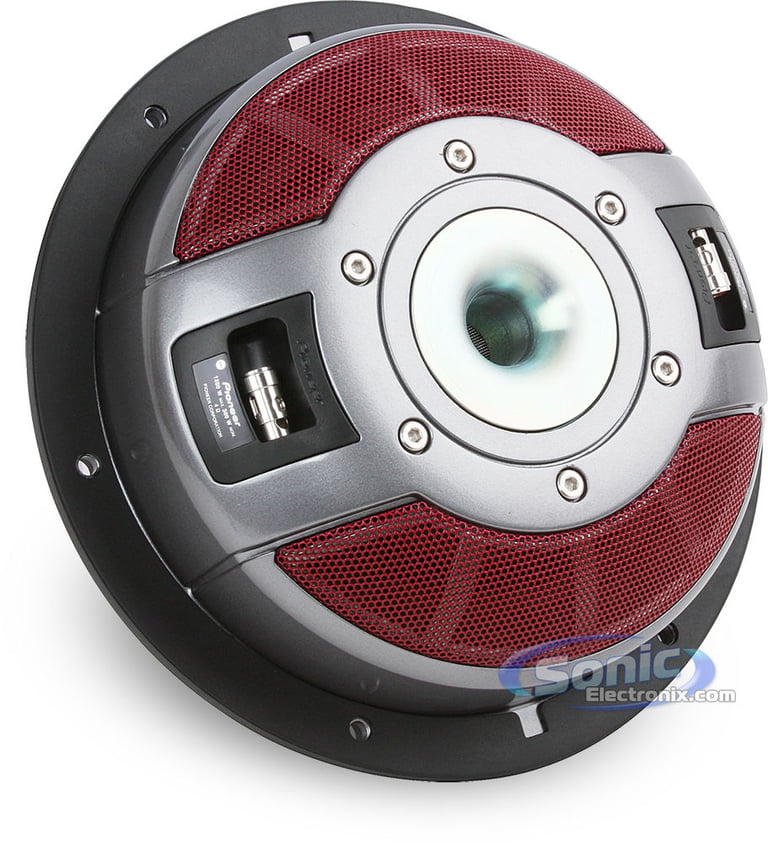

  • Cast aluminum basket with fin-shaped design
  • Air Suspension system locks air in-between the main cone and the drive cone to create a spring like effect
  • Spiderless design is made possible with the Air Suspension system
  • Spring compression wire terminals
  • T-Pole yoke top plate
  • Projected pole yoke with a vented pole
  • Dual 4 layer with long voice coils
  • Aluminum voice coil wire
  • Phenol resin glass cloth voice coil bobbin
  • Strontium magnet
  • Ideal for small box installations, requiring only 0.35-0.7 cubic feet of air space
  • Frequency response: 20-290 Hz
  • Sensitivity: 90 dB
  • 1-year SonicElectronix.com warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer Premier TS-SW1001S2 Subwoofer

Mono Amp

Wiring Guide to Wire 2 Pioneer Premier TS-SW1001S2 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer Premier TS-SW1001S2 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Pioneer Premier TS-SW1001S2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

10W0v3-4 small

JL Audio 10W0v3-4

• RMS Power: 300 watts
• Impedance: Single 4 ohm
• Mount depth: 4.90"
• Sensitivity: 84.07 dB

(68)

$139.99

List price $139.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
1200 watts
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 ohm
Frequency Response
20 - 290 Hz
Sensitivity
90 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene with Carbon, Glass Fiber
Woofer Surround
Fiber Woven Radial
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Minimum Sealed Box Volume
0.45 cubic feet
Maximum Sealed Box Volume
0.45 cubic feet
Top-Mount Depth (Mounting Depth)
3"
Shallow Mount Installation
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-SW1001S2

Weight:

12.50lbs

Internal SKU:

tssw1001s2

Internal Product ID:

18634

Product and How-to Videos


Customer Ratings & Reviews


Pioneer Premier TS-SW1001S2 thumbnail image

5 star
36%
4 star
43%
3 star
21%
2 star
0%
1 star
0%



Durability
4
Value
4.6
Features
3.7
Design
4.6
Usability
4.6

Customer Reviews

Sort by:

Loading...

Low thump, no problem

Out of the box the sub is very nicely made with high quality materials. Once installed it sounded just as good as it looked at low volumes. After break in period it still seems a little under powered but the sound quality is up there.

Great sub for adding some bass to your car without overkill. When cranked it gives plenty of thump but not enough to win any awards.

By Billybob2u on September 16, 2010

10 found this helpful


Not Thrilled

Just hooked this sub up. Installed a new 800w Orion mono amp. Although it does thump, I expected more. The levels on the amp had to be turned way down- as I thought the sub would explode. I have a Jeep Wrangler and I still have room left for groceries. If you have the room for a full sized sub, get that instead. Having a rag-top leaves no security options (Which is why I got this) and I won't be too sad if it gets stolen. P.S.- this 10" sub will not fit into a standard 10" spacer(sub box) because of design.

By ricky on August 24, 2010

7 found this helpful


Fine for entry level or space concerns......

I originally had 2 10" Polk speakers hooked up at 2ohms and it really sound good. I took these subs out and put them in my car and bought the Pioneer sub. I also installed an Eclipse ice sub amp. This configuration does not even compete with the Polk subs. I have to max out the Elipse amp and increase the sub volume on my head unit. This sub is 2ohms. I would not recommend this sub for someone looking for that punchy bass, but if space is tight this subs does add the extra bass.

By Christopher on June 2, 2010

6 found this helpful


great price

Good subs for the price, I thought they would of been louder but you get what you pay for.It may say 1200 max but the RMS is only 300.

By mario on April 15, 2010

6 found this helpful


good sound

I definitely am pleased with the pioneer premier, however, I would highly recommend the model with the built in fan to keep the amp cool. It overheats very quickly, but I would stay with the pioneer premier line.

By Anna on September 26, 2010

5 found this helpful


Whoa... Ported Box = WOOOHOOO..!!!

This is a follow-up review. I own just one of these subs. I'm pushing it with a Hitron HA-1000.1 I also purchased from Sonic. My headunit is a Sony CDX-GT630UI I also purchased from Sonic.

I went back and re-engineered my box to be a Ported @ .61 cu. ft.

The following dimensions work perfect in a Ford Explorer SportTrac when you've removed the rear kick-panel and the plastic divider thingy on the floor that the spring-loaded flaps attach to cover the gap when folding back seats down.

Dimensions: (in inches)
==========
2.75 Top Depth
6.00 Bottom Depth
14.0 Hieght
31.0 Width
12.5 Port @ 3" Diameter
Made w/ 3/4 MDF

OH... MY.... GOD...!!! This little beast can now tickle the inside of my chest, give me a tension headache/neckache, and even make my sense of balance feel a little off after Papa spends just a little time in my "decompression chamber" (as I like to call the inside of my Truck when the volume is at or near 40) blasting select jams that highlight the sub hit.

An example of some tracks that really came alive in the new box:
Blow The Whistle - Too $hort
SummerTime in the L.B.C. - Warren G.
Spank My Booty - Lords of Acid
I'm Toe Up - DJ Felli Fel

It's a darn good thing the new headunit plays off a USB drive because now when playing from CD... if I crank the heck out of the volume... you get to a point where the vibration inside the cabin will start to make the CD skip, even though all units these days have anti-shock buffered memory playback so the units can recover from a jolt such as crossing train tracks or whatever... the sustained, massive shaking just doesn't allow the CD player to ever recover I guess.

Papa's very happy :)

By Gary on February 9, 2010

5 found this helpful


Now that's what I'm talkin' 'bout!

I have a 2002 Ford Explorer Sport Trac. They are very challenged for space behind the rear seats. I first tried to drop-in a Kicker CompVT 6.5" subwoofer into the OEM enclosure, but that didn't work, the enclosure too flimsy. Built a new enclosure. Sounded great... but just wasn't enough. I wanted to feel it more in my chest and see my rear-view dance.. y'know?

So I bit-the-bullet and bought this sub. It has excellent information on the product packaging. Gives you detailed dimensions for recommended specs for SEALED, PORTED and BANDPASS enclosures.

I had wanted to go for the PORTED enclosure, but the port diameter they require would have made the width of the base of the box just a hair to wide to fit behind the seats and still have room for excursion.

So I opted for the sealed enclosure design as follows:
3.5" Top Depth
5" Bottom Depth
12" Height
30" Width
w/ 3/4" MDF

I have the rear kick-panel removed, also the spring-loaded flap which bridges the gaps from folded-down backseats to kick-panel, also this plastic divider piece the bottom of rear kick-panel screws into to salvage as much room as possible.

I just put the box in today and hooked it up. Even at less than half-volume I became soo jazzed!!! the Bass Test CD brought the biggest smile to my face as my rear-view mirror started dancin' like MC Hammer on crack!

For my vehicle this sub is a GOD SEND!! To have 2 of these inside a Truck or SUV would be very bad for your hearing in no time flat.

I imagine that after the break-in period, I will no doubt have to start DynaMat'ing the inside of my cab and doors, etc. once I can start really laying into the volume.

It blows me away how much boom these can generate in such a small space!

By Gary on August 31, 2009

6 found this helpful


little speaker big bass

I bought one of these to put in my single cab ford ranger with a 600w MTX amp. I was amazed with how clean it is and at the same time being loud!! I have had this sub for about a year now and i listen to everyday with it cranked up. The sub still sounds great.

By kev on August 21, 2010

4 found this helpful


Great sub!

Replaced my Chevy Cobalt's stock sub with this one (modified the box and added an amp), and this sub made my car rock while still looking stock. Great power and good bump for such a shallow sub.

By CobaltSS on July 4, 2010

5 found this helpful


Pioneer Premier TS-SW1001S2

Great sub, great dealer who provided fast shipping. All around good sound it was perfect.

By Jeff on October 18, 2010

4 found this helpful




ICON-HDP-SILVER small

NuForce Silver Icon HDP Headphone Amp & DAC Open Box

24-Bit/192 kHz Headphone Amp and Preamp Output with USB, S/PDIF Coaxial, and 3.5mm Optical

$299.95

List price $449.00

M850-DCX-8 small

Monster Cable Digital Coaxial Cable (M850 DCX-8)

8 ft. of M-Series 850 High Resolution Digital Coaxial Cable

(2)

$24.99

List price $89.99

ICON-HDP-BLACK small

NuForce Icon HDP Premium Desktop Headphone Amplifier & DAC (Black)

24-Bit/192 kHz Headphone Amp and Preamp Output with USB, S/PDIF Coaxial, and 3.5mm Optical

$399.95

List price $449.00

RFZ2415 small

Rockford Fosgate RFZ2415 Punch Z 15"

$79.99

List price $149.99

No picture

Rockford Fosgate RFZ2412 Punch Z 12"

$59.99

List price $129.99

VPCCG9BK small

Sanyo Xacti VPC-CG9BK (Black - VPC-CG9)

2.5" TFT-LCD 9.1 Megapixel Camcorder with 12x Zoom (Black)

$209.99

List price $279.99

10C128-2-SUBS small

2 Pack of Kicker 10C128 12" Subs

Pair of 12" Single 8 ohm Comp Series Car Subwoofer

(16)

$131.97

List price $259.90

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1969 Buick Riviera

2011 Lexus IS-F

2021 Cadillac Escalade

1959 GMC 300

2004 Ford Focus ZX5

2013 Land Rover Range Rover Evoque

2014 Lincoln MKX

2004 Toyota Sequoia

2003 Toyota MR2 Spyder

1994 Mazda B3000

Vehicle
Store
Delete

1984 Suzuki DR100

2007 Suzuki DL650 V-Strom

1995 Suzuki LS650 Savage

2018 Suzuki SFV650

2015 Suzuki SFV650

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
