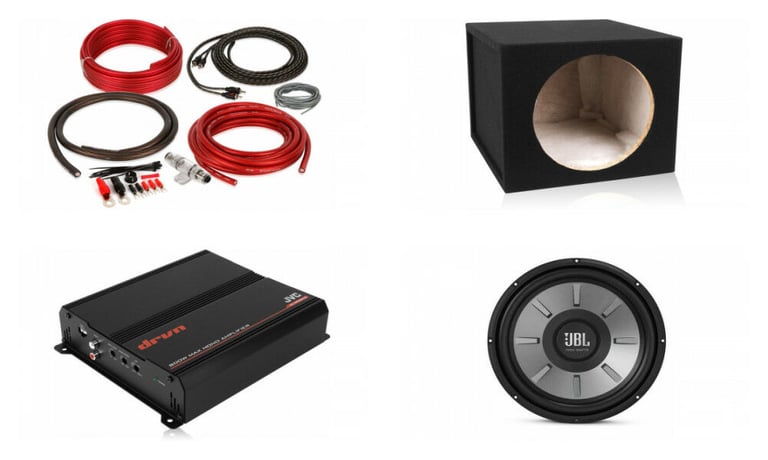

JVC KS-DR3001D + JBL Stage1210 Subwoofer + Sealed Enclosure and Amp Kit

800W Peak (400W RMS) 2-Ohm Stable Monoblock Amplifier + 12" Subwoofer and Sealed Enclosure

JVC
Shop all JVC
highlight-star-icon

• RMS: 4 ohm: 250 Watts x 1 chan.
• RMS: 2 ohm: 400 Watts x 1 chan.
• Total Peak Power: 800 Watts
• Speaker-level (high-level) inputs
• Variable low-pass filter: 50 - 200 Hz
• Variable Bass Boost: 0 to +18 dB bass boost

Learn more about the ksdr3001d_stage1210_mdfs121

We apologize

This item has been discontinued

Description


JVC

Authorized dealer

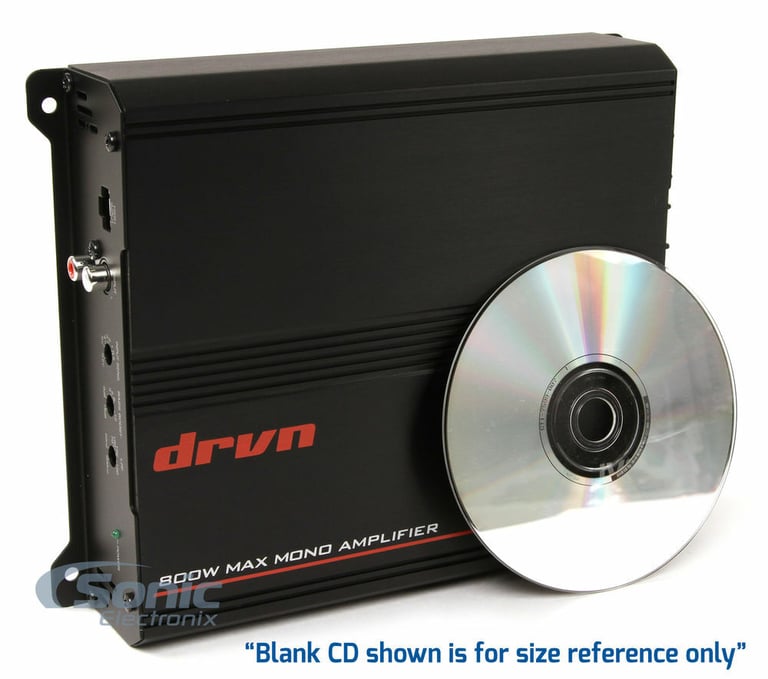

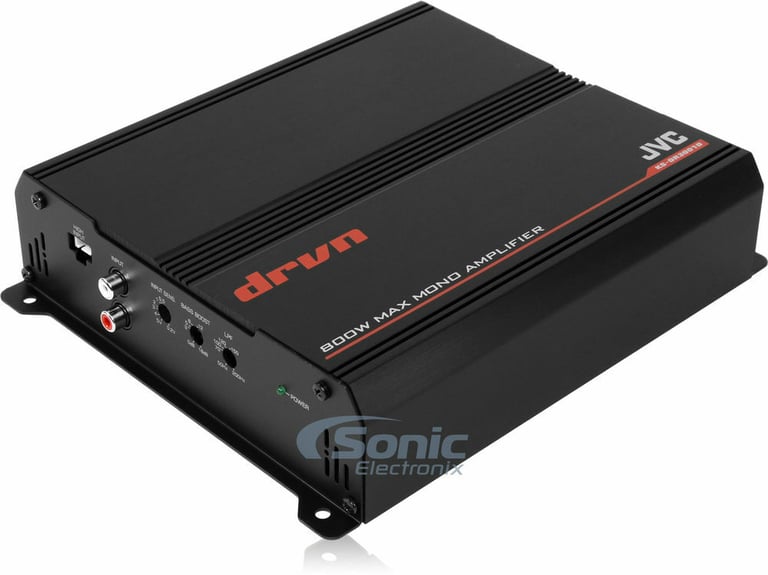

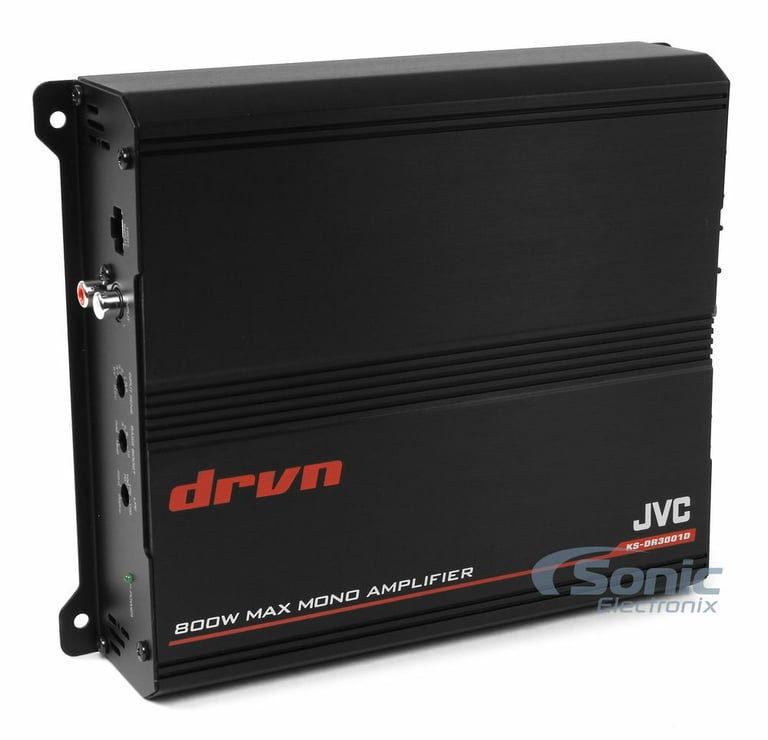

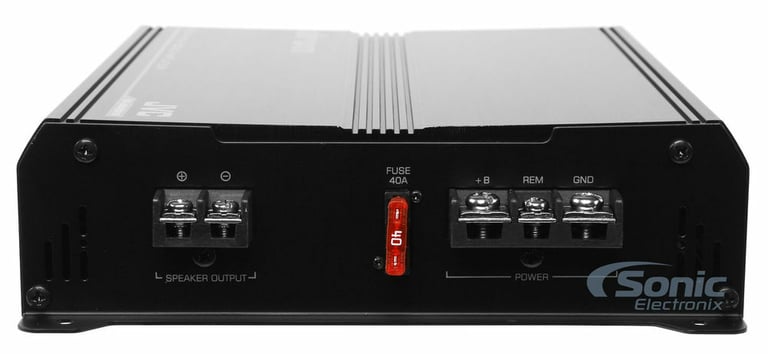

JVC KS-DR3001D

800W Peak (400W RMS) DRVN Series Class-D 2-Ohm Stable Monoblock Power Amplifier
Quantity: 1

General Features:

  • JVC DR Series KS-DR3001D Car Amplifier
  • Class-D 2-Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 250 Watts x 1 chan.
    • 2 ohm: 400 Watts x 1 chan.
  • Total power output: 800 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) indicators
  • Auto Turn-on
  • Mono channel operation

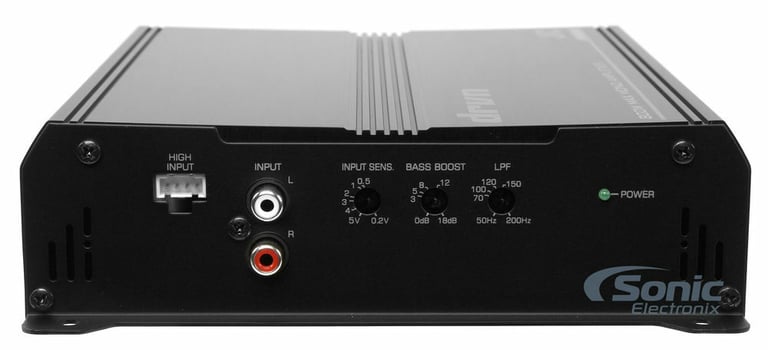

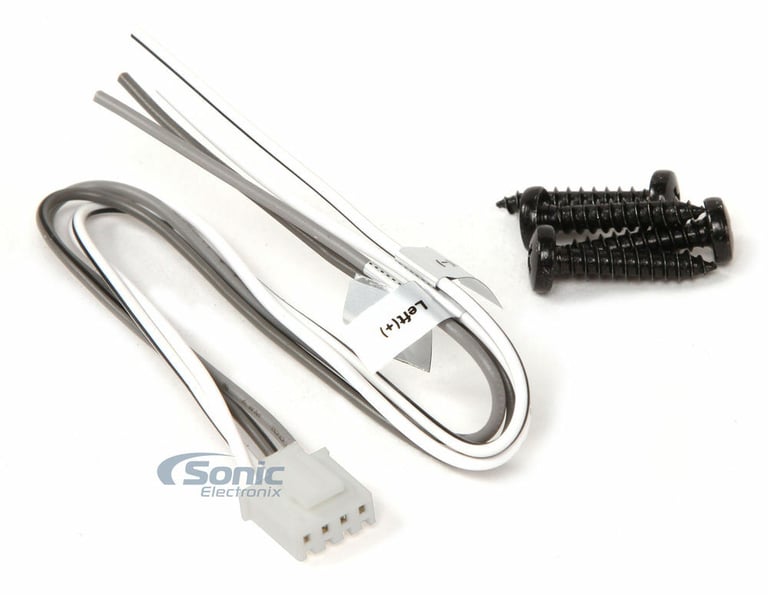

  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Frequency Response: 20 - 200 Hz
  • Variable low-pass filter: 50 - 200 Hz
  • Variable Bass Boost: 0 to +18 dB bass boost
  • Fuse Rating: 40 A x 1
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

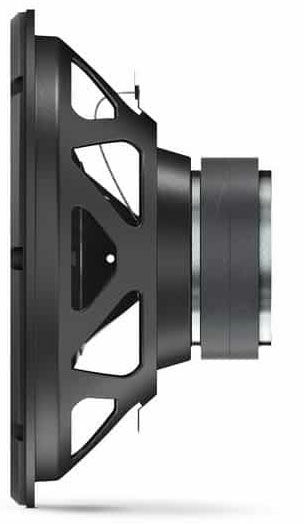

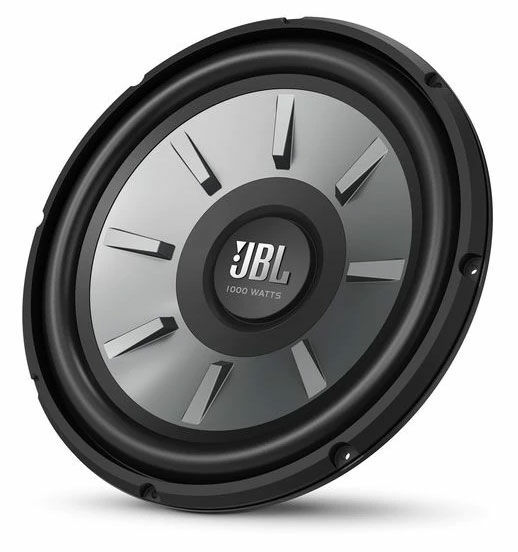

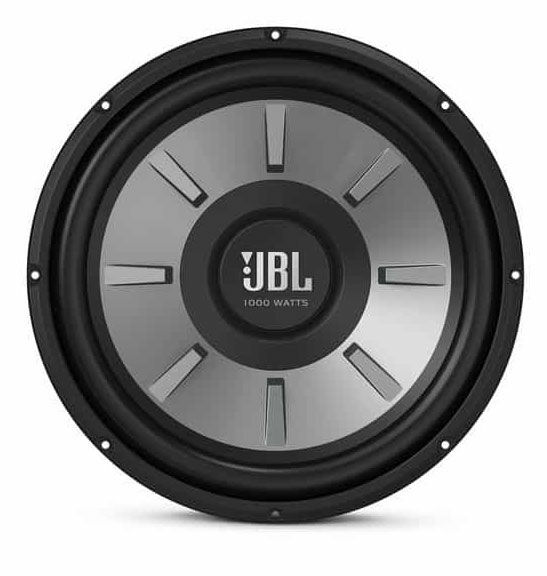

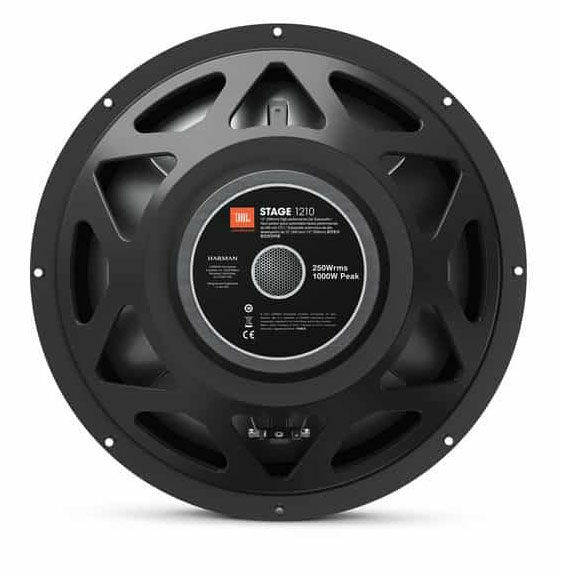

JBL Stage 1210

1000W Max (250W RMS) 12" Stage Series Single 4 ohm Car Subwoofer
Quantity: 1

General Features:

  • 12" 4 ohm Stage Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 250 watts
  • Polypropylene cone
  • Rubber surround
  • Competitively tuned
  • Regular prong-style terminals
  • 2" Voice coil
  • Recomended Sealed Box Volume: 1.41ft3
  • Recomended Ported Box Volume: 1.61ft3
  • Top-mount depth: 5-13/16"
  • Cutout diameter: 11-1/16"
  • Frequency Response: 34 - 200Hz
  • Sensitivity: 91dB
  • Resonance Frequency (Fs): 31.7
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually



PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

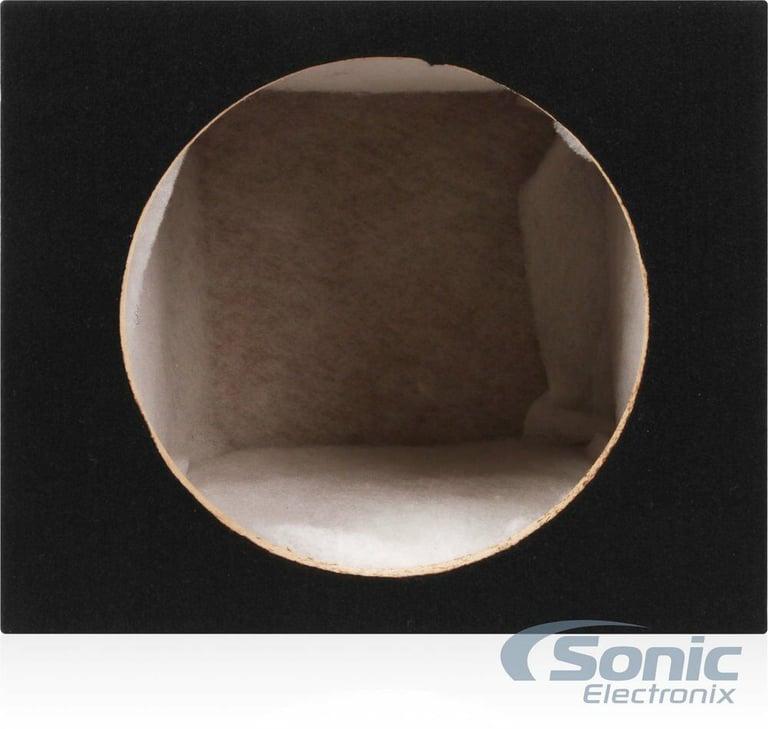

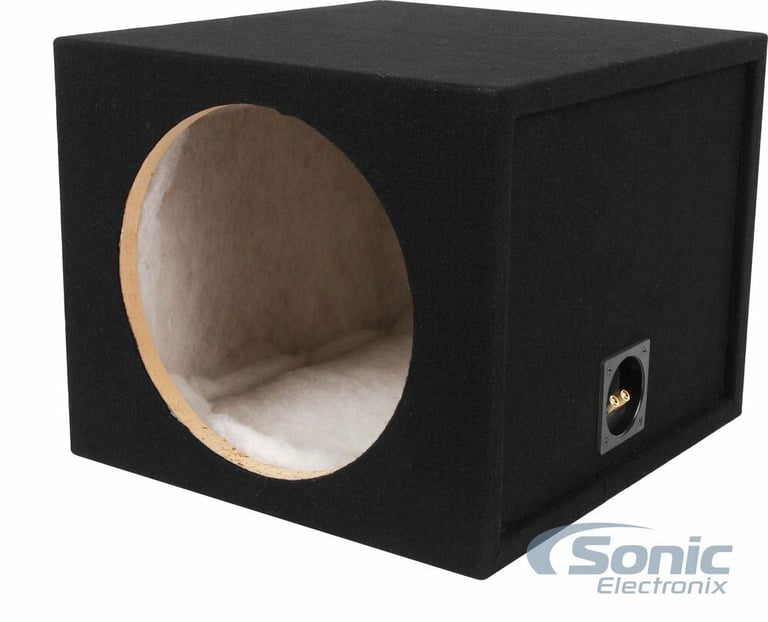

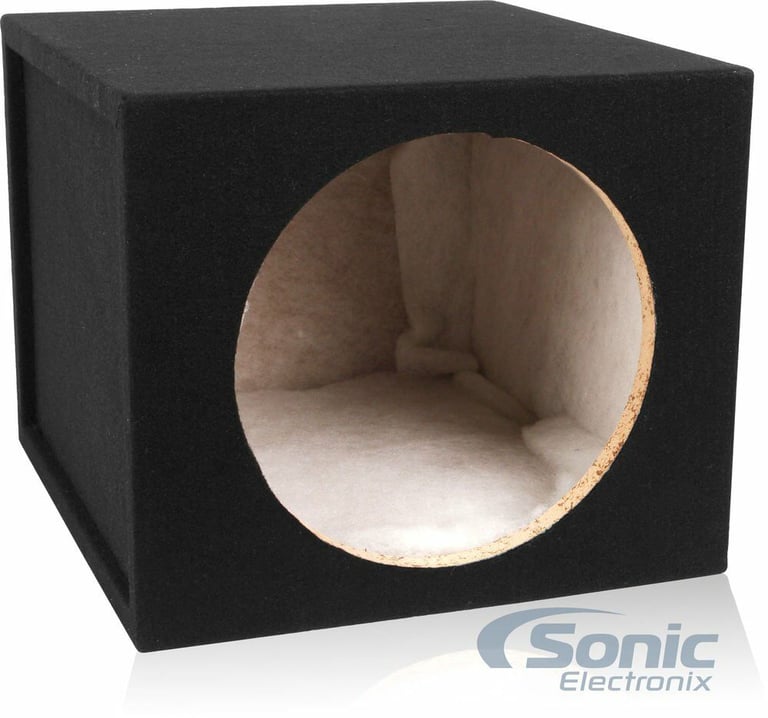

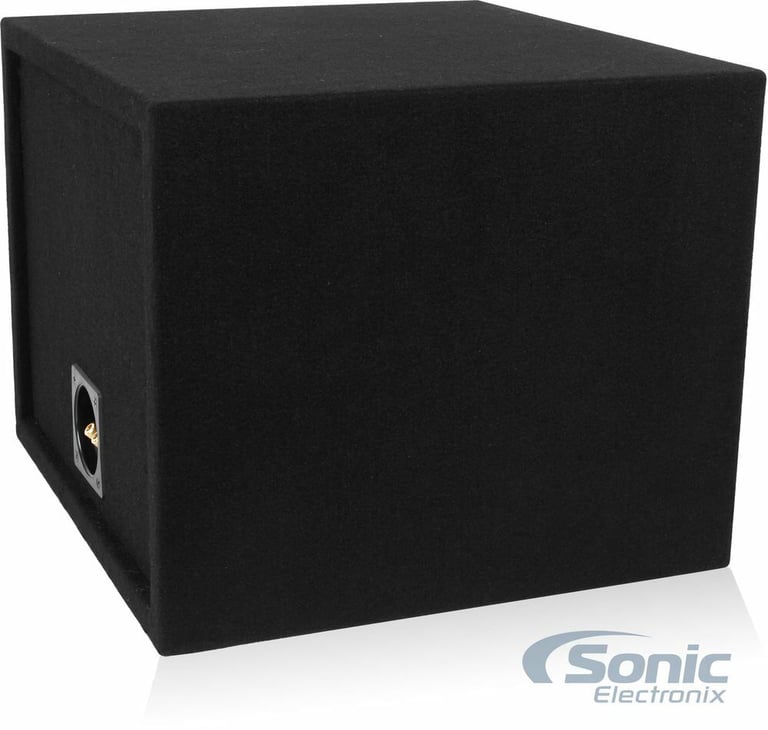

1.5 Cu Ft - Single 12" Sealed MDF Subwoofer Enclosure (Belva MDFS1215)

12-inch Sealed Car Sub Box Made with 3/4" MDF and lined w/ Polyfil (1.5 cu ft airspace)
Quantity: 1

General Features:

  • Single Sealed 12" Enclosure
  • Internal box volume: 1.5 cubic ft
  • High Quality 3/4" MDF Construction
  • Durable black carpeting
  • Pre-lined with Poly-Fil
  • Seams are fully caulked for better efficiency

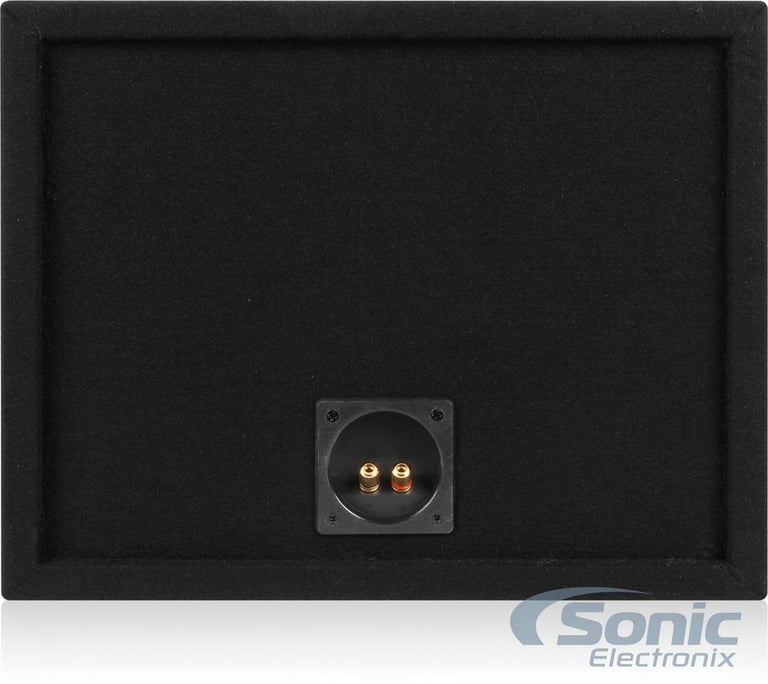

  • Gold post terminals for clean and easy wiring access
  • Box Dimensions: 16"L x 17"D x 13-1/2"H
  • 30 Day return policy

Belva BAK42BK

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - GRAY
Quantity: 1

Product Details:

  • Complete 4 Gauge 2-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Also available in Blue and Red
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

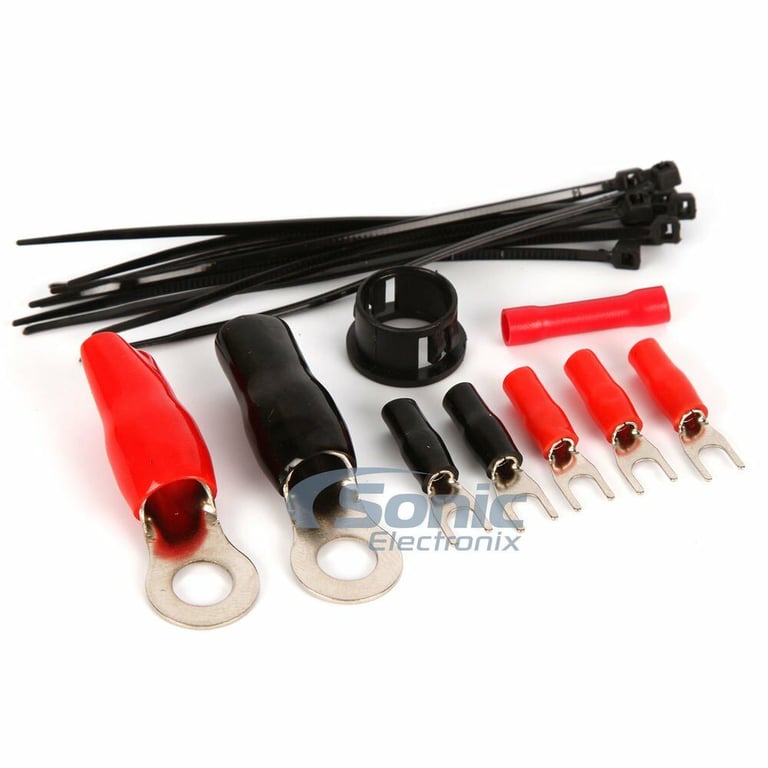

Kit includes:

  1. 17 ft. (5.2 meters) Gray 4 gauge power wire

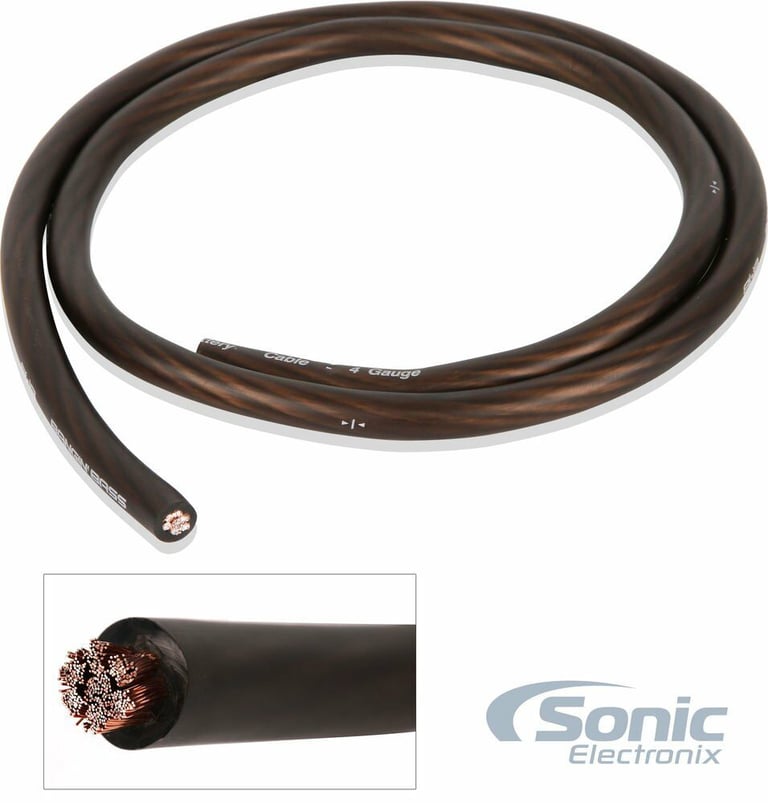

  2. 3 ft. (.91 meters) Black 4 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
  5. 20 ft. (6.1 meters) 16 Gauge Speaker cable

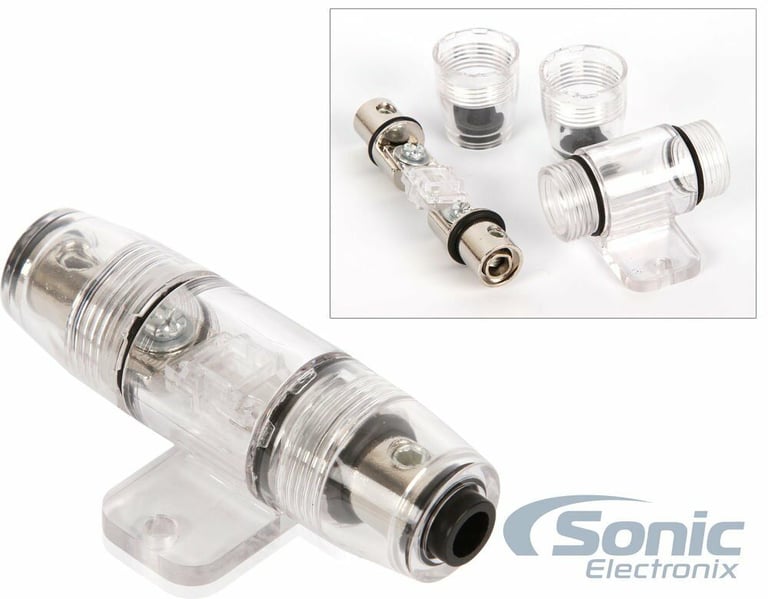

  6. One MINI-ANL Fuse Holder with a 80 amp fuse
  7. One Black rubber firewall grommet
  8. One 4 Gauge Blue chrome plated ring terminals
  9. One 4 Gauge Black chrome plated ring terminal
  10. Three 18 Gauge Blue Spade terminal
  11. Two 18 Gauge Black Spade terminal
  12. One 18 Gauge Red butt connector
  13. Ten 4" Black zip ties

Product history:

JVC KS-DR3001D, STAGE1210, MDFS1215, BAK42 thumbnail
(newest, current model)
JVC KS-AX3201D thumbnail
(previous model, replaced by JVC KS-DR3001D + JBL Stage1210 Subwoofer + Sealed Enclosure and Amp Kit)
JVC KSAX3101D thumbnail
(previous model, replaced by JVC KS-AX3201D)

Specifications & Details


Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
250 watts x 1 channel
RMS Power @ 2 ohms
400 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
4 AWG
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 200 Hz
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
40A x 1
CEA-2031 Compliant
No
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

KS-DR3001D, STAGE1210, MDFS1215, BAK42

Weight:

41.85lbs

Internal SKU:

ksdr3001d_stage1210_mdfs121

Internal Product ID:

186699

Customer Ratings & Reviews



5 star
82%
4 star
13%
3 star
5%
2 star
0%
1 star
0%



Durability
4.8
Value
4.9
Features
4.6
Design
4.8
Usability
4.8

Customer Reviews

Sort by:

Loading...

Giveaway

The following review is for MDFS1215, which is a part of the bundle you are viewing.

At the price they are asking,($40 shipped), this is a no-brainer. You'd be very hard pressed to buy the MDF used in this enclosure for the price they are selling the complete box for. Its true 3/4", ( I laid a caliper to it to check), and its advertised dimensions and airspace are spot on.

By Joe on March 17, 2014

97

found this helpful.

A winner

The following review is for MDFS1215, which is a part of the bundle you are viewing.

This is just what the woofer doc ordered. The poly fill is already installed. The black carpet looks great. I'm installing a Rockford T-1 dual 4 ohm 12 in the box. I'm anxious to hear how this is gonna sound in my Mark VIII.

By Big O on September 1, 2014

92

found this helpful.

Great bass

The following review is for MDFS1215, which is a part of the bundle you are viewing.

Bought this for an old punch 2 I had sitting around that I put into my sons car. Previously it was in a small truck box for an s10. Couldn't believe the difference that this box made. The sub is getting 200 watts from the little fosgate amp that I had for it but it is twice as loud as it was in my truck with no distortion. Obviously I had it in way to small of a box before. I got one happy kid though.

By Bruce on January 10, 2015

87

found this helpful.

solid box

The following review is for MDFS1215, which is a part of the bundle you are viewing.

Solid box had one screw that didn't grab anything must of hit a soft spot in the wood other then that solid box

By Davy on March 31, 2014

87

found this helpful.

Good box!

The following review is for MDFS1215, which is a part of the bundle you are viewing.

For a pre built box it does the job very well! The poly fill is useless if you need a bigger box just order a bigger box... No leaks what so ever. I did replace it for a custom built ported box.

By john on December 28, 2014

84

found this helpful.

Great price

The following review is for MDFS1215, which is a part of the bundle you are viewing.

I'm running a rockford fosgate p2 in it. This box has held up great. i can hear a very small leak but only when I was checking for leaks. Otherwise it was inaudible from even a few feet away. Being 100% sealed is very crucial considering it is a sealed box. But overall id say that this is a great box. Cant beat the price. Nothing a little silicon cant fix.

By Derek on August 29, 2013

84

found this helpful.

Exactly what I needed.

The following review is for MDFS1215, which is a part of the bundle you are viewing.

I purchased this box to house an Alpine type E sub. I had originally intended on building my own box, but after looking around at the prices of MDF, I found this box, I literally couldn't purchase the materials cheaper than buying this. It's sturdy, and is a perfect match for my sub. I am extremely pleased with my purchase, and would recommend it to anyone looking for a very well built, sealed, enclosure.

By Joshua on February 26, 2015

83

found this helpful.

Quality Product

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Works very well with my Rockford Fosgate sub system in my car.

By Ronald on December 11, 2014

81

found this helpful.

SEALED ENCLOSURE

The following review is for MDFS1215, which is a part of the bundle you are viewing.

Yes its a prefab box, it is constructed very well with .75" MDF. Solid no leaks.Carpet well done.Looks nice. Just match the air space you want for your sub and your done. I could not build this for the price i paid, so its a no brainer for me. If i was looking for ported or vented i would build one myself because of propper tunning. Just wanted something simple and this exceeded my expectations.

By Charles on May 8, 2014

84

found this helpful.

good deal!

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Pretty decent value for the price. Worked out great, thanks.

By Brett on January 29, 2015

78

found this helpful.
