Product videos

Product highlights

Monoblock Class D Car Amplifier • MOS-FET Power Supply • 800 Watts Max Power Output &bull 250W RMS @ 4 ohm x 1 Channel • 400W RMS @ 2 ohm x 1 Channel • Variable Low-Pass Filter • High and Low-Level Inputs • CEA-2006 Compliant

Learn more about the ksax3101d

NVX - Worth the Envy - Direct to Consumer Car Audio

Other Ford Taurus owners bought

Product Highlights

Description

Authorized dealer

JVC DRVN Power

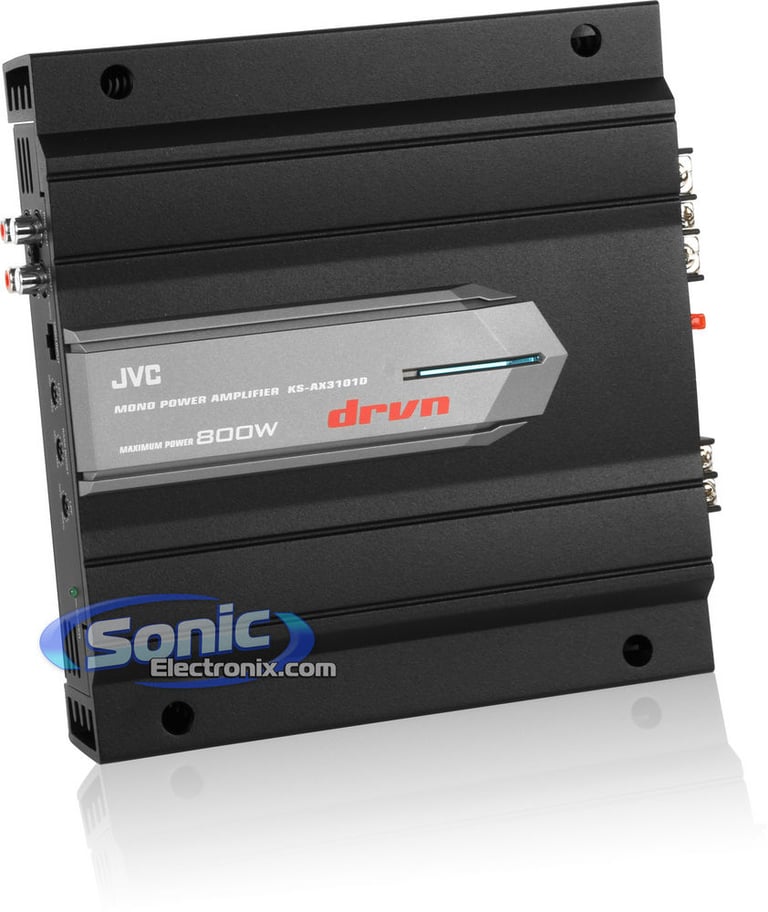

JVC's KS-AX3101D monoblock amplifier is perfectly matched to work with a single JVC CSG1200 or JVC CSGD1200 subwoofer by providing adequate power to each corresponding subwoofer. The amplifier is rated at 250 watts RMS x 1 channel @ 4 ohms and 400 watts RMS x 1 channel @ 2 ohms. It features a sleek and simple look with a smaller chassis design making it the perfect amplifier for any vehicle size or interior. With both high-level speaker inputs and low-level RCA inputs the KS-AX3101D is extremely versatile and able to be installed into any car audio system, be it aftermarket or factory. The DRVN amplifier not only features clean and constant power output but also offers protection. The amplifier features a 4-way protection circuitry and heavy duty aluminum alloy heatsink, allowing the amplifier to play longer without the worry of causing damage at higher temperature levels. This DRVN series amplifier is built with a simple goal in mind, to provide efficient power any time, anywhere. When looking for quality and affordability the DRVN series amplifier is the way to go.

DRVN Series Monoblock Class D Car Amplifier
RMS Power Rating:
- 4 ohm: 250 watts x 1 chan.
- 2 ohm: 400 watts x 1 chan.
Max power output: 800 watts x 1 chan.
Pulse Width Modulated MOSFET power supply
LED power (green) indicator
Variable Bass Boost (0 to +18 dB bass boost at 45 Hz)
Soft Start Turn-on
Mono channel operation

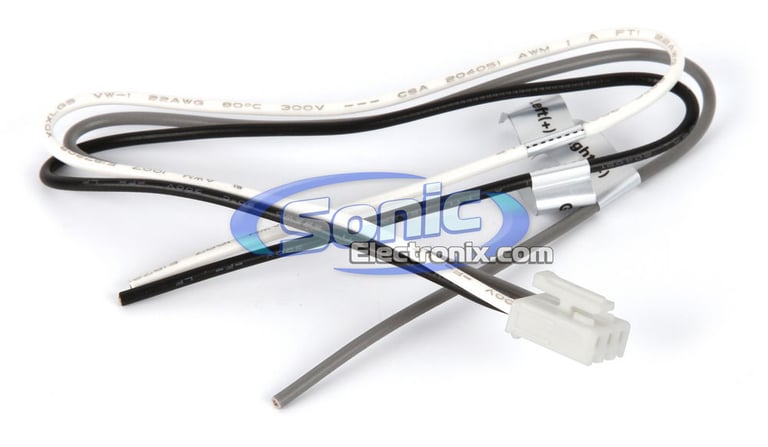

Speaker-level (high-level) inputs with signal sensing for automatic turn-on
Preamp RCA outputs to daisy chain multiple amps
Anti-pop circuit
4-Way System Protection circuitry (thermal, overload, DC offset, and speaker short protection)
Heavy duty aluminum alloy heatsink for extreme heat dissipation

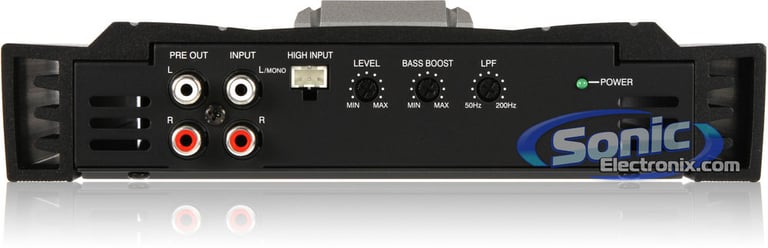

Nickel-plated RCA level inputs
Nickel-plated screw terminals
Input sensitivity:
- Low level: 300V-6V
- High level: 1.2V-12V
Variable low-pass filter (50-200 Hz, 18 dB/octave)
CEA-2006 compliant amplifier
Frequency response: 20-200 Hz
Dimensions: 8-3/8"L x 8-3/4"W x 2-1/16"H
8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website (SonicElectronix.com) when purchased together with this amplifier.
1-year Manufacturer's warranty

Product history:

	JVC KS-DR3001D (newest, current model)
	JVC KS-AX3201D (previous model, replaced by JVC KS-DR3001D)
	JVC KS-AX3101D (previous model, replaced by JVC KS-AX3201D)
