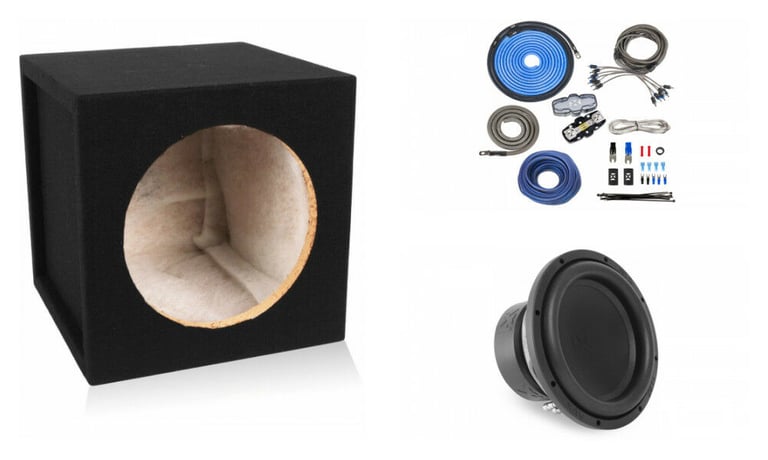

Infinity Reference 7005A (AMPRF7005AAM) + NVX 10" VSW104v2 + Enclosure

Product Details:

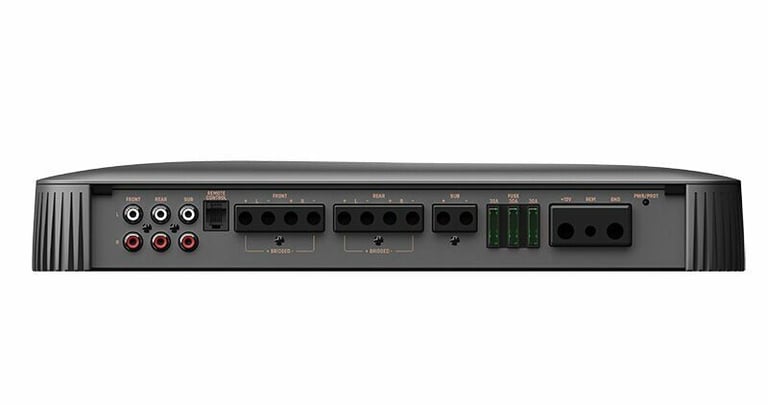

• Reference Series Class AB / D 2 ohm Stable 5-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 50 watts x 4 channel + 320 watts x 1 channel
• 2 ohm: 65 watts x 4 channel + 500 watts x 1 channel
• Bridged: 140 watts x 2 channel @ 4 ohm + 500 watts x 1 channel @ 2 ohm
• Total power output: 760 watts
• LED Power/Protect Light
• RBC wired bass level remote control included
• Speaker-level (high-level) inputs
• High and low level input
• Compact size/small footprint
• Variable crossover and bass boost allows fine-tuning
• Low noise and distortion produce tight bass with low distortion at high SPL
• Input Level Control adjusts input sensitivity between 200mVrms and 2Vrms
• Full on-board protection protect from shorts, temperature, overvoltage/under voltage
• Phase Switch function changes input phase to invented or non invented
• Turn-on mode changes DC to REM to adapt to high or low level signals
• Input sensitivity:
• Low level: 200mV - 2 volts
• High level: 2 - 20 volts
• Frequency Response: 10 - 40000 Hz
• Total Harmonic Distortion (THD): 1%
• Signal to Noise Ratio: >80 dB
• Variable high-pass filter: 32 - 320 Hz
• Variable low-pass filter: 32 - 320 Hz
• Variable Bass Boost: 0 - 12 dB
• Fuse Rating: 90A
• 4 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 14-3/16" L x 7-1/8" W x 2-3/16" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: AMPRF7005A

Product Details:

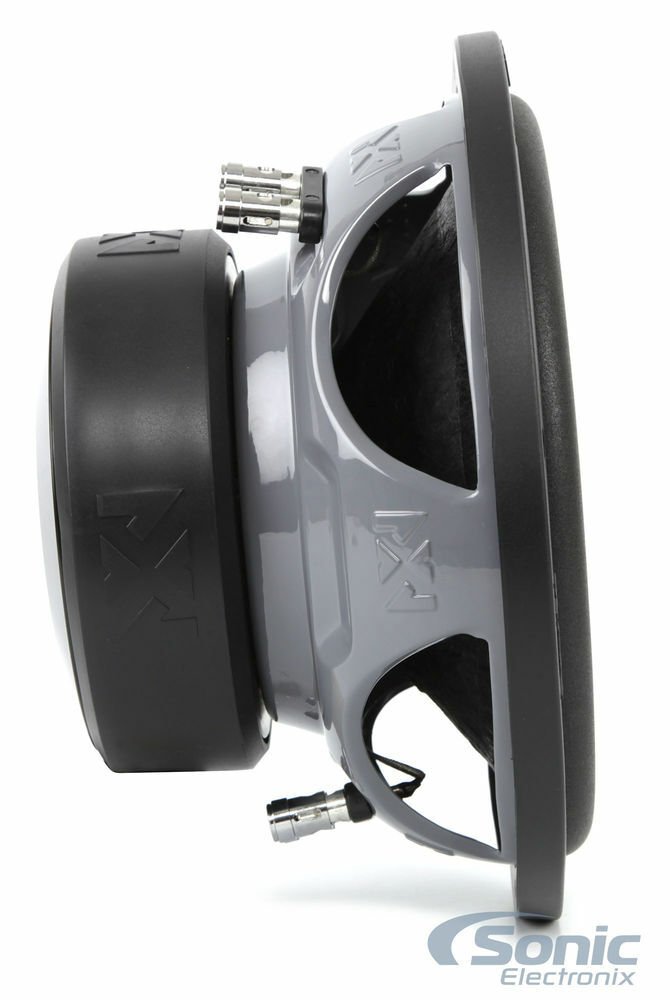

• 10" Dual 4 ohm VS Series Subwoofer
• Power Handling:
• Peak: 1200 watts
• RMS: 600 watts
• 13.5 mm Xmax
• Enhanced Pressed Paper Cone
• High-Roll Foam Surround with Black Nylon Stitching
• Stamped Steel Vented Basket with NVX Punched Logo
• 2.5" High Temperature Copper Voice coil with Aluminum Former
• Progressive Roll Single-layer Spider with Integrated Tinsel Leads
• Optimized High-Velocity Pole Vent
• 107 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
• Frequency Response: 20 - 200 Hz
• Resonance Frequency (Fs): 32.61 Hz
• Sensitivity: 85 dB
• Recommended sealed box volume: 0.5 cubic feet
• Recommended ported box volume: 1.25 cubic feet
• Top-mount depth: 5.80"
• Cutout diameter: 9.01"
• CTA-2031 Compliant
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty



Priced Individually

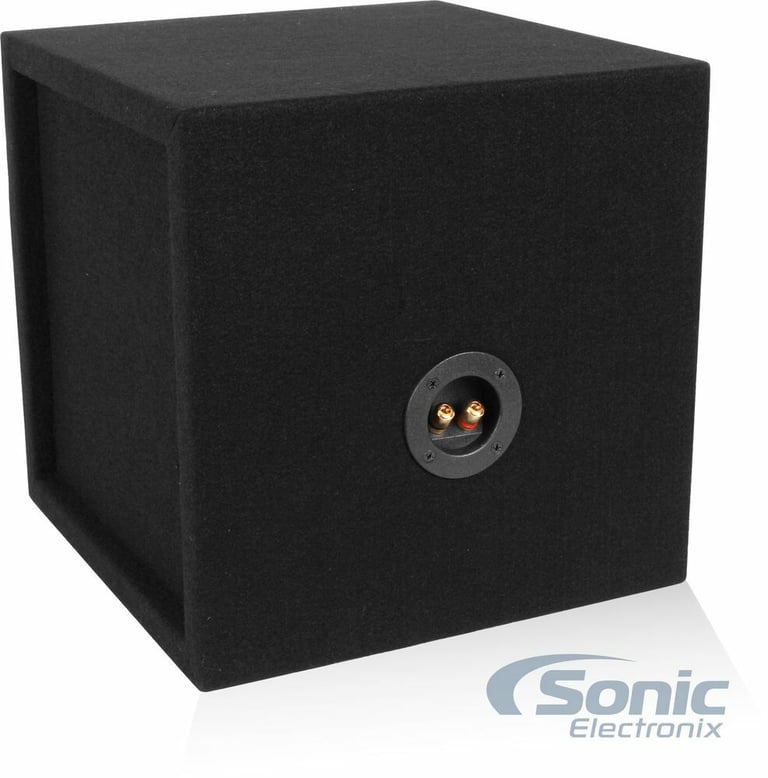

General Features:

• Single Sealed 10" Enclosure
• Internal box volume: 0.77 cubic ft
• High Quality 3/4" MDF Construction
• Durable black carpeting
• Pre-lined with Poly-Fil
• Seams are fully caulked for better efficiency
• Gold post terminals for clean and easy wiring access
• Box Dimensions: 12-1/2"L x 12-1/2"D x 12-1/2"H
• 30 Day return policy

Product Details:

• 4 Gauge 5/6-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 1500 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant
• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal

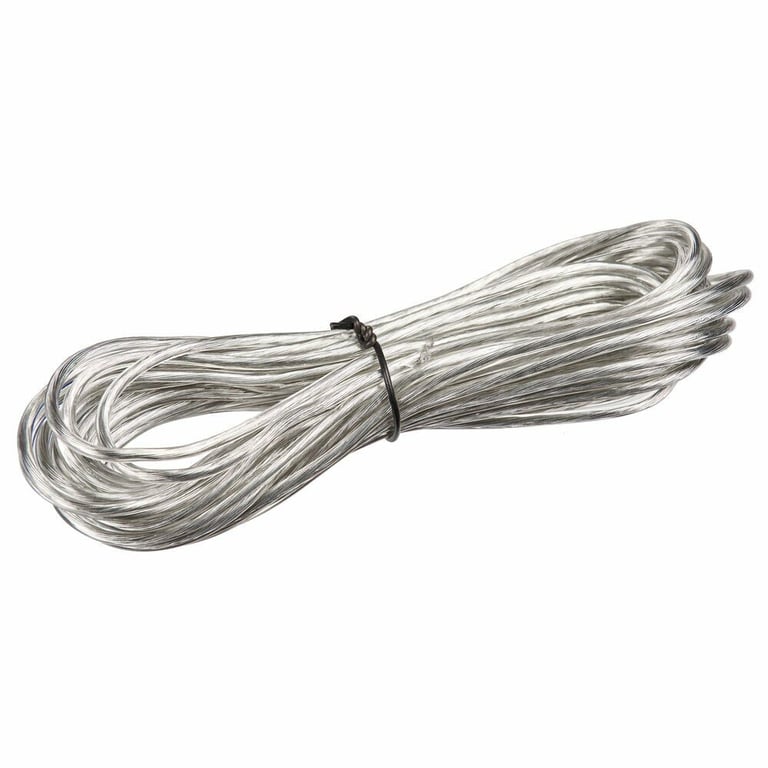

3. 17 ft. Clear 18 gauge remote lead wire
4. 60 ft. Frosted Black/Blue 16 gauge speaker wire
5. One 16.4 ft. 4-channel dual twisted construction RCA interconnect Cable (NVX XIV45)
6. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
7. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
8. One Black rubber firewall grommet
9. Two 4 Gauge Nickel Plated spade terminals
10. Four 18 Gauge Spade terminal
11. Two 18 Gauge Red butt connectors
12. Four 16 Gauge quick disconnect
13. Five 16 Gauge Nickel Plated spade terminals
14. Two Heat Shrink tubes with the NVX logo
15. Ten 6" Black zip ties
