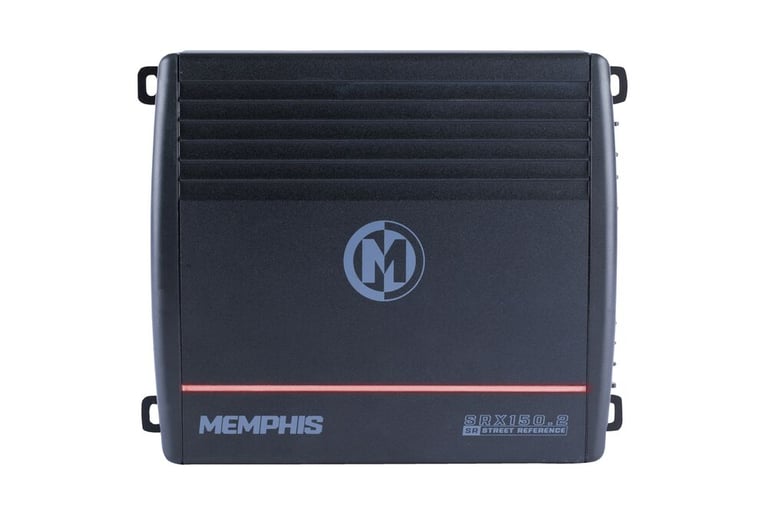

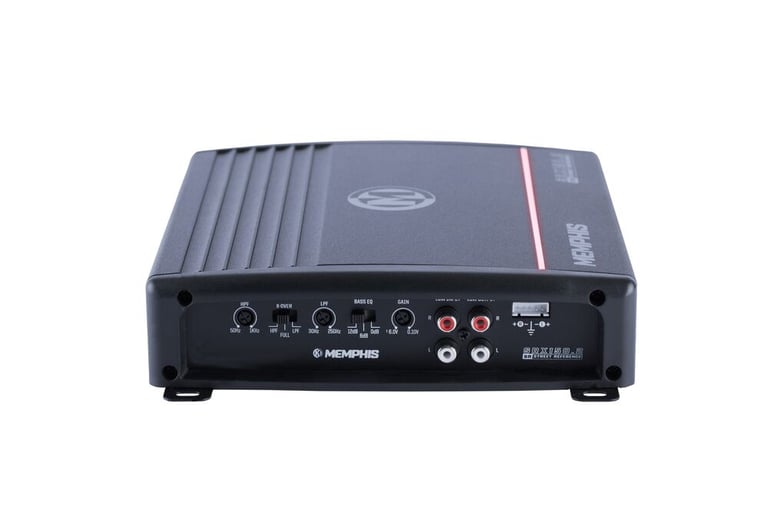

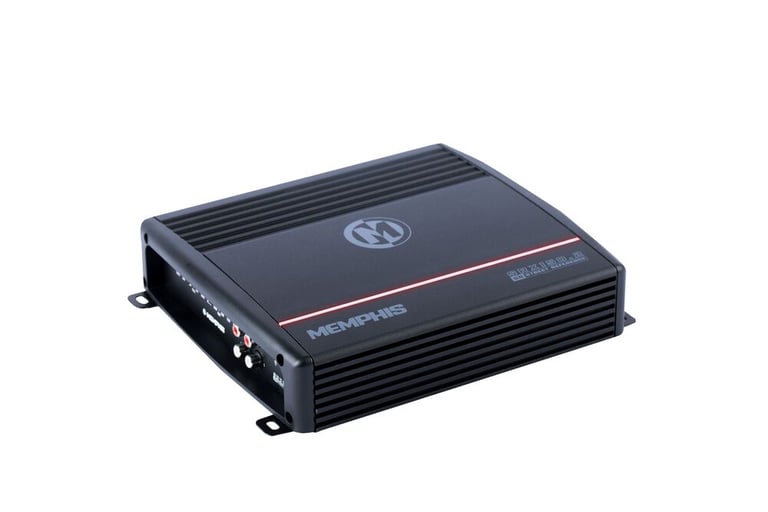

Memphis SRX150.2

150W RMS SRX Series 2-Channel Amplifiers

Memphis
Shop all Memphis
highlight-star-icon

• 50 watts x 2 channel @ 4 Ohms
• 75 watts x 2 channel @ 2 Ohms
• Bridged: 150 watts x 1 channel @ 4 Ohms
• Total RMS Power: 150 watts
• 2 ohms Stable 2-Channel Amplifier

Learn more about the srx1502

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

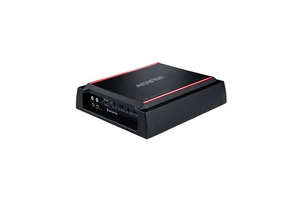

srx1502v thumbnail

Memphis SRX150.2V

OUR PRICE: $149.95

View item

Description

Memphis

Authorized dealer

Product Details:

  • Memphis SRX Series Class 2 ohms Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 Ohms: 50 watts x 2 channel
    • 2 Ohms: 75 watts x 2 channel
    • Bridged, 4 Ohms: 150 watts x 1 channel
  • Total power output: 150 watts
  • Pulse Width Modulated MOSFET power supply
  • LED Power/Protect Light
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 100mV - 6 volts
    • High level: 400mV - 12 volts
  • Frequency Response: 20 - 20,000 Hz
  • Total Harmonic Distortion (THD): <.5%
  • Signal to Noise Ratio: >90 dB
  • Variable high-pass filter: 50 - 1,000 Hz, 24 dB/octave
  • Variable low-pass filter: 30 - 250 Hz, 24 dB/octave
  • Variable Bass Boost: 0 - 12 dB bass boost at 50 Hz
  • Fuse Rating: 20A
  • 8 AWG Gauge power and ground wiring is recommended for installation.
  • Dimensions: 9.05" W x 8.07" L x 2" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Memphis SRX150.2V thumbnail
(newest, current model)
Memphis SRX150.2 thumbnail
(previous model, replaced by Memphis SRX150.2V)

Specifications & Details

Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 2 channel
RMS Power @ 2 ohms
75 watts x 2 channel
Bridged RMS Power
150 watts x 1 channel
Amplifier Specifications
Series
Marine Certified
No
Amplifier Class
Number of Channels
2
Total RMS Power Output
150 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Frequency Response
20 - 20,000 Hz
THD at Rated RMS Power
<.5%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 1,000 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
>90 dB
Channel Separation
>50 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fan Cooled
No
Total Fuse Rating
20A
Strappable
No
CEA-2031 Compliant
No
Sonic Certified Amplifier
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
100mV - 6 volts
High-Level Input Sensitivity
400mV - 12 volts
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Mounting Brackets
Mounting screws (4)
High-level input wiring harness w/ molex connector
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Memphis

Model Number:

SRX150.2

Weight:

4.70lbs

Internal SKU:

srx1502

Internal Product ID:

187131
