Planet Audio BB4.1200 + NVX XFLOC4 Line-Output-converter + Amp Kit

1200W Max 2-ohm Stable 4-Channel Class-D Amplifier + NVX 4-Channel L.O.C + 4 Gauge Amp kit

highlight-star-icon

• 113 Watts RMS x 4 @ 4 ohm
• 225 Watts RMS x 4 @ 2 ohm
• Total Peak Power: 1200 Watts
• CEA-2006 Compliant
• 0 to 18dB Bass Boost
• Black Anodized Heat Sink

Learn more about the bb41200_xfloc4_bak44

We apologize

This item has been discontinued


Loading...
72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

BTS-HN1 main

Crux BTS-HN1

Add Bluetooth Streaming, USB, and AUX Support in select 1998-2005 vehicles from Honda

-38.01%

$92.95

List price $149.95

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

115
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

FRING65 main

NVX FRING65

Universal 6.5" or 6.75" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

43
-10.01%

$17.99

List price $19.99

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
PRO-X6.4BMPK main

DS18 PRO-X6.4BMPK

1000W Peak (500W RMS) 6.5” PRO-X Series 4-ohm Pro Audio Component Speakers Set

4
GTO629 main

JBL GTO629

360W Peak (120W RMS) 6.5" GTO Series 2-Way Full Range Coaxial 3-ohm Car Speakers

35
-34.45%

$117.99

List price $180.00

Description


Planet Audio brand icon

Authorized dealer

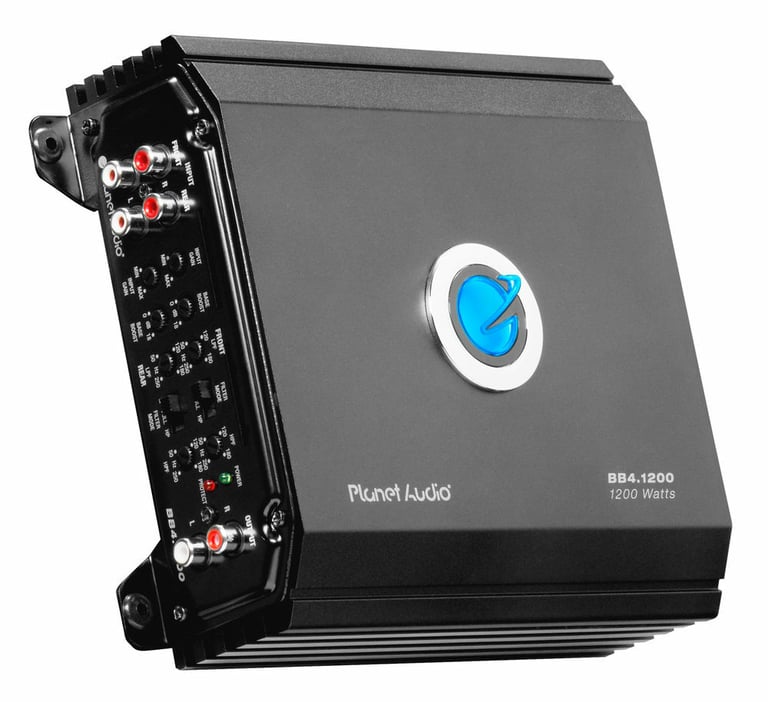

Planet Audio BB4.1200

1200W Max (450W RMS) 2-ohm Stable 4-Channel Class-D Amplifier w/ Remote Level Control
Quantity: 1

General Features:

  • Planet Audio BB4.1200
  • Class-D Full Range 4-Ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 113 watts x 4 chan.
    • 2 ohm: 225 watts x 4 chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohm: 450 watts x 2 chan.
  • Total power output: 1200 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply

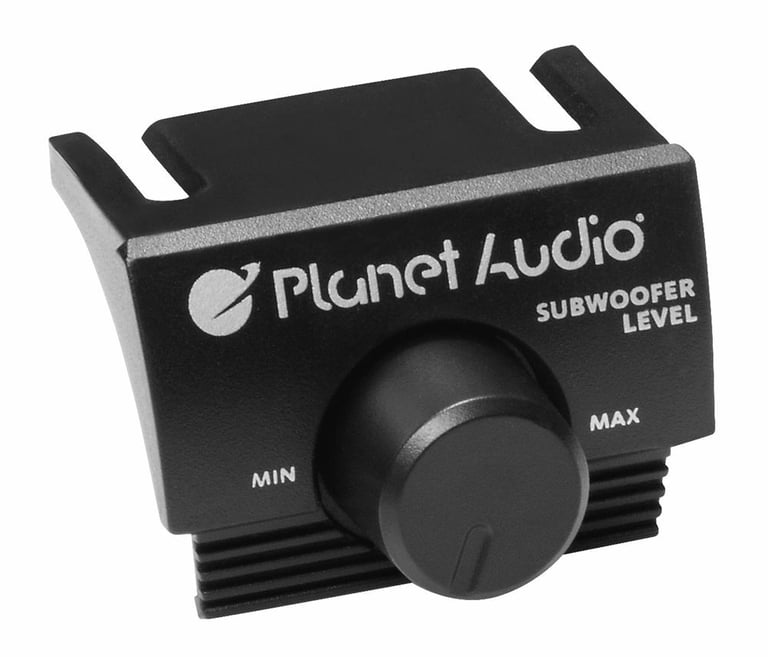

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 4/3/2 or Mono channel operation
  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Frequency Response: 20 - 20,000 Hz
  • Total Harmonic Distortion (THD): 0.04%
  • Signal to Noise Ratio: 90 dB
  • Variable high-pass filter: 50 - 250 Hz, 24 dB/octave
  • Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
  • Variable Bass Boost: 0 to +18 dB bass boost at 50 Hz
  • Fuse Rating: 25 A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 6.9"W x 8.78"L x 2.7"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the Planet Audio BB4.1200 Owner's Manual

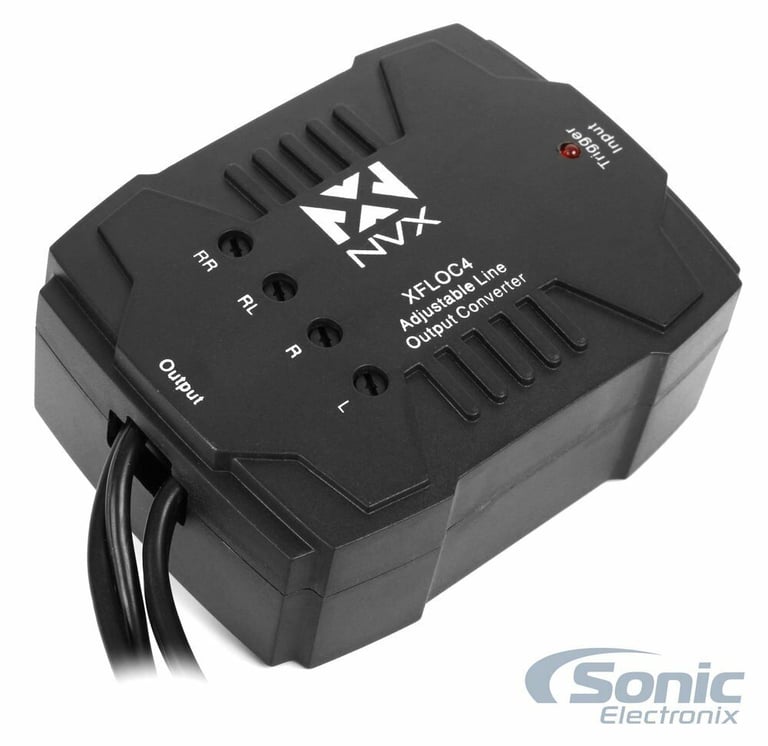

NVX XFLOC4

4-Channel 160W Adjustable Line Output Converter with Remote Turn On
Quantity: 1

Product Features:

  • 4-channel Premium adjustable line output converter
  • Digital Noise Filter + Line Driver
  • 3:1 Step Down With Adjustable Output
  • DC Amplifier Turn On Trigger
  • 160w Maximum Input Total (40w Per Channel)
  • Super Low Distortion
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Belva BAK44BL

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - BLUE
Quantity: 1

Product Details:

  • 4 Gauge 4-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)

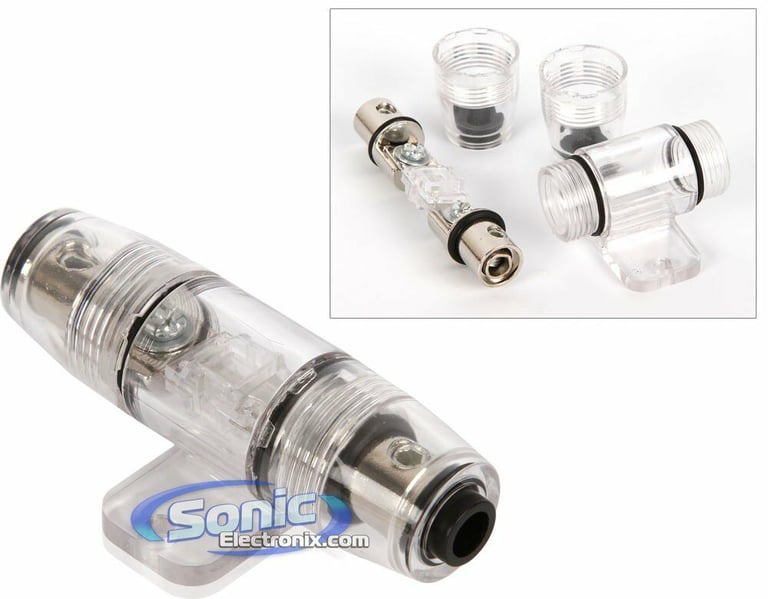

  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards

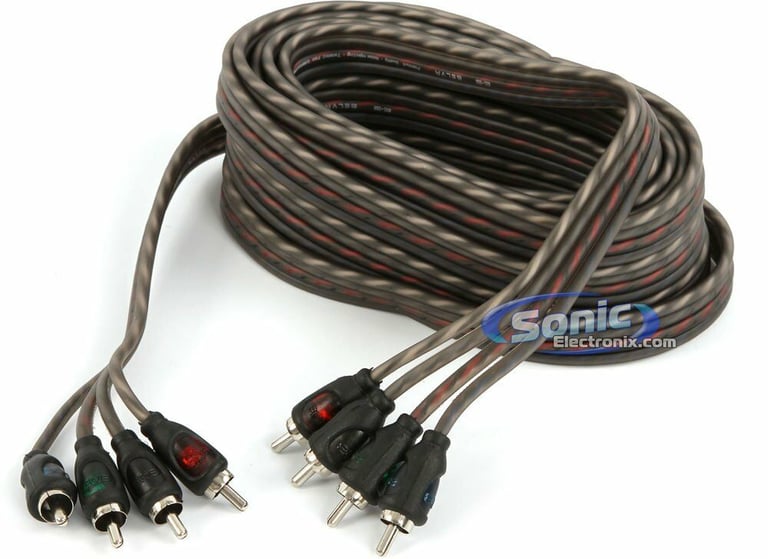

  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

  1. 17 ft. Blue 4 gauge power wire
  2. 3 ft. Black 4 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire
  4. 40 ft. 16 gauge speaker wire
  5. One 17 ft. 4-channel twisted-par construction RCA interconnect Cable
  6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

T2652-S main

Rockford Fosgate Power T2 T2652-S

400W Peak (200W RMS) 6.5" Power Series 2 Way Component 4-ohm Speaker System

42

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
113 watts x 4 channel
RMS Power @ 2 ohms
225 watts x 4 channel
Bridged RMS Power
450 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
1200 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
25A x 2
Total Fuse Rating
50
CEA-2031 Compliant
Yes
Sonic Certified Amplifier
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BB4.1200, XFLOC4, BAK44

Weight:

8.68lbs

Internal SKU:

bb41200_xfloc4_bak44

Internal Product ID:

187759

Customer Ratings & Reviews


Planet Audio BB4.1200 + NVX XFLOC4 Line-Output-converter + Amp Kit thumbnail image

5 star
83%
4 star
5%
3 star
7%
2 star
0%
1 star
5%



Durability
4.6
Value
4.6
Features
4.6
Design
4.7
Usability
4.6

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Solved that static alternator whine issue

The following review is for XFLOC4, which is a part of the bundle you are viewing.

My brand new car's factory sound system sounded terrible so I decided to upgrade it. I had to keep my factory radio because the car's functions depend on the screen/radio of the car. I installed a JL audio 300/4v2 along with Focal components and after I was done installing everything, there was a tremendously loud static noise coming from the speakers, even with the volume all the way down. When I would rev up the engine, it would make a whistling, whining noise from the alternator. I spent 2 days trouble shooting the problem. Separating wires, re-grounding, running new wires, adjusting gains, etc. and none of that worked. I saw this LOC from NVX and decided to give it a try since it claimed to have a digital noise filter feature. Man, as soon as I installed I was blown away. That annoying noise was GONE! The music sounds crystal clear now. I purchased that particular set up because I wanted an SQ sound system and now it delivers that very clean music with absolutely NO distorting noise. I was stressed out for 2 days wondering how to fix it. If you are in the same situation, buy this LOC. It will end your problems with all that unwanted noise. Forget those "solutions" people talk about all over the internet about re-grounding, ground isolation, and all that junk. This LOC solved it for me. It was so easy to install, it has adjustable gains, and feels very sturdy. Even if you turn the gains all the way up on the LOC, you will still hear no unwanted noise.

By Jay on May 10, 2014

94 found this helpful


Excellent product

The following review is for XFLOC4, which is a part of the bundle you are viewing.

Easy to install in factory stereo. Great product. No noise at all. High fidelity sound.

By Santiago on August 25, 2014

87 found this helpful


perfect!

The following review is for XFLOC4, which is a part of the bundle you are viewing.

No unwanted noise, soft turn on and off, cant even tell its there. It does its job seemlessly in my 09 Jeep Grand cherokee with boston acoustics system. I wanted full range sound out of the door speakers so I pulled off the output from the factory amp of the dash speakers and rear speakers. All speakers are now full range and amplified with a kicker ZX350.4. I can keep the gain super low on the amp and cross over the speakers to keep the bass out with the amp controls. This LOC made all that possible to use the kicker amp with NO NOISE.

By Brandore on October 30, 2013

84 found this helpful


Good Converter

The following review is for XFLOC4, which is a part of the bundle you are viewing.

I bought this to replace another one that I bought that had terrible noise and poor quality. This one however is great and works as you would expect. Spend the extra couple of bucks and get this one

By Greg on February 11, 2013

86 found this helpful


bueno

The following review is for XFLOC4, which is a part of the bundle you are viewing.

Me gusto lo fácil que es instalar lo y los resultados son bienos

By Luis on September 17, 2013

83 found this helpful


NVX Output converter

The following review is for XFLOC4, which is a part of the bundle you are viewing.

This converter was easy to install plus it added power and more clarity to my speakers. It has a remote wire for my amp.

By J on January 20, 2015

81 found this helpful


Perfection! NVX is the best!

The following review is for XFLOC4, which is a part of the bundle you are viewing.

Durable, small, easy to use, fun, quality build and sound! Great LOC! No unwanted noise! Love the gain controls and remote turn on for an amplifier! Works wonderfully with my NVX JAD900.5 and my NVX 4 channel rcas! NVX is the only way to go! I just can't get enough of NVX! Thanks NVX and Sonic Electronix for all of your support!

By Eliseo on October 17, 2012

83 found this helpful


Seems legit

The following review is for BAK44BL, which is a part of the bundle you are viewing.

My first time using CCA wire. I was pleased to see the amount of copper in the power and ground wi hires. Quality fuse block. The RCA patch cords are awesome being bundled together. Made installation that much easier.

By Anonymous on November 14, 2018 Checkmark Icon Verified purchase

74 found this helpful


Worked great!

The following review is for XFLOC4, which is a part of the bundle you are viewing.

I installed this unit on my boat due to my radio had to pre amps.. Easy to wire although theres a bunch of wires. Works great for triggering your amp though! My radio put out 160W so I left all my channels on the unit turned down. Would highly recommend!

By Randy on September 12, 2013

81 found this helpful


Great value

The following review is for BAK44BL, which is a part of the bundle you are viewing.

No complaints nice price, work's extremely well. Glad I purchased it from Sonic Electronic..

By Frederick on August 28, 2018 Checkmark Icon Verified purchase

73 found this helpful



TS-W2502D2_REF1.800 small

3000W Pioneer + MB Quart Bass Bundle

Pioneer TS-W2502D2 Champion PRO Series Sub + MB Quart REF1.800 Monoblock Amplifier + 4 Gauge Amp Kit

(83)

$294.78

List price $854.96

AVH-X3600BHS small

Pioneer AVH-X3600BHS OPEN BOX COMPLETE

Built-in HD Radio In-Dash 6.1" Touchscreen DVD Receiver w/ App Mode, MirrorLink, and GPS Ready

$269.99

List price $479.99

DTX350P-WHITE small

*** WAS $70 *** Beyerdynamic DTX 350 P - WHITE On-Ear Closed-Back Headphones

On-Ear Closed-Back Headphones

(6)

$39.99

List price $139.00

P400-2-RB_KFC-W2512 small

1200W Complete Rockford Fosgate + Kenwood Bass Package

Rockford Fosgate P400-2 Amplifier + Kenwood KFC-W3012 Sub + 8 Gauge Amp Kit + 12" Sealed Box

(125)

$248.00

List price $599.96

D2GN small

D2GN Lime Green iPad Protection Case/Cover for Current/New iPad Generation 4, Generation 3 and iPad 2

Wake/Sleep Smart Cover Function and Cutout for Apple Logo. Works with Current New iPad Generation 4, Generation 3 and iPad 2

$4.99

List price $19.99

XR653-CS small

JL Audio XR653-CS ( XR653-CSi )

XR-Series 6-1/2" + 4", 3-way Component System

(3)

$339.99

List price $599.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2001 Honda S2000

2016 Audi A3

2004 Oldsmobile Silhouette

2009 Cadillac STS

2002 Ford Explorer

2008 Nissan Versa

2018 Dodge Journey

2015 Kia K900

2007 Subaru Outback

2012 Smart Fortwo

Vehicle
Store
Delete

2004 Harley Davidson FXSTSI Springer Softail

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
