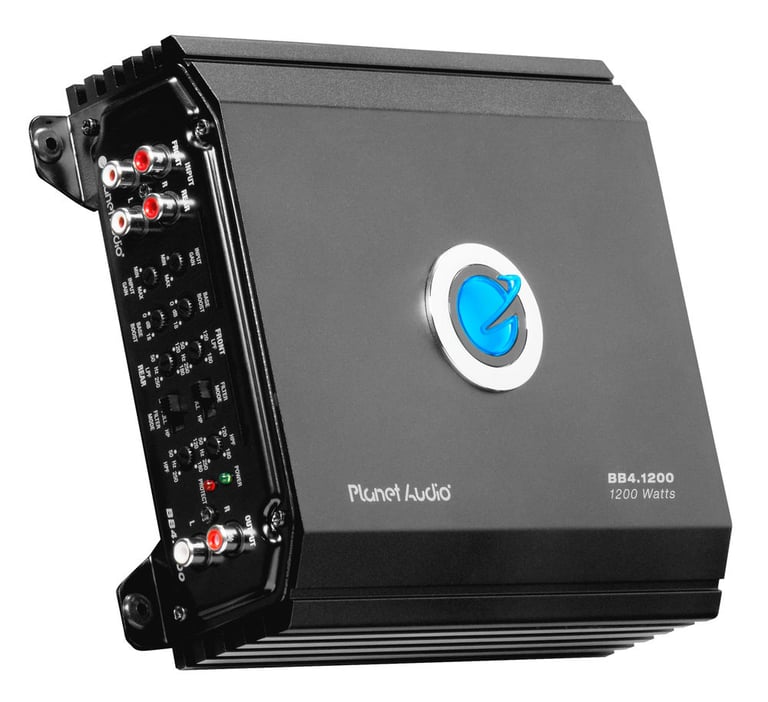

Planet Audio BB4.1200

1200W Max (450W RMS) 2-ohm Stable 4-Channel Class-D Amplifier w/ Remote Level Control

1
Planet Audio
Shop all Planet Audio
highlight-star-icon

• 113 Watts RMS x 4 @ 4 ohms
• 225 Watts RMS x 4 @ 2 ohms
• Total Peak Power: 1200 Watts
• CEA-2006 Compliant
• 0 to 18dB Bass Boost
• Black Anodized Heat Sink

Learn more about the bb41200

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Description

Planet Audio

Authorized dealer

General Features:

  • Planet Audio BB4.1200
  • Class-D Full Range 4-Ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 113 watts x 4 chan.
    • 2 ohms: 225 watts x 4 chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohms: 450 watts x 2 chan.
  • Total power output: 1200 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply

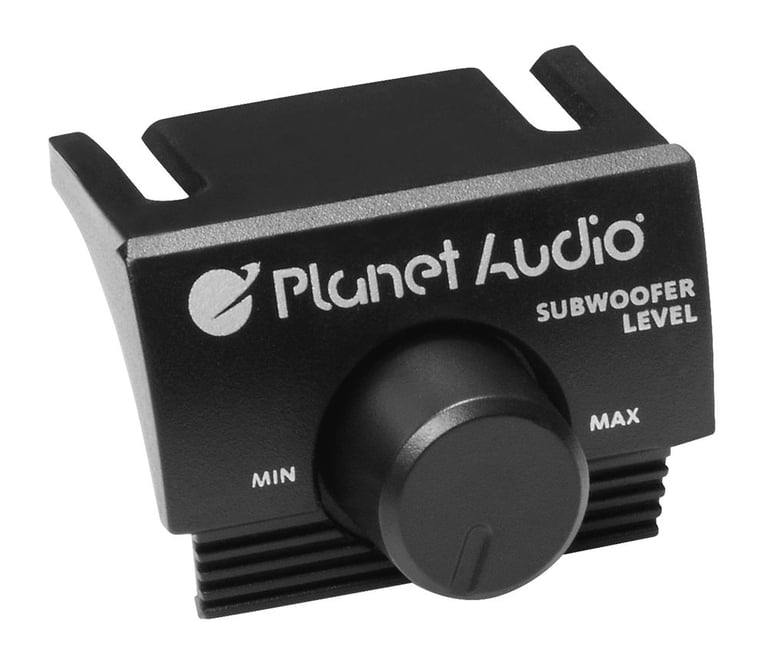

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 4/3/2 or Mono channel operation
  • Speaker-level (high-level) inputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

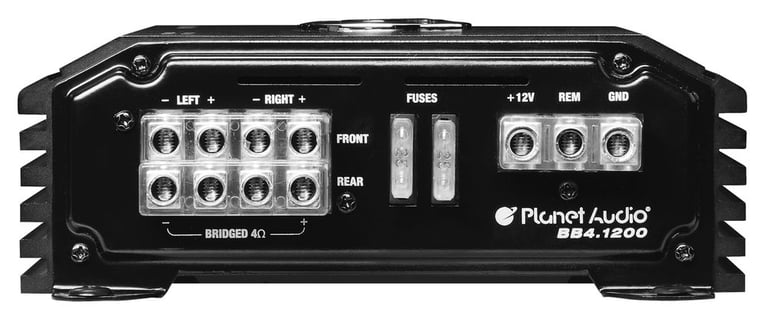

  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Frequency Response: 20 - 20,000 Hz
  • Total Harmonic Distortion (THD): 0.04%
  • Signal to Noise Ratio: 90 dB

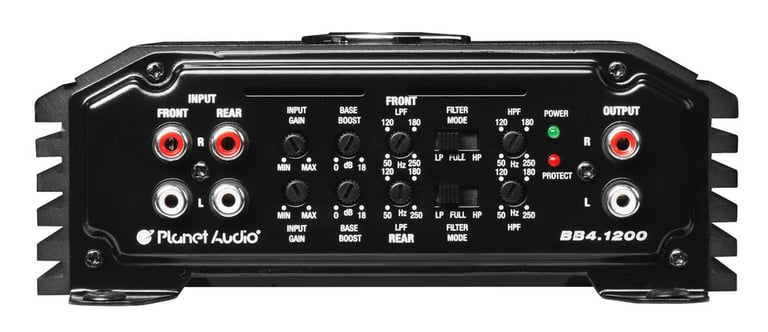

  • Variable high-pass filter: 50 - 250 Hz, 24 dB/octave
  • Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
  • Variable Bass Boost: 0 to +18 dB bass boost at 50 Hz
  • Fuse Rating: 25 A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 6.9"W x 8.78"L x 2.7"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Check out the Planet Audio BB4.1200 Owner's Manual

Specifications & Details

Power Specifications - Full Range Channels
RMS Power @ 4 ohms
113 watts x 4 channel
RMS Power @ 2 ohms
225 watts x 4 channel
Bridged RMS Power
450 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ .5 ohm
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
220 watts x 4 channel
Peak Power @ 2 ohms
450 watts x 4 channel
Bridged Peak/Max Power
900 watts x 2 channel
Power Specifications - Subwoofer Channel
Peak Power @ .5 ohm
Amplifier Specifications
Series
Marine Certified
No
Amplifier Class
D
Number of Channels
4
Total Peak Power Output
1800 watts
Total RMS Power Output
900 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
4 ohms
Frequency Response
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
25A x 2
Total Fuse Rating
50
Strappable
No
CEA-2031 Compliant
Yes
Sonic Certified Amplifier
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
High-Level Input Sensitivity
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Planet Audio

Model Number:

BB4.1200

Weight:

4.00lbs

Internal SKU:

bb41200

Internal Product ID:

150393

Customer Ratings & Reviews

Planet Audio BB4.1200
1
Rate or review product
5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%
Durability
4
Value
4
Features
3
Design
5
Usability
4
Sort by:
Loading...

Description not correct

Seems like a good product so far. Was easy to install and sounds good. Lots of power. Using to power a set of rockford fosgate separates and a jl audio ten inch sub. Makes that thing bump. The description is incorrect though. It DOES NOT come with a bass knob as described. But my head unit has bass adjustment controls on it so I'm working around that issue. Overall a good product.

By Darren on June 9, 2021 checkmarkIcon Verified purchase
