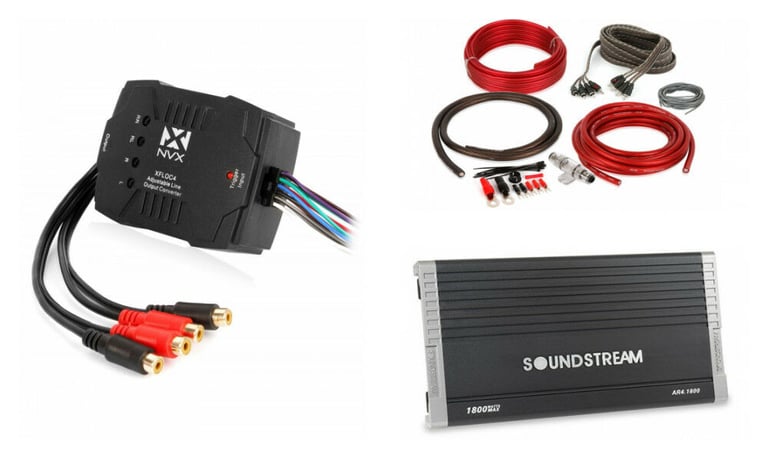

Soundstream AR4.1800 + NVX XFLOC4 Line-Output-Converter + Amp Kit

1800W Peak 4-Channel 2-Ohm Stable Amplifier + NVX 4-Channel L.O.C. + 4 Gauge Amp Kit

highlight-star-icon

• 80 Watts RMS x 4 @ 4 ohm
• 130 Watts RMS x 4 @ 2 ohm
• Total Peak Power: 1,200 Watts
• Bass Boost
• Aluminum Heatsink
• 8.5" W x 15.75" L x 2" H

Learn more about the ar41800_xfloc4_bak44

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Description


Soundstream brand icon

Authorized dealer

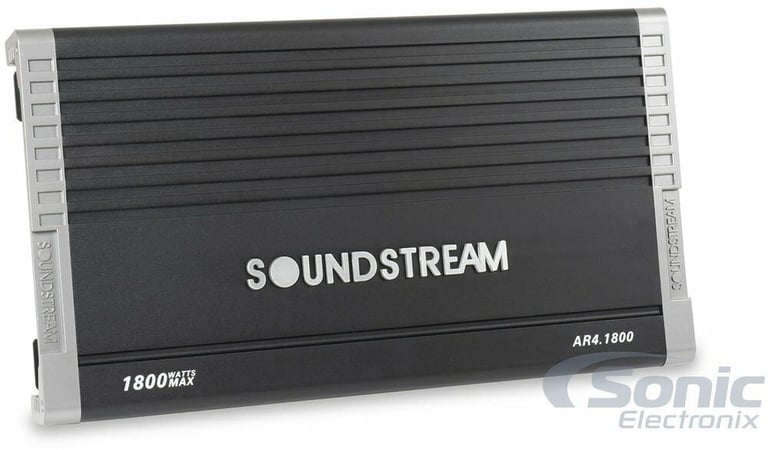

Soundstream AR4.1800

1800W Peak (260W RMS) Arachnid Series Class-A/B 4-Channel 2-Ohm Stable Amplifier
Quantity: 1

General Features:

  • Soundstream Arachnid Series AR4.1800 Amplifier
  • Class-A/B Full Range 2-Ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 80 watts x 4 chan.
    • 2 ohm: 130 watts x chan.
    • 1 ohm: ------------N/A------------
    • Bridged, 4 ohm: 260 watts x 2 chan.
  • Total power output: 1,800 watts
  • Military-Grade PCB with Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • 4/2 or Mono channel operation
  • Speaker-level (high-level) inputs
  • Low-level pre-amp RCA outputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity: 200 - 6V
  • Frequency Response: 20 - 20,000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ration: 95 dB

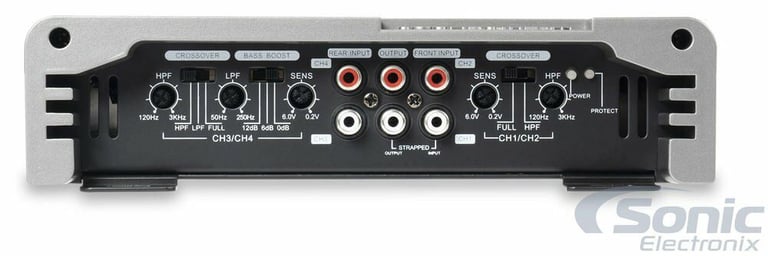

  • Variable high-pass filter: 120 - 3,000 Hz
  • Variable low-pass filter: 50 - 2,500 Hz
  • Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz

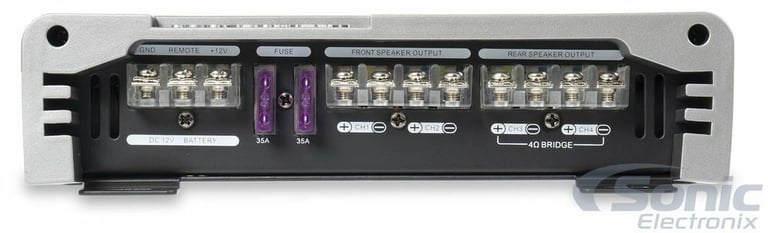

  • Fuse Rating: 35 A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions:8.5 "W x 15.75"L x 2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

NOTE: Manufacturer specifications and design subject to change without notice for improvements.

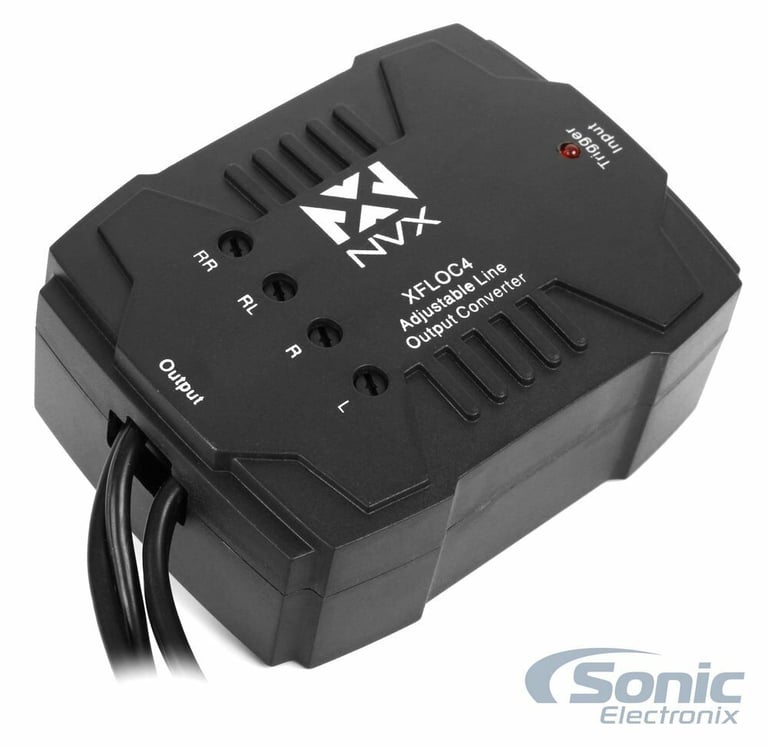

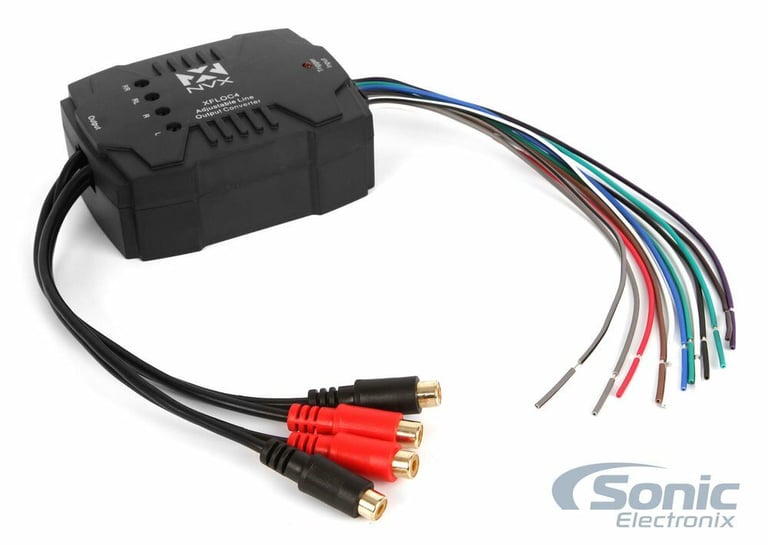

NVX XFLOC4

4-Channel 160W Adjustable Line Output Converter with Remote Turn On
Quantity: 1

Product Features:

  • 4-channel Premium adjustable line output converter
  • Digital Noise Filter + Line Driver
  • 3:1 Step Down With Adjustable Output
  • DC Amplifier Turn On Trigger
  • 160w Maximum Input Total (40w Per Channel)
  • Super Low Distortion
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

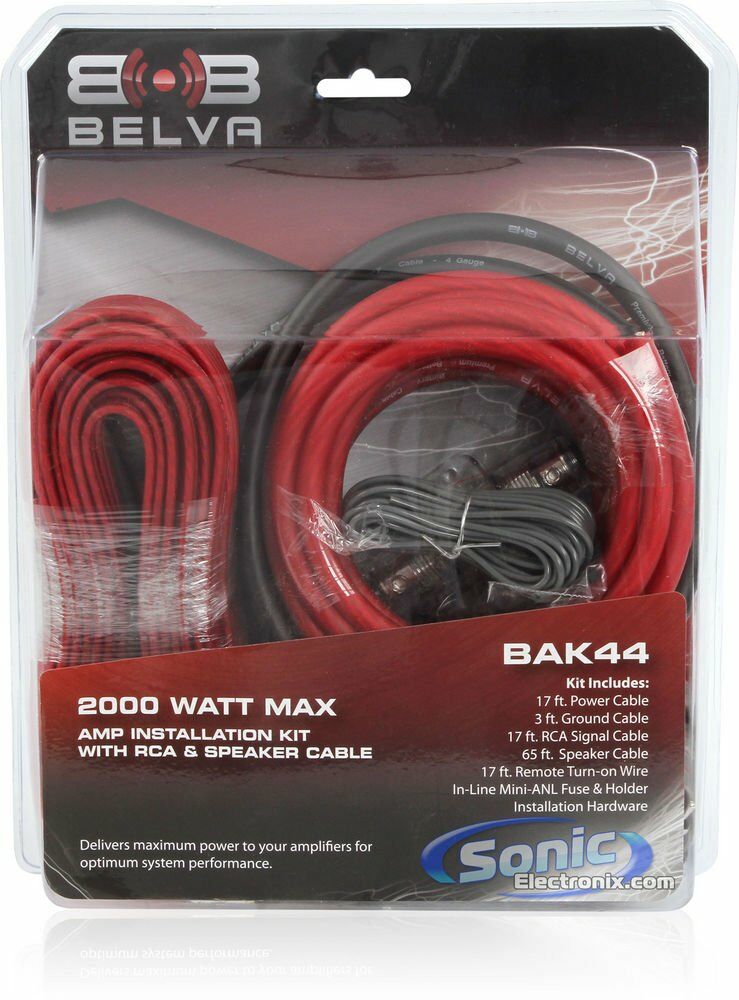

Belva BAK44BL

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - BLUE
Quantity: 1

Product Details:

  • 4 Gauge 4-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)

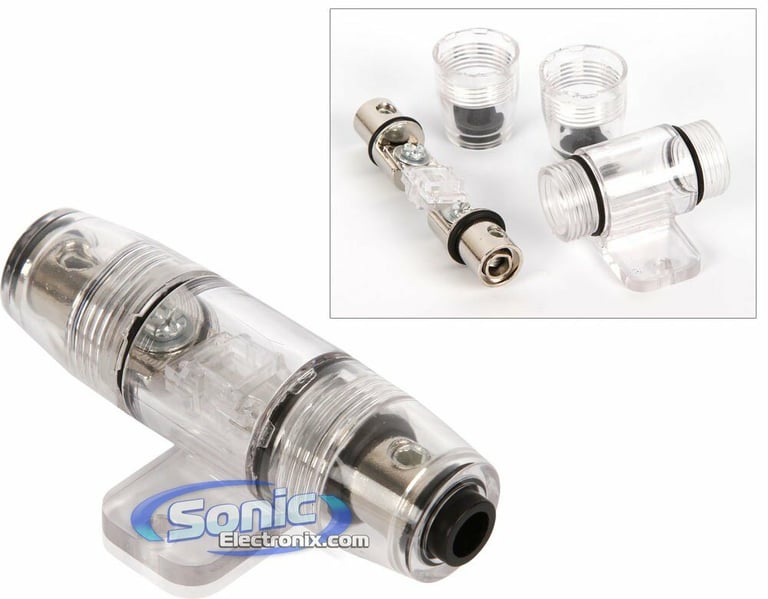

  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

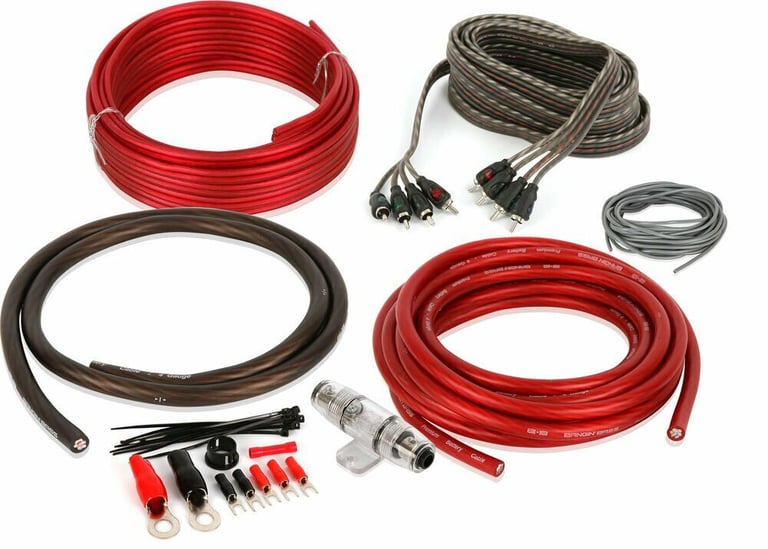

Kit includes:

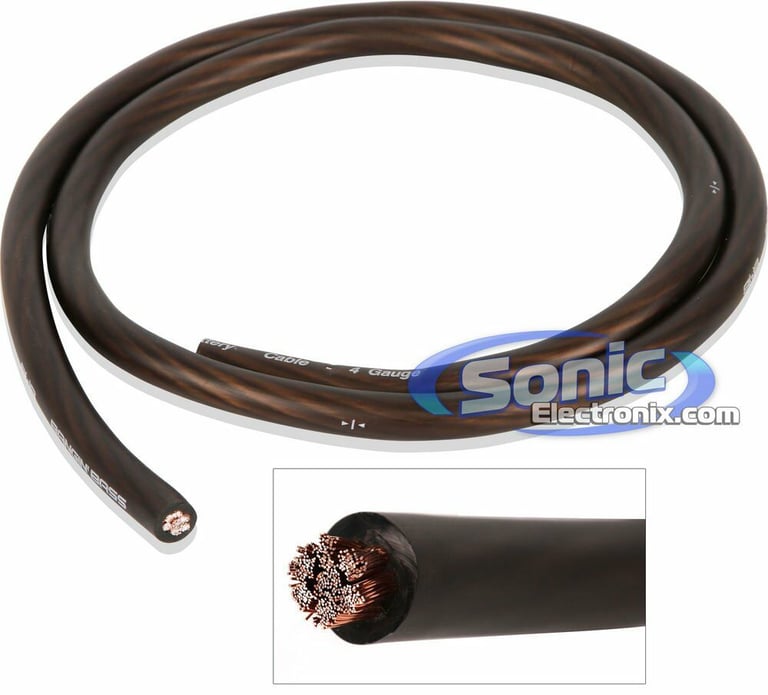

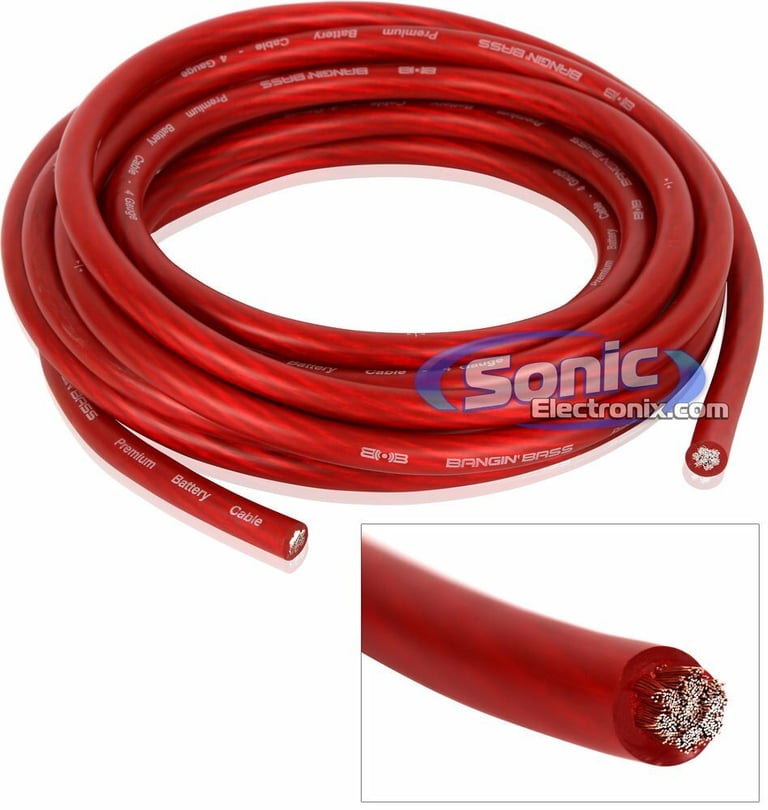

  1. 17 ft. Blue 4 gauge power wire
  2. 3 ft. Black 4 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire

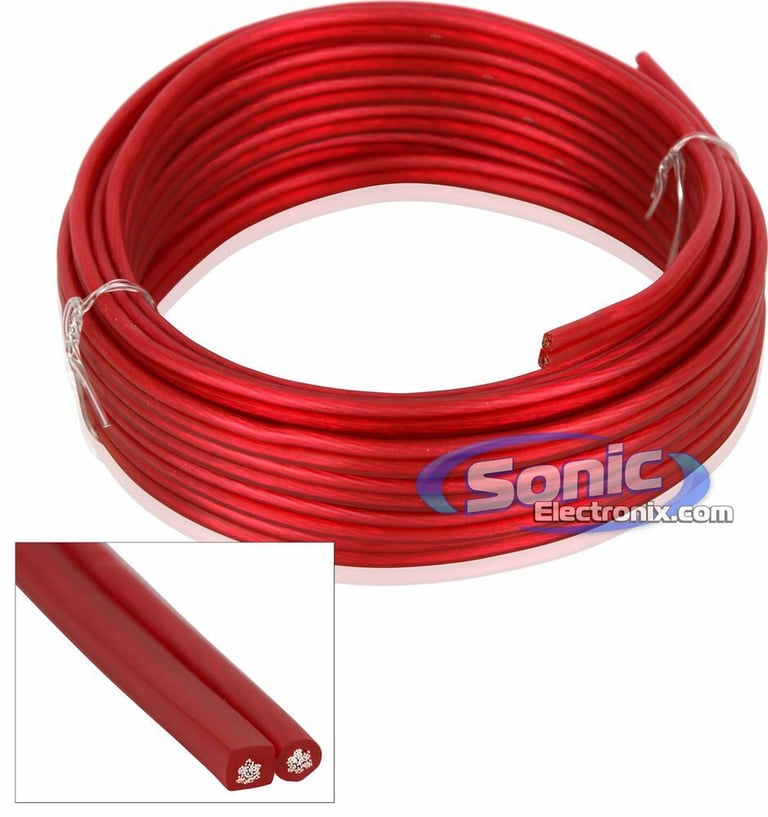

  4. 40 ft. 16 gauge speaker wire

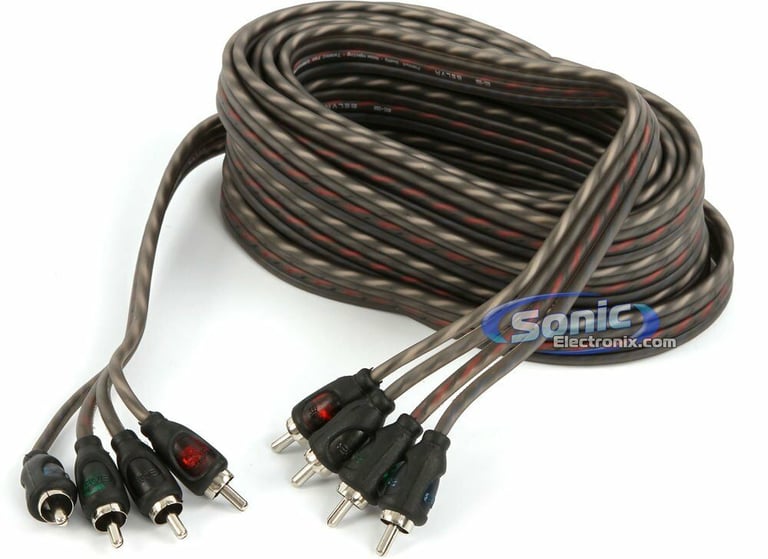

  5. One 17 ft. 4-channel twisted-par construction RCA interconnect Cable
  6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

QBSTA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QBSTA & Two Pair 6.5" Speakers

• 11" Spare Tire Subwoofer System
• Built-In Class D Amplifier
• Top-mount amplifier controls
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(260)

$396.93

List price $581.43

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(260)

$491.43

List price $682.43

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(79)

$309.99

List price $369.98

AMPCBA754AM, XFLOC4, BAK84 small

JBL ClubA754 (Club A 754) + Free NVX XFLOC4 Line-Output-Converter + Amp Kit

• Class H Amp Technology
• 4 Ohm Stable Bridged: 200 Watts RMS x 2
• Variable High and Low-Pass Filters
• Variable Crossover
• Full On Board Protection

(68)

$319.95

List price $463.68

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(72)

$309.99

List price $369.98

BAK42,46CXA4001T small

Kicker 46CXA4001 with Amplifier Wiring Kit


• 150 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Includes Amplifier Wiring Kit

(45)

$199.99

List price $269.98

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
180 watts x 4 channel
RMS Power @ 2 ohms
225 watts x 4 channel
Bridged RMS Power
450 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1800 watts
Total RMS Power Output
900 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
120 - 3000 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0, +6, +12 dB Switch
Remote bass/level controller
No
Fuse Rating
35A x 2
CEA-2031 Compliant
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AR4.1800, XFLOC4, BAK44

Weight:

8.58lbs

Internal SKU:

ar41800_xfloc4_bak44

Internal Product ID:

187775

Customer Ratings & Reviews


Soundstream AR4.1800 + NVX XFLOC4 Line-Output-Converter + Amp Kit thumbnail image

5 star
83%
4 star
5%
3 star
7%
2 star
0%
1 star
5%



Durability
4.6
Value
4.6
Features
4.6
Design
4.7
Usability
4.7

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Solved that static alternator whine issue

The following review is for XFLOC4, which is a part of the bundle you are viewing.

My brand new car's factory sound system sounded terrible so I decided to upgrade it. I had to keep my factory radio because the car's functions depend on the screen/radio of the car. I installed a JL audio 300/4v2 along with Focal components and after I was done installing everything, there was a tremendously loud static noise coming from the speakers, even with the volume all the way down. When I would rev up the engine, it would make a whistling, whining noise from the alternator. I spent 2 days trouble shooting the problem. Separating wires, re-grounding, running new wires, adjusting gains, etc. and none of that worked. I saw this LOC from NVX and decided to give it a try since it claimed to have a digital noise filter feature. Man, as soon as I installed I was blown away. That annoying noise was GONE! The music sounds crystal clear now. I purchased that particular set up because I wanted an SQ sound system and now it delivers that very clean music with absolutely NO distorting noise. I was stressed out for 2 days wondering how to fix it. If you are in the same situation, buy this LOC. It will end your problems with all that unwanted noise. Forget those "solutions" people talk about all over the internet about re-grounding, ground isolation, and all that junk. This LOC solved it for me. It was so easy to install, it has adjustable gains, and feels very sturdy. Even if you turn the gains all the way up on the LOC, you will still hear no unwanted noise.

By Jay on May 10, 2014

94 found this helpful


Excellent product

The following review is for XFLOC4, which is a part of the bundle you are viewing.

Easy to install in factory stereo. Great product. No noise at all. High fidelity sound.

By Santiago on August 25, 2014

87 found this helpful


perfect!

The following review is for XFLOC4, which is a part of the bundle you are viewing.

No unwanted noise, soft turn on and off, cant even tell its there. It does its job seemlessly in my 09 Jeep Grand cherokee with boston acoustics system. I wanted full range sound out of the door speakers so I pulled off the output from the factory amp of the dash speakers and rear speakers. All speakers are now full range and amplified with a kicker ZX350.4. I can keep the gain super low on the amp and cross over the speakers to keep the bass out with the amp controls. This LOC made all that possible to use the kicker amp with NO NOISE.

By Brandore on October 30, 2013

84 found this helpful


Good Converter

The following review is for XFLOC4, which is a part of the bundle you are viewing.

I bought this to replace another one that I bought that had terrible noise and poor quality. This one however is great and works as you would expect. Spend the extra couple of bucks and get this one

By Greg on February 11, 2013

86 found this helpful


bueno

The following review is for XFLOC4, which is a part of the bundle you are viewing.

Me gusto lo fácil que es instalar lo y los resultados son bienos

By Luis on September 17, 2013

83 found this helpful


NVX Output converter

The following review is for XFLOC4, which is a part of the bundle you are viewing.

This converter was easy to install plus it added power and more clarity to my speakers. It has a remote wire for my amp.

By J on January 20, 2015

81 found this helpful


Perfection! NVX is the best!

The following review is for XFLOC4, which is a part of the bundle you are viewing.

Durable, small, easy to use, fun, quality build and sound! Great LOC! No unwanted noise! Love the gain controls and remote turn on for an amplifier! Works wonderfully with my NVX JAD900.5 and my NVX 4 channel rcas! NVX is the only way to go! I just can't get enough of NVX! Thanks NVX and Sonic Electronix for all of your support!

By Eliseo on October 17, 2012

83 found this helpful


Seems legit

The following review is for BAK44BL, which is a part of the bundle you are viewing.

My first time using CCA wire. I was pleased to see the amount of copper in the power and ground wi hires. Quality fuse block. The RCA patch cords are awesome being bundled together. Made installation that much easier.

By Anonymous on November 14, 2018 Checkmark Icon Verified purchase

74 found this helpful


Worked great!

The following review is for XFLOC4, which is a part of the bundle you are viewing.

I installed this unit on my boat due to my radio had to pre amps.. Easy to wire although theres a bunch of wires. Works great for triggering your amp though! My radio put out 160W so I left all my channels on the unit turned down. Would highly recommend!

By Randy on September 12, 2013

81 found this helpful


Great value

The following review is for BAK44BL, which is a part of the bundle you are viewing.

No complaints nice price, work's extremely well. Glad I purchased it from Sonic Electronic..

By Frederick on August 28, 2018 Checkmark Icon Verified purchase

73 found this helpful



RA317SST small

Avanti RA317SST (Stainless Steel)

3.1 cu. ft. Compact Refrigerator with Full Range Temperature Control and Storage Bins

$259.99

List price $302.99

NS-AP6500ESL-RB small

Yamaha NS-AP6500ESL (Factory Refurbished)

3 Piece Home Speakers System (2 Satellites and a Center Channel)

$34.99

List price $119.99

BFP-10CH small

Cuisinart BFP-10CH

PowerBlend Duet Blender/Food Processor with 7-Speed Touchpad Controls, 500 Watt Motor, and 56 oz. Jar

$97.99

List price $119.99

E40-CHERRY small

Boston Acoustics E40 (Cherry) (Sold Individually)

4-1/2" 2-way Bookshelf Speaker with Cherry Gloss Enclosure (E-40)

$109.99

List price $399.99

NI-G10NR small

Panasonic NI-G10NR

Steam and Dry Iron With Power Cord Retractor Reel

$29.99

List price $39.99

CAN45BLAU small

SoundGate CAN45BLAU *Price Good Only While Supplies Last*

Cable for CANPULSE4 and CANPULSE5 to Operate SWC with Blaupunkt Radios

$4.99

List price $24.99

SR4310W small

Sanyo SR4310W (White)

4.3 cu. ft. Compact Refrigerator with Ice Compartment and Reversible Door

$219.99

List price $279.99

DEH-P7200HD small

Pioneer DEH-P7200HD

Car Stereo CD/MP3/WMA Receiver with Full Motion OEL Display, Built-in HD Radio, Remote, Aux In, and USB/iPod Direct Control

(33)

$179.99

List price $284.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1997 Audi A8

2017 Ford Mustang

2016 Ford Fusion

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
