ScyTek SA-100

Car Alarm Vehicle Security System with 2 Transmitters

ScyTek
Shop all ScyTek
Product videos
highlight-star-icon

Car Alarm Vehicle Security System • Two 2-Button Remote Transmitters • Emergency Override Mode • Panic Mode • Passive Arming • Ignition Controlled Door Lock Mode • Dome Light Activation • Auxiliary Function Output

Learn more about the sa100

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
82-3004 main

Metra 82-3004

6x9" Speaker Mounting Adapter for select 2012-2025 vehicles from GMC, Chevrolet, Cadillac

25
-11.77%

$29.99

List price $33.99

72-4572 main

Metra 72-4572

Install New Speakers in select 2006-2024 vehicles from Chevrolet, GMC, Cadillac

36
-6.67%

$13.99

List price $14.99

XBAF69 main

NVX XBAF69

Universal 6x9" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

49
-42.51%

$22.99

List price $39.99

XSP692 main

NVX XSP692

900W Peak (300W RMS) 6x9" X-Series 2 Way Coaxial Car Speakers

15
-32.29%

$129.99

List price $191.99

H7694 main

Cerwin Vega H7694

800W Peak (150W RMS) 6x9" HED Series 4-Way Coaxial 4-ohm Speakers

32
-25.93%

$79.99

List price $107.99

Product Highlights


Car Alarm Vehicle Security System • Two 2-Button Remote Transmitters • Emergency Override Mode • Panic Mode • Passive Arming • Ignition Controlled Door Lock Mode • Dome Light Activation • Auxiliary Function Output

Description


General Features:
  • Car Alarm Vehicle Security System
  • Two 2-button remote transmitters:
    • Button 1: Arm/Panic
    • Button 2: Disarm
    • Button 1/2: AUX 1 input
  • Emergency override mode allows the system to be disarmed if the remote is lost, broken, or out of batteries
  • Panic mode triggers the alarm instantly in an emergency
  • Passive arming will arm the system automatically when all doors are closed and ignition is off
  • Ignition controlled door lock mode locks the vehicle when the ignition is on and unlock when off for vehicles with automatic door locks
  • Dome light activation turns on the dome light for 30 seconds after the system is disarmed
  • Auxiliary function output can be used to add optional features such as trunk release, remote start, power window activation, power sunroof, etc.
  • System monitors three independent zones while armed:
  1. Doors
  2. Hood/trunk
  3. Shock sensor input
  • Dimensions: 3"L x 2-1/2W x 1"H
  • 1-year Manufacturer's warranty
  • System Wiring Pins:
    1. Red Wire: +12V Battery Input (15A fuse)
    2. White Wire: Parking Light Output (+)7A
    3. Brown Wire: Siren Output (+)3A
    4. Blue/White Wire: Lock Output (-) 500mA
    5. White/Red Wire: Unlock Output (-) 500mA
    6. Orange Wire: Armed Output (-) 500mA
    7. Brown/White Wire: Horn Output (-) 500mA
    8. Black/White Wire: Dome Light Output (-) 500mA
    9. Blue Wire: Trunk/Hood Trigger Input (-)
    10. Gray Wire: Auxiliary 1 Output (-) 500mA
    11. Yellow Wire: +12V Ignition Input
    12. Black Wire: Ground Input (-)
    13. Violet Wire: Positive Door Trigger Input (+)
    14. Green Wire: Negative Door Trigger Input (-)

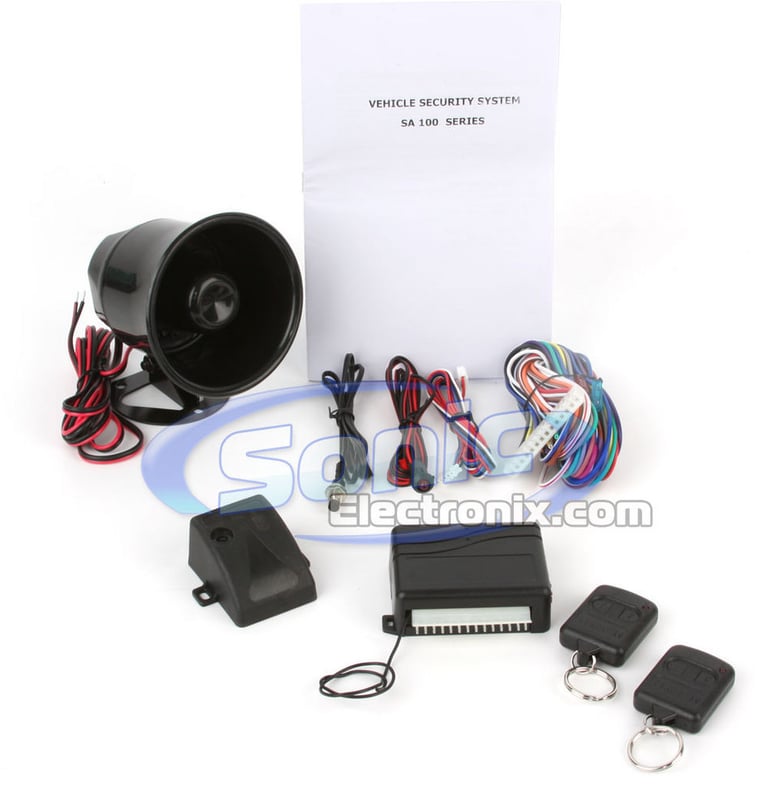

    Package Includes:

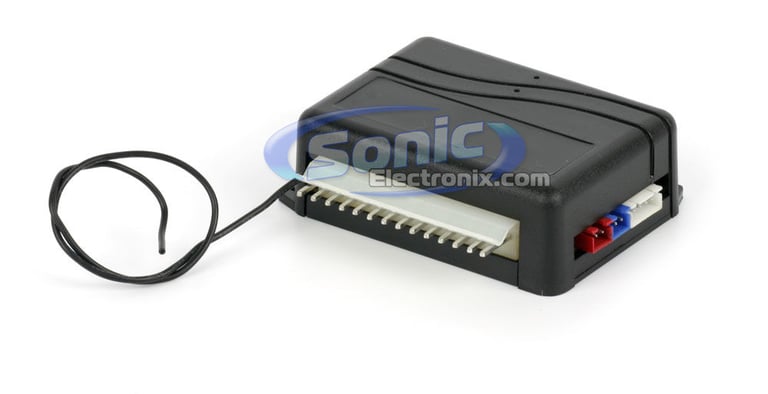

    1. Main unit

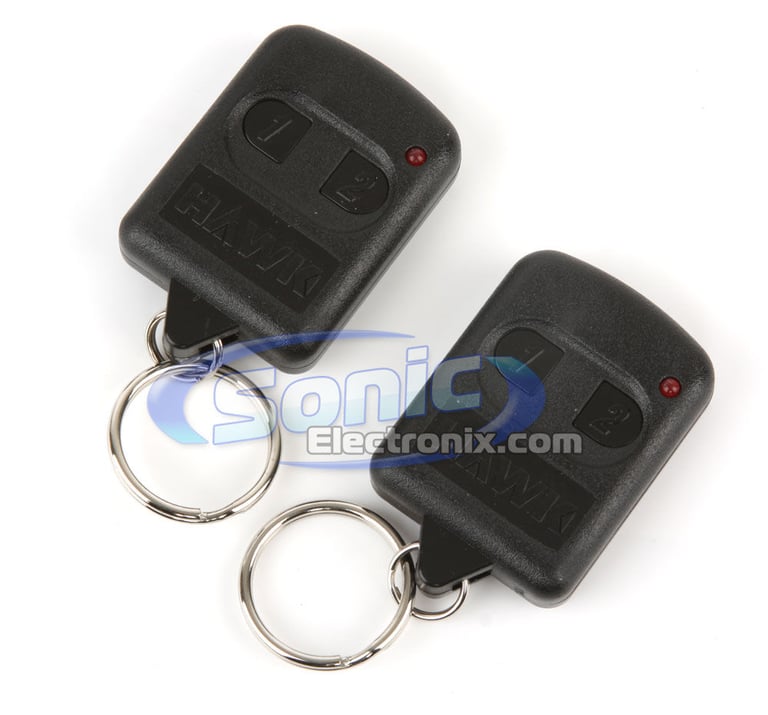

    2. Two 2-Button remote transmitters

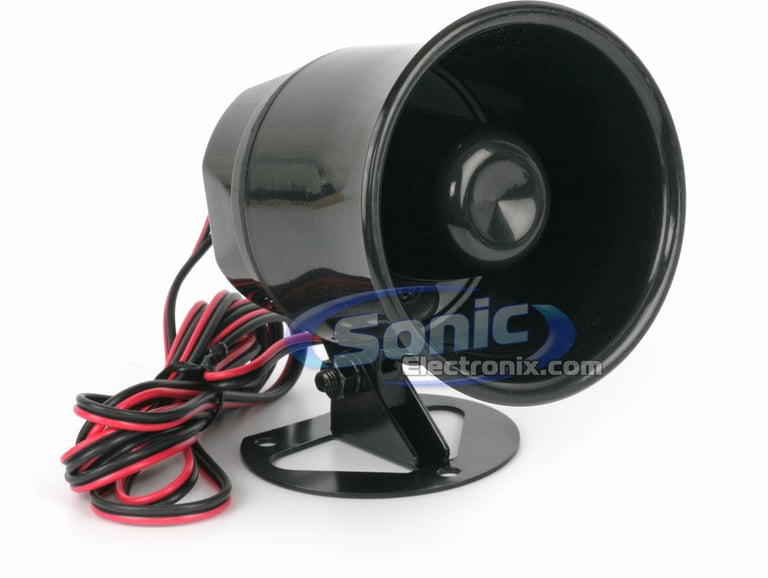

    3. Siren

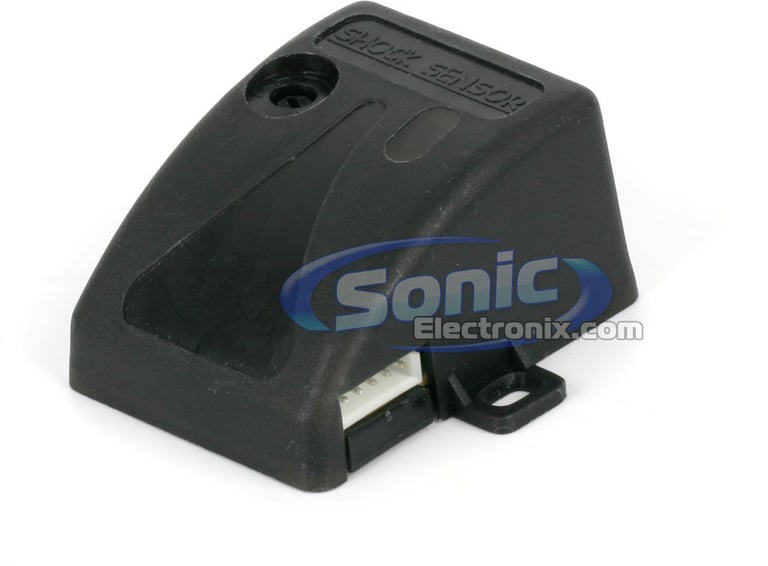

    4. Shock sensor

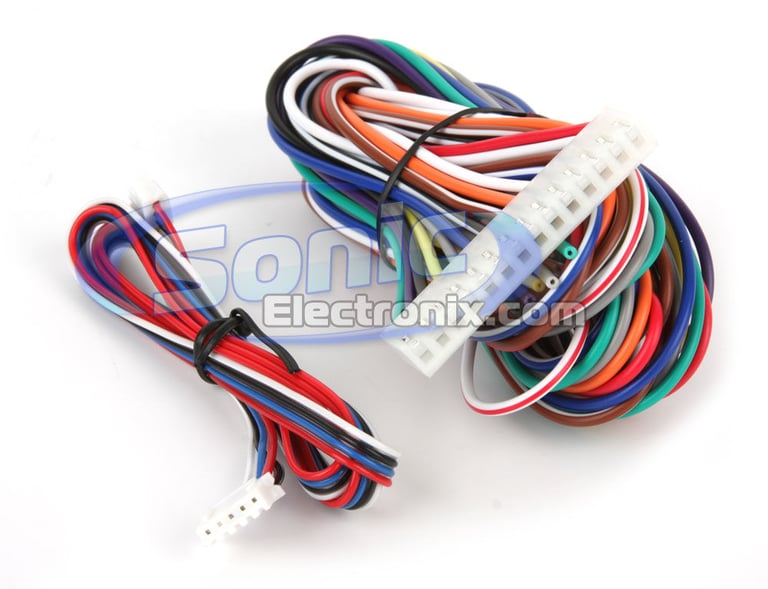

    5. 14-Pin main harness
    6. 4-Pin shock sensor harness

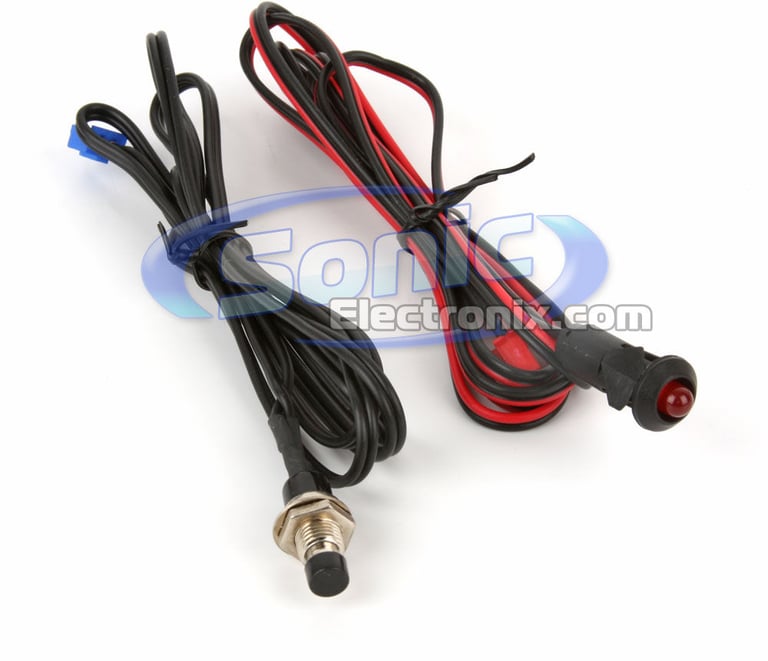

    7. LED harness
    8. Override switch harness

    Loading...
