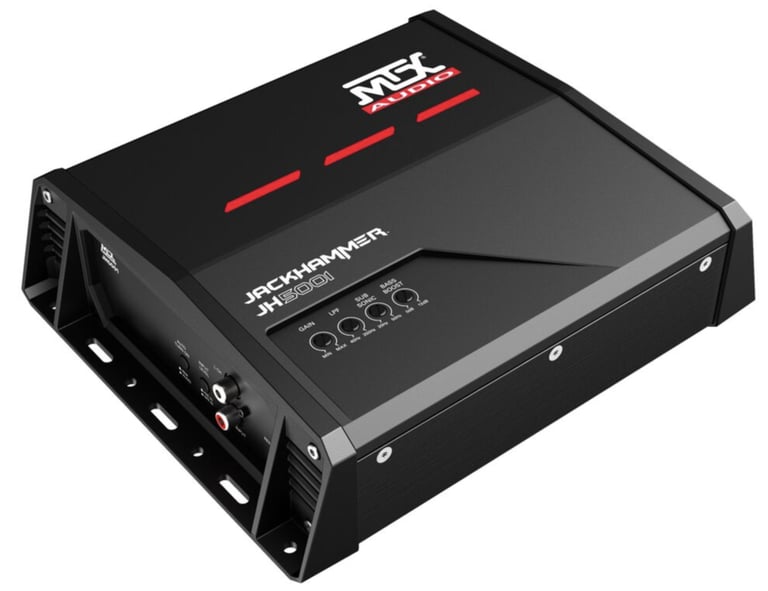

MTX JH5001

500W RMS JackHammer Series Class D 1-ohm Monoblock Amplifier

MTX
Shop all MTX
highlight-star-icon

• 225 watts x 1 channel @ 4 ohm
• 375 watts x 1 channel @ 2 ohm
• 550 watts x 1 channel @ 1 ohm
• Total RMS Power: 500 watts
• Class D 1 ohm Stable Monoblock Amplifier

Learn more about the jh5001

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

Description


MTX brand icon

Authorized dealer

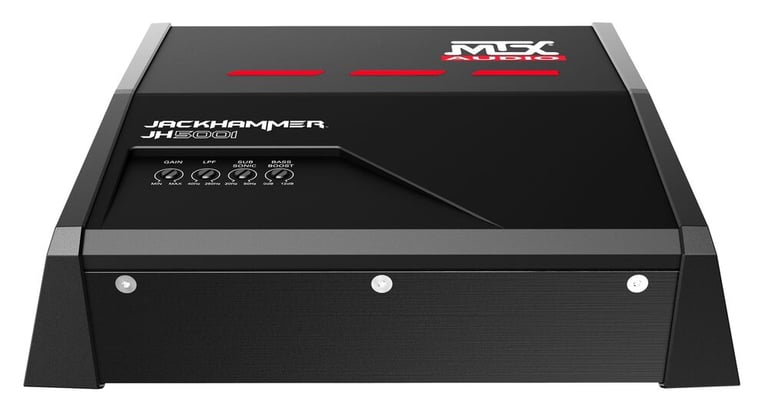

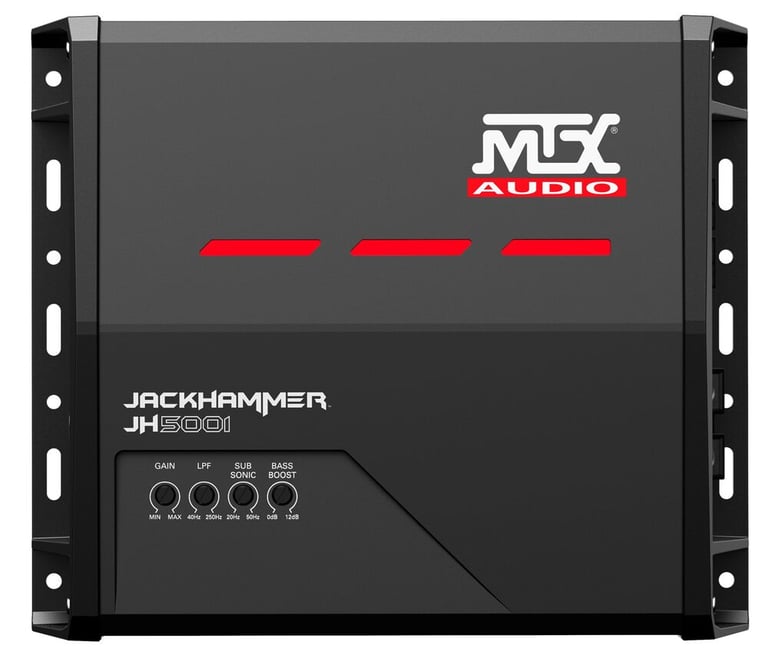

Easy Access Controls

Accessing the fully adjustable gain, low pass filter, subsonic filter and bass boost from the front panel allows for easy adjustment after the unit is installed. This layout is simple and elegant, giving the JH5001 a sophisticated look with the convenience of easy accessibility.

Only What You Need

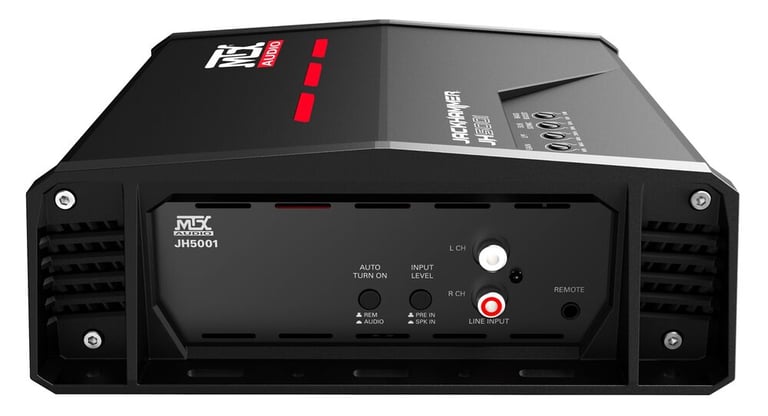

The JH5001 is designed for one thing, bringing the power to whatever subwoofers you hook it up to. The input section features high quality RCAs for easy connection to after market head units or processors. The Input Level selection is either Pre or Spk In so it can also be used with factory radios that don't have RCA outputs. The Auto Turn On feature is selectable, enabling the unit to turn on when it senses signal, eliminating the need to run a remote wire, or it can be turned on using a remote wire, the choice is yours.

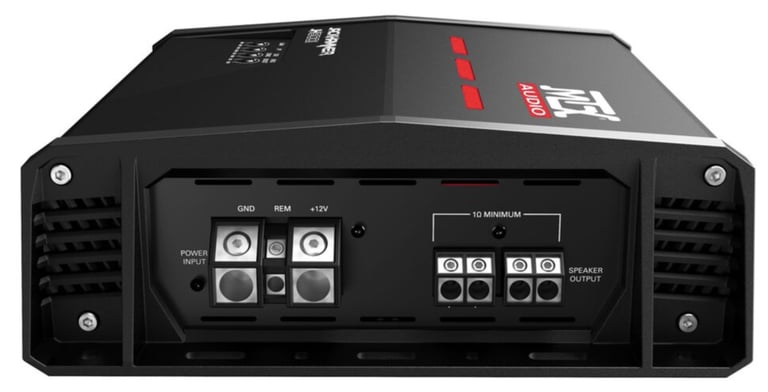

High Quality Power and Speaker Connections

The JH5001 can accept up to a standard 4-gauge power and ground wire for optimal performance. The speaker terminals can accept up to 12-gauge speaker. The speaker connection terminal has two sets of positive and negative terminals for easy wiring, the JH5001 can play loads down to 1Ω. Both sets of connectors use set screw style fittings that ensure proper connection and continual signal transfer.

Product Details:

  • JackHammer Series Class D 1 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 225 watts x 1 channel
    • 2 ohm: 375 watts x 1 channel
    • 1 ohm: 550 watts x 1 channel
  • Total RMS power output: 500 watts
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • Soft start turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 135mV
  • Frequency Response: 20 - 250 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: 72 dB
  • Variable low-pass filter: 40 - 250 Hz
  • Subsonic filter: 20 - 50 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 60
  • 4 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 7.61" W x 8.97" L x 2.57" H
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
PDF IconMTX JH5001 owner’s manual

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
225 watts x 1 channel
RMS Power @ 2 ohms
375 watts x 1 channel
RMS Power @ 1 ohm
550 watts x 1 channel
Amplifier Specifications
Series
JackHammer Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
1000 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
20 - 250 Hz
THD at Rated RMS Power
<1%
Speaker Level Inputs
Yes
Built-in Crossover
Subsonic
High-Pass Crossover Frequency
40 - 250 Hz
Low-Pass Crossover Frequency
40 - 250 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
72 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Total Fuse Rating
60
Low-Level Input Sensitivity
135mV
High-Level Input Sensitivity
10
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Gain knob wire
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

MTX

Model Number:

JH5001

Weight:

6.50lbs

Internal SKU:

jh5001

Internal Product ID:

191779
