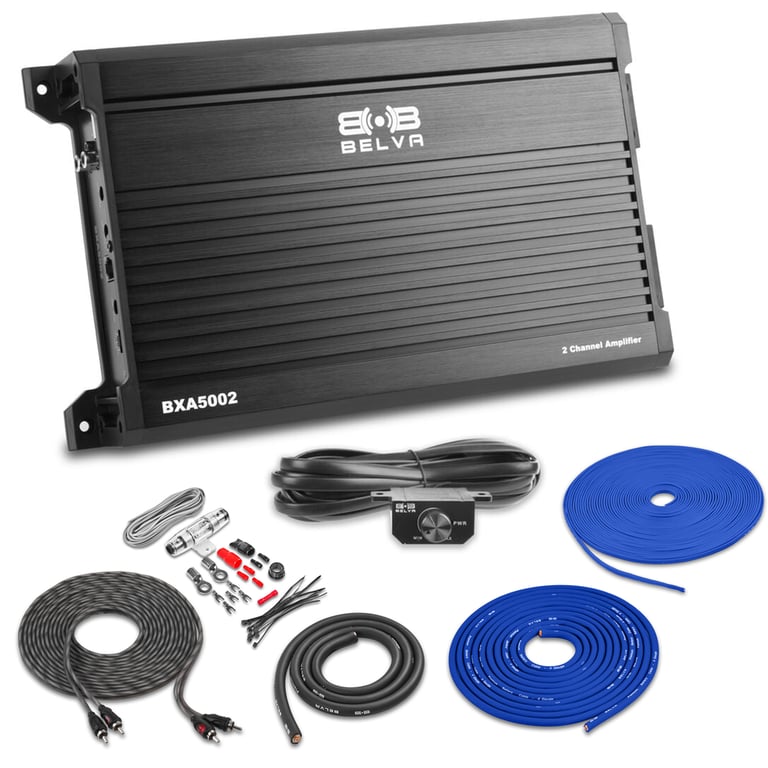

Belva BXA5002 | 250W 2-Channel Car Amplifier with Amp Kit

Description

Authorized dealer

Product Highlights:

Extreme Efficiency

The Belva BXA5002 is categorized as a Class A/B amplifier. This class of amplifiers combine the high efficiency of a class A amplifier and lower distortion found in class B amplifiers. The class AB amplifier acts more similarly to a class A amplifier by biasing both transistors so they become active when the signal is close to zero. As the signal excursion increases into a larger waveform, only one transistor remains active, a primary function found in class B amplifiers. These features combined with the MOSFET transistor allow the Belva BXA5002 to be one of the most efficient amplifiers on the market. The BXA5002 also features three-way protection circuitry which protects against thermal, overload, and speaker shortages. This configuration increases the longevity of both the amplifier and entire speaker system.

User Control

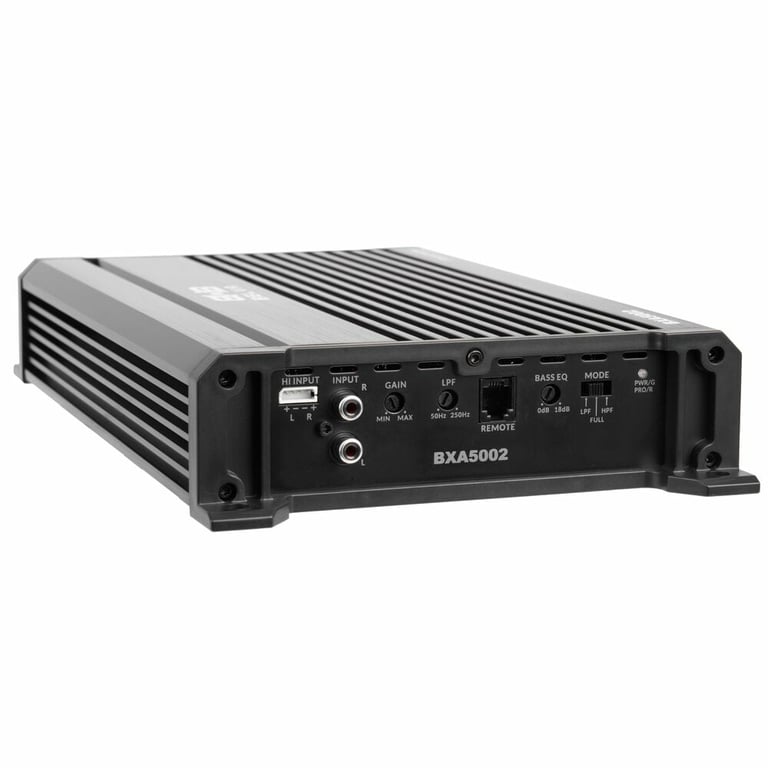

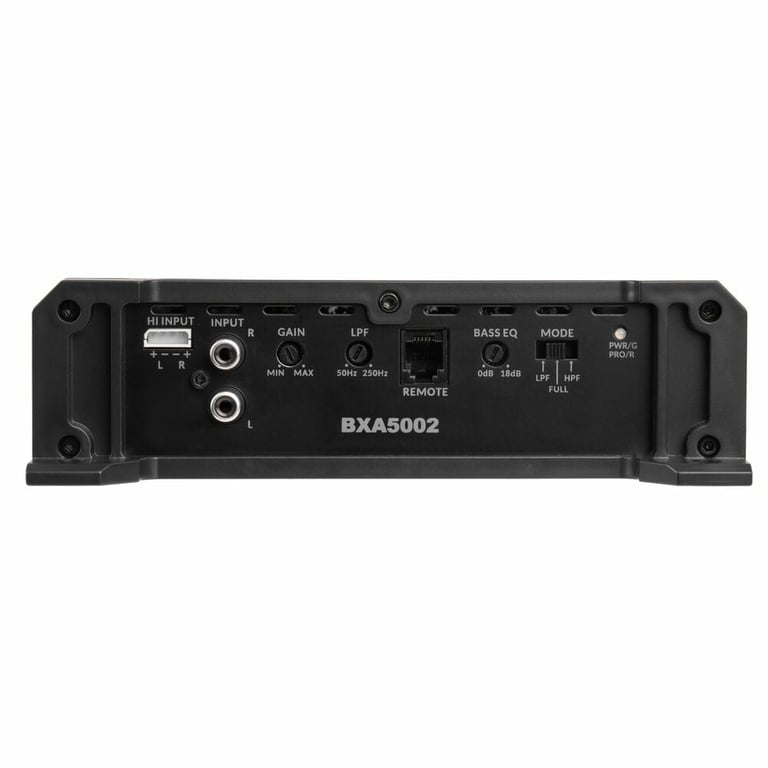

The Belva BXA5002 provides a world-class user control experience. While other amplifiers on the market only feature a variable bass boost switch, the BXA5002 is equipped with a variable bass boost knob. This allows the user to fine tune the bass and gain in the amplifiers with more precision. Furthermore, the range provided in the BXA5002’s variable bass boost is anywhere from 0 to 18 decibels, whereas in other amplifiers in the same class, the range is only 0 to 12 decibels.

One Size Fits All

The Belva BXA5002 features both high level and low level speaker inputs. The high level inputs allow the amplifier to be wired into factory stereos or an aftermarket stereo without low level RCA inputs. The BXA5002 amplifier can also be wired into aftermarket stereos. Equipped with low level speaker inputs, the complicated process of splicing the wire into the stereo can be bypassed by connecting to the RCA inputs which are commonly found in aftermarket stereos. The input flexibility of the BXA5002 means the amplifier is more compatible with a variety of stereos from factory to high-end aftermarket units.

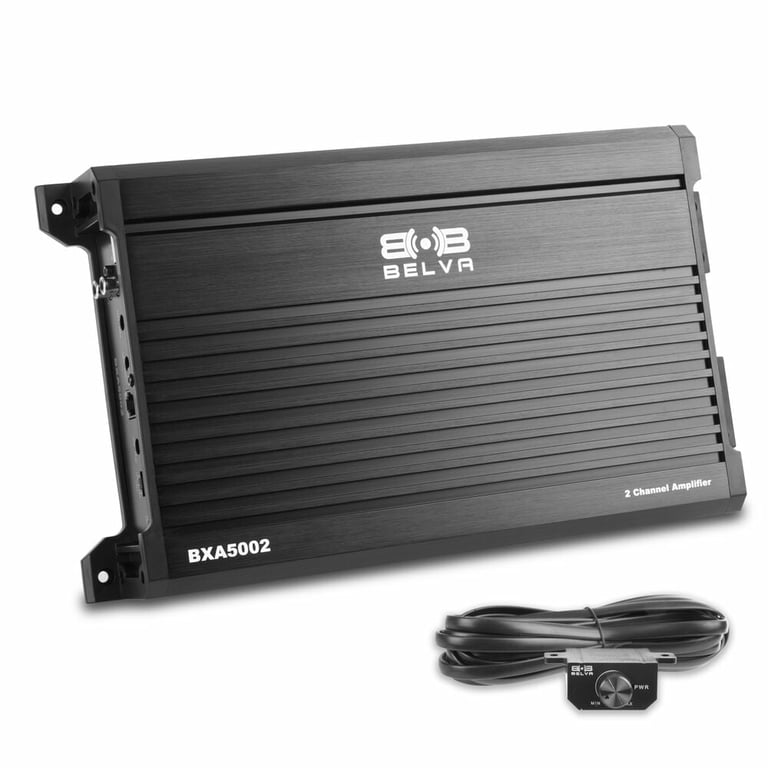

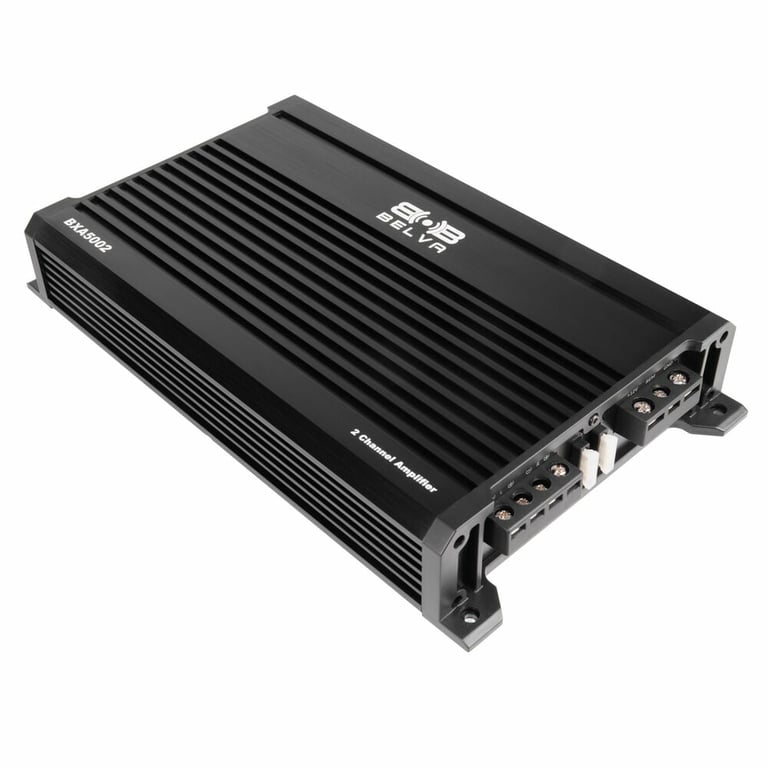

Belva BXA5002

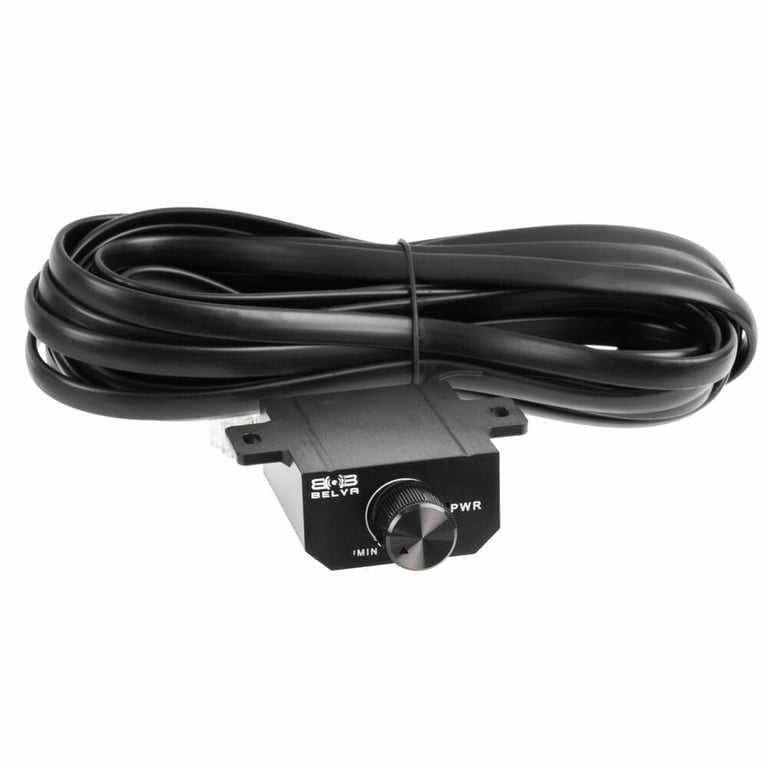

500W Peak BX-Series Class A/B 2-Channel Car Audio Amplifier with Bass Remote
Quantity: 1

Product Details:

BX Series Class A/B 2 ohm Stable 2-Channel-Channel Amplifier
Peak Power Rating:

4 ohm: 125 watts x 2 channel
2 ohm: 250 watts x 2 channel
Bridged, 4 ohm: 500 watts x 1 channel

Total power output: 500 watts
Pulse Width Modulated MOSFET power supply
LED Power/Protect Light

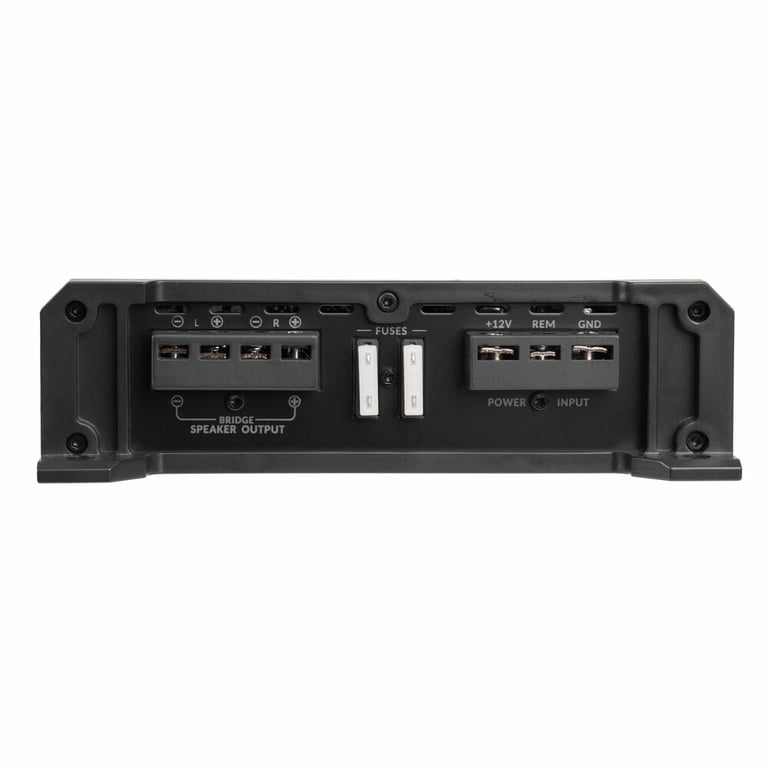

Speaker-level (high-level) inputs
3-way protection circuitry (thermal, overload, and speaker short protection)
Input sensitivity:

Low level: 200mV - 8 volts

Frequency Response: 10 - 30,000 Hz
Total Harmonic Distortion (THD): 0.05%
Signal to Noise Ratio: 96 dB
Variable high-pass filter: 50 - 250 Hz
Variable low-pass filter: 50 - 250 Hz
Variable Bass Boost: 0 - 18 dB
Fuse Rating: 50A
8 AWG gauge power and ground wiring is recommended for installation.
Dimensions: 7.48" W x 11.02" L x 2.00" H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Belva BXA5002 owner’s manual

Belva BAK82BL

8 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 600 Watts - BLUE
Quantity: 1

Product Details:

Complete 8 Gauge 2-Channel Amplifier Installation Kit
Designed for car audio systems up to 600 watts RMS
Premium Powerflex power and ground wire provides optimal power transfer
Belva CCA wire is made from 30% copper while the competition uses only 10%
Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
MINI-ANL Fuse holder with a 60 amp fuse offers ideal protection for high powered systems
Complies to American Wire Gauge standards
Also available in Red
Authorized Internet Dealer
1-year Manufacturer's Warranty

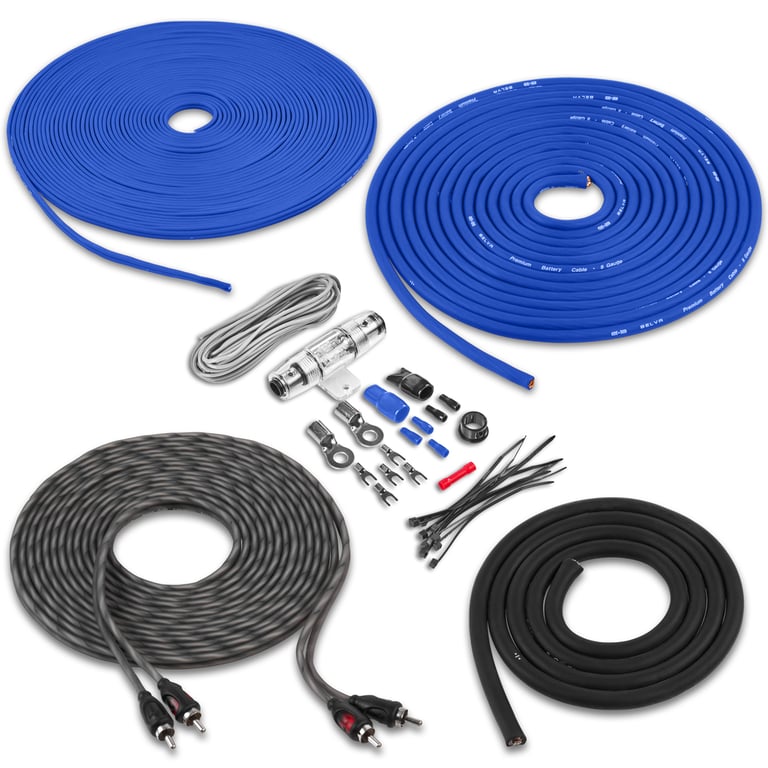

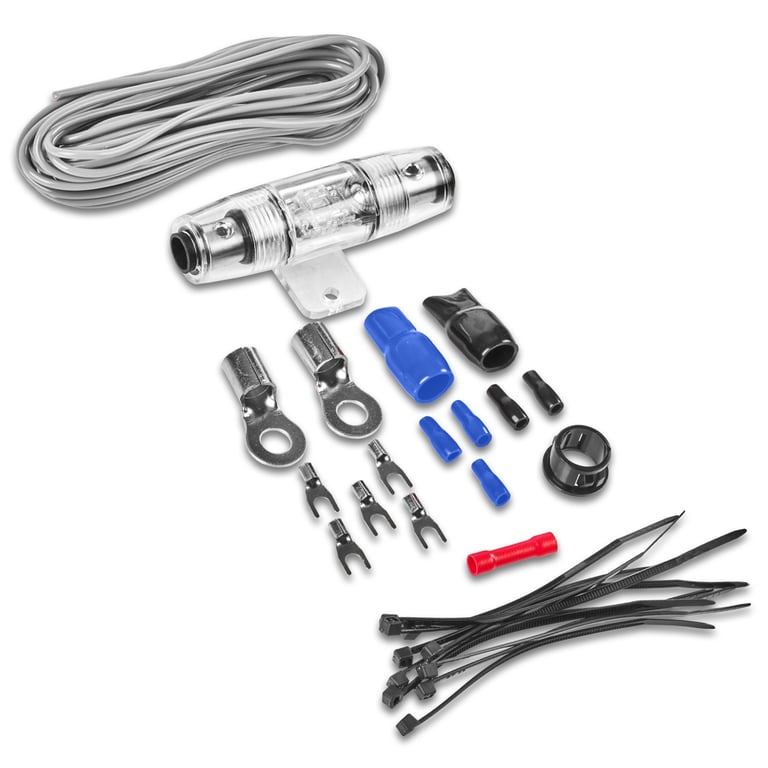

Kit includes:

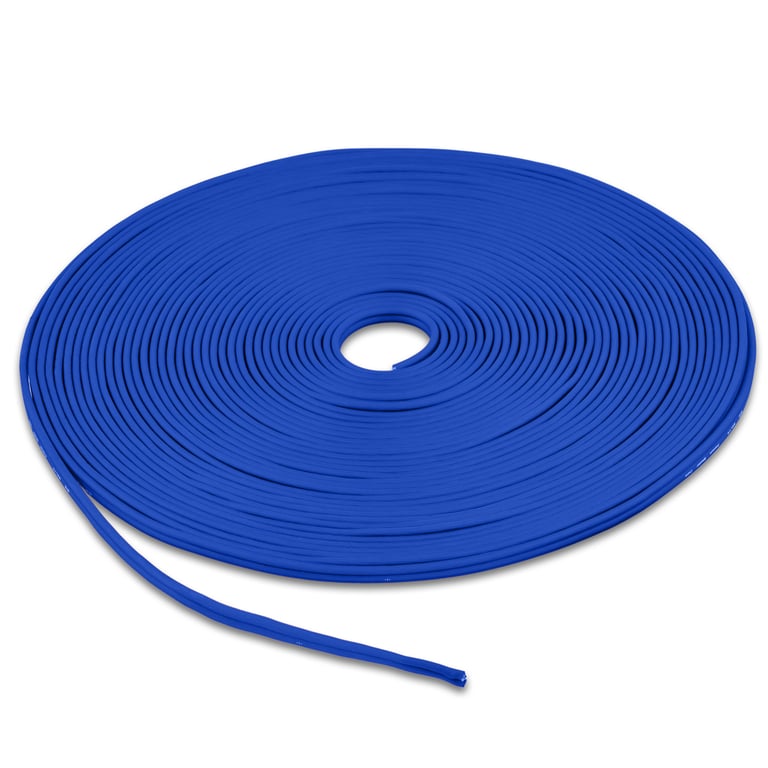

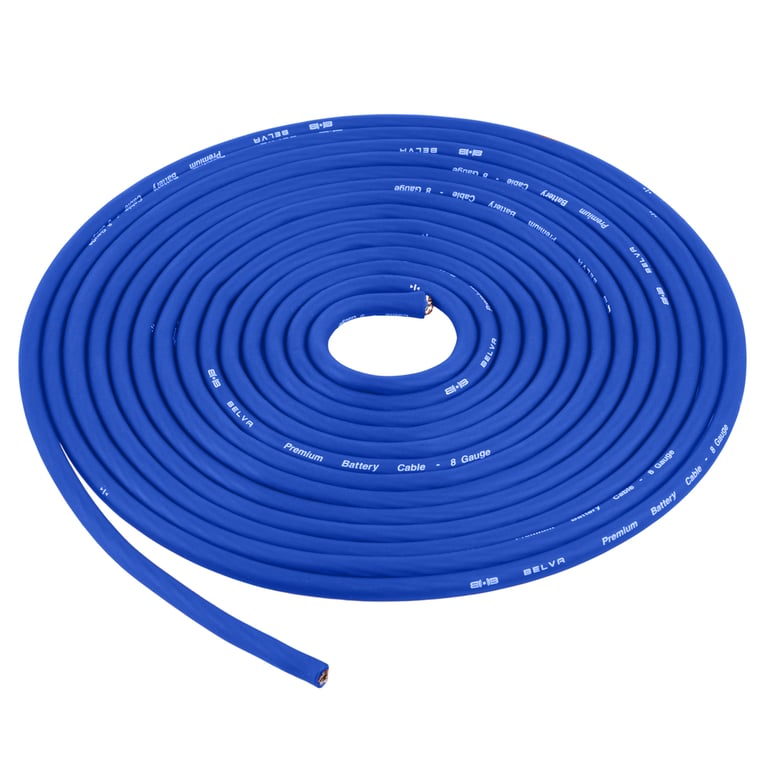

17 ft. (5.2 meters) Blue 8 gauge power wire
3 ft. (.91 meters) Black 8 gauge ground wire
17 ft. (5.2 meters) Gray 18 gauge remote lead wire
17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable
20 ft. (6.1 meters) 16 Gauge Speaker cable
One MINI-ANL Fuse Holder with a 60 amp fuse
One Black rubber firewall grommet
One 8 Gauge Blue chrome plated ring terminals
One 8 Gauge Black chrome plated ring terminal
Three 18 Gauge Blue Spade terminal
Two 18 Gauge Black Spade terminal
One 18 Gauge Red butt connector
Ten 4" Black zip ties

Similar Products

Best selling similar products

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(313)

$468.43

List price $681.43

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

(310)

$459.43

List price $675.43

Sundown Audio SW-NSV612D1 + NVX XCA6K

• Peak Power: 7000 watts
• Sensitivity: RMS Power: 3000 watts
• Sensitivity: Impedance: Dual 1 ohm
• Sensitivity: Polypropylene Cone
• Sensitivity: Mega Roll V2 Surround
• Sensitivity: Mount depth: 12.75"
• Sensitivity: Sensitivity: 83.02 dB

(1)

$2779.97

List price $3599.97

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(72)

$309.99

List price $369.98

NVX NPKG212 with Free BAK82BL Amp Kit

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(41)

$359.99

List price $469.98

NVX XCW122 + XQA25001 + XKIT02

• One 12" XCW122 XC-Series 2000W RMS Subwoofer
• 5000W Peak (2500W RMS) Class D XQA25001 Monoblock Amplifier
• XKIT02 Complete 0 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(39)

$1179.97

List price $1667.97

NVX Audio Upgrade Kit – QB12SPA with 2 Pair 6.5" Speakers

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(304)

$360.43

List price $555.42

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(304)

$342.43

List price $531.42

Sundown Audio ZV6 15" D2 + NVX XCA6K

• RMS Power: 2500 watts
• Impedance: Dual 2 ohm
• Mega Roll V2 Surround
• Mount depth: 12.93"
•Sensitivity: 86.57 dB

(1)

$2899.97

List price $3599.97

Alpine Full Audio Truck Package

• 600W RMS Dual Ported 8" Loaded Enclosure
• Modular Stackable Design
• Integrated Amplifier Tray
• Class D 8-Channel-Channel Amplifier
• 6"x9" Component Speakers
• 6.5" Coaxial Speakers

(11)

$1945.99

List price $2690.00

Specifications & Details

Amplifier Specifications

Amplifier Class

A/B

Number of Channels

2-Channel

Total Peak Power Output

500 watts

Minimum Impedance Unbridged

2 ohm

THD at Rated RMS Power

<=0.05%

Signal-to-Noise Ratio

= >96 dB

CEA-2031 Compliant

Yes

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
