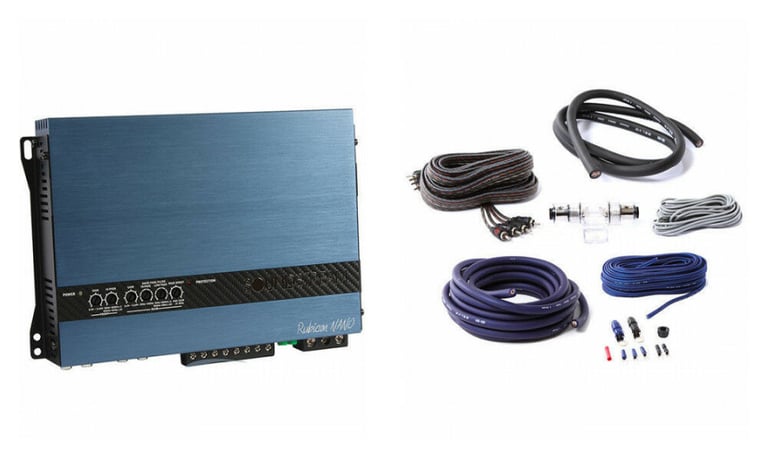

Soundstream Rubicon Nano RN4.1400D + Belva 4 Gauge Amp Kit

1400 Watt Peak (700W RMS) Rubicon Nano Series 4-Channel Full-Range Amplifier

highlight-star-icon

• 125 Watts RMS x 4 @ 4 ohm
• 175 Watts RMS x 4 @ 2 ohm
• Total Peak Power: 1400 Watts
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty hybrid aluminum alloy heat-sink for extreme heat dissipation
• Dimensions: 6.5"W x 9"L x 1.5"H

Learn more about the rn41400d_bak44

We apologize

This item has been discontinued


Loading...
95-7510HG main

Metra 95-7510HG Dash Kit

Double DIN Stereo Dash Kit and Harness for select 2004-2008 RX-8

7
-55.70%

$209.99

List price $473.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

85
DPX305MBT main

Kenwood DPX305MBT

Double DIN Digital Media Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

15
-20.50%

$159.00

List price $200.00

KW-X850BTS main

JVC KW-X850BTS

Double DIN Digital Media Receiver with Bluetooth and Amazon Alexa (SiriusXM Ready)

3
-11.83%

$149.00

List price $169.00

Description


Soundstream brand icon

Authorized dealer

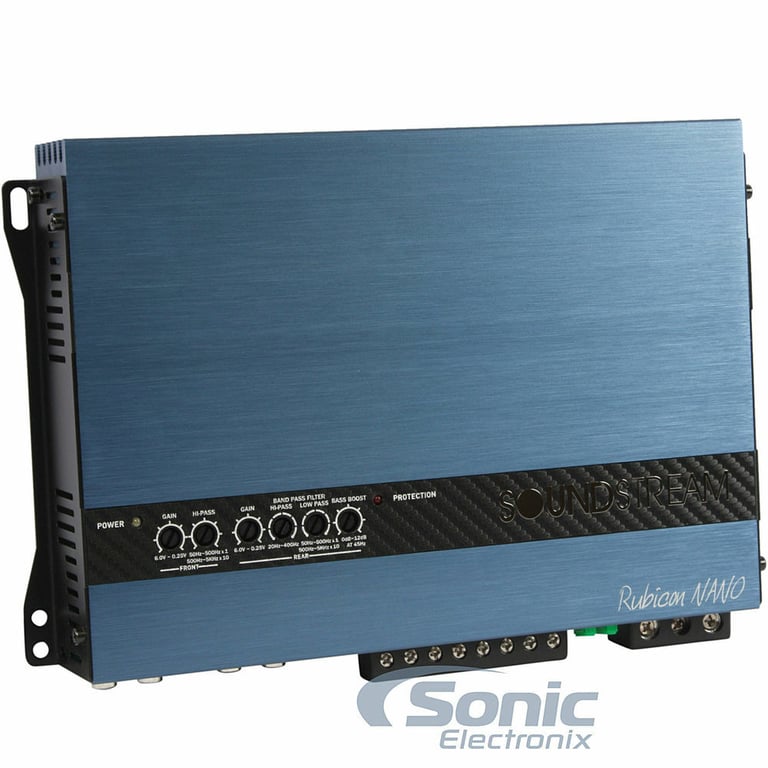

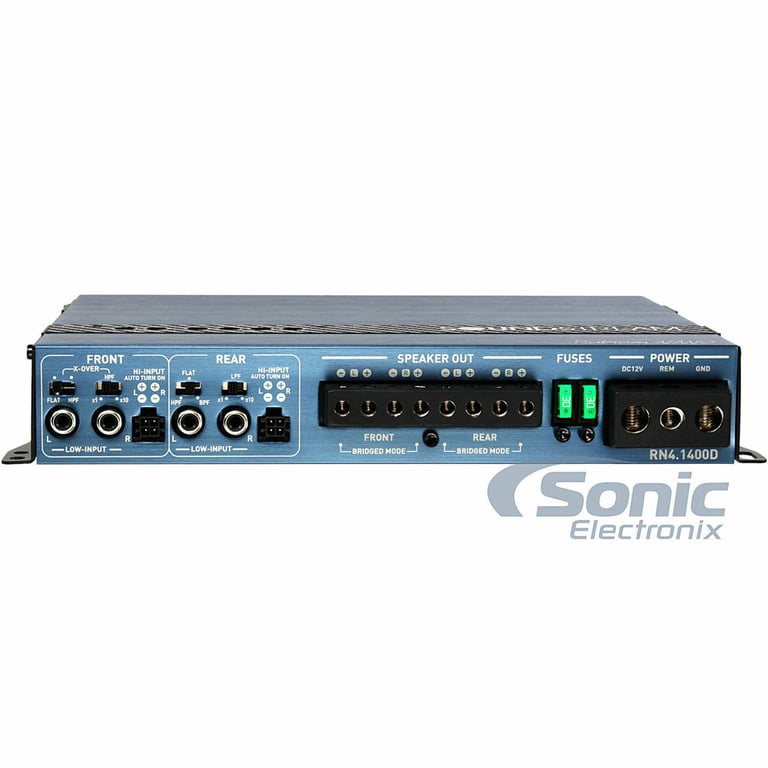

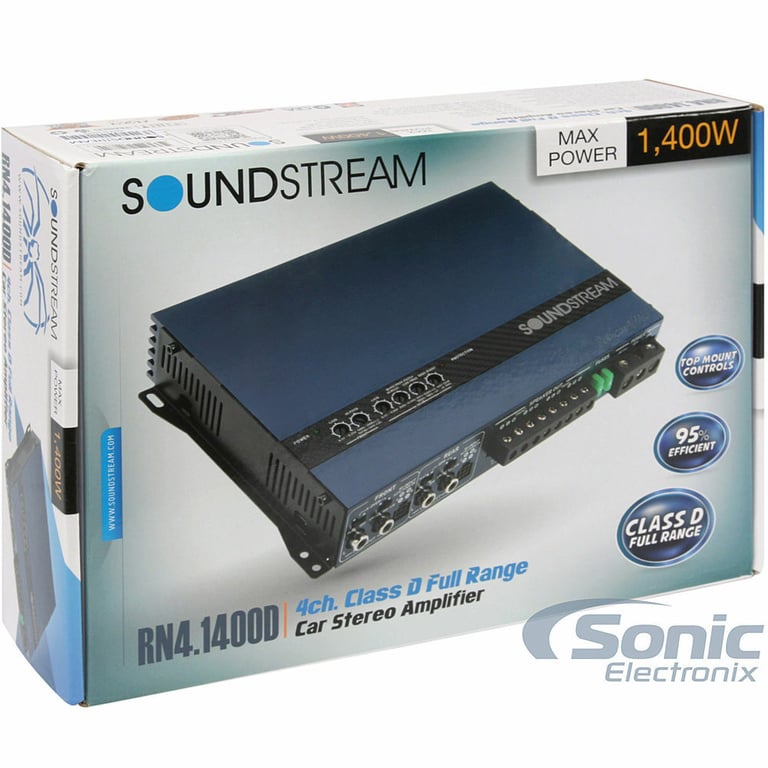

Soundstream Rubicon Nano RN4.1400D

1400 Watt Peak (700W RMS) Rubicon Nano Series 4-Channel Full-Range Amplifier
Quantity: 1

General Features:

  • Soundstream Rubicon Nano Series Amplifier
  • Class-D Full Range 4-channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 125 watts x 4 chan.
    • 2 ohm: 175 watts x 4 chan.
    • Bridged, 4 ohm: 350 watts x 2 chan.
  • Total power output: 1400 watts
  • Pulse Width Modulated MOSFET power supply
  • Military Grade SMT PCB Maintains Dynamic Performance
  • Audiophile grade IRTM transitors
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 4, 3 or 2 channel operation
  • Speaker-level (high-level) inputs
    • Quick Disconnect High Level Wire Harness Included
  • 3-way protection circuitry (thermal, overload, and speaker short protection
  • Heavy duty hybrid aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity: 250mV - 6V
  • Frequency Response: 20 - 22,000 Hz
  • Variable high-pass filter (Front): 50 - 500 Hz (x1), 500 - 5,000 Hz (x10),
  • Variable high-pass filter (Rear): 20 - 400 Hz (x1)
  • Variable low-pass filter (Rear): 50 - 500 Hz (x1), 500 - 5,000 Hz (x10),
  • Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
  • Fuse Rating: 30 A x 2
  • 4-8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 6.5"W x 9"L x 1.5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Soundstream RN4.1400D owner’s manual

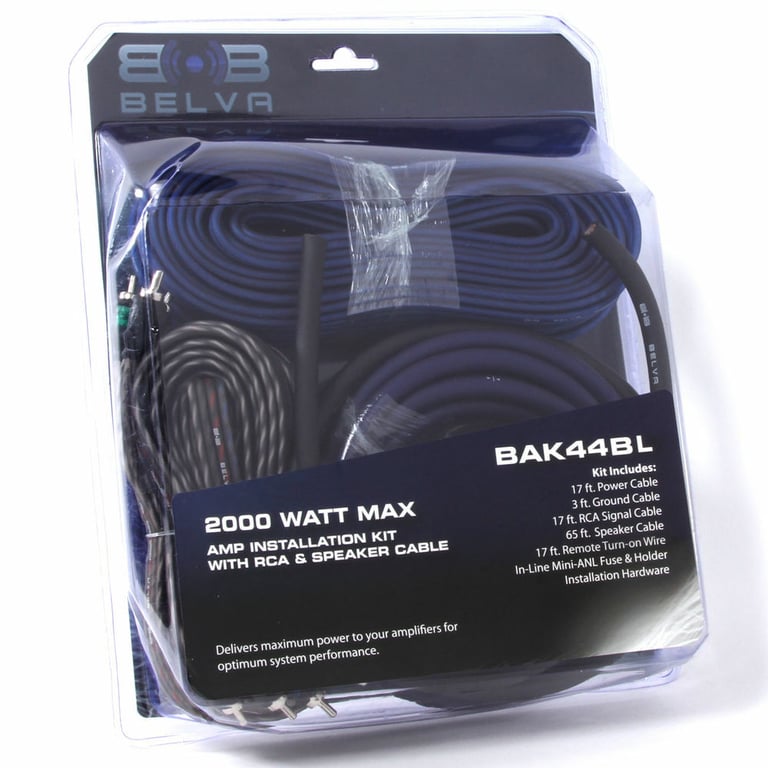

Belva BAK44BL

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - BLUE
Quantity: 1

Product Details:

  • 4 Gauge 4-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

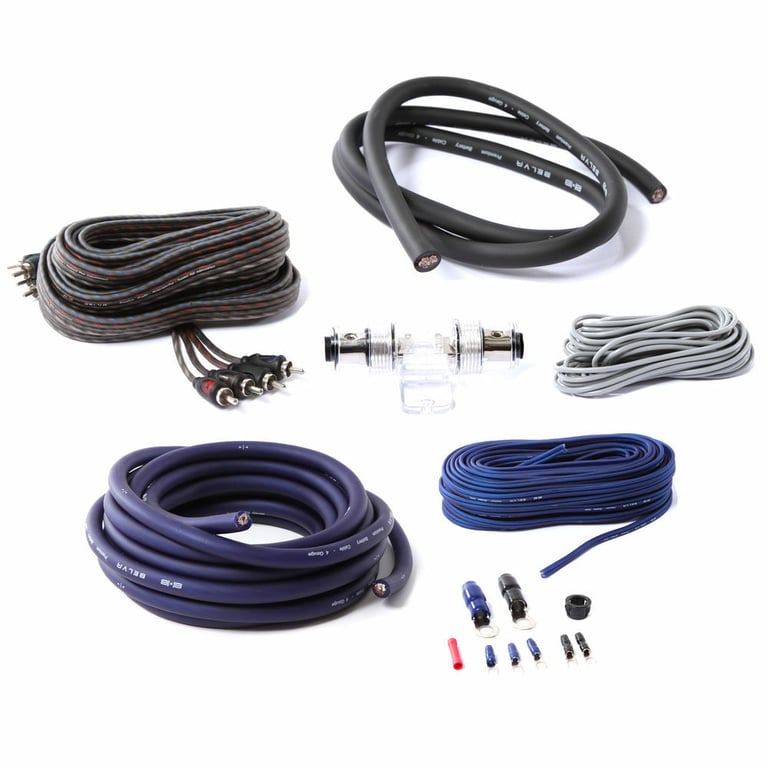

Kit includes:

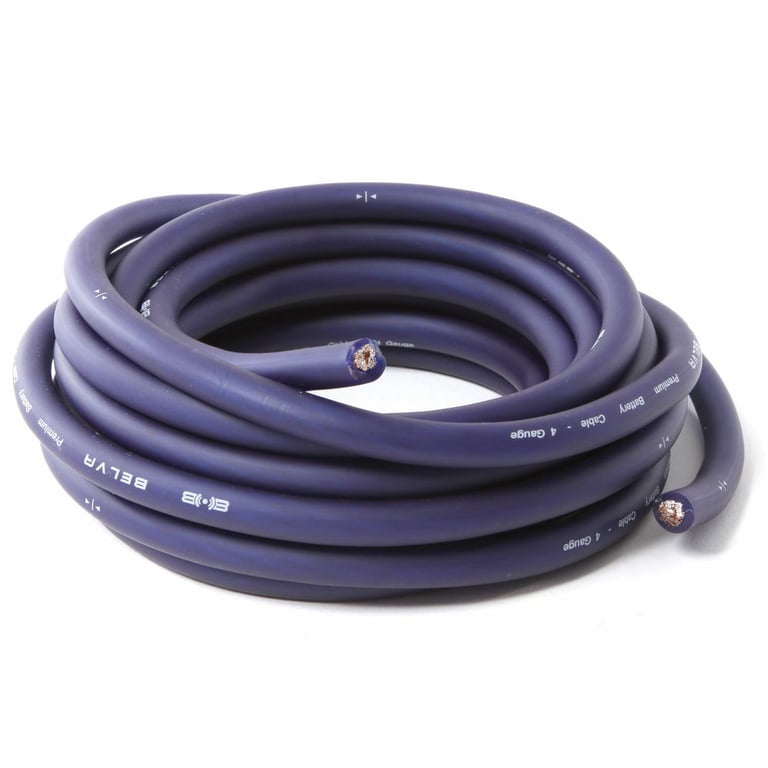

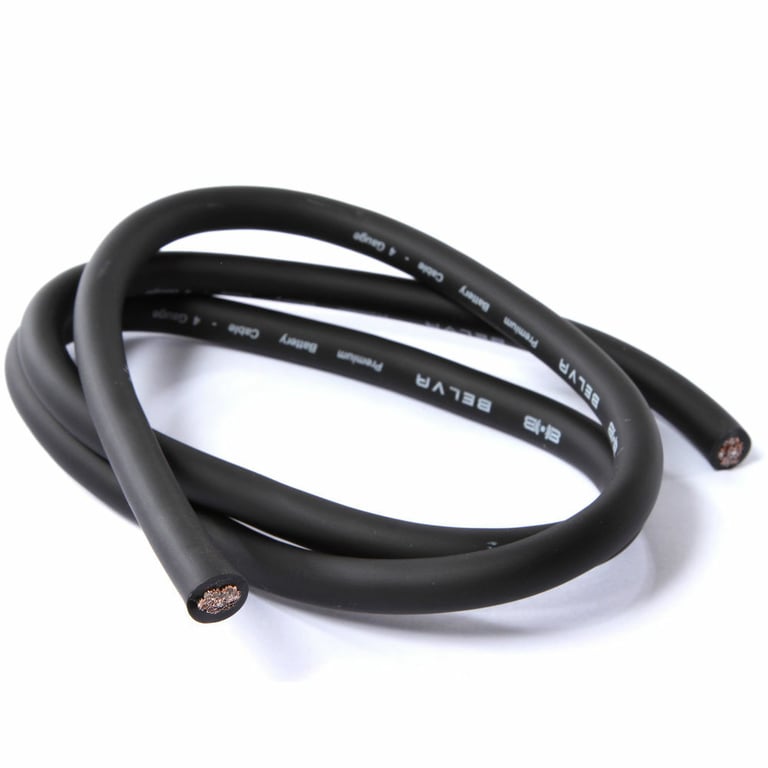

  1. 17 ft. Blue 4 gauge power wire
  2. 3 ft. Black 4 gauge ground wire

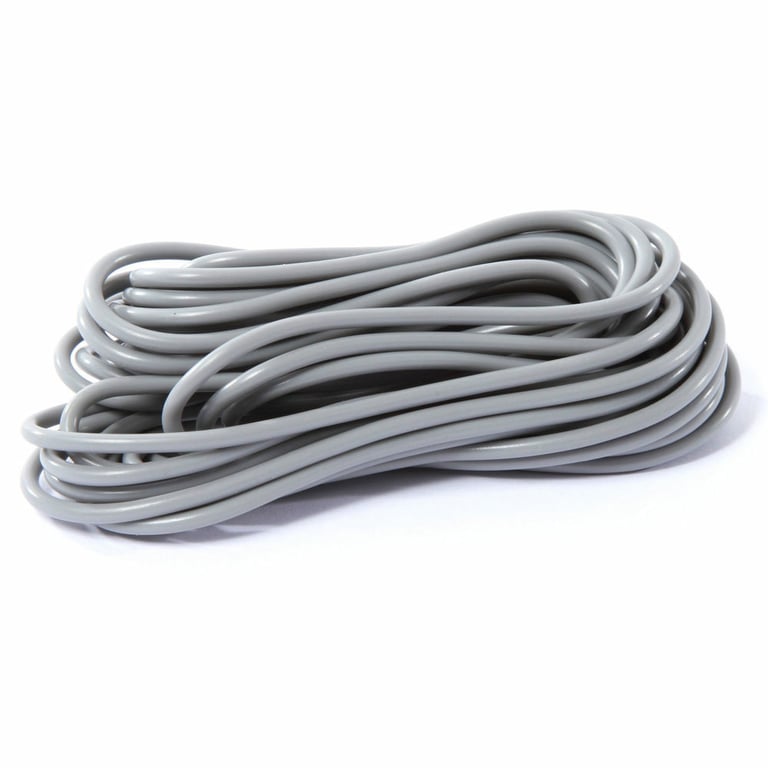

  3. 17 ft. Gray 18 gauge remote lead wire

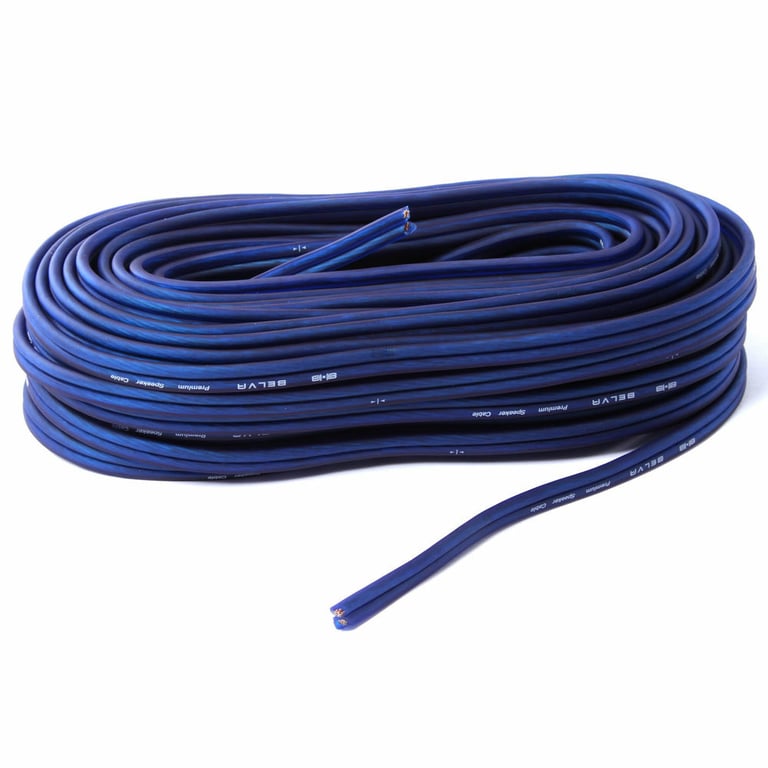

  4. 40 ft. 16 gauge speaker wire

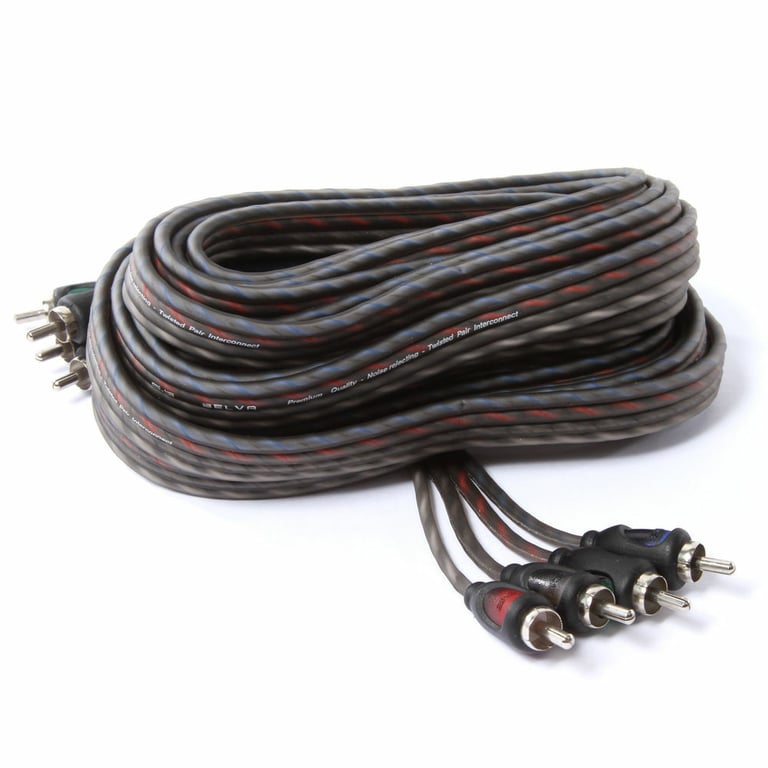

  5. One 17 ft. 4-channel twisted-par construction RCA interconnect Cable

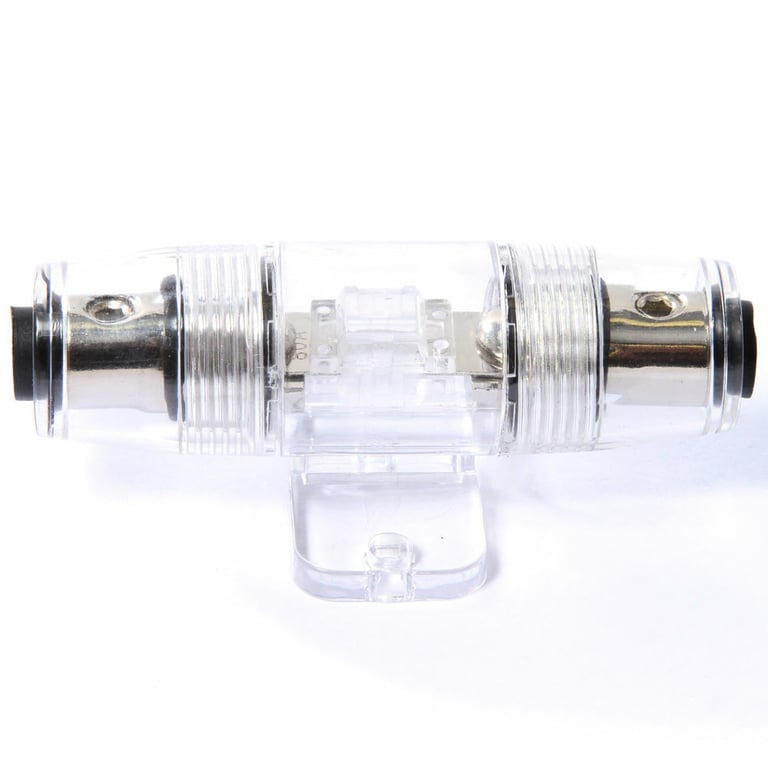

  6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
  7. One Black rubber firewall grommet

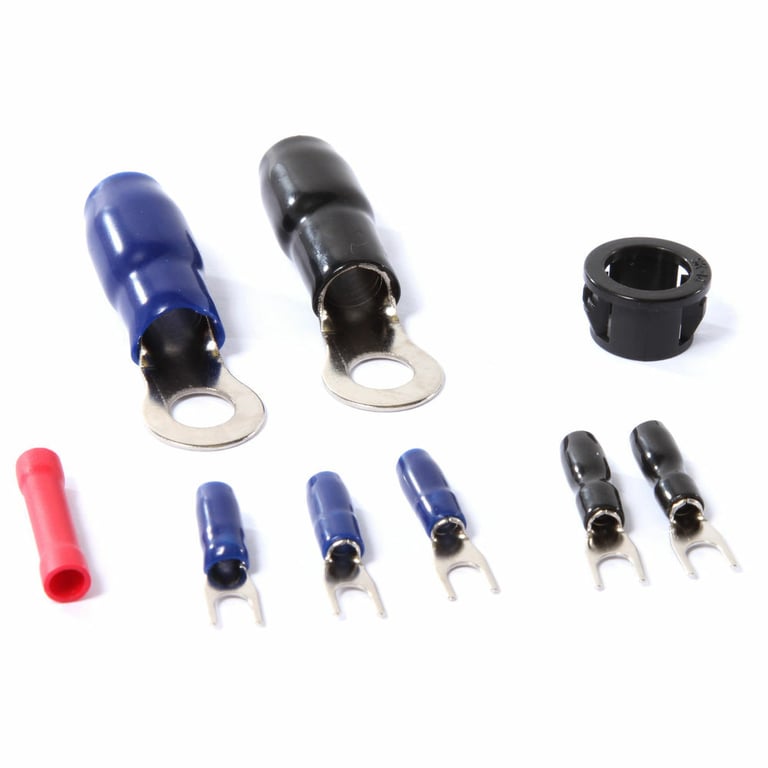

  8. Two 4 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

QBSTA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QBSTA & Two Pair 6.5" Speakers

• 11" Spare Tire Subwoofer System
• Built-In Class D Amplifier
• Top-mount amplifier controls
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(260)

$396.93

List price $581.43

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(260)

$491.43

List price $682.43

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(79)

$309.99

List price $369.98

AMPCBA754AM, XFLOC4, BAK84 small

JBL ClubA754 (Club A 754) + Free NVX XFLOC4 Line-Output-Converter + Amp Kit

• Class H Amp Technology
• 4 Ohm Stable Bridged: 200 Watts RMS x 2
• Variable High and Low-Pass Filters
• Variable Crossover
• Full On Board Protection

(68)

$319.95

List price $463.68

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(72)

$309.99

List price $369.98

BAK42,46CXA4001T small

Kicker 46CXA4001 with Amplifier Wiring Kit


• 150 Watts RMS x 1 @ 4 ohm
• 300 Watts RMS x 1 @ 2 ohm
• Total Peak Power: 600 Watts
• Preamp RCA outputs to daisy chain multiple amps
• Variable Low-Pass Crossover: 50 - 200Hz 12dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 40 Hz
• Includes Amplifier Wiring Kit

(45)

$199.99

List price $269.98

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
125 watts x 4 channel
RMS Power @ 2 ohms
175 watts x 4 channel
Bridged RMS Power
350 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
1400 watts
Total RMS Power Output
700 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Subsonic
High-Pass Crossover Frequency
50 - 500 Hz
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
12 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
30A x 2
CEA-2031 Compliant
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RN4.1400D, BAK44

Weight:

9.58lbs

Internal SKU:

rn41400d_bak44

Internal Product ID:

192127

Customer Ratings & Reviews


Soundstream Rubicon Nano RN4.1400D + Belva 4 Gauge Amp Kit thumbnail image

5 star
86%
4 star
6%
3 star
9%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Seems legit

The following review is for BAK44BL, which is a part of the bundle you are viewing.

My first time using CCA wire. I was pleased to see the amount of copper in the power and ground wi hires. Quality fuse block. The RCA patch cords are awesome being bundled together. Made installation that much easier.

By Anonymous on November 14, 2018 Checkmark Icon Verified purchase

74 found this helpful


Great value

The following review is for BAK44BL, which is a part of the bundle you are viewing.

No complaints nice price, work's extremely well. Glad I purchased it from Sonic Electronic..

By Frederick on August 28, 2018 Checkmark Icon Verified purchase

73 found this helpful


Great value

The following review is for BAK44BL, which is a part of the bundle you are viewing.

Used this kit in my 88 Corvette C4. Wired into my 1600watt 4 channel Cervin Vdga amp. High quality and looks great. Excellent value and good quality

By Robert on October 1, 2020

68 found this helpful


Not the best, but Good.

The following review is for BAK44BL, which is a part of the bundle you are viewing.

This is an ok kit. Came with everything that Is described. The RCA plugs ARE NOT gold plated.
The remote wire is very thin. Speaker wire is decent but not the best. You get what you pay for.
Overall a good kit ... not the best quality ... alright for the price paid.

By PapaFinnDaddy on August 29, 2020 Checkmark Icon Verified purchase

67 found this helpful


Great kit!

The following review is for BAK44BL, which is a part of the bundle you are viewing.

This has everything you need to install a 4 channel amp. Good quality materials.

By Bsm781 on April 28, 2018

61 found this helpful


Belva BAK44BL

The following review is for BAK44BL, which is a part of the bundle you are viewing.

Heavy duty, rugged, works very well. Would recommend to anyone looking for budget friendly wiring. However be advised if you run a stock head unit you'll need a line out converter.

By Anonymous on May 15, 2018 Checkmark Icon Verified purchase

58 found this helpful


The following review is for BAK44BL, which is a part of the bundle you are viewing.
By Isaiah on July 2, 2023 Checkmark Icon Verified purchase

49 found this helpful


The following review is for BAK44BL, which is a part of the bundle you are viewing.
By Hubert on December 17, 2023 Checkmark Icon Verified purchase

38 found this helpful


Great little amp

The following review is for RN4.1400D, which is a part of the bundle you are viewing.

I bought this to run my Hertz HSK 165 components and my rear doors as well. Currently I have it connected via the High Level Inputs as opposed to RCAS and haven't had any complaints. The sound is clean, there is plenty of power available. Not much more I could ask for. I don't hear any strange sounds when it's running. It just runs and runs and runs. I don't know what else I could have expected in an amp. I will definitely use more of these.

By 2016fifteenhundred on September 6, 2016

34 found this helpful


Decent performance and sound quality for the money

The following review is for RN4.1400D, which is a part of the bundle you are viewing.

I know it's not the same thing as an old school Soundstream but it has good sound quality and powers my 3 chanel setup(2x 6.5 Polk Coaxials, 1x 10" Polk Sub) in an extended cab pickup very well.

It's not the cheapest for the wattage but it has a few extra features for adjusting and has a clean look that reminds me of my old Rubicon 502 and SA80 setup from the 90's

I have had it for 6 months with no issues. And thinking about buying the 5 channel for my car.

By Anonymous on April 18, 2019 Checkmark Icon Verified purchase

33 found this helpful



LS-40iK5BT2 Amphitheater-OBC small

Kicker iK5BT2 Amphitheater with Bluetooth, USB Playback & Aux Input (40iK5BT2 - OPEN BOX COMPLETE)

Wireless Bluletooth Shelf Stereo Sound System w/ 6" Subwoofer & 3.5mm Aux & USB Inputs for Playback

(1)

$79.00

List price $199.99

41IK5BTL Amphitheater small

Kicker iK5BTL Amphitheater with Bluetooth, Lightning Dock, USB & Aux Input (41IK5BTL - Manufacturer Refurbished)

Wireless Bluetooth Lightning iPod, iPhone & iPad Docking Home Stereo Speaker System w/Built-In Subwoofer

$115.00

List price $219.95

5703 small

Ginsu 5703 8pc Spiced Pear Cutlery Set with Magnetic Strip

Shoku Anodized Spiced Pear 8pc Cutlery Set with Magnetic Strip

$139.95

List price $199.99

5700 small

Ginsu 5700 Ebony Cutlery Set with Magnetic Strip

Shoku Anodized Ebony 8pc Cutlery Set with Magnetic Strip

$141.00

List price $199.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2004 Mazda RX-8

2008 Dodge Dakota

2015 Ford C-Max

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
