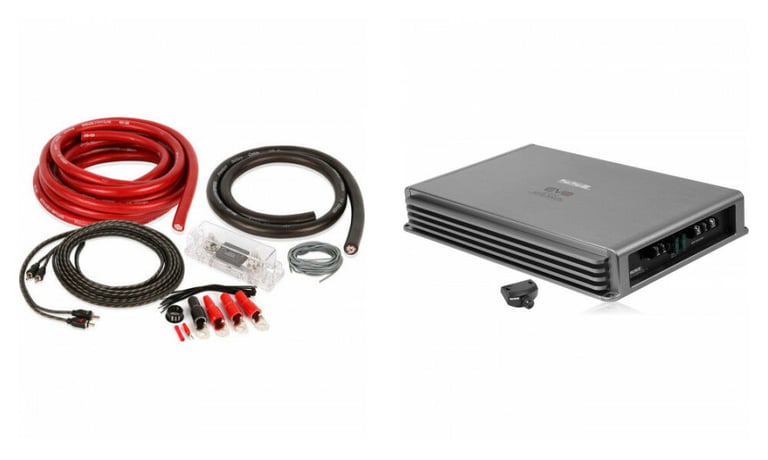

Sound Storm Labs (SSL) EVO2500.1 + Belva 1/0 Gauge Amp Kit

2500W EVOLUTION Series Monoblock Class A/B Car Amplifier

highlight-star-icon

• 1250W x 1 Chan. @ 4 Ohms
• 2500W x 1 Chan. @ 2 Ohms
• Peak Power: 2500W
• Soft Turn-On Circuit
• Nickel-Plated Terminals
• Variable Bass EQ

Learn more about the evo25001_bak02

We apologize

This item has been discontinued

Description


Sound Storm Labs (SSL) brand icon

Authorized dealer

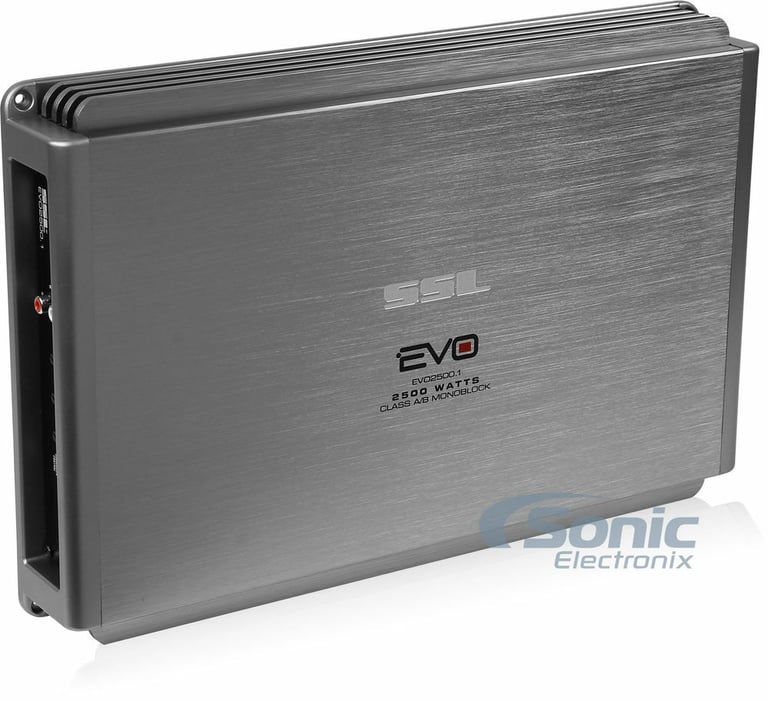

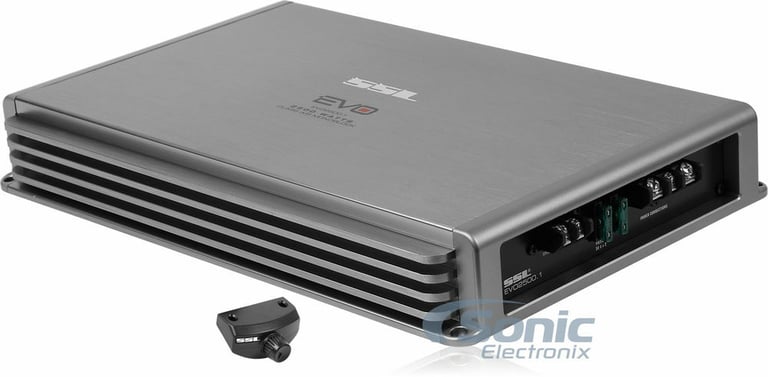

Sound Storm Labs (SSL) EVO2500.1

2500W Peak (1875W RMS) EVO Series Class-AB Monoblock Amplifier with Bass Remote
Quantity: 1

Product Details:

  • EVO Series Class A/B 2 ohms Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 938 watts x 1 channel
    • 2 ohms: 1875 watts x 1 channel
  • Peak Power Rating:
    • 4 ohms: 1250 watts x 1 channel
    • 2 ohms: 2500 watts x 1 channel
  • Total RMS power output: 1875 watts
  • LED Power/Protect Light

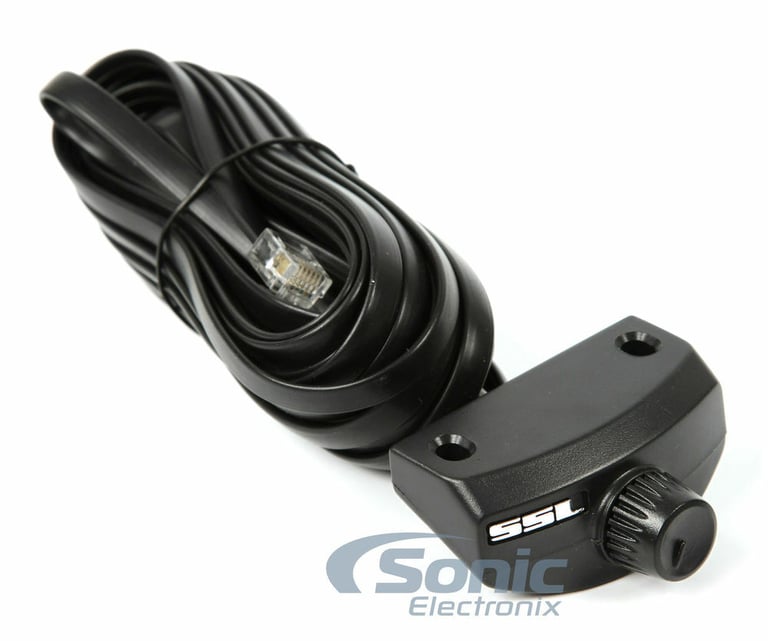

  • Wired bass level remote control included
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • MOSFET PWM (Pulse Width Modulated) Power supply
  • Soft turn-on circuit

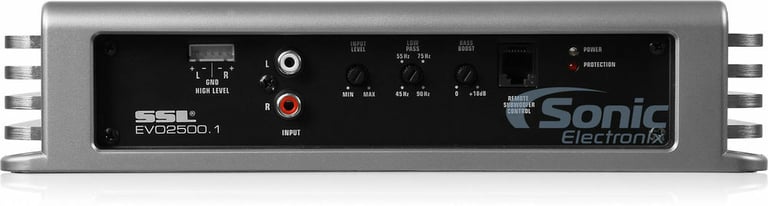

  • Nickel plated RCA low level and high level inputs
  • Dark Gray anodized heatsink
  • Input sensitivity:
    • Low level: 100mV - 2 volts
    • High level: 0.2V - 9 volts
  • Frequency Response: 9 - 90 Hz
  • Total Harmonic Distortion (THD): <0.01%
  • Signal to Noise Ratio: 103 dB
  • Variable low-pass filter: 45 - 90 Hz
  • Variable Bass Boost: 0 - 18 dB

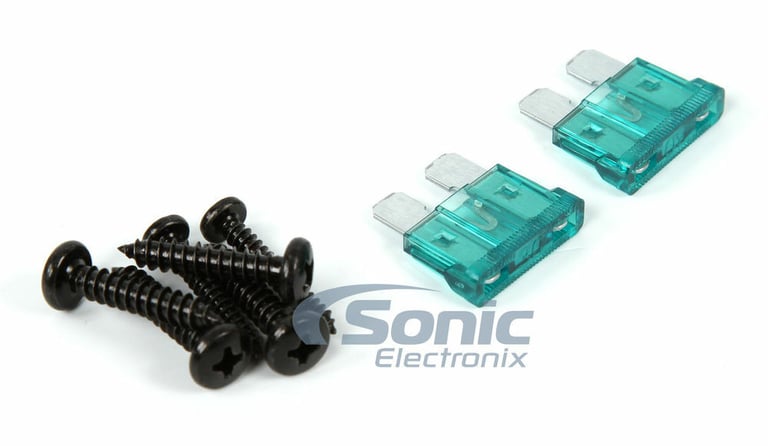

  • Fuse Rating: 60A
  • 1/0 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 15.19" L x 10" W x 2.3" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: EVO2500.1

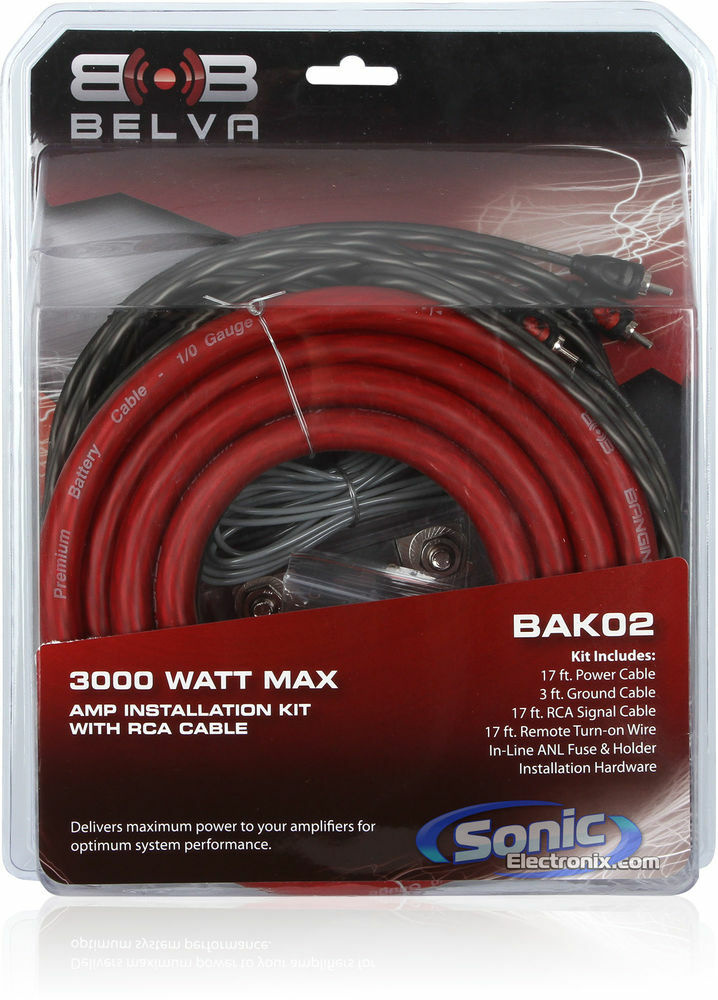

Belva BAK02

1/0 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 2000 Watts - RED
Quantity: 1

Product Details:

  • 1/0 Gauge 2-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 2000 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • ANL Fuse holder with a 150 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Also available in Blue
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

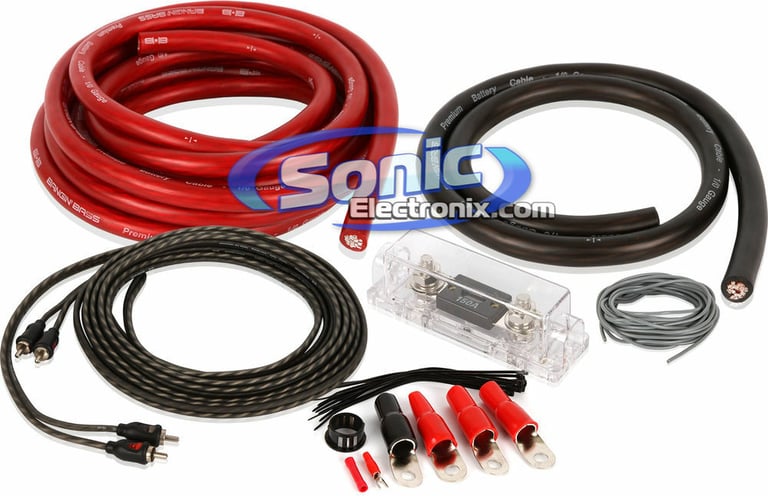

Kit includes:

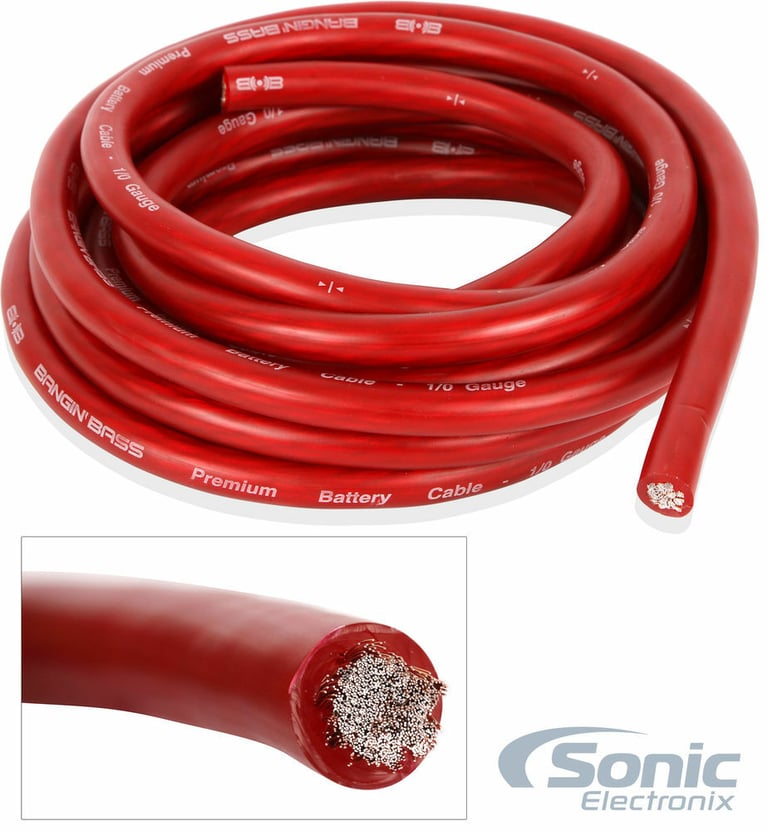

  1. 17 ft. (5.2 meters) Red 1/0 gauge power wire

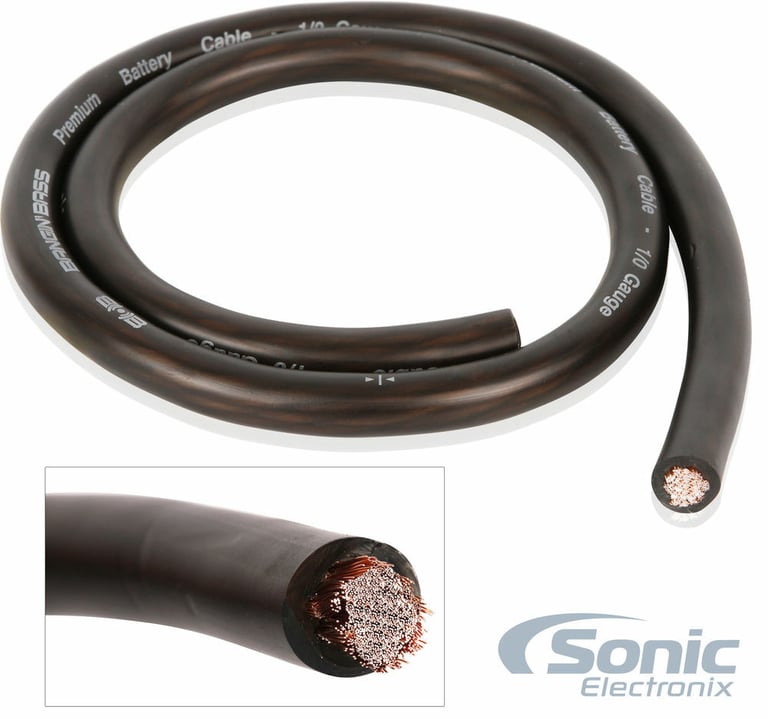

  2. 3 ft. (.91 meters) Black 1/0 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

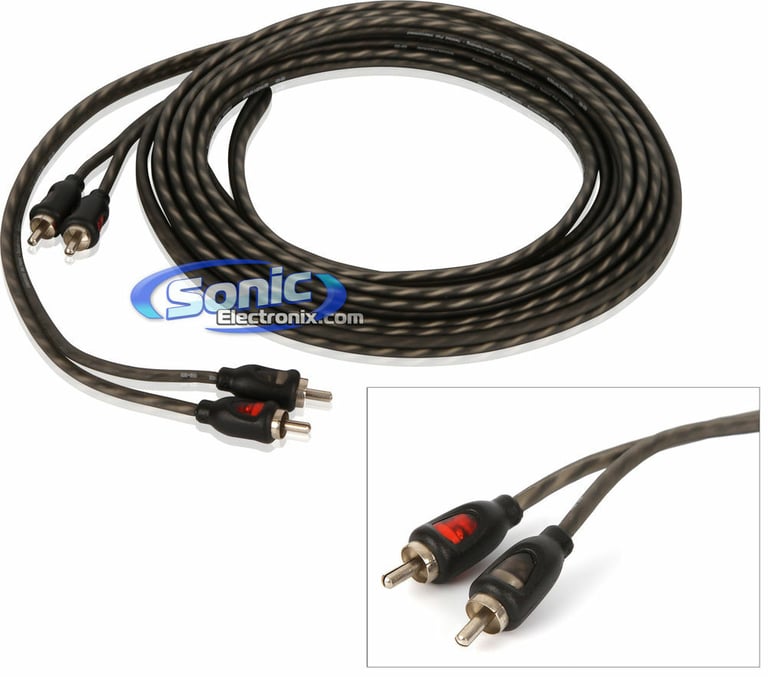

  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

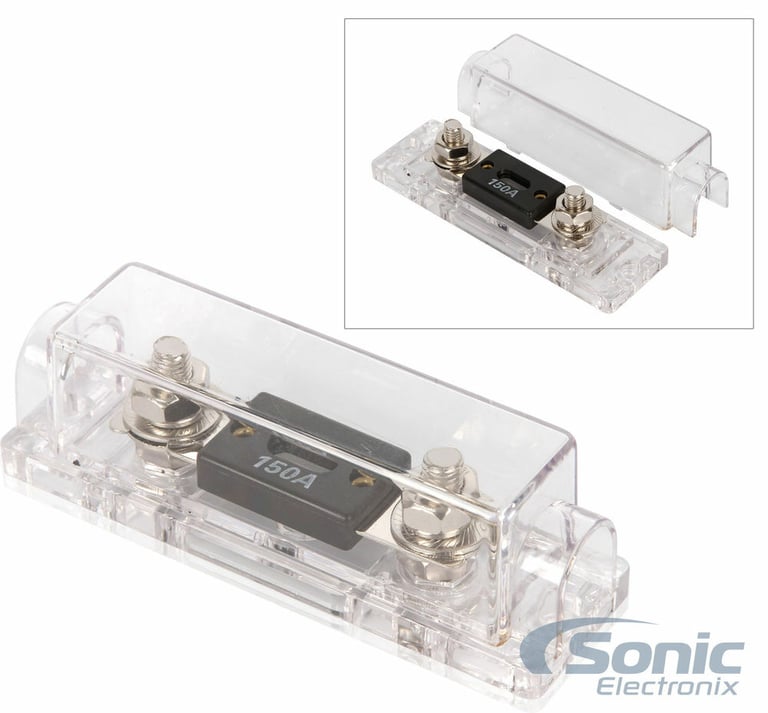

  5. One ANL Fuse Holder with a 150 amp ANL fuse
  6. One Black rubber firewall grommet
  7. Three 1/0 Gauge red chrome plated ring terminals
  8. One 1/0 Gauge chrome plated ring terminal
  9. One 18 Gauge red Spade terminal
  10. One 18 Gauge red butt connector
  11. Eight 6" Black zip ties

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
1250 watts x 1 channel
RMS Power @ 2 ohms
2500 watts x 1 channel
Peak Power Output
2500 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
2500 watts
Total RMS Power Output
1250 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
2 ohms
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.01%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
45 - 90 Hz
Signal-to-Noise Ratio
103 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fan Cooled
No

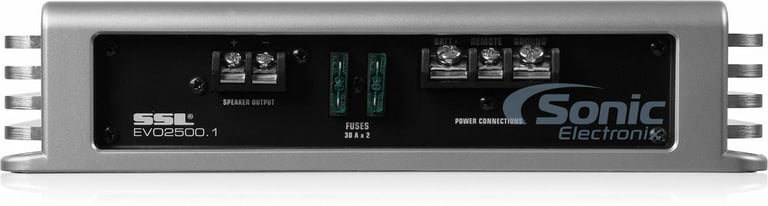

Fuse Rating
30A x 2
Total Fuse Rating
60
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

EVO2500.1, BAK02

Weight:

14.30lbs

Internal SKU:

evo25001_bak02

Internal Product ID:

192143

Customer Ratings & Reviews



5 star
69%
4 star
19%
3 star
6%
2 star
6%
1 star
0%



Durability
4.7
Value
4.8
Features
4.5
Design
4.7
Usability
4.6

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Good

The following review is for BAK02, which is a part of the bundle you are viewing.

This wire is very flexible and fit nicely in my 2000 nissan maxima. ring terminals were a little fussy, but that was operator error. very nice 150 amp fuse. Lots of wire crammed into it. Very inexpensive for the quality. I would recommend this to anyone looking for an upgrade.

By Blane on February 24, 2014

133

found this helpful.

Great

The following review is for BAK02, which is a part of the bundle you are viewing.

It is what it says it is.. no problems with install.

By PJ on September 17, 2013

119

found this helpful.

Decent Amp Kit

The following review is for BAK02, which is a part of the bundle you are viewing.

I am a professional installer first of and my father is an electrician. Following the AWG- American Wire Gauge standards this is not 1/0 wire it's closer to 2AWG, please understand that true 1/0AWG copper wire will cost around $5-8 a foot.

That being said for the price it is an amazing kit but should be marketed as 2AWG.

When compare to Kicker and Memphis true to spec 1/0AWG wire there is a major difference in size and weigh over all. 5 feet of Memphis 1/0 Wire weigh the same as 17 feet of Belva 1/0AWG.

By josh on October 3, 2014

119

found this helpful.

Great Wire

The following review is for BAK02, which is a part of the bundle you are viewing.

It's the size it says it is, and powers my 1400 watt system with no problems. For the price and ease of install, I couldn't be happier!

By Bay on May 18, 2014

115

found this helpful.

top quality

The following review is for BAK02, which is a part of the bundle you are viewing.

I got this kit on a deal with a amplifier I purchased thought it looked good turned out to be one of the best amp kits I have ever owned would of paid full price for it

By Drew on March 28, 2014

112

found this helpful.

a great kit for the price

The following review is for BAK02, which is a part of the bundle you are viewing.

these are great for the money and would definitely buy again

By Joseph on February 6, 2014

113

found this helpful.

Huge

The following review is for BAK02, which is a part of the bundle you are viewing.

I have never ran 0 gauge before and when I got it and took it out I was surprised but the big wire didn't really hurt the install it is still hidden under the carpet and it's thick and flexible so it was easy to run through the firewall. Now I'm gonna get the Belva big 3

By Brennen on June 9, 2014

110

found this helpful.

Great deal

The following review is for BAK02, which is a part of the bundle you are viewing.

I got this kit because I got a deal on it with my amp...great starting kit...didn't have any problem with it when I installed it...The ground cable was to short for me but that is due to my custom box..All in all good 1/0 Guage kit

By Robert on August 8, 2014

108

found this helpful.

good product

The following review is for BAK02, which is a part of the bundle you are viewing.

Good product, they give you plenty of length. Only complaint is that the o connectors are really hard to clamp down and the rcas are kinda cheesey but work

By Zach on September 12, 2013

104

found this helpful.

True 0 AWG!

The following review is for BAK02, which is a part of the bundle you are viewing.

Pros:
This kit comes with everything you need for a 0 AWG amp install with RCA inputs.

Cons:
NONE

I would definitely recommend purchasing this kit if you need a quality 0 AWG kit at a fair price with super fast shipping!

By Michael on October 10, 2013

102

found this helpful.
