Soundstream BXA1-5000D

5000W Peak (1650W RMS) Monoblock Class D w/ Built-in BX Digital Bass Reconstruction Amplifier

Soundstream
Shop all Soundstream
highlight-star-icon

• 700 watts x 1 channel @ 4 ohms
• 1100 watts x 1 channel @ 2 ohms
• 1650 watts x 1 channel @ 1 ohm
• Total RMS Power: 1,650 watts
• Class D 1 ohms Stable Monoblock Amplifier

Learn more about the bxa15000d

We apologize

This item has been discontinued

Description


Soundstream

Authorized dealer

For those who want the most out of their car audio system, quality sound processing is necessary. Bass Xtreme amplifiers offer similar sound processing options by including the functions of a Bass Equalizer. Commonly added in-line before subwoofer amplifiers, Bass Equalizers boost lower frequency harmonics that have been compressed or removed from today’s music recordings. Dial in the exact sound you want by tuning the frequency to expand, then increase the bandwidth range from that frequency to boost the harmonics around it. After some slight adjustments, your system can sound like audio professionals have tuned it. Unlock the best bass from any system with Bass Xtreme amplifiers.

Works great for music or factory radios that forgot we enjoy bass response in our systems! No Problem! EDM, Banda, Rock, Jazz…


Product Details:

  • Soundstream Bass Xtreme Series Class D 1 ohms Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 700 watts x 1 channel
    • 2 ohms: 1100 watts x 1 channel
    • 1 ohm: 1650 watts x 1 channel
  • Total RMS power output: 1,650 watts
  • Pulse Width Modulated MOSFET power supply
  • LED Power/Protect Light
  • Wired remote bass level control included
  • Soft start turn-on
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 0.200 - 6 volts
  • Frequency Response: 15 - 500 Hz
  • Total Harmonic Distortion (THD): 0.3%
  • Signal to Noise Ratio: 105 dB
  • Variable low-pass filter: 40 - 150 Hz
  • Subsonic filter: 10 - 50 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 120
  • Dimensions: 8.25" W x 11.125" L x 2.75" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Soundstream BXA1-5000D owner’s manual

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
700 watts x 1 channel
RMS Power @ 2 ohms
1100 watts x 1 channel
RMS Power @ 1 ohm
1650 watts x 1 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
700 watts x 1 channel
RMS Power @ 2 ohms
1100 watts x 1 channel
RMS Power @ 1 ohm
1650 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
5,000 watts
Total RMS Power Output
1,650 watts
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
Not Bridgeable
Frequency Response
15 - 500 Hz
THD at Rated RMS Power
0.3%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
40 - 150 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes

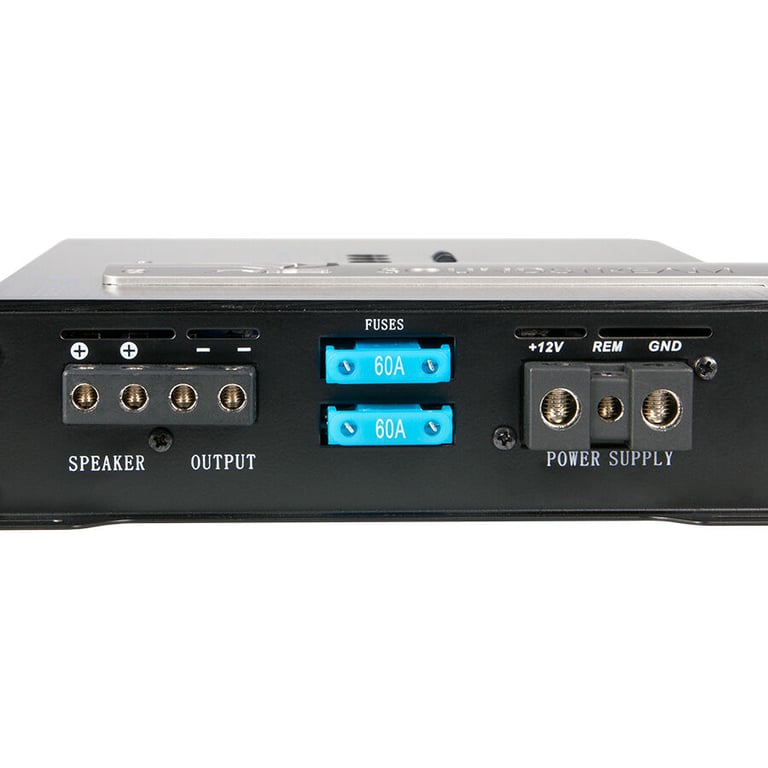

Fuse Rating
60A x 2
Total Fuse Rating
120
Strappable
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
0.200 - 6 volts

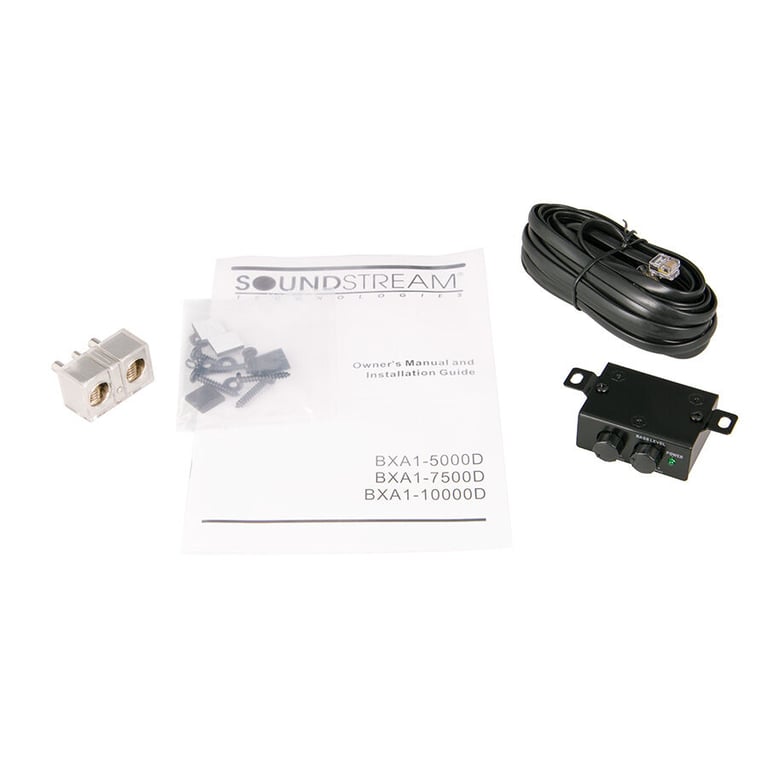

What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Wireless remote
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BXA1-5000D

Weight:

9.90lbs

Internal SKU:

bxa15000d

Internal Product ID:

192517
