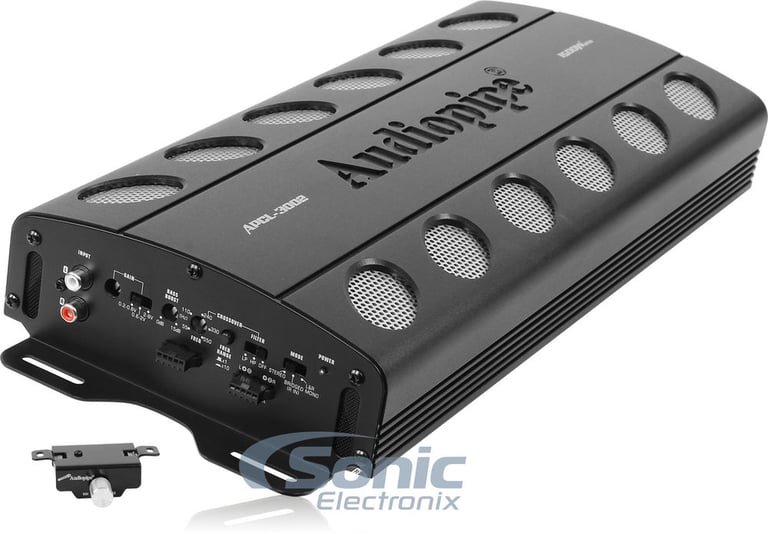

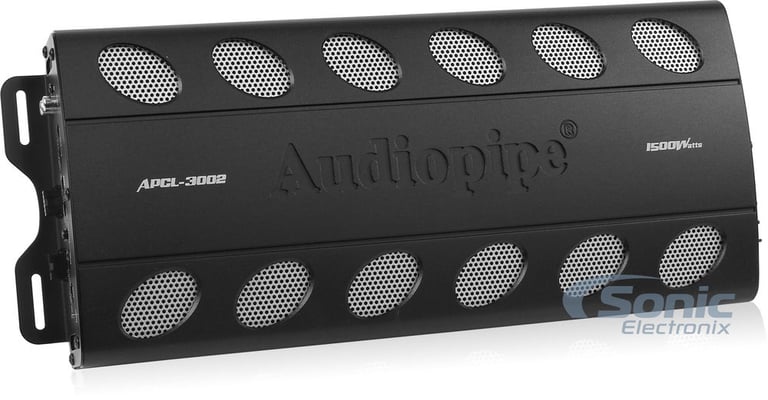

Audiopipe APCL-3002

1500W Peak (600W RMS) APCL Series Bridgeable 2-Channel Class AB Full-Range Amplifier

Audiopipe
Shop all Audiopipe
Product videos
highlight-star-icon

• RMS Power: 150W x 2 @ 4 ohm, 300W x 2 @ 2 ohm
• Total Peak Power: 1500W
• Adjustable High and Low Pass Crossovers
• High Quality Aluminum Heat Sink
• Dimensions: 7" W x 15" L x 2.2" H

Learn more about the apcl3002

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Product Highlights


• RMS Power: 150W x 2 @ 4 ohm, 300W x 2 @ 2 ohm
• Total Peak Power: 1500W
• Adjustable High and Low Pass Crossovers
• High Quality Aluminum Heat Sink
• Dimensions: 7" W x 15" L x 2.2" H

Description


Audiopipe brand icon

Authorized dealer




Quality without the Cost

The Audiopipe Consumer Line series amplifiers were reengineered from the ground up in 2012 to provide plenty of high quality power for even the highest end sound system while keeping their footprint as compact as possible. Audiopipe didn’t skimp on the internals of these amps, the Consumer Line features the finest in electronic protection circuitry to protect against harmful short circuits, thermal overloads and overheating. These premium choice amplifiers are sure to impress.

Oversized Toroids for Better Sound

Oversized Toroids for Oversized Sound

The Consumer Line amplifiers are built with performance in mind, and a quick look under the hood of these amplifiers reveal oversized toroids. These toroids (basically just wire coils) help to regulate the voltage in the amplifier. By overbuilding them, Audiopipe ensures that every CL series amp puts out even, consistent power for the best possible sound, and the longest life from your components.

Outstanding Heat Dissipation

The Finest in Heat Dissipation

When redesigning the Consumer Line series, Audiopipe took great care in designing an amplifier that would not overheat. These amps feature a high quality aluminum heat sink with cooling fins running along each side and grills embedded in the top plate to ensure outstanding heat dissipation and prevent any unwanted heat related shutdowns.

Speaker Level Inputs

High Level Convenience

Audiopipe’s multi-channel Consumer Line amplifiers feature high level inputs (or speaker level inputs) to allow much simpler installations. High level inputs eliminate the need for RCA cables and line output converters by picking up the audio signal directly from the speakers in your car. They are ideal for use with factory radios that do not have RCA outputs to run amplifiers.


General Features:

  • Audiopipe APCL Series APCL-3002
  • Class-AV FullRange 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 2 chan.
    • 2 ohm: 300 watts x 2 chan.
    • Bridged, 4 ohm: 600 watts x 1 chan.
  • Total power output: 1500 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 2 or Mono channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity:
    • Low level: 600mV - 8V
    • High level: 200mV - 8V
  • Frequency Response: 20 - 20,000 Hz
  • Total Harmonic Distortion (THD): 0.05%
  • Signal to Noise Ration: >95dB

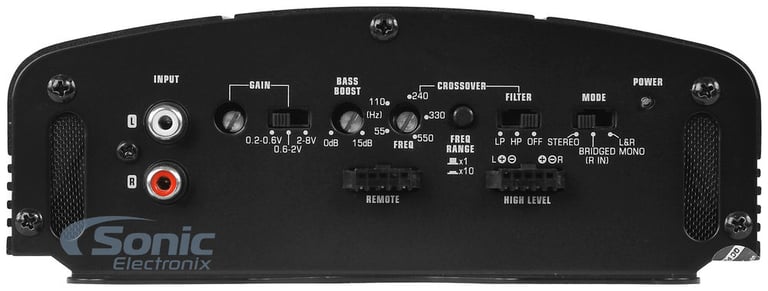

  • Selectable crossover modes: LP / HP / OFF
  • x1 / x10 crossover frequency multiplier
  • Variable crossover filter: 55 - 550 Hz (x1) / 550 - 5500 (x10)
  • Variable Bass Boost: 0 to +15 dB bass boost at 45 Hz

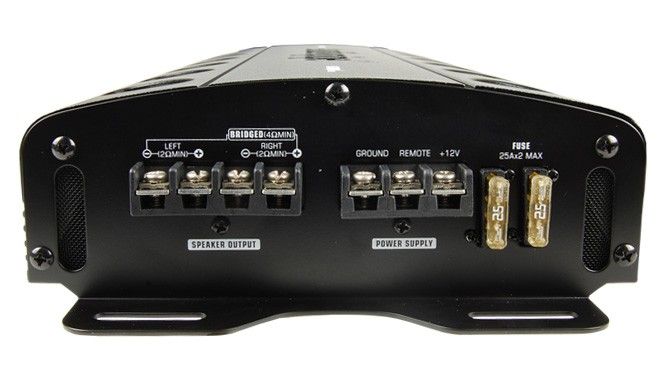

  • Fuse Rating: 25 A x 2
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 7"W x 15"L x 2.2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

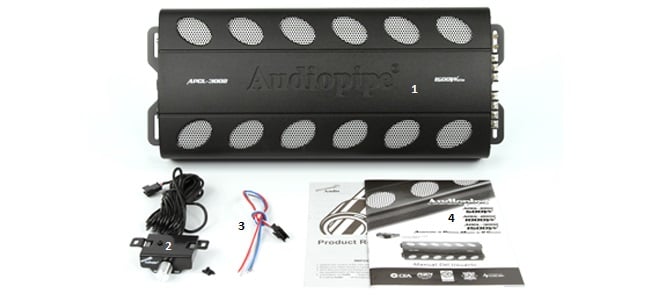

What's in the Box?

  1. APCL-3002 2-Channel Amplifier

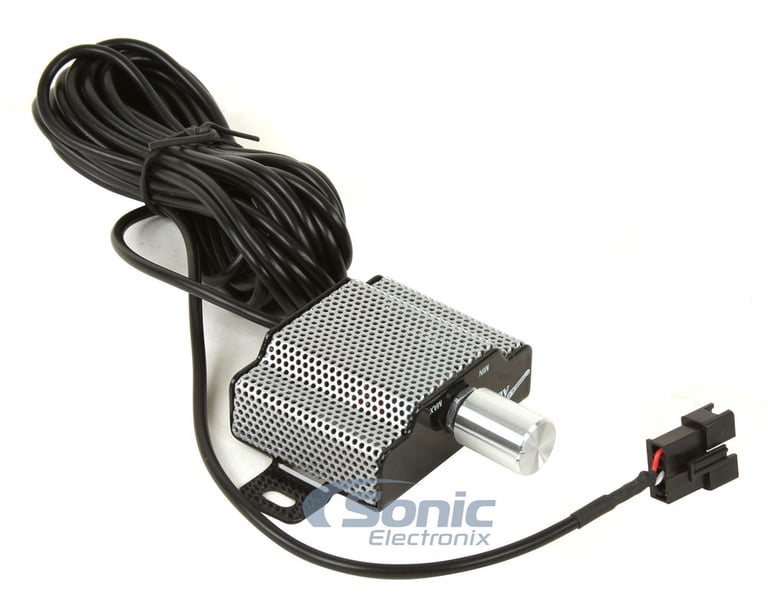

  2. Wired Remote Bass Level Control

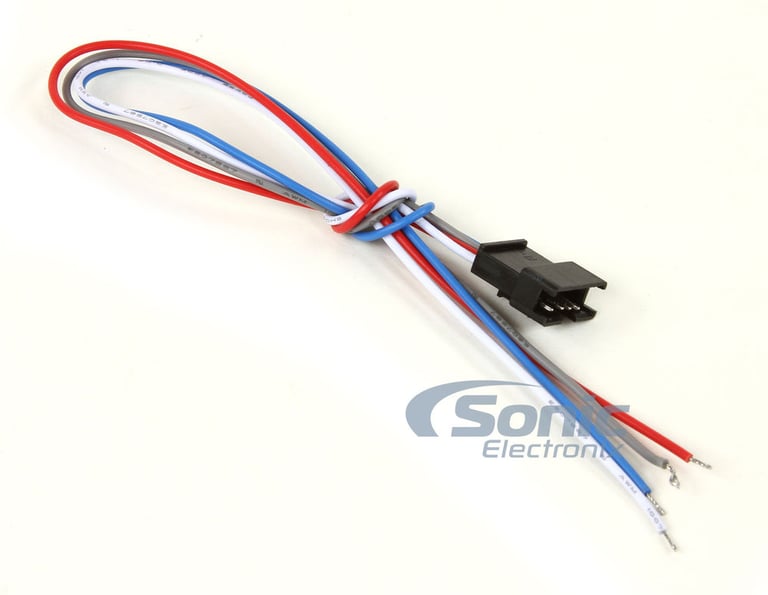

  3. High Level Input Adapter

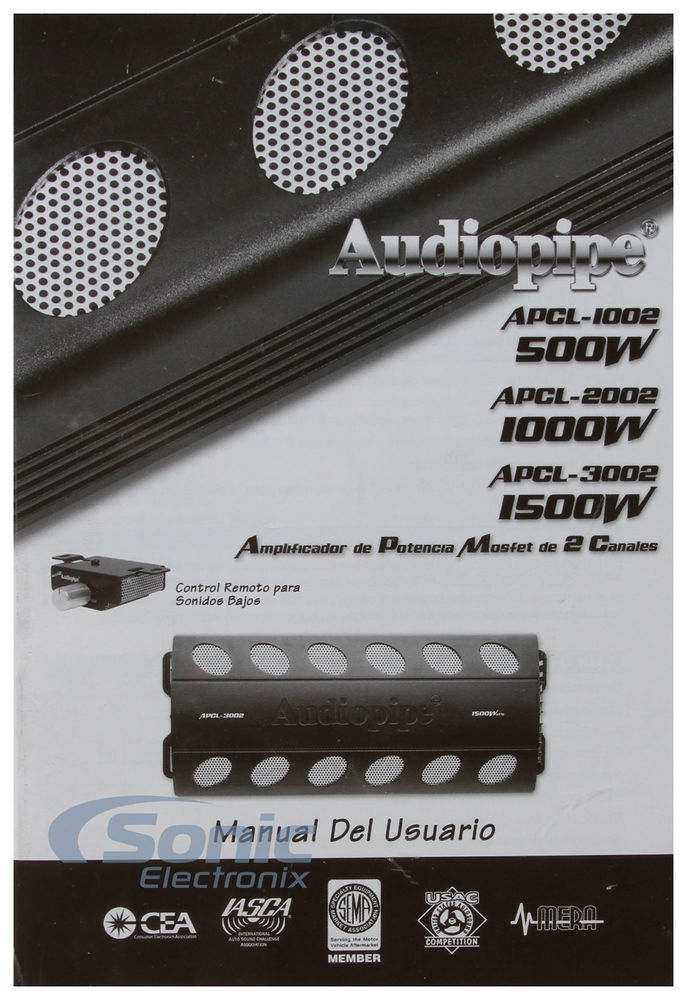

  4. User Guide

Best selling similar products

ATOM-900.2 PRO small

Deaf Bonce Apocalypse ATOM-900.2 PRO

• 350 watts x 2 channel @ 4 ohm
• 510 watts x 2 channel @ 2 ohm
• 900 watts x 2 channel @ 1 ohm
• Bridged: 1020 watts x 1 channel @ 4 ohm
• 1000 watts @ 2 ohm
• Total RMS Power: 900 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

$229.90

List price $229.90

MFA 2.420 small

Deaf Bonce MFA 2.420

• 420 watts x 2 channel @ 4 ohm
• 630 watts x 2 channel @ 2 ohm
• Bridged: 1260 watts x 1 channel @ 4 ohm
• Total RMS Power: 1260 watts
• Class D 2 ohm Stable 2-Channel Amplifier

$229.90

List price $229.90

ATOM-700.2 PRO small

Deaf Bonce Apocalypse ATOM-700.2 PRO

• 230 watts x 2 channel @ 4 ohm
• 480 watts x 2 channel @ 2 ohm
• 700 watts x 2 channel @ 1 ohm
• Bridged: 960 watts x 1 channel @ 4 ohm
• 14000 watts @ 2 ohm
• Total RMS Power: 700 watts
• Class D 1 ohm Stable 2-Channel-Channel Amplifier

(1)

$199.90

List price $199.90

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
150 watts x 2 channel
RMS Power @ 2 ohms
300 watts x 2 channel
Bridged RMS Power
600 watts x 1 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
375 watts x 2 channel
Peak Power @ 2 ohms
750 watts x 2 channel
Bridged Peak/Max Power
1500 watts x 1 channel
Amplifier Specifications
Series
Consumer Line Series
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
1500 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
55 - 5500 Hz
Low-Pass Crossover Frequency
55 - 5500 Hz
Signal-to-Noise Ratio
>95 dB
Bass Boost
0 - 15 dB
Remote bass/level controller
Yes

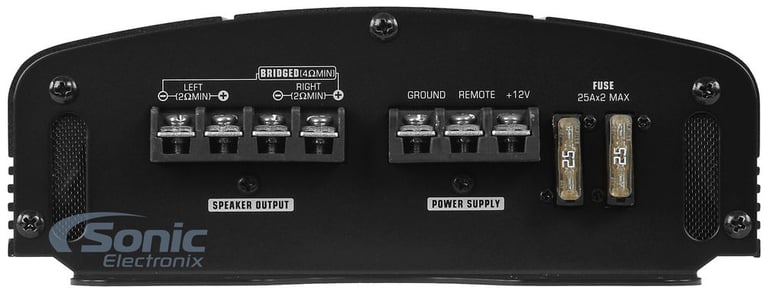

Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

APCL-3002

Weight:

9.40lbs

Internal SKU:

apcl3002

Internal Product ID:

81639
