See all parts that fit your 2004 Impala

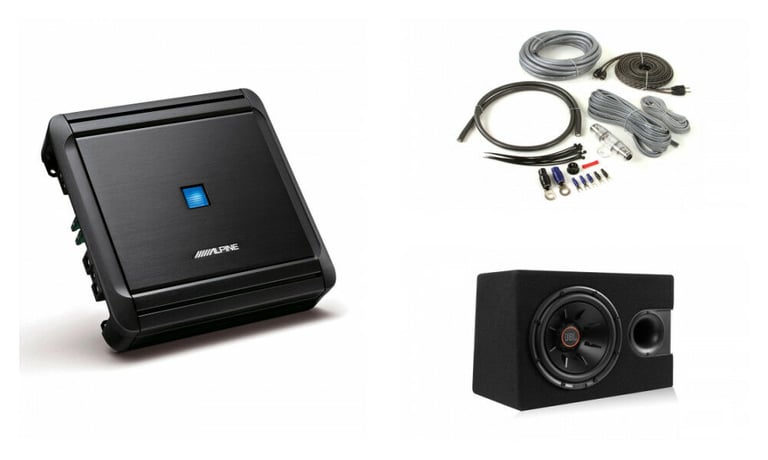

JBL S2-1224SS Subwoofer with Enclosure + Alpine MRVM500 + 4 Gauge Amp Kit

1100W Peak (275W RMS) 12" SSI Subwoofer with Enclosure + Amplifier and Amp Kit

JBL
Shop all JBL
highlight-star-icon

• 275 Watts RMS
• 1100 Watts Max
• Nominal Impedance: Single 2 or 4 ohm
• Polypropylene Cone
• Nitrile Butadiene Rubber (NBR) Surround
• Slipstream port design with double-flared design
• Frequency Response: 25 ~ 175 Hz

Learn more about the s21224ss_mrvm500_bak42

We apologize

This item has been discontinued


Loading...
72-4568 main

Metra 72-4568

Install New Speakers in select 1990-2021 vehicles from Chevrolet, GMC, Buick

121
-33.36%

$9.99

List price $14.99

DKGM-15 main

Crux DKGM-15

Stereo Replacement Interface with Steering Wheel Control Retention, Video Switcher, and Double DIN Dash Kit for select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

19
-35.71%

$162.00

List price $252.00

SAC656 main

Scosche SAC656

Add 5-1/4" or 6-1/2" Speakers to Factory 7" Mounting Locations

50
-6.69%

$13.95

List price $14.95

MDA1B main

Scosche MDA1B Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

366
-33.07%

$5.99

List price $8.95

GMK421 main

American International GMK421

Single DIN or Double DIN Stereo Dash Kit for select 1992-2012 vehicles from Chevrolet, GMC, Buick

15
-66.69%

$12.99

List price $39.00

DKGM-48D main

Crux DKGM-48D Stereo Replacement Interface

Stereo Replacement Interface with Steering Wheel Control Retention and Double DIN Dash Kit for select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

1
-35.71%

$132.30

List price $205.80

SOCGM-17 main

Crux SOCGM-17 Wiring Interface

Install a new car stereo and retains the safety warning chimes in select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

6
-35.71%

$58.05

List price $90.30

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

116
-37.15%

$21.99

List price $34.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Description


JBL brand icon

Authorized dealer

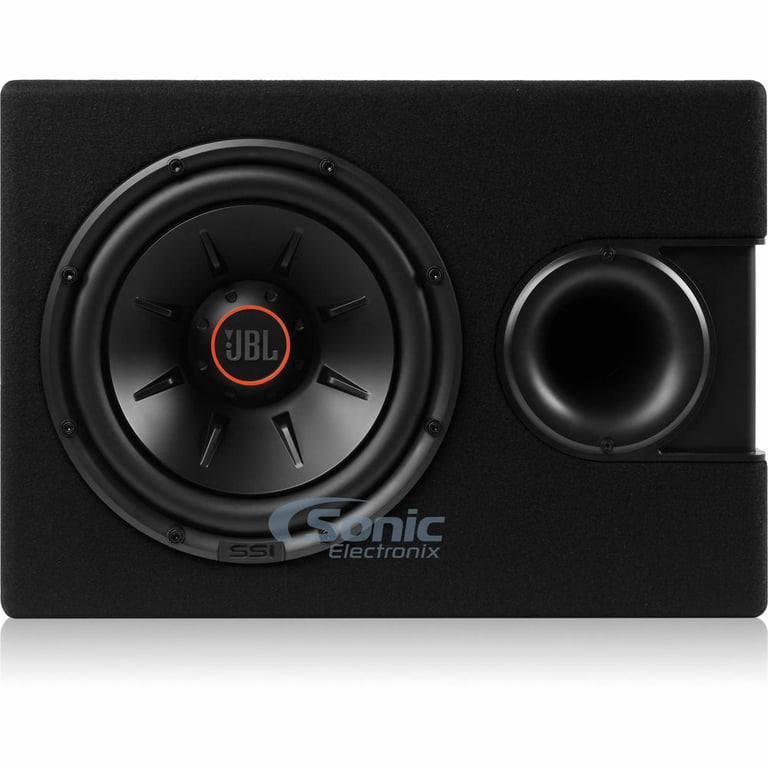

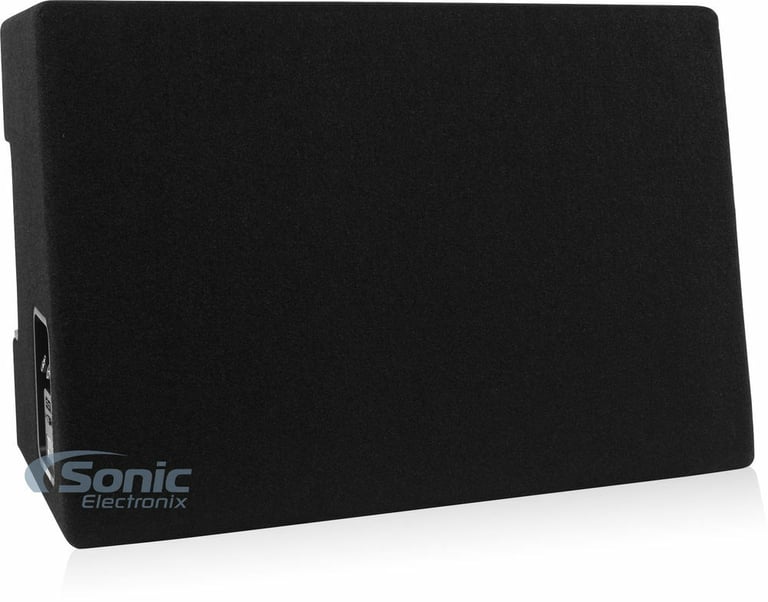

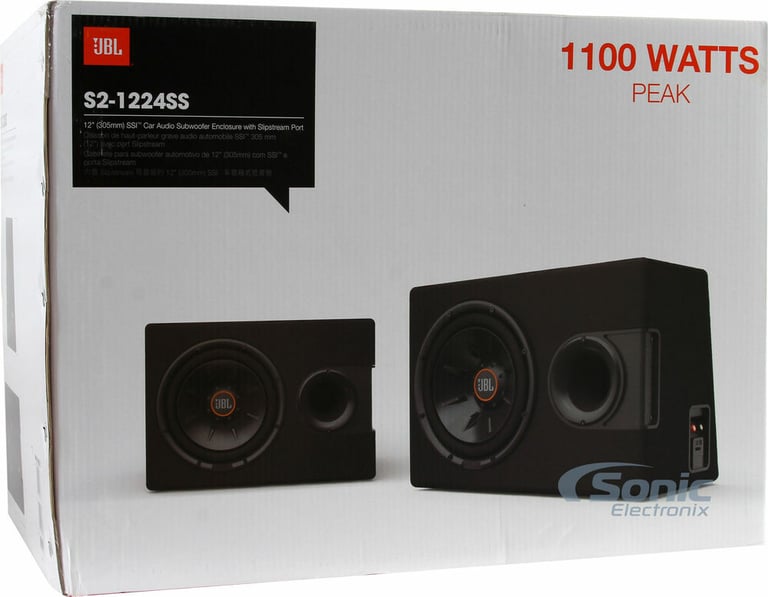

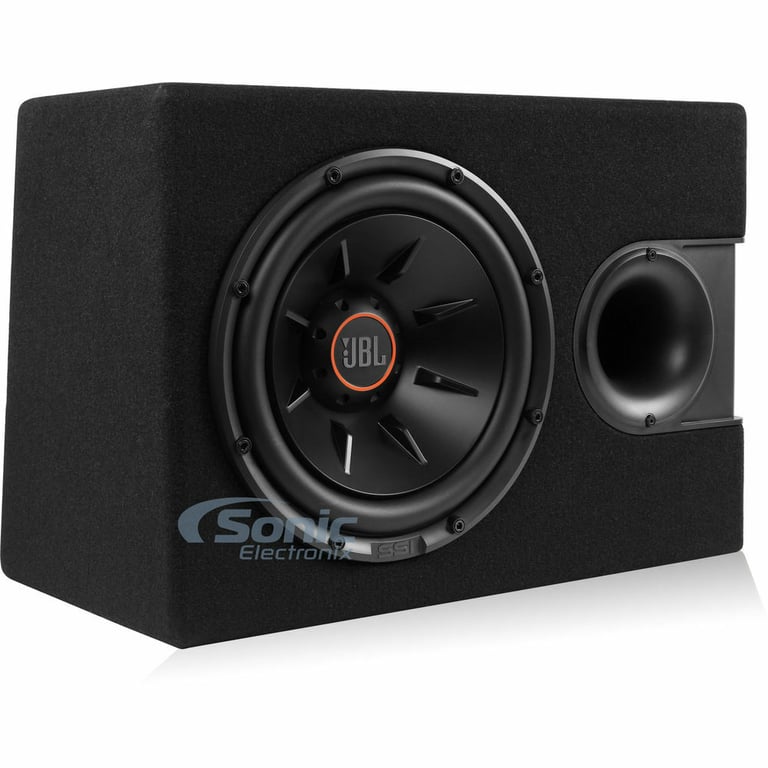

JBL S2-1224SS

1100W Peak (275W RMS) Loaded 2-Series Single 12" Vented Enclosure
Quantity: 1

Product Details:

  • Ported enclosure with 1 12" S2 Series Subwoofer
  • medium-density fiberboard construction covered with Carpet
  • Power Handling:
    • Peak: 1100 watts
    • RMS: 275 watts
  • SSI (Selectable Smart Impedance) of 2 or 4 ohm
  • Polypropylene cone
  • Nitrile Butadiene Rubber NBR surround
  • Long excursion design
  • Slipstream port design to minimize turbulence
  • Frequency Response: 25 - 175 Hz
  • Sensitivity: 93 dB
  • Dimensions: 23-5/8" L x 16-3/8" H x 13" W
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

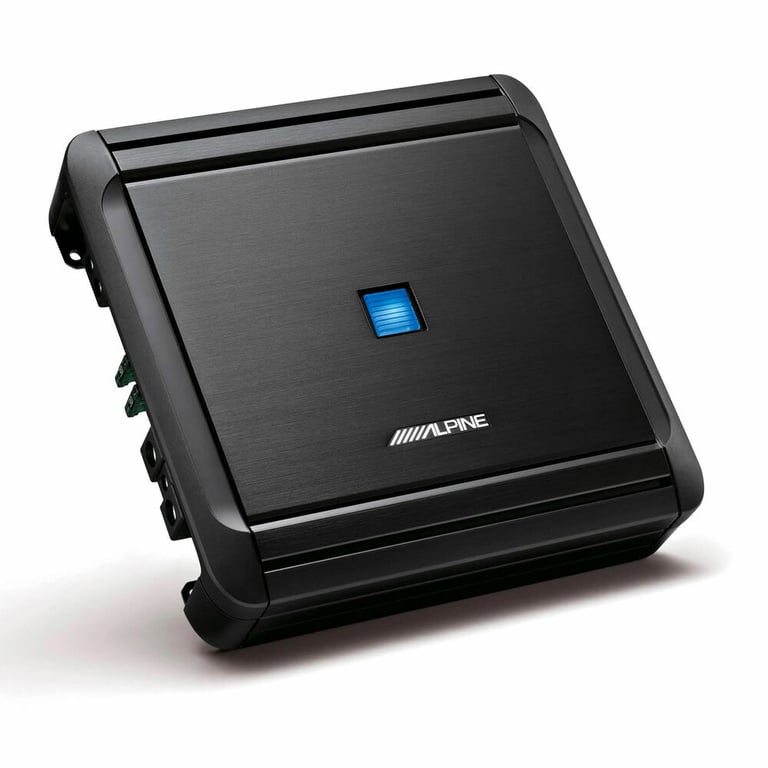

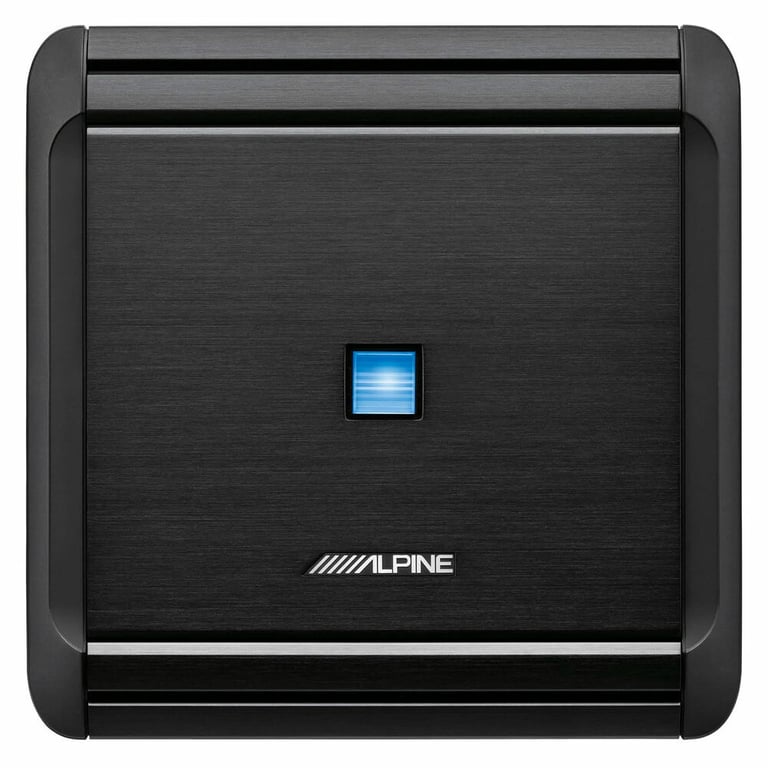

Alpine MRV-M500

500W RMS Class D V-Power Series Monoblock Car Amplifier
Quantity: 1

Product Details:

  • V Power Series Class D 2 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 1 channel
    • 2 ohm: 500 watts x 1 channel
  • Total RMS power output: 500 watts
  • Wired bass remote control Alpine RUX-KNOB (optional, sold separately)

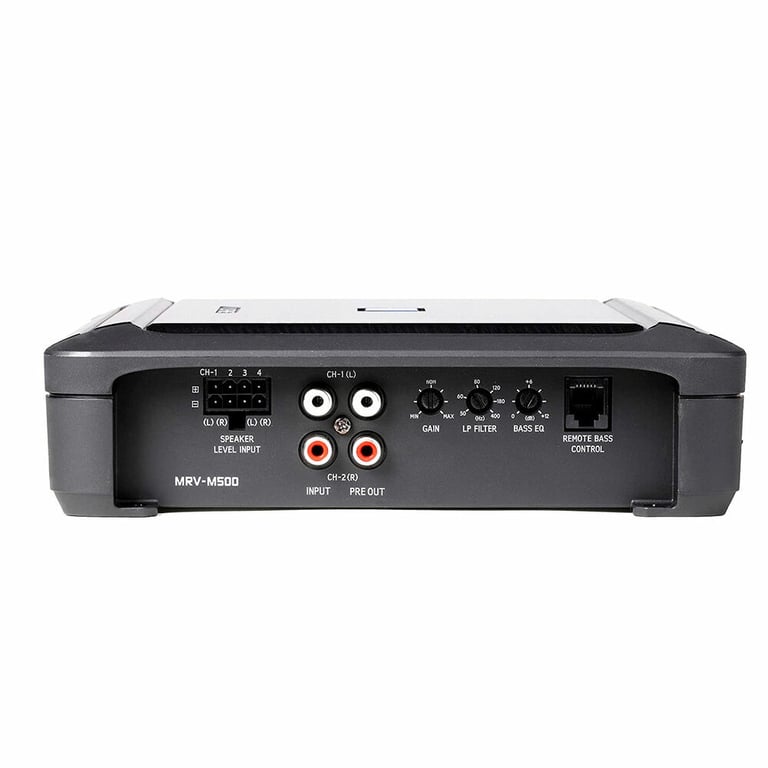

  • Speaker-level (high-level) inputs
  • 1 pair of pre-amp outputs
  • Automatic signal-sensing remote turn-on
  • 4-way protect circuitry (over current, over/under voltage, and thermal protection)
  • High-efficiency MOSFET power supply and output stage
  • Continuously adjustable gain control for precise level matching
  • Continuously Adjustable Gain Control
  • S.T.A.R. Circuit board circuitry connection
  • Top-mounted blue LED power indicator
  • Multi-stage power limits for advanced thermal control

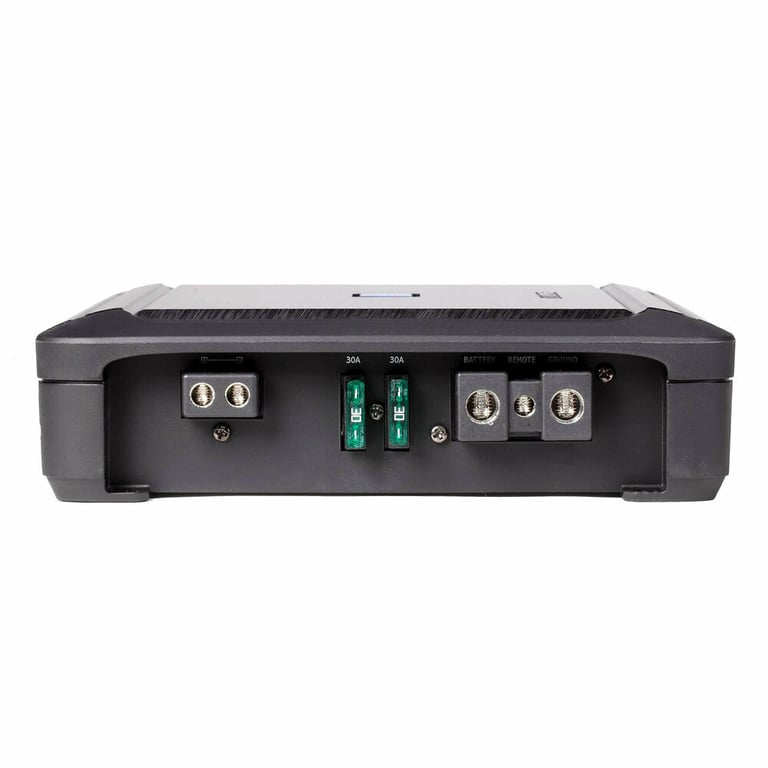

  • Two-sided terminal layout for easier installation

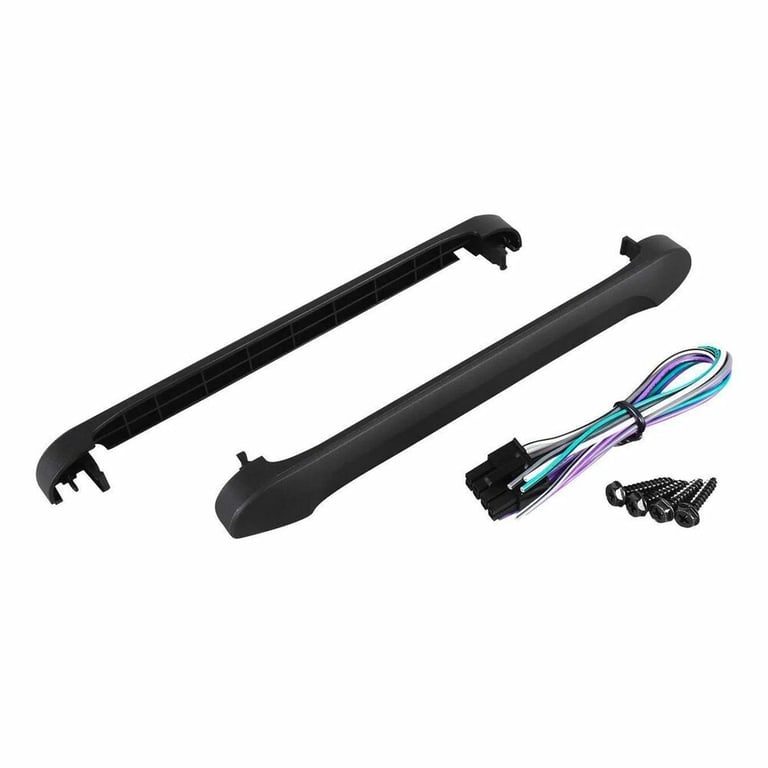

  • Integrated wire and mounting screw terminals
  • Input sensitivity:
    • Low level: 0.15 - 4.0 volts
    • High level: 0.4 - 10 volts
  • Frequency Response: 7 - 400 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 85 dB
  • Variable low-pass filter: 50 - 400 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 60A
  • 4 AWG gauge amplifier wiring kit is recommended for installation.
  • Dimensions: 7-7/8" L x 7-7/8" W x 2-3/16" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: MRV-M500

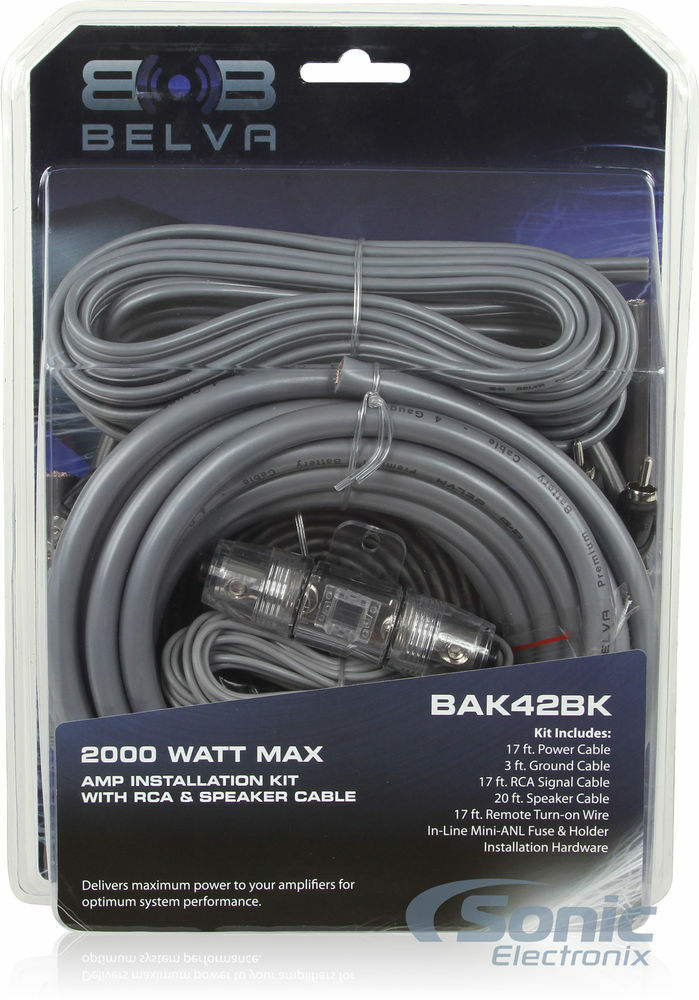

Belva BAK42BK

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - GRAY
Quantity: 1

Product Details:

  • 4 Gauge 2-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

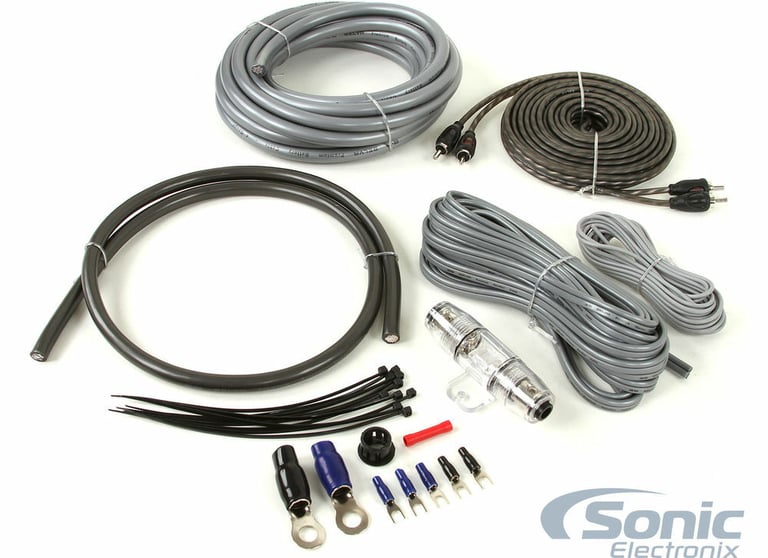

Kit includes:

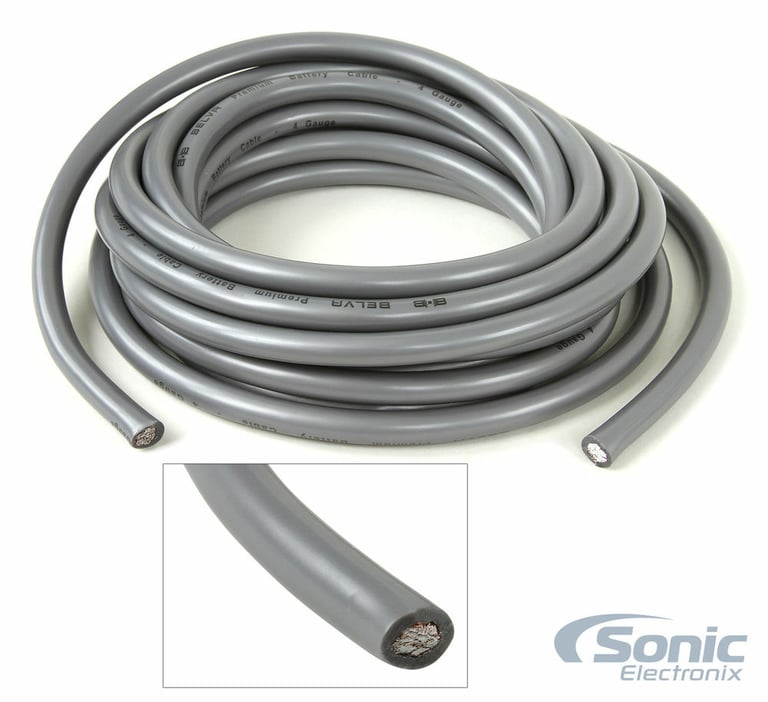

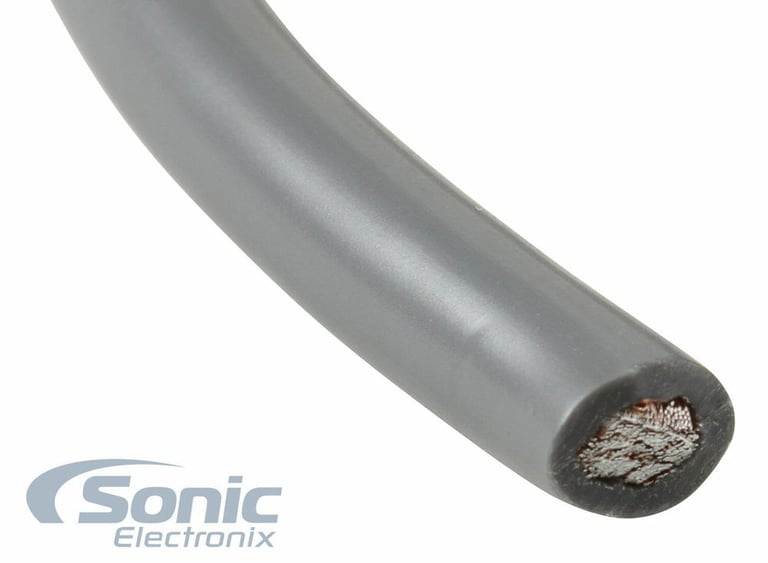

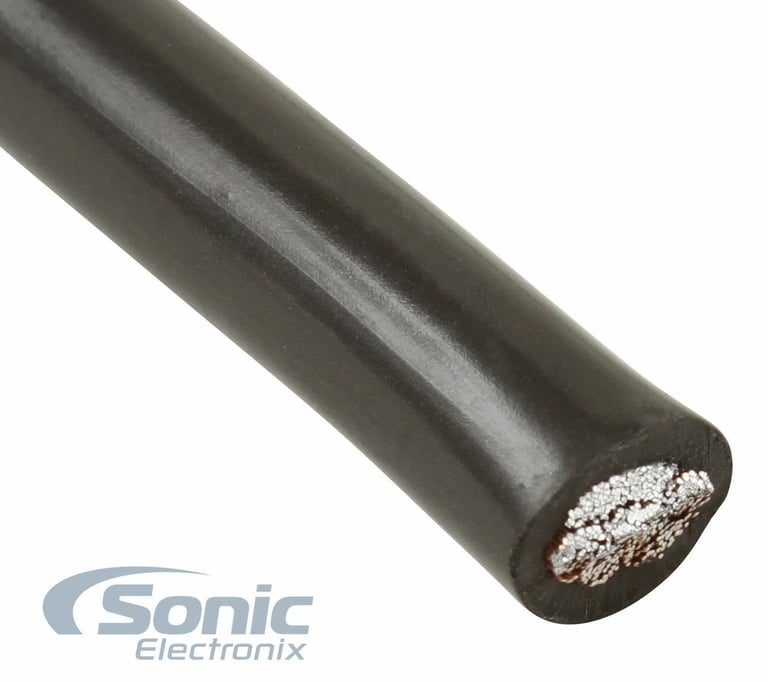

  1. 17 ft. Gray 4 gauge power wire

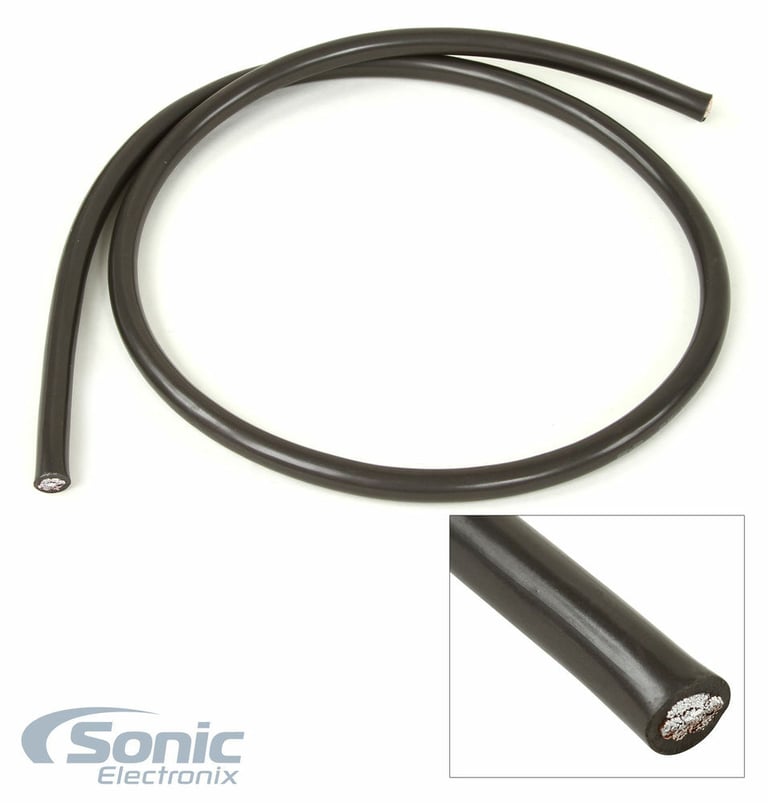

  2. 3 ft. Black 4 gauge ground wire

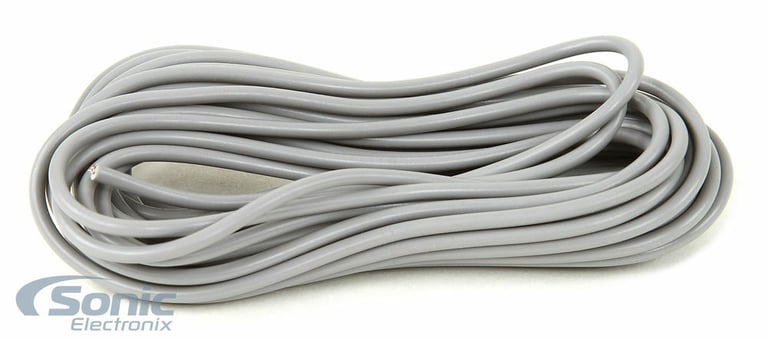

  3. 17 ft. Gray 18 gauge remote lead wire

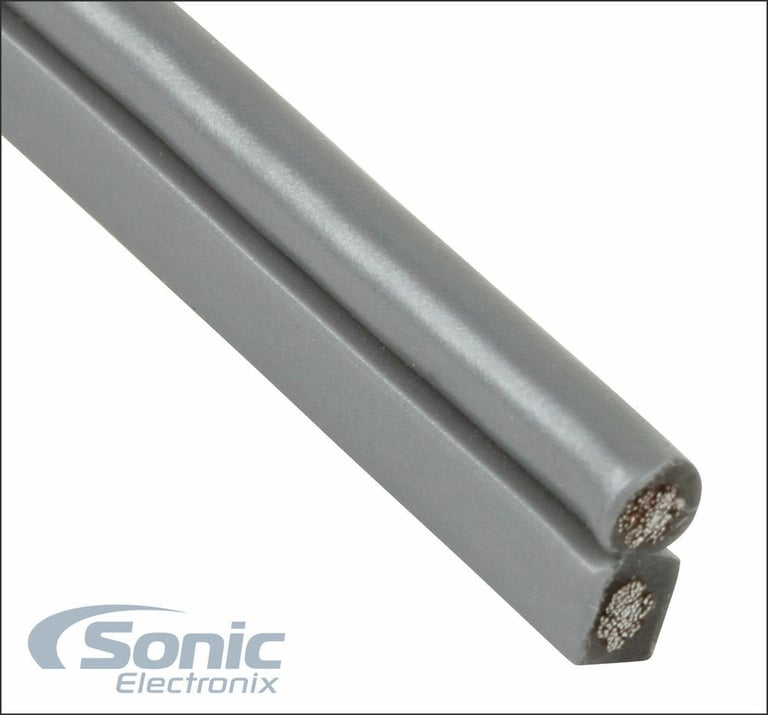

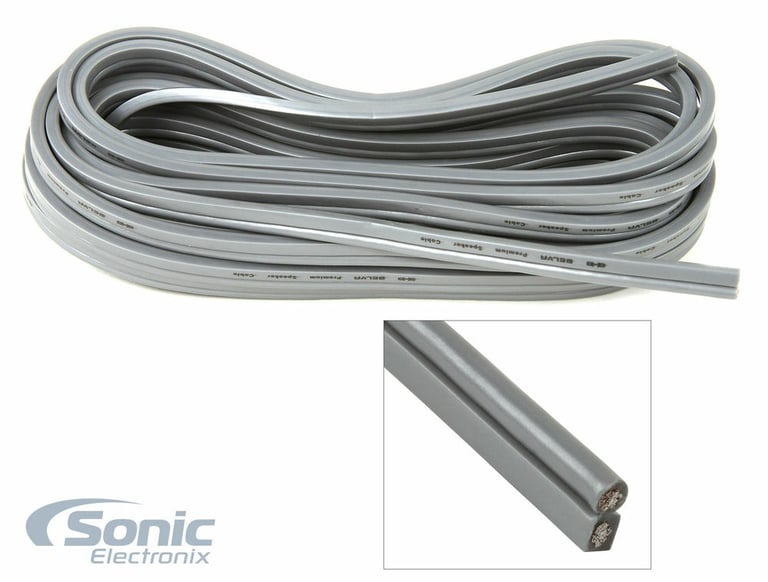

  4. 20 ft. 16 gauge speaker wire

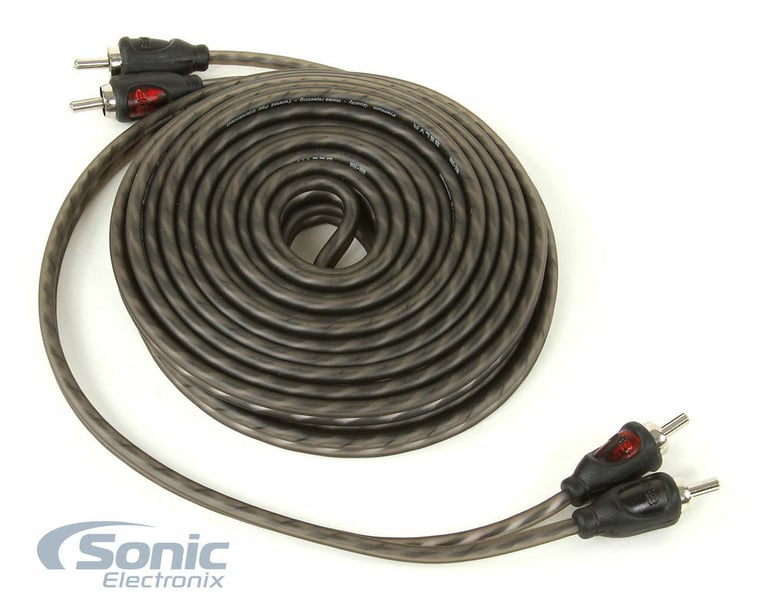

  5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable

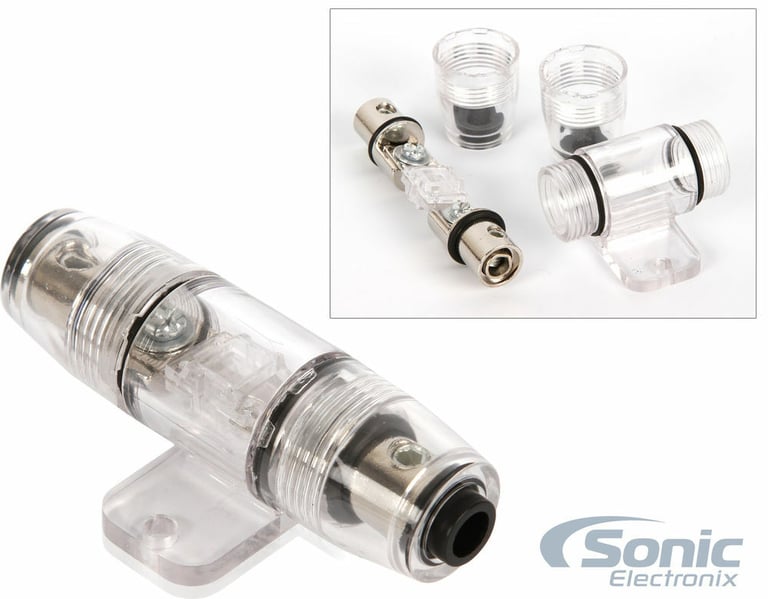

  6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse

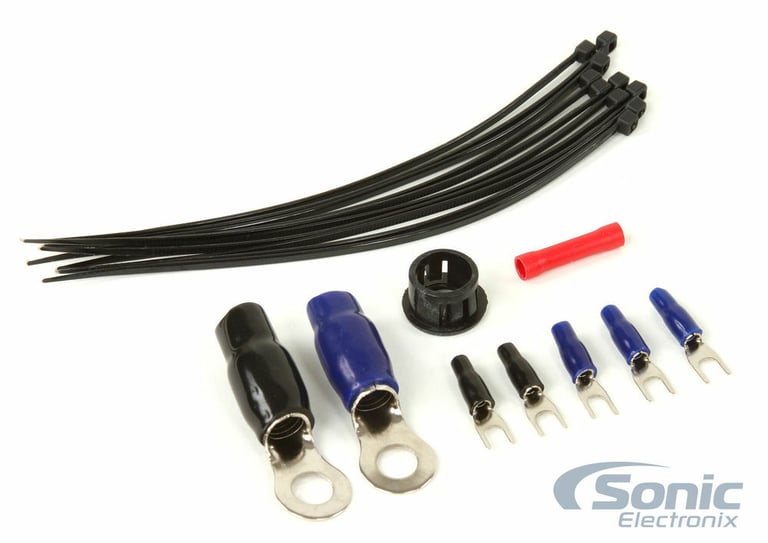

  7. One Black rubber firewall grommet
  8. Two 4 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Loading...
82-6901,DB6502 main

Polk Audio DB6502 DB+ 6.5" 600 Watt Car Speakers with Free 6" x 9" Adapters

600W Peak (200W RMS) 6.5" DB+ Series 2-way Component Speakers with 6" x 9" Speaker Adapters

47
-9.13%

$211.72

List price $232.98

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
275 watts
Peak Power Handling
1100 watts
Woofer Surround
Nitrile Butadiene Rubber NBR
Woofer Composition
Polypropylene
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 or 4 ohm
Sensitivity
93 dB
Frequency Response
25 - 175 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
1
Box Style/Shape

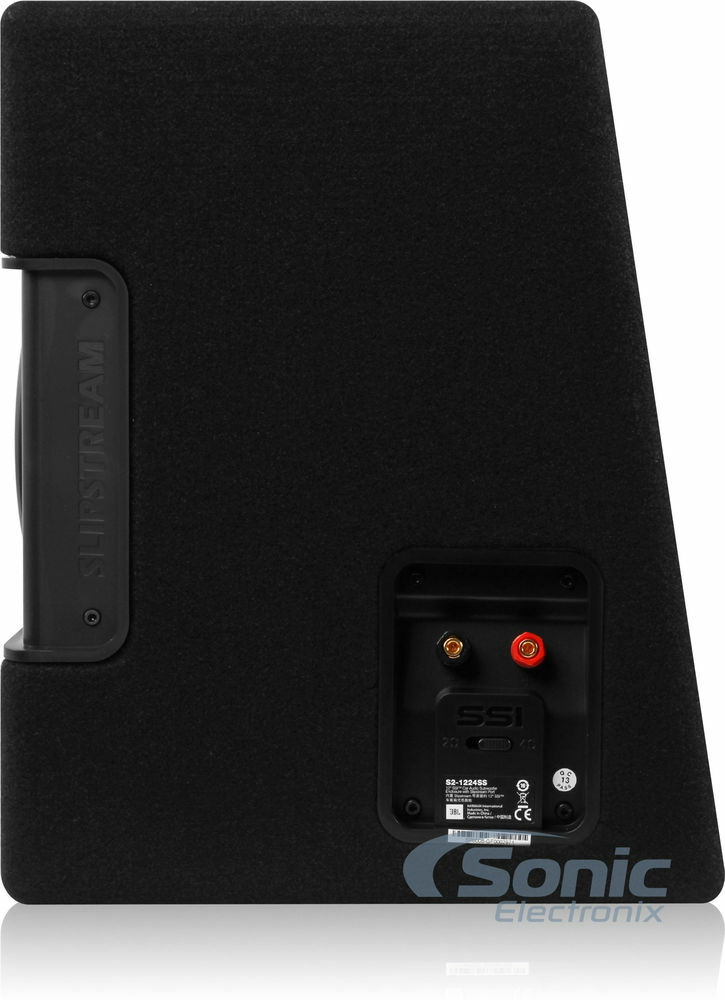

Hatchback Style, Angled Back
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

S2-1224SS, MRVM500, BAK42

Weight:

49.17lbs

Internal SKU:

s21224ss_mrvm500_bak42

Internal Product ID:

192701

Customer Ratings & Reviews


JBL S2-1224SS Subwoofer with Enclosure + Alpine MRVM500 + 4 Gauge Amp Kit thumbnail image

5 star
86%
4 star
10%
3 star
4%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
4.7
Design
4.9
Usability
4.8

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Quality Product

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Works very well with my Rockford Fosgate sub system in my car.

By Ronald on December 11, 2014

135 found this helpful


Really good

The following review is for MRV-M500, which is a part of the bundle you are viewing.

Have this amp connected to my Dodge factory head unit using high level output connected to 2- 12inch pioneer champion series at 300 RMS 4ohm. unbelievable quality and sound. Once you tune your subwoofer and amp to specs you wil have no problem. more that enough bass needed, Great amp!!

By Ricky on July 29, 2014

125 found this helpful


good deal!

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Pretty decent value for the price. Worked out great, thanks.

By Brett on January 29, 2015

130 found this helpful


Usable

The following review is for BAK42BK, which is a part of the bundle you are viewing.

The wiring has done me right so far but the only thing I don't like is the speaker wires. You have to carefully split it so the wire doesn't show. Other than that minor thing everything was great and a great value!

By tyler on November 18, 2014

126 found this helpful


The perfect amp for my needs!

The following review is for MRV-M500, which is a part of the bundle you are viewing.

This little amp puts out just the right amount of power for my system. I mounted it behind an internal side panel so that it would be out of sight, and it fit perfectly. I haven't had any problems with it what so ever, and it really brought good sounding base to my sub woofer. I would definitely recommend this amp to my friends.

By Gregar on January 14, 2015

118 found this helpful


price is right

The following review is for BAK42BK, which is a part of the bundle you are viewing.

the price is right for this setup. the ground wire and the power wire are to big for my amp but i made them fit. better to have to much than not enough so if i upgrade to a larger amp it will be fine.

By Mark on November 13, 2014

123 found this helpful


Alpine MRV-M500

The following review is for MRV-M500, which is a part of the bundle you are viewing.

My buddy had 1 of these running to pioneer 10s and it sound great Hit pretty hard great amp over all.Probably does a little more then rated 550/600 maybe.Very clean looking amp sturdy feeling and great clean sound

By josh on March 17, 2014

115 found this helpful


Accessories for product

The following review is for BAK42BK, which is a part of the bundle you are viewing.

Just what I needed and made installation so much easier. Thanks

By Susie on February 9, 2015

113 found this helpful


awesome products

The following review is for BAK42BK, which is a part of the bundle you are viewing.

I run 2 12inch audiobahn exursions on this amp and it pushes them very well. The size is perfect not to big and fits right unerneath the seat or small space. The best part is it stays pretty cool even after running most the day.

By CJ on March 22, 2015

108 found this helpful


Big power with little space

The following review is for MRV-M500, which is a part of the bundle you are viewing.

Not a bad little amp. I run 2 kenwood 12's @ 2 ohm with this amp and I love every minute of it. I am sometimes tempted to turn the gain down but it runs so clean I never do.

By Drum4life on April 8, 2014

101 found this helpful




X450-4 small

Kenwood X450-4

450W 4-Channel eXcelon Series Full Range Power Car Amplifier

$175.39

List price $379.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2004 Chevrolet Impala

2003 Chrysler Sebring

2000 Chrysler LHS

2005 Buick Century

1996 Buick Riviera

2000 Chevrolet Cavalier

2000 Ford Explorer

2002 Dodge Grand Caravan

1985 BMW 325e

2001 Audi S8

Vehicle
Store
Delete

2002 Harley Davidson FLTR/I Road Glide

2000 Harley Davidson FLTRSEI Screamin Eagle Road Glide

Vehicle
Store
Delete

2022 Can-Am Defender HD7

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
