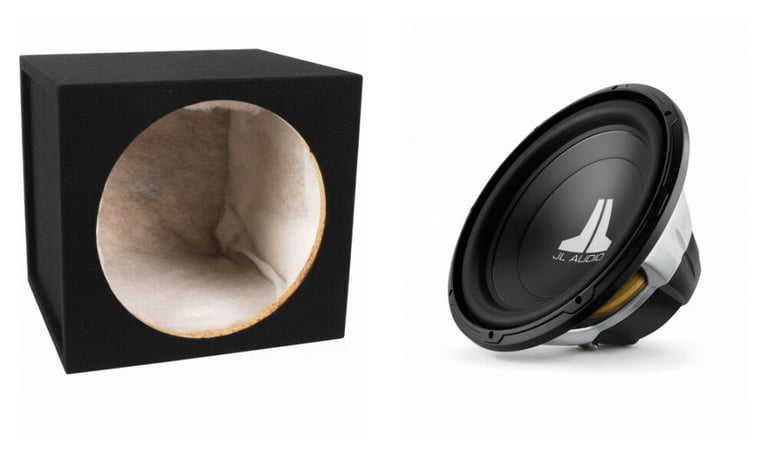

JL Audio 15W0v3-4 + Free Belva MDFS15 15" Sealed Enclosure

500W RMS 15" W0v3 Series Single 4-Ohm Subwoofer + Free Belva Sealed Enclosure

JL Audio
Shop all JL Audio
highlight-star-icon

• Sensitivity: 88.20 dB
• Mounting depth: 7.15 "
• Mineral-Filled Polypropylene Cone
• Large Roll Surround
• Elevated Frame Cooling
• DMA Optimized Motor System
• Metallic Silver Frame Finish

Learn more about the 15w0v34_mdfs15

We apologize

This item has been discontinued

Description


JL Audio brand icon

Authorized dealer

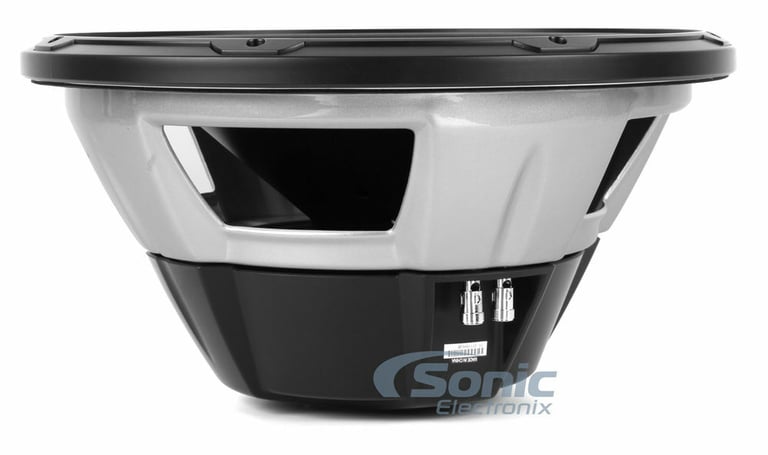

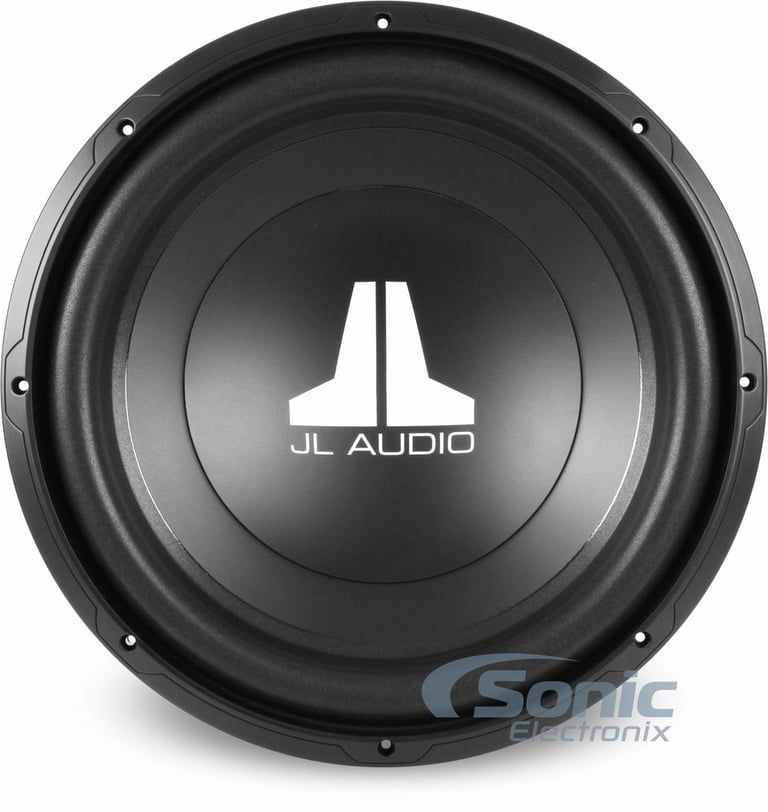

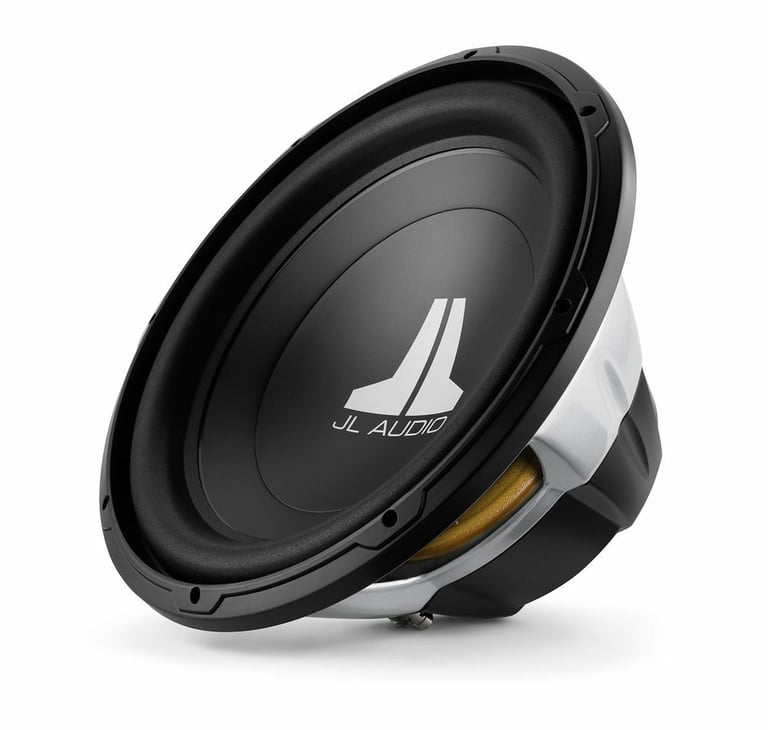

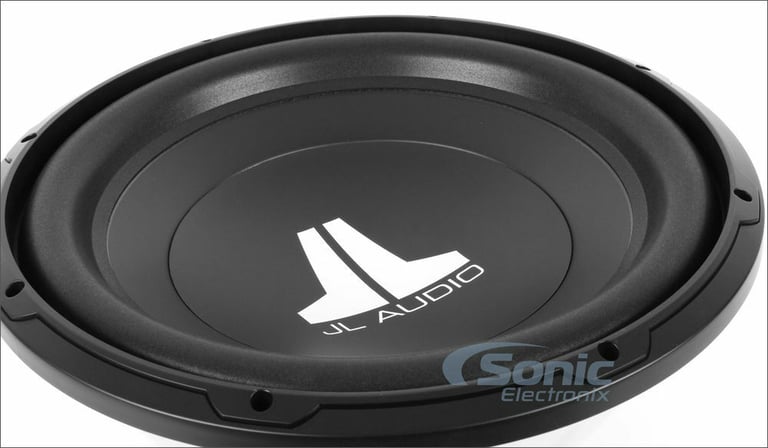

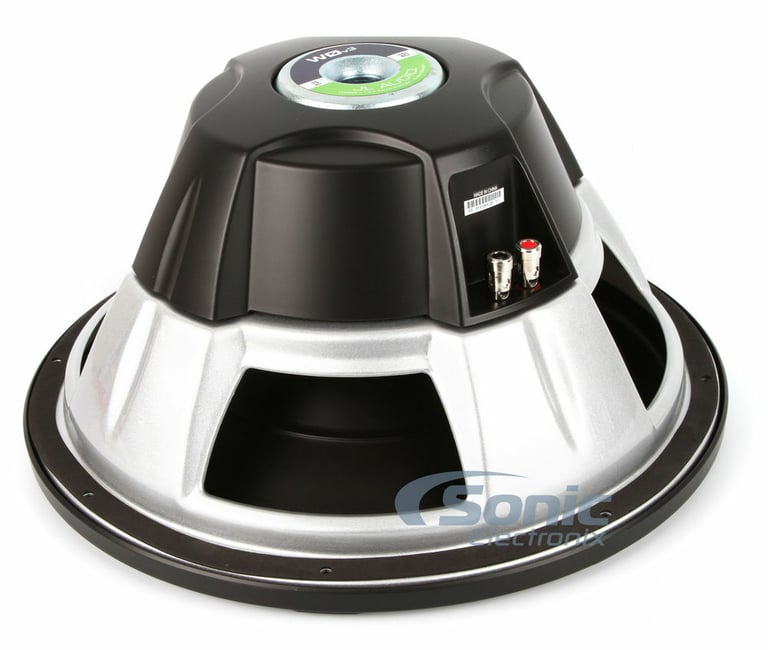

JL Audio W0v3 Series Subwoofer Driver
JL Audio W0v3 Series Subwoofer Driver

The W0v3 offers superb excursion capability, linearity and an overall performance output that puts it right at the top of its price class. The driver features a very beefy 2.5-inch diameter voice coil, a DMA-optimized motor system and JL Audio's patented Elevated Frame Cooling design - all purpose-engineered for enhanced power handling and reliability. What this also means, is your system will be immediately injected with the increase in output and better sound fidelity that one expects from a JL Audio product. In addition, excellent excursion capability and linearity allow it to reproduce sub-bass with striking extension and quality. When matched up with the proper power source, signal and setup the W0v3 is capable of a well rounded sound that is unparalleled by any other driver in its price range.


Flexible JL Audio Power

The 15W0v3 Subwoofer can be driven with as little as 150 Watts. However, for best audio performance it is recommended to run an amplifier capable of between 300 - 500 Watts of continuous power per driver, like the JL Audio JX1000/1D or JL Audio XD600/1v2. In addition, these subwoofers are optimized to operate in either a ported or sealed enclosure, needing only 1.875 cubic feet of air space in a sealed box and 2.75 cubic feet in a ported/vented enclosure. (Specific dimensions and figures can be found in the user manual, linked further below.)




Striking Linearity and Control

DMA is JL Audio’s proprietary Dynamic Motor Analysis system and is aimed at delivering superior dynamic stability and low distortion. As a result of DMA optimization, W0v3 motors remain linear in motor force over an extreme range of excursion and also maintain a highly stable fixed magnetic field in the gap over a wide power range. This leads to tight, clean, articulate bass that also allows for extreme linear excursion, phenomenal power handling and control, control, control.




JL Audio 15W0v3-4

500W RMS 15" W0v3 Series Single 4-ohm Subwoofer
Quantity: 1

Product Details:

  • 15" Single 4 ohms W0 v3 Series Subwoofer
  • Power Handling:
    • RMS: 500 watts
  • Polypropylene Cone
  • Foam Surround
  • Elevated frame cooling to the voice coil
  • Designed for compact sealed enclosures or medium-sized ported enclosures
  • Large excursion, less distortion
  • DMA Optimized motor system reduces distortion and tight, clean bass
  • Lead wire woven into spider
  • Metallic silver frame finish
  • 12.7 mm Xmax
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 24.43 Hz
  • Sensitivity: 88.20 dB
  • Recommended sealed box volume: 1.875 cubic feet
  • Recommended ported box volume: 2.75 cubic feet
  • Top-mount depth: 7.15"
  • Cutout diameter: 13.75"
  • Authorized Internet Dealer
  • Optional protective subwoofer grille (sold separately)
  • 1-year Manufacturer's Warranty

  • Priced Individually

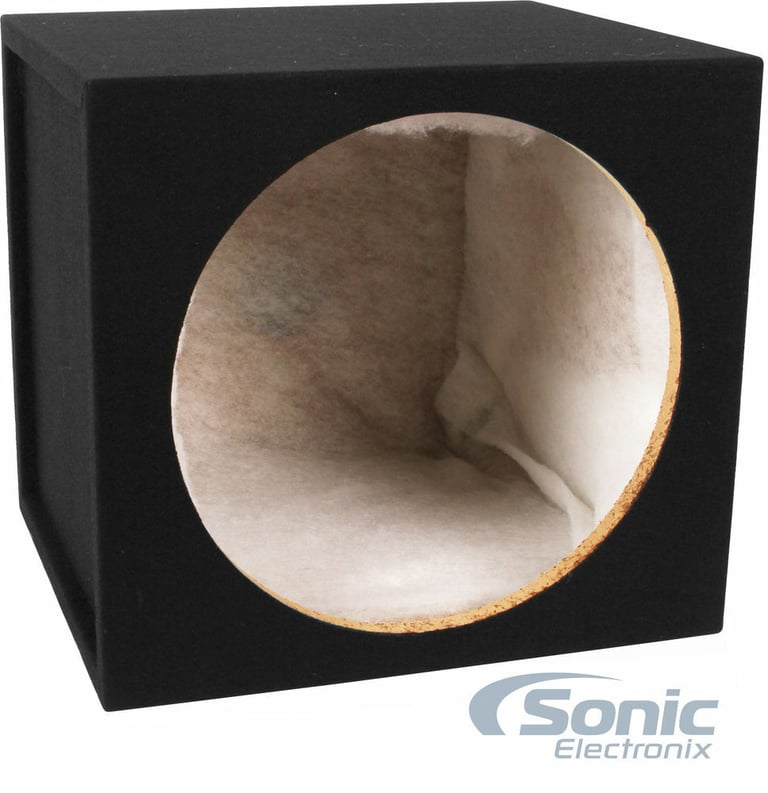

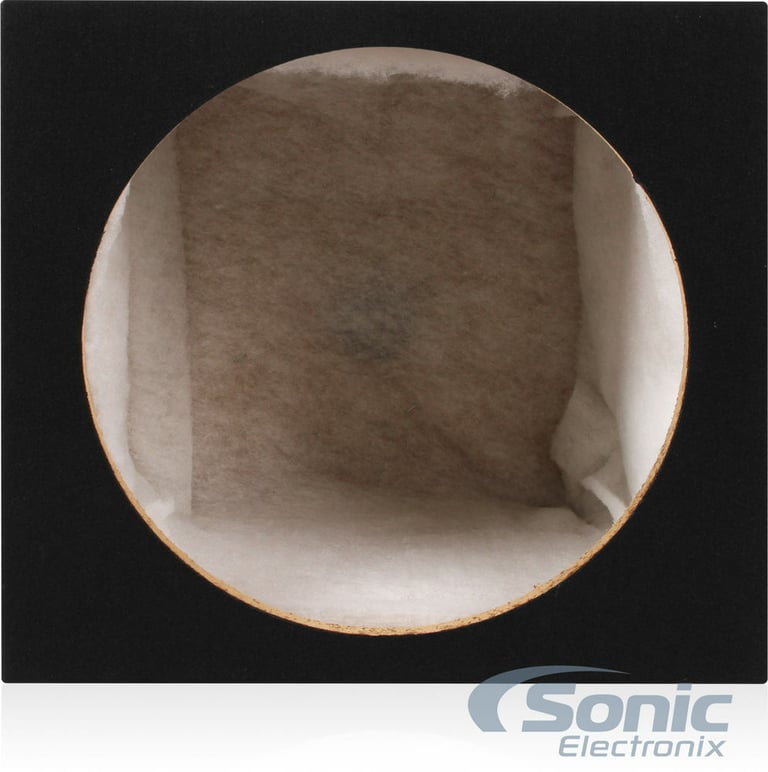

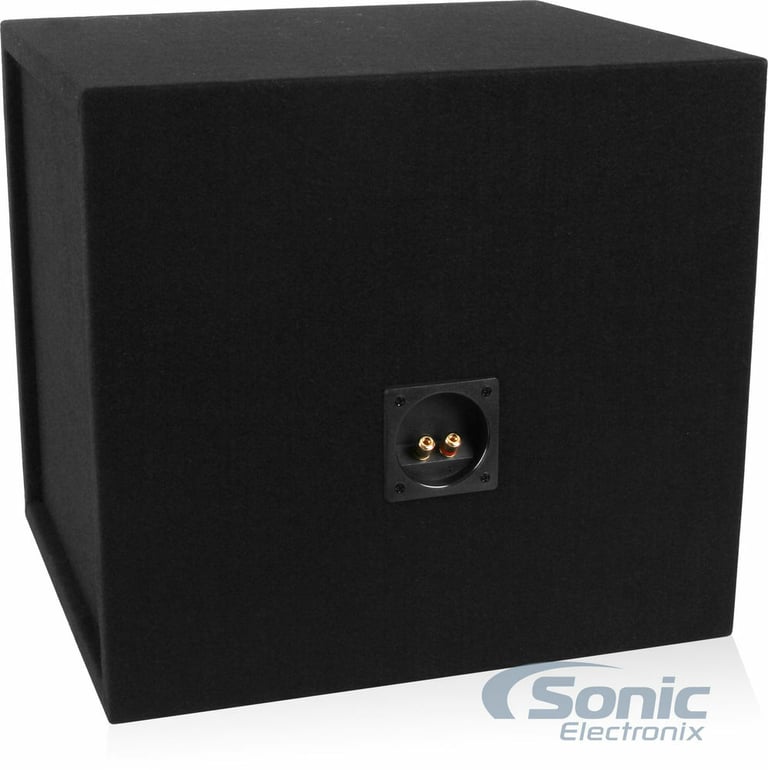

Single 15" Sealed MDF Subwoofer Enclosure (Belva MDFS15)

15-inch Sealed Car Sub Box Made with 3/4" MDF and lined w/ Polyfil (1.9 cu ft airspace 15SQTC)
Quantity: 1

Belva Subwoofer Boxes with Polyfill and 3/4-inch MDF

Built for Bass

You've got an awesome subwoofer there, pal. But where's it gonna go? You can't just throw that thing in the trunk and call it a day. Don't worry, Belva's got your back. With superior construction, great features and everything you need for bass, you'll be ready to pass up that entry-level box you've been eyeballing.

Belva Subwoofer Boxes are CARB Phase 2 Compliant

You get quality boxes with solid 3/4" MDF because nothing else will do the job right. You want to flex your windshield, not your box's innards. You get polyfill built into the box, making sure your subs perform perfectly. On top of that, you get a box that's CARB Phase 2 Compliant, meaning your box won't emit as much nasty formaldehyde as the competition. Better for your bass and better for you.

Belva MDF 3/4-inch Thickness

Look, nobody buys a subwoofer and says, 'Aw man, I just want a teeny bit of thump.' Naw man, you want something that kicks you in the chest, but you need a box that's gonna put up with it. That's where Belva comes in. While other brands use less-than-optimal 1/2-inch MDF, we've got 3/4-inch MDF to make sure you get all the bass you can handle. Why risk a busted box? Belva's the obvious choice when it comes to giving your sub a good home and giving you the low end you're looking for.

Belva MDF 3/4-inch Thickness

Product Features:

  • 15" Single Sealed Subwoofer Enclosure
  • 3/4" High Quality MDF Material machine-cut to perfection
  • Now lined with Poly-fill
  • Professionally Sealed, caulked, and carpeted
  • Terminal cup installed with gold screw posts
  • Durable black carpeting
  • Mounting Depth: 14-1/2"
  • Cutout Diameter: 13-3/4"
  • Internal Box Volume: 1.90 cubic ft.
  • Box Dimensions: 17-3/4"W x 16-1/4"H x 15-1/4"D
  • 1 Year Manufacturer's Warranty

Product history:

JL Audio 15W0v3-4, MDFS15 thumbnail
(newest, current model)
JL Audio 15W0v2-4 thumbnail
(previous model, replaced by JL Audio 15W0v3-4 + Free Belva MDFS15 15" Sealed Enclosure)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Specifications & Details


Subwoofer Specifications
Series
W0 v3 Series
Subwoofer Size
15"
RMS Power Handling
500 watts
Woofer Composition
Mineral-Filled Polypropylene
Woofer Surround
Rubber
Sensitivity
88.20 dB
Frequency Response
20 - 200 Hz
Subwoofer Design
Round / Circle
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

15W0v3-4, MDFS15

Weight:

47.95lbs

Internal SKU:

15w0v34_mdfs15

Internal Product ID:

193833

Customer Ratings & Reviews



5 star
83%
4 star
17%
3 star
0%
2 star
0%
1 star
0%



Durability
4.7
Value
4.7
Features
4.8
Design
4.8
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

This box kicks a**!

The following review is for MDFS15, which is a part of the bundle you are viewing.

I have a 15" kicker compR, it works great with this box. Very good quality, cheap in price.

By Henrique on March 13, 2014

99

found this helpful.

Nice Box

The following review is for MDFS15, which is a part of the bundle you are viewing.

Very well designed Box. The carpet on this box is really nice and the box looks perfect. I have a kicker cvr 15 in this box and it absolutely pounds!! Oh yea and if you have a New body Style(04-08) f-150 it will fit in the space between the passenger seat and the rear seat with the smaller rear seat on the passenger side flipped up and the box will face up.

By Michael on July 21, 2008

93

found this helpful.

Decent Enclosure

The following review is for MDFS15, which is a part of the bundle you are viewing.

The box works great for my new Polk MM 15". It's a little bigger than the recommended 1.5 cubic ft. but it seemed like it would suffocate in a box that small. At the 50 dollar price point you can't hardly build yourself one for that and this one has quality connectors and it's built solid. Definitely recommend to someone looking for a 15" sealed box. And Sonic was great with shipping and customer service as always.

By Gregg on October 14, 2013

89

found this helpful.

Couldnt Ask for More!

The following review is for MDFS15, which is a part of the bundle you are viewing.

Purchased this box for my JBL W15GTI MKII. For the amount paid and product received, its a great purchase. Couldn't have built this or have it built locally for even close to the price. Is it as good as a custom ported box? Probably not but that would be subjective but I love the SQ coming from it now. Can't comment on the durability because I've only had the box for about a week but I do not hear any leaks or rattles from the box. Connection pieces are solid. But best part of my experience with this purchase was the customer service given by 'Justin'. Gave me a great deal and got it shipped to my door within the week.... Couldn't ask for more. Would definitely recommend it.

By Duy on June 2, 2014

88

found this helpful.

BELVA 15'' BOX

The following review is for MDFS15, which is a part of the bundle you are viewing.

AWESOME BOX VERY SOLID AND FITS NICELY IN ANY TRUNK WITH ROOM TO SPARE

By CHECO on June 10, 2014

86

found this helpful.

Perfect

The following review is for MDFS15, which is a part of the bundle you are viewing.

Fits very nicely into the back of my '90 Jetta. Could even fit two in the trunk if I crammed them together. Carpeting is very nice and so is the construction quality.

By PriNT2357 on September 21, 2010

85

found this helpful.

W/ 15" Kicker

The following review is for MDFS15, which is a part of the bundle you are viewing.

This is a great looking box. Well designed and built. The carpeting looks amazing. It's big, but fits perfectly in my '99 Durango. I figured I would have to remove the 3rd seat when I saw it, but there's actually enough space where it isn't even touching the seat or rear door.

By SouthLos323 on November 12, 2013

84

found this helpful.

Great box

The following review is for MDFS15, which is a part of the bundle you are viewing.

Great box. I bought this box that is great box, for the value. I really am the shipping was fast also.

By Chet on April 4, 2011

83

found this helpful.

good box

The following review is for MDFS15, which is a part of the bundle you are viewing.

i have a 15" kicker comp and it slams. it fits perfectly in my grand am. the carpet is really nice. looks good in the trunk

By Joe on October 23, 2013

78

found this helpful.

Belva MDFS15

The following review is for MDFS15, which is a part of the bundle you are viewing.

great price. nice looking box works very well. I have it in the trunk of a mazda protege.

By Al (303) on September 17, 2013

78

found this helpful.
