Factory ANC Module Bypass Harness for
Many late model Chrysler, Jeep, and RAM vehicles are equipped with an Active Noise Canceling (ANC) module. When adding aftermarket amplifiers in these vehicles, this factory ANC module must be bypassed for proper operation of the aftermarket audio equipment and avoid possible damage to the ANC module. The PAC ANC-CH01 provides a plug-and-play solution for bypassing the ANC module in these vehicles, eliminating the need to cut factory wiring.
Please use our Fitment Guide to determine specific compatibility for the submodel and audio features
Internal Product ID:
2022 Ram 2500! Fits and IT WORKS!!
I found a TON of information on installing this on a 1500, but not on a 2500 Ram Truck.

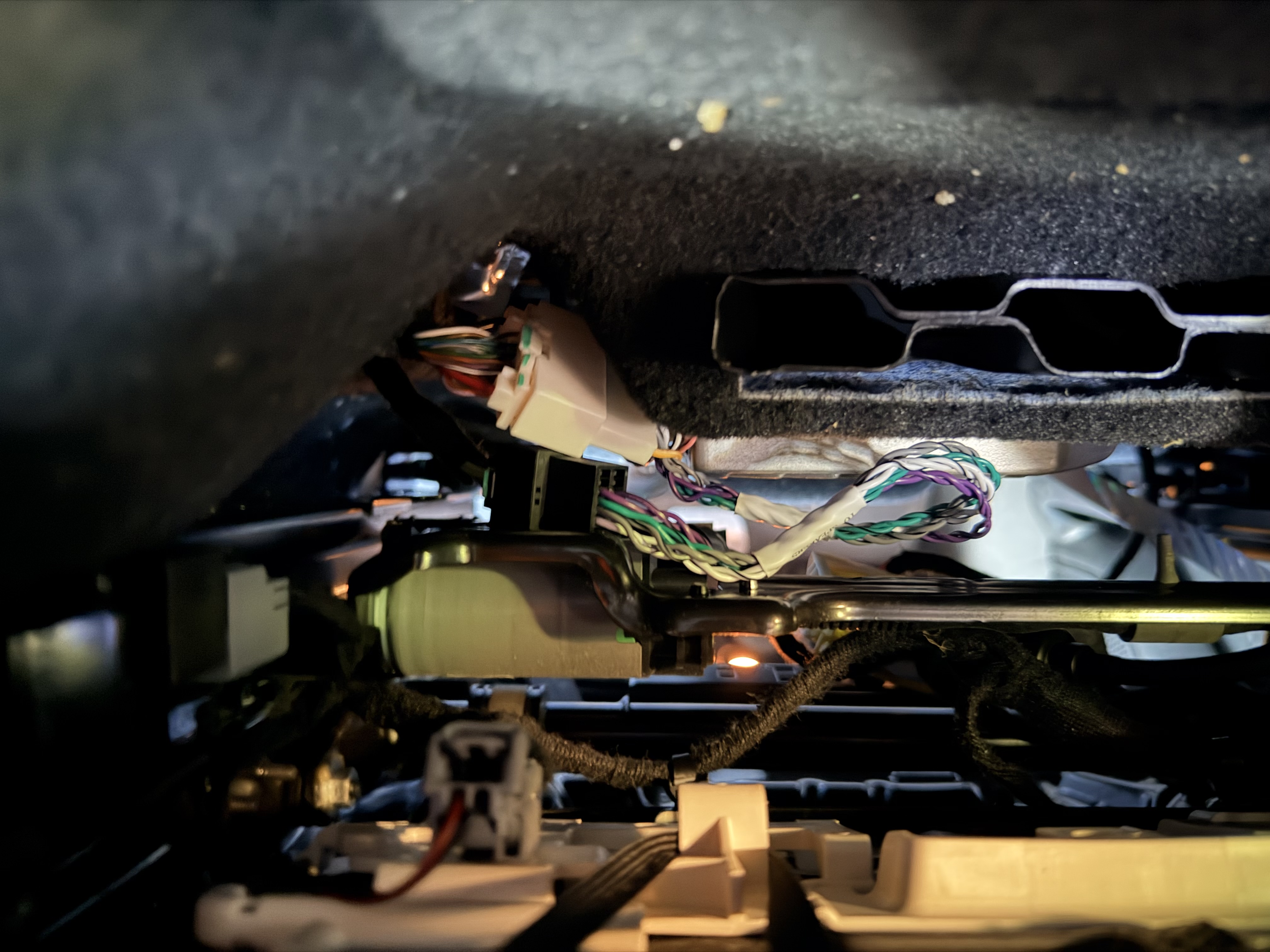

The location of the ANC Module is under the dash, near the parking brake. (See Photo one where it shows the location)

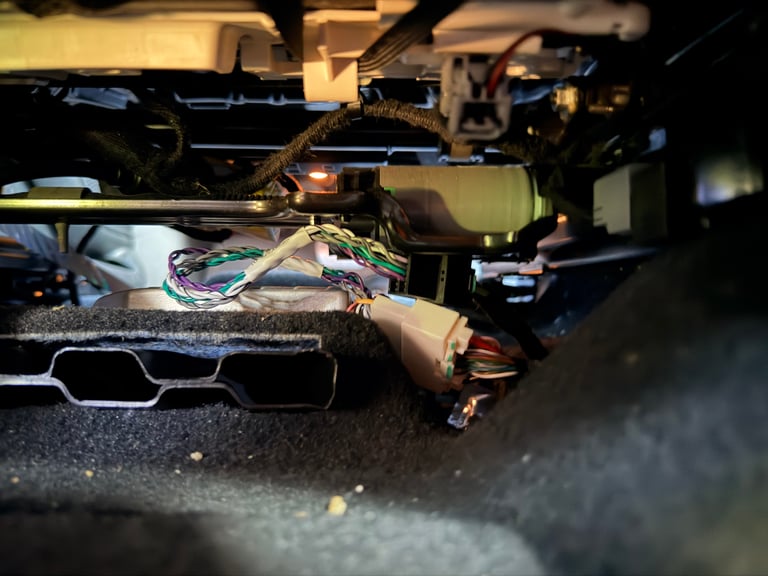

The ANC Module is indicated in the second picture with red arrows.
The Blue arrows are showing this ANC-CH01 is already plugged in.
It is really simple. Took not even 60 seconds to install.
Unplug the black connection from the ANC module.
Plug that black connection into the ANC-CH01.
unplug the white harness (easier now the black harness has been removed and out of the way) and plug it into the ANC-CH01.
Now you will take the other end of the ANC-CH01 harness, the white plug, and plug it into the ANC Module.
The black port on the ANC Module will be left open. All connections have been made.
A side note! If you've had a popping noise when you open your doors, any doors, this harness alone with eliminate that!
