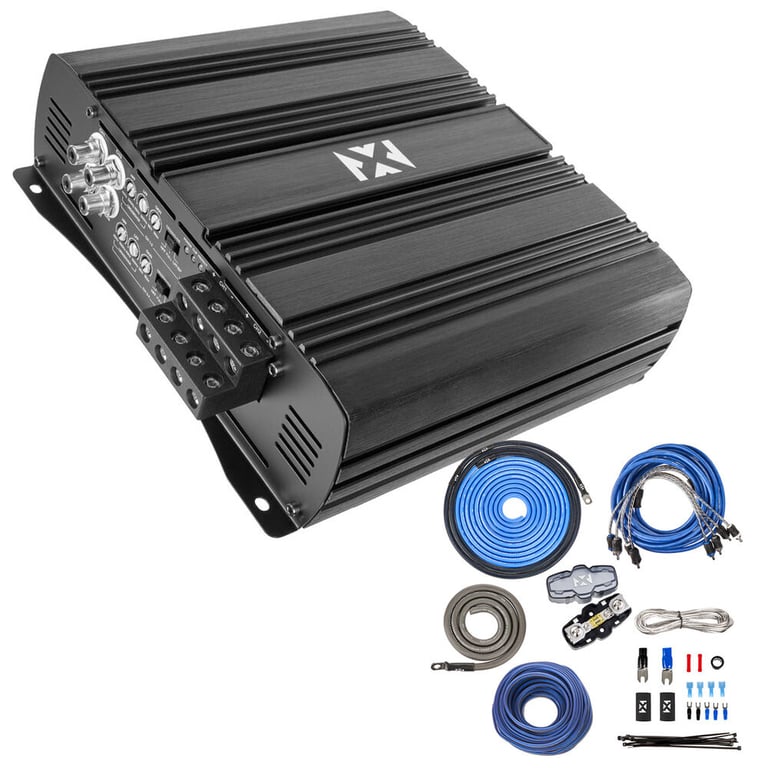

NVX XAD41 4-Channel Amplifier + Free Premium NVX XKIT44

1200W RMS Full-Bridge 1-Ohm Stable 4-Channel Amplifier + 4 Gauge 4-Channel Amp Kit

NVX
Shop all NVX
Out of stock
highlight-star-icon

• 100 watts x 4 channel @ 4 ohms
• 150 watts x 4 channel @ 2 ohms
• 300 watts x 4 channel @ 1 ohm
• Total RMS Power: 1200 watts
• CEA-2006 Compliant

Learn more about the xad41_xkit44
Was $499.98 Details
Thanks , You Pay:

$284.98

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one xad41_xkit44.

Set your vehicle or Return to product page
Quantity
Out of stock - Order risk-free, cancel any time.
Brand new

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7

For over 23 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

AwardWinning
Award-Winning Service
Shipping
FREE Shipping Orders $49+
60Days
60-Day Easy Returns
lowestPrice
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Description


NVX

Authorized dealer

Product Highlights:

The NVX XAD41 is a fully bridged Class D amplifier. Consumers who seek high-power outputs in their amplifiers consider these fully bridged amplifiers to meet those needs. A full-bridge converter consists of two legs of the half-bridge converter and is preferred over the half-bridge in higher power ratings. With the same DC input voltage, the maximum output voltage of the full-bridge converter is twice that of the half-bridge converter. This Class D amp is able to boast a strong wattage output. Class D amplifiers operate as electronic switches rather than linear gain switches in other amplifiers. Furthermore, The Class D amplifier can be more efficient than its linear gain amplifier counterparts, with less power dissipated as heat in the active device. As a result, Class D amplifiers do not require large heat sinks, resulting in lighter-weight amplifiers.

The NVX XAD41 is equipped with a Metal-oxide-semiconductor field-effect transistor. The most common transistor in electronics offers a key advantage. It requires almost little to no input current to control the load current. In addition, MOSFET transistors can be scaled down to a much smaller size and produced at a higher yield making them the premier transistor of choice in almost all electronics, therefore, the XAD41 yields a high output in a more compact size. With such high power output, one would assume that a three-way protection circuitry (thermal, overload, and speaker short protection). Protect your amplifier and your speakers by offering a number of different protections including thermal, overload, and speaker short protection. These help ensure the longevity of the amplifier and your system as a whole.

The XAD41 is a fully bridged 1-ohm stable amplifier. This means that this amp will be capable of operating at a lower impedance or resistance. Since they encounter less resistance at 1-ohm these amps are able to output more power than a similar 2-ohm stable amplifier. The XAD41 also has the capability to be bridged down to 2-ohm’s. This allows the amplifier to take your sound to the next level by generating a 1200W RMS power output. Because XAD41’s are 1-Ohm Stable, they are a perfect piece to add to your sound system if you are looking to get the most out of your speakers or subwoofers.

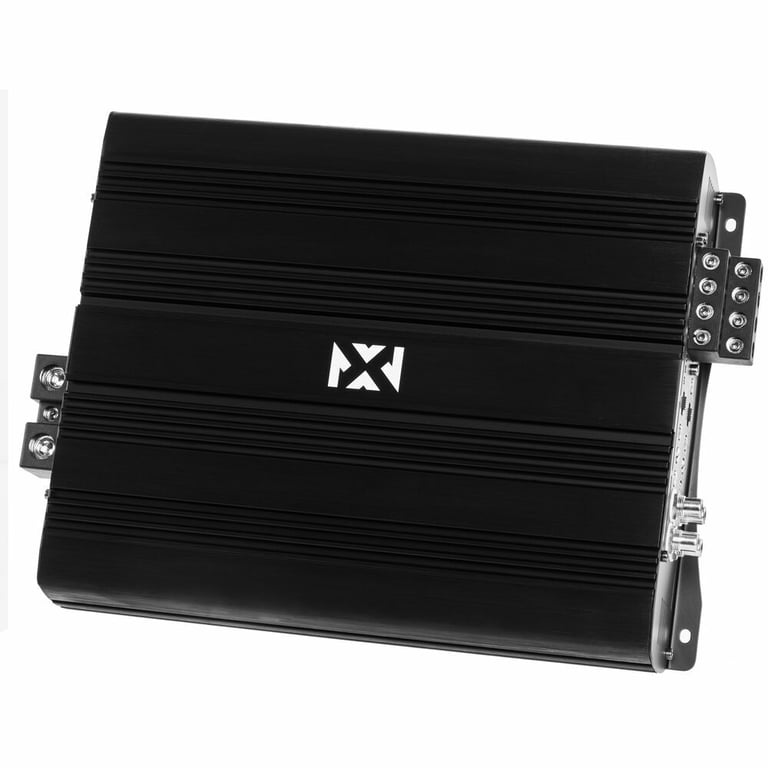

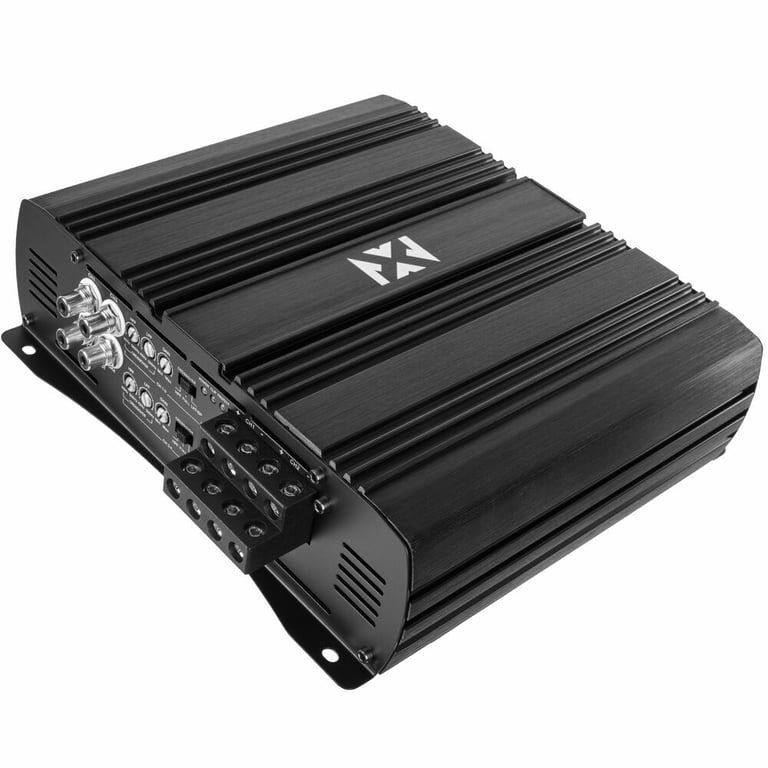

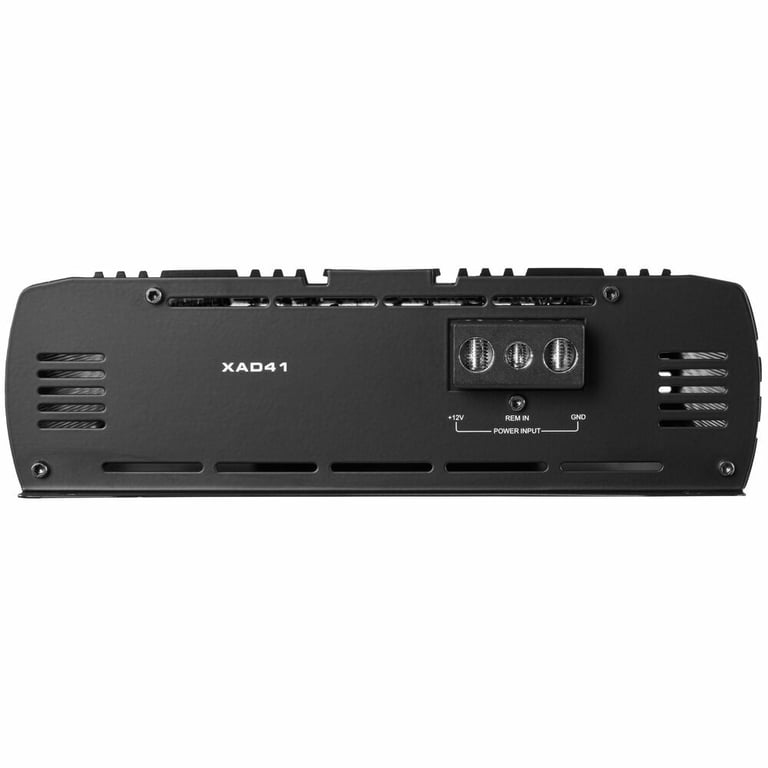

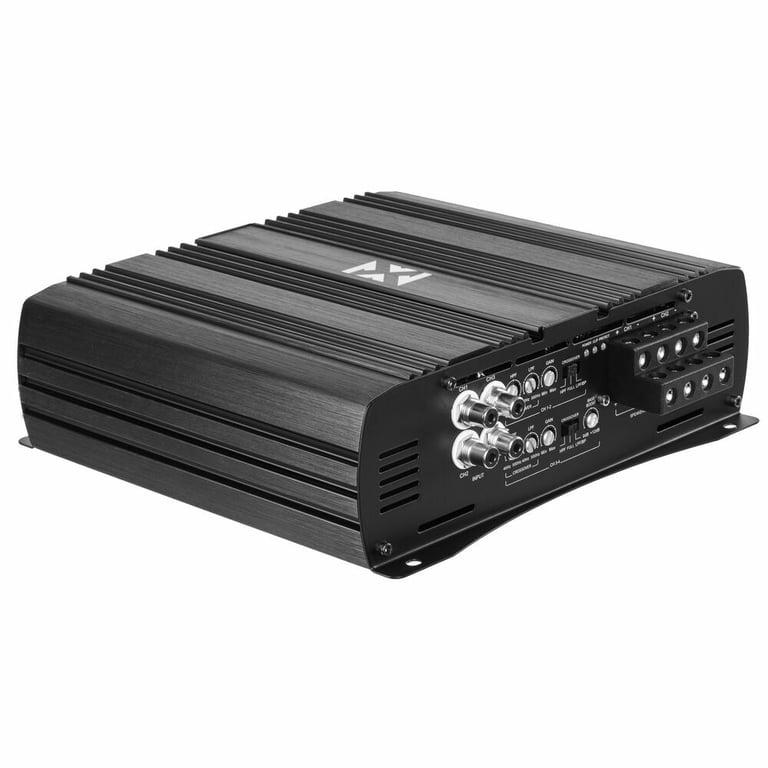

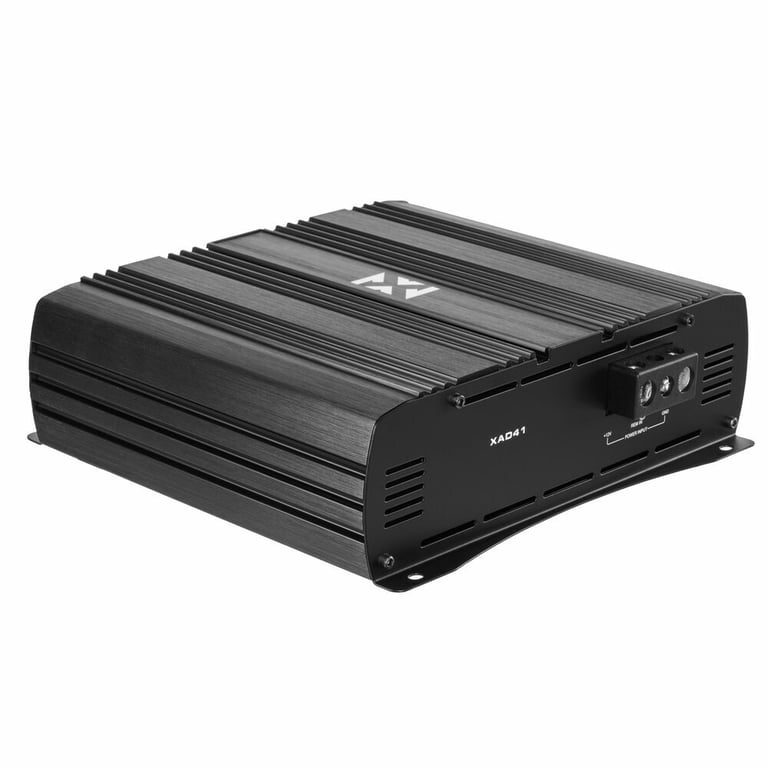

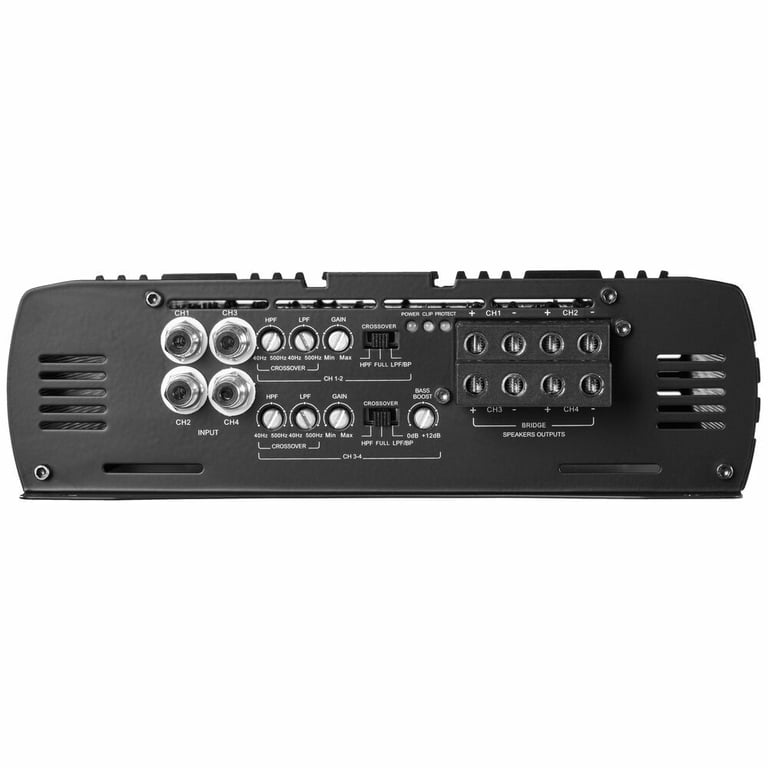

NVX XAD41

1200W RMS X-Series Full-Bridge Class D 1-Ohm Stable 4-Channel Amplifier
Quantity: 1

Product Details:

  • NVX X Series Series XAD41
  • Class D 1 ohms 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 100 watts x 4 channel
    • 2 ohms: 150 watts x 4 channel
    • 1 ohm: 300 watts x 4 channel
    • Bridged, 4 ohms: 300 watts x 2 channel
    • Bridged, 2 ohms: 600 watts x 2 channels
  • Total power output: 1200 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Input sensitivity: 200mV
  • Frequency Response: 10Hz - 20kHz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 100 dB

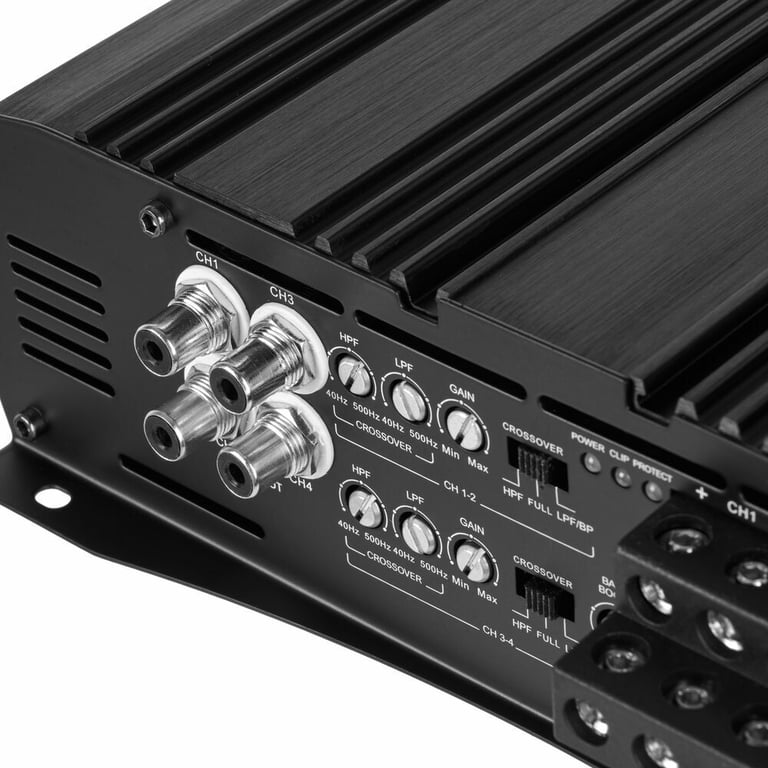

  • Variable high-pass filter: 40 - 500 Hz, 24 dB/octave
  • Variable low-pass filter: 40 - 500 Hz, 24 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
  • 4 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 7.375"W x 8.75"L x 2.5"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Check out the NVX X-Series 4-Channel Amplifiers Owner's Manual

NVX XKIT44

Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 4-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1

Product Details:

  • 4 Gauge 4-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1500 watts RMS
  • Made from 100% (OFC) Oxygen-Free Copper for pure uninterrupted power and current transfer
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects power wire from being damaged
  • Solid Brass and Satin Chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full Spec cables meet or exceed the American Wire Gauge standards
  • Strand Count: 1862
  • CEA-2015 and BC5W2 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

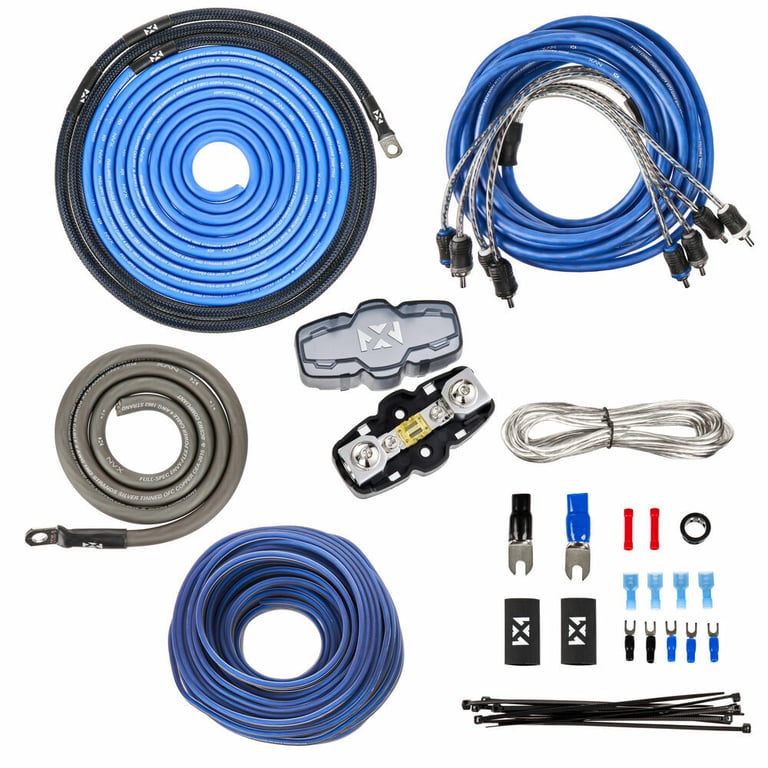

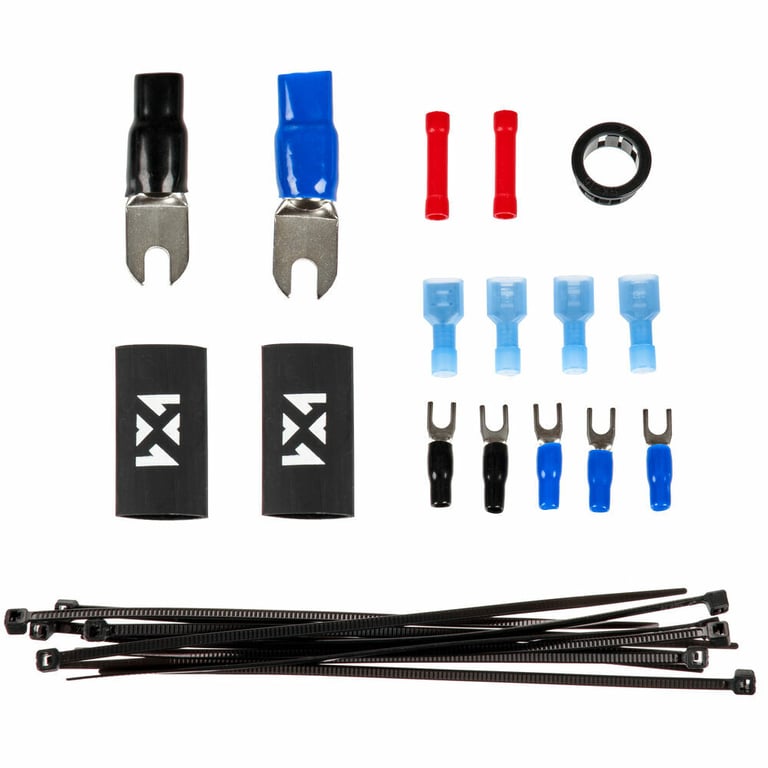

Kit includes:

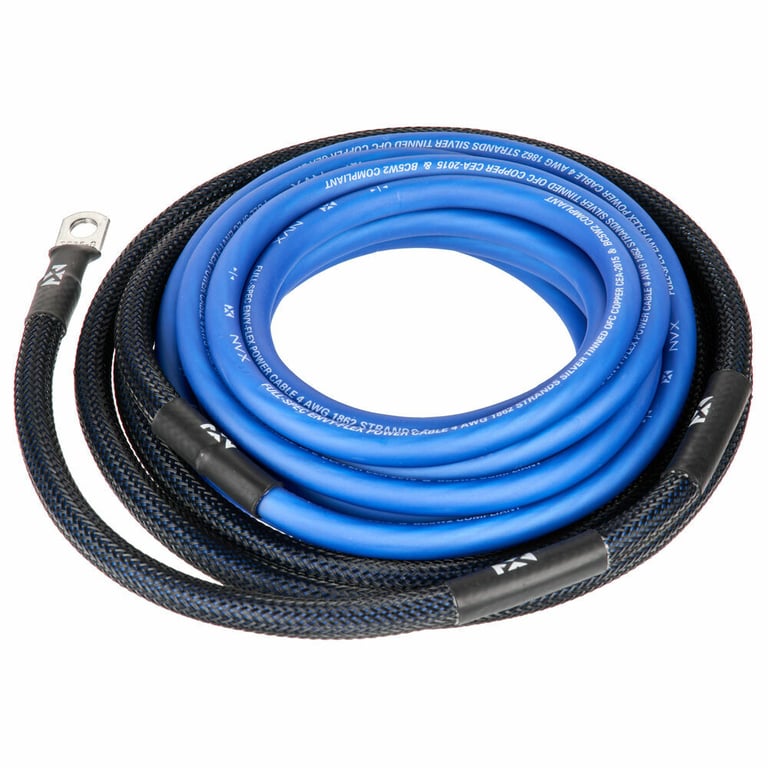

  1. 20 ft. (6.1 meters) Frosted Blue 4 gauge power wire with seamless crimp ring terminal

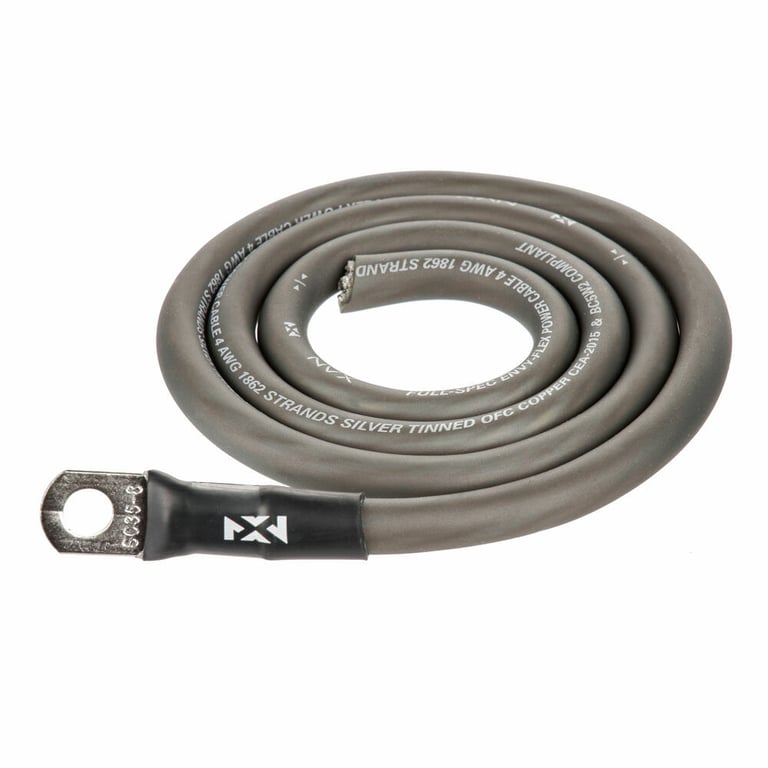

  2. 3 ft. (.91 meters) Frosted Black 4 gauge ground wire with seamless crimp ring terminal

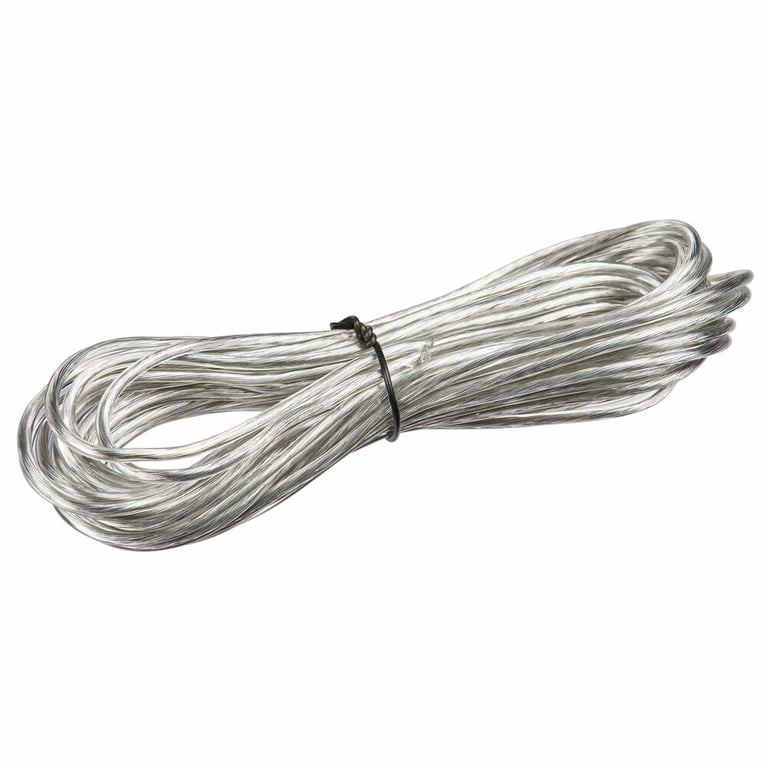

  3. 20 ft. (6.1 meters) Clear 18 gauge remote lead wire

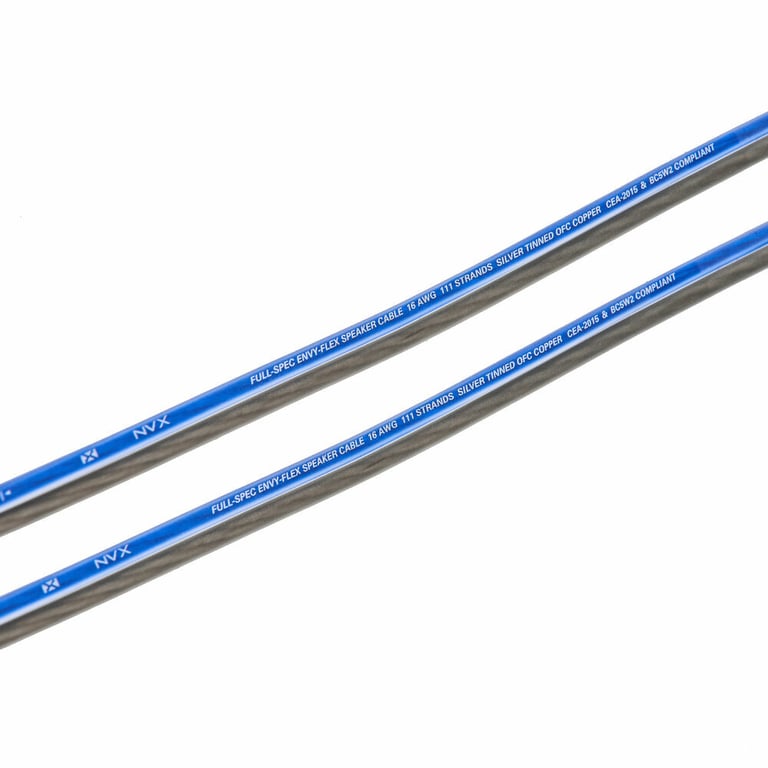

  4. 60 ft. (18.29 meters) Frosted Black/Blue 16 gauge speaker wire

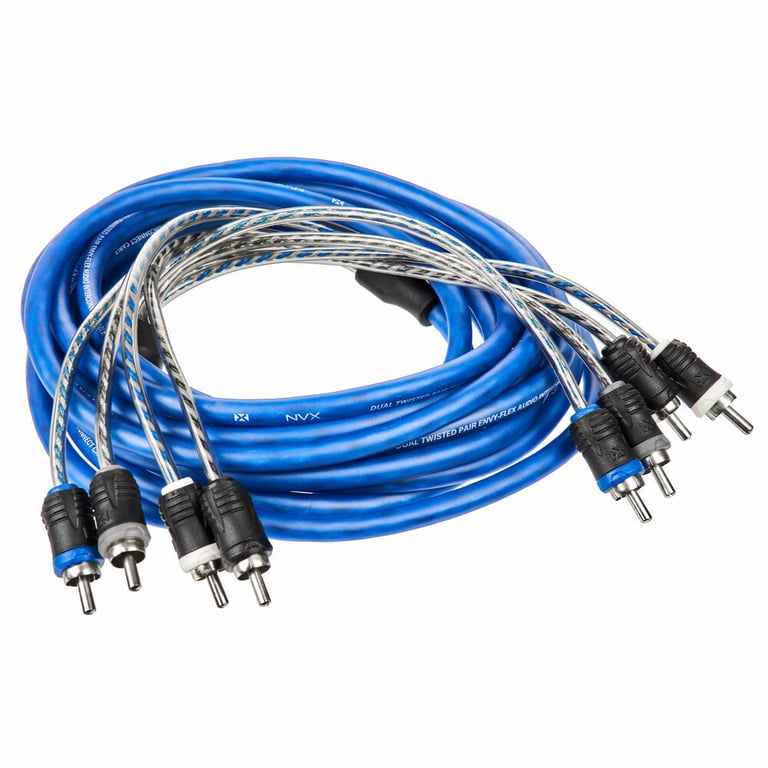

  5. One 16 ft. (5 meters) 4-channel dual twisted construction RCA interconnect Cable (NVX XIV45)

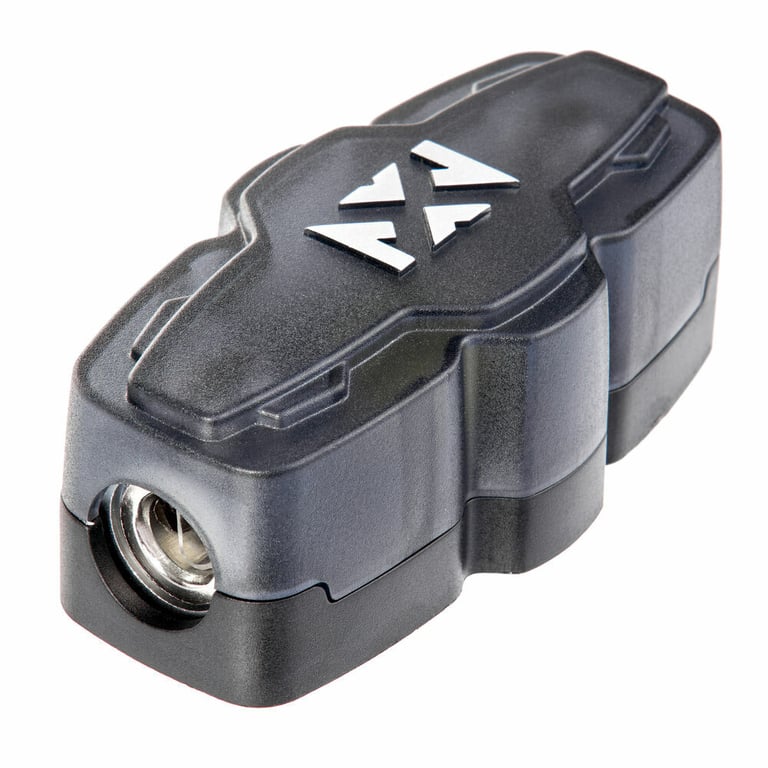

  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Nickel Plated spade terminals
  9. Four 18 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Four 16 Gauge quick disconnect
  12. Five 16 Gauge Nickel Plated spade terminals
  13. Two Heat Shrink tube with NVX logo
  14. Ten 6" Black zip ties

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
150 watts x 4 channel
RMS Power @ 1 ohm
300 watts x 4 channel
Bridged RMS Power
300 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
2400 watts
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohms
Minimum Impedance Bridged
2 ohms
THD at Rated RMS Power
1%
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
40 - 500 Hz
Low-Pass Crossover Frequency
40 - 500 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
CEA-2031 Compliant
Yes
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
60 feet
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
4 Channel
Fuse Holder
ANL
Fuse Size
100A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

XAD41, XKIT44

Weight:

14.90lbs

Internal SKU:

xad41_xkit44

Internal Product ID:

194481
