Name: NVX XAD41
Brand: NVX
SKU: xad41
Price: 199.99 USD
Availability: Discontinued
Rating: 4.7500 (4 reviews)

Shop all NVX

by NVX

About
Similar Products
Specs & Details
Product Videos
Reviews
Add-ons
Recently Viewed
Related Searches

Product videos

Product highlights

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• 300 watts x 4 channel @ 1 ohm
• Total RMS Power: 1200 watts
• CEA-2006 Compliant

Learn more about the xad41

Product Highlights

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• 300 watts x 4 channel @ 1 ohm
• Total RMS Power: 1200 watts
• CEA-2006 Compliant

Description

Authorized dealer

Product Details:

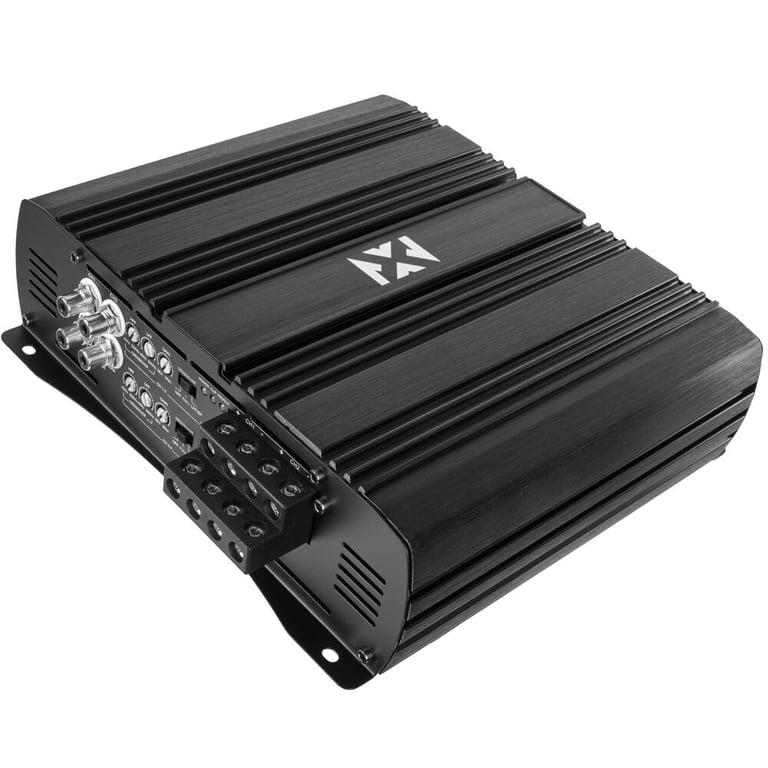

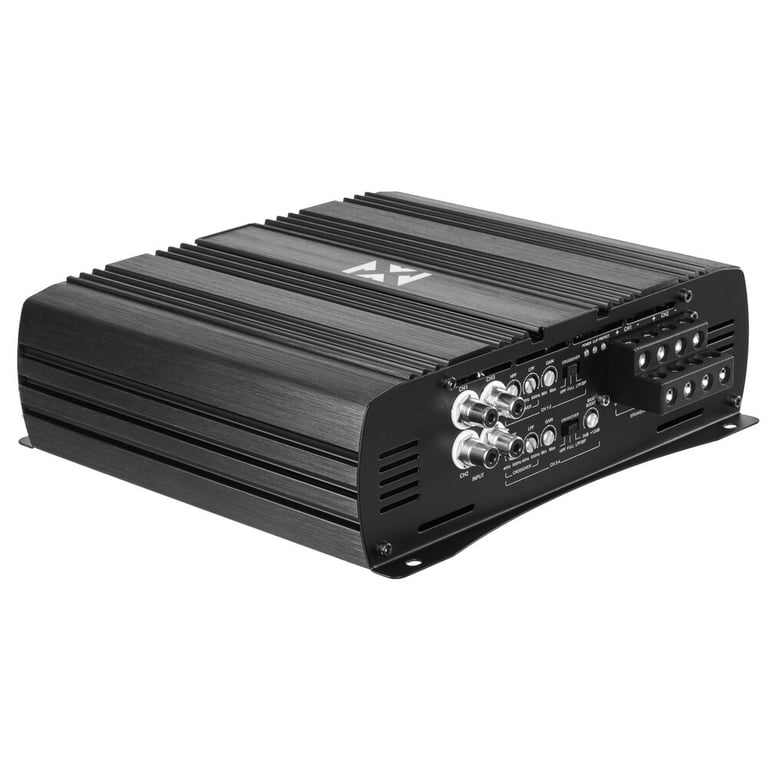

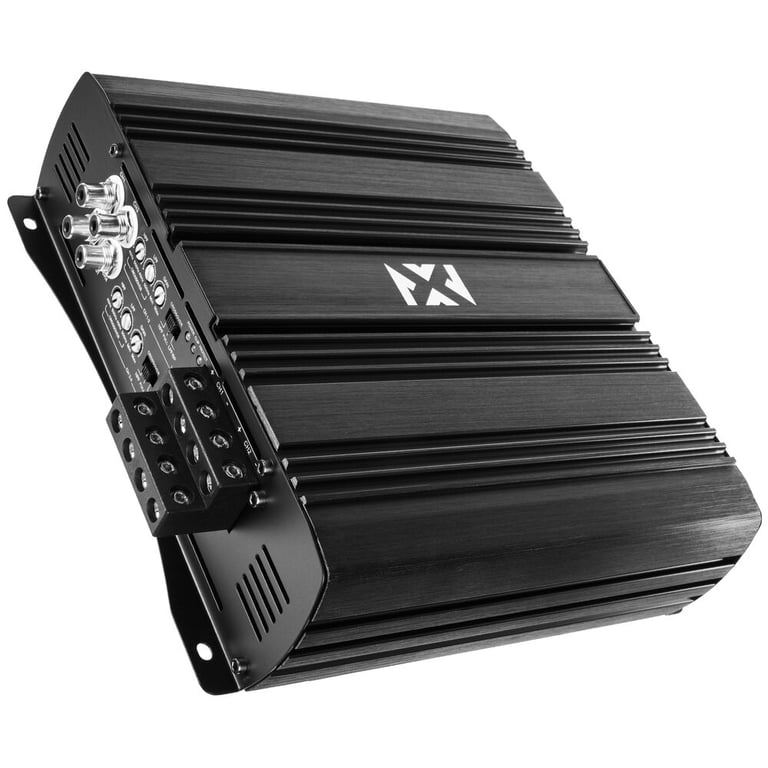

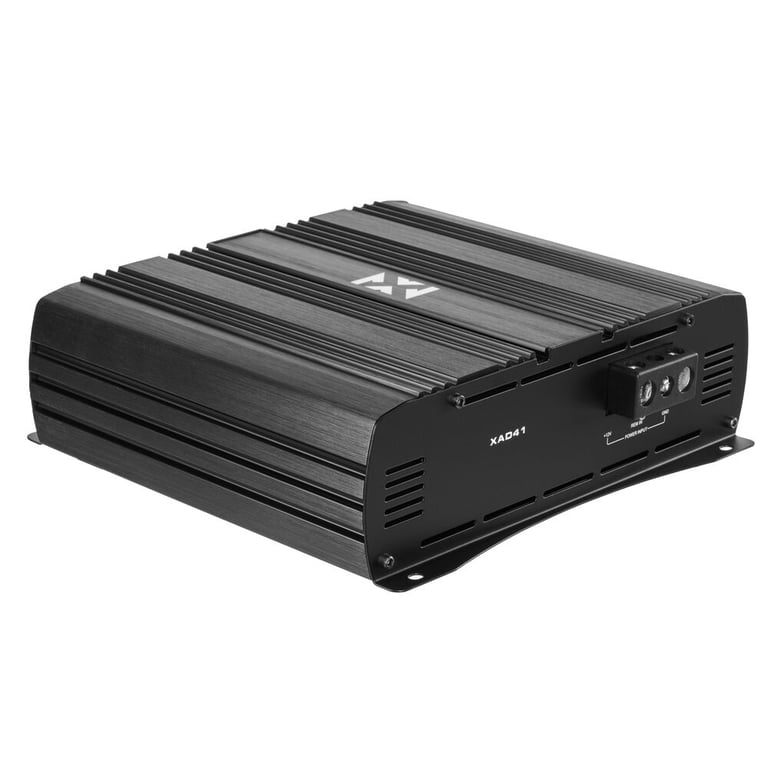

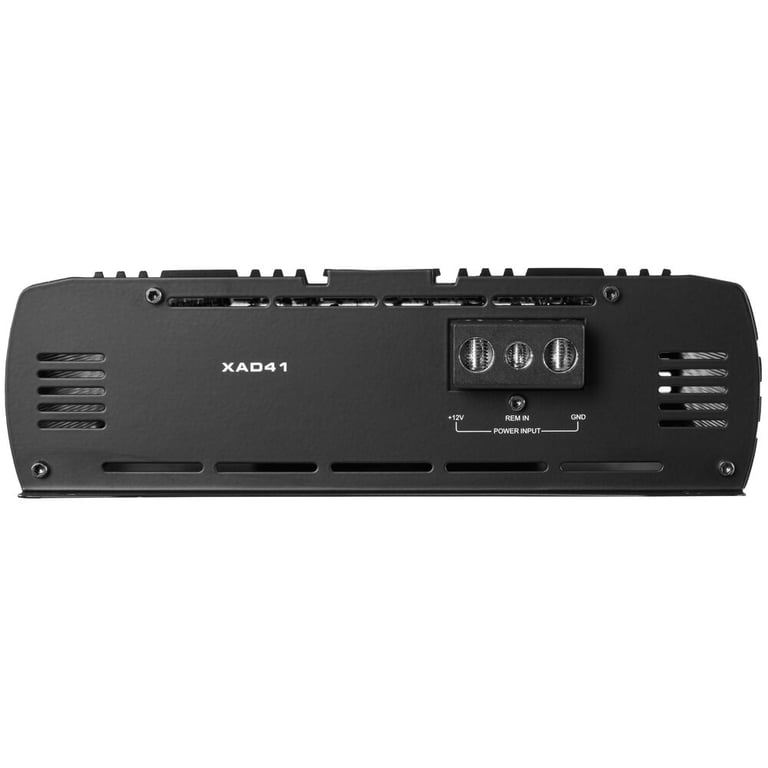

NVX X Series Series XAD41
Class D 1 ohm 4-Channel Amplifier
RMS Power Rating:

4 ohm: 100 watts x 4 channel
2 ohm: 150 watts x 4 channel
1 ohm: 300 watts x 4 channel
Bridged, 4 ohm: 300 watts x 2 channel
Bridged, 2 ohm: 600 watts x 2 channels

Total power output: 1200 watts
CEA-2006 Compliant Amplifier

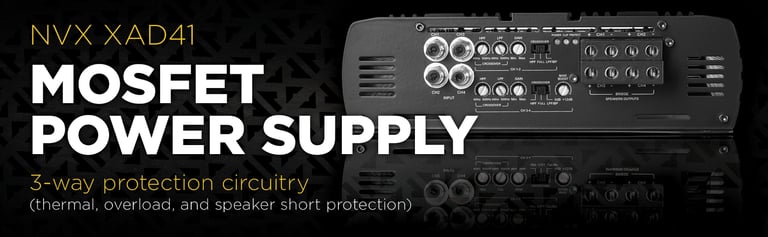

Pulse Width Modulated MOSFET power supply
LED power (green) and protect (red) indicators
Soft start turn-on
3-way protection circuitry (thermal, overload, and speaker short protection)

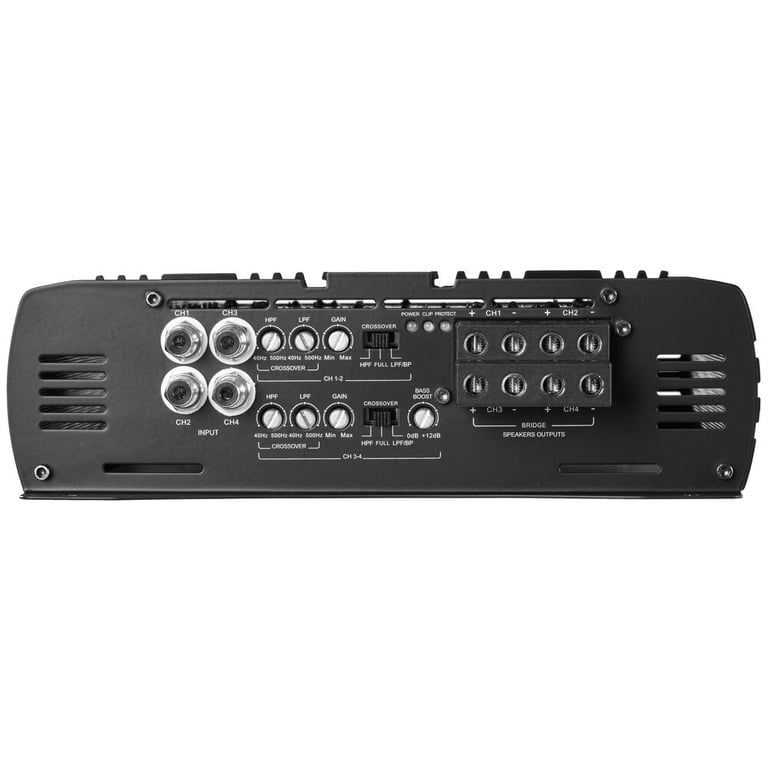

Dual speaker terminals simplify the hookup of multiple speakers
Input sensitivity: 200mV
Frequency Response: 10Hz - 20kHz
Total Harmonic Distortion (THD): 1%
Signal to Noise Ratio: 100 dB

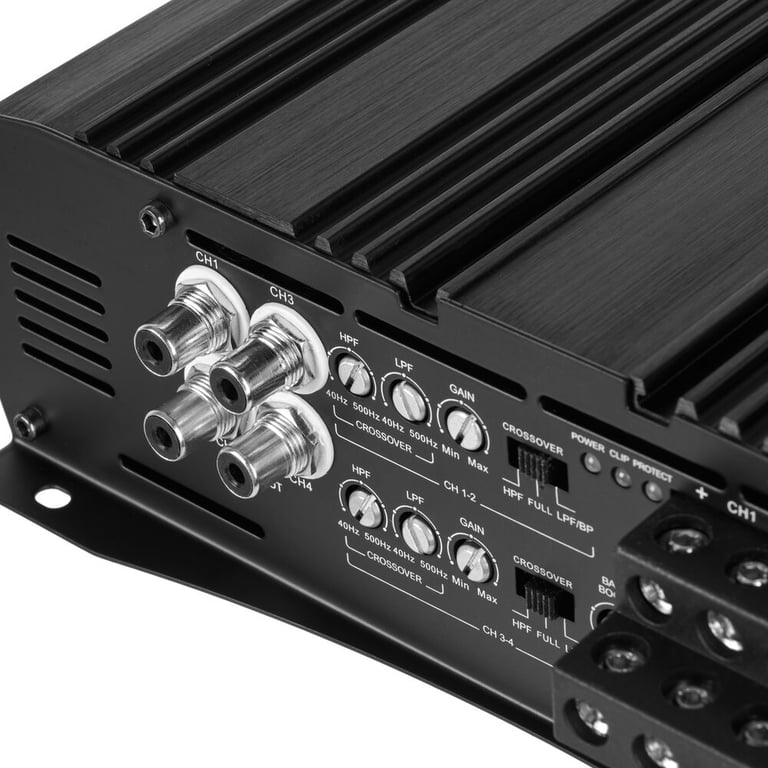

Variable high-pass filter: 40 - 500 Hz, 24 dB/octave
Variable low-pass filter: 40 - 500 Hz, 24 dB/octave
Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
4 AWG gauge power and ground wiring is recommended for installation.

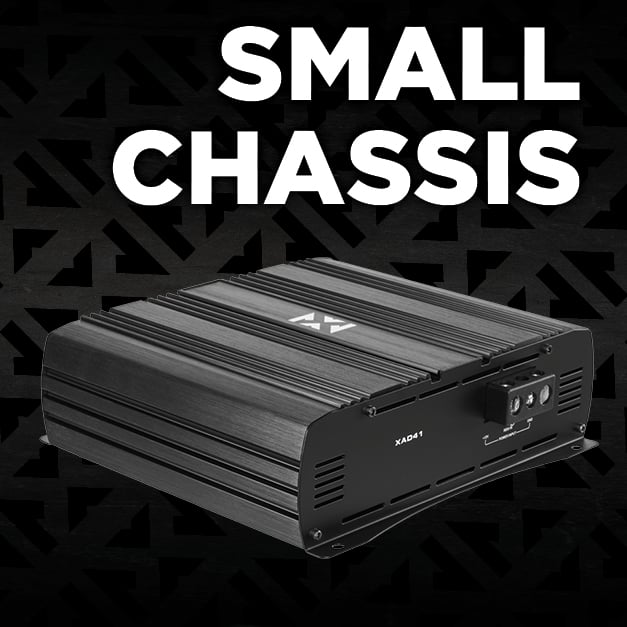

Dimensions: 7.375"W x 8.75"L x 2.5"H
Authorized Internet Dealer
1-year Manufacturer's Warranty

Check out the NVX X-Series 4-Channel Amplifiers Owner's Manual

Specifications & Details

Power Specifications - Full Range Channels

RMS Power @ 4 ohms

100 watts x 4 channel

RMS Power @ 2 ohms

150 watts x 4 channel

RMS Power @ 1 ohm

300 watts x 4 channel

Bridged RMS Power

300 watts x 2 channel

Power Specifications - Full Range Channels

Peak Power @ 4 ohms

200 watts x 4 channel

Peak Power @ 2 ohms

300 watts x 4 channel

Peak Power @ 1 ohm

600 watts x 4 channel

Bridged Peak/Max Power

600 watts x 2 channel

Amplifier Specifications

Series

X Series

Amplifier Class

Number of Channels

4-Channel

Total Peak Power Output

2400 watts

Total RMS Power Output

1200 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

1 ohm

Minimum Impedance Bridged

2 ohms

THD at Rated RMS Power

Built-in Crossover

Low-Pass (LP)
High-Pass (HP)

High-Pass Crossover Frequency

40 - 500 Hz

Low-Pass Crossover Frequency

40 - 500 Hz

Signal-to-Noise Ratio

100 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

What is in the box?

Paperwork

User manual
Warranty/Registration card

WITB: Amplifiers

Amplifier
Wired gain knob (wire separate)
Gain knob wire

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Overall rating distribution

5 star		75%
4 star		25%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4.5
Value		5
Features		4.8
Design		5
Usability		5

Customer Reviews

Sort by:

Nice 4 channel

Love this 4 channel amp it’s not big and bulky like a lot of the ones out there that take up too much space. Very clean looking and doesn’t get too hot running at 2ohms has good power and make my door speakers scream NVX has some great products that won’t put you in the poor house I definitely recommend this and all their X series amps.

By larry on February 25, 2022 Checkmark Icon

Verified purchase

30 found this helpful

Report abuse

Perfect

I am happy with this for sure, have it being given signal from a Sony XAV-AX6000 with the 5v preamp outputs to a set of NVX XSP652(rear) and NVX XSP65KIT(front). I used the NVX 4 gauge wiring kit to install this, along with the NVX wire ferrules. This puts out such a clean signal, I originally ordered an amp from SKAR but after comparing S/N ratio I went with this instead.

I ran my RCAs included with the wiring kit along the door channel with my drivers side speaker wires (power wires on the passenger door side) and have been getting some static so I had to turn the gain on this to halfway between the lowest setting and the first dot mark on the gain knob until I rerout them or move to better shielded rcas. That being said even at that low of gain setting they are much louder that 50w rms perchannel I used to get off a Sony MEX-120BT head unit.

If you can part with the money for it get the NVX X class speakers to go with this and run new wire (a little hot for stock wiring) even with the low gain these play LOUD but so clean you don’t realize how loud it is until your ears start getting fatigued and hurting. I used the crossovers on the head unit and have the amps set to full, bypassing it’s hpf/lpf so I can’t really speak to that.

By Frank R on July 7, 2023 Checkmark Icon

Verified purchase

29 found this helpful

Report abuse

One of the best for the price

Downgraded from a sfb 500.4, but I still needed 300rms for my apocalypse Arnold’s so I tried this one out. At 1 ohm it’s not going to sound the best, but it really does sound good and powers them almost like my sundown. I’m going to use it to power tweeters though. I used 1/0 to 4g adapters and haven’t felt the amp get hot with the constant 14.7v my alt produces

By Suii on April 29, 2023 Checkmark Icon

Verified purchase

24 found this helpful

Report abuse

By Calvin on October 2, 2024 Checkmark Icon

Verified purchase

Report abuse
