DS18 ZR12.4D

1500W Peak (750W RMS) 12" ZR Series Dual 4-ohm Car Subwoofer

DS18
Shop all DS18
highlight-star-icon

• Peak Power: 1500 watts
• RMS Power: 750 watts
• Impedance: Dual 2 ohm
• Non-Pressed Paper cone
• Foam surround
• Mount depth: 6.6"
• Sensitivity: 82 dB

Learn more about the zr124d

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Description


DS18 brand icon

Authorized dealer

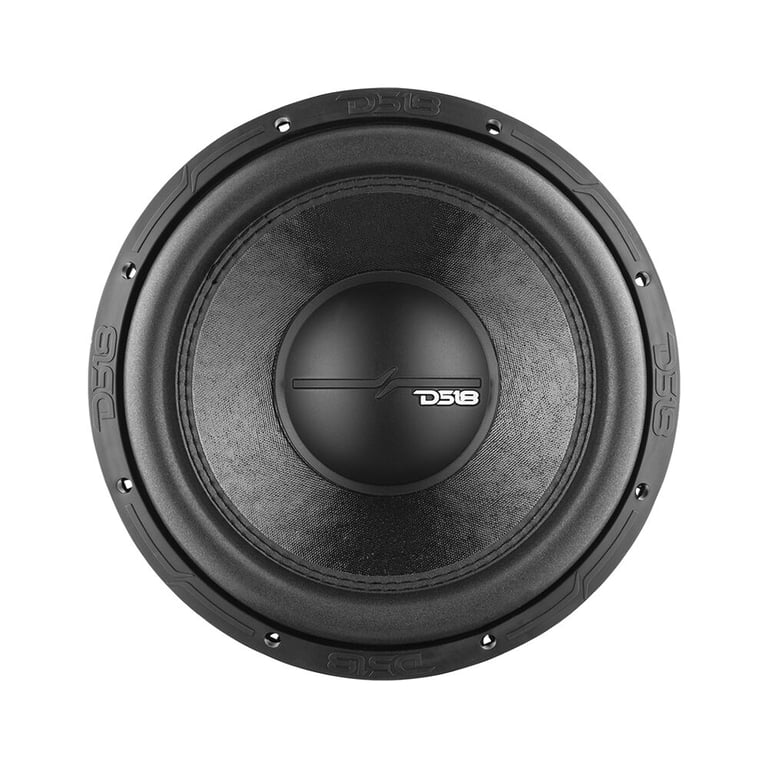

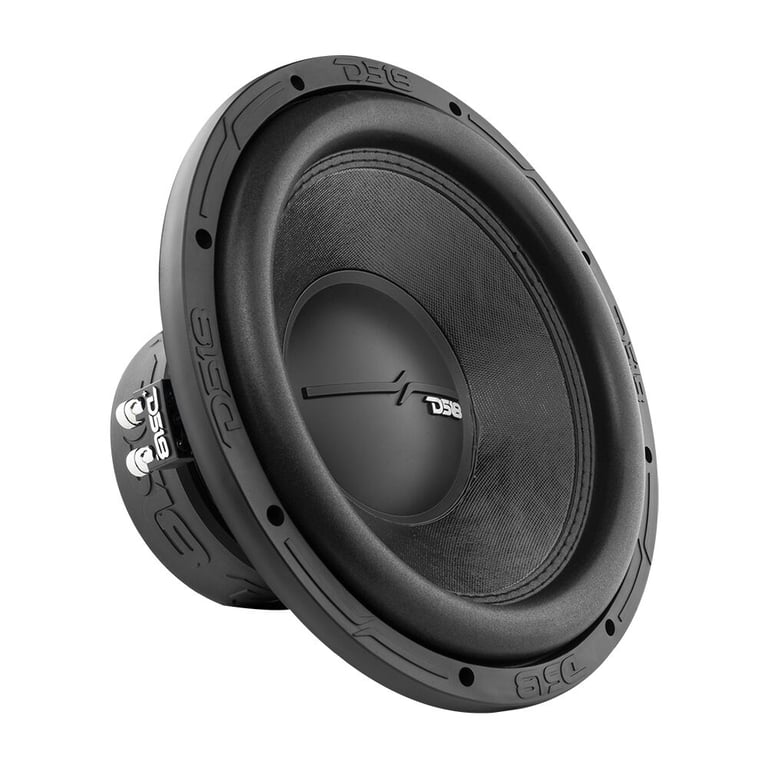

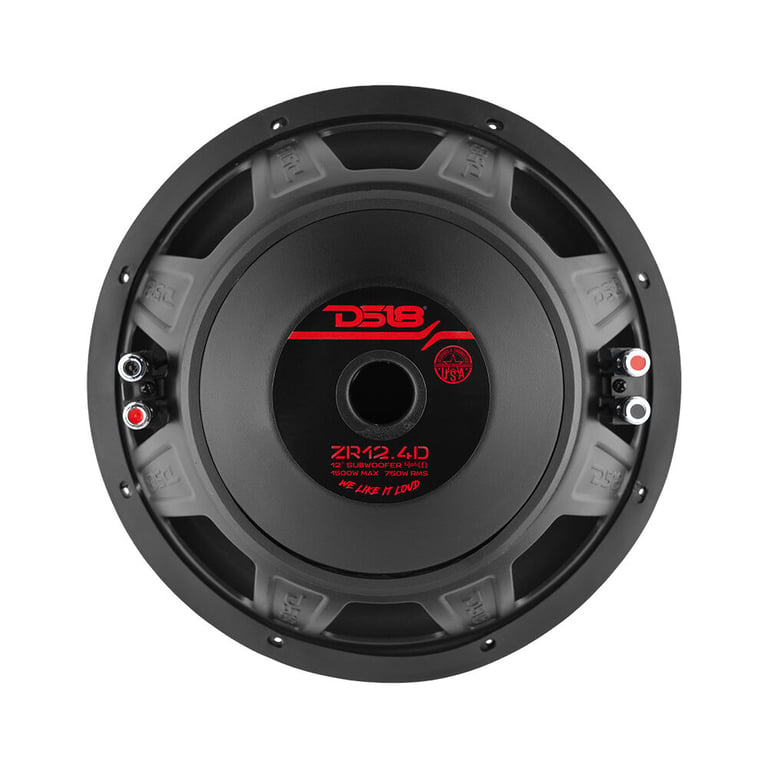

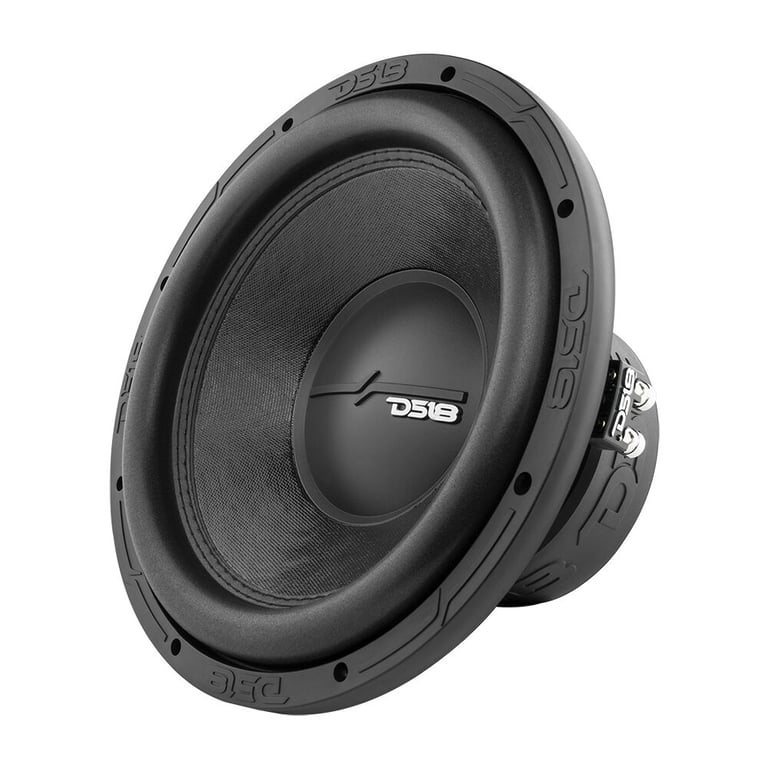

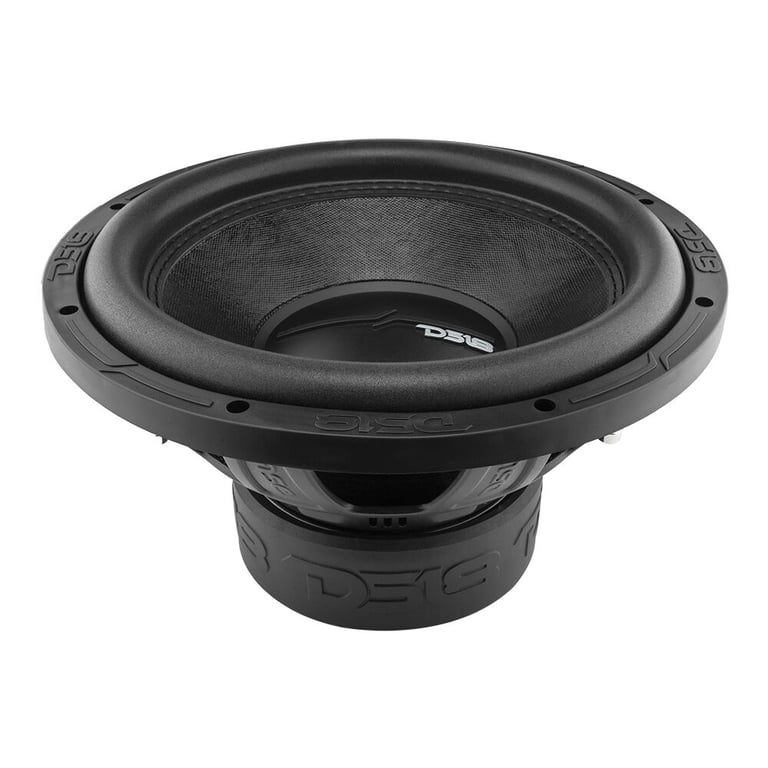

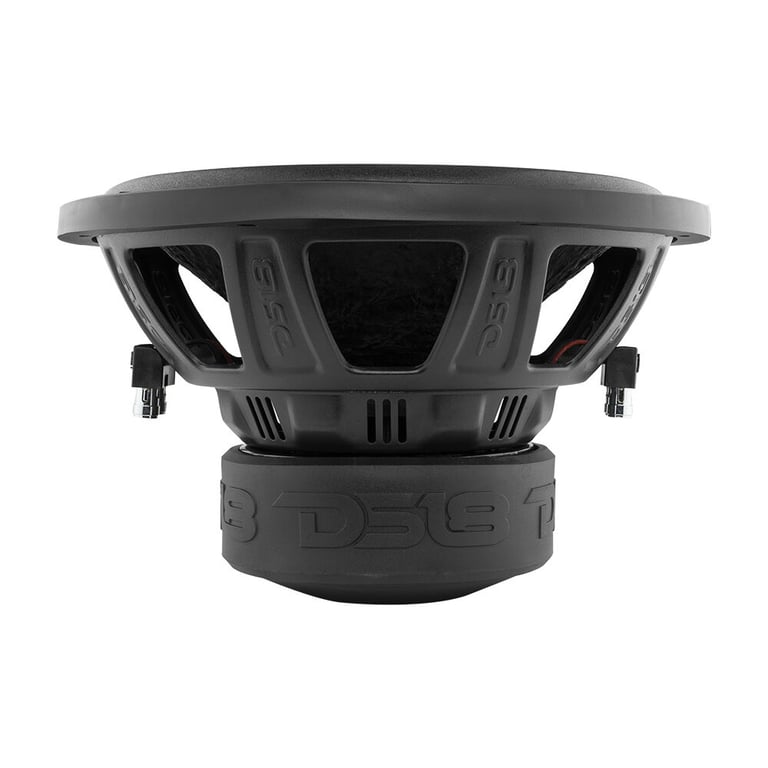

DS18 ZR12.4D

Introducing the DS18 ZR12.4D, a true powerhouse designed to deliver mind-blowing bass and precision performance. The ZR subline is renowned for its exceptional performance, and the ZR12.4D is no exception. With a robust 1500W of MAX power handling and 750W of RMS power handling, the ZR12.4D guarantees a spine-tingling audio experience that will leave you craving for more. Its 2.5-inch high-strength aluminum voice coil ensures that every note is delivered with precision and clarity, elevating your car audio system to new heights. Its 4+4-ohm dual voice coil configuration allows you to match your amplifier's optimal impedance, providing maximum power transfer and efficiency.


Product Details:

  • 12" Dual 2 ohm ZR Series Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 750 watts
  • Non-Pressed Paper cone
  • Foam surround
  • Matte black steel basket material
  • 2.5" Copper voice coil
  • 25 mm Xmax
  • 100 oz. Single Stacked Ferrite magnet motor structure
  • Frequency Response: 25 - 200 Hz
  • Resonance Frequency (Fs): 28 Hz
  • Sensitivity: 82 dB
  • Recommended sealed box volume: 1.5 cubic feet
  • Recommended ported box volume: 2.4 cubic feet
  • Top-mount depth: 6.6"
  • Cutout diameter: 11"
  • Authorized Internet Dealer
  • Includes protective subwoofer grille
  • 1-year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DS18 ZR12.4D Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DS18 ZR12.4D Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DS18 ZR12.4D Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 DS18 ZR12.4D Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
ZR Series
Subwoofer Size
12"
Peak Power Handling
1500 watts
RMS Power Handling
750 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Material
Copper
Voice Coil Diameter
2.5"
Frequency Response
25 - 200 Hz
Sensitivity
82 dB
Xmax (millimeters)
25 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Foam
Magnet Structure
Single Stacked
Magnet weight
100 oz.
Magnet Type
Ferrite
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
Yes
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.5 cubic feet
Optimum Ported Box Volume
2.4 cubic feet
Top-Mount Depth (Mounting Depth)
6.6"
Cutout Diameter
11"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
28 Hz
Equivalent Compliance (Vas)
22.7 liters
Total Speaker Q Value (Qts)
0.79
Electrical Q Value (Qes)
0.94
Electrical Resistance of Voice Coil (Re)
3.4 ohm
Mechanical Q Value (Qms)
5.08
Efficiency Bandwidth Product (EBP)
29.8
