Name: Alpine Status HDA-M80
Brand: Alpine
SKU: hdam80
Price: 899.95 USD
Availability: InStock
Rating: 4.0000 (1 reviews)

Shop all Alpine

by Alpine

Expert Bundles
Current Promos
About
Similar Products
Specs & Details
Reviews
Add-ons
Related Products
Recently Viewed
Related Searches

Product highlights

• 500 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 800 watts
• Class D 2 ohm Stable Monoblock Amplifier

Learn more about the hdam80

Universal – fits most vehicles.

Similar items | Update vehicle | Vehicle store

List price $1080.00

-17%

$899.95

with warranty

Starting at $57/mo with

2+ offers available

Free shipping in USA. Provide zip for delivery date.

VIP Product Get $90.00 in rewards to spend later

Quantity Qty

Available: Ships in 10-14 days

Brand new

Buy it now

Popular alternative

NVX VAD10001 v2 (VAD10001v2) 2000W Peak (1000W RMS) Class D Monoblock Car/Marine/Powersports Amplifier with Bass Remote (Marine Certified)

(37)

$209.99 $227.99

Description

Authorized dealer

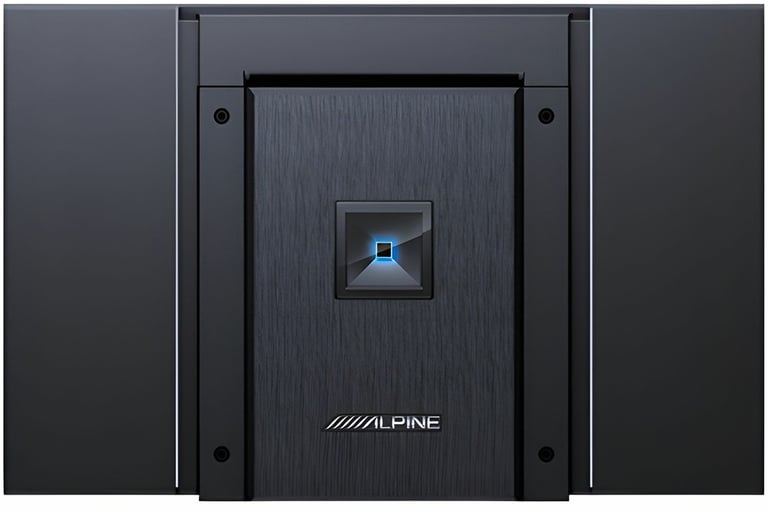

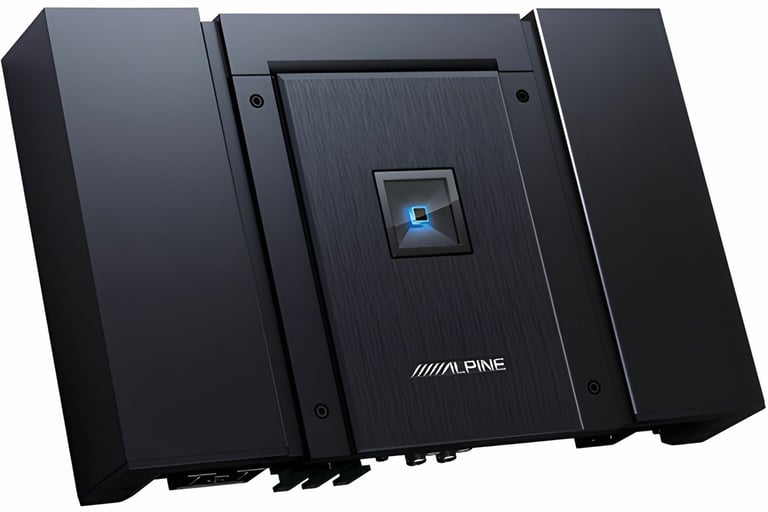

Alpine HDA-M80

Superior Sound

Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.

Impressive Output

Powering a Hi-Res sound system without contributing noise during playback requires efficiency and precision and the HDA-M80 was intentionally designed to provide impressive power output to the system while ensuring the purest audio performance. The amplifier’s wide dynamic range capability provides impressive output in a compact chassis that fits most vehicle applications.

Precise Sound Reproduction

The HDA-M80 features a high-efficiency digital circuit design that ensures ultra-low distortion levels for precise sound reproduction and superb sound quality. Intentional designs, like copper-plated chassis and black circuit board, bring the signal to noise ratio up to 83db and minimize noise and distortion during playback for complete music fidelity that's true to the original source.

Product Details:

Status Series Class D 2 ohm Stable Monoblock Amplifier
RMS Power Rating:

4 ohm: 500 watts x 1 channel
2 ohm: 800 watts x 1 channel

Total RMS power output: 800 watts
Wired bass remote Alpine RUX-KNOB.2 or Alpine RUX-H01 (sold separately)
High-Efficiency Digital Circuit Design
Alpine's Dual Negative Feedback Control Circuit
High Bandwidth Amplifier
Featuring copper-plated chassis
Black circuit board

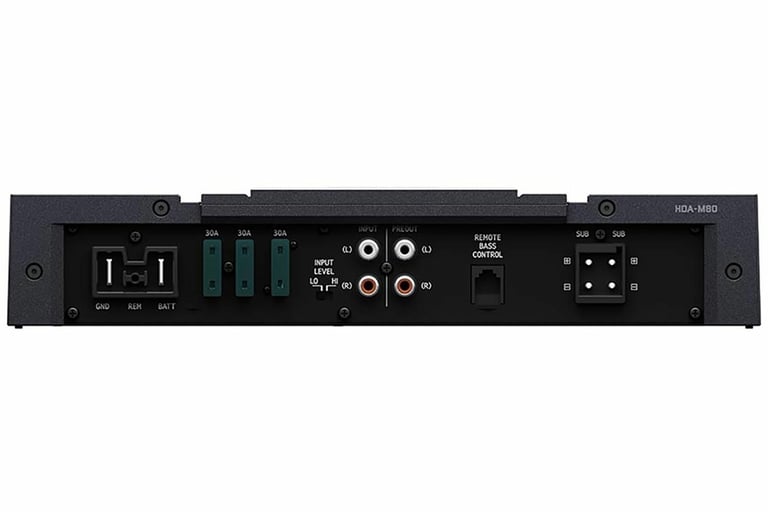

One-sided terminal layout
Top panel sound controls
Quick connect power and speaker terminals
Input sensitivity:

Low level: 0.1 - 4.0 volts
High level: 0.4 - 10 volts

Frequency Response: 8 - 400 Hz
Total Harmonic Distortion (THD): 1%
Signal to Noise Ratio: >107 dB
Variable low-pass filter: 50 - 400 Hz
Subsonic filter: 8 - 40 Hz
Variable Bass Boost: 0 - 12 dB
Fuse Rating: 90A
4 AWG gauge amplifier wiring kit is recommended for installation
Dimensions: 11-1/2" L x 7-1/2" W x 2-1/8" H
Authorized Internet Dealer
1-year Manufacturer's Warranty
MFR #: HDA-M80

Specifications & Details

Key Features

Amplifier Key Features

Bass Boost
Compact Design
Hi-Res Audio Certified
Speaker Level Inputs

Power Specifications - Subwoofer Channel

RMS Power @ 4 ohms

500 watts x 1 channel

RMS Power @ 2 ohms

800 watts x 1 channel

Amplifier Specifications

Series

Status Series

Amplifier Class

Number of Channels

1 - Mono

Total RMS Power Output

800 watts

Maximum Input Gauge Size

4 AWG

Minimum Impedance Unbridged

2 ohm

Minimum Impedance Bridged

Not Bridgeable

Frequency Response

8 - 400 Hz

THD at Rated RMS Power

Speaker Level Inputs

Optional (Requires Accessory Adapter)

Preamp Outputs

1 pair

Built-in Crossover

Low-Pass (LP)
Subsonic

Low-Pass Crossover Frequency

50 - 400 Hz

Subsonic Filter

8 - 40 Hz

Signal-to-Noise Ratio

>107 dB

Bass Boost

0 - 12 dB

Remote bass/level controller

Optional (Accessory required and sold separately)

Fuse Rating

30A x 3

Total Fuse Rating

Strappable

Amp Bluetooth Connectivity

Hi-Res Certified

Yes

Low-Level Input Sensitivity

0.1 - 4.0 volts

High-Level Input Sensitivity

0.4 - 10 volts

What is in the box?

Paperwork

User manual
Warranty/Registration card
Quick start guide

WITB: Amplifiers

Amplifier
Mounting screws (6)
Two spare fuses
Allen wrenches (2)

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer

Customer Ratings & Reviews

Overall rating distribution

5 star		0%
4 star		100%
3 star		0%
2 star		0%
1 star		0%

Filter by Star Rating

Show only Verified Purchases

By feature average rating

Durability		4
Value		3
Features		4
Design		5
Usability		4

Customer Reviews

Sort by:

Works fine, small footprint

The best part of the amp is the looks. It’s very heavy for a small amp. Same specs as last years model. Not sure what makes this a Status amp. The older PDX amps had better THD and SNR.

By Shane on September 16, 2023 Checkmark Icon

Verified purchase

19 found this helpful

Report abuse
